1 OVERVIEW
This user manual is aimed to give users a fast introduction to the UNO to PCIe (Ver 1.2) board. This
board is a daughter board for both NuMaker-IoT-M487 (Ver 1.2) board and NK-980IoT. It needs to be
combined with the Quectel EC21 module board, Quectel BG96 module and ZTE ME3630 module
board to connect to LTE. This board can work independently by USB2.0.

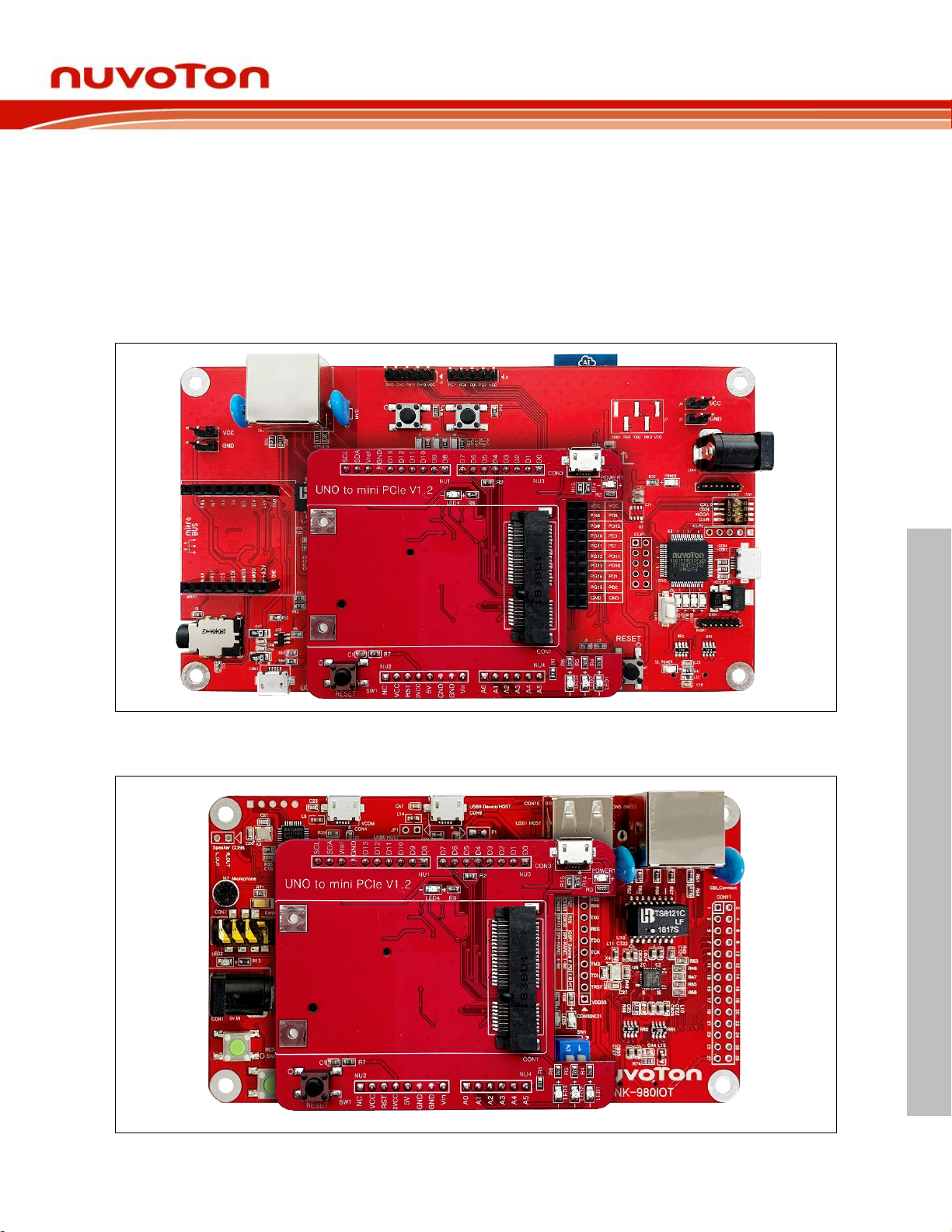

Figure 1-1 shows the combination picture of UNO to PCIe board (top) and NuMaker-IoT-M487 board
(bottom). Figure 1-2 shows the combination picture of UNO to PCIe board (top) and NuMaker-IoT-
M487 board (bottom).
Figure 1-1 Combination of UNO to PCIe Board and NuMaker-IoT-M487 Board
Figure 1-2 Combination of UNO to PCIe Board and NK-980IoT Board

UNO to PCIe
April 30, 2019 Page 6of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
Brief Introduction to NuMaker-IoT-M487 Board
The NuMaker-IoT-M487 is a development board using Nuvoton M487JIDAE MCU which includes
Arm®Cortex®-M4 core and rich peripherals. It also has motion sensor and WiFi connectivity on board
as well as plenty of reference materials to let user to quickly develop IoT device applications.
Furthermore, the board provides several interface and connectors for expansion. There are Arduino
Uno compatible interface, mikroBUS™ interface, NuMaker Brick I2C connector, and simulated CMOS
sensor connector.
For more detailed information about the NuMaker-IoT-M487 board, please visit Nuvoton NuMicro
Family ARM®Cortex®-M4 MCUs website to get the related User Manual document.
https://www.nuvoton.com/hq/products/microcontrollers/arm-cortex-m4-mcus/m487-ethernet-
series/User-Manual

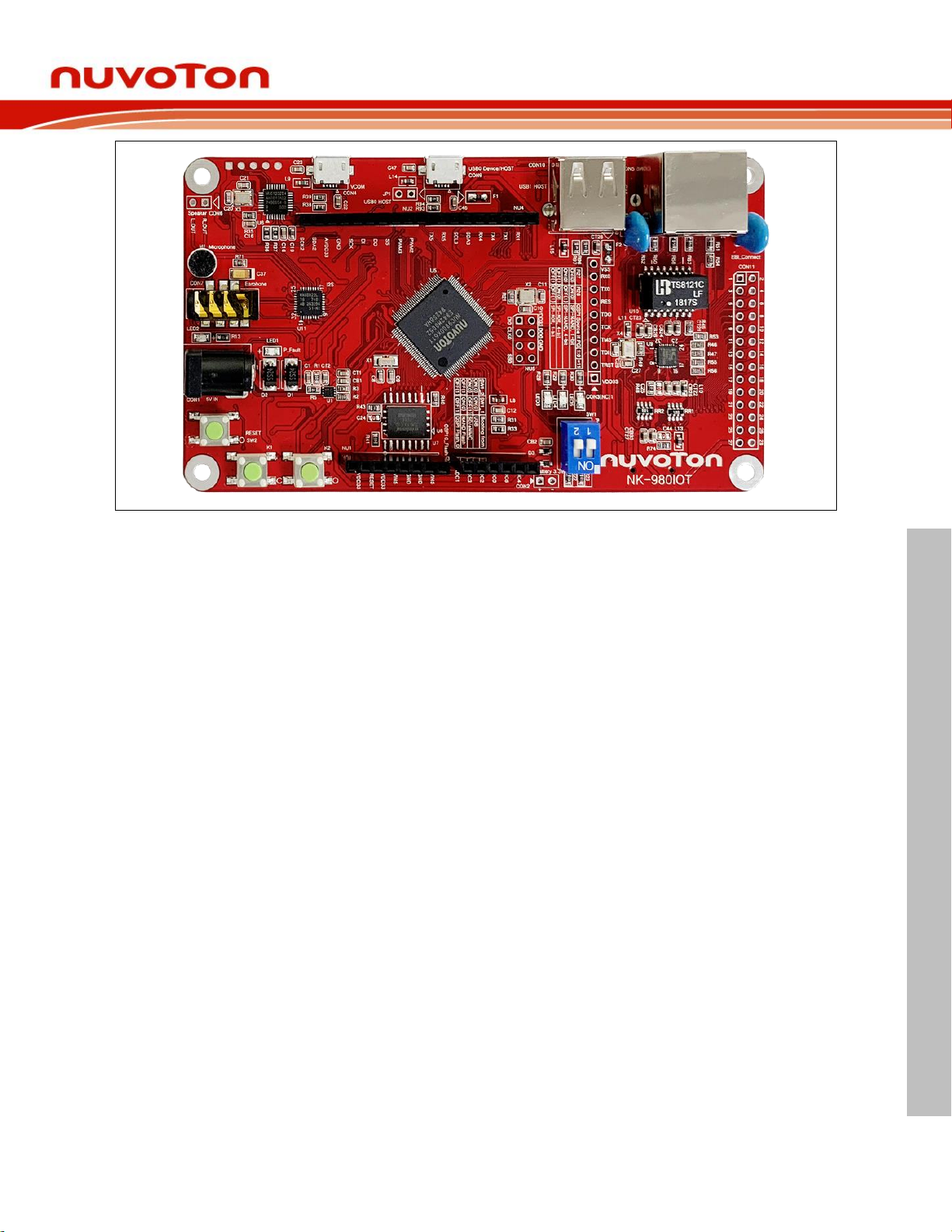

Figure 1-3 NuMaker-IoT-M487 Board
Brief Introduction to NK-980IoT Board
The NK-980IoT board is a development board based on an ARM®ARM926EJ-S microprocessor
NUC980DK61Y which has very rich peripherals to help users easily to design-in their products or
application systems. The NK-980IoT board uses NUC980DK61Y microprocessor run up to 300 MHz
with built-in 64MB DDR2 memory, 16 KB I-cache, 16 KB D-cache and MMU, 16 KB embedded SRAM
and 16.5 KB IBR (Internal Boot ROM) for system booting from USB, SPI NAND flash and SD/eMMC,
All functions of the NUC980DK61Y are placed on the board, including peripheral interfaces such as
memory (SPI NAND Flash, eMMC, SD), UART, Audio controller(NAU8822L), 10/100 Mb Ethernet
MAC controller, high speed USB(device, HOST), JTAG and EBI, furthermore, the board provides
Arduino Uno compatible interface for expansion. Users can use it to develop and verify applications to
emulate the real behavior.
For more detailed information about the NK-980IoT board, please visit Nuvoton ARM9 Family website
to get the related User Manual document.
https://www.nuvoton.com/hq/products/microprocessors/arm9-mpus/User-Manual

UNO to PCIe
April 30, 2019 Page 7of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
Figure 1-4 NK-980IoT Board

UNO to PCIe
April 30, 2019 Page 8of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
2 UNO TO PCIE BOARD OVERVIEW
Front View
Figure 2-1 shows the main components and connectors from the front side of UNO to PCIe board.
The following lists components and connectors from the front view:
mini PCIe connector (CON1)
USB0 Device (CON3)
Push-buttons (SW1)
LEDs (POWER, LED1, LED2, LED3, LED4)
UNO interface connectors (NU1, MU2, NU3, NU4)
LED (POWER)
mini PCIe
connector
(CON1)
SW1 LED1
LED2
LED3
UNO interface
(NU1, NU3) USB0
Device
(CON3)
UNO interface
(NU2, NU4)
LED4
Figure 2-1 Front View of UNO to PCIe Board

UNO to PCIe
April 30, 2019 Page 9of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
Rear View
Figure 2-2 shows the main components and connectors from the rear side of UNO to PCIe board.
The following lists connectors from the rear view:
Mini SIM card slot for SIM1 (CON2)
Switch for UART pins of NuMaker-IoT-M487 board (SW2)
SW
Status
Function
GPIO pin of UNO
interface
SW2.1
ON
UART_CTS
D12
SW2.2
ON
UART_RTS
D11
SW2.3
ON
UART_TXD
D10
SW2.4
ON
UART_RXD
D13
Switch for UART pins of NK-980IoT board (SW3)
SW
Status
Function
GPIO pin of UNO
interface
SW3.1
ON
UART_CTS
D9
SW3.2
ON
UART_RTS
D8
SW3.3
ON
UART_TXD
D1
SW3.4
ON
UART_RXD
D0
Note: Only one switch of SW2 and SW3 can be used and cannot be used at the same
time. If users only need to use UART_TXD and UART_RXD, users can turn on SW3.3
and SW3.4 regardless of NuMaker-IoT-M487 board and NK-980IoT board.
Switch for UART power supply (SW4)
SW
Status
Function
power
SW4.1/ SW4.2
ON/OFF
UART power supply
3.3V
SW4.1/ SW4.2
OFF/ON
UART power supply
1.8V

UNO to PCIe
April 30, 2019 Page 10 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
SIM Card slot
(CON2)
SW2
SW4
SW3
Figure 2-2 Rear View of UNO to PCIe Board

UNO to PCIe
April 30, 2019 Page 11 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
Pin Assignment for mini PCIe interface
The UNO to PCIe daughter board is equipped with mini PCIe connecter, USB2.0, Sim Card and one
push button for user developing and verifying some special feature. Besides, the pin arrangement of
UNO to PCIe is compatible with Arduino UNO.
This UNO to PCIe board supports Quectel EC21 module board, Quectel BG96 module board and ZTE
ME3630 module board. Table 2-1 shows the pin assignment for mini PCIe interface.
Table 2-1 Pin Assignment for mini PCIe interface
Pin No.
PCIe Pin Name
Pin No.
PCIe Pin Name
1
WAKE#
2
3VCC
3
-
4
GND
5
-
6
-
7
-
8
SC_PWR
9
GND
10
SC_DAT
11
UART_RXD
12
SC_CLK
13
UART_TXD
14
SC_RST
15
GND
16
-
17
UART_RI
18
GND
19
-
20
W_DISABLE
21
GND
22
PERST#
23
UART_CTS
24
-
25
UART_RTS
26
GND
27
GND
28
-
29
GND
30
-
31
UART_DTR
32
-
33
UART_DCD
34
GND
35
GND
36
PCIe_USB_DM
37
GND
38
PCIe_USB_DP
39
3VCC
40
GND
41
3VCC
42
LED_WWAN#
43
GND
44
-
45
-
46
-
47
-
48
-
49
-
50
GND
51
-
52
3VCC

UNO to PCIe
April 30, 2019 Page 12 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
Arduino UNO Compatible Interface
Figure 2-3 shows the Arduino UNO compatible interface.
The Table 2-2 shows the mapping tables on these connector headers of NuMaker-IoT-M487 board
and NK-980IoT board.
Figure 2-3 Arduino UNO Compatible Interface

UNO to PCIe
April 30, 2019 Page 13 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
Table 2-2 Arduino UNO Interface of NuMaker-IoT-M487 board and NK-980IoT board Mapping with
UNO to PCIe Board
Header
UNO to PCIe Board
Header
UNO to PCIe Board
Compatible to
Arduino UNO
UNO to PCIe Board
Compatible to
Arduino UNO
UNO to PCIe Board
N
U
2
NU2.1
NC
-
N
U
1
NU1.10
I2C_SCL
-
NU2.2
VDD
NU1.9
I2C_SDA
NU2.3
MCU_RESET
NU1.8
VREF
NU2.4
3VCC
NU1.7
GND
NU2.5
5VCC
NU1.6
D13
UART_RXD_480
NU2.6
GND
NU1.5
D12
UART_CTS_480
NU2.7
GND
NU1.4
D11
UART_RTS_480
NU2.8
VIN
NU1.3
D10
UART_TXD_480
N
U
4
NU4.1
A0
LED1
NU1.2
D9
UART_CTS_980
NU4.2
A1
LED2
NU1.1
D8
UART_RTS_980
NU4.3
A2
LED3
N
U
3
NU3.8
D7
WAKE#
NU4.4
A3
-
NU3.7
D6
PERST#
NU4.5
A4
-
NU3.6
D5
UART_DTR
NU4.6
A5
W_DISABLE
NU3.5
D4
UART_RI
NU3.4
D3
UART_DCD
NU5.3
D2
-
NU5.2
D1
UART_TXD_980
NU5.1
D0
UART_RXD_980

UNO to PCIe
April 30, 2019 Page 14 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
PCB Placement
Figure 2-4 and Figure 2-5 show the front and rear placement of NuMaker M487 Advance board.
Figure 2-4 Front Placement
Figure 2-5 Rear Placement

UNO to PCIe
April 30, 2019 Page 15 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
3 UNO TO PCIE BOARD SCHEMATICS
Interface Connectors
Figure 3-1 shows the all the interface connecters NU1~NU4 that should be connected to the interface
connectors NU1~NU4 of NuMaker-IoT-M487 board and NK-980IoT.
Figure 3-1 Interface Connectors
UART 1.8V Level Shifter
3VCC
1V8
SW4
2. mm DIP SWITCHES PONIES 4 SMD(HPS604-E)
TVCC
TVCC switch
TVCC
3VCC
CB5
0.1uF
C0603
U3
ACE1117C18XM+H
IN
3
GND
1
OUT
2
OUT
4
CT1
10uF/10V
TANT-A
1V8
R1
10K
3.3V to 1.8V
GND
R2
100K
WAKE#
UART_DTR
PERST#
UART_RI
UART_RTS_480
UART_CTS_480
UART_RXD_480
GND
UART_RTS_980
UART_TXD_480
GND
3VCC
UART_DCD
SW1
SMD 按鍵開關 6X6X5H( 黑 ) 卷代
SW4-SMD PERST#
R7
10K
R0603
3VCC
C1
1uF
C0603
W_DISABLE WAKE#
W_DISABLE
WAKE# PERST#
PERST#
RESET
NU2
HEADER 2.54 8X1 male
NC
1
VDD
2
MCU_RESET
3
3VCC
4
5VCC
5
VSS
6
VSS
7
VIN
8
UART_DCD UART_DCD
NU4
HEADER 2.54 6X1 male
A0
1
A1
2
A2
3
A3
4
A4
5
A5
6
NU1
HEADER 2.54 10X1 male
D8 1
D9 2
D10 3
D11 4
D12 5
D13 6
VSS 7
VREF 8
I2C_SDA 9
I2C_SCL 10
NU3
HEADER 2.54 8X1 male
D0 1
D1 2
D2 3
D3 4
D4 5
D5 6
D6 7
D7 8
3VCC
3VCC
N10N7
3VCC
1
2
LED3
Red(LED0805)
R3
220R
R0603
1
2
POWER1
Red(LED0805)
3VCC
LED
R6
220R
R0603
N9
1
2
LED2
Yellow(LED0805)
3VCC
A1
R5
220R
R0603
N8
1
2
LED1
Green(LED0805)
A0
3VCC
R4
220R
R0603
A2
Off-page Connector
GND
GND
3VCC
3VCC
UART_RXD
UART_TXD
UART_TXD
UART_RXD
UART_CTS UART_RTS
UART_CTS
UART_RTS
UART_DTR
UART_DTR UART_RI
UART_RI
Title
Size Document Number Rev
Date: Sheet of
Interface Connector 1.2
UNO_to_PCIe
nuvoTon Technology Corp.
A3
1 4Tuesday, April 09, 2019
A2
A1
A0
Interface Connecter
UART_RXD_3VCC
UART_CTS_480 SW2
2. mm DIP SWITCHES PONIES 4 SMD(HPS604-E)
UART_RTS_480 UART_CTS_3VCC
UART switch
UART_RXD_480
UART_TXD_480 UART_RTS_980
UART_CTS_980UART_RTS_3VCC SW3
2. mm DIP SWITCHES PONIES 4 SMD(HPS604-E)
UART_TXD_3VCC UART_RXD_980
UART_TXD_980
UART_CTS_980
UART_RXD_980
UART_TXD_980
W_DISABLE
GND
GND
SN74LV2T45DCUR
U1
SSOP-8
GND
4A2
3VCCA
1
DIR 5
A1
2
B2 6
B1 7
VCCB 8
3VCC
3VCC SN74LV2T45DCUR
U2
SSOP-8
GND
4A2
3VCCA
1
DIR 5
A1
2
B2 6
B1 7
VCCB 8
TVCC
TVCC
UART_RXD_3VCC
UART_CTS_3VCC
UART_TXD_3VCC
UART_RTS_3VCC LS_DO_DIR1
UART_CTS
UART_RTS
UART_RXD
UART_TXD
LS_DO_DIR2
CB1
0.1u
C0603
CB2
0.1u
C0603
3VCC TVCC
CB3
0.1u
C0603
3VCC TVCC
CB4
0.1u
C0603

UNO to PCIe
April 30, 2019 Page 16 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
mini PCIe interface

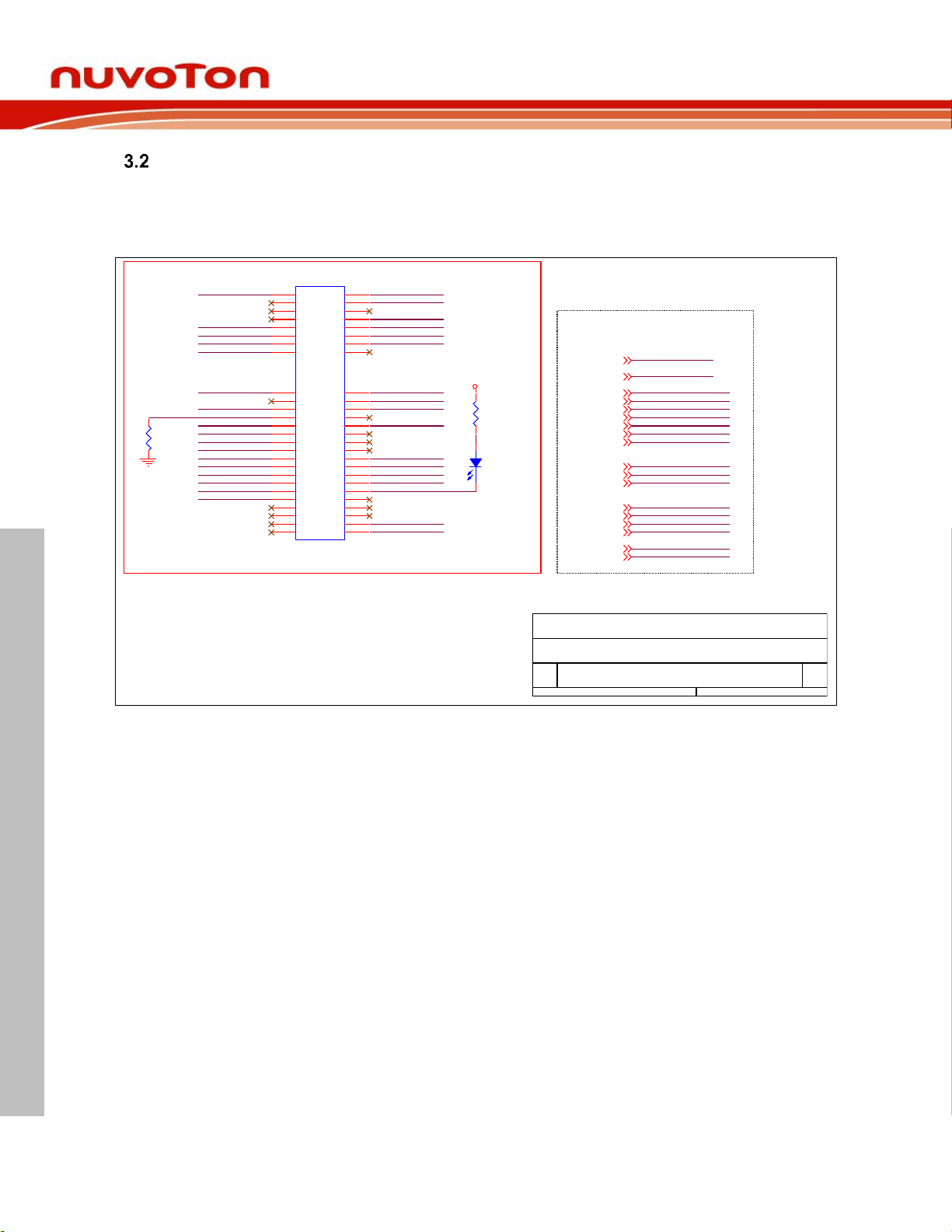

Figure 3-2 shows the mini PCIe interface.
Figure 3-2 mini PCIe interface
W_DISABLE
WAKE# WAKE#
W_DISABLE
PERST# PERST#
UART_DCD UART_DCD
UART_DTR UART_RI
UART_DTR
UART_RI
UART_DCD
GND
R9
100K
CON1
mini PCIe
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30
31
31 32 32
33
33 34 34
35
35 36 36
37
37 38 38
39
39 40 40
41
41 42 42
43
43 44 44
45
45 46 46
47
47 48 48
49
49 50 50
51
51 52 52
Off-page Connector
GND
3VCC
GND
3VCC
UART_RXD
UART_TXD
UART_TXD
UART_RXD
UART_TXD
UART_RXD
GND
GND
3VCC
GND
SC_DAT
SC_PWR
PCIe_USB_DM
SC_RST
SC_CLK
GND
PCIe_USB_DP
GND
GND
GND
W_DISABLE
PERST#
3VCC
GND
GND
UART_RI
GND
UART_RTS
UART_CTS
GND
UART_DTR
GND
3VCC
GND
GND
3VCC
WAKE#
UART_CTS UART_RTS
UART_CTS
UART_RTS
LED4
Red
3VCC
N3
R8
330
LED_WWAN#
mini PCIe
SC_RST
SC_CLK
SC_RST
SC_CLK
SC_DAT SC_DAT
SC_PWR
Title
Size Document Number Rev
Date: Sheet of
mini PCIe 1.2
UNO_to_PCIe
nuvoTon Technology Corp.
A
2 4Tuesday, April 09, 2019
SC_PWR
PCIe_USB_DM
PCIe_USB_DP
PCIe_USB_DM PCIe_USB_DP

UNO to PCIe
April 30, 2019 Page 17 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
SIM Card

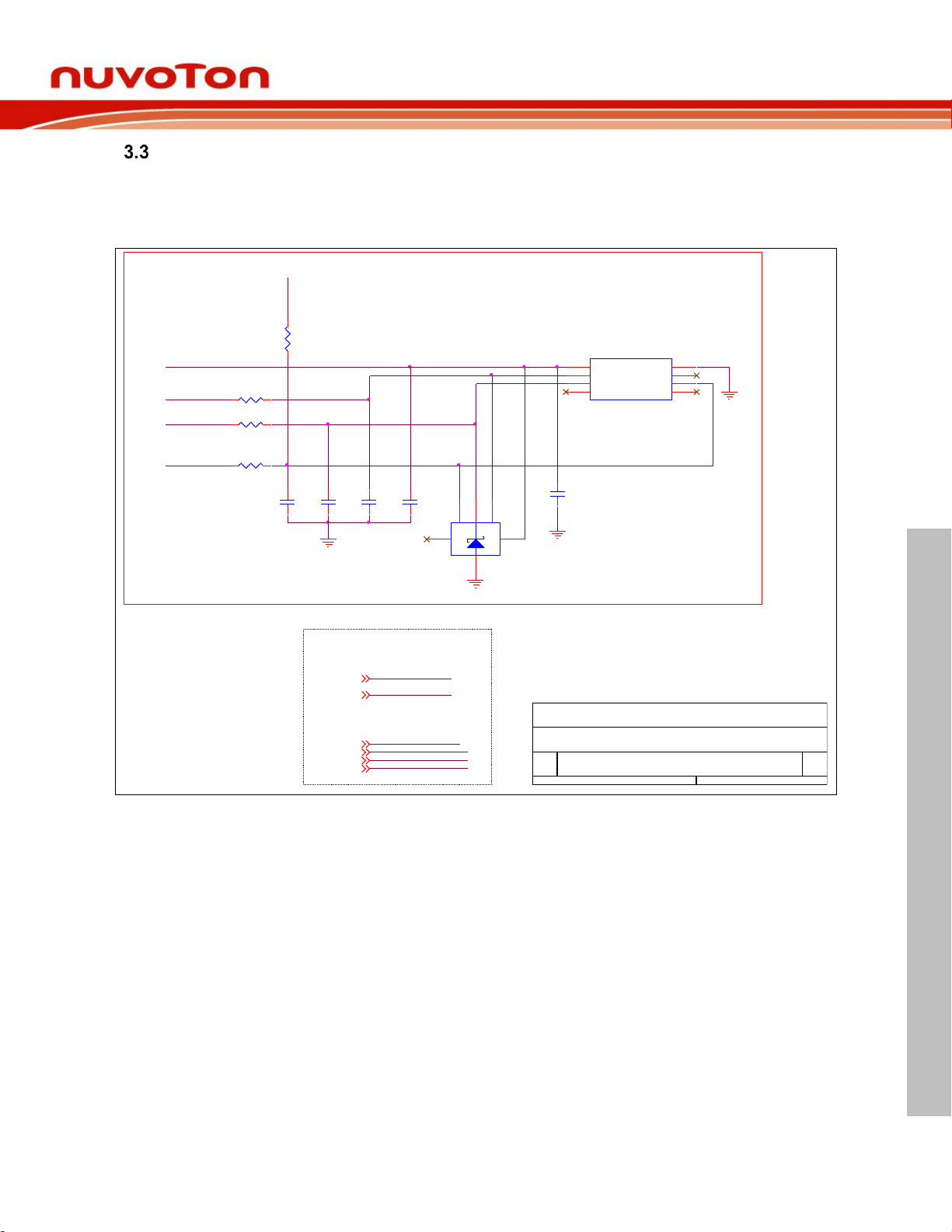

Figure 3-3 shows the SIM Card circuit.
Figure 3-3 SIM Card Circuit
N5
C6
33pF
C0603
R10
15K
SC_PWR
U4
SMF15C
TSOP-6
2
2
33
44 66
1
1
55
SC_PWR
R1122
R1222
R1322 N6
N4
C2
33pF
C0603
C3
33pF
C0603
C5
33pF
C0603
SC_DAT
C4
100nF
C0603
GND
GND
GND
GND
CON2
SIM_Card_1
SIM_VCC
1
SIM_RST
2
SIM_CLK
3
C4
4
SIM_GND 5
SIM_VPP 6
SIM_IO 7
C8 8
SIM Card
Off-page Connector
GND
SC_CLK
3VCC
3VCC
GND
SC_RST
SC_CLK SC_RST
SC_DAT
SC_PWR
SC_DAT
SC_PWR Title
Size Document Number Rev
Date: Sheet of
SIM Card 1.2
UNO_to_PCIe
nuvoTon Technology Corp.
A
3 4Wednesday, April 03, 2019
SC_RST
SC_CLK

UNO to PCIe
April 30, 2019 Page 18 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
USB Device
Figure 3-4 shows the USB device circuit.
Figure 3-4 USB Device Circuit
VIN
CB6
0.1uF
C0603
1 2
D1
SS24A
DO-214AC
U5
ACE1117C33XM+H
IN
3
GND
1
OUT
2
OUT
4
CT2
10uF/10V
TANT-A
5V_IN 3VCC
N1
USB Device
GND
Off-page Connector
3VCC
GND
3VCC
PCIe_USB_DP
PCIe_USB_DM
PCIe_USB_DP
PCIe_USB_DM
GND
N2
PCIe_USB_DP
PCIe_USB_DM R14 0
R15 0
CON3
USB_MICRO_RECEP.
V+
1
D-
2
D+
3
ID
4
GND
5
6 78
9
D-
D+
Title
Size Document Number Rev
Date: Sheet of
USB Device 1.2
UNO_to_PCIe
nuvoTon Technology Corp.
A
4 4Wednesday, April 03, 2019

UNO to PCIe
April 30, 2019 Page 19 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
4 REVISION HISTORY
Date
Revision
Description
2019.04.30
1.00
1. Initially issued.

UNO to PCIe
April 30, 2019 Page 20 of 20 Rev 1.00
UNO to PCIe USER MANUAL
Maker Nu-mbed NUC472 User Manual
Important Notice
Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any
malfunction or failure of which may cause loss of human life, bodily injury or severe property
damage. Such applications are deemed, “Insecure Usage”.
Insecure usage includes, but is not limited to: equipment for surgical implementation, atomic
energy control instruments, airplane or spaceship instruments, the control or operation of
dynamic, brake or safety systems designed for vehicular use, traffic signal instruments, all
types of safety devices, and other applications intended to support or sustain life.
All Insecure Usage shall be made at customer’s risk, and in the event that third parties lay
claims to Nuvoton as a result of customer’s Insecure Usage, customer shall indemnify the
damages and liabilities thus incurred by Nuvoton.
