QBT OWNER’S MANUAL ABOUT YOUR QBT
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE MICHIGAN 49858-1029
[phone] ♦[phone] Sales Fax [phone] ♦Service Fax [phone] page 1
ABOUT YOUR QBT
The NU-VU®QBT is an electrically powered and operated commercial baking/cooking appliance. It does not
require exterior venting under normal circumstances; however, hood and venting requirements vary from country
to country, state to state, and even from locality to locality. For this reason, NU-VU®cannot give specific detailed
information regarding your individual application. Your local building inspector, licensed contractor, or installer is
best qualified to determine your specific needs.
The oven section of the QBT features our patented V-AIR®air movement system. A top-mounted blower moves
the air down through the side walls to be heated, then out through specially designed hole patterns to provide even
heat distribution throughout the oven. Your product is baked evenly from top to bottom, side to side, front to back
without turning pans. You can load the oven completely with pans having the same product, bake, and remove the
entire load at the same time. The bake is uniform because each shelf now receives essentially the same air pattern.
It is constructed of stainless steel both inside and out. The front and back frames are cut from single sheets of
stainless steel. Components such as temperature and humidity controls, timers, switches, motors, heating elements,
and others are thoroughly tested before shipment. Ongoing research and development projects are used to
introduce the latest and most dependable components.
The NU-VU®QBT is designed for:
• Automatic pan positioning • Dependability
• Rapid and even baking • Low energy consumption
• Easy cleaning • Low maintenance
• Simple operation • Rapid servicing
The AUTOFILL option eliminates the manually filled water pan in the proofer, but requires connection to a
pressurized potable water supply. The immersible element in the AUTOFILL water pan distributes humidity
evenly throughout the proofer compartment to provide the controlled humidity necessary for proper proofing
action.
IMPORTANT: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

ABOUT YOUR QBT QBT OWNER’S MANUAL
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-1029
Page 2Sales Fax [phone] ♦Service Fax [phone] [phone] ♦[phone]
QBT SPECIFICATIONS:
Exterior Dimensions
QBT-4/8 Height = 77-7/16" (1967mm) Width = 32-1/4”" (820mm) Depth = 37" (819mm)
QBT-5/10 Height = 83-7/8" (2131mm) Width = 32-1/4”" (820mm) Depth = 36-15/16" (939mm)
Interior Dimensions (usable space)
Oven:
QBT-4/8 Height = 22" (558mm) Width = 18-1/4" (464mm) Depth = 28-1/2" (724mm)
QBT-5/10 Height = 22-1/4" (566mm) Width = 18-1/4" (464mm) Depth = 28-1/2" (724mm)
Proofer:
QBT-4/8 Height = 27-1/8" (688mm) Width = 18-3/8" (467mm) Depth = 27-1/2" (698mm)
QBT-5/10 Height = 33-5/8" (855mm) Width = 18-3/8" (467mm) Depth = 28-5/8" (728mm)
Door Swing (straight out from face of unit)
QBT-4/8 & QBT-5/10 Oven = 33-1/2" (851mm) Proofer = 33-1/2" (851mm)
Capacities
QBT-4/8
Oven = Four (4) 18" x 26" (457mm x 660mm) full size sheet pans with 5” (127mm) spacing.
Proofer = Eight (8) 18" x 26" (330mm x 457mm) full size sheet pans with 3-1/2" (88mm) spacing
QBT-5/10
Oven = Five (5) 18" x 26" (457mm x 660mm) full size sheet pans with 4” (102mm) spacing.
Proofer = Ten (10) 18" x 26" (330mm x 457mm) full size sheet pans with 3-1/4" (83mm) spacing.
Listings/Approvals
Service Connections
Electrical:
208 volt, 60 Hz 240 volt, 60 Hz 230V, 50 Hz
Single or three phase, to be hard wired on site. No separate neutral is required
380 volt, 50 Hz 415 volt, 50 Hz
Three phase, to be hard wired on site. A separate neutral is required
The oven compartment uses two 3,500-watt heating elements.
The proofer compartment for the standard AUTOFILL proofer uses two 600-watt heating
elements and one 500-watt humidity element.
Water:
Standard AUTOFILL units require direct connection to a pressurized potable water supply by
means of 1/4" (6.35mm) OD plastic or copper tubing.
Minimum water pressure: 20 PSI (131 kPa) Maximum water pressure 100 PSI (689 kPa).
Any unit requiring connection to a water supply comes equipped with a 1/4” (6.35mm) push
to connect fitting installed on the back of the unit.

QBT OWNER'S MANUAL RECEIPT, INSTALLATION AND START-UP
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE MICHIGAN 49858-1029
[phone] ♦[phone] Sales Fax [phone] ♦Service Fax [phone] page 3
RECEIPT, INSTALLATION AND START-UP
RECEIPT:
It is essential to inspect the unit immediately when it arrives. NU-VU®has placed instructions on the packaging to
help avoid damage in transit. However, negligent handling can produce hidden damage.
These steps should be followed:
A. Uncrate the unit carefully and check the entire unit (top, front, back, and both sides) for any visible or
hidden damage.
B. Remove the unit from the shipping pallet and inspect the bottom (including the casters) for any damage.
Check the casters and the drip pan holder under the unit.
C. If any damage is noted after the driver leaves immediately contact the freight company and notify
NU-VU®at [phone] immediately after filing a freight claim.
D. Check the oven and proofer doors. Make sure both doors close completely, and that the door gaskets
seal firmly (refer to the DOOR TEST PROCEDURE in the SERVICE AND REPLACEMENT GUIDE).
If they do not close or seal properly please contact the NU-VU®Service Department for instructions and
assistance in any required adjustments.

RECEIPT, INSTALLATION AND START-UP QBT OWNER’S MANUAL
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-1029
Page 4Sales Fax [phone] ♦Service Fax [phone] [phone] ♦[phone]
INSTALLATION:
Record the model number and complete serial number of your unit in the spaces provided on page 21 of this
manual. You will need these numbers if you should ever need to contact our Service Department concerning
adjustments, replacement parts or other service needs. When calling for service or parts, try to be at the equipment
location so that we can better assist you with your service or parts needs.
Roll the unit into the exact position where it is to be operated. Make sure there will be enough clearance on each
side of the unit for proper cooling during operation, and for ease of access during maintenance or service.
NU-VU® recommends a minimum clearance of 4" (102mm) at the back and both sides of the unit. Do not install
this unit in a location where splashing or spaying of water onto exterior of unit is likely to occur.
Mark the locations of the electrical and water connections on the wall.
If required by code, standard or law; the appliance must be secured to the building structure when the appliance is
in service. If the appliance is supplied with an eyebolt installed in the rear of the appliance for the purpose of
securing it to the building structure with a wire rope lanyard or welded steel chain.
Check the swing of both the oven and proofer doors, making sure they have enough room to open completely
without hitting anything or obstructing the work area.
Move the unit out from its operating position and proceed with the service connections.
Connection of Electrical Supply - -
Check to determine that the power source is the same voltage and phase as that indicated on the label on the side
of the unit. If the voltage or phase is not the same, please call NU-VU®service department at [phone].
This equipment must be installed and connected in accordance with all applicable federal, state, province, and/or
local electrical codes having jurisdiction using properly rated all pole mains protection and all pole mains
disconnect. All electrical connections must be made with COPPER WIRE ONLY in the correct gauge for the
application. The unit may be connected either through a cord, plug and receptacle-type connection or direct wiring
using flexible conduit. Allow enough slack in the wiring to allow for equipment to be moved during installation or
any required maintenance and servicing.
The electrician should remove the center rear panel to expose the power supply connections at the power terminal
block on top of the oven compartment. A wiring schematic is attached to the wiring near the power terminal
connections.
Proper electrical connections will vary depending on the voltage and phase requirements of the unit and available
power supply. The following instructions are for the most common configurations (refer to Fig. #2 on page 5), and
may be modified to fit your installation.
A. The electrician must install a cable clamping device or cord restraint in the rear access hole. This cable
clamping device must be firmly attached to the unit, and appropriately sized for the power supply wire
or cord being used.
B. Take note of the labeling on the Oven terminal connections (Line 1, Line 2and Line 3) at the Power
Terminal Block.
C. Carefully identify the power source connections and attach them to the appropriate terminals. Make sure
all connections are clean and tight.
D. Be sure the unit is properly grounded BEFORE use by attaching a grounding wire to the ground lug next
to the power terminal block.
IMPORTANT: DO NOT CONNECT THIS UNIT IF YOUR POWER SOURCE DOES NOT
MATCH THE REQUIREMENTS AS LISTED ON THE UNIT LABEL!
WARNING: ALL POWER MUST BE TURNED OFF AT THE ELECTRICAL SUPPLY WHILE
THIS UNIT IS BEING CONNECTED!
IMPORTANT: IN A THREE PHASE SYSTEM ANY WILD LEG (MORE THAN 120 VOLTS TO
GROUND) MUST ALWAYS BE CONNECTED TO L-2!

QBT OWNER'S MANUAL RECEIPT, INSTALLATION AND START-UP
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE MICHIGAN 49858-1029
[phone] ♦[phone] Sales Fax [phone] ♦Service Fax [phone] page 5
E. Engage the main power supply.
F. Check the voltage at the terminals on the power terminal block with a voltmeter and compare the
readings with the label listings on the side of the unit. If the readings match, the unit is ready for its
initial START-UP. If the readings DO NOT coincide you must call the NU-VU®Service Department.
G. Replace the center rear panel. Be careful not to pull or pinch any wires while installing the panel.
Fig. #2 – Power Supply Connections

RECEIPT, INSTALLATION AND START-UP QBT OWNER’S MANUAL
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-1029
Page 6Sales Fax [phone] ♦Service Fax [phone] [phone] ♦[phone]
Connection of water supply - -
NU-VU®strongly recommends that SOFT WATER ONLY be used in any unit requiring a water supply. Also, a good
quality water filter must be installed in-line between the unit connection and the water supply to guard against clogging and
mineral build-up in the components. This is extremely important in areas having hard water. The water filter head is installed
on the rear of the equipment, the filter cartridge is shipped inside the proofer.
A. Run 1/4” (6.35mm) OD tubing from the water supply line to the unit location. Allow some slack in the tubing for
final unit positioning and any future service requirements. Avoid any kinks or strains on the tubing, and position
the tubing where it will not be damaged in any way.
B. The tubing end that attaches to the back of the unit must not be damaged or deformed in any way. The cut end
should be cut straight and clean with no deforming of the tubing. All burrs and sharp or rough edges should be
removed to ensure a proper and leak-free connection.
C. Position the tubing so that it runs straight into the intake water fitting on the rear of the unit. Be careful not to kink
the tubing if you bend it, and do not bend the tubing within two (2) inches of the cut end.
D. Push the end of the tubing all the way into the intake water fitting approximately 1/2” (12.7mm)
E. Push the unit back into place and set the brakes on the front casters.
F. The proofer compartment of the NU-VU®QBT is equipped with a bottom drain centered directly under the proofer
door. Please install the included drain pan in the bracket under the proofer.
Careful attention to these simple procedures will help to ensure an installation without leaks. If you have any questions or
problems, please call the NU-VU®Service Department at [phone].
NOTE:Your QBT is equipped with a drain in the floor of the proofer compartment. This drain prevents the
accumulation of excess water. Please slide the included drain pan into the bracket under the proofer door to catch any
draining water.
YOUR NU-VU®QBT SHOULD NOW BE
READY FOR ITS INITIAL START-UP!
* * * Notice * * *
National Sanitation Foundation (NSF) guidelines require that all interior parts be removable
without the use of tools. This equipment has been factory assembled to safely accommodate
rough handling through shipment, delivery and original installation. After any maintenance,
cleaning or required service work the interior sheet metal parts should be reassembled and
fastened hand-tight only, but still be tight enough to prevent any rattle or movement of parts.
IMPORTANT: THIS UNIT NEEDS TO BE INSTALLED WITH ADEQUATE BACKFLOW
PROTECTION TO COMPLY WITH APPLICABLE FEDERAL, STATE AND LOCAL CODES.
IMPORTANT: THIS UNIT REQUIRES A SCREEN OF AT LEAST 100 MESH TO BE
INSTALLED IMMEDIATELY UPSTREAM OF ALL CHECK VALVE TYPE BACKFLOW
PREVENTERS USED FOR WATER SUPPLY PROTECTION. THE SCREEN SHALL BE
ACCESSIBLE AND REMOVABLE FOR CLEANING OR REPLACEMENT.
IMPORTANT: IMPROPER INSTALLATION, MISUSE, OR OTHER FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY CAUSE SEVERE EQUIPMENT DAMAGE OR PERSONAL
INJURY, AND MAY ALSO VOID ALL OR PART OF YOUR NU-VU
®
WARRANTY!

QBT OWNER'S MANUAL RECEIPT, INSTALLATION AND START-UP
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE MICHIGAN 49858-1029
[phone] ♦[phone] Sales Fax [phone] ♦Service Fax [phone] page 7
START–UP:
OVEN PROOFER
ON / OFF ON / OFF
KEY KEY
Oven / Proofer - -
A. Engage the main electrical and water supplies. Ensure that the oven and proofer doors are closed.
B. Press the rocker switch to the ON position. The NU-VU logo will be displayed for a short period of
time, after which the Stand-by Screen will be displayed. Press the oven ON/OFF key then press the
bread icon on the left half of the display to start the oven. The controller is preprogrammed with
recommended baking time and temperature settings. You may need to modify these settings for your
location. The interior of the oven should illuminate and the oven blower wheel should begin to rotate.
C. Open the oven door. The motor/blower wheel should come to a stop as the door opens and the micro
switch in the front face is released.
D. Close the oven door securely. The oven blower wheel should restart. The oven will begin to heat to the
oven temperature set point.
E. Press the Proofer ON/OFF key then press the bread icon on the right half of the display to start the
proofer. The interior of the proofer should illuminate and the proofer blower wheel should begin to
rotate. The proofer will begin to heat to the proofer temperature set point. A fog will begin to appear on
the proofer door after several minutes.
F. Allow the oven and proofer to pre-heat for at least 30 minutes. An audible alarm will sound when
the oven and/or proofer reach the set point.
If you have any questions or problems, please call the NU-VU®Service Department at [phone].
Your AUTOFILL QBT is now ready to operate!
Fig. #3 – Stand-by Screen

OPERATING INSTRUCTIONS QBT OWNER'S MANUAL
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-1029
Page 8Sales Fax [phone] ♦Service Fax [phone] [phone] ♦[phone]

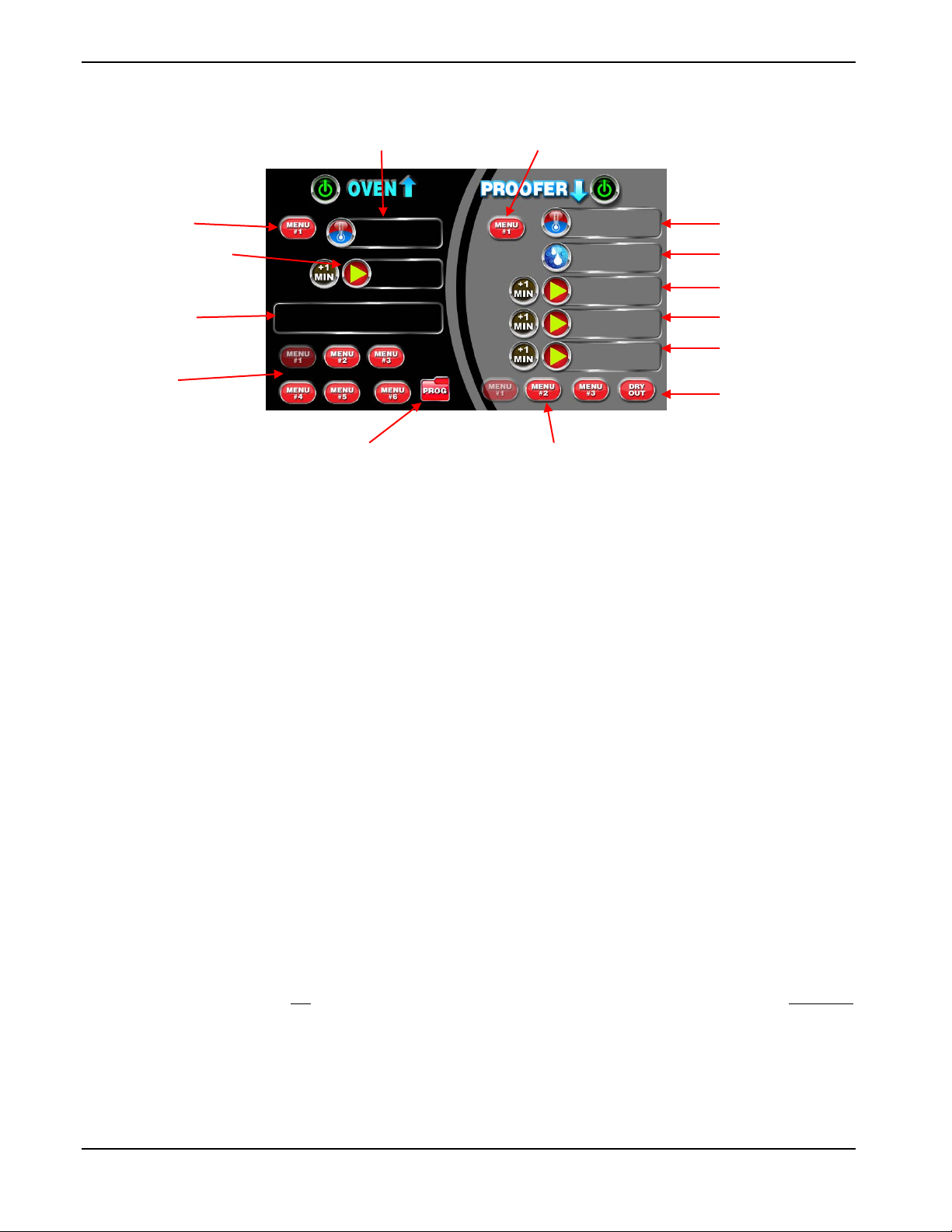

OPERATING INSTRUCTIONS
OVEN TEMP SET POINT LOADED PROOFER RECIPE
LOADED OVEN RECIPE PROOFER TEMP SET POINT
OVEN TIMER START/STOP KEY HUMIDITY SET POINT
TOP PROOFER TIMER
OVEN STATUS DISPLAY MIDDLE PROOFER TIMER
LOWER PROOFER TIMER
OVEN RECIPE KEYS
PROOFER DRYOUT KEY
PROGRAMMING KEY PROOFER RECIPE KEYS
PROOFER:
Begin to pre-heat the proofer section of the QBT about 20 to 30 minutes before its scheduled use.
A. Set out the desired product for thawing. Be sure to allow sufficient time in your schedule for both the
product and your equipment to reach the correct conditions.
B. Prepare the proofer:
1. Ensure the rocker switch is in the ON position. The NU-VU logo will be displayed for a short
period of time, after which the stand-by screen will be displayed.
2. Press the proofer ON/OFF key then press the bread icon on the right half of the display to start the
Proofer. The controller is preprogrammed with recommended proofing time, temperature, and
humidity settings. You may need to modify these settings for your location.
3. Make sure water is being supplied to the proofer. An AUTOFILL unit heats water directly inside
the proofer, raising the internal humidity level almost immediately.
4. The proofer pre-heat screen will be displayed until the set point is reached after which an audible
alarm will sound. A light to moderate fogging will appear on the proofer door. The display will
now resemble that of figure #4 (above).
C. Load the product. The pans should be pushed all the way back and centered from side to side as much as
possible on each proofer shelf to allow for proper air circulation over and around your product. If you
are loading a single pan, center it on the Shelf from side to side and front to back.
D. Press the proofer START/STOP key to begin the countdown timer corresponding to the location of the
proofer that was loaded (Top, Middle or Lower) as a reminder to check your proof.
F. Monitor the proofing process. Your proofer is functioning properly if there is a light to moderate fogging
on the proofer door. No fogging means your proofer may be running too hot, too dry, or both. excessive
fogging (with water running down the glass) means your proofer may be running too cold, too wet, or
both. Check the product and adjust the proofer temperature and humidity controls as necessary.
G. Load the oven when your product is fully proofed. Yeast products should be 65% to 75% of the desired
finished size at the end of the proof cycle. Generally speaking, properly proofed bread should have a
soft, silky smooth feel to it when touched. It should never be anything more than slightly tacky. If the
dough sticks to your finger and does not pull off cleanly, the dough is too wet.
Fig. #4 –Oven & Proofer Controls

QBT OWNER'S MANUAL OPERATING INSTRUCTIONS
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE MICHIGAN 49858-1029
[phone] ♦[phone] Sales Fax [phone] ♦Service Fax [phone] page 9
OVEN:
Since your oven requires time to reach the proper temperature, you must plan ahead so your oven and product are
ready at the same time.
To operate the oven section:
A. Prepare the oven:
1. Ensure the rocker switch is in the ON position. The NU-VU logo will be displayed for a short
period of time, after which the stand-by screen will be displayed.
2. Press the oven ON/OFF key then press the bread icon on the left half of the display to start the
oven. The controller is preprogrammed with recommended Baking time and temperature. You may
need to modify these settings for your location.
3. The oven pre-heat screen will be displayed until the set point is reached after which an audible
alarm will sound. The display will now resemble that of figure #4 (page 8).
B. Load the oven from the top down, placing a single full size pan on each shelf. Push the pans all the way
to the rear. Single pans should be centered from side to side and front to back. If the top shelf is too high
to be reached safely and easily, empty pans should be placed on the shelf to guide the air flow over and
around your product for the best possible results.
C. Close the oven door securely. It is important to keep the oven door closed unless loading or removing
product to maintain oven temperature, reduce baking time, and minimize energy usage.
D. Press the oven START/STOP key to start the count-down timer. The alarm will sound when the timer
has reached zero.
E. As soon as the product is finished baking, open the oven door and remove the product quickly. You can
load more product into the oven immediately, or close the oven door and allow the oven to recover to
the set baking temperature. Allowing the oven a few minutes of recovery time between bakes results in
a quicker and better bake.
F. When all baking is done for the day, turn the oven side of the control off and complete the daily
DRY-OUT PROCEDURE outlined in the MAINTENANCE AND CLEANING GUIDE.
WARNING: WE TRY TO “BURN OFF” ANY MANUFACTURING OILS INSIDE OF YOUR
OVEN BEFORE SHIPMENT. HOWEVER, SOME OILS MAY REMAIN, CAUSING YOUR
OVEN TO SMOKE DURING INITIAL OPERATION. SIMPLY ALLOW THE OVEN TO RUN
AT 350°F FOR AN HOUR OR TWO TO COMPLETE THE BURN-OFF AND THE SMOKING
SHOULD STOP. WE APOLOGIZE FOR ANY INCONVENIENCE THIS MAY CAUSE.
CAUTION: STAND AWAY FROM THE FRONT OF THE OVEN WHEN OPENING THE
OVEN DOOR AFTER A BAKING CYCLE TO AVOID EXPOSURE TO HEAT AND STEAM!

PROGAMMABLE CONTROLLER QBT OWNER'S MANUAL
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-1029
Page 10 Sales Fax [phone] ♦Service Fax [phone] [phone] ♦[phone]
PROGRAMMABLE CONTROLLER
OVEN PROOFER
ON / OFF ON / OFF
KEY KEY

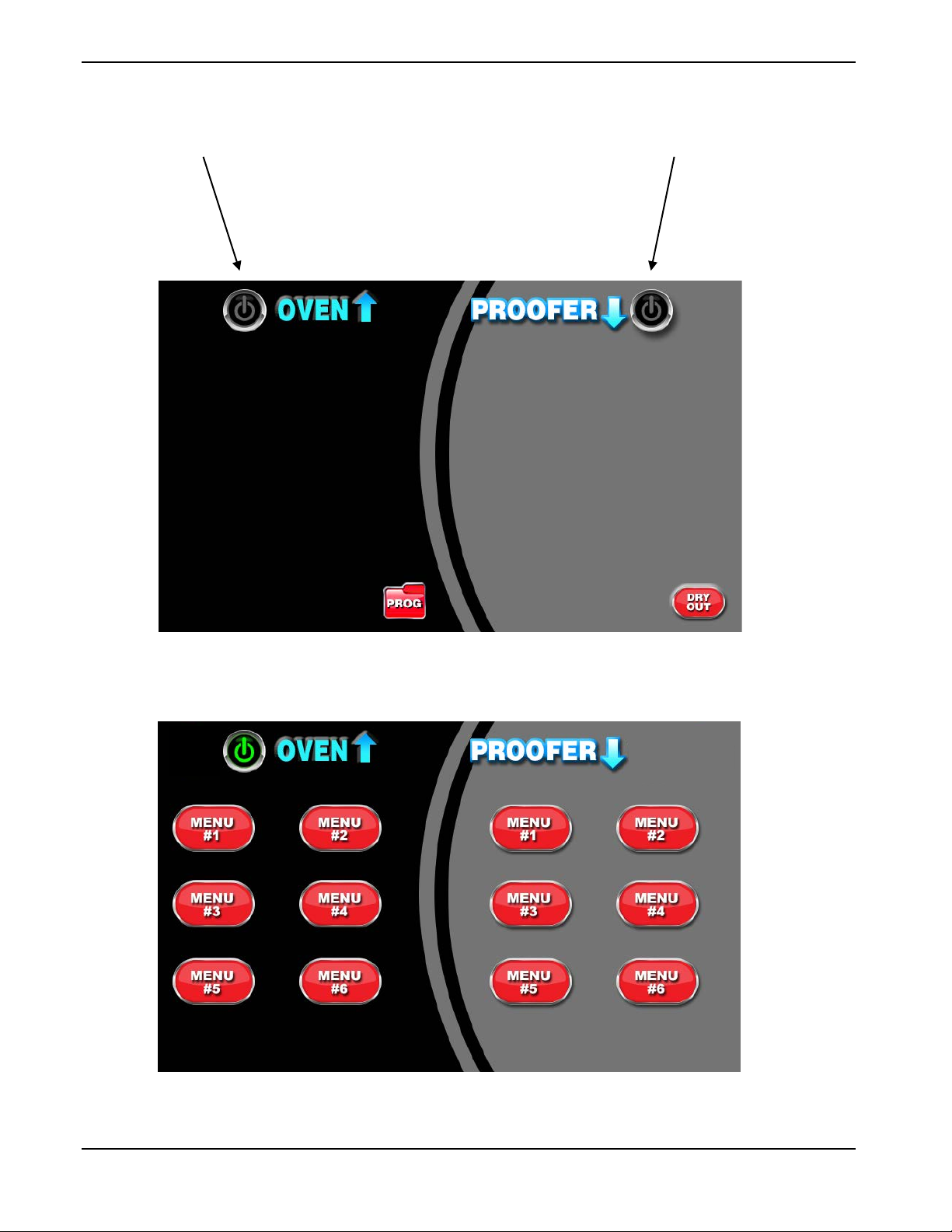

To turn on the oven and/or proofer, press the corresponding ON/OFF key.
Loading your saved menu settings is done by simply pressing a menu key.

QBT OWNER'S MANUAL PROGRAMMABLE CONTROLLER
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE MICHIGAN 49858-1029
[phone] ♦[phone] Sales Fax [phone] ♦Service Fax [phone] page 11
The oven and / or proofer will begin to preheat automatically when a menu is loaded. The actual cavity
temperatures will be displayed during the preheat cycle.
OVEN TEMP SET POINT LOADED PROOFER RECIPE
LOADED OVEN RECIPE PROOFER TEMP SET POINT
OVEN TIMER START/STOP KEY HUMIDITY SET POINT
TOP PROOFER TIMER
OVEN STATUS DISPLAY MIDDLE PROOFER TIMER
LOWER PROOFER TIMER
OVEN RECIPE KEYS
PROOFER DRYOUT KEY
PROGRAMMING KEY PROOFER RECIPE KEYS
Once the preheat cycle is complete, the oven and / or proofer is ready for use and product can be loaded. After
your product is loaded and the door is closed, press the corresponding timer START/STOP key to begin the
countdown timer. After the timer has counted down to zero, an audible alarm will sound to signal the end of the
baking or proofing cycle. Press the corresponding timer START/STOP key to reset the timer and then remove the
finished product.

PROGAMMABLE CONTROLLER QBT OWNER'S MANUAL
NU-VU®FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-1029
Page 12 Sales Fax [phone] ♦Service Fax [phone] [phone] ♦[phone]
The control comes preprogrammed with default settings for all the menus. The settings can be changed to suit your
needs. Pressing the programming key will bring up a numeric keypad, key in 7123 followed by the enter key (the
check mark key).
Press the menu key for the menu that you would like to edit. For this example, the proofer bread menu is used.
