nvent RAYCHEM NGC-40-PTM User manual

NGC-40-PTM
Power and Termination Module for use with the
nVent RAYCHEM NGC-40 system Installation Instructions
A
CAN / TERM CAN / 24 VDC
DESCRIPTION
The nVent RAYCHEM NGC-40-PTM accepts a primary and
redundant power supply input, accepts the CAN bus inputs, and
provides for termination of the CAN bus. The NGC-40-PTM then
distributes both power and Can bus signals to other NGC-40
modules. Each NGC-40-PTM can provide power for a maximum
of 10NGC-40 modules.
TOOLS REQUIRED
• Small flat-blade screwdriver
ADDITIONAL MATERIALS
• Custom built CAN cables with RJ-45 connections
• CAN Termination Resistor
KIT CONTENTS
Item Qty Description
A 1 NGC-40-PTM module
APPROVALS
Class I, Div. 2, Groups A,B,C,D T4
Class I, Zone 2, AEx nA IIC T4 IP20
Ex nA IIC T4 X
–40˚C ≤ Ta ≤ +65˚C
Conforms to:
FM Class Number 3600 (11/98)
FM Class Number 3611 (10/99)
ANSI/UL STD. 60079-15-2009
UL STD. 61010-1
Certified to:
CAN/CSA STD. C22.2 No. 213-M1987 (R2004)
CAN/CSA STD. C22.2 No. 61010-1:2004
EN 61010-1 (2001)
CAN/CSA STD. E60079-15:02 (R2006)
Hazardous Locations
3128486
This component is an electrical device that must be installed
correctly to ensure proper operation and to prevent shock or fire.
For technical support, call nVent at
[phone].
WARNING:

2 | nVent.com
GENERAL
Supply voltage 24 Vdc ± 10%
Internal power consumption 1 W per NGC-40-PTM
Output current 1.5 Amps @ 24 V
Ambient operating temperature –40ºC to 65ºC (–40ºF to 149ºF)
Ambient storage temperature –40ºC to 75ºC (–40ºF to 167ºF)
Environment PD2, CAT III
Max. altitude 2,000 m (6,562 ft)
Humidity 5 – 90% noncondensing
Mounting Din Rail – 35 mm
ELECTROMAGNETIC COMPATIBILITY
Emissions EN 61000-6-3
Emission standard for residential, commercial and light
industrial environments
Immunity EN 61000-6-2
Immunity standard for industrial environments
CAN NETWORKING PORT
Type 2-wire isolated CAN-based peer-peer network. Isolated to 300 V.
Connection Two 8-pin RJ-45 connectors (both may be used for Input or
Output connections)
Topology Daisy chain
Length 10 m (33 ft) maximum
Quantity Up to 10 CAN nodes per PTM module
CONNECTION TERMINALS
Wiring terminals Cage clamp, 0.5 to 2.5 mm2(24 to 18 AWG).
As the current to the modules require up to 2.05 A @ 24Vdc
(20 modules–see CAN Bus connection diagrams) the
minimumwire size to the module shall be 1.0 mm2(AWG18)
CAN networking and module power Two RJ-45 connectors, one each IN and OUT. Provides CAN
bus signals and 24 Vdc power.
HOUSING
Size 45.1 mm (1.78 in) wide x 87 mm (3.43 in) high x 106.4 mm
(4.2 in) deep
SYSTEM POWER SUPPLY REQUIREMENTS
Output voltage 24 Vdc ±10%
Approval NRTL approved device for use in nonhazardous or hazardous
locations as appropriate
Overcurrent protection Must have an automatic disconnect upon a single
faultcondition

nVent.com | 3
Front Top Bottom Back
")
") ")
")
")
")
")
NGC-40 PTM MODULE
24 VDC
PRIMARY
24 VDC
REDUNDANT

System Components
A. WIRING TERMINALS
Terminals Function
1 Primary 24 Vdc In (+)
2 Primary 24 Vdc In (–)
3 Primary 24 Vdc Out (+)
4 Primary 24 Vdc Out (–)
5 Redundant 24 Vdc In (+)
6 Redundant 24 Vdc In (–)
7 Redundant 24 Vdc Out (+)
8 Redundant 24 Vdc Out (–)
B. Status LEDs
Status:
24 Vdc Primary
Off No power
Green Power on
24 Vdc Redundant
Off No power
Green Power on
C. CAN / TERM
D. CAN / 24 VDC

4 | nVent.com
11 22
PrimaryPrimary RedundantRedundant
+–
24 Vdc
Power Supply
55 66
+–
24 Vdc
Power Supply
33 44
PrimaryPrimary RedundantRedundant
77 88
Note: The primary and redundant 24 Vdc outputs
each support only one additional NGC-40 PTM
module
To next PTM module
– Terminals 1 & 2
To next PTM module
– Terminals 5 & 6
1
2
1
2

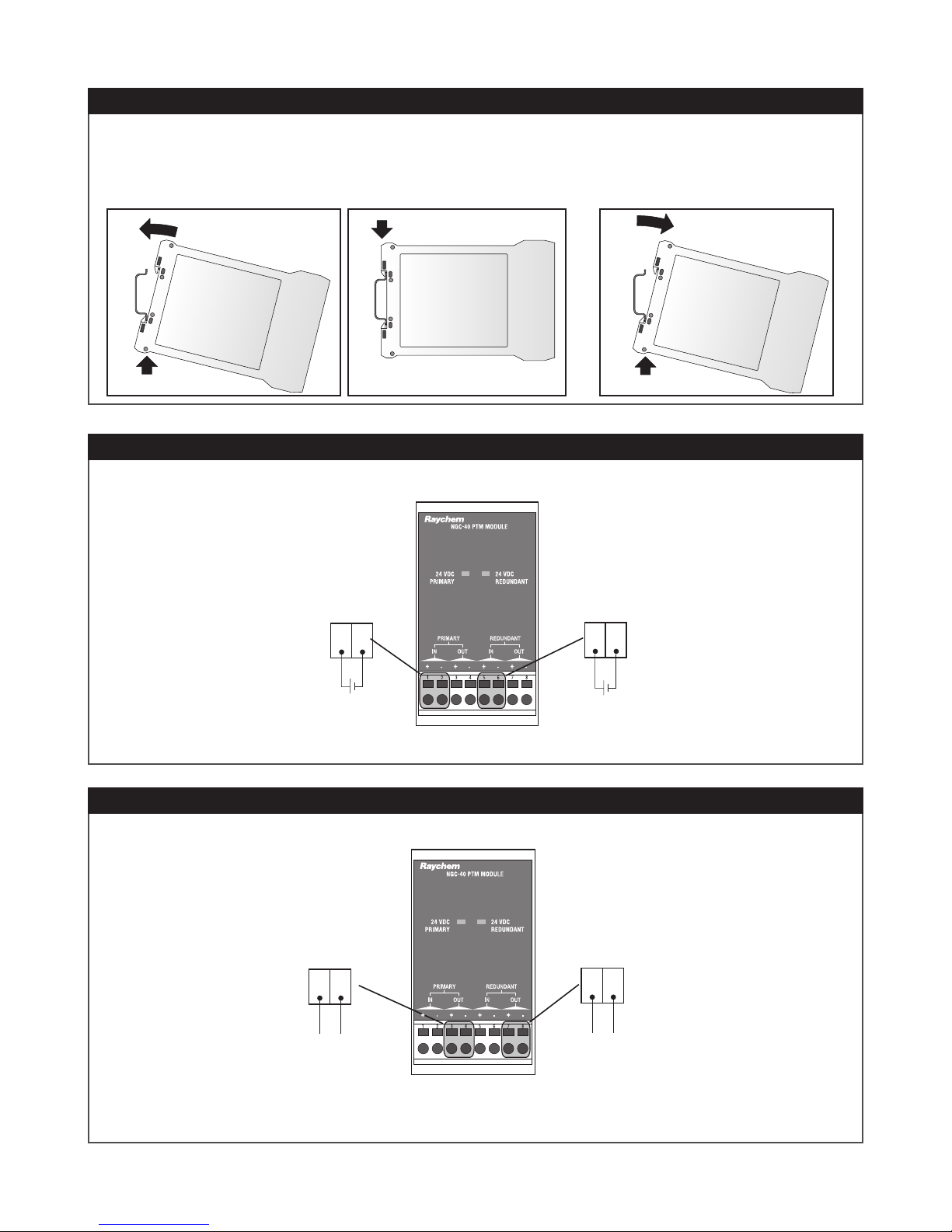

Each NGC-40-PTM mounts on a DIN 35 rail.
MOUNTING: Insert the rear bottom of the module into the DIN rail, then push up
and inwards to engage the clip.
REMOVAL: Push the module upwards to
disengage the clip, then rotate the module
toward you.
Mounting the NGC-40-PTM
24 Vdc Connection (In)
24 Vdc Connection (Out)
Note: Power supply
should have a means
for disconnect from line
voltage.
Note: Assemble, lock
and mount power supply
per manufacturer's
instructions.

nVent.com | 5
CAN / 24 Vdc OutCAN / 24 Vdc OutCAN / Termination PortCAN / Termination Port
CAN / TERM CAN / 24 VDC
PS1
PTM1
CBM
I/O1
I/O2
I/O3
I/O4 I/O5
PS2
PTM2
HTC1 HTC2 HTC3
HTC4
HTC5 HTC6
HTC7
HTC8 HTC9
HTC10
C1
C2
C3
C4
C5
C6
C7 C8
C9
C10
PS3
PTM3
HTC11
HTC12
HTC13
HTC14
HTC15 HTC16
HTC17
HTC18 HTC19
HTC20
C11
C12
C113
C4
C5
C16
C17 C18
C19 C20
PS4
PTM4
HTC21
HTC22
HTC23
HTC24
HTC25 HTC26
HTC27
HTC28 HTC29
HTC30
C21
C22
C23
C24
C25
TB
C26
C27 C28
C29 C30
PanelPanel
door
Alarm
light
The CAN termination device must be installed in the unused
port of the last module.
1. Provide suitable panel enclosure
The NGC-40-PTM must be mounted in an enclosure
to protect its electronic components. For indoor
applications, use a minimum NEMA 1 enclosure (NEMA
12 recommended). For outdoor applications, use a NEMA
4 or NEMA 4X enclosure depending on the requirements.
Note: The RAYCHEM NGC-40-PTM is designed for
operation in ambient temperatures from –40°C to 65°C
(–40°F to 149°F). If the ambient temperature is outside
this range, a space heater and/or cooling fan will be
required in the panel.
2. Determine locations for the NGC-40-PTM assembly in
the electrical panel.
The NGC-40-PTM should be located in the rear of the
panel. The NGC-40-PTM assembly is an electronic unit
and must not be located where it will be exposed to
strong magnetic fields or excessive vibration.
The NGC-40-PTM contains no user serviceable parts.
Contact your nVent representative for service and an RMA
number if required.
WARNING–EXPLOSION HAZARD–SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS
I, DIVISION 2 HAZARDOUS AND NONHAZARDOUS
LOCATIONS
WARNING–EXPLOSION HAZARD–DO NOT REPLACE
NGC-40-PTM UNLESS POWER HAS BEEN SWITCHED OFF OR
THE AREA IS KNOWN TO BE NONHAZARDOUS
WARNING–EXPLOSION HAZARD–DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR
THE AREA IS KNOWN TO BE NONHAZARDOUS
AVERTISSEMENT–RISQUE D'EXPLOSION–LA SUBSTITUTION
DE COMPOSANTS PEUT RENDRE CE MATÉRIEL
INACCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I,
DIVISION 2
AVERTISSEMENT–RISQUE D'EXPLOSION–COUPER LE
COURANT OU S'ASSURER QUE L'EMPLACEMENT EST
DÉSIGNÉ NON DANGEREUX AVANT DE REPLACER LE
NGC-40-PTM
AVERTISSEMENT–RISQUE D'EXPLOSION–AVANT DE
DÉCONNECTER L'EQUIPEMENT, COUPER LE COURANT OU
S'ASSURER QUE L'EMPLACEMENT EST DÉSIGNÉ
NON DANGEREUX
CAN Networking Port
Provide Suitable Panel Enclosure and Determine Locations for NGC-40-PTM Assembly in Panel
Servicing

6 | nVent.com

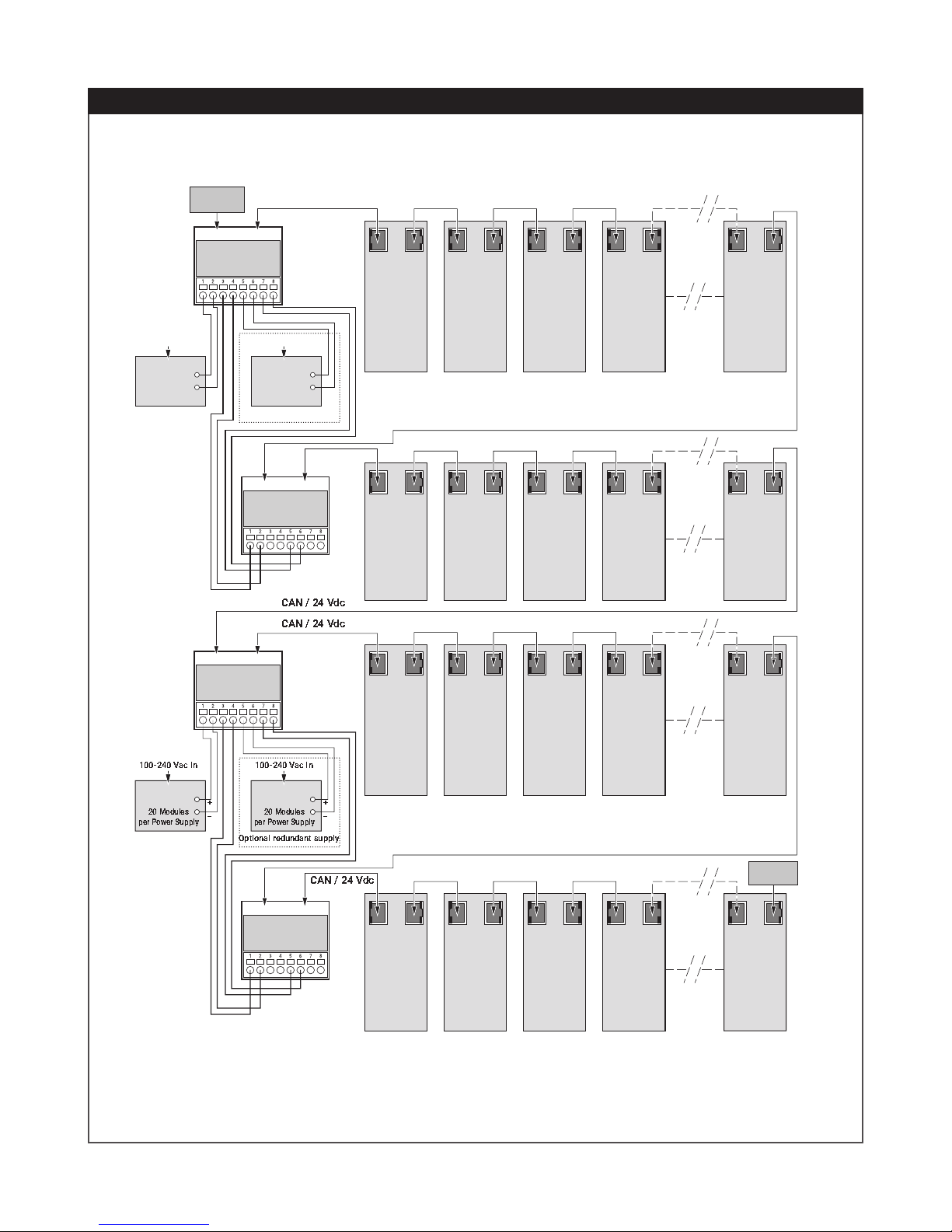

Power/
Termination
Module
Power/
Termination
Module
CAN/TermCAN/TermCAN / 24 VdcCAN / 24 Vdc
ININ OUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 10
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 4
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 3
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 2
ININ OUTOUT
CAN / 24 Vdc
Bridge
Module
80 Modules
per Bridge
Module 1
++
––
20 Modules
per Power Supply
20 Modules
per Power Supply
20 Modules
per Power Supply
20 Modules
per Power Supply
Termination
Block
Termination
Block
100-240 Vac In100-240 Vac In
Optional redundant supplyOptional redundant supply
100-240 Vac In100-240 Vac In
++
––
CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc
ININ OUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 20
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 14
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 13
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 12
ININ
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 11
OUTOUT
Termination
Block
Termination
Block
CAN / 24Vdc CAN / 24Vdc
CAN / 24Vdc
CAN / 24Vdc CAN / 24Vdc
Power/
Termination
Module
Power/
Termination
Module
CAN / 24Vdc
Primary Supply*
24 Vdc
Primary Supply*
24 Vdc
* Power supply shall have a means for disconnect from line voltage* Power supply shall have a means for disconnect from line voltage
Redundant Supply*
24 Vdc
Redundant Supply*
24 Vdc
ININ OUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 10
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 4
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 3
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 2
ININ OUTOUT
CAN / 24 Vdc
Bridge
Module
80 Modules
per Bridge
Module 1
Termination
Block
Termination
Block
++
––
Power/
Termination
Module
Power/
Termination
Module
Primary Supply*
24 Vdc
Primary Supply*
24 Vdc
20 Modules
per Power Supply
20 Modules
per Power Supply
Termination
Block
Termination
Block
CAN/TermCAN/Term
CAN / 24 VdcCAN / 24 Vdc
100-240 Vac In100-240 Vac In
Optional redundant supplyOptional redundant supply
100-240 Vac In100-240 Vac In
++
––
CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc
Redundant Supply*
24 Vdc
Redundant Supply*
24 Vdc
20 Modules
per Power Supply
20 Modules
per Power Supply
* Power supply shall have a means for disconnect from line voltage* Power supply shall have a means for disconnect from line voltage

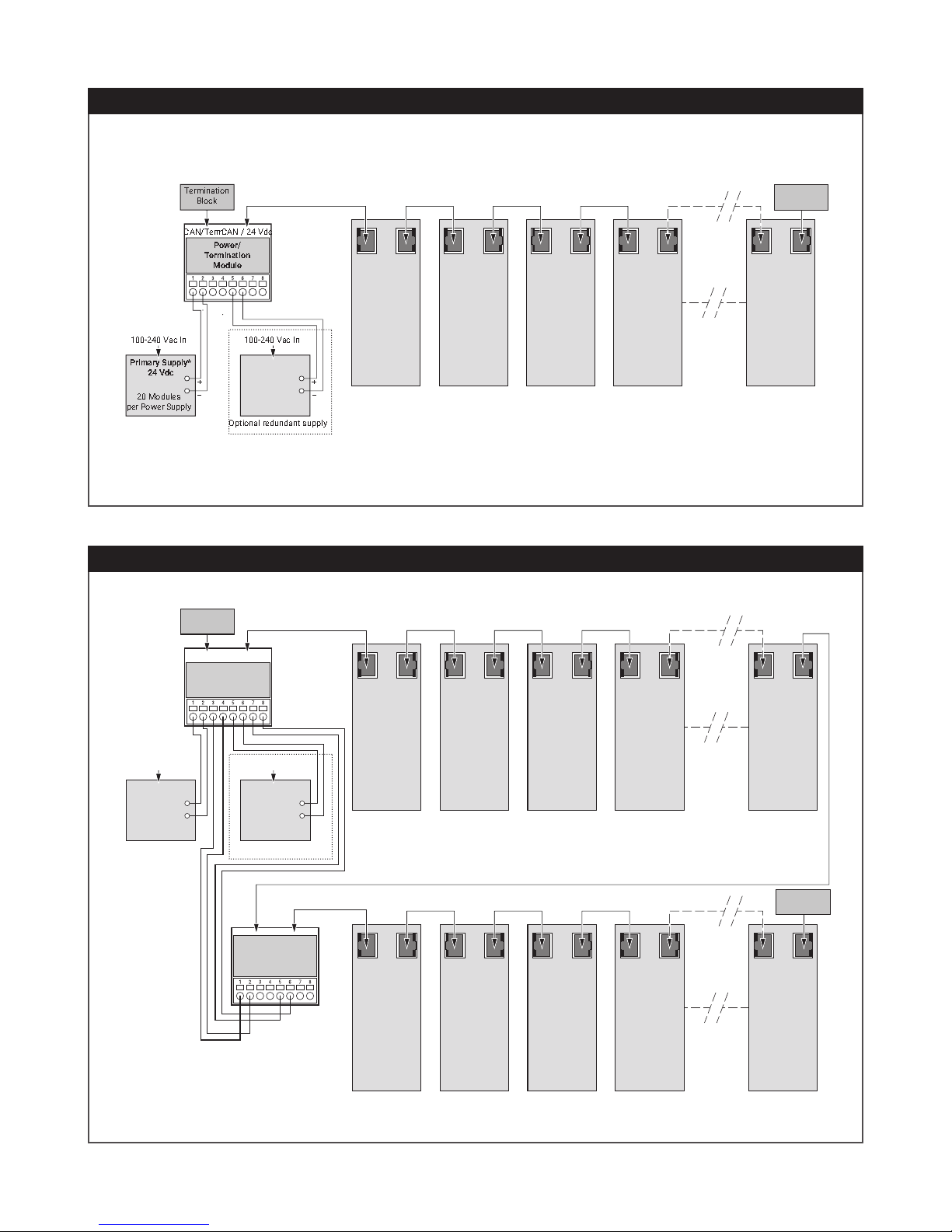

NGC-40 CAN Bus Connections for Up to 10 Modules
NGC-40 CAN Bus Connections for Up to 20 Modules

nVent.com | 7
Power/
Termination
Module
Power/
Termination
Module
CAN/TermCAN/Term CAN / 24 VdcCAN / 24 Vdc
Power/
Termination
Module
Power/
Termination
Module
CAN/TermCAN/TermCAN / 24 VdcCAN / 24 Vdc
Power/
Termination
Module
Power/
Termination
Module
CAN/TermCAN/Term CAN / 24 VdcCAN / 24 Vdc
Power/
Termination
Module
Power/
Termination
Module
CAN/TermCAN/Term CAN / 24 VdcCAN / 24 Vdc
ININ OUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 10
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 4
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 3
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 2
ININ OUTOUT
CAN / 24 Vdc
Bridge
Module
80 Modules
per Bridge
Module 1
CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc
ININ OUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 20
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 14
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 13
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 12
ININ OUTOUT
CAN / 24 Vdc
Bridge
Module
80 Modules
per Bridge
Module 11
CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc
ININ OUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 30
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3)
or
I/O
Module 24
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 23
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 22
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 21
++
––
20 Modules
per Power Supply
20 Modules
per Power Supply
100-240 Vac In100-240 Vac In
20 Modules
per Power Supply
20 Modules
per Power Supply
100-240 Vac In100-240 Vac In
Optional redundant supplyOptional redundant supply
++
––
CAN / 24 Vdc
CAN / 24 Vdc
CAN / 24 Vdc
CAN / 24 Vdc CAN / 24 Vdc
CAN / 24 Vdc
CAN / 24 Vdc
CAN / 24 Vdc CAN / 24 Vdc
ININ OUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 40
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 34
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 33
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 32
ININ OUTOUT
CAN / 24 Vdc
HTC/HTC3
or
I/O
Module 31
Termination
Block
Termination
Block
CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc
++
––
20 Modules
per Power Supply
20 Modules
per Power Supply
Termination
Block
Termination
Block
100-240 Vac In100-240 Vac In
20 Modules
per Power Supply
20 Modules
per Power Supply
100-240 Vac In100-240 Vac In
Optional redundant supplyOptional redundant supply
++
––
CAN / 24 Vdc
CAN / 24 Vdc
Primary Supply*
24 Vdc
Primary Supply*
24 Vdc
* Power supply shall have a means for disconnect from line voltage* Power supply shall have a means for disconnect from line voltage
Redundant Supply*
24 Vdc
Redundant Supply*
24 Vdc
Primary Supply*
24 Vdc
Primary Supply*
24 Vdc
Redundant Supply*
24 Vdc
Redundant Supply*
24 Vdc
NGC-40 CAN Bus Connections for Up to 40 Modules

©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
Raychem-IM-H58119-NGC40PTM-EN-1805
nVent.com
North America
Tel [phone]
Fax [phone]
[email protected]
Europe, Middle East, Africa
Tel [phone]
Fax [phone]
[email protected]
Asia Pacific
Tel [phone]
Fax [phone]
[email protected]
Latin America
Tel [phone]
Fax [phone]
[email protected]
