Video-228PCI Series
nVIDIA GeForceFX 5200
User’s Manual
Version 11.0
Copyright © 2009 Jaton Corporation, USA

2
Contents
INTRODUCTION.............................................................4
FEATURES.....................................................................5
PCI BUS INTERFACE..........................................................5
GRAPHICS PROCESSOR UNIT (GPU)..................................5
PERFORMANCE .................................................................5
COMPATIBILITY..................................................................6
HDTV/DVD PLAYBACK .....................................................6
SYSTEM REQUIREMENT..............................................7
CHECK LIST...................................................................7
HARDWARE DESCRIPTION.........................................8
DISPLAY DEVICES OUTPUT......................................10
HARDWARE INSTALLATION.....................................12
INSTALLATION PROCEDURES............................................12
STEPS: ...........................................................................12
SOFTWARE INSTALLATION......................................14
áWINDOWS®VISTA DRIVER INSTALLATION .................14
á WINDOWS®XP DRIVER INSTALLATION .....................18
á WINDOWS®2000 DRIVER INSTALLATION..................22
á WINDOWS®ME DRIVE INSTALLATION .......................26
á MICROSOFT WINDOWS®NT™4.0............................31

3
TECHNICAL ASSISTANCE.........................................36
FREQUENTLY ASKED QUESTIONS (FAQ) ..........................36
PINOUT AND SYNC FREQUENCIES..........................38
ANALOG COLOR DISPLAY PINOUTS (DB 15) .....................38
CONVERSION TABLE:PIN ADAPTERS................................38
9-TO-15 PIN CONVERSION TABLE.....................................39
TECHNICAL SUPPORT ......................................................39
HOW TO OBTAIN WARRANTY SERVICE..............................40
LIMITED WARRANTY..................................................43
OTHER LIMITS.................................................................43
EXCLUSIVE OBLIGATION...................................................44
OTHER STATEMENTS.......................................................44
TERMS AND CONDITIONS. ................................................44
SERVICES AGREEMENT:...................................................45
ENTIRE OBLIGATION. .......................................................45
REDUCING WARRANTY CLAIM REJECTIONS........46

4
Introduction
The Video-228PCI Series video accelerators are excellent
2D/3D multimedia video adapters for PCI local bus desktop
PCs’. Based on nVIDIA GeForceFX 5200 core technology,
built-in with 128MB DDR memory module, these video cards
will provide multiple display outputs onboard for TVout (Analog
and Digital) or Dual RGBout (Twin) in optional.
As the previously core technology from nVIDIA, the
GeForceFX™5200 Graphics Processing Unit (GPU) shakes
up the gaming industry with its extremely performance,
unusual visual effects, and speedy frame rates-injecting life into
the artificial world of computer-generated graphics.
The significant enhancement is the new high quality image
control. The nVIDIA GeForceFX™5200 GPU has added two
more rendering pipelines and the DirectX 8-compliant T&L unit
into its graphic engine, which enables the maximum flexibility
and high quality 4Xs mode control capabilities; gathered with
the data bus Double Data Rate RAM (DDR) circuit, the PC
users can ultimately enjoy the virtual environment of 3D
scenes, and ambiance textures appear photo-realistic and
custom lighting heightens at a highest resolution with
astonishingly fast frame refresh rate.
Another feature of the Video-228PCI Series is the video
accelerator, which integrates the HDVP (High Definition Video
Processor) and DVD (Digital Versa Display) for video playback
with higher definitions at greatly increased frame rates.
A leverage of the combination of hardware and software
technology, nVIDIA GeForceFX™ 5200 GPU will provide many
of the new features and benefits you look for in your desktop
computing as well as the best performance, combining usual
quality and exceeding crisp resolution. With all of this, the
Video-228PCI Series video cards bring a new level of graphics
accomplishment and flexibility to the mainstream desktop PC
market!

5
Features
PCI Bus Interface
- PCI Bus mastering compatible
- PCI 2.2 compliance
Graphics Processor Unit (GPU)
- 256-bit graphics engine
- 128MB DDR memory access bus.
- Integrated dual 270 MHz RAMDACs drives CRT
display
- 2 dual 128bit pixel pipelines rendering
- Surface engine for high-order surfaces and patches
- Programmable Vertex Shader
- Programmable Pixel Shader
- HRAA - high - resolution anti-aliasing
- Integrated hardware transform engine
- Integrated hardware lighting engine
- DirectX®and S3TC®texture compression
- Dual cube environment mapping capability
- Hardware accelerated real-time shadows
Performance
- Up to 1.4billion AA samples per second fill rate
- Up to 11.2 GB/sec memory bandwidth
- Up to 88 Million triangles/sec
- True, reflective bump mapping
- High-performance 2D rendering engine

6
- API support - DirectX®8.1 and lower
Compatibility
- nVIDIA Unified Driver Architecture
- Industry’s first fully compliant professional OpenGL
1.3 support for Windows® operating systems
- Windows Vista, Windows®XP, Windows® 2000,
Windows®Me, and Windows®NT™4.0
HDTV/DVD Playback
- High-Definition Video Processor (HDVP) for full-
screen, full-frame video playback of HDTV and DVD
resolutions
- Independent hardware color controls for video
overlay
- Hardware color space conversion (YUV 4:2:2 and
4:2:0)
- Motion compensation
- 5-tap horizontal by 3-tap vertical filtering
- Per-pixel color keying
- Multiple video windows with hardware Color Space
Conversion and filtering

7
System Requirement
- Intel Pentium® II, III or P4, or compatible system
with PCI Bus Extension Slot
- CD-ROM drive, Double speed or faster
- Hard Drive with at least 100MB Free space
- MS Windows® Vista/XP/2000/Me/NT 4.0 operating
systems
Check List
- Video-228PCI-TV, Video-228PCI-XS, Video-
228PCI-LP, Video-228PCI-Twin or Video-228PCI –
DVI Multimedia accelerator
- LFH 59pin to 2xVGA adapter cable (part#
CB59D00001C00) – Video228PCI-LP
- LFH to Dual DVI adapter cable (part# CB59DVI-
I2C00) - Video228PCI-DVI / Video228PCI-XS
- (2) DVI to VGA converter - Video228PCI-XS
- Software & Documents CD
- Quick Start Guide (Printed)

8
Hardware Description
Video-228PCI-TV series
Display
Memory
DIM-4Pin
RCA Composite
(TV out)
(TV out)
DB 15 VGA
(RGB out)
FX5200
nVIDIA
Video-228PCI-TV
nVIDIA GeForceFX 5200
ProductName /PCB Version
16M*16 DDR X 482208N W = 6.25"xH = 2.45"
Core Chipset
W = 5.6"x H = 2.45"
82228N
PCB Size
128MB
16M*16 DDR X 4 128MB
MemorySize
nVIDIA GeForceFX 5200
Special Bracket(s) Alternative
DB 15 VGA +MD 4Pin+ RCA CompositeP203 L = 3.118" , W = 0.725" For low profile PC use only
-Low profile PC system brackets only available for PCB revision mentioned
above.
Alternative brackets can be purchased at http://store.anvshopper.net/index.html
Video-228PCI-Twin series
nVIDIA
FX5200
(RGB out)
DB 15 VGA
DB 15 VGA Display
Memory
(RGB out)
PCB Size
Video-228PCI-Twin
82228M
128MB
Core Chipset
128MB16M*16 DDRX 4
82208M W = 6.25" x H= 2.6"
W = 5.6" x H= 2.6"nVIDIA GeForce FX5200
nVIDIA GeForce FX5200
ProductName /PCB Version MemorySize
16M*16 DDRX 4

9
Video-228PCI-XS / Video-228PCI-LP / Video-228PCI-DVI
Product name / PCB version Core Chipset PCB Size Memory Size
Video-228PCI-LP 82228P nVIDIA GeForce FX5200 W=5.6” X H=2.6” 16M*16 x 4 DDR BGA 128MB
Video-228PCI-DVI 82228Q nVIDIA GeForce FX5200 W=5.6” X H=2.6” 16M*16 x 4 DDR BGA 128MB
Video-228PCI-XS 82228R nVIDIA GeForce FX5200 W=4.82” X H=2.55” 16M*16 x 4 DDR BGA 128MB

10
Display Devices Output
Video-228PCI-TV
Plate
TV set
DB 15 VGA
Connector
S_Video
Connector
RCA Composite
Connector
CRT Monitor
Video-228PCI-Twin
AGP Plate
DB 15 VGA Connector
DB 15 VGA Connector
CRT Monitor 2
CRT Monitor 1 (Default output Connector)
(Additional output Connector)

11
Video-228PCI-LP
Video-228PCI-DVI / Video-228PCI-XS

12
Hardware Installation
Installation Procedures
!! WARNING!!
Discharge static electricity by
touching the GROUND such
as metal part of your case
connected with good power
ground before you handle the
electronic circuit boards.
The manufacturer assumes no liability for any damage, caused
directly or indirectly, by improper installation of any
components by unauthorized service personnel. If you do not
feel comfortable performing the installation, consult with a
qualified computer technician.
Steps:
1. Turn OFF all powers to your system, including any
peripherals (printer, external drives, modem, etc.).
2. Disconnect the power cord and the monitor cable from the
back of the computer.
3. Unfasten the cover mounting screws on your system and
remove the system cover. Refer to your system user manual
for instructions to determine the location of the mounting
screws.
4. Remove the retaining screw that holds the slot cover in
place. Slide the slot cover out and put the screw aside (you
will need it to secure the adapter).
5. To install the adapter in PCI expansion slot, carefully line up
the gold-fingered edge connector on the adapter directly
above the expansion slot connector on the motherboard.
Then press the adapter into place, completely. Use the
(remaining) screw you removed to secure the adapter-
retaining bracket in place.
6. Replace the computer cover. Secure the cover with the
mounting screws you removed in Step 3.

13
You have now completed the installation of your new graphics adapter
on your system.
Upgrade Steps:
To add or change your video adapter to an existing
system, you may proceed a few steps before you install
the new hardware and software(video display driver).
The following are some of the considerations:
1. To change a new adapter, please remove the
existing video driver, or replace it with a SVGA driver
from Windows®98/Me system before you remove
the existing hardware.
2. To add a new adapter, ensure the mainboard that
has available IRQ for new devices, and there is no
conflict between the others.
3. If you try adding this video adapter to an ALL-IN-
ONE mainboard (which video port built-in already),
then you must disable that port first. Otherwise, that
will be a problem for the new video adapter setup.
4. The driver installation for system upgrade is as the
same as below, if an error occurs when you proceed
step 1,2 or 3, please consult with your system’s
dealer or the existing hardware manufacturers
support.

14
Software Installation

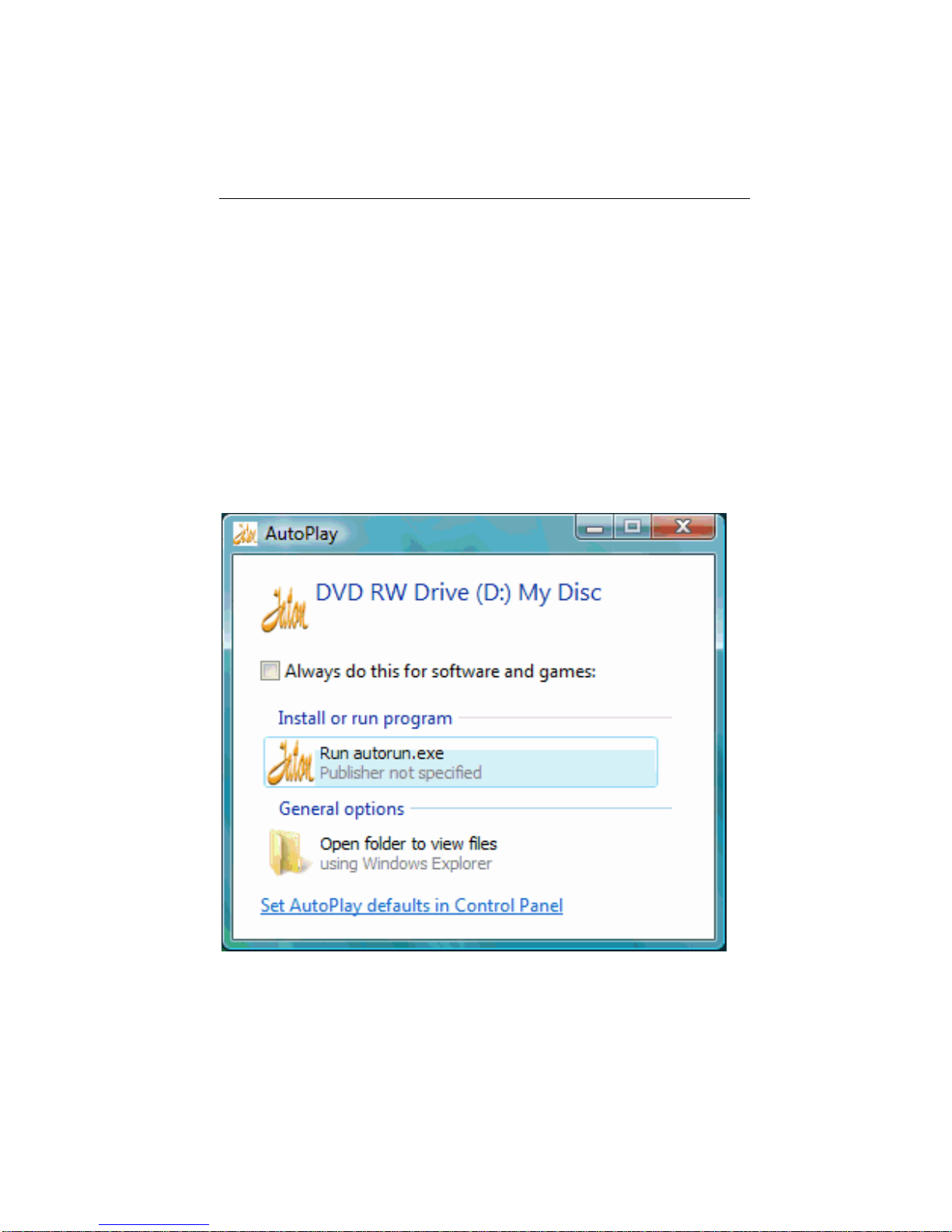

á Windows ® Vista Driver Installation
InstallShield®Program:
Microsoft Windows® Vista detects this new hardware and
places appropriate display driver from its system folder
automatically - it doesn’t matter if you have added a new driver
or changed the existing one. To maximize the video board
acceleration and increase its performance, you may install the
manufacturer’s display driver as follows:
1. At the AutoPlay – Warning, Click on “Run autorun.exe”.

15
2. At the User Account Control, Click on “Allow”.

16
3. Autorun feature brings-up the “Welcome Screen”, and you
may point to “Display Driver” and then press on it.
4. Click on “Next” to continue the process.
5. The Windows system will copy all driver files from source
media to your local hard disk; please wait until the
process has completed.

17
6. Click on “Yes, I want to restart my computer now.” And
click on “Finish” to restart your computer, the new display
driver will be in place after Windows boots-up.

áWindows ® XP Driver Installation
Upgrade video adapter to an existing system.
(Windows has been pre-loaded)
1. Select [Next] at Found New Hardware Wizard.
2. Check [Search for a suitable driver for my device
(recommended) ]then select [Next].
3. Insert the Software’s CD.
4. Check [Specify a location:]
5. Under [Copy manufacturer’s files from:] enter
D:\NVIDIA_FX\WIN2K&XP, where D is your CD_ROM
drive. Then click on [OK].
6. Select [Next] to install “Video-228PCI Series, NVIDIA
GeForceFX 5200” driver.
7. Select [Finish] to restart the computer.
InstallShield®Program:
Microsoft Windows® XP detects this new hardware and places
the appropriate display driver from its system folder
automatically - it doesn’t matter you have added a new driver
or changed the existing one. To maximum the video board
acceleration and increase its performance, you may install the
manufacturer display driver as follows:

19
1. Autorun feature brings-up the “Welcome Screen”, and you
may point to “display driver” then press on it.
2. Microsoft InstallShield®Wizard has start loading its setup
process, please wait until it has completed.

20
3. Click on “Next” to continue the process.
4. Click on “Continue Anyway” to complete the
installation. Otherwise, you may terminate the
process at this time.
