Nvx Vsp4 User manual

Thank You for Choosing NVX

Thank you for choosing NVX V-Series speakers for your car. Whether you are an established audio guru or replacing

your speakers for the rst time, you will soon be immersed in the nuance and warmth of your music like never before.

Like all NVX products, V-Series speakers are a product of extensive research, development and real world testing to

ensure that they exceed our customer’s expectations for durability and performance.

Specifications

V-Series Speakers incorporate features designed to optimize performance, durability and usability in a real automotive

environment, including:

● Polypropylene Cone:

► Strong yet lightweight material for crisp, accurate mid and low notes

● High Temperature TSV Voice Coil:

► Provides superior current distribution while effectively dissipating heat

● 25mm Silk Dome Tweeter:

► Delivers rich, warm treble with remarkable clarity and denition

● Nitrile Butadiene Rubber Surround:

► Supports smooth, linear movement for optimal accuracy

● Y30 Ferrite Motor Structure:

► Maintains exceptional control over the driver for tight, crisp reproduction

● Stamped Steel Basket:

► Provides a sturdy foundation for a durable and long-lasting speaker.

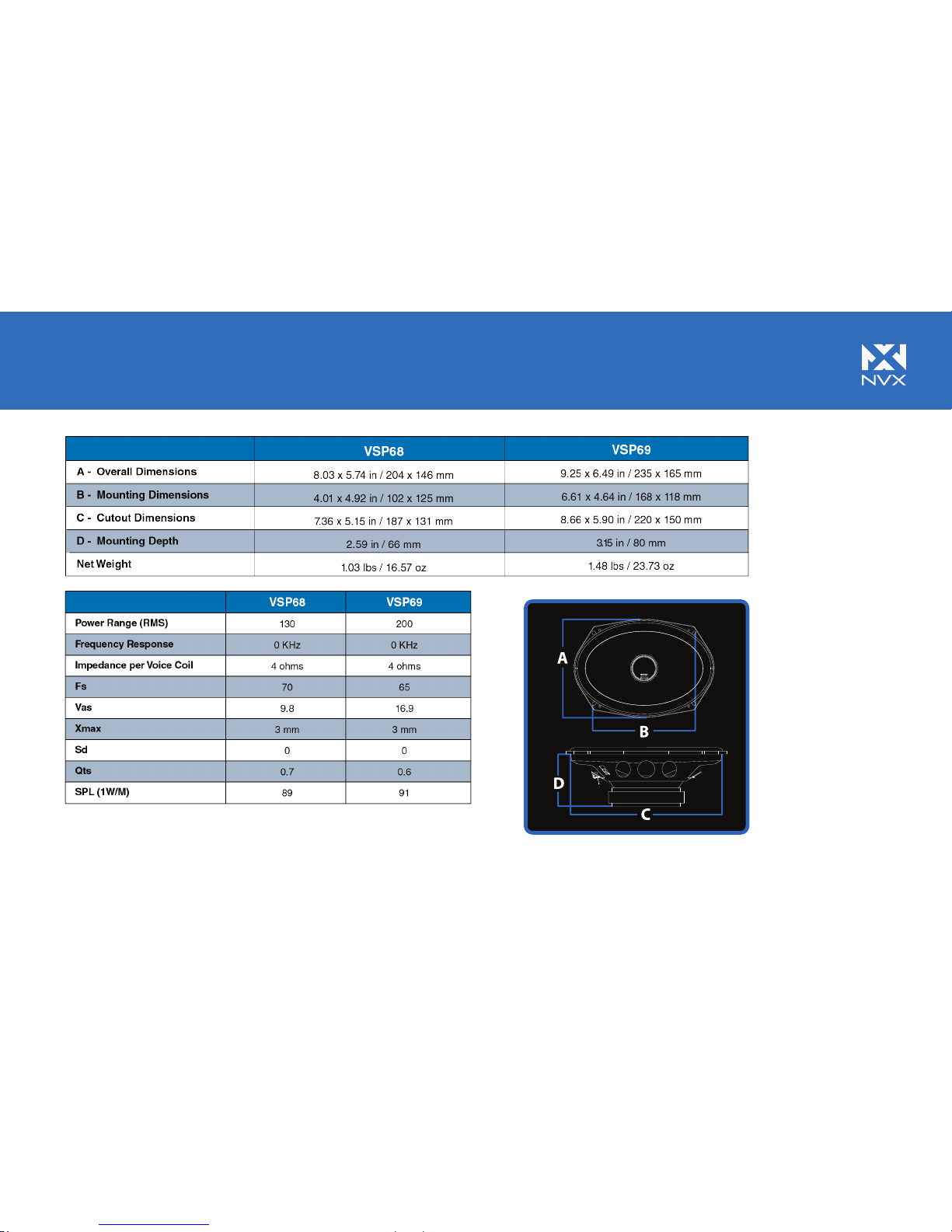

Spec Sheet

*Specs subject to change without notice, please refer to our website at: nvx.com

Spec Sheet Continued

*Specs subject to change without notice, please refer to our website at: nvx.com

Install Diagrams

V-Series Oval Models

Installing w/ Gasket

Bracket (VSP68, VSP69)

V-Series Modelos Ovalados

Instalación con Junta

(VSP68, VSP69)

V-Series Oval Models

Installing w/ Spacer/Adapter

Bracket (VSP68, VSP69)

V-Series Modelos Ovalados

Instalación con soporte

epaciador/adaptador

(VSP68, VSP69)

V-Series Round Models

INSTALLING W/ SPACER/ADAPTER BRACKET

(VSP4, VSP525, VSP60, VSP65)

V-Series Modelos Ovalados

Instalación con soporte

epaciador/adaptador

(VSP4, VSP525, VSP60, VSP65)

V-Series Round Models

Installing w/ Gasket

(VSP4, VSP525, VSP60, VSP65)

V-Series Modelos Redondos

Instalación con Junta

(VSP4, VSP525, VSP60, VSP65)

Install Diagrams Continued

V-Series Round / Oval Models

Basic Coaxial Connection

V-Series Modelos Redondos / Ovalados

Conexión Coaxial Básica

Coaxial speaker

Amplifier

V-Series Tweeters

Tweeter Mounting (VSPTW)

V-Series Tweeters

Montanje Del Tweeter

(VSPTW)
