Nvx Xsptw User manual

The X-Series Component Speakers

Thank you for choosing the NVX X-Series. Our X-Series is a crowning achievement of modern loudspeaker engineering.

– Decades of research, development and installation experience have combined to create a truly remarkable component

speaker system. Our uncompromising approach to manufacturing is unique in the industry, and shines through brightly in

the quality and performance of the X-Series. We are proud to build the nest speakers on the market today, and we are

condent you will soon be proud to own them.

Great loudspeakers begin with great engineers, and for the X-Series we partnered with the very best, bringing together

experts from around the world. The X-Series began in Denmark as a vision of our renowned European Hi-Fi team; dreams

soon gave way to reality as our extraordinary engineers transformed decades of knowledge and experience into a state-of-

the-art component speaker with warmth and crisp detail that is simply stunning.

To optimize our speakers for the harsh automotive environment, we brought them home to the United States. We refused to

compromise the sonic performance or durability of our product, so we assembled a team of engineers who have designed

some of the most ground-breaking and acclaimed products in car audio history. Advanced design techniques were used to

dramatically improve the off-axis response for an enhanced stereo image.

Read on to learn about the features incorporated into our X-Series component speakers that separate them from the

competition.

The Tweeter

29mm Silk Dome

For decades silk has been the reference standard for tweeter composition, as it offers crisply detailed highs with

characteristic warmth. With a diameter in excess of 1-1/8”, the wide dome of the tweeter enables it to play at high volumes

with distinct clarity and improves off-axis response for enhanced imaging.

Ring Radiator

Although the tweeter is by far the smallest speaker in a complete audio system, it’s actually responsible for playing the larg-

est range of frequencies. The behavior of the tweeter when playing different frequencies can vary dramatically.

– Lower notes tend to resonate from the center of the dome, while higher frequencies are produced by the edges and

surround. The ring radiator design prevents the surround from decoupling at higher frequencies, improving the clarity and

delity at these higher notes in addition to relieving strain on the surround.

Dimpled Dome

Since most factory speaker locations are less than ideal, it can be very challenging for the installer to obtain proper imaging.

To ensure optimal performance even in subpar locations, we incorporated a dimple into the center of the dome. This im-

proves the dispersion pattern for improved response both on and off axis.

Robust Tweeter Chamber

Great care was taken to maintain even compression on the dome throughout the full range of excursion, resulting in more

linear movement and more dened highs. The ample tweeter chamber also helps lower the resonant frequency, which im-

proves imaging and offers a seamless transition from the midbass drivers.

The Woofer

Cone

After testing scores of different cone materials, we decided on a custom blend of nely milled pulp and Egyptian Papy-

rus bers. This stiff yet lightweight material produces spectacularly accurate midbass with a rich, natural tonal quality

prized by audiophiles. The smooth matte nish of the cone offers a sleek, modern accent to the interior of any car.

Surround/Suspension

To achieve the most authentic and accurate sound, we engineered our midwoofer to be as responsive as possible. We

utilized a special low damping rubber surround that maintained linear movement better than any other material we’ve

tested. The X-Series also features a relatively soft spider to reduce unwanted mechanical stiffness.

What is this shorting sleeve?

Copper Shorting Sleeve

The shorting sleeve is a conductive copper sleeve placed in the air gap between the pole piece and the voice coil former to

reduce inductance. Inductance can best be understood as the change in magnetic energy that occurs as the voice coil moves

in and out of the air gap. In most drivers this energy is absorbed by the voice coil, causing impedance rise, introducing

distortion and reducing the woofer’s ability to play at the top of the midbass spectrum. In the X-Series midwoofer, the shorting

sleeve simply absorbs changes in inductance, optimizing the sound quality, output potential and frequency response of

the driver.

Perhaps the most distinguishing component of the X-Series midwoofer is the innovative copper shorting sleeve system. This

technology prevents a rise in inductance caused by the movement of the driver, which has several positive impacts on the

woofer’s performance:

• Improved power delivery to the voice coil

• Decreased inductive distortion

• Improved cone linearity

• Improved high-end extension

• Decreased risk of overheating

So why does it work?

●Improved power delivery to the voice coil

►Any increase in inductance correlates to an increase in voice coil impedance, meaning increased resistance to

the input power. By preventing inductance rise, we effectively increase the amount of power carried to the voice

coil, increasing the output potential of the woofer with each given watt.

●Decreased inductive distortion

►When inductive energy is introduced into the motor structure, it causes the midwoofer to produce sounds and

artifacts at higher frequencies outside of the normal playback range. Our copper shorting sleeve absorbs these

changes in inductive energy, resulting in crisp, distortion-free sound.

●Improved cone linearity

►A great deal of care was taken during the research and development process to ensure that the movement of the

cone is as linear as possible. Since inductance is a change in magnetic energy, it’s easy to see how undesired

inductance can alter the movement of the cone. By using our shorting sleeve, we absorb these changes in

magnetic ux and prevent modulation of the cone resulting in tighter, more accurate mids.

●Improved high-end extension

► The low-pass lter in a standard crossover network is basically just a coiled conductive wire with an iron core –very

similar to the design of a voice coil. When the inductance of the voice coil increases, it begins to lter out notes at

the top of the midwoofer’s frequency range. Our copper shorting sleeve eliminates these variations in inductance,

allowing the woofer to play as it was intended.

●Decreased risk of overheating

► In addition to the positive impact the shorting sleeve has on the speaker’s sound quality, it also acts as an effective

heat sink to carry heat away from the voice coil, which contributes to improved performance and durability.

If it’s so great, why don’t others use it?

Where we see an opportunity to build a better product, other manufacturers see an opportunity to maximize prots.

Shorting sleeves require additional materials and add complexity to the manufacturing process. Rather than skimp on

the shorting sleeve and make inferior midwoofers, we ultimately decided to create a masterpiece. The most

experienced engineering team in the industry has painstakingly designed our X-Series components, and we rmly

believe that you will hear the difference.

Custom Low Turbulence Cast Aluminum Basket

Our custom basket offers several distinct advantages over traditional designs. We purposefully chose an especially

open basket to improve airow to reduce compression of the motor structure for both improved cone control as well as

reduced back-wave interference. The 3-dimensional cast design dramatically increases the strength and rigidity of the

basket while simultaneously reducing resonance. We chose aluminum, the industry standard for cast speaker baskets,

as it offers an exceptional strength-to-weight ratio and is non-ferrous, thus eliminating risk of magnetic interference with

the motor structure. The unique cast aluminum mounting ring offers a sleeker and more modern aesthetic than typical

bulky rubber or plastic designs.

C. High Temperature Voice Coil

The Crossover

A well-matched crossover separates a good pair of speakers from a truly spectacular component system. Rather than

utilize some cookbook formula, our engineers meticulously developed a custom crossover network that beautifully

complements the natural roll-off of the tweeter and midwoofer. We used only the nest components in the construction

of the crossover to ensure the purest high-delity audio playback possible. Mylar and polyester capacitors with tight tol-

erances of ±5% or less were utilized to ensure that each set of speakers embodies the spectacular sound and reliable

performance of the NVX X-Series.

Optimized for In-Vehicle Use

The X-Series are car speakers, so it only seemed logical to design them to perform optimally in a real car environment.

Other manufacturers perform all their measuring and metering with the speakers mounted to a at bafe board on a test

bench. While these speakers may sound great on a showroom oor, they are virtually incapable of producing that same

quality in your car.

To attain the ultimate performance, we averaged the response from eight different positions within the car. First we

measured the response from the driver side tweeter at both of the driver’s ears, then at each of the passenger’s ears.

We took the same measurements with the tweeter located on the passenger side, and then repeated the entire process

for the midwoofer. Our engineers took this raw response data, along with the 3-dimensional locations of the speakers in

the vehicle, and used advanced computer modeling to achieve harmonious sound from the entire component system.

Off-Axis Tweeter Boost

Compensating for a less-than-ideal tweeter position is one of the most common and difcult challenges facing an installer.

When a tweeter is positioned off-axis, the listener will experience the most attenuation (quieting) at the highest frequencies.

Many tweeters on the market give you the ability to boost output of the entire tweeter by up to 6 dB to help compensate for

this loss. However, since there is virtually no loss at the lower frequencies close to the crossover point, this boost results in

harsh and unbalanced highs.

NVX is different because our tweeter boost follows a slope which adds 6dB up at 20kHz, 3dB at 10kHz, and offers no boost

at 6kHz, where the frequency is too low to experience severe off-axis attenuation. This boost makes for smoother and more

even high notes, allowing you to enjoy an ideal stereo image from a less-than ideal location.

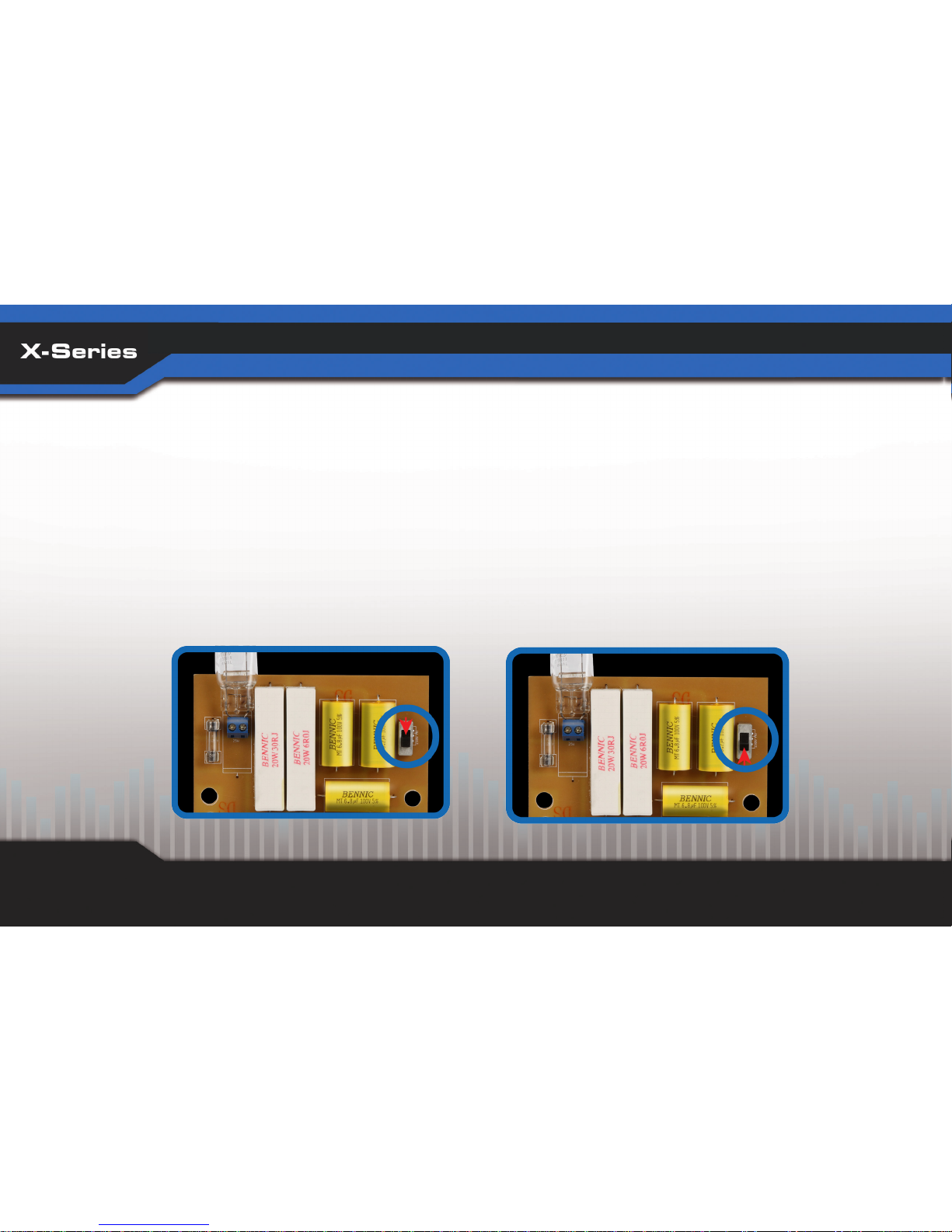

Switch down position for 0 dB Gain Switch up position for +6 dB Gain at 20kHz

Low Crossover Point

Our crossover point is particularly low at 1500Hz. While this is too low for most tweeters to operate safely, our tweeter has an

extremely low resonance frequency, and we achieved optimal performance by adding an additional 6dB of electrical

attenuation to our tweeter. This low crossover point helps raise the soundstage for a more natural stereo image, while also

reducing potential phase anomalies caused by the distance between the tweeter and midwoofer.

Bi-Amplification Enabled Design

Some audiophiles prefer an extra level of control to mold the sound to their taste. The low-pass and high-pass lters on

our crossover are completely isolated, enabling you to amplify the tweeters and midwoofers separately while minimizing

the risk of both harmonic and intermodulation distortion. Our crossover is exceptionally optimized for both the drivers

and the automotive environment, and we are condent that the results from passive bi-amplication of the X-Series are

superior to any active setup.

Unique Protection Technologies

Through innovative engineering, we were able to integrate several unique technologies which offer an unparalleled level

of protection for any tweeter, midwoofer and even amplier attached. Our engineers adapted techniques used in

professional and home audio to design the world’s premier car audio crossover.

One-of-a-Kind Midwoofer/Amplifier Protection

High-Fidelity Tweeter Protection

Although woofers are larger and much more robust than the tweeters they complement, you can still experience the occasional

blown midwoofer due to misuse, improper setup, or even an unexpected voltage spike. When this happens the inherent construction of

the low-pass lter will cause the amplier power to feed back into the amp, causing a potential short circuit. Our engineers

included a fuse in series with the low-pass lter; in the rare event your midwoofer should blow, this fuse will pop and cut off the

power owing back to the amp. The NVX X-Series is the only component system on the market that offers protection

for your amplier.

To protect our tweeter, we adapted a design commonly found in high-powered pro audio speakers. The key to this protection

feature is an extremely durable bulb which increases in resistance when more power is run through it. We chose to use this

bulb instead of the traditional polyswitch to preserve the delity of the music. We also included a fuse and resistor in an

innovative circuit to offer increased protection for the tweeter and the bulb. If the power begins to exceed the capacity of the

tweeter, the bulb will increase in resistance and limit the power. If the power begins to exceed the capacity of the bulb, the

fuse will blow and send all the power through the resistor; this will quiet the tweeters signicantly, notifying you that there is

an issue while protecting all the components. With NVX, a power spike just requires a replacement fuse, not a replacement

tweeter.

Specifications

Specications subject to change without notice, please refer to our website at: nvx.com

XSP65 / XSP525 XSPTW

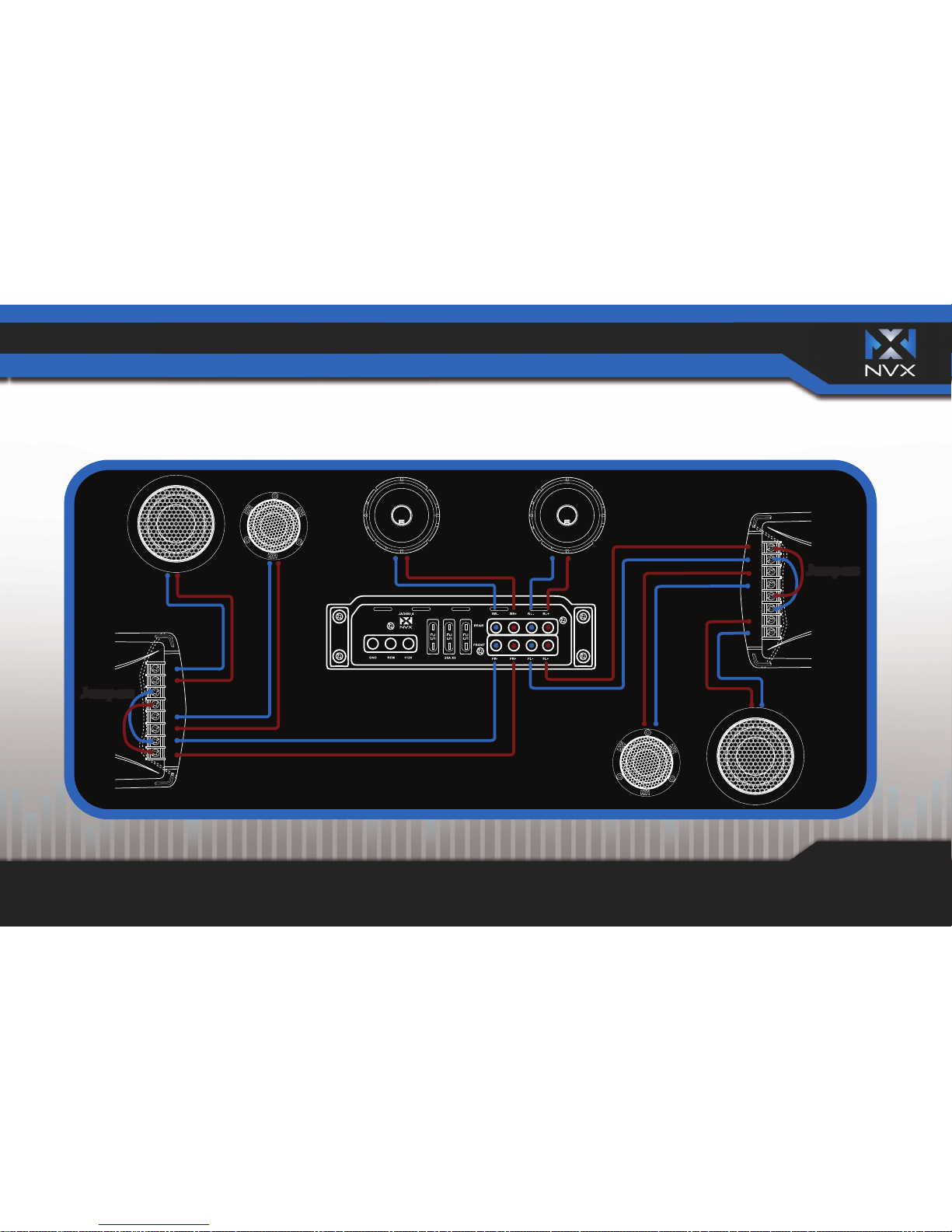

Bi Amp System Diagram

XNET2 XNET2

XSP52

XSP65

XSPTW

Amplier

XSPTW

XSP52

XSP65

IN + IN - TW + TW - IN+ IN- WF+WF- IN + IN - TW + TW - IN+ IN- WF+WF-

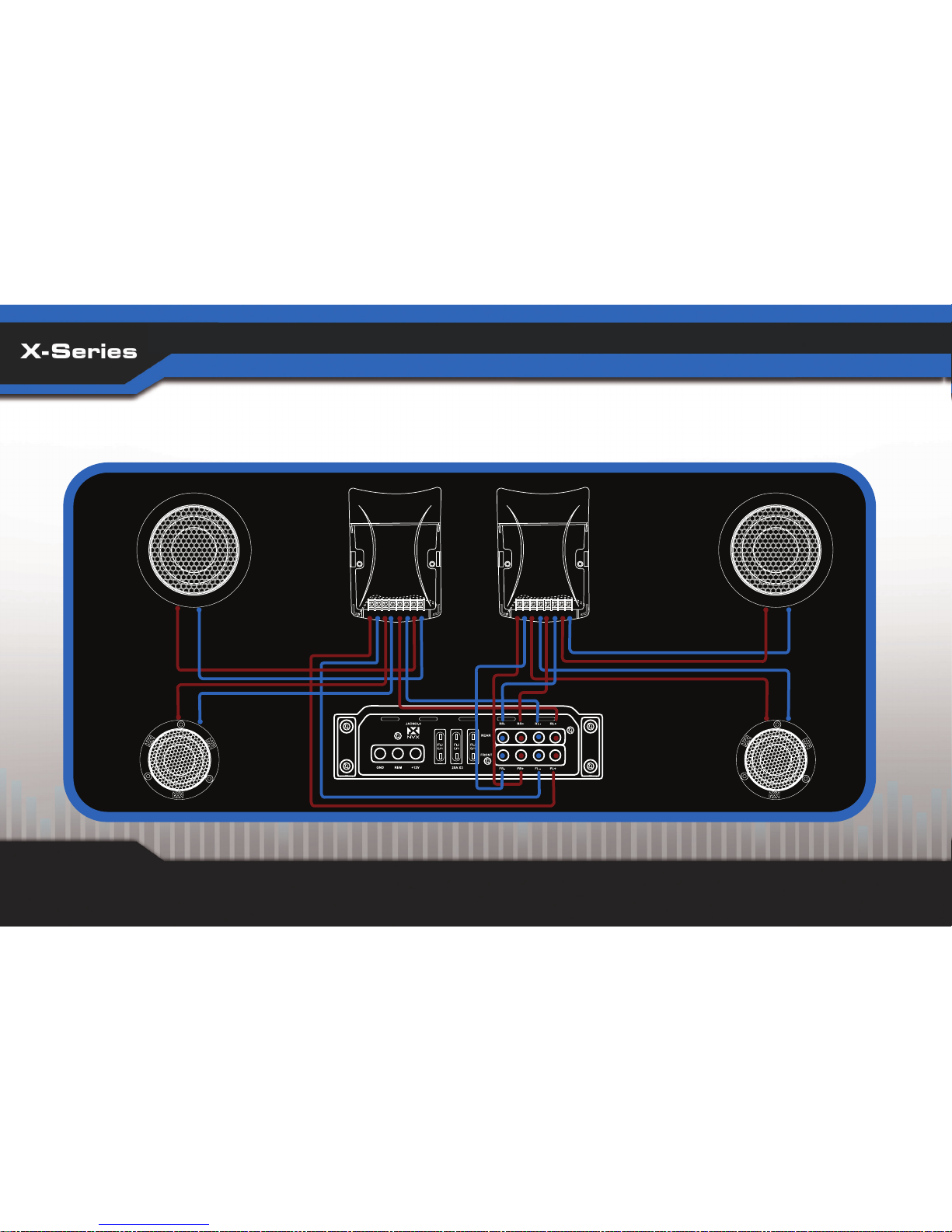

2 Way Systems Diagram

IN+IN -TW +TW - IN+ IN- WF+ WF-

IN+IN -TW +TW -IN+ IN- WF+ WF-

XNET2

VSP65

XSP52

XSP65

XSP52

XSP65

XSPTW

Amplier

Jumpers

VSP65

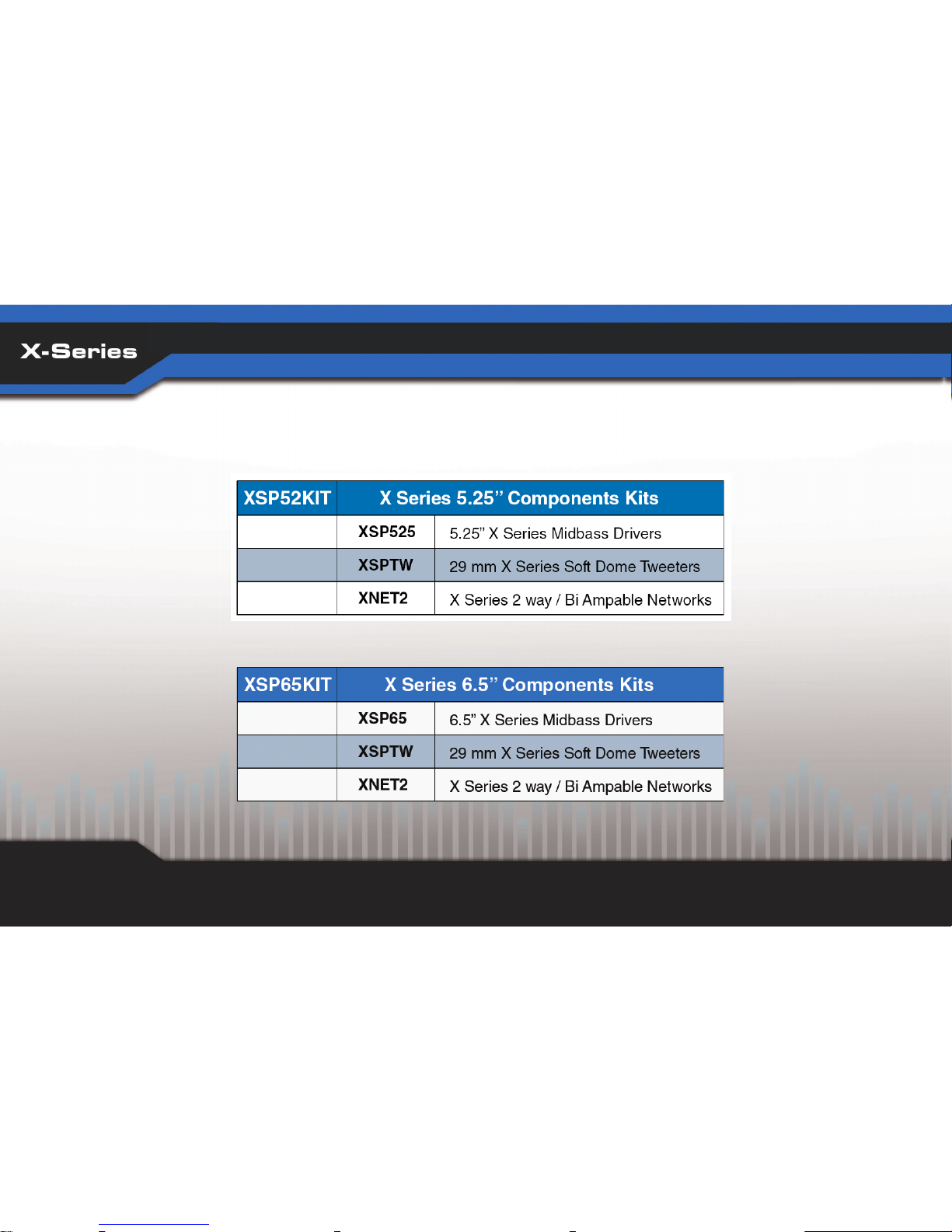

Component Configurations

Recommended Subwoofers:

A. XQW102 / XQW104

► 10” X-Series Subwoofers

B. XQW122 / XQW124

► 12” X-Series Subwoofers

A. B.

Warranty

NVX warrants to the original retail purchaser that this product is to be free from defective materials and

workmanship for a period of one (1) year from

the date of purchase, if it is properly used and maintained.

If this product proves defective in either material or workmanship, NVX, at it’s discretion, will

(a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired

effectively or replaced with an identical model, NVX at it’s sole option may replace the unit with a current model of equal or greater value. To obtain

a repair or replacement under the terms of this warranty, please return to dealer rst, if possible, and the dealer will direct you accordingly for repairs

or replacement. You will be required to submit a copy of the original receipt. Return shipping for exchanges/repairs is the sole responsibility of the

original retail purchaser.

Limitations:

• This limited warranty does not cover failure of the product resulting improper installation, misuse, abuse, accident, negelect, mishandling, or wear

from ordinary use or environmental deterioration.

• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to ordinary use or environmental

deterioration.

• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which

may result for any reason from the failure of the product.

• This limited warranty is null and void for products not used in accordance with NVX’s instructions.

• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an authorized dealer.

• This limited warranty terminates if you sell or otherwise transfer this product to another party.

• This limited warranty is null and void for any speaker or subwoofer that has been damaged due to over-powering causing burnt voice coils and /or

mechanical failures such as ripped spiders or surrounds.

Warranty Continued

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO

STATE, JURISDICTION TO JURISDICTION, OR COUNTRY TO COUNTRY. NVX’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN

HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED

WARRANTIES FOR THE

PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS, OR COUNTRIES

DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. NVX DOES NOT ACCEPT LIABILITY FOR SPECIAL,

INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS

AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH NVX MAY

BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT

YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM.

SOME STATES,

JURISDICTIONS, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Warranty Outside the U.S.

The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable

warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product.

Defective products should be returned to the place of purchase. Your Authorized NVX Dealer is trained to handle and expedite any warranty

claim. Assistance in locating an Authorized Dealer can be found at www.nvx.com or by contacting NVX directly.

Alternatively, if it becomes necessary for you to return defective product directly to NVX, please refer to the following instructions for

warranty service:

�Receive your RA Number from NVX online at www.nvx.com/support

�Package all defective components in the original packaging (if available) or in a package that will prevent shipping damage.

�Package the original packaging in an additional shipping container to avoid shipping damages and to comply with most shipping

couriers such as UPS and FedEx.

�Insure your return at the price paid as NVX is not responsible for insurance losses or damages occurring in shipment to our facility.

�Clearly mark RA Number on the outside shipping container.

� Return only defective components as the return of functioning items increases your return freight charges.

- Non-defective returns or products not eligible for warranty service will be returned freight collect.

� Include a copy of the original receipt with the purchase date clearly visible, and a “proof-of-purchase” statement listing the customer’s

name, dealer’s name and invoice number, and product purchased.

- Warranty expiration on items without proof-of-purchase will be determined from type of sale and the manufacturing date code.

� Ship your package freight prepaid to the address below. Items sent freight collect or COD will be refused.

NVX

15303 Ventura Blvd.

9th Floor

Sherman Oaks, CA 91403

Failure to follow the steps listed above may void your warranty. Any questions can be directed via email to [email protected] or via mail at the address listed above.

What To Do If You Need Warranty or Service

This manual suits for next models

Table of contents

Other NVX Speakers manuals
