NVX X Series User manual

X-SERIES
XSP69KIT
COMPONENT
SPEAKERS

NVX X-SERIES
Thank you for choosing NVX X-Series speakers for your car. Whether you are an established
audio guru or replacing your speakers for the first time, you will soon be immersed in the
nuance and warmth of your music like never before. Like all NVX products, X-Series speakers
are a product of extensive research, development, and real world testing to ensure that they
exceed our customer’s expectations for durability and performance.
XSP69KIT

A. Overall Diameter
COMPONENT |SPEAKERS
X-SERIES DIMENSIONSXSP69KIT Midwoofer
Power RMS/Peak Each
Nominal Impedance
Frequency Response
Sensitivity
6 x 9”
(164 x 234 mm)
4.75 x 6.45”
(121 x 164 mm)
5.6 x 8.6”
(147.5 x 219 mm)
3”
(78 mm)
B. Mounting Diameter
C. Cutout Diameter
D. Mounting Depth
Xmax
Voice Coil Resistance (Re)
Free Air Resonance (Fs)
Equivalent Compliance (Vas)
Electrical “Q” (Qes)
Mechanical “Q” (Qms)
Total Speaker “Q” (Qts)
Moving Mass (Mms)
Mechanical Compliance (Cms)
Magnetic Strength (BL)
Effective Piston Area (Sd)
Cone Composition
Speaker Surround
Tweeter (Composition / Type)
Tweeter Diameter
Voice Coil Diameter
150W / 300W
4 Ω
45 Hz - 21 KHz
96 dB
5.5 mm
3.6 Ω
57.6 Hz
12.1 L
0.600
2.69
0.49
18 g
0.42
6.24
20.61 sq. in (0.0133 sq. m)
Carbon Fiber
Rubber
Silk Dome
30mm (1-3/16 in)
30mm (1-3/16 in)

NVX X-SERIES

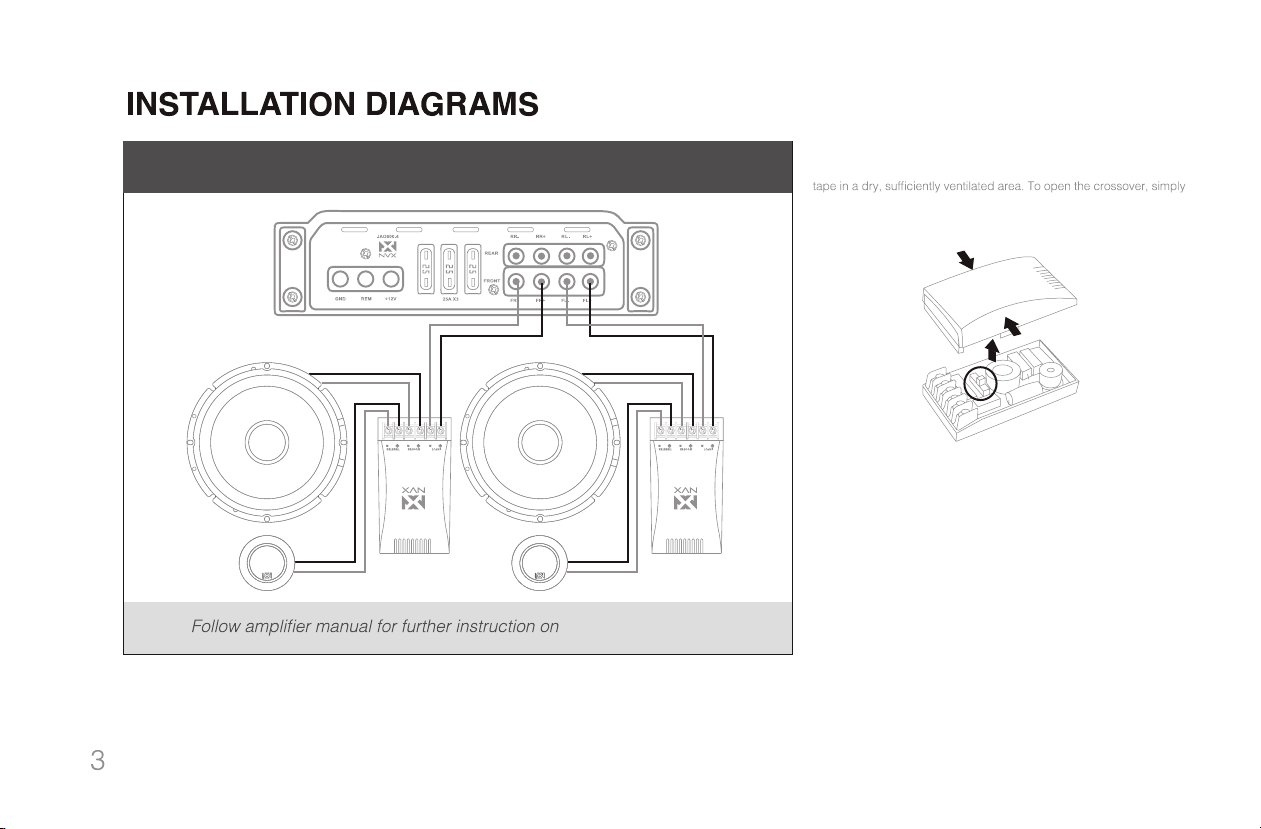

rear speaker wiring.
Component Connections
INSTALLING THE CROSSOVER
The crossover should be mounted using either screws ordouble-sided
squeeze the sides of the cover and remove gently. It is recommended
that you route thecables prior to mounting the crossover to simplify the
installation process.
TWEETERLEVEL ADJUSTMENT
There is a toggle switch located inside of the crossover which allows
the listener to attenuate (lower) the tweeter by -3 dB. This gives the
user the ability to adjust the intensity of the tweeter to suit their own
preferences, as well as to compensate for variations in tweeter location.
