1. Introduction
The present document describes the OM5578/PN7150S demonstration kit, a flexible and
easy-to-use Single Board Computer (SBC) Kit for the PN7150 NFC Controller.
It enables the development of an NFC solution based on PN7150 in a Linux, Android or
Windows for IoT environment or even in system based on RTOS or without OS.
It exists in different configurations:
- OM5578/PN7150RPI to be used with Raspberry Pi platform (see [1])
- OM5578/PN7150BBB to be used with BeagleBone Interface Board (see [2])
- OM5578/PN7150ARD to be used with platforms offering Arduino compatible
interface (see [3]), like LPCXpresso (see [5]) or Kinetis Freedom (see [4]).
This document presents first an overview of the kit.
Then, it gives printed circuit boards details.
Finally, it provides information for reuse of the kit in different environments.
This kit is registered as FCC certified module (FCC ID: OWROM5578-PN7150S).
Errata: First batch of demo kits were released with beta version of PN7150 IC. Those
can be identified looking to the PN7150 version number (see chapter §6.2 in UM10936
[7]): Manufacturer specific information in CORE_INIT_RSP is 0x88100110 for PN7150
beta release while it is 0x881001A0 for the production release.
The main limitation of the beta release resides in the missing support for the
TEST_GET_REGISTER_CMD/RSP (see description in UM10936 [7] chapter §12.4)
which may be used during the matching process (as described in AN11755 [8] chapter).
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
4 of 25
2. Overview
2.1 Kits description
All 3 OM5578 kits contains a PN7150 NFC Controller Board, a dedicated interface board,
as well as an NFC Sample Card in form of an NFC Forum Type 2 Tag.
+
+
OM5578/PN7150S
PN7150 NFC Controller Board
OM29110RPI
Raspberry Pi Interface Board
NTAG216
NFC Sample Card

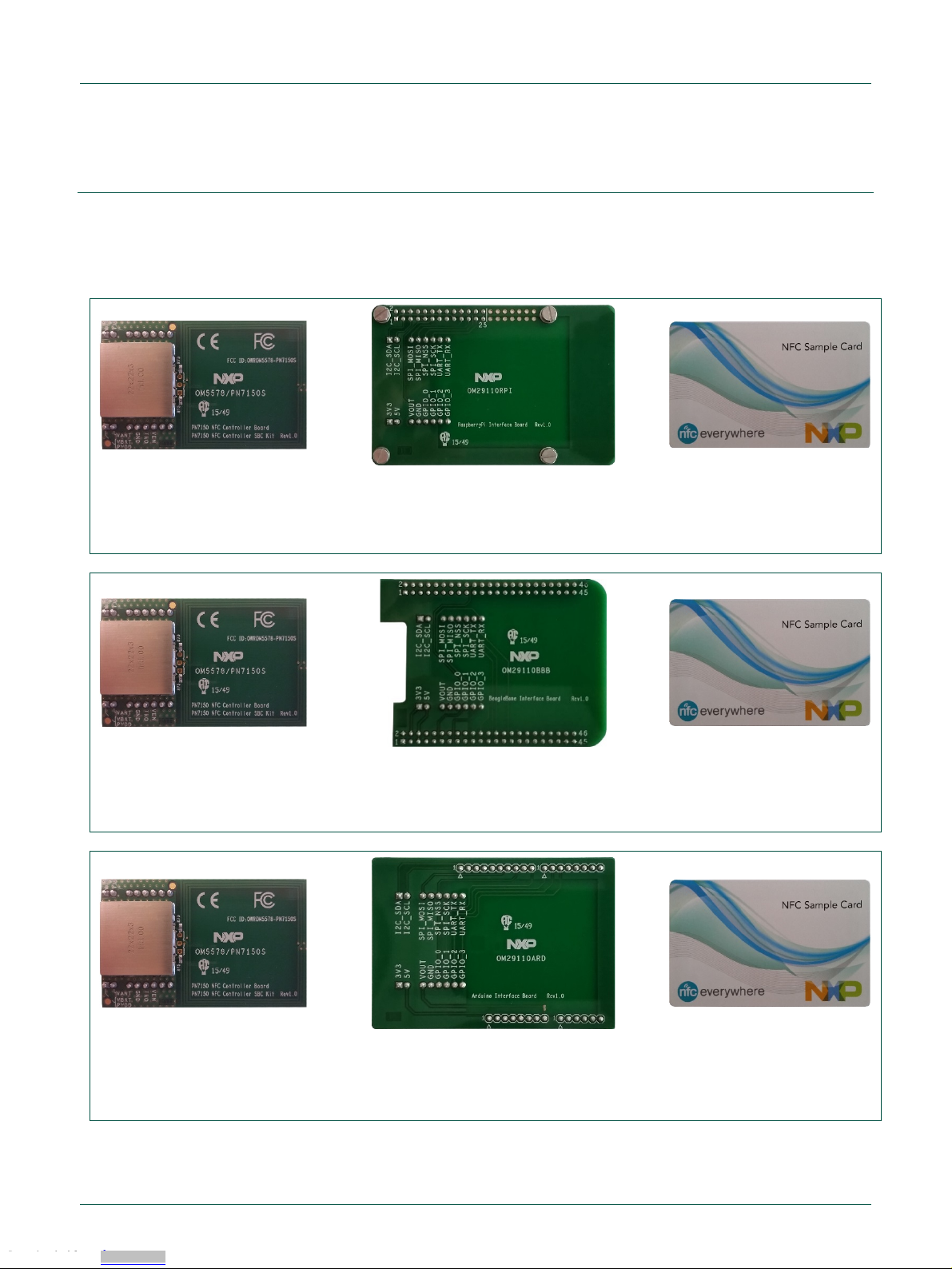

Fig 1. OM5578/PN7150RPI kit overview
+
+
OM5578/PN7150S
PN7150 NFC Controller Board
OM29110BBB
BeagleBone Interface Board
NTAG216
NFC Sample Card
Fig 2. OM5578/PN7150BBB kit overview
+
+
OM5578/PN7150S
PN7150 NFC Controller Board
OM29110ARD
Arduino Interface Board
NTAG216
NFC Sample Card
Fig 3. OM5578/PN7150ARD kit overview
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
5 of 25
2.2 PN7150 NFC Controller Board
The OM5578 PN7150 NFC Controller Board is high performance fully NFC compliant
expansion board, meeting compliance with Reader mode, P2P mode and Card emulation
mode standards.
The board features an integrated high performance RF antenna to insure high
interoperability level with NFC devices.
It has to be used in association with one interface board according to the targeted user
environment. For this purpose, it integrates the NFC generic interface allowing assembly
with OM29110 Interface boards (see [6]).

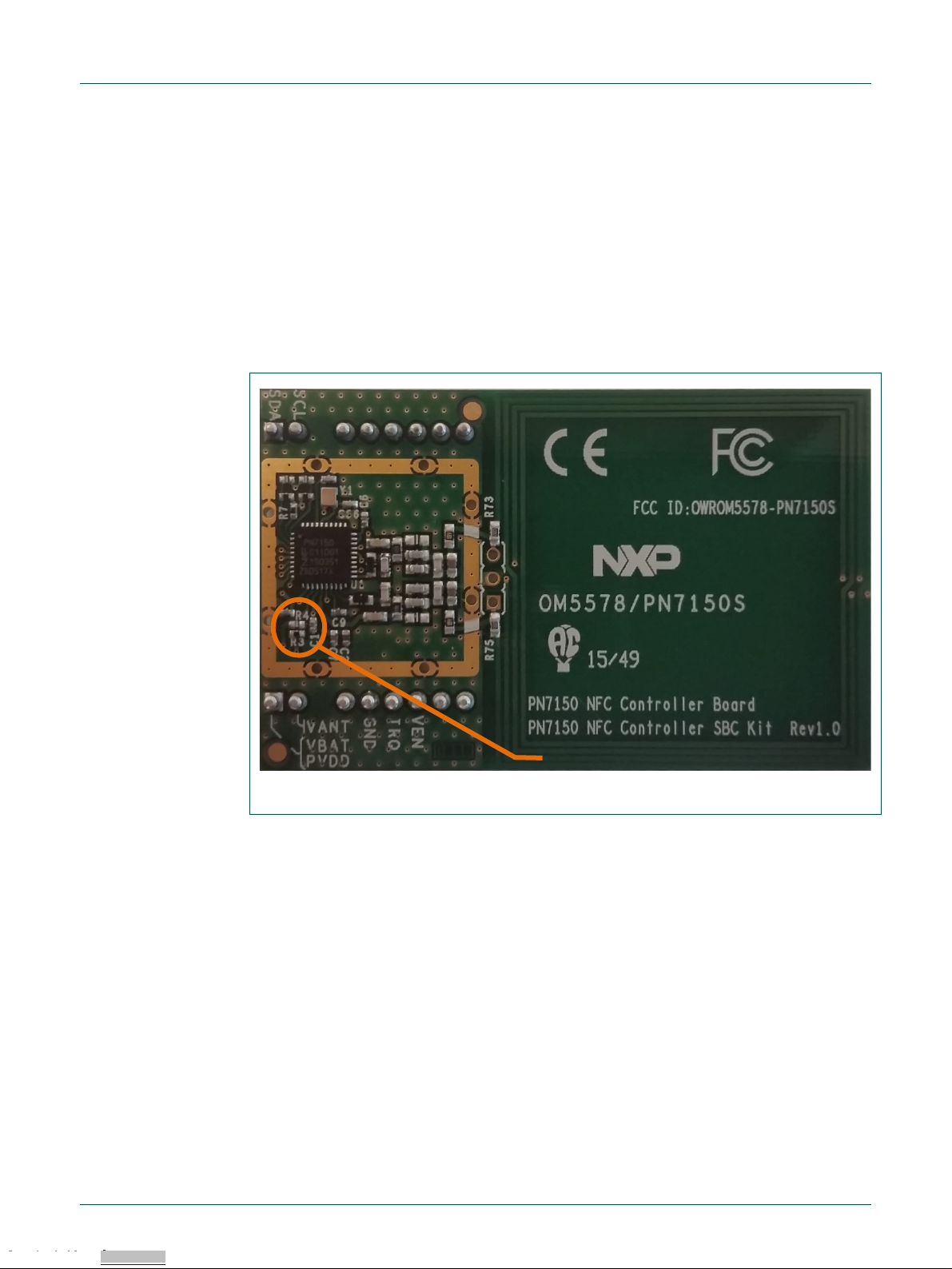

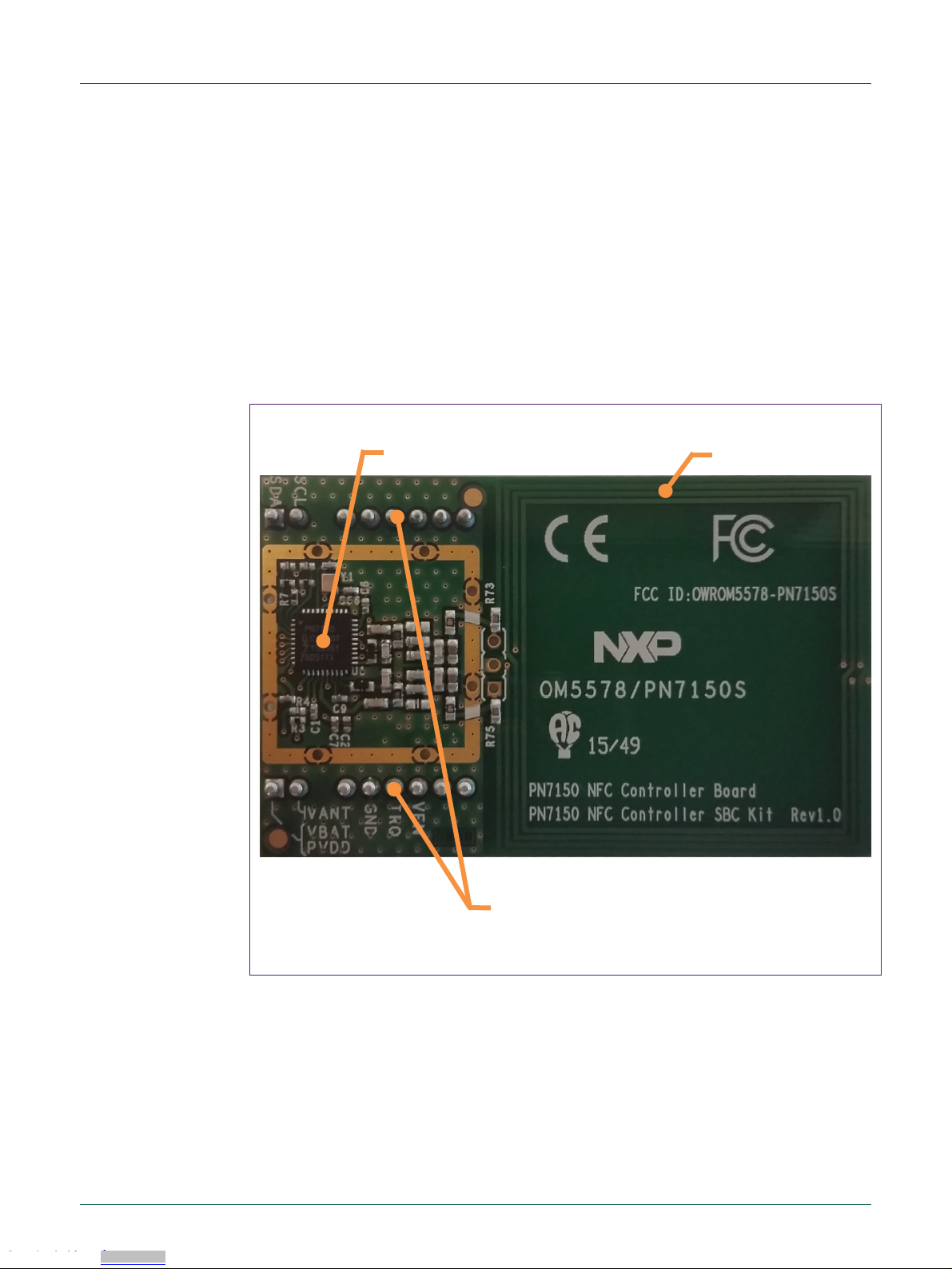

Fig 4. OM5578/PN7150S PN7150 NFC Controller Board
Connectors to interface boards
RF Antenna
PN7150
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
6 of 25
2.3 OM29110 Interface Boards
The OM29110 Interface Boards offer support for connection to Raspberry Pi,
BeagleBone or Arduino Compatible Interface platforms (refer to [6] for more details).

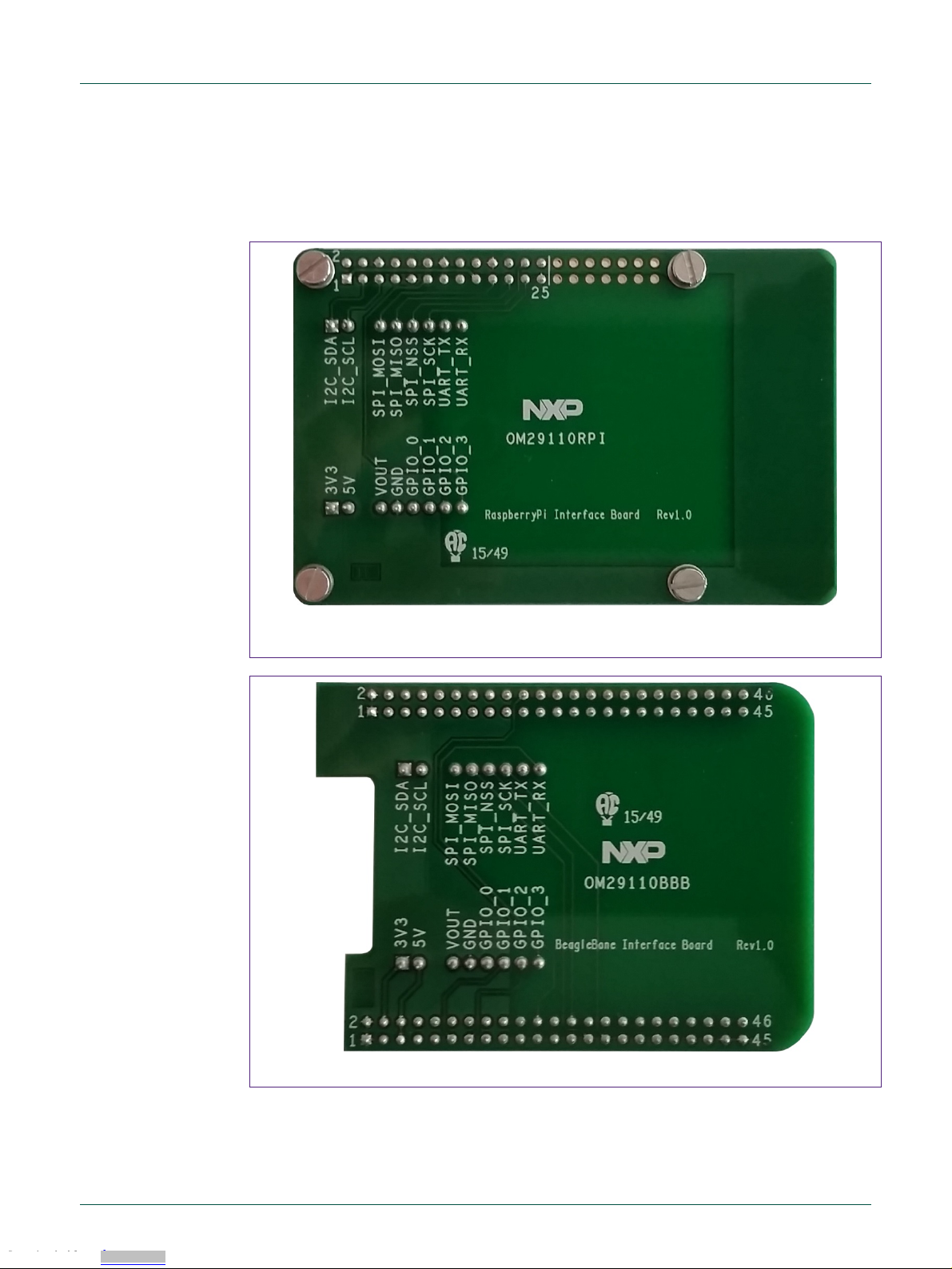

Fig 5. OM29110RPI Raspberry Pi Interface Board
Fig 6. OM29110BBB BeagleBone Interface Board
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
7 of 25
Fig 7. OM29110ARD Arduino Interface Board
2.4 NFC Sample Card
OM5578/PN7150S kit includes a NFC Sample Card, based on NTAG216 tag IC, allowing
to demonstrate NFC reader capabilities of PN7150 NFC Controller.
For the current purpose of PN7150 NFC Controller demonstration, the card has been
pre-configured with NDEF URI type message “http://www.nxp.com/demoboard/OM5578”.
Fig 8. NFC Sample Card
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
8 of 25
3. PN7150 NFC Controller Board details
3.1 Schematics
Fig 9. PN7150 NFC Controller Board schematics
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
9 of 25
3.2 Layout
3.2.1 Components layers
Fig 10. PN7150 NFC Controller Board Top components layers
Fig 11. PN7150 NFC Controller Board Bottom components layers
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
10 of 25
3.2.2 Layer 1
Fig 12. PN7150 NFC Controller Board Layer 1
3.2.3 Layer 2
Fig 13. PN7150 NFC Controller Board Layer 2
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
11 of 25

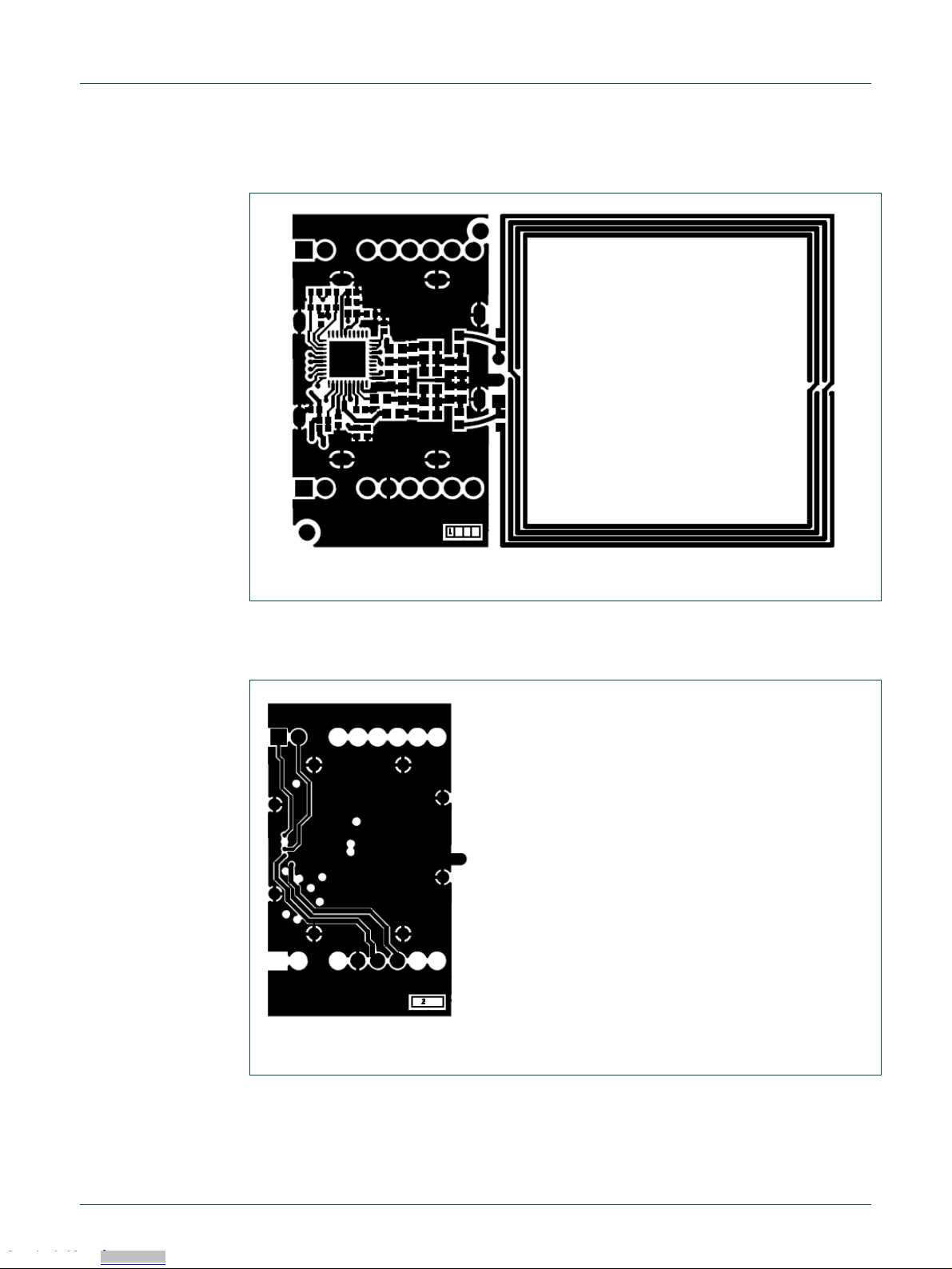

3.2.4 Layer 3
Fig 14. PN7150 NFC Controller Board Layer 3
3.2.5 Layer 4
Fig 15. PN7150 NFC Controller Board Layer 4
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
12 of 25
3.2.6 Top Silkscreen layer
Fig 16. PN7150 NFC Controller Board Top silkscreen layer
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
13 of 25
4. PN7150 NFC Controller Board performances
4.1 Settings configuration
Following performance results are obtained applying dedicated configuration to PN7150
optimized for OM5578 characteristics. Those are:
Table 1. RF settings
Transition
Register
Value
RF_CLIF_CFG_INITIATOR CLIF_AGC_INPUT_REG 90 01 F4 01
RF_CLIF_CFG_TARGET
CLIF_SIGPRO_ADCBCM_THRESHOLD_REG
B0 01 10 00
RF_CLIF_CFG_TARGET CLIF_ANA_TX_AMPLITUDE_REG 02 00 FF FF
RF_CLIF_CFG_TECHNO_I_TX15693
CLIF_ANA_TX_AMPLITUDE_REG
88 00 FF FF
RF_CLIF_CFG_TECHNO_I_RX15693 CLIF_ANA_RX_REG 22 00
RF_CLIF_CFG_TECHNO_I_RX15693
CLIF_SIGPRO_RM_CONFIG1_REG
50 34 0C 00
RF_CLIF_CFG_BR_106_I_TXA CLIF_ANA_TX_AMPLITUDE_REG F8 00 FF FF
RF_CLIF_CFG_BR_106_I_RXA_P
CLIF_SIGPRO_RM_CONFIG1_REG
24 37 0C 00
RF_CLIF_CFG_BR_106_I_RXA_P CLIF_AGC_CONFIG0_REG 80 86 00 70
RF_CLIF_CFG_BR_106_I_RXA_P
CLIF_ANA_RX_REG
22 00
RF_CLIF_CFG_BR_848_I_RXA CLIF_SIGPRO_RM_CONFIG1_REG 15 45 0D 00
RF_CLIF_CFG_BR_106_I_RXB
CLIF_ANA_RX_REG
22 00
RF_CLIF_CFG_BR_106_I_RXB CLIF_SIGPRO_RM_CONFIG1_REG 05 59 0E 00
RF_CLIF_CFG_BR_106_I_TXB
CLIF_ANA_TX_AMPLITUDE_REG
88 00 FF FF
RF_CLIF_CFG_BR_212_I_RXF_P CLIF_SIGPRO_RM_CONFIG1_REG 05 9F 0C 00
RF_CLIF_CFG_BR_212_I_TXF
CLIF_ANA_TX_AMPLITUDE_REG
88 00 FF FF
RF_CLIF_CFG_I_ACTIVE CLIF_AGC_CONFIG0_REG 80 86 00 70
Table 2. Clock settings
Register
Value
CLIF_ANA_CLK_MAN_REG
57 33 14 17 00 AA 85 00 80 55 2A 04 00 63 00 00 00
4.2 RF performances
Table 3. Power Transfer (Poll mode)
Measured with EMVCo reference PICC
@ 0cm
@ 1cm
@ 2cm
@3 cm
7.6 V
6.7 V
4,3 V
1,2 V
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
14 of 25
Table 4. Reader/Writer mode performance
Card type
Communication distance (mm)
ISO 15693 UPM RaceTrack
120
NFC Sample Card (NTAG216 – ID1)
80
NFC Sticker (NTAG216 – 40x40)
68
Topaz (35mm Round)
55
Type B (ID1)
45
Felica (ID1)
36
Table 5. Peer to Peer mode performances
Vs Samsung Galaxy S7 phone
Communication distance
moving phone from far to close
moving Phone from close to far
50
65
Table 6. Card Mode performance
Vs NXP Pegoda Reader
Communication distance (mm)
180
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
15 of 25
5. Additional information
5.1 Using different Antenna
The OM5578/PN7150S kit provide a flexible way of connecting an external RF antenna
to be used in place of the on-board one.
On the PN7150 NFC Controller Board, the dedicated 3 pins connector referenced as TB1
allows to connect your own antenna.
In this case the on-board antenna must be first disconnected, removing resistors R75
and R73.
Obviously matching circuitry must be adapted as described in related document
“AN11755 - PN7150 Antenna Design and Matching Guide”.
Fig 17. PN7150 NFC Controller Board RF Antenna components
Table 7. PN7150 NFC Controller Board TB1 connector pinout
TB1
PN7150 signal
#1
ANTENNA 1
#2
GND
#3
ANTENNA 2
TB1
R73 and R75
Matching circuitry
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
16 of 25
5.2 Using different TVDD supply option
The OM5578/PN7150S kit comes with Configuration 2: external 5V used to generate
TVDD (refer to “AN11756 – PN7150 Hardware Design Guide” for more details). The 5V
being provided by the underlayer SBC platform via the VANT pin of connector TB2.
However, it is still possible to switch to Configuration 1: VBAT used to generate the
TVDD. This is done by removing R3 and placing a 0 Ohm resistor in R4 place.
Then related registry setting must be applied accordingly (see “AN11756 – PN7150
Hardware Design Guide”).
Fig 18. PN7150 NFC Controller TVDD supply option
R3 and R4
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
17 of 25
5.3 Using different I2C address
The OM5578/PN7150S kit comes with default 0x28 (7 bits) I2C address.
However, it is still possible to change it (between 0x28 and 0x2B) by setting of R6, R23,
R24 and R32 resistors.
Fig 19. PN7150 NFC Controller I2C address configuration
Table 8. I2C address configuration
I2C address
R6
R23
R24
R32
0x28
Open
Open
Short
Short
0x29
Open
Short
Open
Short
0x2A
Short
Open
Short
Open
0x2B
Short
Short
Open
Open
R6
R23
R24
R32
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
18 of 25
5.4 Using in another system
The OM5578/PN7150S demonstration kit can be reuse in another system (different from
Raspberry Pi or BeagleBone, and not offering Arduino Compatible interface).
Indeed, the PN7150 NFC Controller Board provides all required signal on TB2 and TB3
(signals are duplicated on both connectors) connectors to interface boards.
Fig 20. PN7150 NFC Controller Board interface connectors
Table 9. PN7150 NFC Controller Board TB2 connector pinout
TB2
PN7150 signal
#1
VBAT/VDD(PAD): 3.3V supply voltage
#2
VANT: 5V optional supply voltage
#3
Not connected
#4
GND: ground
#5
IRQ: interrupt request output
#6
VEN: reset pin
#7
Not connected
#8
Not connected
TB3
TB2
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
19 of 25
Table 10. PN7150 NFC Controller Board TB3 connector pinout
TB3
PN7150 signal
#1
I2CSDA: I2C-bus serial data
#2
I2CSCL: I2C-bus serial clock input
#3
Not connected
#4
Not connected
#5
Not connected
#6
Not connected
#7
Not connected
#8
Not connected
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors
UM10935
PN7150 NFC Controller SBC Kit User Manual
UM10935
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2019. All rights reserved.
User manual
COMPANY PUBLIC
Rev. 1.5 — 10 July 2019
348015
20 of 25
6. Product certification
Only the default configuration of the product is considered in below certification
statements. Ohers configurations, described in chapter 5, are excluded.
6.1 European Conformity
The PN7150 NFC Controller Board (see chapter 2.2) meets applicable tests and
performance criteria for residential, commercial and light industrial environments in
European standards:
•EN 301 489‐3: Electromagnetic compatibility and Radio spectrum Matters;
ElectroMagnetic Compatibility
•EN 50364: Limitation of human exposure to electromagnetic fields
•EN 300 330‐2: Electromagnetic compatibility and Radio spectrum Matters; Short
Range Devices
•EN 60950‐1: Information Technology Equipment - Safety
Electrostatic discharge immunity evaluation not been conducted on the whole accessible
parts, the device must be protected against those discharges.
OM29110 Interface Boards (see chapter 2.3) have not been used during the conformity
evaluation then they are not in the scope of the current conformity statement.
The product must be provided with Fire enclosure or must be supplied by a limiter power
source according to Item 2.5 of EN 60950-1. Power must deliver Safety Extra Low
Voltage.
Additionally, the current conformity is only applicable in the following conditions:
- Product VANT power supply is 5V
- Product VBAT power supply is 3.3V
- Operational temperature is between -20°C and 55°C
- Cables used to enforce the product must be of maximum 3 meters length
6.2 Federal Communication Commission Interference Statement
6.2.1 FCC Grant
The PN7150 NFC Controller Board have been tested to fulfil the approval requirements
FCC 47 CFR part 15: 2014 (§15.225).
The related FCCID is: OWROM5578-PN7150S
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
