O2 Concepts, LLC Oxlife Independence User manual

INTRODUCTION
13
DEALER: THIS MANUAL MUST BE GIVEN TO THE END USER.
PORTABLE OXYGEN CONCENTRATOR
USER MANUAL
USER: READ THIS MANUAL BEFORE OPERATING THIS DEVICE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Oxlife INDEPENDENCE

THROUGHOUT THIS MANUAL THE FOLLOWING
GRAPHICS ARE USED TO DESCRIBE
WARNINGS AND CAUTIONS.
Important safety
information
regarding hazards
that may cause
personal injury
WARNING
Important information
to prevent damage
to your Oxlife
Independence
CAUTION

PLEASE READ THIS OPERATION MANUAL CAREFULLY
BEFORE USING THIS DEVICE. BE AWARE OF ALL
WARNINGS AND SAFETY INFORMATION. ONLY USE
ACCESSORIES APPROVED BY O2 CONCEPTS AND
REFERENCED WITHIN THIS MANUAL. IF YOU DO NOT
FULLY UNDERSTAND ALL THE WARNINGS, SAFETY
PRECAUTIONS, AND OPERATING INSTRUCTIONS
CONTACT YOUR AUTHORIZED DEALER OR PROVIDER FOR
TECHNICAL SUPPORT.
CAUTION: U.S. FEDERAL LAW RESTRICTS THESE DEVICES
TO SALE BY OR ON THE ORDER OF A PHYSICIAN.
WARNING

Section 1: Introduction
Symbols Reference..................................................
 Specications...........................................................
Contraindications....................................................
Indications for Use....................................................
Section 2: Safety Guidelines
Device Safety Guidelines.......................................
Battery and Power Supply Safety Guidelines.......
Section 3: Product Description
 FeatureIdentication..............................................
Understanding the Control Panel...........................
Section 4: Operating Instructions
Before Operating.....................................................
Location....................................................................
Installing/Removing the Battery.............................
Power Options..........................................................
Battery Time Management......................
AC Power Supply.......................................
DC Power Supply.......................................
Device Settings.........................................................
Handle Operation....................................................
Handling...................................................................
Cannula Use............................................................
Section 5: User Alerts and Alarms
Troubleshooting Guide...........................................
Section 6: Maintenance, User Care
Maintenance...........................................................
Air Inlet Filter Cleaning............................................
Section 7: Accessories and Disposal
Accessory Bag.........................................................
Battery Disposal........................................................
Unit Disposal..............................................................
TABLE OF CONTENTS
1
2
3
4
5-6
7-8
9
10
11
12
13
13-16
14
15
16
17-18
19
20
21-22
23-24
25
25-26
27
28
28

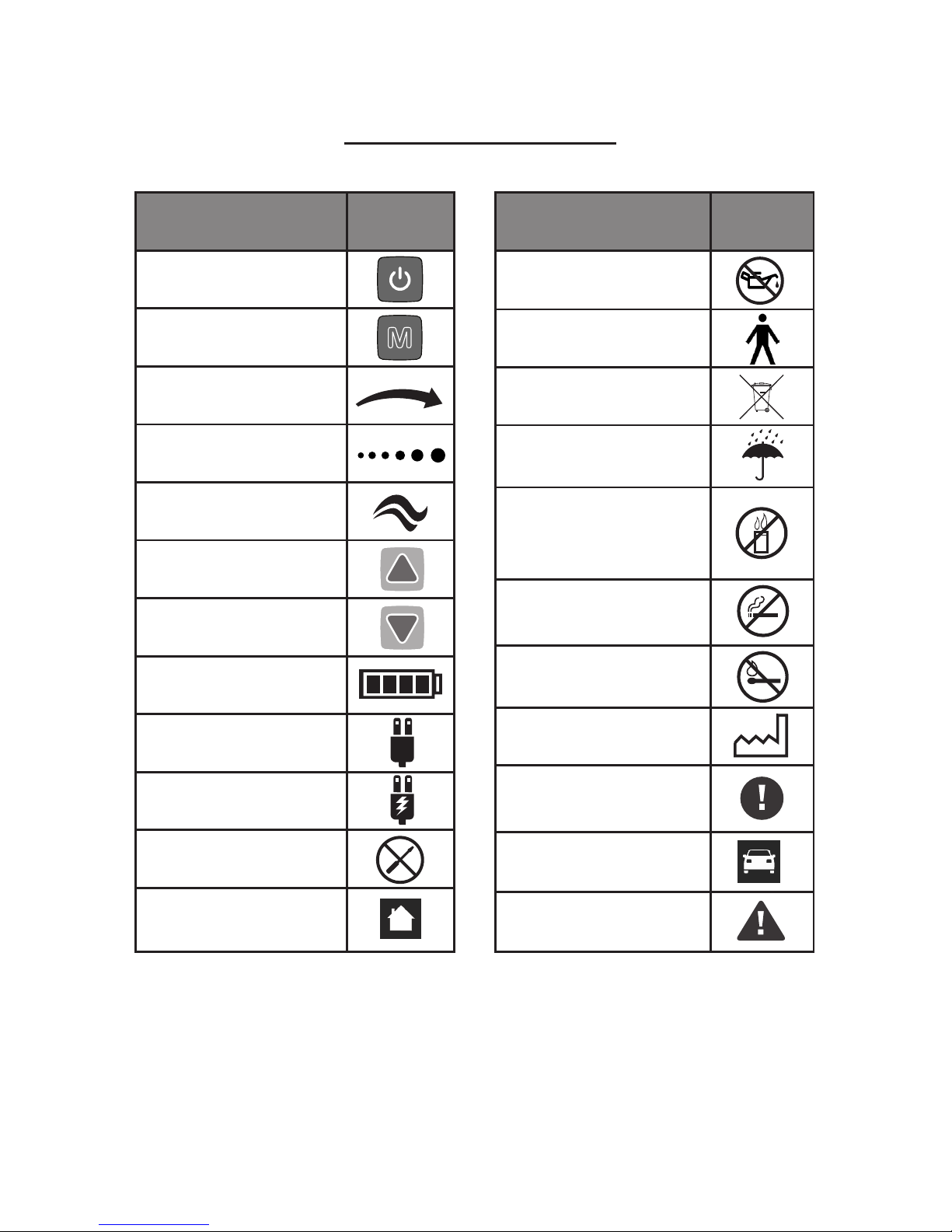

MEANING ICON
On/Off Button
Mode Button
Continuous Mode
Pulse Mode
Breath Detect Icon
Increase Flow Setting
Decrease Flow Setting
Battery Life Indication
AC/DC Power
AC/DC Power Battery
Charging
Do not disassemble
Home
(as seen in manual)
1
MEANING ICON
Use No Grease or Oils
Type B Equipment
Do Not dispose of in
household waste
Keep Dry in transport
and storage
Not suitable for use in
the presence of a
ammableanesthetic
mixture
No Smoking while using
or near device
No Open Flames
Date of Manufacture
Caution
(as seen in manual)
Auto
(as seen in manual)
Warning
(as seen in manual)
SYMBOLS REFERENCE SPECIFICATIONS

INTRODUCTION
Section1:
2
SYMBOLS REFERENCE SPECIFICATIONS
DIMENSIONS
Device Dimensions with
Handle/Wheels
H: 20.29 in H: 51.5 cm
W: 10.85 in W: 27.55 cm
D: 9.45 in D: 24 cm
WEIGHTS
Device Weight 16.7 lbs.
Cart Kit (Wheels & Pull Handle) 2.17 lbs.
Battery 1.4 lbs.
AC Charger 1.9 lbs.
DC Charger .37 lbs.
MODES OF OPERATION
Continuous 0.5 to 3 LPM in 0.5 LPM increments
Pulse 0.5 to 6.0 (8mL-96mL) setting
increments
BatterySpecication 14.4V Lithium Ion Battery
External Power Supply Power Input AC power: 120 VAC, 50/60 Hz @ 2.5
amps
DC power: 12 VDC
Oxygen Purity 87 - 95.6% in all settings
Operating Temperature 50°F (10°) to 104°F (40°C)
Operating Humidity 10% - 95% @ 82.4°F (28°C)
Operating Environment Free of smoke, pollutants, and fumes.
Transport/ Storage Temperature -4°F (-20°) to 140°F (60°C)
Transport/ Storage Humidity 0 -95% non-condensing
Altitude 0-13,123ft or (0-4000m)
Operating Time 24 hours per day when connected
to an external AC or DC power
source.
CannulaSpecication DO NOT use cannula tubing longer
than 7ft (2.13m) when using Pulse
Flow Mode
Do NOT use cannula tubing longer
than 50ft (15.25m) when using
Continuous Flow Mode.

3
Under certain circumstances, the use of non-prescribed
oxygen therapy can be hazardous. This device should only
be used when prescribed by a physician.
Notforuseinthepresenceofaerosolspraysorammable
anesthetics.
Additional monitoring may be required for patients
using this device who are unable to hear or see alarms or
communicate discomfort.
The Oxlife Independence is not appropriate for any patient
who would experience adverse health
consequences as a result of a temporary interruption in
oxygen therapy.
The availability of an alternate source of supplemental
oxygen is strongly recommended in the case of power
interruption or a mechanical failure of the device.
Thisdeviceisforadultuseonly.Itisnotqualiedforuseby
pediatric patients.
CONTRAINDICATIONS
WARNING

INTRODUCTION
Section1:
4
INDICATIONS FOR USE
The O2 Concepts Oxlife Independence is indicated
on a prescription basis for the administration of
supplemental oxygen. It is not intended for life
support, nor does it provide any patient monitoring
capabilities.
Federal law restricts this device to sale by or on the
order of a physician.
PRESCRIBED MODE AND FLOW SETTINGS SHOULD ONLY
BE ADJUSTED UNDER THE ADVICE OF A PHYSICIAN
WARNING

5
DEVICE SAFETY GUIDELINES
Locate the Oxlife Independence in a well ventilated area
to allow for adequate air intake. Avoid the intake of
airborne pollutants, smoke, or fumes.
DO NOT block the air inlet or the exhaust vents located on
the side of the device.
DO NOT cover the device with a towel, blanket, etc.
DO NOT drop or insert any objects or liquid into any
opening.
UseonlyapprovedaccessoriesasspeciedinthisUser
Manual. Use of non-approved accessories may cause
serious damage to the device and will void the warranty.
DO NOT leave your Oxlife Independence or batteries in your
vehicle or trunk. Extreme hot or cold maybe damage your
device.
Locate oxygen tubing and power cords away from hot
surfaces and in a manner to prevent tripping hazards.
Avoid creation of any spark near your Oxlife
Independence. This includes sparks from static electricity
created by any type of friction.
CAUTION

DEVICE SAFETY GUIDELINES
Section2:
6
DEVICE SAFETY GUIDELINES
Protect electrical power cords from sharp edges to
avoid electrical shock and serious physical injury.
DO NOT use the device with a damaged power cord
or plug.
Outdoor use must be conducted using battery power.
DO NOT operate the device on wet surfaces or in
standing water, and do not submerge or expose
to water. If the Oxlife Independence has been
dropped, damaged or exposed to water please
contact your authorized dealer for inspection and
possible repair of the device.
DO NOT come in contact with the device when wet.
DO NOT SMOKE WHILE USING THIS DEVICE.
KEEP ALL MATCHES, LIT CIGARETTES, CANDLES, OR
OTHER SOURCES OF IGNITION AT LEAST 10 FEET FROM
THE DEVICE. THIS DEVICE PRODUCES ENRICHED
OXYGEN GAS WHICH ACCELERATES COMBUSTION.
DO NOT use oil, grease, or petroleum based products
on or near the device.
DO NOT use the device with an extension cord.
WARNING
DEVICE SAFETY GUIDELINES

7

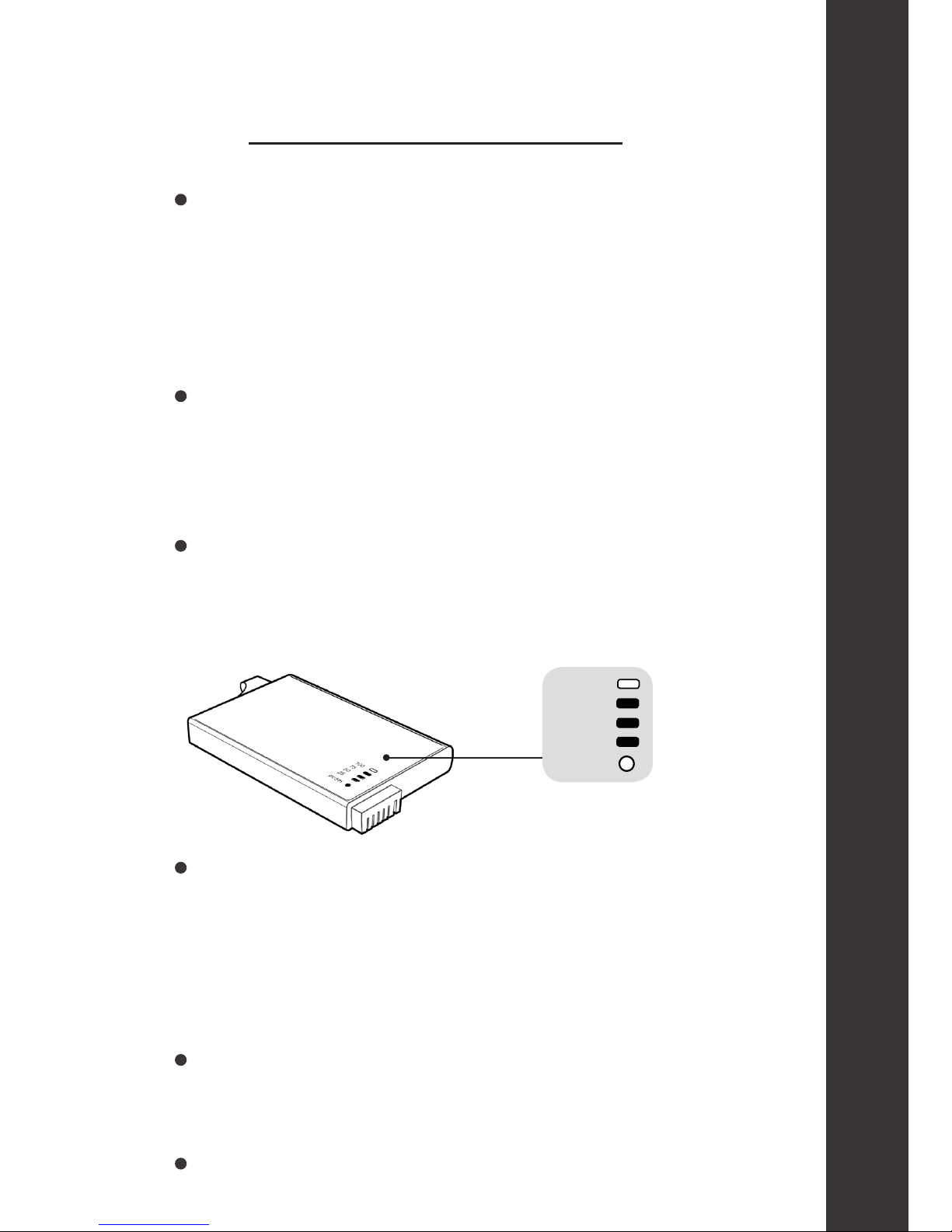

Use of non-approved battery or power supply may cause
serious damage to the device and will void the warranty.
DO NOT use the battery or power supply for anything other
than its intended purpose.
DO NOT drop the battery or expose it to mechanical shock.
DO NOT expose the battery to water or other liquids.
DO NOT expose the battery to excessive heat or cold.
Store the battery in a cool dry place when not in use.
Remove the battery from the device if it will not be used for
an extended period of time.
Locate the external power supply in the open air to prevent
overheating when in use.
BATTERY AND POWER SUPPLY SAFETY GUIDELINES
CAUTION

8
WARNING
The battery may explode if exposed to or disposed of
inare.
Use only the supplied battery; AC and/or DC power
adapters that were provided with the device.
Keep the battery away from children.
Use of a damaged battery or power supply may
cause personal injury.
DO NOT attempt to disassemble the battery or power
supply.
DO NOT short circuit the battery’s metal contacts with
metallic objects such as keys or coins. It may cause
sparks or excessive heat.
BATTERY AND POWER SUPPLY SAFETY GUIDELINES
DEVICE SAFETY GUIDELINES
Section2:

9
FEATURE IDENTIFICATION
1. CONTROL PANEL
2. LCD DISPLAY
3. OXYGEN OUTLET PORT
4. AIR INTAKE PORT FILTER
5. WHEELS
6. RECHARGEABLE BATTERY SLOTS
7. FAA APPROVAL IDENTIFICATION
8. PULL HANDLE
9. EXHAUST PORT
10. EXTERNAL POWER INPUT
11. HANDLE LOCK/RELEASE BUTTON
12. CARRY HANDLE
12
3
4
5
6
7
8
12 11
10
9

PRODUCT DESCRIPTION
Section3:
10
UNDERSTANDING THE CONTROL PANEL
13. POWER
14. BATTERY STATUS
15. EXTERNAL POWER SOURCE
16. INCREASE/UP
17. DECREASE/DOWN
18. SYSTEM STATUS
19. BREATH DETECT
20. MODE SETTING
21. MODE
13
14 15
16
17
18
1920
21

11
BEFORE OPERATING
Your authorized dealer will and or should demonstrate
proper operation of your Oxlife Independence. This manual
should be saved for future reference to help you safely
operate your device. If you have any further questions
please contact your authorized dealer.
DO NOToperatetheOxlifeIndependencewithoutrst
reading the Safety Guidelines included in SECTION 2 of this
manual.
Please follow all operating instructions.
If you are relocating your Oxlife Independence from an
extreme environment, allow the device to return to the
speciedoperatingtemperatureandhumidityranges
before use.
Operatingyourdeviceoutsideofspeciedrangesmay
damage your device, impact device performance and
may void your warranty. See Operating Temperature and
HumidityRangeslistedintheSpecicationTable.

OPERATING INSTRUCTIONS
Section4:
12
Place the Oxlife Independence in a well ventilated
area free of smoke, fumes, pollutants, and away from
direct sun light.
Ensure that air intake and exhaust ports are not
obstructed.
The Oxlife Independence MUST be located so that
alarms can be heard.
Position the oxygen supply tubing and power cords in
amannerthatpreventskinking,airowobstructions,
and tripping hazards.
Toprotectdevicenish,itisrecommendedtousethe
Oxlife Independence in either an upright position or
lying on its back.
DO NOT locate the Oxlife Independence near any
ammablematerialsorcleaningproductorinthe
direct path of any heat source such as a stove,
heat register or a car heater. Keep the Oxlife
Independence at least 5 feet (1.6m) from hot sparking
objectsoropename.
LOCATING YOUR DEVICE

13
TYPICAL RECHARGEABLE BATTERY OPERATION TIMES
(2 Batteries @ 20 Breaths/Minute)
Hold the battery vertically with the connection to the bottom,
and install it into the back of the device as shown below.
REMOVE
LIFT BATTERY SLIGHTLY UP; THEN
SLIDE STRAIGHT OUT.
INSTALL
SLIDE INTO BACK OF DEVICE;
BATTERY WILL DROP DOWN SLIGHTLY
AND CLICK INTO POSITION.
INSTALLING/REMOVING THE BATTERY
FLOW RATE
SETTING
CONTINUOUS
FLOW
PULSE FLOW
0.5 5.75 hours 6.25 hours
1.0 5.25 hours 6.00 hours
1.5 3.50 hours 6.00 hours
2.0 2.50 hours 5.75 hours
2.5 2.00 hours 4.75 hours
3.0 1.50 hours 4.00 hours
3.5
N/A
3.50 hours
4.0 3.00 hours
4.5 2.50 hours
5.0 2.25 hours
5.5 2.00 hours
6.0 1.75 hours
OPERATING TIME WILL DEGRADE WITH BATTERY USE AND AGE.

With the combined use of the battery, AC power
cord, and DC power cord your time away from home
is virtually limitless. Using the AC and DC power cords
whenever possible will give you optimal battery life.
The battery will charge in the device, when plugged
into an external power source.
The Oxlife Independence comes equipped with
a rechargeable lithium battery that is NOT user
serviceable. When fully charged it supplies power for
up to 6.25 hours, depending on the setting used.
The Oxlife Independence battery includes a battery
charge status indicator located on the front of the
battery. Simply press the “PUSH” button on battery to
display the remaining battery life in 25% increments.
The typical time to recharge a fully discharged battery
is approximately 1.5 hours if charging a single battery
and 2.5 hours if charging two with the device plugged
into AC power and powered off. Battery Charge times
with the device running will vary depending on setting
used.
You will achieve longer battery run time when using
your Oxlife Independence in Pulse Flow Mode.
Battery Charge Status is also displayed on the control
panel.
*INDICATES 75% OF
BATTERY LIFE REMAINING
PUSH
100
75
50
25
14
BATTERY TIME MANAGEMENT
OPERATING INSTRUCTIONS
Section4:

15

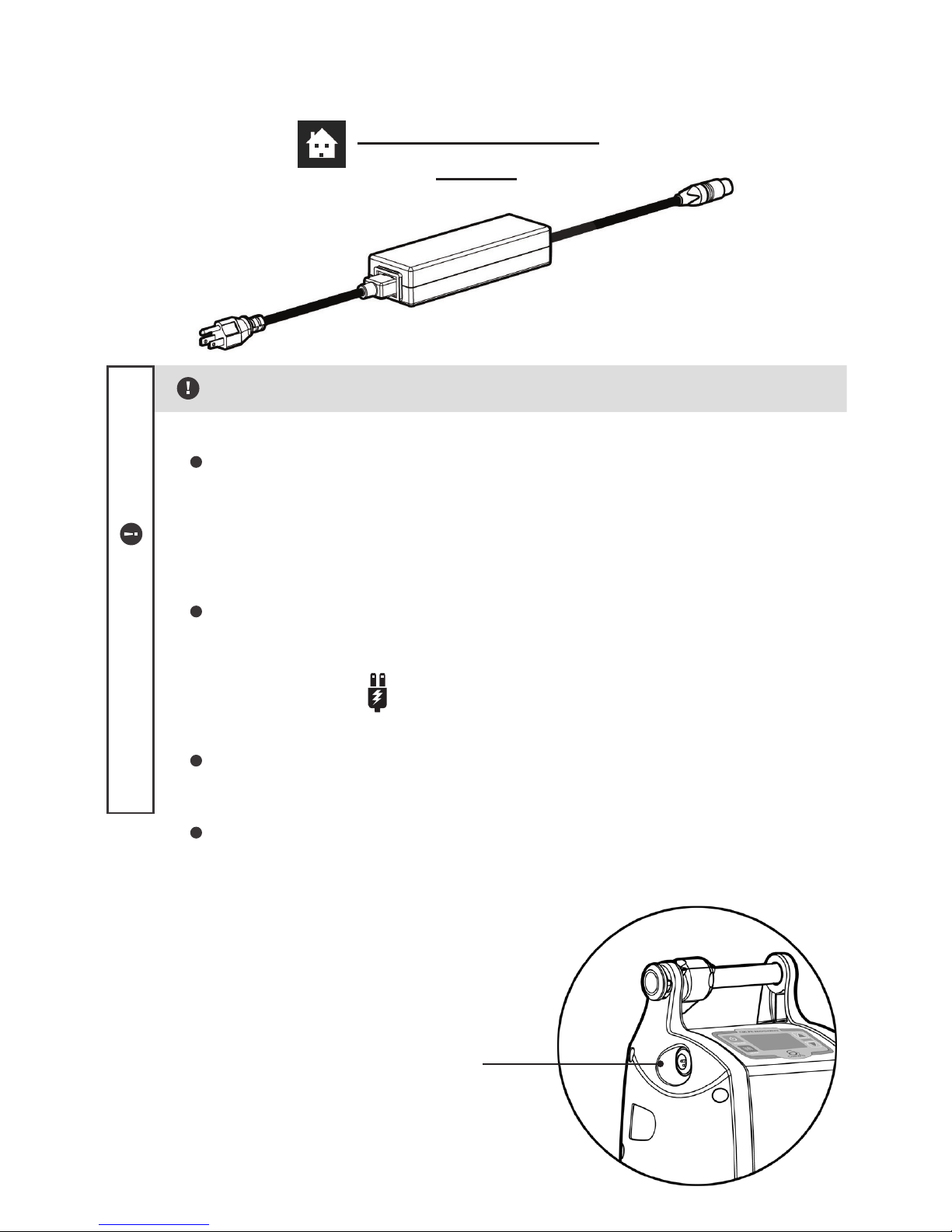

CAUTION
Use only the power supplies provided with this device.
The AC power supply charges the battery using a 100-240
volt 50/60 Hertz outlet (a typical wall outlet in your home).
Using the AC power supply allows you to use your Oxlife
Independence while simultaneously recharging the battery.
To use the AC power supply, connect the power supply to
the Oxlife Independence and wall outlet as shown below.
The external power source icon will be displayed on the
control panel.
Use no electrical outlets controlled by a switch.
When charging power sources wait for the control panel
to display the new power source icon
and unit to beep before removing
the original source.
EXTERNAL POWER INPUT
AC POWER SUPPLY
HOME
