1. IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
1.1 Important Warnings
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner and/or operator of this equipment. When
installing and using this electrical equipment, basic safety precautions should always be followed.
Failure to follow safety warnings and instructions in this manual can result in serious injury and/or
damage to your equipment. Read and follow all warning notices and instructions which are included in
this manual.
The Power Supply internally contains live components. There is a danger of electric shock if opened. If
the power cord is damaged then it should be replaced by the manufacturer, their agent or similar.
1.2 Important Safety Instructions
To reduce the risk of injury, DO NOT permit young children to use this product unless they have
been trained by the person responsible for their safety and they acknowledge their ability to use
such equipment. To reduce the risk of accidents or incidents, service on the unit should only be
performed by your local pool Professional.
1.3 General Warnings
When mixing acid with water,
ALWAYS ADD ACID TO WATER. NEVER ADD WATER TO ACID.
DO NOT PLUG UNIT IN IF CARTON HAS BEEN WET.
GAS BUILDUP CAN OCCUR WITH IMPROPER WIRING: To reduce the risk of personal injury
the Power Pack is designed so that the Electrolytic Cell will only receive power when the pool
pump is on. Otherwise, dangerous chlorine gas build-up can occur. If the pump is not installed
to the AC Socket (pump outlet) on the Power Pack then the installer must ensure that the
Electrolytic Cell is never energised when the pool pump is OFF or water is not flowing through
the unit.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 4of 33
2. GENERAL OVERVIEW
Congratulations on your recent purchase of your Oasis CX Premium Salt & Mineral Chlorinator Please
take a moment to read through the entire manual before installing your new unit. Your chlorinator must
be installed and operated as specified.
While every effort has been made to ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions. OASIS AQUATICS Pty Ltd reserves
the right to change the specification of the hardware and software described herein at any time without
prior notice.
Please remember that your Oasis CX Premium Salt & Mineral Chlorinator is not designed to chemically
maintain your pool water and keep it balanced, but rather to produce chlorine from a mild salt solution
within the water. We encourage regular water testing, balancing and correction if & when required to
maintain the recommended balanced levels of your pool water. This is a vital part of a complete
maintenance program and will ensure trouble free performance as well as a healthy and sparkling clean
pool.
There is one design, comprising 6 different size models in our range:
The models available (CX15, 25, 25LS, 35, 45 and 55) are all reverse polarity units designed to
automatically change direction every 4-16hrs (depending on your setting). See 7.3 CELL CLEANING
to change the reversing times. This change of polarity causes the calcium to dislodge and keep the cell
plates clean. Please note occasional cleaning of the electrode plates may still be necessary.
Thank you again for choosing an Oasis CX Premium Salt & Mineral Chlorinator We wish you many
happy years of swimming in your crystal clear pool.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 5of 33
2.1 Recommendations and Helpful Hints
•Read and keep your manual in a safe place.
•Increase chlorine production when temperature goes up.
•Use stabiliser to stabilise chlorine in pool.
•Maintain your salt levels between 3000-3500ppm for optimum performance.
•1500-2000ppm for CX25LS Low Salt Model.
•Decrease production when temperature goes down - see 6.4 WINTER / BLANKET MODE.
2.2 Contents
Wall mounting bracket
with level
Power pack
Cell housing with unions
2x 50/40
2x green wall
The installation
Reducing bushes
Plugs with screws
& operating manual
2.3 Tools Needed
Drill with 6mm
Basic PVC fittings
PVC primer & glue
Hacksaw
No.2 philips head
screwdriver

CX Chlorinator - Salt and Mineral Operation MANUAL Page 6of 33
3. POOL PREPARATION
BEFORE OPERATING YOUR OASIS CX PREMIUM SALT & MINERAL CHLORINATOR PLEASE
READ THE FOLLOWING:
Check your salt levels in your pool before starting your unit. See 6.6 to perform a SALT TEST.
Salt and mineral levels should ideally be 3000-3500ppm (1500ppm -2000ppm for CX25LS) and
no more than 5000ppm. To achieve this with minerals you will need to add approximately 20-
30% more product to the pool water. Contact your local pool Professional for further assistance.
Salt levels above 6000ppm may overload the unit and cause excessive heat and void your
warranty.
For all new pool installations please seek advice from your pool builder or your local pool
Professional before adding salt, as some new surfaces request no salt to be added when initially
completed.
NEVER ADD SALT/MINERALS DIRECTLY TO THE SKIMMER BOX. This high concentration
of either salt or minerals will pass through your filtration, pump and other pool.
HANDY TIPS
The colder the water the lower your output but this does not mean you need more salt. There
will always be less chlorine demand in colder water.
We recommend 3.5kg per 1000 litre of pool water and a 50,000lt new pool needs approximately
175kg of salt. For the FRESHWATER LOW SALT SYSTEM Model: CX25LS, we recommend
1.5kg per 1000 litre of pool water.
The unit can operate on mineral/magnesium chloride salts, and you should allow an extra 20-
30% extra product for these types of salts.
Salt should always be added to the shallow end of the pool and allowed to dissolve. DO NOT
let the salt settle on the floor of the pool as they may cause damage to the surface. Use your
pool brush to mix the salt into the water.
Running the pump will mix the water and help the salt to dissolve.
Only run the pump in the first 8 –12 hours (ensure the cell is switched off to allow the salt to
dissolve.)
By pressing (TDS TEST)a salt measurement is taken, and a total TDS reading is indicated. The
ideal TDS reading should be an LCD display of “OK”, approximately 3000-3500ppm. If "HIGH"
is displayed, the salt level is above 4500ppm and the salt level is too high, and if “LOW” is
displayed the salt is below 1000ppm and we suggest taking a sample to your local pool
Professional for a more accurate result and further assistance. For the freshwater low salt
system Model: CX25LS, the ideal or "OK" TDS reading is 1500-2000ppm.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 7of 33
4. POWER PACK AND CELL INSTALLATION
4.1 Power Pack Installation
The Oasis CX Premium Salt & Mineral Chlorinator has an Ingress Protection Rating of IP23
enabling it to be installed outdoors. Regulations require that the Power Pack shall be installed
outside the pool zone. The Power Pack shall be installed according to AS/NZS 3000 wiring
rules.
The Power Pack should be installed in a well-ventilated position ideally away from sunlight and
rain to prolong life and at least 1m above ground to prevent run of water entry.
Ensure that the Power Pack is not stored near chemicals, fertilisers or in a closed unventilated
shed with similar products as the fumes will cause excessive corrosion and damage to the
internals of the Power Pack and may void warranty.
When mounting the Power Pack on a post it is recommended to install a flat panel at least the
same size to act as a waterproof backing plate.
Mount the Power Pack with the Mounting Bracket, Green Plugs and Screws provided.
The Power Pack should be mounted no further than 1.5 metres from the Chlorinator Cell for
ease of operation.
4.2 Cell Electrode Installation
Connect the Cell Housing horizontally in the return line to the pool (use reducing bushes
supplied if 40mm PVC pipe) using high pressure PVC glue. The Cell Housing can be mounted
vertically but provision must be made for a gas trap.
Direction of water flow through the Cell Housing is not critical although we do recommend entry
from the closed end of the Cell Housing and exit from the end closest to the Cell Locking Ring.
The reason is to cause less water hammer over time on the cell plates.
Check that the O-ring is clean, greased with silicone grease (DO NOT use petroleum-based
jelly) and securely located in the Cell Housing.
Ensure Cell Locking Ring is firmly tightened by hand (DO NOT use a tool to tighten).
Connect the lead from the Cell Electrode to the Cell Plug under the Power Pack ensuring a firm
snap lock connection.
Plug the Power Pack 3 pin plug into a suitable weatherproof RCD protected 10amp outlet and
then plug the pump into the 3 pin AC Socket located at the bottom of the Power Pack.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 8of 33
4.3 Installation Diagram
WARNING: DO NOT plug in if carton has been wet
Important Notes:
The pump rating must not exceed 8amps.
Saltwater may damage electrical components in the Power Pack.
WARNING:
We DO NOT recommend the use of valves on the inlet or outlet of the cell housing. If you do use a
valve, then it is important to ensure that the valve cannot deadhead (lock closed) while the pump is
running. It is the installers responsibility to ensure some form of flow control is installed in this instance,
and it disables the pump.
ALWAYS ensure that pipe work and equipment DO NOT allow gases generated from the cell to collect
and build up in any part of the installation.
It is RECOMMENDED that the Cell Housing be installed horizontally to create a natural gas trap that
acts as a safety device. Installation in any other way may cause explosion, injury or death if the installer
does not allow for gas removal. A venturi pipe is installed/moulded within the Cell Housing design to
eliminate any possible gas build up, although it is always recommended to ensure proper installation to
eliminate this from happening.
The Cell Housing must be installed in the RETURN pipework to the pool. It must always be installed
after the filter, gas heater, solar heating, or heat pump.
DO NOT apply priming fluid to the cell Housing, it is not needed and may react with the plastic.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 9of 33
5. INITIAL START UP OF YOUR UNIT
5.1 Initial Start Up
On initial start-up of your Oasis CX Premium Salt & Mineral Chlorinator the
screen to the right will be displayed.
5.2 Start Up Clock Set
START UP CLOCK SET allows you to program the exact time of the day.
HH digits will flash and pressing [+] will increase the time and pressing [-] will
decrease the time.
Pressing [OK] saves the selected hour HH and MM.
Pressing [<] skips this menu however you will need to set this later.
MM digits will flash and pressing [+] will increase the time and pressing [-] will
decrease the time.
Pressing [OK] saves the selected hour HH and MM.
Pressing [<] returns you to the previous menu screen.
5.3 Start Up Run Period
START UP RUN PERIOD allows you to program your daily run times.
CYCLES/DAY will flash and pressing [+] or [-] will change the selection.
PERIODS of running.
2 CYCLES/DAY - unit runs from 6am-10am and 4pm-8pm
1 CYCLE AM - unit runs from 8am - 4pm
1 CYCLE PM - unit runs from 8pm-4am
Pressing [OK] saves the selected PERIOD
Pressing [<] returns you to the previous menu screen.
5.4 Start Up Information
START UP INFORMATION allows you to customise the unit to your pool size.
Pressing [+] or [-] will change it in 1,000lt increments.
Holding the [+] or [-] in will change it in 5,000lt increments.
A reading of 40,000lt or similar flashes to show it can be changed.
Pressing [OK] confirms your selection. If you DO NOT know your pool size
you can press [OK] and set this later or contact your local pool Professional
for further assistance. Pressing [<] returns you to the previous menu screen.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 10 of 33
5.5 Mineral or Salt Mix
MINERAL OR SALT MIX allows you to enter the type of mineral used in the
pool.
Pressing [+] or [-] will change it from SALT to MINERAL MIX.
The reasonfor this is because moreminerals are required to be asconductive
as SALT.
Pressing [OK Pressing [OK] confirms your selection.
Pressing [<] returns you to the previous menu screen.
5.6 Default Display Screen
DEFAULT DISPLAY SCREEN (DDS) displays the screen to the right. This is
the actual output % of the unit.
Pressing [+] or [-] will increase the setting and the screen will change as seen
on the right.
This should always remain at 100% unless SPA MODE has been selected.
The (●) symbol indicates normal operation.
T2 is the default timer displaying “Dual Timer Cycle” and T1 displays “Single
Timer Cycle” when single timer is selected.
The Mode shows AUTO and this can be changed by pressing Power/Mode
(either AUTO,ON or OFF)
The time shows with HH:MM in 24hr clock format.
The cell status shows as FWD when the cell is in the forward direction and
REV when in the reverse direction.
The pump AC socket status is displayed, either ON or OFF.
The Water Temperature is displayed.
Any power failures return you to the DDS screen and the last saved MODE
is active.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 11 of 33
6. CONTROL PANEL OPERATION
6.1 OK BUTTON
Menus are entered by either pressing the menus shortcut button on the control panel or by entering
MAIN MENU, which is done by pressing the [OK] button.
Any inactivity in any display for longer than 60 seconds results in the
display returning to the DDS screen.
MAIN MENU allows you to enter all MENU's including those available
with shortcut buttons on the control panel.
Pressing [+] takes you to the last menu and using the [-] or [OK] enters
the first 3 menus.
Pressing [<] returns you to the previous menu screen.
Pressing [+] or [-] scrolls up or down and [OK] enters the flashing menu
Below are the available menus in the Oasis CX Premium Salt &
Mineral Chlorinator See 7.0 for the workings of any menu's not
explained here.
1
Backwash
8
Power/Mode
2
Brightness
9
Pump Setting
3
Cell Cleaning
10
Salt Test
4
Chlor Boost
11
Service Menu
5
Chlor Setting
12
Spa Mode
6
Clock/Timer
13
Winter / Blanket Mode
7
Contrast
CLOCK/TIMER
SALT TEST
BACKWASH
CHLOR BOOST
WINTER MODE
POWER / MODE

CX Chlorinator - Salt and Mineral Operation MANUAL Page 12 of 33
6.2 POWER/MODE
[POWER] button changes the operating modes of your Oasis CX Premium
Salt & Mineral Chlorinator.
When pressed the Mode will change AUTO to OFF then ON.
When the unit is first powered on the factory setting is in AUTO as shown to
the right
Pressing [POWER] to OFF will display the screen as seen to the right
Pressing [POWER] to ON will display the screen as seen to the right
Pressing [OK] from the DDS screen enters the MAIN MENU.
Pressing [+] takes you to the last menu and using the [-] or [OK] enters the
first 3 menus.
Pressing [<] returns you to the DDS screen.
Pressing [+] takes you to last menus.
Pressing [+] 5 times above displays the display shown to the right.
Press [OK] to enter POWER/MODE.
Pressing [OK] enters the display shown to the right and pressing the [+] or [-
] allows you to adjust the POWER/MODE setting from AUTO to OFF to ON.
Pressing [OK] saves the required mode and returns to the previous screen.
Pressing [<] returns you to the DDS screen
6.3 CHLOR BOOST
BEFORE ENTERING CHLOR BOOST YOU MUST BE IN THE DDS SCREEN.
[ BOOST ] button sets your Oasis CX Premium Salt & Mineral Chlorinator pump
to operate for 8hrs and automatically sets the chlorine setting to 100%.
This allows for an injection of extra sanitising time, also know as Chlorine Boost
or Super-Chlorinate. The bottom line will alternate between "[CHLOR BOOST]
to END" and the fault message if there is any fault during CHLOR BOOST.
When in operation the LED will be on. After the set time it reverts back to last
selected POWER/MODE unless ON then it reverts to AUTO.
The unit automatically defaults to 08:00 hours of ON time and the timer starts
counting down immediately.
The first two digits 08 will flash while adjusting them as shown to the right.
Pressing [+] or [-] increases or decreases in increments of 01:00 hrs whilst
running.
When completed the unit will return to the DDS screen in the last selected
POWER/MODE state and the CHLOR BOOST LED goes OFF.
Pressing [ BOOST ] again allows you to exit the CHLOR BOOST screen and
return to the DDS screen.
CHLOR BOOSTcan also be entered by pressing the [OK]button in MAINMENU
and scrolling to CHLOR BOOST.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 13 of 33

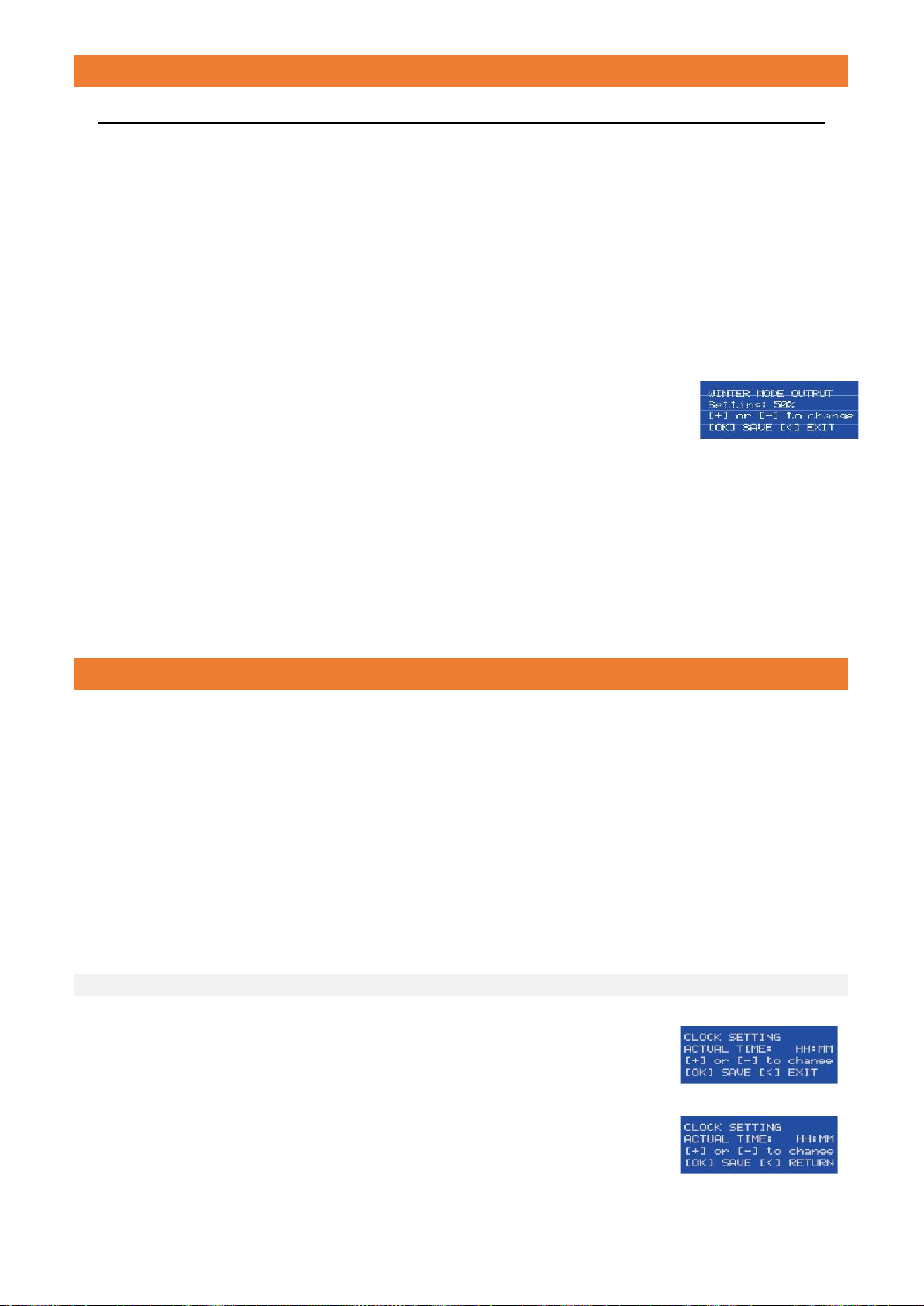

6.4 WINTER / BLANKET MODE
ACTIVATE THOUGH WINTER MONTHS OR WHEN BLANKET IS IN USE
BEFORE ENTERING WINTER / BLANKET MODE YOU MUST BE IN THE DDS SCREEN.
[WINTER / BLANKET MODE] button automatically turns your Oasis CX
Premium Salt & Mineral Chlorinator set point (Chlor Setting) down by 50%when
the unit is either in AUTO or ON mode. The unit defaults to a 50% set point and
will stay on this until [WINTER / BLANKET MODE] is pressed again.
When in operation the LED will be on.
Pressing [+] or [-] increases or decreases this 50% set point by increments of
10% from 0% to 90%.
Once your desired set point is entered, pressing [OK] will return to the DDS
screen and the output will display at the lowered set point (50% different if you
set it to that).
Pressing [WINTER / BLANKET MODE] whilst ON automatically turns this LED
off and the unit returns to a set point of 100%.
Pressing [TIMER] will allow you to adjust operatingtimes of the unit if necessary.
See 6.5 CLOCK/TIMER for more detail or contact your local pool Professional
for further assistance.
[WINTER / BLANKET MODE] can also be entered by pressing the [OK] button
in MAIN MENU and scrolling to WINTER / BLANKET MODE.
6.5 CLOCK/TIMER
BEFORE ENTERING CLOCK/TIMER MODE YOU MUST BE IN THE DDS SCREEN.
Your Oasis CX Premium Salt & Mineral Chlorinator unit comes with a built in digital time CLOCK
/TIMER displays are all shown in 24 hour format.
[TIMER] button allows you to set the CLOCK and run TIMER times of the chlorinator .
It is important to understand the difference between CLOCK and TIMER CLOCK means the
physical time of the day (e.g. 08:00) and TIMER means the settings programmed to turn the
unit ON and OFF
To run the chlorinator in MANUAL ON (i.e. always ON):
Mode set to: ON
T1 & T2 ON & OFF set to 00:00
6.51 Clock Settings
CLOCK SETTING allows you to program the exact time of the day.
HH digits flash and pressing [+] increases the timeand [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] exits you to the DDS screen.
MM digits flash and pressing [+] increases the time and [-] decreases the
time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.
Obviously, sunlight and higher bather loads in summer dissipate more chlorine than in winter. That is why you
need to check your chlorine reading regularly and adjust your settings when required .

CX Chlorinator - Salt and Mineral Operation MANUAL Page 14 of 33
Summer Settings
Ideally, run for 4 hours in the morning (6am-10am) and 4 hours in the evening (4pm-8pm). For a
smaller pool you can run less hours. In extreme weather it may be necessary to run longer hours.
Contact your local pool Professional for further assistance.
Winter Settings See 6.4 WINTER / BLANKET MODE for more detail
6.52 Timer Settings
Pressing [TIMER] displays the screen to the right.
Pressing [+] then it changes to Single Timer Cycle (T1).
Pressing [OK] accepts the selected cycle and enters the Timer Program.
To program the actual time of the day press [TIMER] again.
Pressing [+] changes back to Dual Timer Cycle (T2).
Pressing [OK] accepts the selected cycle and enters the Timer Program.
To program the actual time of the day press [TIMER] again.
TIMER 1: ON TIME (HH)
HH digits flash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] returns you to the previous display.
TIMER 1: ON TIME (MM)
MM digits flash and pressing [+] increases the time and [-] decreases the
time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.
TIMER 1: OFF TIME (HH)
HH digits flash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] returns you to the previous display.
TIMER 1: OFF TIME (MM)
MM digits flash and pressing [+] increases the time and [-] decreases the
time.
Pressing [OK] accepts the selected minute MM.
Pressing [<] returns you to the previous display.
TIMER 2: ON TIME (HH)
HH digits flash and pressing [+] increases the time and [-] decreases the time.
Pressing [OK] accepts the selected hour HH.
Pressing [<] returns you to the previous display

CX Chlorinator - Salt and Mineral Operation MANUAL Page 15 of 33
6.6 SALT TEST
BEFORE ENTERING SALT TEST YOU MUST BE IN THE DDS SCREEN.
[ TDS TEST] button measures the salt level in your swimming pool. A reading will appear on the screen,
allow at least 30 seconds for an accurate reading.
BEFORE PERFORMING A SALT TEST, ENSURE THE CELL IS CLEAR OF ANY CALCIUM
DEPOSITS, AS THIS WILL INSULATE THE ELECTRODES AND IMPACT YOUR READINGS.
See 9.1 Inspecting and Cleaning the Cell Electrode if manual cleaning is required.
The Salt level is tested and displayed as shown to the right.
By pressing (TDS TEST) a salt measurement is taken, and a total TDS
reading is indicated. The ideal TDS reading should be “OK”, approximately
3000-3500ppm.
If "HIGH" is displayed, the salt level is above 4500ppm and the salt level is
too high, and we suggest taking a sample to your local pool Professional for
a more accurate result and further assistance.
Similarly, if the display indicates "LOW" take a sample of pool water to your
pool Professional for more accurate results and advice. For the freshwater
low salt system Model: CX25LS, the ideal or "OK" TDS reading is 1500-
2000ppm.
Low salt levels (below 1000ppm) and high salt levels (above 8000ppm) are difficult to measure and
results may become inaccurate. It may be that your cell needs replacing, contact your local pool
Professional for a more accurate result and further assistance.
The SALT TEST measurement is meant to be a guide only as many factors can impact the result. We
recommend you take your pool water sample to your local pool Professional before adding salt/minerals
or replacing your Cell.
NEVER add more salt if not required. NEVER add salt directly in the skimmer box.
SALT TEST can also be entered by pressing the [OK] button in MAIN MENU and scrolling to SALT
TEST.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 16 of 33
6.7 BACKWASH
BEFORE ENTERING BACKWASH MODE YOU MUST BE IN THE DDS SCREEN.
[BACKWASH] button assists you in the operation of your pump and filter during the backwash
process.
IMPORTANT INFORMATION BEFORE PERFORMING A BACKWASH.
NEVER OPERATE THE FILTER LEVER WHILE THE PUMP IS RUNNINGYOU MAY DAMAGE
THE SEAL AND LEAKS MAY OCCUR.
THE PUMP WILL START AND STOP AS YOU REQUIRE.
ENSURE ALL THE VALVES, VALVE HANDLE, LIDS, BASKETS, ETC. ARE IN THE IN THE
CORRECT POSITIONS AS PER THE REQUIREMENTS OF THE MANUFACTURERS OF
THAT EQUIPMENT.
[FILTER CLEAN] can also be entered by pressing the [OK] button in the MAIN MENU and
scrolling to BACKWASH MODE.
ALWAYS FOLLOW MANUFACTURERS INSTRUCTIONS.
IF UNSURE PERFORM MANUALLY BY PRESSING [POWER] ON&OFFTO
DO THE FILTER CLEAN.
During BACKWASH the [POWER] button displays the ON LED when the pump is running and the
OFF LED displays when the pump is stopped.
Pressing [OK] starts the pump for 2 minutes and TIME LEFT will be displayed
automatically counting down in 1 sec increments.
Once dirty water in the waste pipe or sight glass is clear press [OK] to finish.
RINSE MODE will then be displayed.
Pressing [OK] stops the pump and RINSE MODE is displayed.
Rotate the filter multi-port valve to the backwash position, ensure the handle
locks in place and once ready press [OK] to enter the RINSE MODE cycle.
Pressing [<] or [FILTER CLEAN] allows you to exit and this takes you to
BACKWASH COMPLETE.
Pressing the [OK] button starts the pump for 2 minutes.
TIME LEFT automatically starts counting down in 1 sec increments.
Once dirty water in the waste pipe or sight glass is clear then press [OK] to
finish RINSE MODE and enter BACKWASH COMPLETE MODE.
Pressing [OK] stops the pump and BACKWASH COMPLETED is displayed
Rotate the filter multi-port valve to the filter position, ensure the handle locks
in place and once ready press [OK] to enter the final BACKWASH
COMPLETED cycle.

CX Chlorinator - Salt and Mineral Operation MANUAL Page 17 of 33
7. UNIT MENU GUIDE
7.1 Backwash
See 6.7 BACKWASH (CONTROL PANEL OPERATION)
7.2 Brightness
BRIGHTNESS is entered by pressing the [OK] button in the MAIN MENU and
scrolling to BRIGHTNESS (Menu 2).
The factory setting is 60%.
Pressing [+] or [-] allows you to adjust the BRIGHTNESS. Pressing [OK] saves
the selection.
7.3 Cell Cleaning
Smart self-cleaning technology allows the polarity of the OXI Cell plates to
change direction every 4-16hrs (depending on your setting). The change of
polarity causes the calcium to dislodge and keep the OXI plates clean. Please
note occasional cleaning of the plates may be necessary.
The factory setting is every 10 hours and this can be adjusted from as low as 4 hours (for high calcium
areas) and as high as 16 hours.
In areas where the calcium hardness of the water is low (less than 200ppm) cleaning of the cell may
not be necessary. Where calcium levels exceed 200ppm, regular inspection of the cell is necessary.
Cleaning in an acid solution may be necessary.
CELL CLEANING is entered by pressing the [OK] button in the MAIN MENU and scrolling to
CELL CLEANING.
7.4 Chlor Boost
See 6.3 CHLOR BOOST (CONTROL PANEL OPERATION)
7.5 Chlor Setting
CHLOR SETTING automatically controls the Chlorine output for your Oasis CX Premium Salt & Mineral
Chlorinator.
This feature is particularly handy when you want to run the pump for longer hours (i.e. maybe with a
variable speed pump or you want additional filtration. If this is the case the levels would be decreased.
The factory setting is set to 100%.
Pressing [+] or [-] anytime whilst in the DDS screen increases or decreases in 1% increments.
CHLOR SETTING is entered by pressing the [OK] button in the MAIN MENU and scrolling to CHLOR
SETTING (Menu 5).
7.6 Clock/Timer
See 6.5 CLOCK/TIMER (CONTROL PANEL OPERATION)

CX Chlorinator - Salt and Mineral Operation MANUAL Page 18 of 33
7.7 Contrast
CONTRAST is entered by pressing the [OK] button in the MAIN MENU and
scrolling to CONTRAST (Menu 7).
The factory setting is 50%.
Pressing [+] or [-] allows you to adjust the CONTRAST adjustment and pressing [OK] saves the required
CONTRAST and returns to the DDS screen.
7.8 Power/Mode
See 6.2 POWER/MODE (CONTROL PANEL OPERATION)
7.9 Pump Setting
PUMP SETTING is designed to protect your pump if there is no flow of water.
This means the time the pump is allowed to run after the water sensor on the
Cell detects there is no flow of water. The pump will be turned off from 3 to 10
minutes, after detecting no water flow.
PUMP SETTING is entered by pressing the [OK] button in the MAIN MENU and scrolling to PUMP
SETTING (Menu 9).
The default setting is 3 minutes and pressing [+] or [-] allows you to adjust the time the pump is turned
off for. Pressing [OK] saves the required protection time.
You can also select OFF and it will be disabled and will not stop the pump outlet.
7.10 Salt Test
See 6.6 SALT TEST (CONTROL PANEL OPERATION)
7.11 Service Menu
Please contact your distributor or your local pool Professional for further information.
7.12 Spa Mode
SPA MODE allows your unit to be adjusted to suit your spa.
SPA MODE is entered by pressing the [OK] button in the MAIN MENU and
scrolling to SPA MODE (Menu 12).
Pressing [+] or [-] allows you to adjust the SPA MODE settings from OFF to
ON and ON to OFF.
Selecting OFF setting leaves the OUTPUT SETTING at 100% and ON
changes the OUTPUT SETTING to 10%.
When SPA MODE is selected on the DDS screen will change as shown to the right.
Pressing [OK] saves the required settings and returns to the DDS screen.
7.13 Winter / Blanket Mode
See 6.4 WINTER / BLANKET MODE (CONTROL PANEL OPERATION)

CX Chlorinator - Salt and Mineral Operation MANUAL Page 19 of 33
8. WATER CHEMISTRY
The Oasis CX Premium Salt & Mineral Chlorinator unit is designed for use with swimming pool water
balanced in accordance with the Langelier Saturation Index with a pH range of 6.8-7.8.
As previously advised, for best performance and operation of your Oasis CX Premium Salt &
Mineral Chlorinator unit, certain water balances must be maintained within your swimming pool.
Have your water tested regularly. Transport the test water in an opaque container and have the
test done as soon as possible as possible for best results.
8.1 Chlorine
Measurement Interval: Once a week
Ideal Chlorine (Free Chlorine) Levels: 2-3ppm (2-3mg/L) and no more than 4ppm (4mg/L).Adjust the
chlorine output by pressing [+] in DDS to increase the required output set point in 1% increments up to
100%. Pressing [-] will decrease the output in 1% increments to 0%. Running the unit for longer or
shorter hours can achieve the same result.
8.2 Salt
Measurement Interval: Every 4-6 weeks
Ideal Salt Levels: 3000-3500ppm and no more than 4000ppm.
For the FRESHWATER LOW SALT SYSTEM Model: VP25LS, the ideal TDS reading is 1500-
2000ppm.
Although salt is not consumed by the Chlorinator, salt is lost during backwashing, pool overflow,
splashing and on bathers that use it. The correct salt level allows for themost efficient production levels
and electricity consumption.
The salt level SHOULD NOT go below 3000ppm or 1500ppm for the CX25LS model. Operating theunit
with too little salt in the pool will cause damage to your Cell.
Salt is the essential element by which your unit operates. Not enough salt means not enough chlorine
- this simple rule governs the total operation of your Oasis CX Premium Salt & Mineral Chlorinator unit,
and insufficient salt will damage, your Cell. Use ultrafine Salt or premium Salt to keep optimum salt
levels. The unit will operate with good stability on higher salt levels but it is still advisable to run at the
correct level to prevent damage. Salt levels above 4000ppm or 2500ppm in the CX25LS model may
overload the unit and cause excessive heat.
NEVER ADD SALT DIRECTLY TO THE SKIMMER BOX.
This high concentration of salt will pass through your filtration, pump and other pool equipment.
HANDY TIP: The colder the water the lower your output but this does not mean you need more salt.
There will always be less chlorine demand in colder water.
We recommend 3.5kg per 1000 litres of pool water and a 50,000lt new pool needs approximately 175kg
of salt. For the FRESHWATER LOW SALT SYSTEM Model: CX25LS, we recommend 1.5kg per 1000
litre of pool water.
The unit can operate on mineral/magnesium chloride salts and you should allow an extra 20-30% more
product for these type of salts. Salt should always be added to the shallow end of the pool and allowed
to dissolve. DO NOT let the salt settle on the floor of the pool as thismay cause damage to the surface.
Use your pool brush to mix the salt into the water.
Running the pump will mix the water and help the salt to dissolve.
Low salt levels (<1000ppm) will destroy the coating on the Cell and void the warranty.
