Oasis 18000 User manual

Replacement Parts
Your filter has been designed using tried and tested media. For optimum performance
we recommend that you use only Genuine Oasis Replacement Media. (Ask your
retailer).
1). Brushes - Only replace when necessary.(2 - 3 Years)
2). Bio Cartridge - Only replace when necessary.(2 - 3 Years)
3). The Foam Set should be replaced yearly (ideally in February or March
before the start of the season).
4). The Flocor™ Media is hard wearing and will last several years before you
need to replace it.
CLEAR POND FILTER
Instructions
Filtration
Whether you are a beginner or experienced water gardener, you will probably have one objective and
that is to achieve a clean, clear healthy pond. Ponds can be affected by various factors such as
unconsumed fish food, decomposing vegetation and fish excrement. If these pollutants are allowed to
accumulate, in time they will become harmful to your fish. The use of a biological filter will remove
these toxins (nitrite, ammonia) and provide good quality water with the additional benefit of reducing
algae growth.
This unit is manufactured
in the EEC and conforms to CE
Regulations
Oasis Water Garden Products Ltd.
Eastleigh,
United Kingdom.
Dealers Stamp:-
Guarantee
Your Clear Pond filter is guaranteed against failure due to defective workmanship or materials for a period of 12
months from the date of purchase. Failure caused by accidental damage, misuse, neglect or used in liquids other
than cold water are excluded from this guarantee. If a failure occurs during this period, a purchase receipt must
be produced. The unit will be either repaired or replaced at the companies option. The company cannot accept
any additional claims for consequential losses. All “ware and tear” items are excluded from this guarantee i.e
Filter Media, UV Lamp, Quartz Tubes and O Rings. This guarantee does not affect your statuary rights.
?
Your filter may take 3 - 6 weeks to fully mature with beneficial
bacteria, however you can prematurely speed this process
up by using Oasis Filter Active (Ask your retailer)
Stage 1 Ultra Violet Clarifier (U.V.C) This is situated within the lid of the filter. As water is pumped
through the unit, the algae cells are penetrated by the U.V.C light destroying their ability to multiply and
causing them to flocculate (bond together). This process creates larger particles which can then be
removed more effectively by the Biological filter. The U.V.C will clear the water within 2 - 4 weeks and
additionally the mild sterilizing effect will help to reduce harmful bacteria levels.
Stage 2 Mechanical Heavy sediments (Leafs, Blanket Weed & Fish Waste) are filtered from the
st
water, as the water passes through the brushes. (1 Chamber)
Stage 3 Mechanical/Biological In the second chamber the water passes through the Bio Cartridge.
This media filters the smaller debris which is not collected by the brushes. The cartridge also allows
beneficial bacteria to grow on its surface.
Stage 4 Mechanical/Biological In the middle chamber, there are 3 layers of reticulated foam.
Suspended particles are filtered out as the water passes through.
Green Foam: Course Grade
White Foam: Medium Grade
Blue Foam: Fine Grade
Biological - Below the layers of foam, there is Biological Media called Flocor™. The purpose of this
media is to allow beneficial bacteria to grow on it's surface. Once matured the bacteria will breakdown
the harmful pond pollutants (Ammonia & Nitrite) converting them into Nitrate... Which is naturally
absorbed by pond plants.
Filter Installation
1). Ensure that all fittings are watertight. Use only the correct size outlet
pipe for the filter outlet/s. (Please ask your stockist for details)
2). Site the filter on a firm level base so that the outlet is higher than the
water surface of the pond, or above the height of the waterfall, if you
choose to have one. Keep as close to the pond as possible.
3). From the pump in the pond, attach a suitable size and length of hose to
the inlet of the filter and secure using a hose clip.
4). Your biological filter must be run 24hours a day to maintain the bacteria colony.
5). Please allow between 3 to 6 weeks for the biological media to mature.
This unit is not submersible and must be positioned where it can not Be
accidentally knocked into the pond or waterfall.
!
18000
25000
50000
80000
Model
Clear Pond
Tank
Size
UVC
Wattage
Product
Code
Quartz
Size
Product
Code
Foam
Set
Product
Code
Flocor
Media
Product
Code
UV Cleaning
Kit Code
4 Gall
12 Gall
15 Gall
25 Gall
18watt
25watt
50watt
80watt
UVT18
UVT25
UVT25 X 2
UVT40 X 2
8watt
25watt
25watt x 2
40watt x 2
QS8
QS15
QS15 X 2
QS40 X 2
Pack 500
Pack 1500
Pack 2000
Pack 2000
FS500
FS1500
FS2000
Fs2000
Pack 1000
Pack 2000
Pack 2000
Pack 2000 x 2
FLCS
FLCDIY
FLCDIY
FLCDIY X 2
MK18
MK25
MK25 X 2
NA

Electrical Connection
1). This unit is designed for permanent installation to the mains.
2). The power supply should be
earthed and fused at 3amps.
3).
4). For permanent installation into
the mains, it is necessary to
comply with the regulations of the
Local Electrical Authority.
5). Consult a qualified electrician if in
doubt about any aspect of electrical wiring.
6). The Wires in the cable are colour coded as follows:
Brown - Live
Green/Yellow - Earth
Blue - Neutral
7). If you need to extend the cable on this unit, you should use a suitable length of
3 core cable and an Oasis waterproof (IP68) cable connector. (Ask your
retailer).
The mains electricity supply MUST BE DISCONNECTED before
Attempting Installation/maintenance or handling of any kind.
Warning: A residue Circuit
Device (RED) Must be fitted to
the mains supply.
WARNING: Never look directly at the U.V bulb when it is switched on.
The UV light generated by the bulb can cause damage to eyes and
skin. The Unit is supplied With a translucent hosetail which will glow
allowing you to see that the U.V is Working.

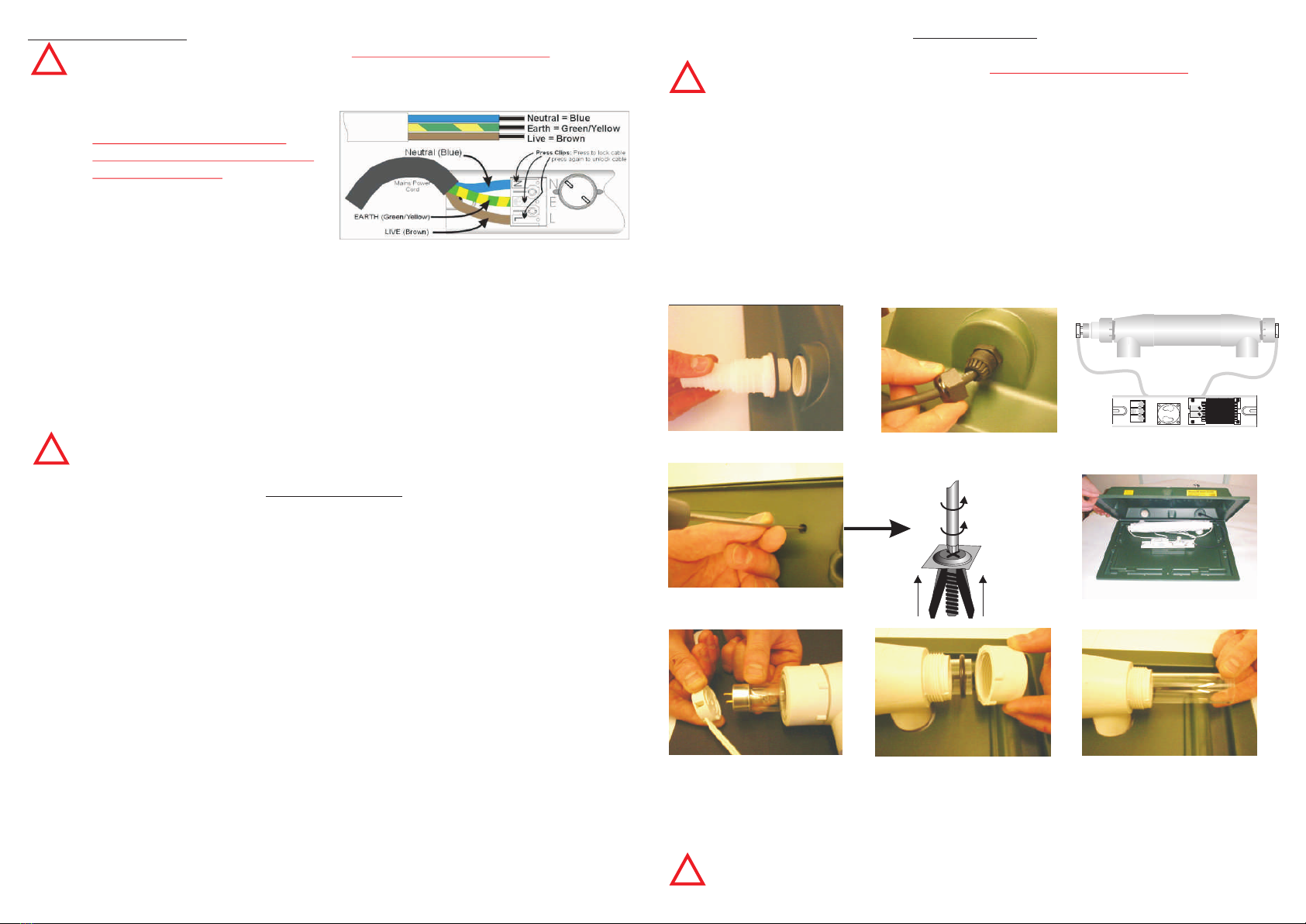

1). Remove Hosetail
2). Loosen cable gland
and push some excess
cable through.
3). Remove Plastic Fixing
Rivets. 4). Remove Lid
5). Disconnect lamp
holders and remove lamp
6). Unscrew end caps and
remove o rings, (We
recommend that you
replace these annually)
7). Carefully remove
quartz sleeve
Electrical Gear Tray
!
!
Filter Maintenance
water entering the overflow, it is an indication that the media will require
cleaning.
2).
Remove the foams individually and clean in a container of pond water. The foams
contain some beneficial bacteria and it is important that they are not cleaned in tap
water.
5). Re-fit the foams before they dry and in the same order that they were removed
dimpled side uppermost. E.g.
Top Layer: Green Foam: Course Grade
Middle Layer: White Foam: Medium Grade
Bottom Layer: Blue Foam: Fine Grade
6). The Flocor™ media should not need cleaning, however, if you need to remove
accumulated silt within the tank, then the media can be removed and placed into a
container of pond water while the tank is cleaned. (This will preserve the beneficial
bacteria)
7). Stage 1 Is a quick de-sludge, simply open the drain valve until the water runs clear.
Stage 2 Simply connect your garden hose to the hose connector, open the drain valve and
turn on the water. You do not need to remove the media as the water passes underneath it.
Therefore preserving the beneficial bacteria.
1). Your filter is fitted with an overflow system (see diagram). If you see
The Brushes in the first chamber should be kept reasonably clear from any
heavy debris. These should be removed and washed in a container of pond
water.
3). If the Bio cartridge in the filter seems clogged, then remove the media and rinse in
a container of pond water. DO NOT CLEAN THOROUGHLY JUST ENOUGH
TO CLEAN OFF ANY LARGE SOLIDS. Never allow media to become dry.
4).
U.V Maintenance
1). After a period of time the quartz sleeve may become fowled with deposits
of algae and limescale. These should be removed using a suitable
cleaning agent, taking care not to scratch the surface of the quartz.
2). The UV lamp must be removed every 12 months or after 8000 hours of
use. Although the lamp may still be showing a blue light, it is no longer
producing sufficient UV to destroy algae and bacteria.
3). For UV maintenance, Oasis UV Maintenance Kit comes complete with
Replacement Lamp, ‘O’ Rings, Quartz Sleeve and Cleaning Cloths
(Please ask your retailer)
The mains electricity supply MUST BE DISCONNECTED before
Attempting Installation/maintenance or handling of any kind.
!
Replacing UV Parts
ATTENTION: - When re-assembling, ensure all fittings are water
tight Paying particular attention to the end caps which should be
Hand tight and Not over tightened.
!
N
L
Lid Rivet
