Obdstar MS80 User manual

1 PRODUCT PROFILE
This device is a new Android-based vehicle trouble
diagnostic device developed for Internet applications.
It inherits from OBDSTAR advanced diagnosing
technology and it is characterized by covering wide
range of vehicles, featuring powerful function, and
providing precise result. Through motorcycle
diagnostic OBD connector and variant mobile
intelligent terminals, it achieves motorcycle trouble
diagnosis for full car model and full system vehicle.
Meanwhile, taking advantage of mobile Internet, this
device integrates all product resources and service of
OBDSTAR.
2 FEATURES
1. Diagnostic function:
● Diagnose the electronic control system of prevailing
vehicle models covering Asian, European, American
and Chinese. Diagnosis functions include: Read DTCS,
Clear DTCS, Read data stream, Special functions etc.
● Specially designed for Android platform with clear
and user-friendly interface;
2. Support Center: equipped with powerful database.

USER MANUAL
Product:Intelligent Motorcycle Scanner
Model:MS80
Revised 30 October 2020

Large number of videos help users to operate device
easily.
3. Personal center:
User information and the device’s configuration
information.
4. Upgrade: built-in WIFI mode can realize application
downloading and diagnostic function by one key
upgrade.
5. System setting: set VCI formation, language, unit,
Workshop information, About and Network test etc.
6. Remote assistance: achieve remote assistance by
this function.
3 KNOWLEDGE OF THIS DEVICE
3.1 The whole set
This device is composed of the tablet computer, main
test cable and kinds of cables.
3.2 The tablet computer

4 TECHNICAL PARAMETERS
●Operation system: Android 5.1.1
●CPU: Exynos4418 Quad Core ARM Cortex A9 1.4GHz
●Battery: 3700mA, rechargeable polymer lithium
battery
●Extension memory card: 32G Micro SD (TF) card
supported
●Storage capacity: 32GB
●LCD: 8.0 inch
●LCD resolution: 1280*800
●Touch screen: Capacitive touch screen
● Camera: 5 mega rear-view camera
●Wi-Fi: supported
●Working temperature: -10℃~ 55℃(14℉~ 131℉)
●Storage temperature: -20℃~ 70℃(-4℉~ 158℉)
●Weight: about 1.0 Kg

●Dimension: 254mm*174*mm*35mm
5 ACCESSORIES（Standard Configuration）
5.1 Main test cable

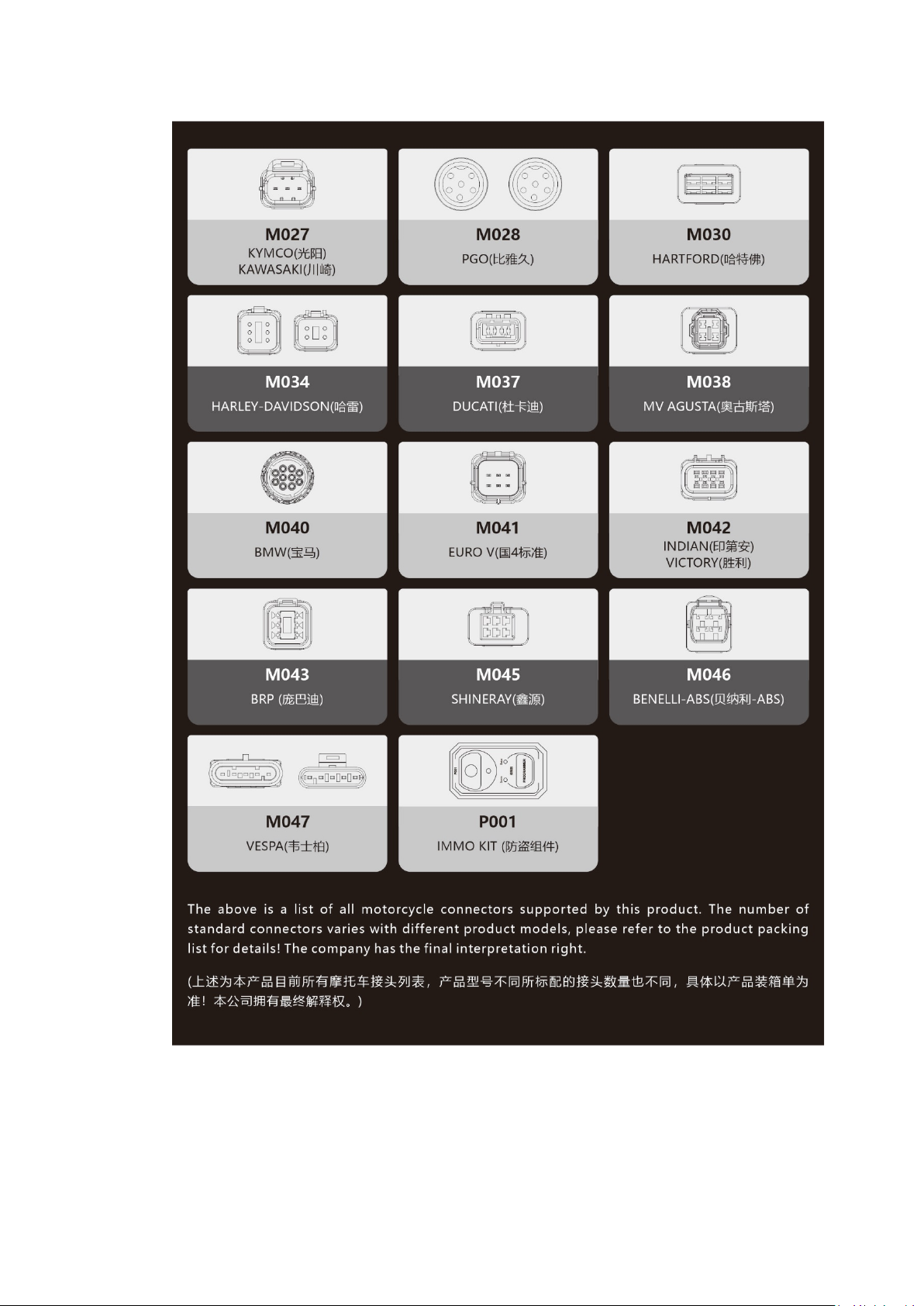

5.2 Other Connectors
Other connectors are used to connect the diagnosis
socket of non OBD II vehicles. To choose the connector
according to the vehicle brand and models. Common
connectors are as below:

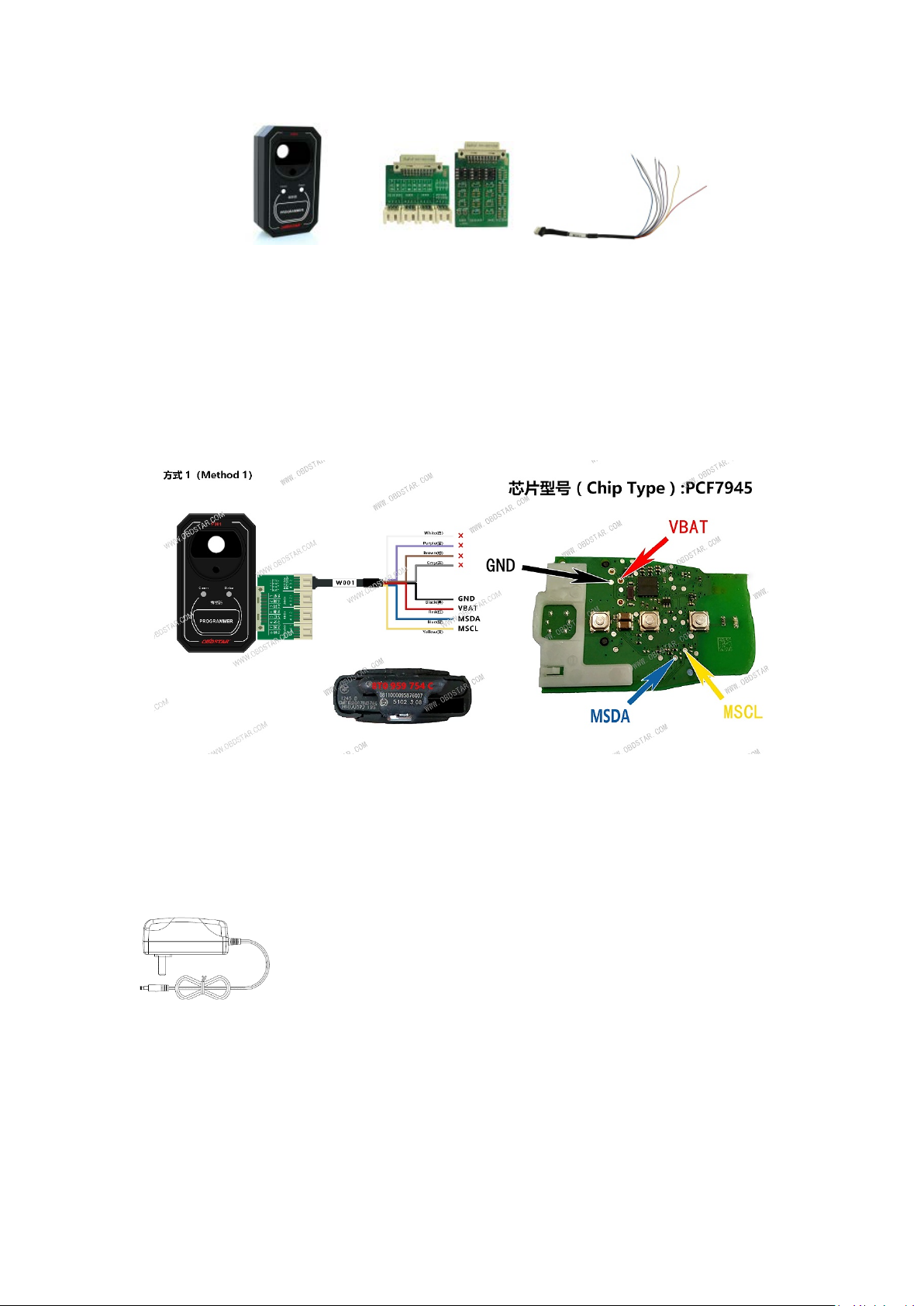

5.3 P001 Programmer Unit

P001 Programmer is used for key transponder
renewing and EEPROM reading and writing functions,
the wiring of key renewing (specific function operation
is helpful in software) is as shown below;
Note: Not all configurations include P001 Programmer
accessories.
5.4 Others accessories
DC Power Adapter (Output DC 12V/2A)
To power up the tablet via connecting with
outside power Supply.
6 CHARGE THIS DEVICE
1. Connect the included USB cable with charger.
2. Plug the charger into AC outlet.

3. When it connects to charger, battery logo indicates
, it indicates that the battery is in charging.
4. When battery logo changes into
, it indicates that the battery is fully charged
and then disconnect charger from AC outlet.
5. Unplug USB cable on the charger from this device.
7 USING BATTERY
● If the battery keeps unused for a long time or battery
is completely discharged, it is normal if it cannot be
turned on while being charged. Please charge it for a
period and then turn it on.
●Using data service will cause more power
consumption and shorten the stand by time.
● The charging time of battery varies with temperature
condition and battery consumption status.
● While this device has low battery, a beep will sound.
If it is very low, this device will be switched off
automatically.
Note: Do one of the followings to save power:
1. When this device keeps unattended, press POWER
key to turn off the LCD.

2. Shorten the standby time: Enter main menu, choose
“Settings” > “DEVICE”> “Display” > “Sleep” to select a
shorter standby time.
3. Decrease the brightness of LCD display: Enter main
menu, choose “Settings” > “DEVICE” > “Display” >
“Brightness”, and then drag the slider to adjust it.
4. Change “Live wallpaper” into “Gallery”.
5. Set Bluetooth off: Enter main menu, choose
“Settings” > “Wireless &Network” > “Bluetooth”, and
then toggle the switch to OFF.
6. Press VOLUME key to decrease the volume.
8POWER ON/POWER OFF THIS DEVICE
8.1 Power on
Press and hold Power button for three seconds to turn
on this device.
Note：Set date, time and time zone.
8.2 Power off
Press and hold Power button for three seconds to turn
off this device.
9 ABOUT DESKTOP
The screen is shown as blow:
A. Print screen : make a quick screenshot and save

it to gallery
B. Back button : go back to previous interface or
exit program.
C. Home button : return to the desktop
D. Touch screen menu button : select desired item
E. DP button : enter diagnose and program
interface
F. VIC button : enter system settings
10 CUSTOMIZE YOUR DESKTOP
10.1 Add items on the desktop
On the main menu, hold and press the desired item,
the system will automatically enter the desktop and
place the icon into the circle.
Hint: If many applications occupy the desktop, hold
and press the desired one to move it to other
extension desktop.
10.2 Move items on the desktop
1. Hold and press the item to be moved.
2. After a movable circle appears on the screen, drag it
to the target location.
10.3 Delete items on the desktop
1. Hold and press the desired item, “X Delete” appears

in the upper middle of the screen.
2. Dragon the item to “X Delete”.
3. When the item and icon turn red and then release
it.
10.4 Change your wallpaper
1. Hold and press a blank area on the desktop, a pop-
up wallpaper will be shown on the screen.
2. Choose desired wallpaper.
3. Click upper left corner “√ to set wallpaper”.
10.5 Create a folder on the desktop
1. Drag one icon to another icon, the system will create
a folder.
2. Input the folder name.
11 ON USING TOUCH SCREEN
● Tap: use your finger to tap desired items to confirm
or open it.
● Long-press: press and hold the current interface,
icon or input field to open the available operation
options.
● Slide: use your finger to slide the screen horizontally
or vertically.
● Drag: hold and press the desired item, then drag it

to any location.
12 AUTO-R0TATE THE SCREEN
To perform such operations as browsing webpage,
viewing images etc., rotate this device, the screen will
automatically change the display direction. To disable
this function, click “Settings” and click “display” to
enter. Unselect the option “Auto-rotate the screen”.
13 LOCK&UNLOCK
13.1 Lock the screen
● When the device is ON, press POWER key to lock the
screen.
● The system will lock the screen automatically after
this device remains idle for a long time.
13.2 Unlock the screen
Press POWER key to activate the screen and then drag
the lock to “Unlock position.”
14 NOTIFACTION BAR
The notice bar is used to display some activities,
messages to remind and inform users.
14.1 Turn on the notification panel
1. When a new notification icon appears on the status
bar, slide the status bar downwards to open it.

2. In the notification panel, click the desired
notification item to open it.
14.2 Turn off the notification panel
When the notification panel is opened, click on the
blank space of the screen and the notification panel
will automatically retract.
15 INPUT METHOD
Set input method：
Enter main menu and then select “Settings”->
“Language and keyboard” to Choose desired input
method.
The default input method, Sogou input can support
powerful word stock engine, Intelligent Sogou input
and multiple keyboard mode.
Android keyboard and Google input method and make
input easier.
To start text input mode, please click any text input
entry.
16 HOW TO SET AS AIRPLANE MODE
According to the regulations of some countries or
areas, PC device must be turned off before boarding
on the airplane.

The way to disable functions of this device is to set it
as airplane mode. In this mode, all wireless radio
waves will be off, including mobile network, Bluetooth
and WLAN.
Do one of the followings to enable or disable airplane
mode:
Press POWER key and choose “Airplane mode” from
the pop-up option menu.
Access the main menu, and choose “Settings” >
“WLAN” > “More…” >“Airplane mode”.
1 CONNECT VCI CONNECTOR
Procedure to connect VCI connector:
1. Locate motorcycles’ diagnostic socket. The
connectors of the diagnostic socket of different
models are inconsistent. You need to use the
corresponding model adapter. You can check the
approximate location of the model adapter in the
diagnostic bitmap in the software data.
2. Plug the diagnostic connector of this device into the
diagnostic socket.
2 DIAGNOSIS FLOWCHAT

For new users, please follow the 3.1 to get familiar
with and start using this device.
Connect the diagnostic connector –>user
registration–>user login–>download or upgrade
software–>select function or vehicle type–>proceed
diagnosis
3 PERSONAL CENTER
Used to set up and manage account details, and you
can view the dealer information.

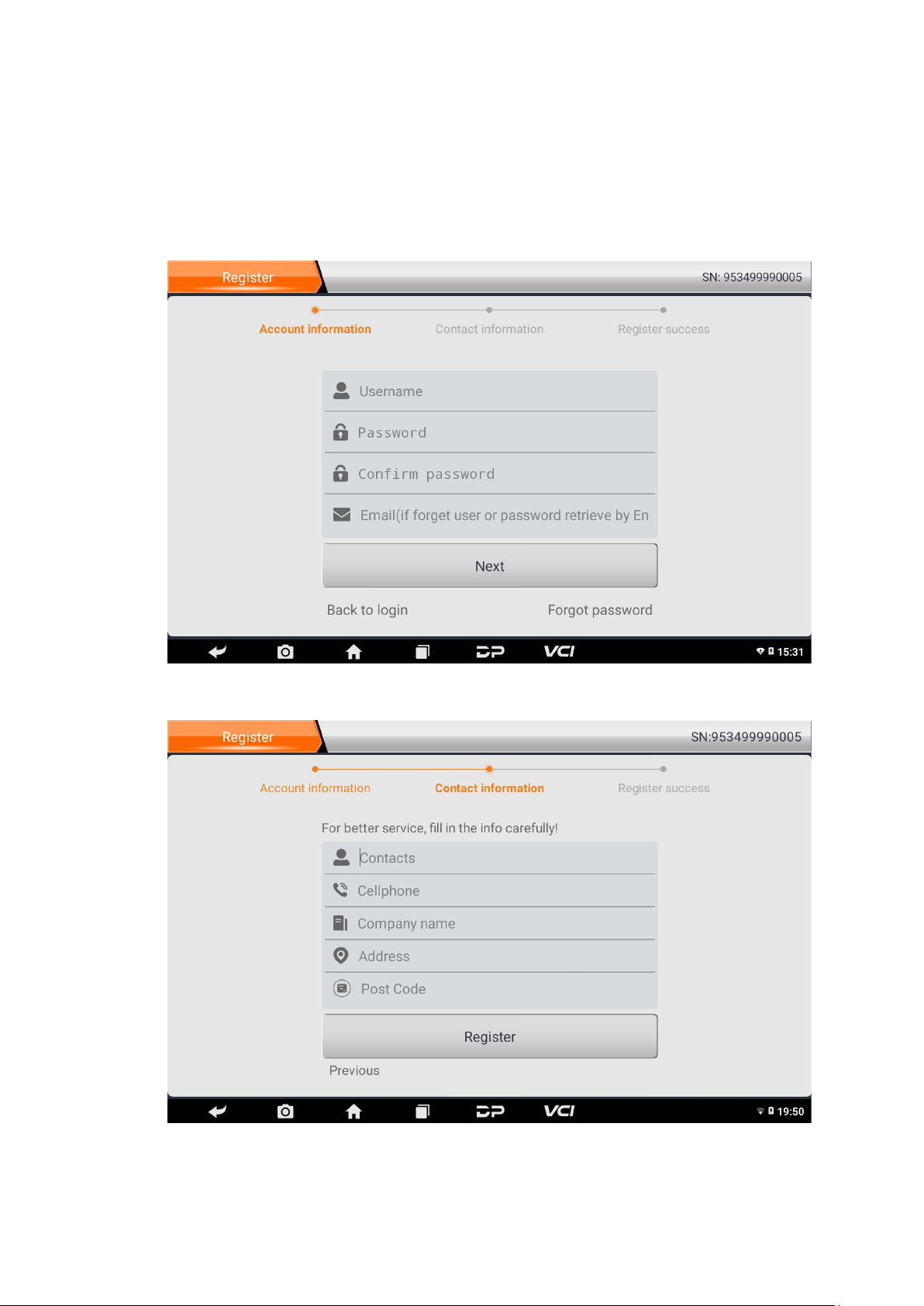

3.1 User registration
Enter the Personal Center interface, display the login
interface, click the “Register” button in the lower right

corner to enter the user registration interface. As
shown:

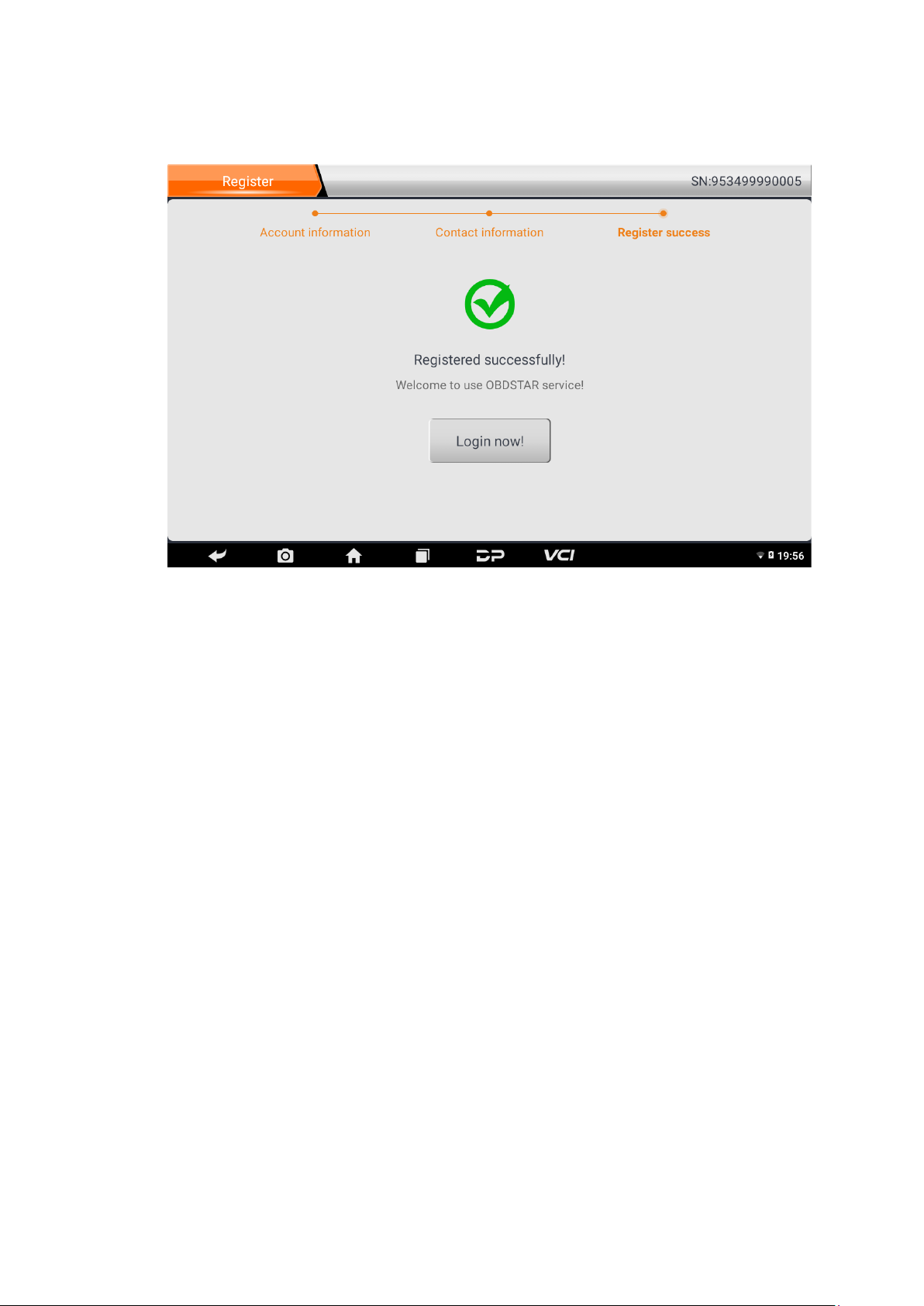

Fill in the information in each field. After that, the
registration is successful, click “Login now!”
If you have registered to be a member, click “User
login” to enter user login page, as following picture
shown:

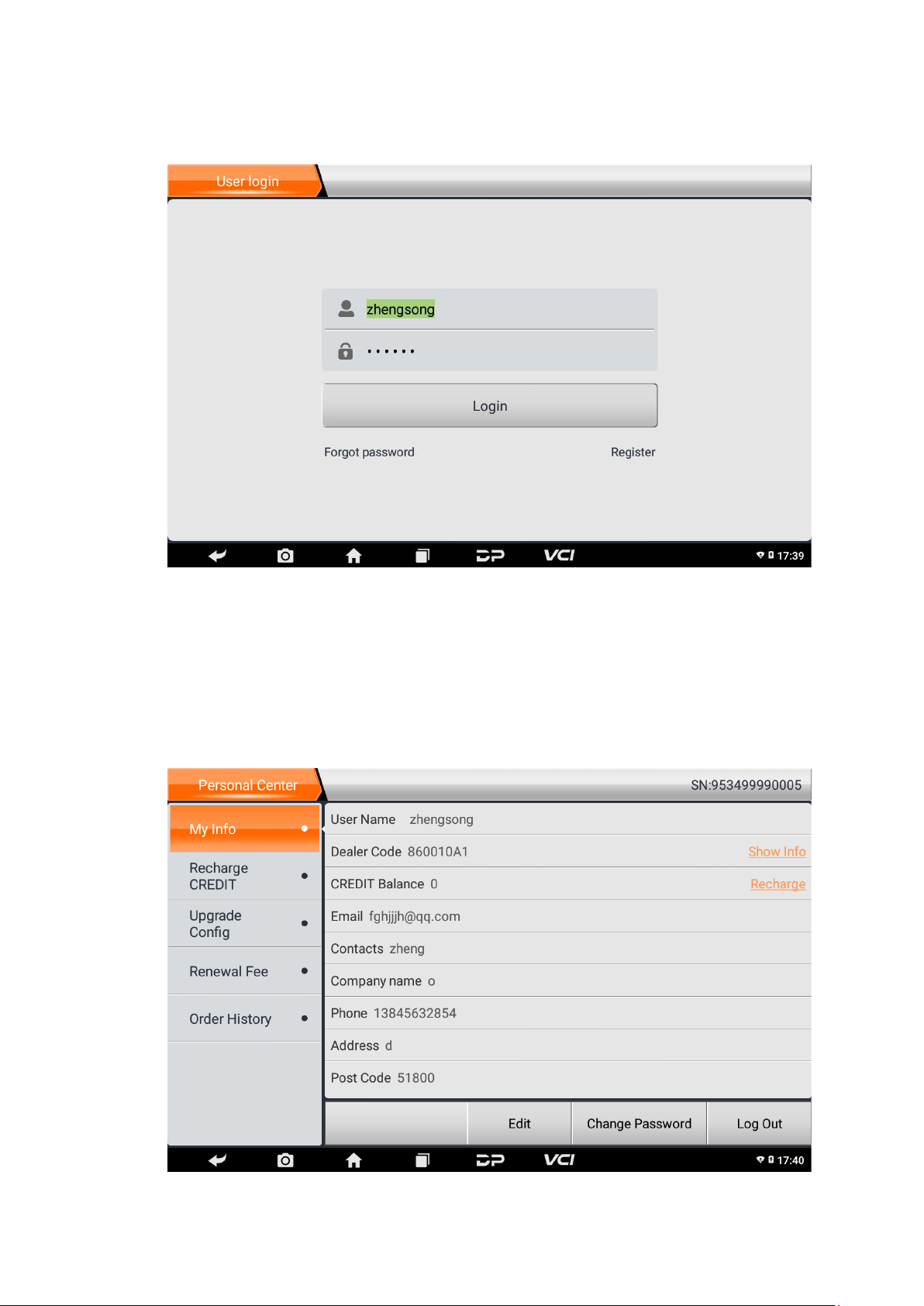

3.2 User login
After the registration is completed, fill in the account
number and password and click login:

Display personal basic information and modify
information and password.
3.2.1 Modify information
3.2.2 Change password
