Ocean TV Ocean Series O37M User manual

Ocean TV Ocean Series Antennas
OCEAN TV 1 www.oceantv.com.au
OCEAN TV
Satellite Antennas
www.oceantv.com.au
Ocean Series O37M and O45M
Installation and User Manual
Version 1.34
© Ocean TV 2010

Ocean TV Ocean Series Antennas
OCEAN TV 2 www.oceantv.com.au
Blocked !
Figure 1-2 Satellite Blockage
Antenna SystemOverview
A complete satellite TV system, illustrated in Figure 1-1, includes the O45M antenna connected
to a IDU, a satellite TV receiver, and a television set.
Direct Broadcast Satellite Overview
Direct Broadcast Service (DBS) satellites broadcast audio, video and data information from sat-
ellites located 22,000 miles in space. A receivingstation, such as the O45M antenna, should in-
clude a dish and satellite receiver to receive the signals and process them for use by the con-
sumer audio and video equipment. The system requires a clear view of the satellite to maximize
the signal reception.
Objects such as tall lighthouse, bridges and big ship that block this view will cause a loss of sig-
nal. The signal will be quickly restored once the antenna has a clear line of sight again. Heavy
rain, cloud, snow or ice may also interfere with the signal reception quality. If the satellite signal
is lost due to blockage or severe weather condition, services from the receiver will be lost
(picture will freeze frame and may disappear). When the satellite signal strength is again high
enough, then the receiver will resume providingdesired programmingservices.

Ocean TV Ocean Series Antennas
OCEAN TV 3 www.oceantv.com.au

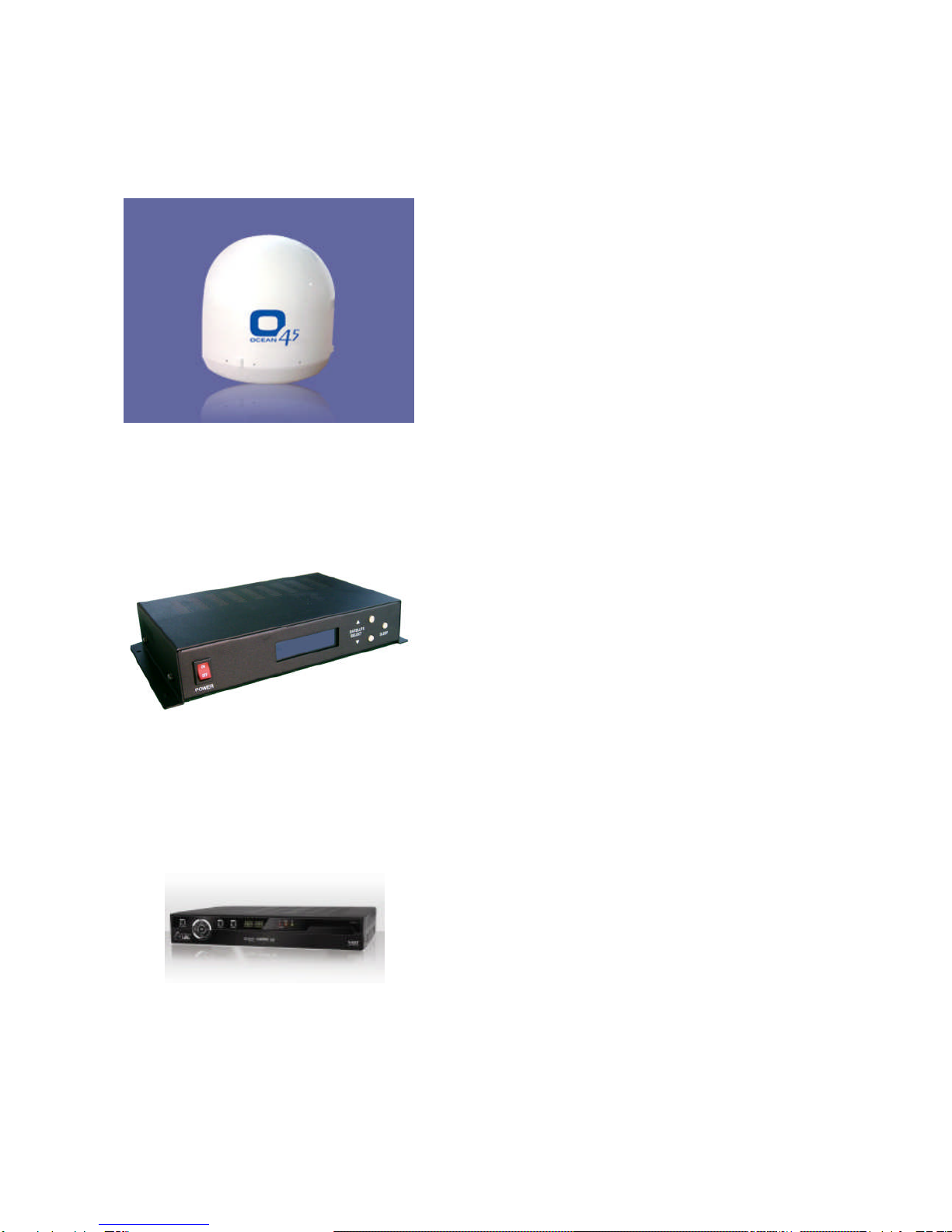

SystemComponents
Antenna Unit
The antenna unit houses the antenna positioning
mechanism, LNB (low noise block), and control ele-
ments within a n enclosed weatherproof dome.
Weather tight connectors join the power, signal, and
control cablingfrom the below decks units.

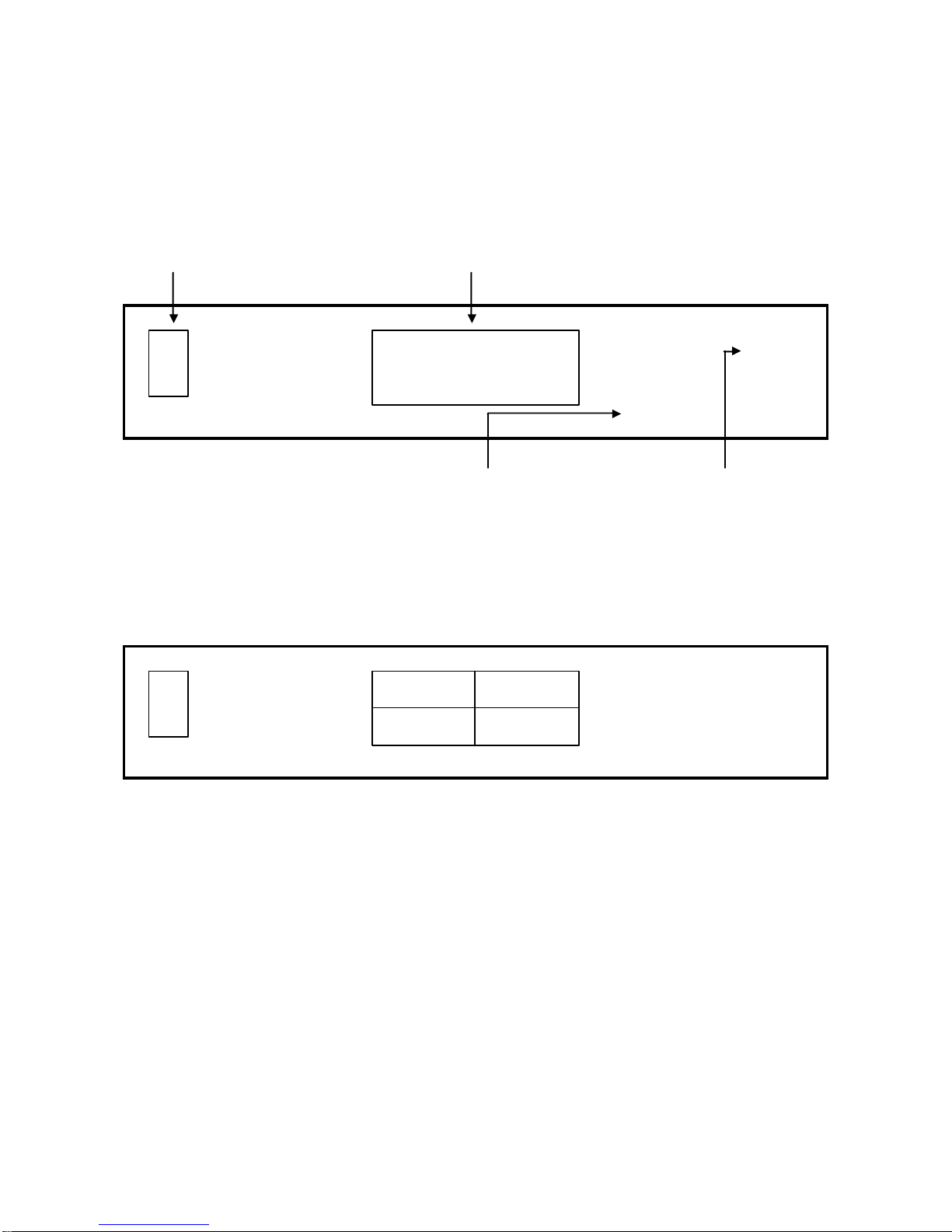

IDU (InDoor Unit)
The IDU is the system’s user interface, providing
access to the system and its functions through an
LCD and three buttons.
The IDU also serves as the vessel’s junction box,
allowing the system to use vessel power, and supply
and receive data to/from the antenna unit.
Satellite Receiver
The Satellite Receiver is a Set Top Box that allows
the Satellite Signals to be displayed on the
Television.
Satellite Receivers are supplied by the end user or
under contract by a Subscription Satellite TV
Provider.
Figure 1 – 3 System Components

Ocean TV Ocean Series Antennas
OCEAN TV 4 www.oceantv.com.au
Antenna Type Parabola
Frequency Band Ku Band
OperatingFrequency 10.7GHz to 12.75GHz
Dish Dimension 450mm
Radome Dimension 550x580mm
Antenna Weight 15kg
Antenna Gain 33dBi
Minimum EIRP 49-48dBW
Polarization V/H or RHCP/LHCP
Type of Stabilization 2-Axis Step Motor
Elevation Range 5°to 90°
Azimuth Range 400°
TrackingRate 50°/sec
Temperate Range -20°to 70°
Power 12~24VDC (24w at 12vdc)
Auto Skew Range -90°to 90°
Ocean O45M
Antenna Type Parabola
Frequency Band Ku Band
OperatingFrequency 10.7GHz to 12.75GHz
Dish Dimension 370mm
Radome Dimension 440x430mm
Antenna Weight 9kg
Antenna Gain 31dBi
Minimum EIRP 50dBW
Polarization V/H or RHCP/LHCP
Type of Stabilization 2-Axis Step Motor
Elevation Range 5°to 90°
Azimuth Range 400°
TrackingRate 50°/sec
Temperate Range -20°to 70°
Power 12~24VDC (19w at 12vdc)
Ocean O37M

Ocean TV Ocean Series Antennas
OCEAN TV 5 www.oceantv.com.au
SD SatelliteReceiver
Ocean TV System Overview
Setup 1
1 Television with SDSatellite Receiver
Antenna
12-24v DC
IDU Indoor Unit
Televisions
Coaxial Control
Cable
NOTE:.
Further Installation Options are available in Appendix E
Antenna SystemOverview
Figure 1 –1 System Diagram

Ocean TV Ocean Series Antennas
OCEAN TV 6 www.oceantv.com.au
1 Introduction
Specification………………….………………………………………………………………. 4
Antenna System Overview……………………………………………………………….. 5
Direct Broadcast Satellite Overview………………………….………………………. 6
Sy stem Components……………………………………………………………………..… 7
2 Installation
Unpacking the Unit………………………………..……………………...................... 9
Preparing for the installation…………………………………………………………. 10
Selecting the location………….………………………………………………….……… 11
Equipment and cable installation…………..…………………………………….…. 12
Setting the LNB Skew Angle (Manual Skew version only)…………………. 13
3 Operation
Receiving Satellite TV Signals…………….………………………………………….. 15
Turning the System On/Off…………..………………..……………………………... 16
Changing Channels………………………….…………………...…..……………….…. 17
Watching TV…………………………………………………………..…………….…..…. 17
Switching between Satellites……………………………………………….…………. 17
Operating the IDU……………………………………….……………………………….. 18
Choosing the Correct Satellite to Track……………………...……………….... 19
4 Troubleshooting
Simple Check……………………………………………..………………….……………. 21
Causes and Rem edies……………………………….……..……………………...……. 22
i Appendix A
How to set the skew angle………………………………………………….....……. 23
ii Appendix B
Satellite Cov erage Map…………………..…………………………..………..……. 26
iii Appendix C
Firmware Upgrade…………………….……………………………………..…………. 27
iv Appendix D
O37M Antenna Drawing..…………………….…..………...…………………..…. 31
O45M Antenna Drawing..…………………….…..……………………………....…. 32
v Appendix E
Sy stem Diagram s..…………………….…..………...……………………..……..…. 33
vi Appendix F
Satellite Coverage Maps……………….…..………...…………………….……..…. 40
5 Accessories
Installation and User Accessories…………………………………………………. 42
Contents

Ocean TV Ocean Series Antennas
OCEAN TV 7 www.oceantv.com.au
Notes, Cautions, and Warnings
Caution - Im proper handling by unqualified personnel can cause serious
damage to this equipm ent. Unqualified personnel who tamper with this
equipment may be held liable for any resultant damage to the equipment.
Install under DRY condition ONLY. Do not install this system in the rain, or
under wet conditions. Moisture may effect the electronics and v oid warranty.
Warning - Two people are needed to install the antennas onto the roof. Do
not try to install the antenna by y ourself.
Note - Beforey ou begin, carefully read each of the procedures in this man-
ual. If y ou have not performed similar operations on similar equipment, do
not attempt to perform these procedures.
Welcome
Congratulations on purchasingthe Ocean TV Marine Satellite Antenna System.
The Ocean Series O37M and O45M satellite antenna system is a innovative and technologically
advanced satellite In-Motion system. The O37M/O45M has a unique combination of state-of-the
art components with the most sophisticated satellite acquisition and trackingprograms to provide
the followingfeatures:
■Fast satellite acquisition
■Gyro and Signal Stabilised smooth tracking
■Compatible with any Satellite Receiver
■Compatible with all Direct Broadcast Satellites (DBS)
■Built-in Digital Broadcast Receiver (DVB)
■Capable of High Definition receiving
■Multi Output as standard (Foxtel IQ and AustarMyStar Compatible)
Ocean TV Antennas have been designed to be simple to operate and provideyears of trouble free
performance.
Welcome to the Ocean TV family.
OCEAN TV

Ocean TV Ocean Series Antennas
OCEAN TV 8 www.oceantv.com.au
This section offers a general explanation of how properly to install the O37M and O45M
antenna. Installation of the O37M or O45M antenna must be accomplished by or under the
supervision of an authorized dealer for the Limited Warranty to be valid and in force. The steps
in the installation and setup process are as follows:
Unpacking the unit……………….……………………………………………….……………………. 9
Preparing for the installation…………………………………………….…………………………. 10
Selecting the location………….……………………………………….……………………………….. 11
Equipment and cable installation…………..……………………………………………………… 12
Installation

Ocean TV Ocean Series Antennas
OCEAN TV 9 www.oceantv.com.au

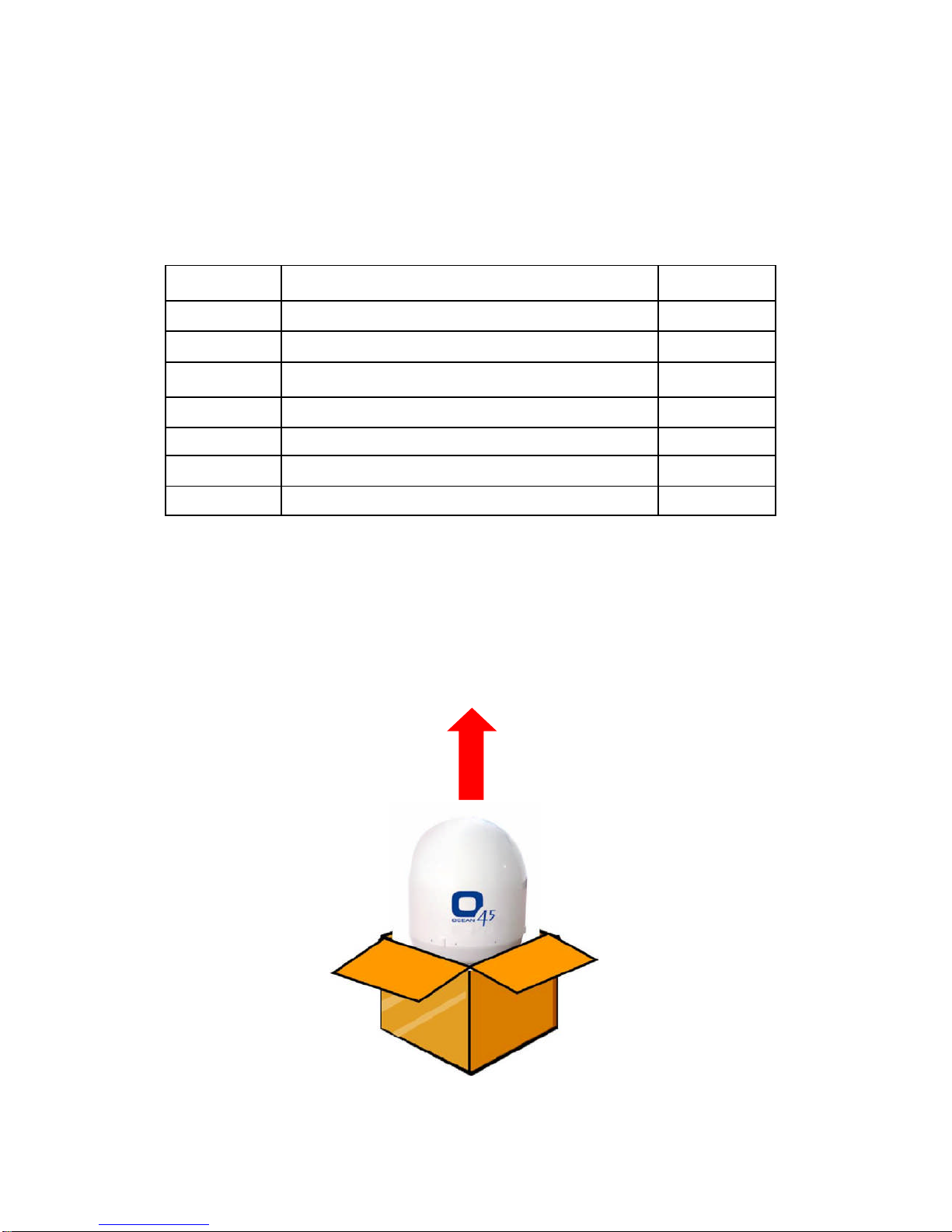

Unpacking the unit
1. Open box and remove packing material.
The following items are included in the packagingof the O37M and O45M antenna.
Item Description Quantity
1 O37M or O45M Antenna Unit 1 each
2 IDU (In Door Unit) 1 each
3 Power Cable 1 each
4 Coaxial Cable (10m) 1 each
5 Coaxial Cable (1m) 1 each
6 Installation & User Manual 1 set
7Cable Right Hand Connectors (O37M Only) 1 Set of 6
Table 2-1 Parts included
2. Lift dome out of box vertically. Do not turn box and “roll” out, or turn upside down to
remove.
Lift Unit st raight u p
out of th e carton !
Figure 2-1 Unpacking the unit
Note: Optional approved Cables and accessories are available from Ocean TV.

Ocean TV Ocean Series Antennas
OCEAN TV 10 www.oceantv.com.au
Preparing for the installation
Install Tools and Materials
The O37/45M antenna system is designed for simple installation and setup. However, the fol-
lowing list of equipment or items should be available during installation of the O37/45M an-
tenna.
■Electric drill and drill bits
■Socket wrench
■Silicon sealant
■Fastener suitable for specific application
1. Verification of the Vessel’s PowerSupply.
■Confirm that the vessel’s power supply is 12VDC~24VDC.
2. Verification of the Satellite Receiver and IDU’s attachment andthe electricity supply
■Attach Satellite Receiver and IDU in the interior of the vessel or the trunk.
■Connect thepower of Satellite Receiver and IDU.
■Once thepower of Satellite Receiver and IDU is verified, it confirms that both Satellite
Receiver and IDU are working normally.
3. Procedure of the satellite’s attachment and installation.
■Attach the satellite on the flat surface area of the vessel’s roof.
■Connect each end of the Coaxial antenna cable to the satellite’s terminal and the IDU.
■Connect the IDU and the Satellite Receiver boxtogether through the coaxial cable.
■Make sure that the satellite is workingnormally, once the power is supplied.
Warning : Things to consider when installingthe antenna.
■Turn off the power when attachingor detachingthe antenna.
■Make sure that the attached satellite is fixed on the flat surface.
■When attaching, ensure that all the products are adhered properly.
■Ensure that all the cables are connected properly.
