odass OD-0604 User manual

Model OD-0604
SPECIFICATION
Voltage: AC 120V Frequency: 60Hz
Rated power: 65 W (OD-0604-SS/BR) | 80 W (OD-0604-MB/MW)
This towel warmer is intended for bathroom. Read the instructions
carefully before using.
Towel warmer
instruction
manual
Please use the services of a certified
electrician for the hardwire
installation of this product.
Plug the power cord into an electrical
outlet for product testing before
using.
For the apparent wire installation of
this product, please verify that the
jonction box gives 120 V.
The drying temperature can be set
between 30° and 60 degrees Celsius
(86 to 140 °F).
The timer can be set between 1 hours
to 8 hours. Touch the screen to
select the duration of the drying.
1
2
Hardwire installation
4 3+1 4 3+1 4 4 1 2 1
* *
*The part is not in the installation boxes. It is already in place on the towel warmer.
The towel warmer must not work
without being tented. Please turn it
off and take the plug
out from the outlet if it is not being
use.

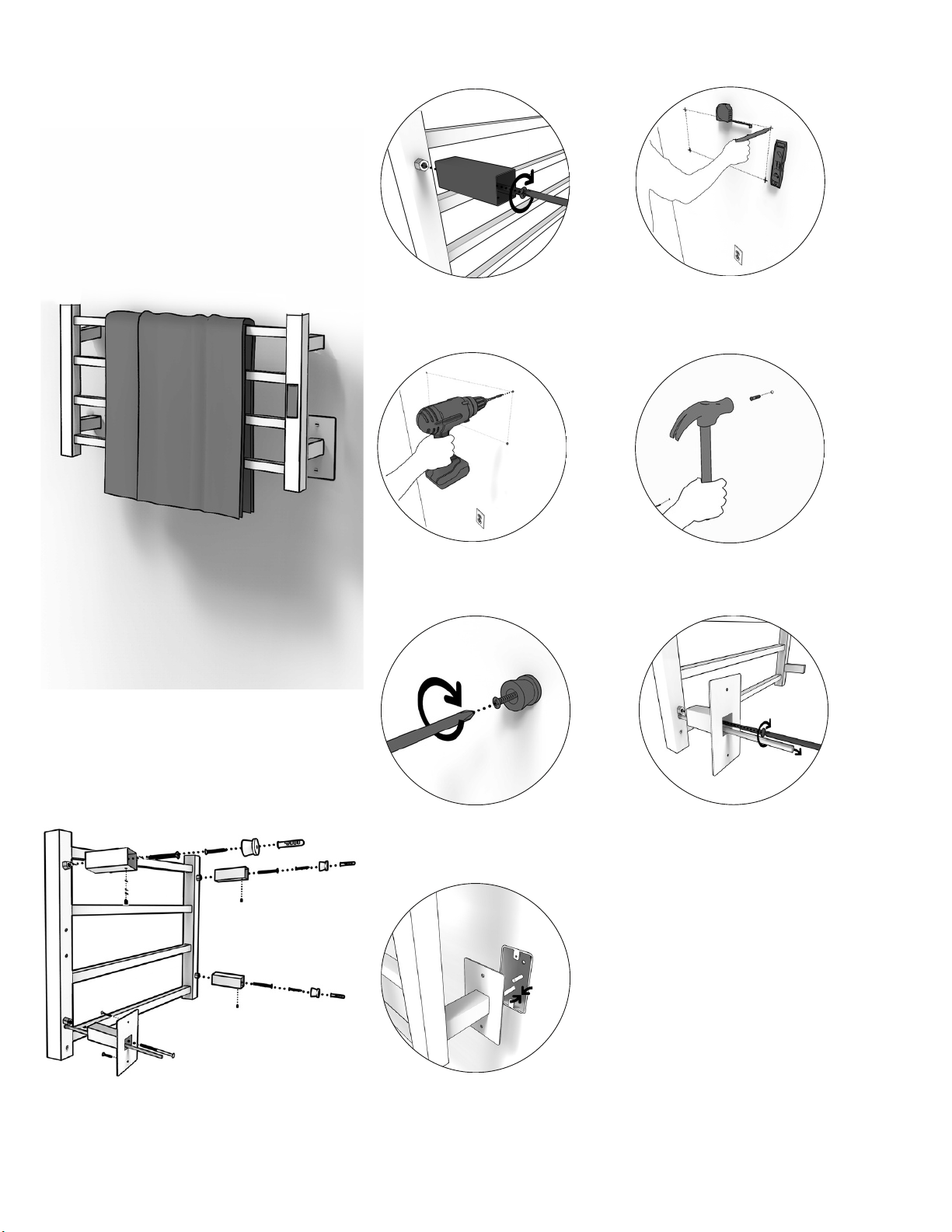

3. Drill holes in the wall.
5. Install stopper with screw
on the wall.
1. Rivet the base onto the nut
with fixing screw.
7. Rivet the puller bolt
with the fixed stopper through
allen key.
4. Insert screw anchor into the holes.
8. Press the button to turn the device
ON or OFF. Select the drying time
from 1 hour to 8 hours.
Select the drying temperature
between 30° and 60 degrees Celsius
(86 to 140 °F).
6. The supply cable should exit at
the back part of the product.
2. Identify the location of the
holes needed to screw the product
on the wall.
Plug-in
installation
instructions

3. Drill holes in the wall.
5. Install stopper with screw on the
wall.
1. Rivet the base onto the nut
with fixing screw.
7. Pass the supply cable through
the tube provided for this
purpose and pass the wire
through the plate.
4. Insert screw anchor into the holes.
6. Cut the supply cable. Make
sure you keep enough
wire to go through the tube and
to plug into the junction box.
Remove the already existing
tube to replace it with the one
provided in the box of the
hardwire installation.
2. Identify the location of the holes
needed to screw the product on
the wall .
Hardwire
installation
instructions

8. Connect the supply cable to the
junction box and fix the plate
onto the junction box.
9. Rivet the puller bolt
with the fixed stopper through
allen key.
10. Press the button to turn the
device ON or OFF. Select the drying
time from 1 hour to 8 hours.
Select the drying temperature
between 30° and 60 degrees Celsius
(86 to 140 °F).

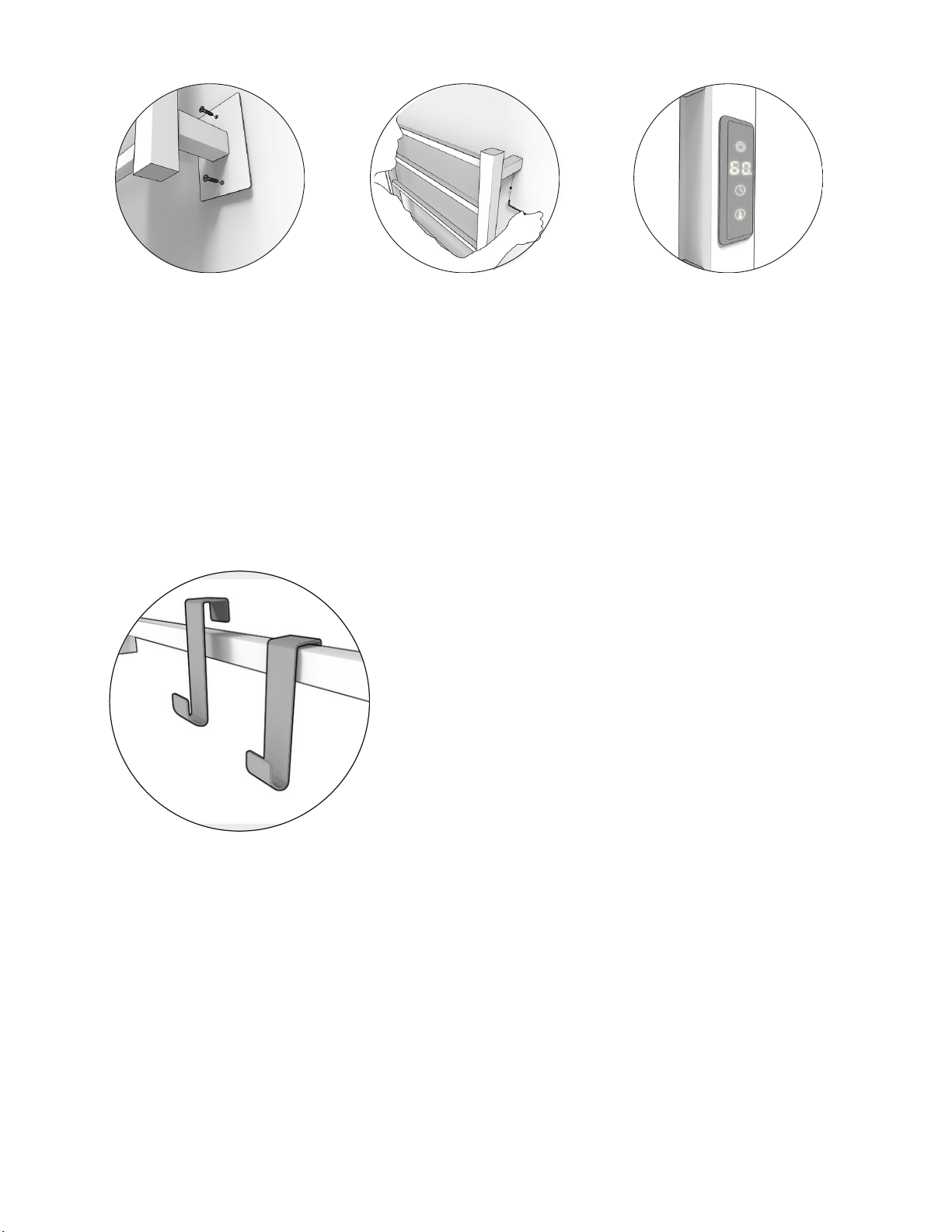

Move carefully the hooks when
removing them from the bars of
the towel warmer.
Usage of the
hooks

LIMITED WARRANTIES
Odass warrants the product to be free from defects
in workmanship from the date of purchase. These
warranties extend only to the original owner/end-
user for personal household use and start from the
date of purchase/billing.This warranty cannot be
transferred to a third party and additional
limitations apply for commercial use. In the
eventuality that a manufacturing defect appears,
the owner/ enduser must have in his possession, a
proof of purchase as well as a proof of installation
by a professional recognized by the construction
industry. Odass reserves the right to inspect on site,
the defect by a representative of their choice. Any
return of goods will not be accepted without the
written authorization from Odass. Odass cannot be
held responsible for the defects or dammage
resulting from any accident, catastrophe, abuse,
negligence, improper installation/use/maintenance,
intensive variations of temperature, exposures to
chemicals or stains caused by different types of
water such as ferrous or alkaline water, etc.The use
of abrasives of any kind, gritting scraper, brushes
or any other scouring object which can damage
the surface of the product is to be proscribe and
will cancel the present warranty. Odass will be
repaired or replaced (with a product of equal value)
to her discression of any product reported to the
authorized dealer or to Odass as being defective
within the warranty period. Neither the distributor,
authorized Odass dealer nor any other person has
IMPORTANT SAFEGUARDS
Read all instructions before using this heater.
Extreme caution is necessary when the towel
warmer is used by or near children or people with
disabilities when unattended.
The device is designed only for drying wet fabrics.
The heater should be installed at a minimal distance
of 0,6 meters from a bathtub or a shower.
If the supply cable is damaged, it should be
replaced by the manufacturer, manufacturing agent
or any qualified person to avoid potential dangers.
Always unplug heater when not in use.
Do not operate the heater with a damaged cord or
plug or if the heater has malfunctions, has been
dropped or damaged in any manner.
Return heater to authorized service facility for
examination, electrical or mechanical adjustment,
or repair.
Do not use outdoors.
Never place the heater where it may fall into a
bathtub or other water containers.
Warning:
THIS HEATER ONLY OPERATES IN UPRIGHT
POSITION.
STORE THE HEATER IN A COOL and DRY
LOCATION WHEN NOT IN USE.
DO NOT STORE UNTIL THE HEATER HAS
COMPLETELY COOLED OFF.
been authorized to make any affirmation, repre-
sentation or warranty other than those contained
in the warranty; any affirmation, representation or
warranty other than those contained in this
warranty shall not be enforceable against Odass or
any other person.This warranty excludes any
expenses related to shipping, handling and/or
installation fees. Odass cannot be held responsible
for the fees of labor, wastes of time, expenses of
sundries or replacement of installation material,
including, but not limited to, tiles, marble, etc.
Odass reserves the right to modify this warranty at
any time, it being understood that such modification
will not alter the warranty conditions applicable at
the time of the sale of the products in question.
LIMITED WARRANTIES
Odass guarantees the chrome and brushed finish
of stainless steel products for a limited lifetime
and a 5 year warranty on the matte black finish of
stainless steel products to be free from defects
in workmanship and materials under normal use
and service from the initial date of purchase by the
owner/end-user, contractor or builder. Odass gua-
rantees all material made of solid surface «I-stone»
for a limited lifetime to be free from defects in work-
manship and materials under normal use and ser-
vice from the initial date of purchase by the owner/
end-user, contractor or builder. Odass warrants for
a period of 10 years, acrylic units to be free from
defects in workmanship and materials under normal
Do not run cord under carpeting. Do not cover
cord with throw rugs, runners, or anything of that
sort. Place the cord away from areas prone to
circulation and where it will not be tripped over.
Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock, fire or damage the heater.
Do not use it in area where gasoline, paints, or
flammable liquids can be found.
Use this heater only as described in this manual.
Any other use is not recommended by the manu-
facture. It may cause fires, electrics shocks, or
injuries to persons.
Keep these instructions for later reference.
ANY OTHER SERVICING SHOULD BE PERFORMED
BY AN AUTHORIZED SERVICE REPRESENTATIVE
THE HEATER MUST NOT BE LOCATED
IMMEDIATELY BELOW A SOCKET-OUTLET.
This appliance is not intended to be used by people
with disabilities, children, or people who lack
experience and knowledge in this field, unless
there is a certified supervisor giving that person
direct instructions on how to correctly use, fix and
install the appliance. Children should be supervised
at all times to ensure that they do not play with the
products.
use and service from the initial date of purchase by
the owner/end-user, contractor or builder. Odass
warrants for a period of 10 years, shower doors to
be free from defects in workmanship and materials
under normal use and service from the initial date
of purchase by the owner/end-user, contractor or
builder. Odass warrants for a period of 5 years, sa-
nitary porcelain products (toilet, lavatorie basins)
to be free from defects in workmanship and
materials under normal use and service from the
initial date of pur-chase by the owner/end-user,
contractor or builder. Odass war- rants for a period
of 2 years, storage modules and vanities to be free
from defects in workmanship and materials under
normal use and service from the initial date of
purchase by the owner/end-user, contractor or
builder. Odass warrants for a period
of 2 years, glass mirrors to be free from defects
in workmanship and materials under normal use
and service from the initial date of purchase by
the owner/end-user, contractor or builder. Odass
warrants for a period of 2 years, electrical com-
ponents to be free from defects in workmanship
and materials under normal use and service from
the initial date of purchase by the owner/end-user,
contractor or builder.
PRODUCT MAINTENANCE
To keep the device clean, regular maintenance is
suggested.
To remove dust, use a soft cloth.
To remove a stain, dampen the cloth. For better ef-
ficiency of the device, it is advisable to remove dust
and foams which can accumulate regularly. Never
use abrasive or acetone-based products.
