OdinLake ERGO ART A643 User manual

Ergonomic Chair
Health & Stylish
OdinLake
ODINLAKE ERGO ART
USER GUIDE
MODEL:（A643）
www.odinlake.com
Note: Thanks for purchasing from OdinLake. This manual contains
important information so please keep it for further possible uses. If you
have any questions that can not be solved by this manual, contact us:
[email protected]

02
02Tips
Warranty Rules 10
03Tools List
07Functions
11Office Ergonomic Guide
12Disclaimer
04Parts List
05-06Assembly Instructions
08Frequent Questions Answers
09Frequent Assembling Malfunction
Contents

02 03
Tools List
Tips
1. Please make sure that all bolts and screws have been tightened
properly before actually using the chair. Check all levers, adjustknobs
and buttons before everyday use.
P.S: If the cylinder doesn't match the seat plate appropriately, the
height adjuster may stop functioning.
2. Please inspect the chair twice a year. Daily use can wear down the
screws and bolts, so regular inspections are important in order to keep
you safe.
3. No standing on the chair.
4. Please do not press the height adjuster down while adjusting, you
only have to lift it slightly to raise or lower the seat. Hard pushing
might break the adjuster.
5. If you are giving this chair to a third person/party, please attach this
manual with the chair.
6. Installation tips: follow the instructions carefully. Please do not
tighten the screws until all screws are lined up at once. This helps you
make changes easier if some steps go wrong. Over-tightening one
screw can make other screws hard to tighten.
7. Please tighten all screws again after the set-up process is complete.
Ax5
Casters
Bx1
Base
Cx1
Cylinder
Dx1
Backrest
Ex1
Seat
Fx2
Armrests
Gx1
Cover
Hx3
Bolts
M10*40mm
Lx2
Bolts
M6*12mm
Mx1
Allen Wrench
Nx1
Allen Wrench
Ix3
Nuts
Jx3
Bolts
M10*16mm
Kx5
Lock Washers
M10*19mm
* Each type of bolt and washer has one extra as a spare.

04 05

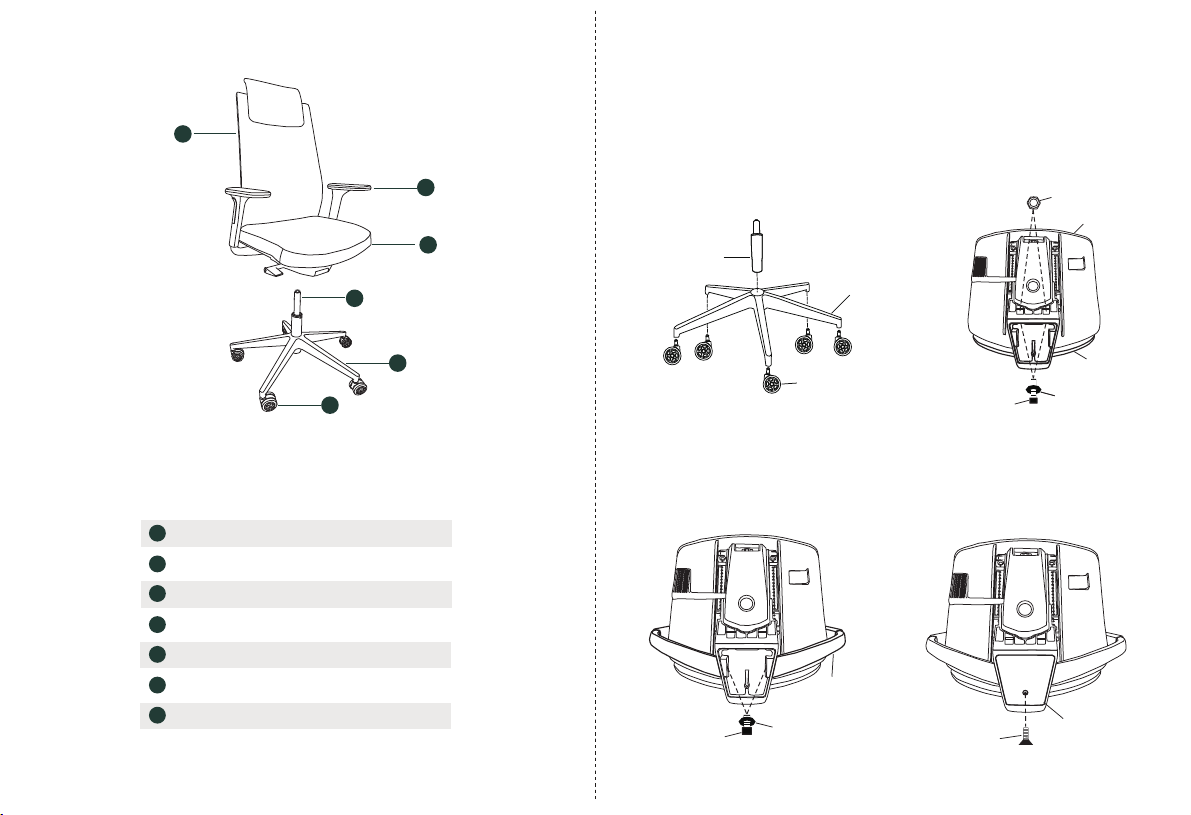

Parts List Assembly Instructions
D
F
E
C
B
A
ITEM
A
B
C
D
E
F
G
DESCRIPTION
Casters x5
x1
x1
x1
x1
x2
x1
Base
Cylinder
Backrest
Seat
Armrests
Seat Plate
QUANTITY
Step 1
Take the Casters(A) and push
them into the 5-star Base(B).
Install the Cylinder(C) into
the Base(B).
Step 2
Fix the Armrests(F) to the Seat(E)
with 6pcs Lock
Washers(J) & BoIts(H).
C
B
I
E
D
K
H
LG
F
K
J
A
Step 3
Fix the Armrests(F) to the Backrest(D)
with 2pcs Lock Washers(K) & Bolts(J).
Step 4
Fix the Cover(G) to the
Backrest(D) with 1pc Bolt(L)

ERGONOMIC DESIGN
Curved design offers adequate high-back and adjustable headrest and adjustable
lumbar support, which can effectively reduce the pain and pressure of the neck
and back caused by long time sitting.
STYLISH ARMRESTS
The stylish PP+PU material 3D armrests can be multi-functionally adjusted, the
armrest can be adjusted up and down, and the armrest pad can be adjusted forward
and backward + left and right, making the chair more modern and less monotonous.
ADJUSTABLE SEAT DEPTH
Pull out the adjustment handle to adjust the seat depth to suit people of different
body sizes and heights.
ADJUSTABLE HEIGHT
Pull up the adjustment lever then you can raise or lower the seat.
ROCKING FUNCTION
Pull out the adjustment handle to start rocking. The tension knob (under the seat)
can adjust the tilt tension of the backrest.
Adjustable Seat
HeightSwiveling
and Lifting
Multifunctional
Tilt Lock
Adjustable Rocking
Tension
Adjustable
Seat Depth
06 07
Assembly Instructions Functions
Completed!
Step 6
Place the upper part onto the
cylinder
Step 5
Scan the code to watch the
installation video.

08 09
1. How much weight can this chair hold?
The maximum weight capacity is 300 lbs. In general, you will feel very
comfortable if you weigh about 260 lbs. But if you feel any discomfort,
please contact us for technical assistance at customers@odinlake.
com.
2. What if my lumbar cannot fit on the backrest closely?
The fitness of the lumbar and backrest varies with different users'
heights.Tucking a cushion between the user's lower back and the
chair can improve fitness if it isn't snug.
3. How to clean the mesh office chairs?
Use a vacuum cleaner weekly to keep the mesh breathing easily.
Odinlake ergonomic chairs can be washed with warm water and mild
detergent. Use asoft brush and be careful when scrubbing or the mesh
fiber may break.Apply cleaning solutions and cover the dirty area with
a wet cloth for 30 minutes to remove the stubborn dirt.
4. How to clean the office chair wheels?
Pull off the wheels by hand or detach with a screwdriver when
cleaning.Remove dirt and debris with a spray cleaner. And be sure to
dry all components thoroughly. After finishing cleaning, wheels need
to be polished by greaseless lubricant to keep them operating
smoothly.
Frequent Questions Answers
Rocking spring too
loose
Malfunction Reason How to Fix
1Abnormal noise Loose or untightened
bolt Retighten all bolts
2
Loosen the bolts,
adjust component to
correct position and
retighten
3Seat can not be raised
chair
4Seat can not be
lowered
person not sitting on
properly
5Not rocking
6Uncomfortable rocking
- strong tension until you find the best
tension that fits your
back to backrest closely
7Uncomfortable
rocking-weak tension
Adjust spring to the
right until you find the
best tension
The lift valve is closed,
the chair or not sitting
Rocking function is
locked
The lift valve is closed
or person sitting on the
during assembling
Crooked components Crooked backrest or
armrest
Open the lift valve, do
not sit on the seat
while adjusting
Open the lift valve,
make sure to sit in the
center of the chair
Adjust spring to the left
Pull out the adjustment
lever
Rocking spring too tight,
user's back is not close
to the backrest
Frequent Assembling Malfunction

10 11
Warranty Rules
1. Warranty Range
We provide free replacement parts for buyers/users. Warranty only
covers the parts of the chair. Please note that free tools ( allenwrench )
are not covered in the warranty.
2. Warranty conditions
Parts will be covered if used normally in reference to the instructions in
the manual. Warranty will not include damages caused by not
following the manual.
3. No warranty covered
1) No proof of damaged parts (need clear original picture or video to
show the defective parts of chair).
2) Failure parts caused by improper operation after purchase. For
example, sitting on the armrest may break it.
3) The parts fail due to modification, disassembly or repair of the product
by a third party or customer not following the instructions.
4) Other reasons found that cannot prove damaged parts. We shall not be
responsible for any intended damages or accidental damages by
detrimental weather, etc.
4. Attention
Please keep the original package box for 14 days in case you need to
return the chair to the seller.
Office Ergonomic Guide
A comfortable working space can help you feel better.Give your
sitting and working areaa makeover with this visual guideline to
office ergonomics.
Wrists straight,
hands at or below
elbows level
Adjust chair height
so knees are about
same level with hips
Enjoy your daily life with Odinlake Chairs!
Keep an arm away

Disclaimer
Attention: Ignoring the contents described herein may
result in death or injury to the user, or there is a risk of
property damage.
Please do not use or store the product in
high temperature, high humidity or direct
sunlight for a long time.
Please do not repair, modify or disassemble yourself
unless you follow the instructions in this manual.
It could cause a malfunction.
Do not use this product for infants.
Never sit on the armrest
OdinLake owns the copyright of this file.
Unauthorized reproduction/reprinting of all parts of this manual is
prohibited.
Due to product improvement, the specifications and appearance of
this product are subject to change without prior notice.
Please note that we are not responsible for any failure of other
products caused by using this product.
OdinLake is a registered trademark in the USA, Europe and Japan.
Any Quality Issue
Please send email to [email protected],
take picture and offer your Order No. for OdinLake's easy checking.
OdinLake will provide free replacement parts, send a new
chair or refund accordingly.
