Odorox®SlimlineTM
1
Use this Hydroxyl Generator only for its intended
purpose as described in this Owner’s Manual.
Warning!
Safety Information
PLEASE READ AND SAVE THESE IMPORTANT
SAFETY INSTRUCTIONS.
IMPORTANT SAFEGUARDS
When using this system, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons,
including the following:
• Read all instructions before using this Hydroxyl Generator.
• To avoid fire or shock hazard, plug the equipment directly into a grounded AC electrical outlet.
• Remove all packaging material before use.
• Keep the cord out of heavy trac areas. To avoid fire hazard, NEVER put the cord under rugs, near heat
registers, radiators, stoves, or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• WARNING! Always unplug the generator before moving it, cleaning, or whenever the generator is not in
use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
• DO NOT operate any generator with a damaged cord or plug, if motor fan fails to rotate, after the
generator malfunctions, or if it has been dropped or damaged in any manner. Return generator to
manufacturer or authorized repair facility for examination, electrical or mechanical adjustment, or repair.
• Use generator only for intended use as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not
recommended may cause hazards.
• INDOOR USE ONLY!

2
Owner’s Manual
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could
cause the unit to tip over, blocking the Air Intake Opening/Grill.
• Keep unit away from heated surfaces and open flames.
• CAUTION: for general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• DO NOT attempt to repair or adjust any electrical or mechanical components on this unit. Doing so will void
your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by
authorized personnel only.
• DO NOT plug the cord in with wet hands: electric shock could result.
• NEVER use detergents, gasoline, furniture polish, paint thinner or other household solvents to clean any part
of the generator.
• DO NOT under any circumstances cut or remove the third (Ground) prong from power cord. For personal
safety, this generator must be properly grounded.
Safety Information
SAFETY INFORMATION

Odorox®SlimlineTM
3
SAFETY INFORMATION
Safe Handling and Disposing of Mercury
Mercury is used in the Boss™ device in order to generate the plasma needed to produce UV-C radiation. This
is similar to the use of mercury in many types of commercial, fluorescent light fixtures. As long as the glass or
quartz outer bulb is intact, mercury is contained within the fixture and poses no health hazard. In the event
that an optic breaks, less than 25 mg of mercury could be released. This is much less than what is present in a
commercial thermometer. Liquid metallic mercury is hazardous due to its potential to release mercury vapor. In
humans, approximately 80% of inhaled mercury vapor is absorbed via the respiratory tract, where it enters the
circulatory system and is distributed throughout the body. Short term exposure to 25 mg of spilled mercury does
not pose a health hazard, provided that the source of the mercury is removed promptly. Chronic exposure by
inhalation, even at low concentrations in the range 0.7–42 μg/m3, can cause eects such as tremors, impaired
cognitive skills, and sleep disturbance in workers. The OHSA limit for occupational exposure of elemental
mercury is 0.1 mg/m3. Mercury is also used in most fluorescent light fixtures.
In the event that the device optic light does not function, the optics should be checked to ensure that they are
intact. If the optic is cracked, but not broken, it should be replaced. Cracked optics should be double sealed in
plastic bags and disposed of according to local, approved procedures. In the event that the optic breaks and the
mercury is spilled, clean-up should be done immediately according to the following procedure published by the
Environment Protection Agency.
• Evacuate the room for at least 15 minutes.
• Do not attempt to clean up the spill with a vacuum
cleaner, mop or broom.
• Dispose of clothing, fabric etc. that has come in
contact with mercury; do not wash.
• Only the individual to clean up the spill should
re-occupy the space.
• Close the doors to the area of the spill and turn
o the HVAC system; open exterior windows and
direct room air out of the window with fans or use
an exhaust fan if the area is equipped with one that
vents directly outdoors.
• Cover shoes with disposable foot covers or wear
shoes that will be disposed of.
• Remove jewelry as mercury will amalgamate with
metals and ruin them.
• Use a commercial mercury spill clean-up kit to
remove the spilled mercury. (See list of suppliers
on the next page).
• Identify items in the spill area that can be
cleaned and those that cannot. Non-porous
surfaces (finished wood, plastic or concrete)
can be cleaned following this guidance. Porous
surfaces or fabric-covered items (upholstery,
carpeting, stued animals, pillows, backpacks,
unfinished wood, cork, cardboard) are dicult to
clean because mercury beads may be trapped in
these materials. If you decide you cannot clean
these items, place them in plastic trash bags or
cover or wrap them in a double layer of plastic and
carefully seal with tape. Place the wrapped items in
a secure place, preferably outdoors and out of the
reach of children and pets. You should consult with
a trained professional about how to decontaminate
or dispose of these items safely.
• Wear gloves to carefully pick up the larger pieces
of broken glass and what remains of the broken
device and place them on a paper towel. Gently
fold the paper towel around these pieces so you
can pick the bundle up and place it in a zipper-type
plastic bag. Use index cards or sti cardboard to
push smaller pieces of glass and mercury beads
together into a pile. Shine a flashlight at an angle
to locate beads of mercury. The beads will reflect
light from the flashlight. Check for mercury in
cracks or in hard-to-reach areas where beads may
be hidden or trapped. Check a wide area beyond
the spill.

4
Owner’s Manual
Mercury Spill Kit Suppliers
Crackle Scientific 800-334-7725
Lab Safety Supply 800-356-0783
Cole-Parmer 800-323-4340
For schools only:
Fisher Scientific 800-452-1261
For schools and businesses only:
Fisher Scientific 800-766-7000
Mallinckrodt/Baker 800-582-2537
Sigma Aldrich 800-325-3010
VWR Scientific 800-932-5000
• Use the eyedropper to collect mercury beads
and place them in the plastic bag. Hold the
eyedropper at an angle to draw the mercury into
the tip. Keep the eyedropper at an angle to stop
the mercury from rolling back out until you can put
the mercury into the plastic bag. Wrap tape (sticky
side out) around your gloved fingers and carefully
use it to pick up any remaining glass or beads.
Check again with the flashlight to be sure that no
beads of mercury remain.
• At this point, mercury beads may still be trapped
in cracks or crevices on irregular surfaces. Sprinkle
sulfur powder over the contaminated area and
rub it gently all over the surface and into the cracks
with a paper towel. Sulfur powder binds with
mercury. Use a paper towel dampened with water
followed by wiping with another damp paper towel
to clean up the sulfur and mercury. Place the used
paper towels in a zipper-type plastic bag.
• Put all the items that were used to pick up the
mercury, including index cards or cardboard,
eyedropper, contaminated tape, paper towels,
and zipper-type bags into the trash bag. Carefully
remove rubber gloves by grabbing them at the
wrist and pulling them inside out as they come o.
Place the used gloves in the trash bag.
• Carefully seal the trash bag that contains the
mercury-contaminated waste and put it in a
secure place, preferably outdoors and out of reach
of children and pets until it can be disposed of
safely.
• If possible, open a window and use a fan to
ventilate the area to the outdoors for 24-48
hours before resuming normal use. If possible, heat
the area (for example, with a space heater) while
still ventilating to the outdoors. Avoid blowing
the exhaust back indoors or into other nearby
residences.
• Clothes or shoes that did not come in direct
contact with liquid mercury should be removed
and put into the trash bag that was left outside
the contaminated area at the beginning of the
cleanup. Close the trash bag and take it outdoors.
Carefully remove the shoes and or clothing
from the trash bag and air them out thoroughly
outdoors for 24 to 48 hours. After the outdoor
airing, items that are washable can then be
laundered.
• Dispose of contaminated items properly!
Mercury-contaminated items should not be placed
in the regular household trash. Contact your town
or county ocials for information about hazardous
waste disposal in your community.
SAFETY INFORMATION

Odorox®SlimlineTM
5
1) Odorox® SlimlineTM Hydroxyl
Generator w/Control Panel
3) Four 8-32 x 3/4 inch Phillips
(Star) machine screws
4) One 0.05 inch hex key
5) One Owner’s Manual
Package Contents

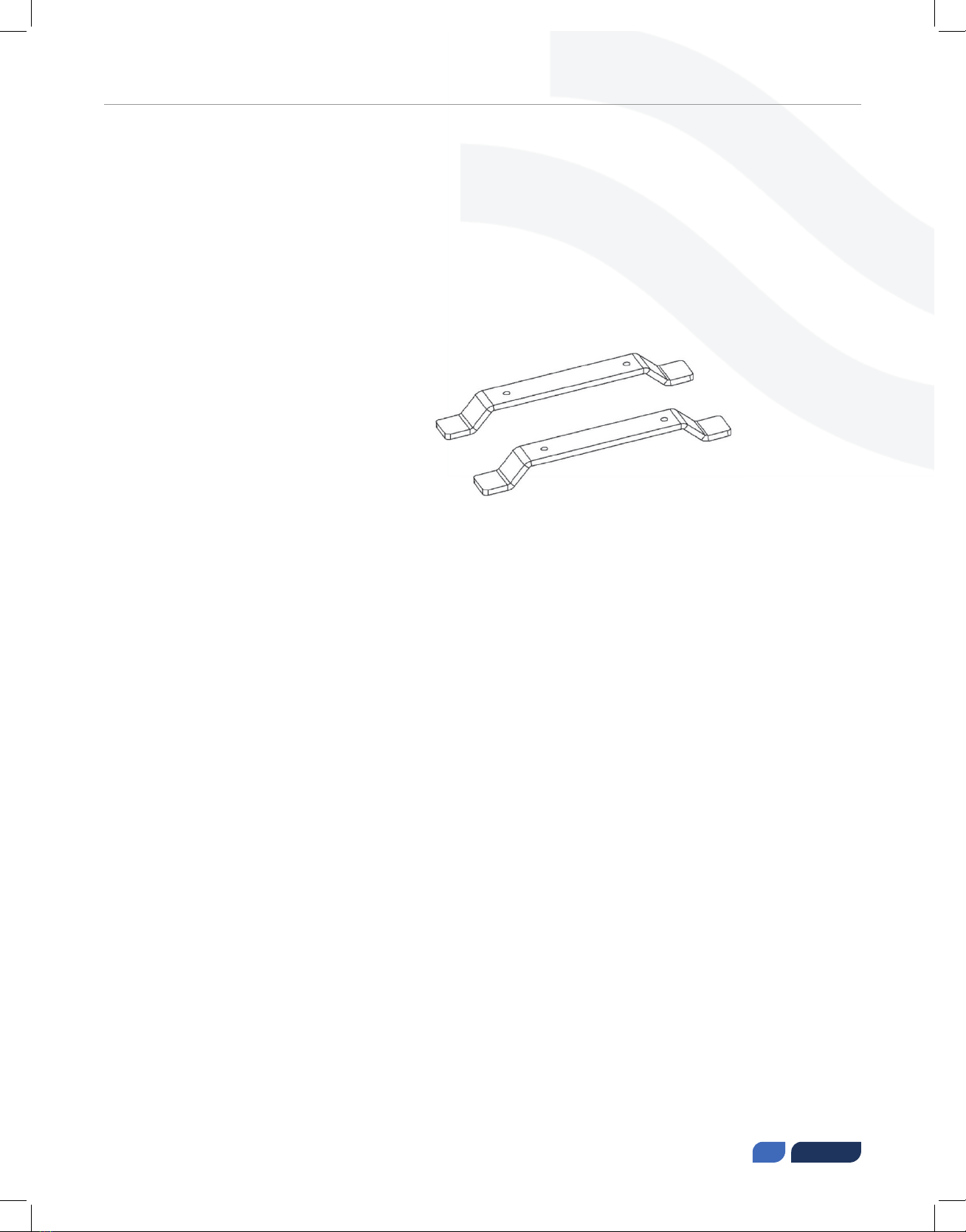

2) Two base brackets
PACKAGE CONTENTS

6
Owner’s Manual
There are two options available when considering system placement:
INSTALLATION INSTRUCTIONS
System Placement
OPTION ONE: PORTABLE FLOOR STAND
The SlimlineTM may be used as a portable, free-standing unit, with the use of the enclosed
base brackets (see Figure 1)
OPTION TWO: WALL-MOUNT
The SlimlineTM may be installed to a wall (see “Wall-Mount Installation Instructions” on page 6-11).

Odorox®SlimlineTM
7
INSTALLATION INSTRUCTIONS
Wall-Mount Installation
STEP 1: All electrical work must be done in accordance with local or national electrical code as applicable.
For safety, this product must be grounded. If you are unfamiliar with methods of installing electrical
wiring, secure the services of a qualified electrician.
STEP 2: When wiring, servicing or cleaning this unit, turn o power and lock out service panel. Failure to do
so could allow others to turn on power unexpectedly which may cause fatal electrical shock.
STEP 3: To avoid electrical shock:
• DO NOT install generator in a tub or shower enclosure, or any location where it may come in
contact with water.
• Never place a switch where it can be reached from a tub or shower.
STEP 4: DO NOT install this generator in an area where chemicals or other flammables are stored or used.
Explosion and fire may result.
STEP 1: Install Hydroxyl Generator at least 6” from floor or any adjacent vertical surface.
STEP 2: DO NOT locate Hydroxyl Generator behind a door, furniture, drapes, etc., Where the air flow to the
unit would be restricted.
STEP 3: DO NOT connect Hydroxyl Generator to dimmer switch or speed control.
STEP 4: Please read specification label on product for further information and requirements.
Warning:
Caution:

8
Owner’s Manual
WALL-MOUNT INSTALLATION
Wall-Mount Installation
PLAN THE INSTALLATION

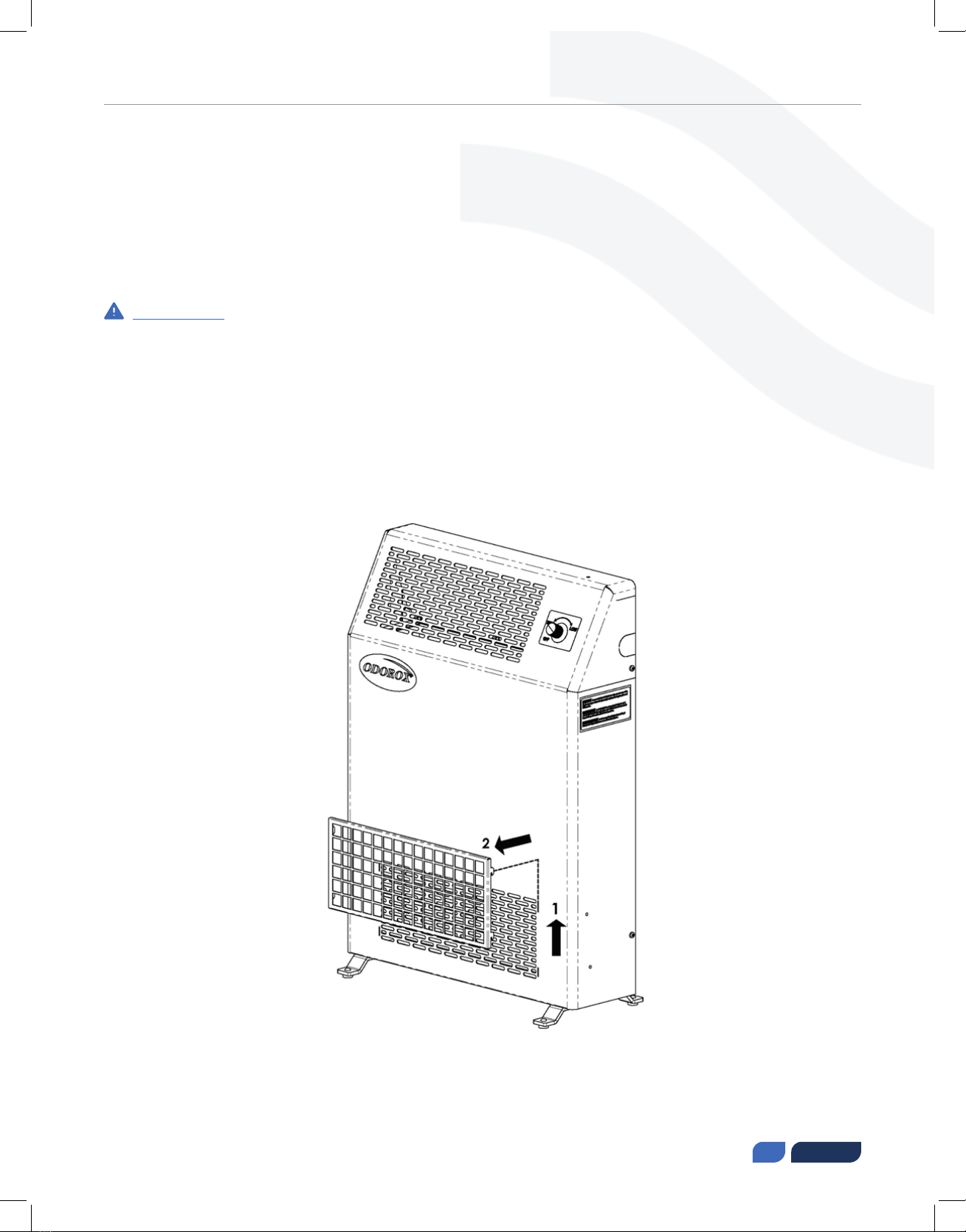

STEP 1: Carefully unpack SlimlineTM and remove from plastic.
STEP 2: Remove four screws on side of unit, then tilt and pull cover.
STEP 3: Disconnect speed control/cover from main unit by means of the ‘quick connect’ and set aside on a
clean surface.

Odorox®SlimlineTM
9
STEP 4: Remove optic reflection plate.
STEP 5: Remove lamp optic following these instructions:
• Hold lamp base with one hand, and lamp connector with other hand.
• Gently ‘wiggle’ connector while pulling from lamp base.
• Gently pull lamp from three lamp supports.
• DO NOT put any pressure on side of lamp with no support.
• Temporarily store lamp in a safe, clean location.
Caution: Use clean leather gloves and eye protection when
handling the optics in this generator
WALL-MOUNT INSTALLATION

10
Owner’s Manual
WALL MOUNT-INSTALLATION
STEP 6: Knock out four pre-punched holes on back panel.
STEP 7: If wiring unit from back, knock out pre-punched 7/8 inch hole for electrical connector. If wiring from the
side, knock out pre-punched hole on the side of the back panel.
STEP 8: Determine the desired installation location. This location must conform to the Warnings and Caution
instructions discussed earlier. This Slimline unit must be anchored securely to a wall or ceiling. The mounting
screw locations are designed for standard wood/metal framing with studs on 16 inch centers. Using the back
panel as a template, mark the screw locations onto the mounting surface so that unit can be screwed directly
to the main studs. If there is not sucient support at the desired location, support members must be added.
Installer is responsible for the proper installation of this Hydroxyl Generator as per local building and
electrical codes.

Odorox®SlimlineTM
11
STEP 9: If wiring from back of unit, also mark the 7/8 inch hole onto the mounting surface for the main electrical
connection.
STEP 10: Set back panel aside.
STEP 11: If wiring from back of unit, cut out hole size as needed for electrical connector, and install electrical
service.
STEP 12: Ensure electrical service to this unit is turned o and locked out before continuing. Install electrical
connector (not supplied) onto back panel, and make proper electrical connections.
STEP 13: Secure back panel to mounting surface using #10, 1 ½ inch wood screws (not supplied) for typical wood
frame construction. If construction type is dierent, ensure proper support as per construction type
and weight of Hydroxyl Generator.
STEP 14: If wiring from the side, install electrical service and make proper electrical connections.
STEP 15: Re-install lamp optic following these instructions:
• Gently press lamp into the three lamp supports.
• Re-connect lamp connector holding the lamp base with one hand, and lamp
connector with other hand.
Note: Lamp connector is keyed. If unable to connect lamp connector with lamp base,
rotate lamp connector 180 degrees and try again.
• Ensure lamp connector and lamp base are firmly pressed together.
Caution: Use clean leather gloves and eye protection when
handling the optics in this unit
WALL-MOUNT INSTALLATION

12
Owner’s Manual
STEP 17: Connect the speed control/cover by means of the ‘quick connect’ that was disconnected in Step 3.
Connectors are keyed and only fit in one direction. Re-install cover by first latching the top behind the
back panel. Gently lower the bottom of the cover until all four screw holes line up. Secure cover with
four screws removed in Step 2. Maintain pressure on cover while installing four screws to avoid cross-
threading.
STEP 18: Turn on electrical service.
STEP 19: Turn on SlimlineTM Hydroxyl Generator and set for desired airflow.
STEP 16: Re-install optic reflection plate.
WALL MOUNT-INSTALLATION

Odorox®SlimlineTM
13
OPERATING GUIDELINES
Minimum Area (no circ) 240 ft² [22 m²]
Treatment Range (ft2)215 - 900
Treatment Range (m2)20 - 84
The Slimline™unit is designed for smaller spaces where a portable or wall-mounted unit is sought. It is ideal for
oces and schools, senior living, conference and waiting rooms, and other commercial applications that are
seeking to sanitize and deodorize indoor spaces.
The table below summarizes the minimum treatment area in the absence of ventilation, and the treatment area
range under typical operating conditions: 3 air changes per hour, 90% recirculated air, and 9 foot (2.7 m) ceilings.
These guidelines should be adhered to for optimal performance and safety.
Operating Guidelines

14
Owner’s Manual
Operating Instructions
POWER ON
The main power for the SlimlineTM can be switched on by turning the rotary switch clockwise.
POWER OFF
The main power for the SlimlineTM can be switched o by turning the rotary switch counter clockwise to the “O”
position.
FAN SPEED
The SlimlineTM is equipped with an air mover fan, which runs between 80-155ft2/m [135-263m2/h] (Model
SLM01TAA) or 100-200ft2/m [169-339m2/h] (Model SLi01TAA).
In order for the fan to turn on, the rotary switch must be rotated clockwise. Once turned on, the fan speed can
be controlled by turning the rotary switch clockwise to decrease the speed, or counter clockwise to increase the
speed.
GENERATOR
The SlimlineTM is equipped with one hydroxyl generating optic. In order for the optic to turn on, the rotary switch
must be turned on.
With the rotary switch in the “O” position, the optic will likewise be o.
OPERATING INSTRUCTIONS

Odorox®SlimlineTM
15
CARING FOR YOUR SLIMLINETM
Caring For Your SlimlineTM
Caution: DISCONNECT the unit from an electrical power source
before performing any maintenance or cleaning on the unit.
SYSTEM CASE CLEANING
Exterior
The exterior of the SlimlineTM can be cleaned with mild dishwashing detergent and a clean damp cloth. DO
NOT use any all-purpose cleaners with harsh detergents or abrasives, as these may damage the decals and the
exterior finish. Care should also be taken to avoid spraying or otherwise directing detergent or water into or
around electrical components.
Interior
The interior of the SlimlineTM can be cleaned in the same manner as the exterior.
OPTIC CLEANING
Cleaning of the optics is recommended to maintain peak processing eciency. Fingerprints, smudges, dirt, dust
particles, etc. will interfere with the hydroxyl production and should be removed.
Note: Remove the optics from the optic chamber prior to cleaning to avoid any damage to the optics during the cleaning
process (refer to the Optic Replacement Instructions for proper removal).
To clean the optics, use a solution of 10% Isopropyl Alcohol and 90% filtered/distilled water on a clean lint-free
cloth and wipe gently. DO NOT use any type of commercial glass cleaner. Using another lint-free cloth, gently
wipe the optic until completely dry. Allow the optic to dry completely before operating the system.
OPTIC REPLACEMENT INSTRUCTIONS
Replacing the optics (see references to optic removal/installation pages 7-11).

16
Owner’s Manual
Optic Replacement
Instructions
OPTIC REPLACEMENT INSTRUCTIONS
Warning: DISCONNECT the unit from the electrical power source
before performing any maintenance or cleaning on the Slimline™ Unit.
Caution: Optics contain Mercury. Read and follow the Safety
Information on pages 2 and 3 of this manual when handling the
optics in the Slimline™ unit.
STEP 1: Turn Main Power switch to the “O” position
STEP 2: Unplug power cord from the electrical receptacle
STEP 3: Using the supplied key, unlock and remove both end panels
STEP 4: Remove optics following these instructions:
Caution: Use clean powde-free latex gloves and eye protection when handling the optics in this unit
• With a firm grip on the upper porcelain end of the optic, use your other hand to grip the optic connector
• Gently ‘wiggle’ connector while pulling from the optic base
• Gently pull optic from three lamp supports (Do not put any pressure on the side of the optic without support)
STEP 5: Install new optic following these instructions:
• Remove new optic from packaging and gently insert into the three optic clips
• With a firm grip on the upper porcelain end of the optic, use your other hand to grip the optic connector
• Gently connect the optic connector to the optic
Note: Optic connector is keyed with the optic base and will connect in one direction only
• Ensure optic connector and optic base are firmly pressed together
STEP 6: Re-install end panels and lock with the supplied key
STEP 7: Plug power cord back into the electrical receptacle
STEP 8: Test unit for proper operation

Odorox®SlimlineTM
17
FILTER CLEANING &
REPLACEMENT
FILTER CLEANING & REPLACEMENT
Warning: DISCONNECT the unit from the electrical power source
before performing any maintenance or cleaning on the Slimline™ Unit.
STEP 1: Turn Main Power switch to the “O” position
STEP 2: Unplug power cord from the electrical receptacle, or turn o electrical breaker if unit is hard-wired
STEP 3: Lift up on the metal filter retainer (motion 1 in diagram below) and then pull out (motion 2 in diagram below)
STEP 4: Remove filter and wash or replace (if washing, allow to totally dry before re-installing)
STEP 5: Re-install clean/new filter in filter retainer, line up with tabs on main unit and push in place (reverse of
motion 2 in diagram above)
STEP 6: Push metal filter retainer down to lock in place (reverse of motion 1 in diagram above)

18 Owner’s Manual
Specifications
Dimensions (LxWxD):
Weight:
Voltage:
Power:
Control:
Noise Level:
Optics:
Fan:
Filter:
Certifications:
18.00” [457.20mm] x 5.25” [133.35mm] x 25.00” [635.00mm]
17.60lbs [7.98kg]
Model SLM01TAA - 120VAC, 60Hz
Model SLi01TAA - 210-240VAC, 50/60Hz
145W (Nominal) / 170W (Max)
Variable Speed Switch
<55dBA
1
Model SLM01TAA - 80-155ft²/m [135-263m²/h]
Model SLi01TAA - 100-200ft²/m [169-339m²/h]
5.00” [127.00mm] x 12.50” [317.50mm] x 0.25” [6.35mm]
Model SLM01TAA - ETL US/Canada
Model SLi01TAA - CE
Limited Warranty
The Pyure Company warrants that this SlimlineTM (excluding spare parts and consumables) shall be free from
defects in workmanship or materials for a period of two (2) years from the date of purchase.
Replacement Parts
For replacement parts, warranty service, or any questions regarding the operation and maintenance of your
SlimlineTM, please contact your local authorized dealer.
For a list of authorized dealers in your area, please visit www.pyureco.com
SPECIFICATIONS, REPLACEMENT PARTS AND LIMITED WARRANTY
