UNPACKING
After unpacking the unit, inspect carefully for any
damage that may have occurred during transit. Check
for loose, missing, or damaged parts. If any damage is
observed, a shipping damage claim must be filed with
the carrier. DO NOT use the OEMTOOLS™4800W 240V
Shop Heater if broken, bent, cracked, or damaged parts
(including labels) are noted. Any Heater that appears
damaged in any way, operates abnormally or is missing
parts should be removed from service immediately. If
you suspect that the Heater was subjected to shock
load (a load that was dropped suddenly, unexpectedly,
etc.), immediately discontinue use until it has been
checked by a factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your Shop Heater under the safest possible
conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling instructions are
not known or not followed. The following safety instructions are to provide the user with the information necessary for safe use
and operation. Please read and retain these instructions for the continued safe use of your tool. Failure to follow instructions
listed below may result in serious injury. In addition, make sure that anyone who uses the equipment understands and follows
these safety instructions as well.
Operating Instructions and Parts Manual 24824
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]

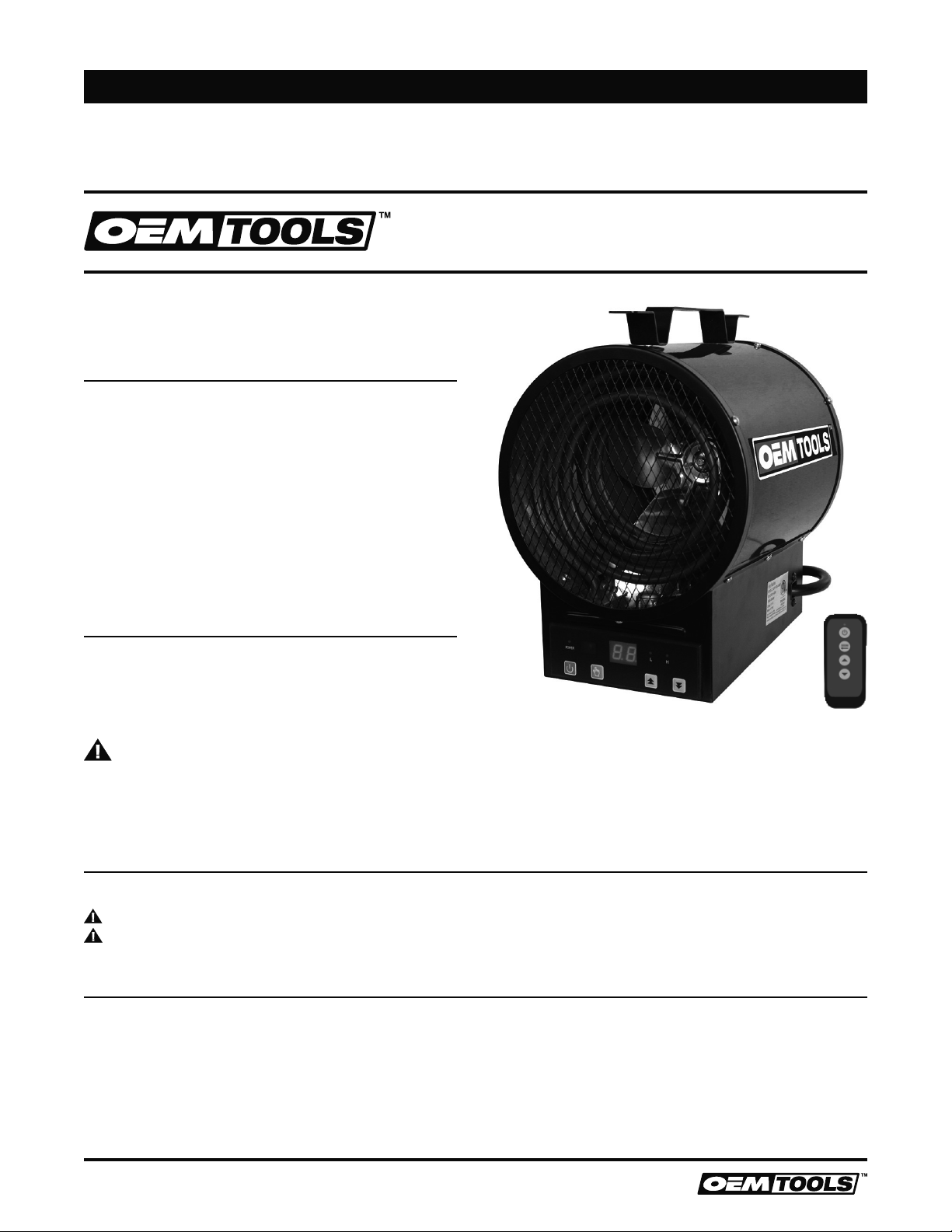

4800W 240V
SHOP HEATER
Thank you very much for choosing an OEMTOOLS™Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS™cannot be responsible for issues
arising from modification. We strongly recommend that this product is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
Explanation of Safety Signal Words
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result
in property damage.
WARNING
1
7/17
2017 OEMTOOLS™

2
Operating Instructions and Parts Manual 24824
4800W 240V
SHOP HEATER
7/17
2017 OEMTOOLS™
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your product. Read this manual carefully.
Learn the product’s applications and limitations, as
well as potential hazards specific to it.
2. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
3. Keep children away. All children should be kept
away from the work area. Never let a child handle
tools or equipment without strict adult supervision.
4. DO NOT operate this product if under the influence
of alcohol or drugs. Read warning labels on
prescriptions to determine if your judgment or
reflexes are impaired while taking drugs. If there is
any doubt, DO NOT attempt to operate.
5. Use safety equipment. Eye protection should be
worn at all times when operating this tool. Use ANSI
approved safety glasses. Everyday eyeglasses are
NOT safety glasses. Dust mask, non-skid safety
shoes, hard hat or hearing protection should be
used in appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-
ties, rings, bracelets, or other jewelry may present a
potential hazard when operating this product. Keep
all apparel clear of the tool.
7. DO NOT overreach. Keep proper footing and
balance at all times when operating this product.
8. Check for damage. Check your heater regularly. If
part of the heater is damaged, it should be carefully
inspected to make sure that it can perform its
intended function correctly. If in doubt, the part
should be repaired. Refer all servicing to a qualified
technician. Consult your dealer for advice.
9. Keep away from flammables. DO NOT attempt to
operate this product near flammable materials or
combustibles. Failure to comply may cause serious
injury or death.
10. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one product may become hazardous
when used on another product.
11. Service must be performed only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
12. When servicing a product, use only identical
replacement parts. Use of unauthorized parts or
failure to follow maintenance instructions may create
a risk of injury.
13. Maintain a safe working environment. Keep the
work area well lit. Make sure there is adequate
surrounding workspace. Keep the work area free of
obstructions, grease, oil, trash, and other debris.
DO NOT use this product in a damp or wet location.
14. Maintain labels and nameplates on this product.
These carry important information. If unreadable or
missing, contact OEMTOOLS™for a replacement.
15. Avoid accidental fire and/or explosion. DO NOT
smoke near engine fuel and battery components.
16. The warnings, precautions, and instructions
discussed in this manual cannot cover all possible
conditions and situations that may occur. The
operator must understand that common sense and
caution are factors which cannot be built into this
product, but must be supplied by the operator.
17. We believe the information contained herein to be
reliable. However, general technical information
is given by us without charge and the user shall
employ such information at their own discretion
and risk. We assume no responsibility for results or
damages incurred from the use of such information
in whole or in part.
18. The manufacturer declines any and all responsibility
for damage to property if said damage is the result
of unskillful handling by the operator or of failure
to observe the basic safety rules set forth in the
instruction manual.
19. The procedures documented in this manual are to
serve as guidelines for the use of this equipment.
20. The use of this equipment is simple and
straightforward if you follow the instructions. When
operating this equipment, use common sense, and
only use this heater for its intended purpose.
PRODUCT DESCRIPTION
The OEMTOOLS™24824 4,800W 240V Shop Heater is
a powerful yet compact heating solution for garages
and workshops. It can be used as a portable heater
with the convenient carry handle or mount it the wall or
ceiling using the supplied bracket.
PRODUCT SPECIFICATIONS
Product Weight: 13 Lbs.
Dimensions: 10-3/4" (L) x 8-3/4" (W) x 12-½" (H)
with carry handle installed
Input Voltage: 208-240V AC, 60Hz
Output Wattage: 3,600 - 4,800W
Amperage: 17 – 20A
BTU: 16,500
SPECIFIC SAFETY INSTRUCTIONS AND WARNINGS
WARNING: If the information in this manual is not
followed exactly, a fire may result causing property
damage, personal injury or loss of life. Please read and
save these important safety instructions
WARNING: For your safety do not store or use
gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance
WARNING: When using electrical appliances,
basic precautions should always be followed to reduce
the risk of fire, electrical shock, and injury to persons,
including the following:
1. This heater is hot when in use. To avoid burns, do
not touch hot surfaces. If provided, use handles
when moving this heater. Keep combustible
materials at least 3 feet (0.9m) from the heater.

3
Operating Instructions and Parts Manual 24824
4800W 240V
SHOP HEATER
7/17
2017 OEMTOOLS™
2. Never leave heater unattended while in use. Keep
children and pets away from heater while in use.
3. Always unplug heater when not in use.
4. DO NOT operate any heater with a damaged cord
or plug or after the heater malfunctions, has been
dropped or damaged in any manner.
5. Any repairs to this heater should be carried out by a
qualified service person.
6. Under no circumstances should this heater be
modified.
7. DO NOT use outdoors.
8. Use your heater only in dry environments. This
heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate the
heater where it may fall into water. DO NOT use near
sinks, swimming pools or other damp areas such as
flooded basements, garages, etc. or anywhere the
heater could come in contact with water.
9. DO NOT run cord under carpeting. DO NOT cover
cord with throw rugs, runners, or similar coverings.
Arrange cord away from traffic area and where it will
not be tripped over.
10. To disconnect heater, first turn controls to OFF, then
remove plug from outlet. Always unplug the heater
when not in use.
11. Connect to a properly grounded outlet only.
12. DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electrical shock, fire, or damage the heater.
13. To prevent a possible fire, do not block air intakes
or exhaust in any manner. DO NOT use on soft
surfaces where openings may become blocked.
14. This appliance may have internal arcing or sparks
that could ignite flammable fumes. DO NOT use it in
areas where gasoline, paint or flammable liquids are
used or stored.
15. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer
may cause fire, electric shock, or injury.
16. It is advised to avoid the use of an extension cord
because the extension cord may overheat and
cause a risk of fire.
17. This heater may include an audible or visual alarm to
warn that parts of the heater are getting excessively
hot. If the alert sounds or flashes, immediately
turn the heater off and inspect for any objects
on or adjacent to the heater that may cause high
temperatures. DO NOT OPERATE THE HEATER
WITH THE ALARM ACTIVATED.
CONTENTS
Heater Assembly, Mounting Bracket, Carry Handle and
Wireless Remote
65 mm Screws (3)
M10 mm Screw (1)
5 mm Nut (1)
20 mm Bolt (1)
Lock Washer (1)
10 mm Washer (1)
Wall/Ceiling Bracket (1)
Handle (1)
16 mm Screws (2)
5 mm Washers (2)
Lock Washers (2)
Wireless Remote
A
E & F
B
G
C D
Heater Assembly

4
Operating Instructions and Parts Manual 24824
4800W 240V
SHOP HEATER
7/17
2017 OEMTOOLS™
ASSEMBLY FOR PORTABLE USE
1. Carefully remove all items from the packaging.
Place onto a clean, protected surface capable of
supporting the weight of the heater.
2. Attach the Carry Handle (F) using the (2) 16 mm
screws (C), (2) 5 mm washers (C), and (2) lock
washers (C).
WARNING
Minimum Clearance from Combustibles
3 ft. from Front
1 ft. from Top, Sides and Rear

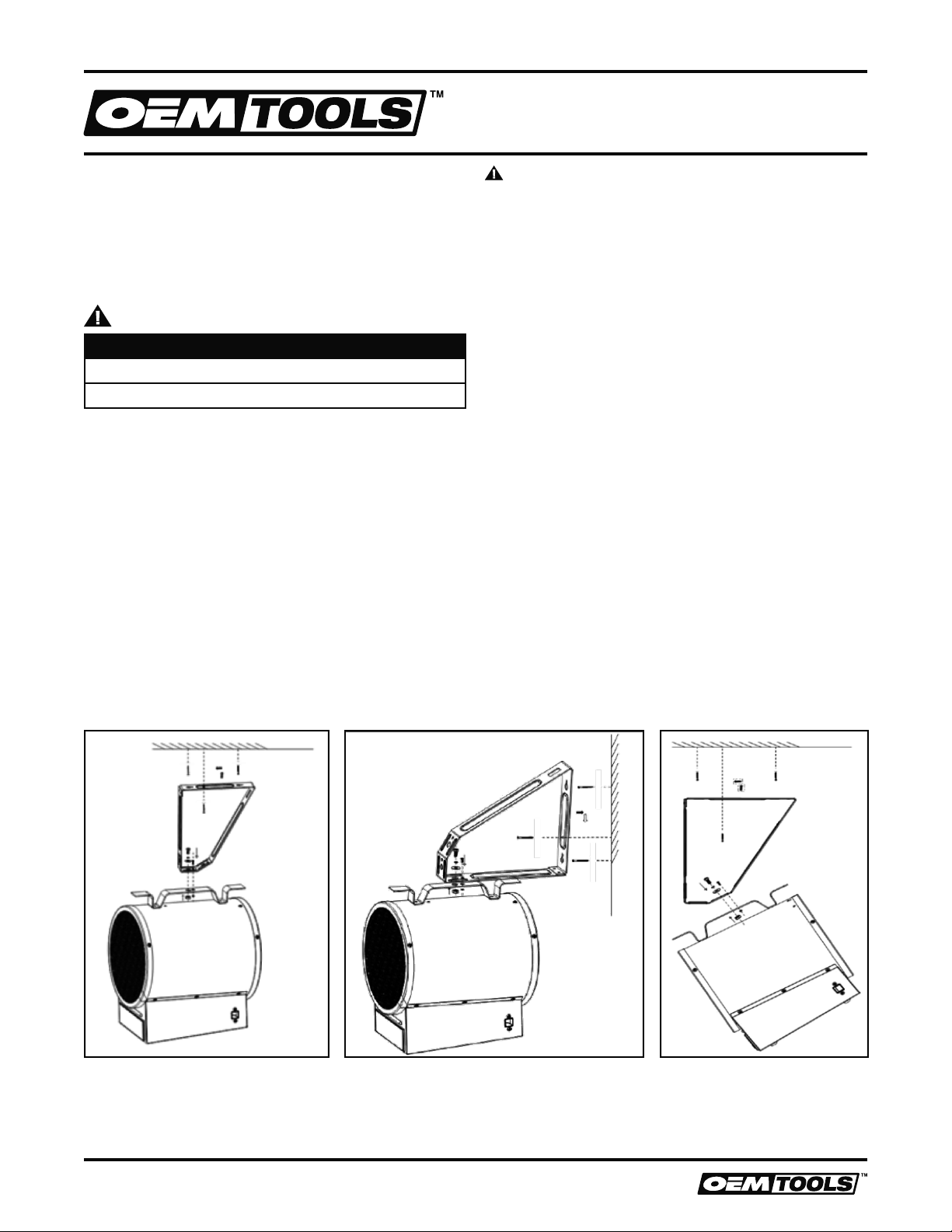

WALL OR CEILING MOUNTING INSTRUCTIONS
Recommended Tools for Mounting
• Drill
• 4 mm or 5/32" Drill Bit
• Phillips Head Screwdriver
• Stud Finder
• Ratchet
• 17 mm socket and wrench
WARNING: Use appropriate fasteners. The screws
provided are for installing in wood studs and joists only
and not intended for metal joists.
1. Using a stud finder (not supplied), locate the wood
stud in wall or joist in ceiling to mount heater.
2. Use holes in the Mounting Bracket (E) to mark 3
mounting hole locations for drilling.
3. Drill the 3 holes for 65 mm Mounting Screws (A).
4. Secure (2) 65 mm Mounting Screws (A) to wall or
ceiling mounting location leaving 1/8” exposed.
These screws must be securely mounted in a wood
stud or joist.
5. Attach Mounting Bracket (E) to mounting location by
inserting the two screws through the keyholes on the
bracket and sliding into place.
6. Tighten the screws against the bracket to secure.
Screw the third 65 mm Mounting Screw (A) into the
mounting location through the hole in bracket.
ATTACHING HEATER TO MOUNTING BRACKET
7. Line up hole in Carry Handle (F) to one of the three
Mounting Bracket (E) hole locations. (figures A, B, & C)
8. Attach Heater Assembly (H) to Mounting Bracket
(E) with 20 mm Bolt, Nut, and both the flat and lock
washer (B) using a 17 mm wrench and socket.
Figure A
Wall Mount
Figure B
Ceiling Mount
Figure C
Angled Ceiling
Mount

5
Operating Instructions and Parts Manual 24824
4800W 240V
SHOP HEATER
7/17
2017 OEMTOOLS™

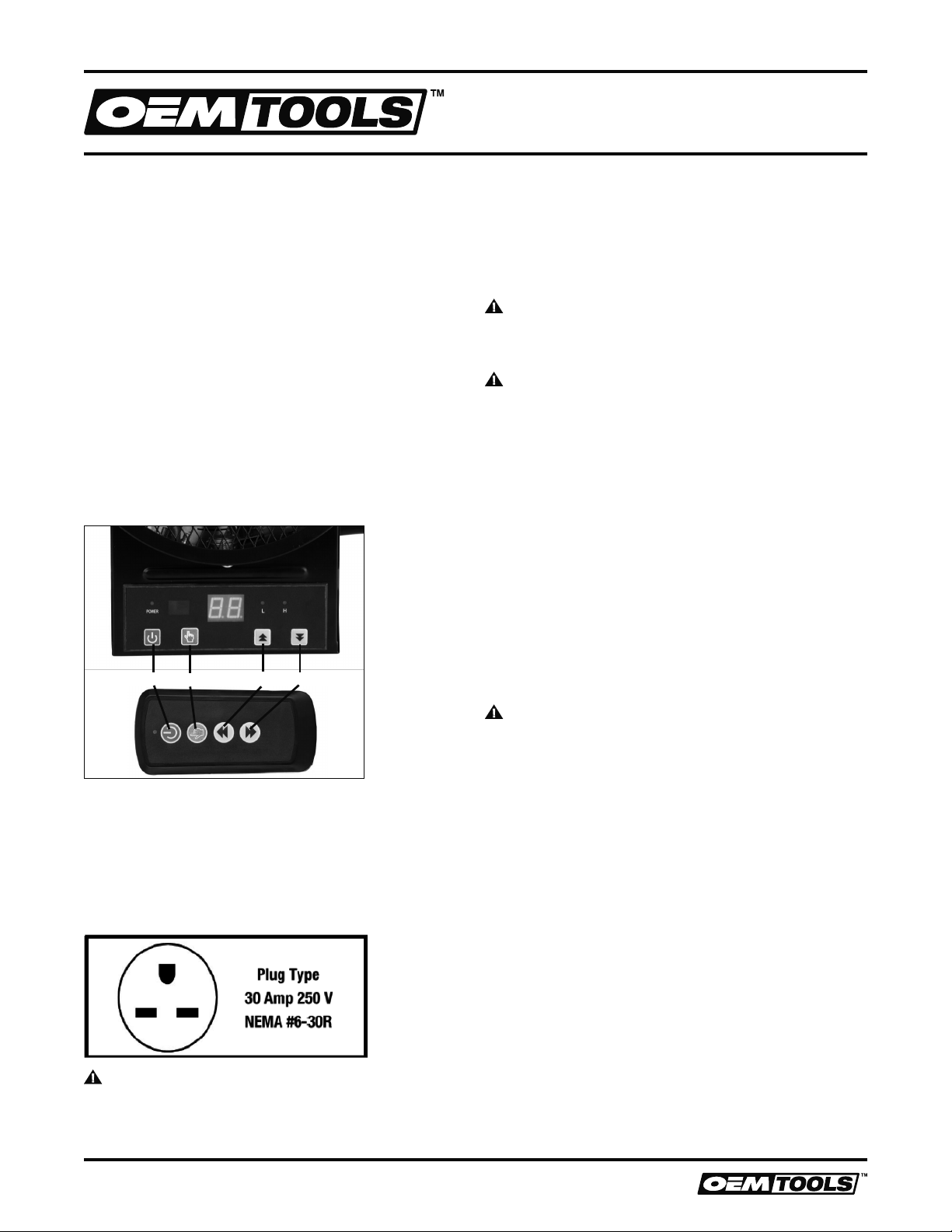

OPERATION
1. Connect the heater to the proper electrical outlet
(see Grounding Instructions). Once plugged into the
30 Amp receptacle, the power indicator light will
come on.
2. Push the power button, the display will flash
and display the temperature. Note: if the room
temperature is above the current thermostat setting
on the unit, it will not heat.
3. Adjust the thermostat setting by pressing the green
Mode Button twice and selecting the Up or Down
Arrow Button to increase or decrease desired
temperature.
USING TIMER FUNCTIONS
4. Press the green Mode Button on the control panel
or remote three times. The digital display will change
from displaying temperature to a time value.
5. Press the Up or Down Arrow Buttons on the control
panel or remote for desired timer setting from 1-9
hour duration.
Power
Mode
Down
UP
Grounding Instructions:
This heater is for use on 240 (208) volt circuits. The
cord has a plug as shown below. No adapter is
available for this blade configuration, and none should
be used. The outlet type is a 240 (208) volt 30 Amp
grounded outlet. When properly installed, it provides
a ground connection through the cord to the heater to
prevent the operator from electric shock.
WARNING: Prior to operation, be sure that the
electrical receptacle is of the configuration and
capacity appropriate for the heater.
Note: When using the heater for the first time, you may
notice a slight emission of smoke. This is normal and will
stop after a short time. The heating element is made of
steel and was coated with a layer of protective oil during
production. Usage on outlets above 220 volts may cause
a slight whistling sound due to the higher fan speed. This
is normal and is not affecting the operation of the heater.
This is not a defect.
WARNING: Electrical outlet wiring must comply
with local building codes and other applicable
regulations to reduce the risk of fire, electrical shock
and injury.
WARNING: Do not use this appliance if any part
of it has been underwater. Immediately call a qualified
service technician to inspect the appliance and replace
any part of the electrical system which has been under
water.
AUTOMATIC OVERHEAT SAFETY CONTROL
This heater is equipped with an internal heat limiting
thermostat and overheat protection circuit. When a
potential overheat temperature is reached, the system
will automatically shut the heater off.
IF SAFETY LIMIT LIGHT ILLUMINATES, an abnormal
condition has turned off the heating elements.
TO RESET:
Wait 10 minutes to allow the heater to cool down;
the heater will automatically reset once the heating
element cools down.
MAINTENANCE
WARNING: Risk of electric shock - do not open -
no serviceable parts inside
Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with
national and local codes.
1. Before cleaning the heater, disconnect it from the
power outlet and let it cool down.
2. Wipe off the heater assembly with a soft damp
sponge and dry with a clean cloth. Be careful not to
allow water into the unit.
DO NOT splash water onto the heater
DO NOT use a solvent to clean the heater
DO NOT open or attempt to clean inside of the heater
STORAGE
Allow heater to cool completely and store in a clean
dry area.

6
Operating Instructions and Parts Manual 24824
4800W 240V
SHOP HEATER
7/17
2017 OEMTOOLS™
4003787
C
Intertek
US
PROBLEM CAUSE SOLUTION
Heating element
does not glow red
Stainless steel elements won’t glow
red to produce heat. Heater is operating correctly
Do not feel
heat or
air flow
No power to heater Check power connection to heater
Desired room temperature reached Thermostat will shut off heater once desired room
temperature is reached
Auto-Reset has tripped Unplug heater, allow to cool down for 10 minutes,
then restart
Heater has fan only setting Set to run on full power for heating.
Fan is running
with no heat Heater in cool down cycle
This is normal to disperse heat throughout the
area. Turn thermostat up if additional heat is
desired
TROUBLESHOOTING
This symbol designates that this tool is
listed with U.S. requirements by
ETL Testing Laboratories, Inc. Conforms
to UL Std. 2021, CSA Std. C22.2 No.46.

7
Operating Instructions and Parts Manual 24824
4800W 240V
SHOP HEATER
7/17
2017 OEMTOOLS™
OEMTOOLS™ONE YEAR WARRANTY
If for up to one year from the date of purchase of this OEMTOOLS™product you find any defect in material
or workmanship, through normal usage, return it to the place of purchase, or to OEMTOOLS™for repair
or replacement at our discretion. In order to obtain this service, send the product and proof of purchase,
transportation pre-paid, to OEMTOOLS™Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118. We will not
be responsible for lost or damaged goods during transportation; please insure your package. If our inspection
verifies the defect, we will either repair or replace the product at our election, or we may elect to refund the
purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products
at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the
scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS™does not provide warranty for products labeled other than OEM or OEMTOOLS™. OEMTOOLS™
will not provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited
to, abuse, accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not
cover bits, blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or
replace blades, bits, files, and batteries as necessary. OEMTOOLS™reserves the right to make any changes in
construction or design at any time without any obligation in incorporating such changes to tools or equipment
previously sold.
OEMTOOLS™makes every effort to ensure that its products meet high quality and durability standards, and
warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of one year from the date of purchase. This warranty does not apply to damage due directly or indirectly
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may
also have other rights, which vary from state to state.
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
