OESD 12564 User manual
1
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
DESIGN
#12564
Freestanding
Pagoda
1
• Project instructions included
• Fits hoop sizes 5” x 7” and larger
2
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
THREAD LIST
Isacord Thread Colors
0015 White
0020 Black
1730 Persimmon
1800 Wildre
7009 (S1) Platinum
7014 (S15) Aztec Gold
DESIGNS
Note: Some designs in this collection may have been created using unique special stitches and/or techniques. To preserve design integrity
when rescaling or rotating designs in your software, always rescale or rotate designs using the handles directly on-screen.
Size Inches: Size mm: Stitch Count:
n1. Placement Stitch ............................................ 0015
n2. Cut Line & Tackdown...................................... 0015
n3. Flowers........................................................... 0015
n4. Door................................................................ 0015
n5. Swirls.............................................................. 1730
n6. Light Red Door Trim ....................................... 1730
n7. Black Detail .................................................... 0020
n8. Cover Stitch & Lace........................................ 1800
n9. Gold Detail...................................................... 7014

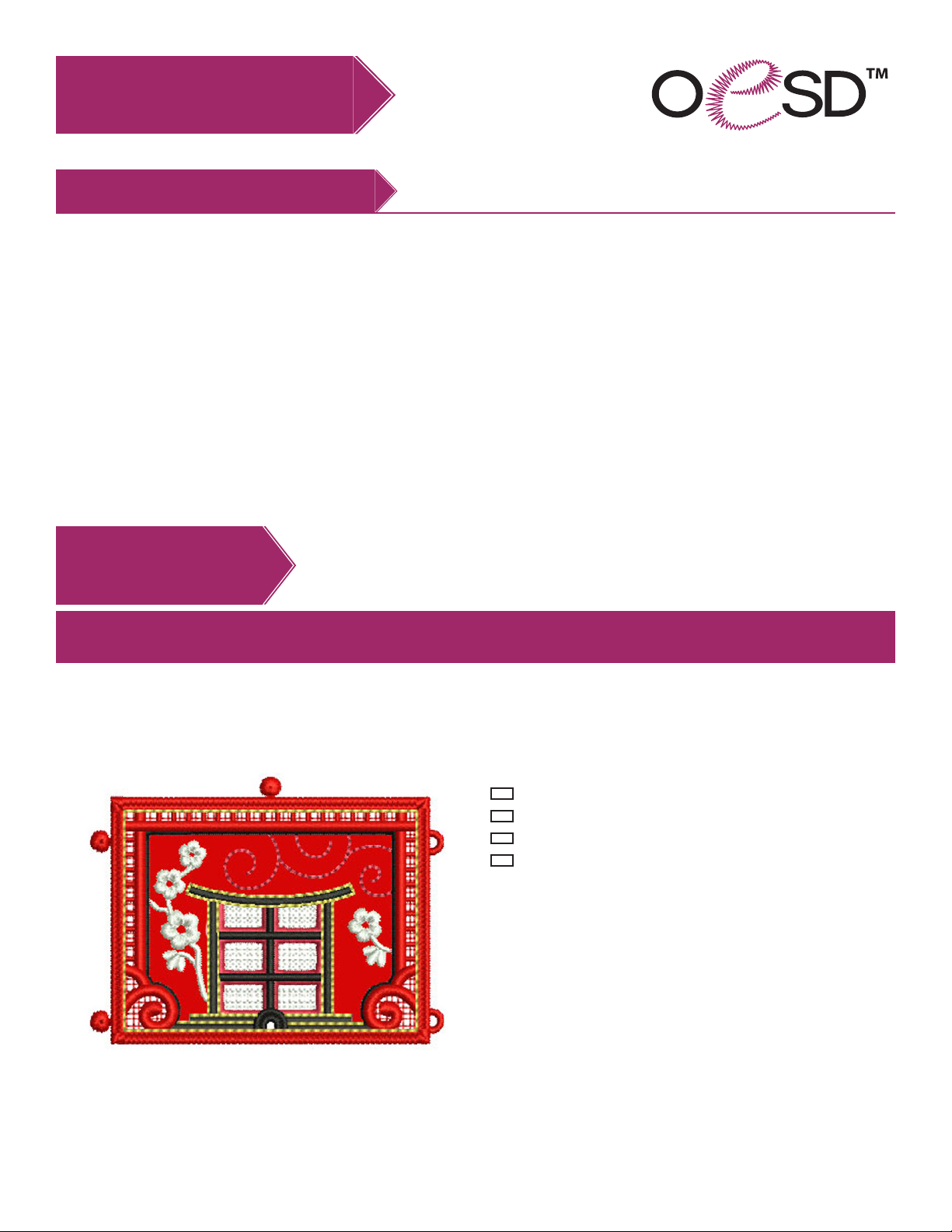

12564-01 Pagoda Front Wall FSA
92.20 X 69.60 mm3.63 X 2.74 in. 17718 St.
*Fabric Required
3
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
DESIGNS
Note: Some designs in this collection may have been created using unique special stitches and/or techniques. To preserve design integrity
when rescaling or rotating designs in your software, always rescale or rotate designs using the handles directly on-screen.
Size Inches: Size mm: Stitch Count:
Size Inches: Size mm: Stitch Count:
n1. Placement Stitch ............................................ 0015
n2. Cut Line & Tackdown...................................... 0015
n3. Flowers........................................................... 0015
n4. Swirls.............................................................. 1730
n5. Black Detail .................................................... 0020
n6. Cover Stitch & Lace........................................ 1800
n7. Gold Detail...................................................... 7014
3.63 X 2.74 in.
12564-02 Pagoda Left Wall FSA
92.20 X 69.60 mm3.63 X 2.74 in. 14581 St.
12564-03 Pagoda Back Wall FSA
92.20 X 69.60 mm 14733 St.
n1. Placement Stitch ............................................ 0015
n2. Cut Line & Tackdown...................................... 0015
n3. Flowers........................................................... 0015
n4. Swirls.............................................................. 1730
n5. Black Detail .................................................... 0020
n6. Cover Stitch & Lace........................................ 1800
n7. Gold Detail...................................................... 7014
*Fabric Required
*Fabric Required
4
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
DESIGNS
Note: Some designs in this collection may have been created using unique special stitches and/or techniques. To preserve design integrity
when rescaling or rotating designs in your software, always rescale or rotate designs using the handles directly on-screen.
Size Inches: Size mm: Stitch Count:
Size Inches: Size mm: Stitch Count:
n1. Placement Stitch ............................................ 0015
n2. Cut Line & Tackdown...................................... 0015
n3. Flowers........................................................... 0015
n4. Swirls.............................................................. 1730
n5. Black Detail .................................................... 0020
n6. Cover Stitch & Lace........................................ 1800
n7. Gold Detail...................................................... 7014
3.71 X 3.71 in.
12564-04 Pagoda Right Wall FSA
92.20 X 69.60 mm3.63 X 2.74 in. 14415 St.
12564-05 Pagoda Foundation FSA
94.23 X 94.23 mm 7380 St.
n1. Placement Stitch ............................................ 1800
n2. Cut Line & Tackdown...................................... 1800
n3. Cover Stitch.................................................... 1800
*Fabric Required
*Fabric Required
5
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
DESIGNS
Note: Some designs in this collection may have been created using unique special stitches and/or techniques. To preserve design integrity
when rescaling or rotating designs in your software, always rescale or rotate designs using the handles directly on-screen.
Size Inches: Size mm: Stitch Count:
Size Inches: Size mm: Stitch Count:
n1. Placement Stitch ............................................ 1730
n2. Cut Line & Tackdown...................................... 1730
n3. Swirls.............................................................. 1730
n4. Black Detail .................................................... 0020
n5. Cover Stitch & Lace........................................ 1800
n6. Silver Detail .................................................... 7009
n7. Gold Detail...................................................... 7014
2.95 X 2.95 in.

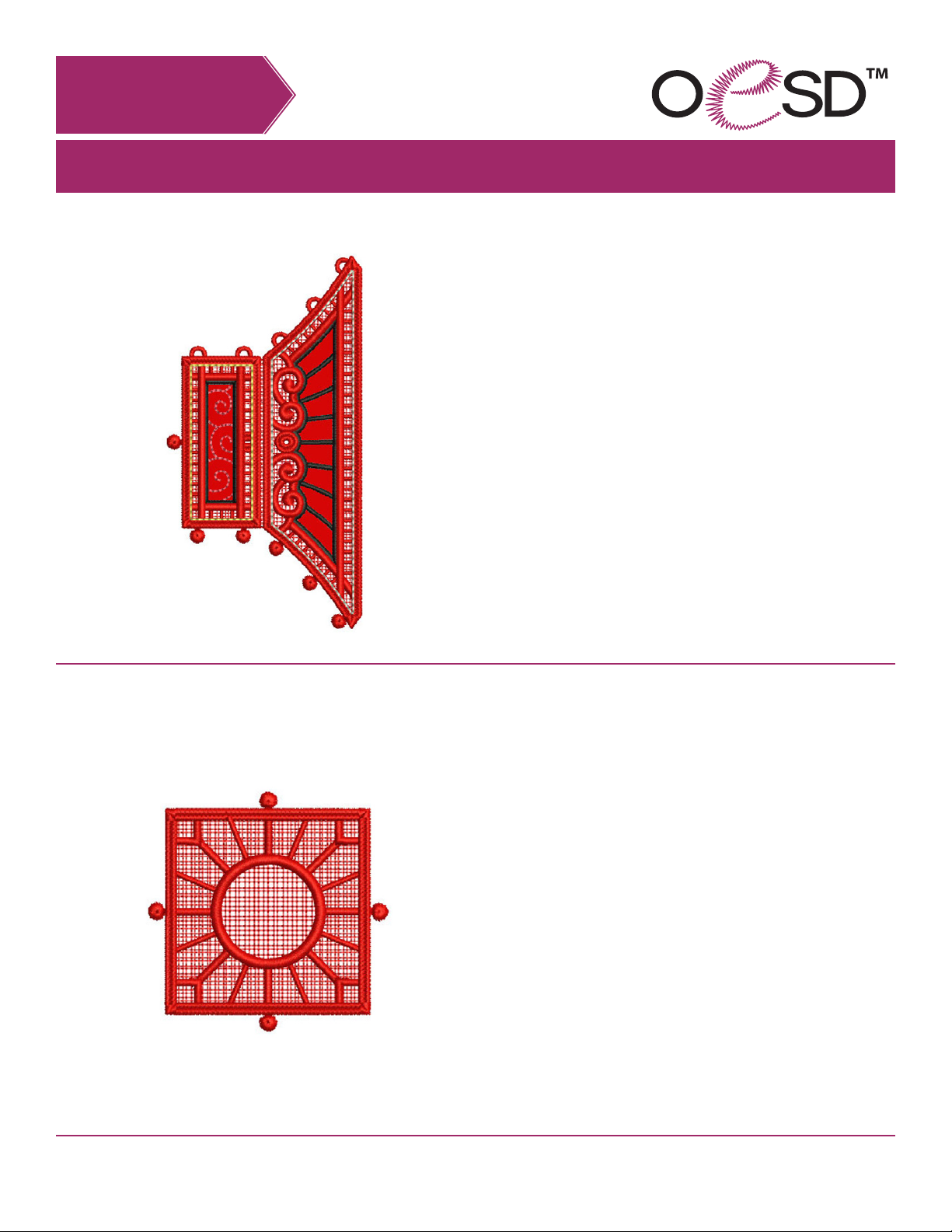

12564-06 Pagoda Roof & Wall 1 FSA
72.39 X 138.43 mm2.85 X 5.45 in. 21225 St.
12564-07 Pagoda Ceiling 1 FSL
74.93 X 74.93 mm 10279 St.
n1. Single Color Design........................................ 1800
*Fabric Required
6
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
DESIGNS
Note: Some designs in this collection may have been created using unique special stitches and/or techniques. To preserve design integrity
when rescaling or rotating designs in your software, always rescale or rotate designs using the handles directly on-screen.
Size Inches: Size mm: Stitch Count:
Size Inches: Size mm: Stitch Count:
n1. Placement Stitch ............................................ 0015
n2. Cut Line & Tackdown...................................... 0015
n3. Window........................................................... 0015
n4. Light Red Window Trim .................................. 1730
n5. Black Detail .................................................... 0020
n6. Cover Stitch & Lace........................................ 1800
n7. Silver Detail .................................................... 7009
n8. Gold Detail...................................................... 7014
2.31 X 2.31 in.

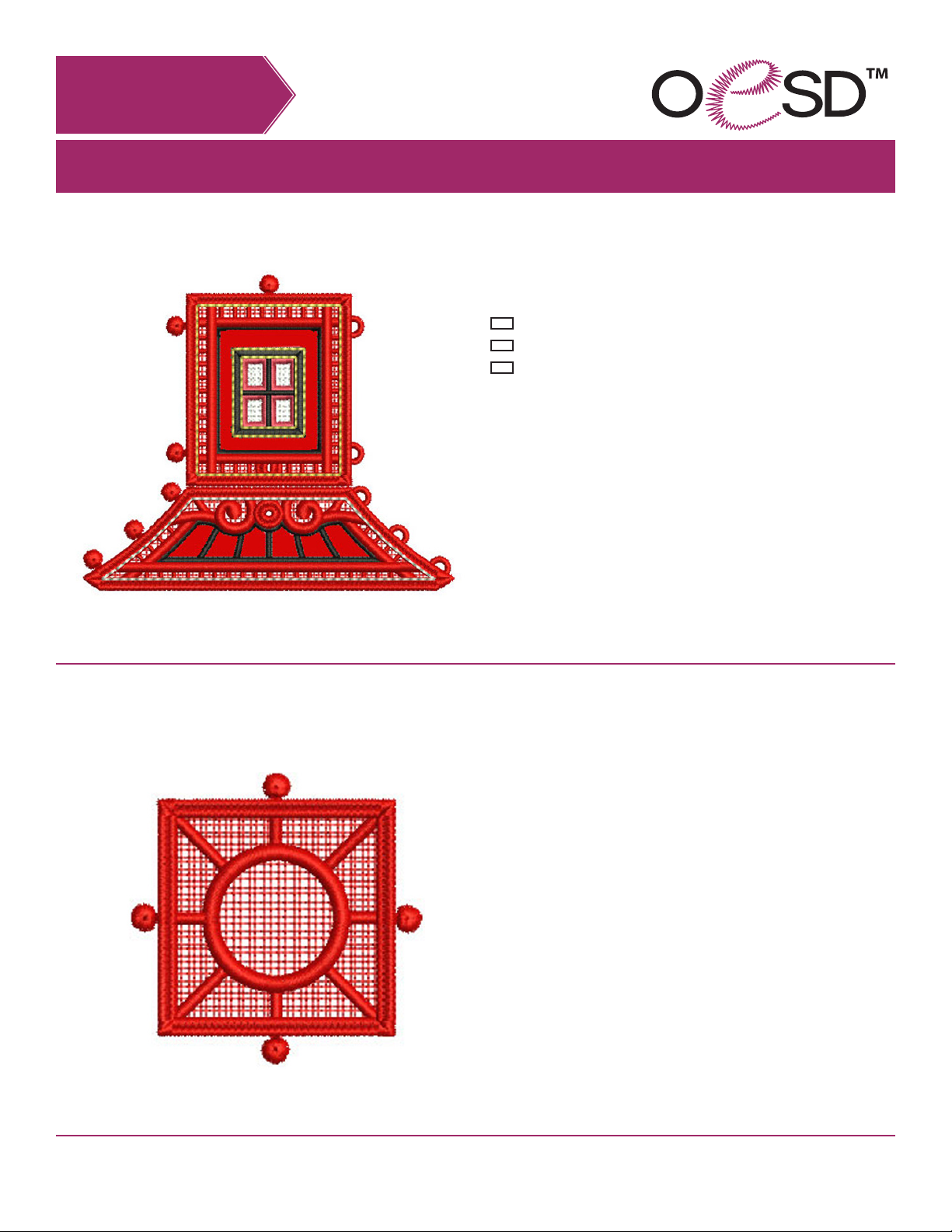

12564-08 Pagoda Roof & Wall 2 FSA
106.68 X 90.42 mm4.20 X 3.56 in. 19447 St.
12564-09 Pagoda Ceiling 2 FSL
58.67 X 58.67 mm 5924 St.
n1. Single Color Design........................................ 1800
*Fabric Required
7
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
DESIGNS
Note: Some designs in this collection may have been created using unique special stitches and/or techniques. To preserve design integrity
when rescaling or rotating designs in your software, always rescale or rotate designs using the handles directly on-screen.
Size Inches: Size mm: Stitch Count:
n1. Placement Stitch ............................................ 1800
n2. Cut Line & Tackdown...................................... 1800
n3. Black Detail .................................................... 0020
n4. Cover Stitch & Lace........................................ 1800
n5. Silver Detail .................................................... 7009

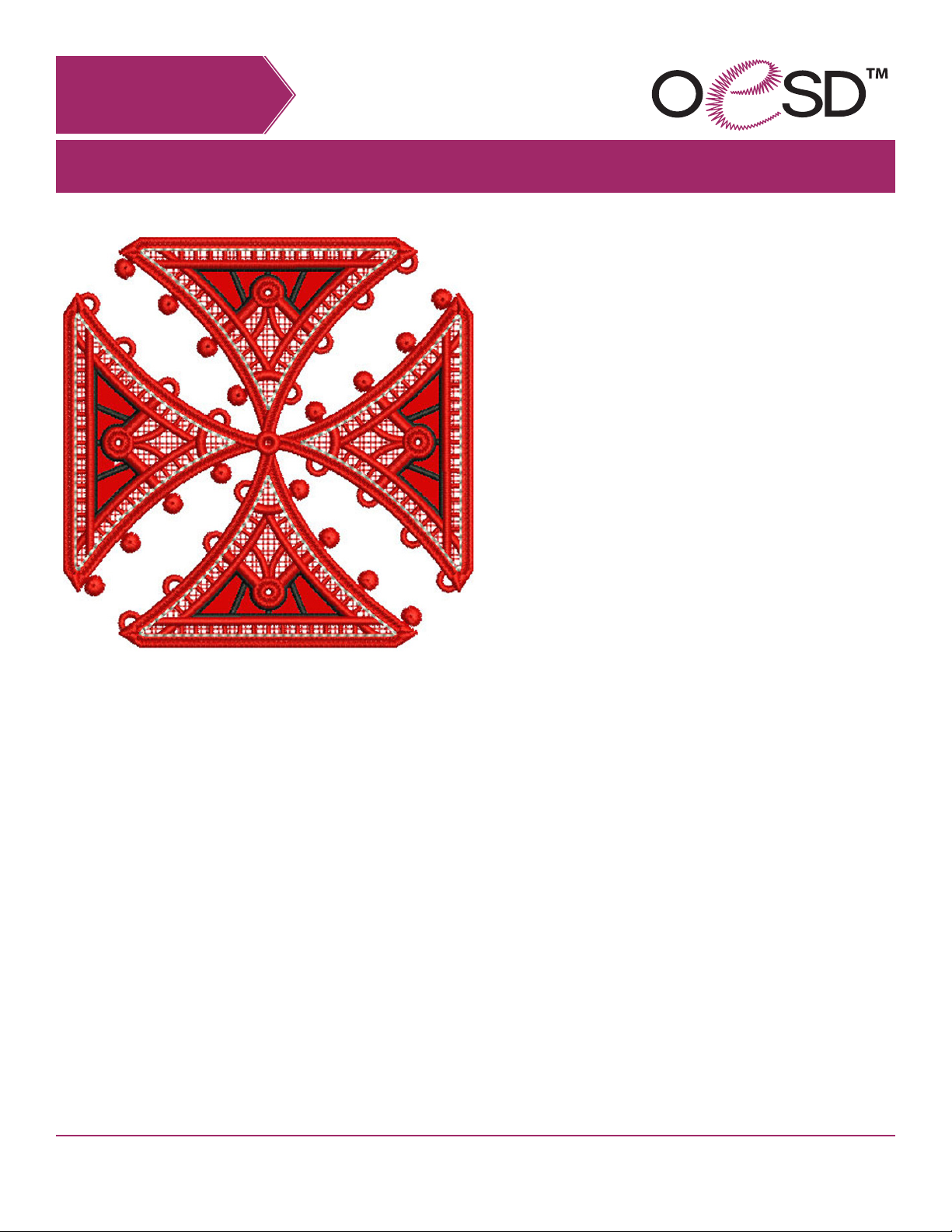

12564-10 Pagoda Roof FSA
110.24 X 110.24 mm4.34 X 4.34 in. 33149 St.
*Fabric Required
8
COLLECTION SUPPLIES
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
Stabilizer
• Expert Embroidery WashAway Tape
• Alligator Clamps
• Button Clips
• Perfect Embroidery Press Cloth
• ¼ yd. Red cotton fabric
• Threads per the design
• AquaMesh WashAway
• BadgeMaster WashAway
• StabilStick TearAway
Supplies
9
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.

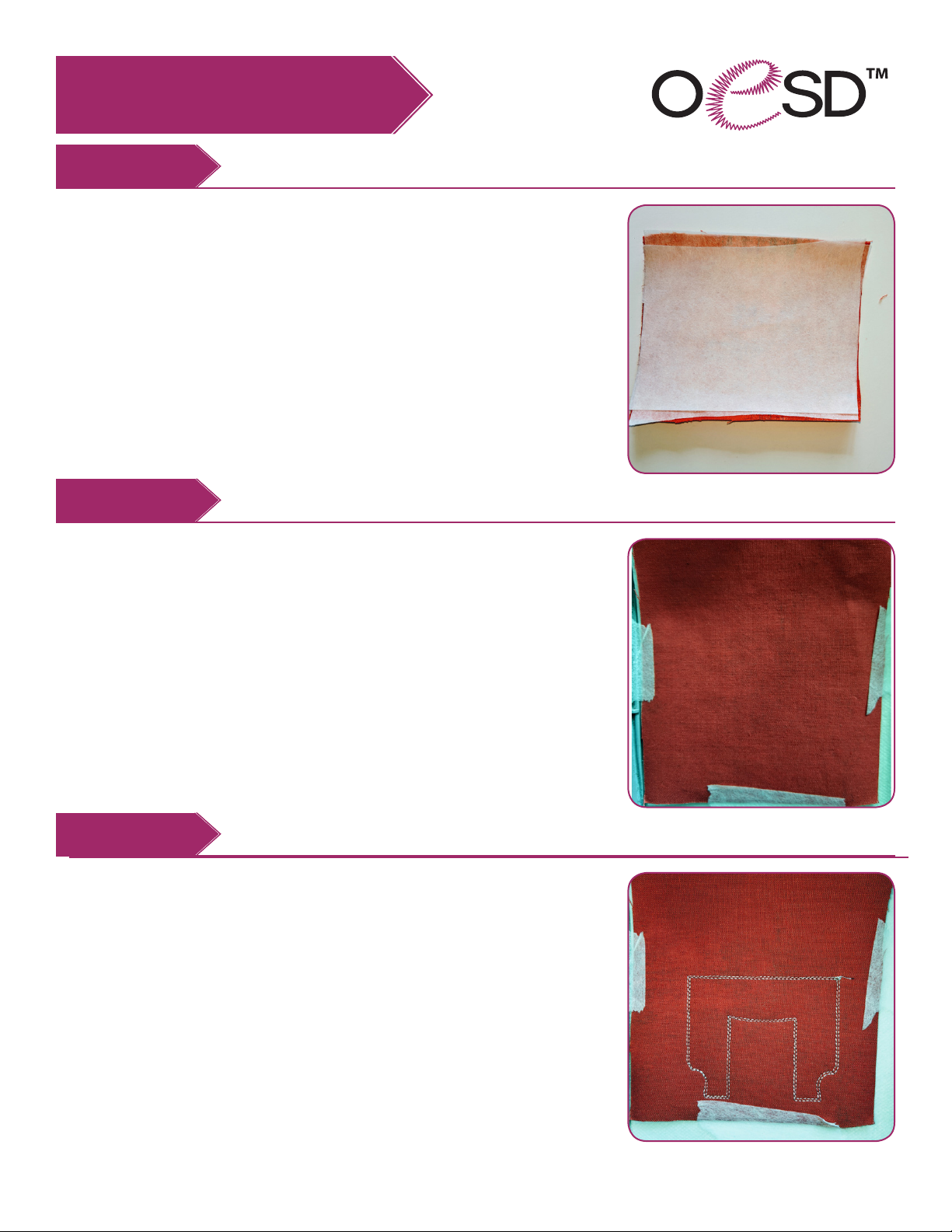

INSTRUCTIONS
STEP X
• Stitch Machine Step 1, Applique placement.
STEP X
• Hoop 1 layer of AquaMesh and 1 layer of BadgeMaster.
• Wind one bobbin with White thread and 1 bobbin with 1800
Red.
• Thread machine with 0015 and insert the white bobbin.
STEP X
• 2 pieces of StabilStick TearAway on the back of each applique fabric.
• Matching bobbin for all lace and coverstitches.
• 1 layer of AquaMesh and 1 layer of Badgemaster for stier lace.
• Anytime there is a placement line in the design, this means it’s applique, and fabric is
• placed next.
• Label each piece to make it easier to put together.
• These steps are for design 1, but these instructions apply to the rest of the design as well.
There are two lace only designs in this project. (designs 12564-07 and 12564-09)
STEP 2
STEP 1
TIPS
10
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
INSTRUCTIONS
STEP X
• Stitch Machine Step 2, the Cutline and Tackdown stitch.
STEP X
• Place the applique fabric, right side up, over the placement
stitch. Tape in place.
STEP X
• Adhere the 2 pieces of StabilStick to the wrong side of the
applique fabric.
• This is done to create stiness in the project.
STEP 5
STEP 4
STEP 3
11
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
INSTRUCTIONS
STEP X
• Thread the machine with 1800. Insert the red bobbin.
• Stitch Machine Step 8, the Coverstitch and Lace.
• Thread machine with 7014. Stitch Machine Step 9, gold
details.
STEP X
• Stitch Machine Step 3, the owers.
• Stitch Machine Step 4, the lace door.
• Thread the machine with 1730.
• Stitch Machine Step 5, swirls.
• Stitch Machine Step 6, the door trim.
• Thread machine with 0020.
• Stitch Machine Step 7, black detail.
STEP X
• Remove the project from the machine, but do not remove
the project from the hoop.
• Trim close to the stitching.
• Return the hoop to the machine.
STEP 8
STEP 7
STEP 6
12
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
INSTRUCTIONS
STEP X
• The more stabilizer rinsed out, the less sti the nal product
will be. Rinse until it is just slightly tacky. Lay at to dry.
• Press right side down into a Perfect Press Cloth.
• Set aside. Continue stitching the rest of the designs. Change
to the red bobbin each time you are doing the coverstitch
and lace.
STEP X
• Rinse in warm running water.
STEP X
• Remove the design from the hoop. Trim stabilizers
approximately ¼” from the edges.
STEP 11
STEP 10
STEP 9
13
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
STEP X

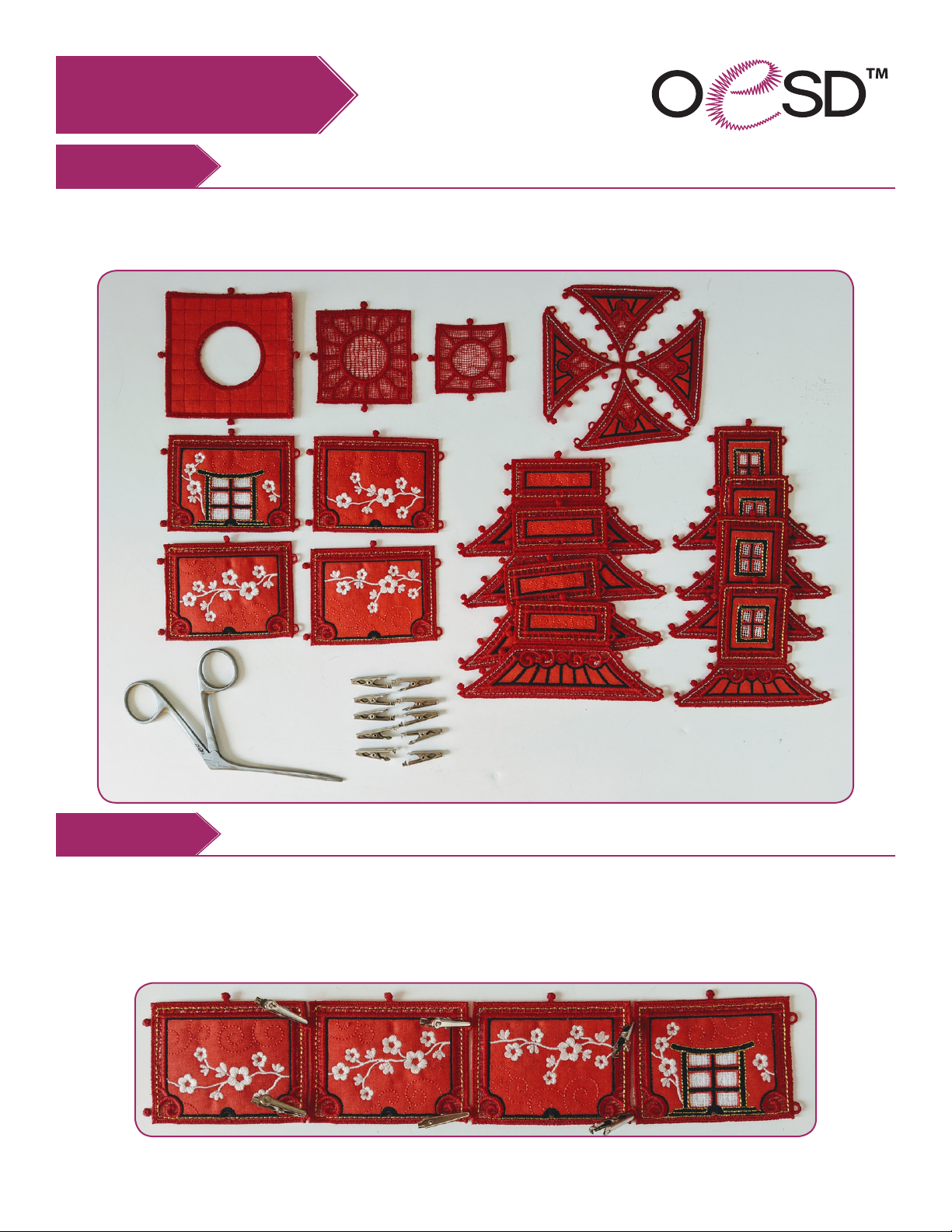

• Attach the Pagoda Front Wall FSA (12564- 01) to the Pagoda Left Wall FSA (12564-02) side
by inserting the two buttonettes along the left side into the two eyelets on the right side.
Continue attaching the Pagoda Back Wall FSA (12564-03) and the Pagoda Right Wall FSA
(12564-04) pieces together in the same manner creating a at piece.
STEP X
• One of each design is required, except for designs 12564-06 and 12564-08, which need 4
each.
STEP 13
STEP 12
ASSEMBLY
14
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
STEP X
• Attach the Pagoda Ceiling 1 FSL (12564-07) to the Pagoda
Roof & Wall 1 section by pulling the buttonettes from the
ceiling piece into the corresponding eyelets on the middle
section of the padoga roof & wall 1 section. Attach the
remaining side of the Pagoda Roof & Walls 1 to form a
square. Set aside.
STEP X
• Attach a Pagoda Roof & Wall 1 FSA (12564-06) to another
Pagoda Roof & Wall 1 FSA (12564-06) by inserting the ve
buttonettes along the left side into the ve eyelets on the
right side. Continue attaching the Pagoda Roof & Walls 1
together in the same manner creating an open piece.
STEP X
• Attach the Pagoda Foundation FSA (12564-05) by inserting
the buttonettes of the foundation into the eyelets along the
bottom of the pagoda walls.
• Attach the remaining side of the pagoda walls to form a
square. Set aside.
• Tip: Use button clips to hold walls in place while
assembling.
STEP 16
STEP 15
STEP 14
ASSEMBLY
15
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.

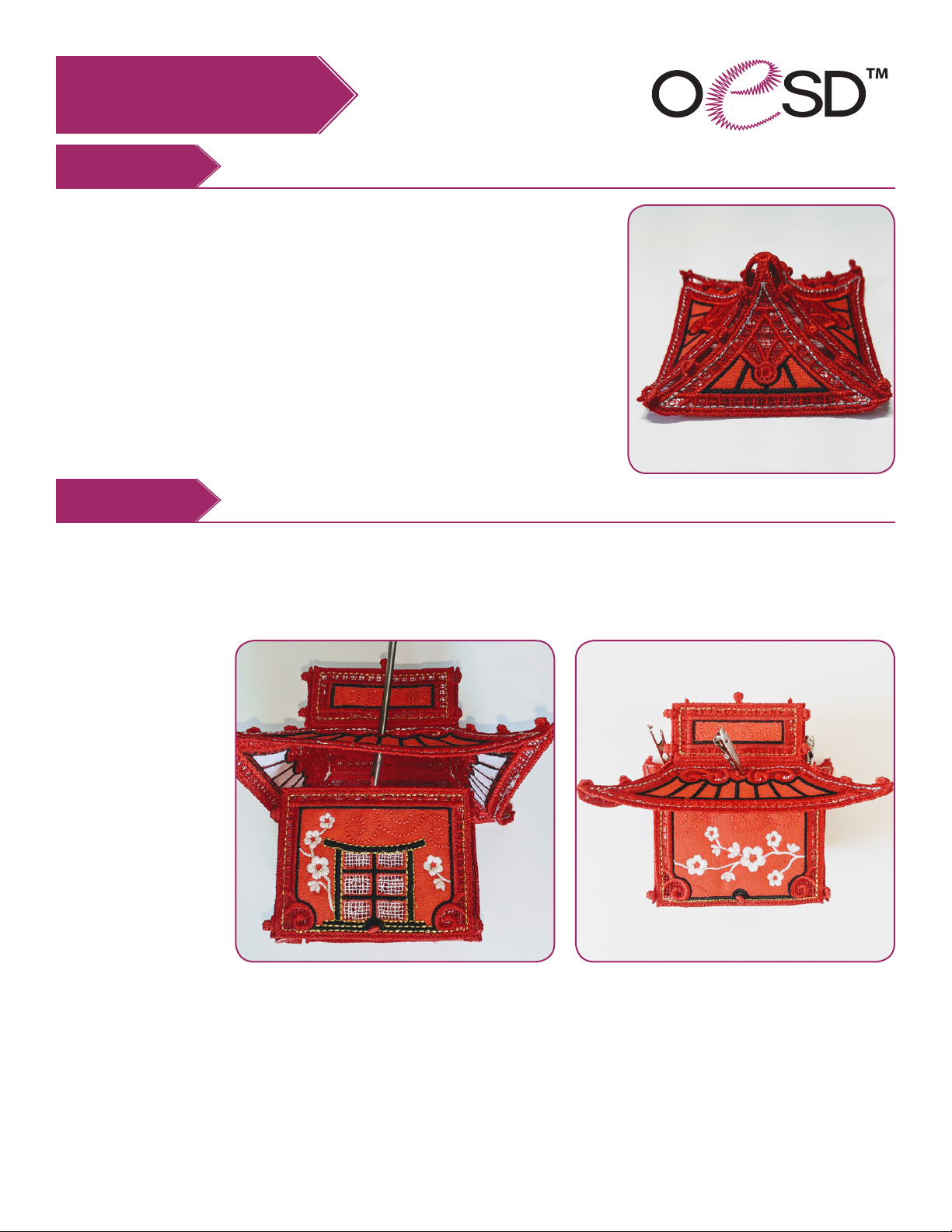

STEP X
• Attach the Pagoda Ceiling 2 FSL (12564-09) to the Pagoda Roof & Wall 2 section by pulling the
buttonettes from the ceiling piece into the corresponding eyelets on the middle section of the
padoga roof & wall 2 section. Attach the remaining side of the Pagoda Roof & Walls to form a
square. Set aside.
STEP X
• Attach a Pagoda Roof & Wall 2 FSA (12564-08) to another
Pagoda Roof & Wall 2 FSA (12564-08) by inserting the ve
buttonettes along the left side into the ve eyelets on the
right side. Continue attaching the Pagoda Roof & Walls 2
together in the same manner creating an open piece.
STEP 18
STEP 17
ASSEMBLY
16
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.

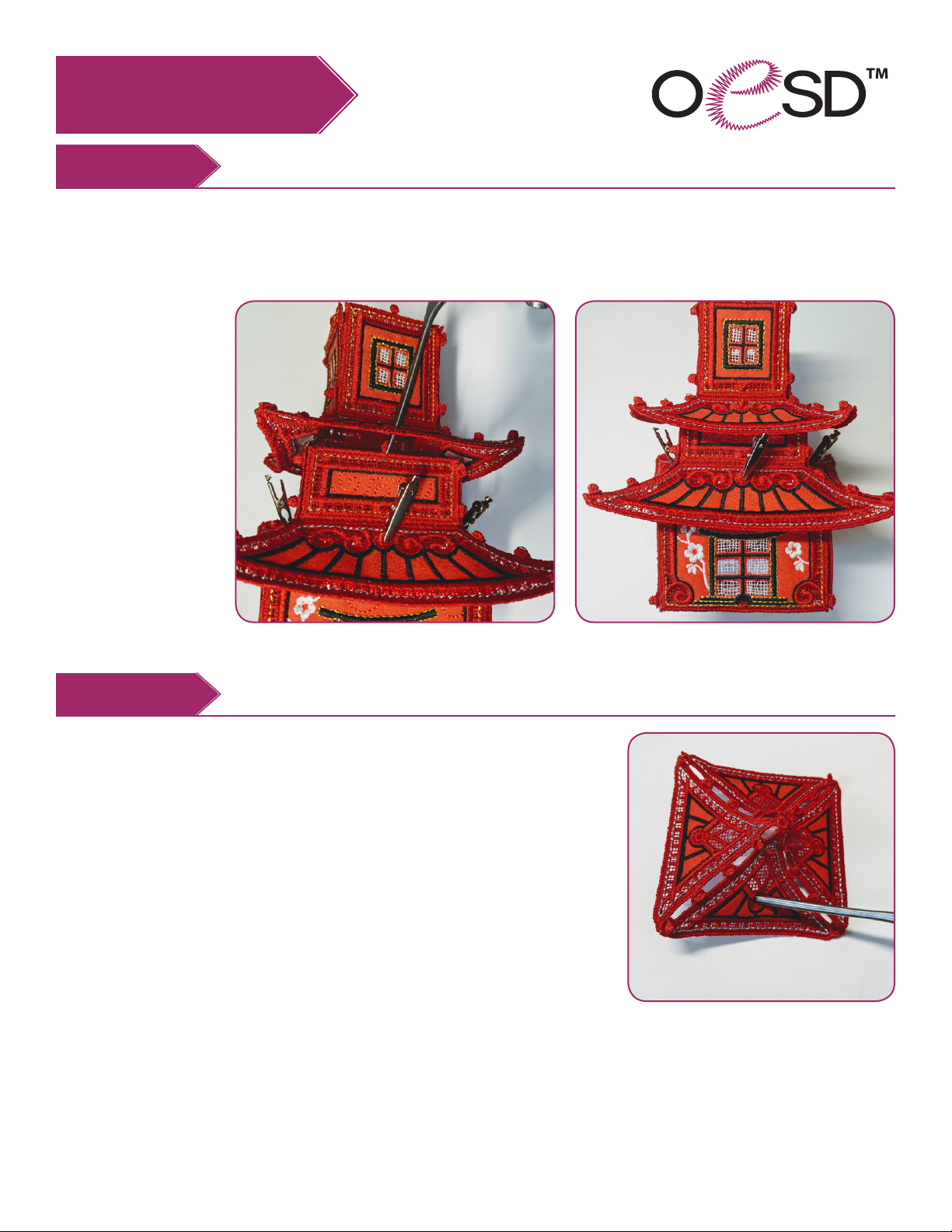

STEP X
• Attach the pagoda walls section to the Pagoda Roof & Walls 1 section by pulling the
buttonettes from the top of the walls into the corresponding eyelets on the Roof & Walls 1
section.
STEP X
• Attach a Pagoda Roof FSA (12564-10) triangle side to another
side by inserting the four buttonettes along the left side into
the four eyelets on the right side. Continue for all sides, using
button clips as needed. Set aside.
STEP 20
STEP 19
ASSEMBLY
17
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
STEP X
• Attach the Pagoda Roof FSL piece to the top of the pagoda by
pulling the buttonettes from the Pagoda Roof & Wall 2 into
the corresponding eyelets on the Pagoda Roof.
STEP X
• Continue building the pagoda by attaching the previous pagoda section to the Pagoda Roof
& Wall 2 section by pulling the buttonettes from the Pagoda Roof & Wall 1 section into the
corresponding eyelets on the Pagoda Roof & Wall 2 section.
STEP 22
STEP 21
ASSEMBLY
18
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved.
STEP X
• The pagoda is complete!
STEP 23
ASSEMBLY
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved. 19

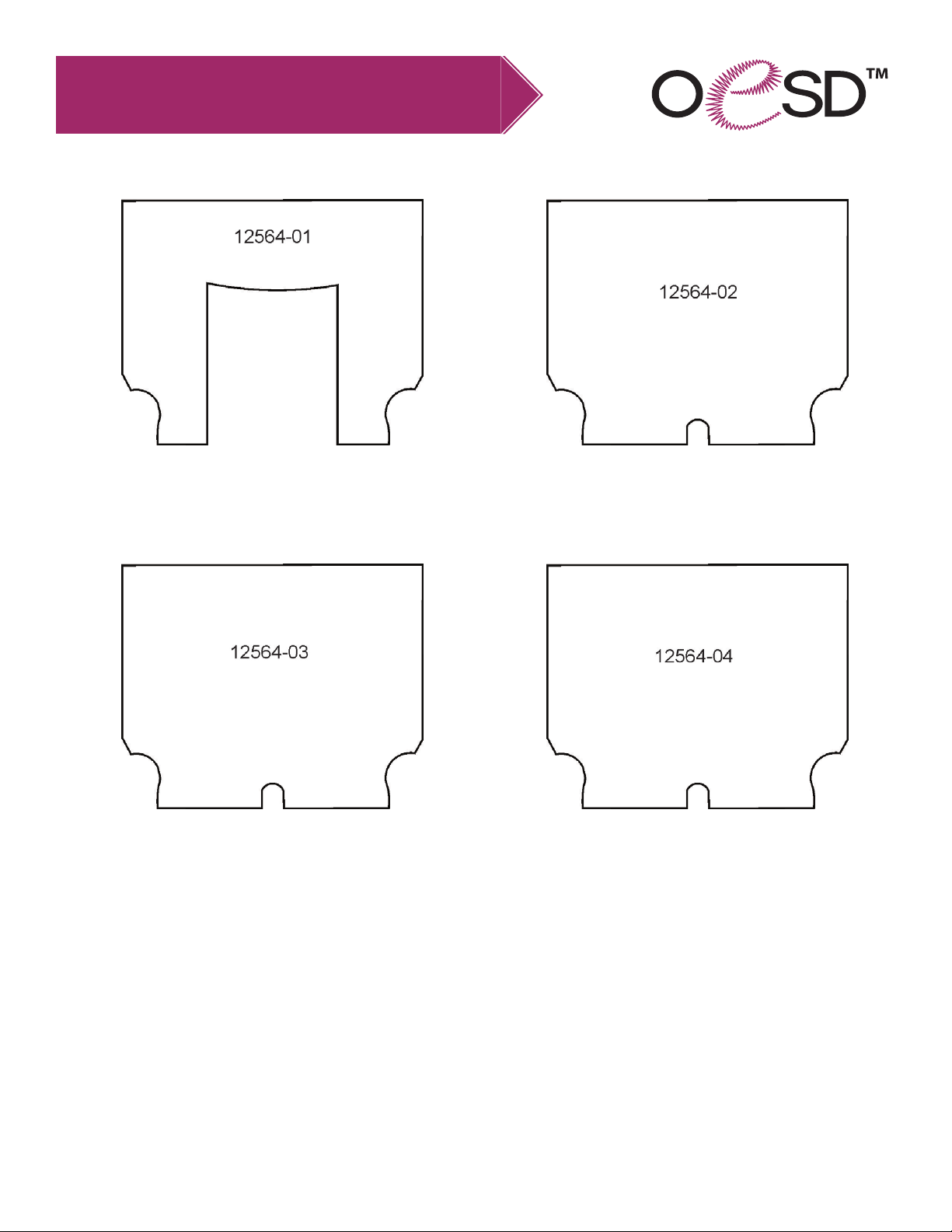

APPLIQUE PATTERNS
It is a violation of Copyright law to make and distribute copies of electronic designs or artwork.
Electronic designs are licensed to the original purchaser for use at one location. ©2020 OESD, LLC. All rights reserved. 20
APPLIQUE PATTERNS
Table of contents
