OFFCARR COSTA KID User manual
2
INDEX
1. INTRODUCTION 4
1.1 COSTA KID DESCRIPTION.............................................................................................. 4
2. PREPARATION FOR USE 6
2.1 HANDBIKE PREPARATION ................................................................................................. 6
2.2 TYRE PRESSURE CHECK................................................................................................... 6
2.3 CHECKING THE BRAKES ................................................................................................... 6
2.4 CHECKING THE ACCESSORIES .......................................................................................... 6
3. SETTING UP COSTA KID7
3.1 SETTING THE HEIGHT OF THE SEAT................................................................................... 8
3.2 SETTING THE FOOT-REST POSITION .................................................................................. 9
3.3 SETTING THE BACK-REST ANGLE ................................................................................... 10
3.4 MOVING THE SEAT HORIZONTALLY ................................................................................. 10
3.5 ADJUSTING BRAKE TENSION .......................................................................................... 11
4. USE OF THE HANDBIKE 12
5. SAFETY MEASURES 13
6. MAINTENANCE, INSPECTIONS AND CONTROLS 13
7. TECHNICAL SERVICE 14
8. WARRANTY TERMS 14
9. PACKAGING, SHIPPING AND DELIVERY 15
10.MATERIALS DIFFERENTIATION 16
3
Thanks for choosing an OFF CARR product.
Since 1982 OFF CARR listens and responds to the customers' needs by
developing highly innovative and technologic solutions, always aimed at
reducing daily mobility problems, with special attention to product style and to
improving customers' life quality.
OFF CARR has a certified system for quality management following UNI EN
ISO 9001:2015 regulations and a productive system certified following UNI
EN ISO 13485:2016 regulations. These certifications offer prestige to the
company and find confirmation in the quality of products and in customer
satisfaction.
OFF CARR products meet the 93/42/CEE directives, upgraded with the
2007/47/CE directive.
Before using or making adjustments on this device, carefully
read what reported on this instruction manual.
In case of need, please contact an authorized dealer.
OFF CARR s.r.l.
Via dell’Artigianato II, 29
35010 Villa del Conte (Padova) Italy
Tel. +39 049 9325733 Fax +39 049 9325734
E-mail: offcarr@offcarr.com http://www.offcarr.com
4
1. Introduction
The handbike COSTA KID is a non-intrusive medical device, specifically
designed to reduce and counterbalance a physical handicap.
It is forbidden to use the products or parts of them in different ways from those
described on this manual.
1.1 COSTA KID description
The hand-bikes COSTA KID is a 8-gear in-hub shift with dual lever brakes
(one controlling the front wheel brake, the other controlling the rear wheel
ones). It is a 3 wheel manually pushed handbike with a rigid aluminium frame.
Other details are made of composite materials, such as carbon fibre and
aluminium and steel alloys. A wide range of colours and accessories is
available to custom-fit the handbike to every customer’s demands. The seat
and back upholsteries are usually made of black nylon but breathable
material is available as an accessory. The backrest material can be easily
removed and washed.
The rear wheels are 20”, mounting a fixed axle, and have a camber of 6°.
The handbike is supplied with a parking brake and a standard brake. Disc
brakes are available upon request.
5
All COSTA KID models feature:
•Aluminium frame
•Height and depth adjustable seat
•Adjustable back-rest angle
•Adjustable foot-rest extension
•20” rear and front wheels MTB
•6° rear wheel camber
•Double brakes on cranks
•Legs and foot stopping belts
•Parking brake
•Tension adjustable back-rest upholstery
•Total length is 155 cm including the wheels
•Total width is 71 cm (6° camber)
•Weight: 23 kg (standard setup)
•Maximum load 115 Kg
COSTA KID is available with many non-standard features (see order form for
the complete list), including quadriplegic-specific handles, rear bumper bar,
and water bottle holder, and is available in a wide range of colours (all the
colours available in the OFFCARR catalogue).
6
2. Preparation for use
The preparation for use of these devices must be performed by
qualified personnel both to evaluate the suitability of the product
and to provide the correct instructions to the user.
2.1 Handbike preparation
•The handbike is shipped with the rear wheels not assembled.
•Mount the rear wheels,
properly fixing the rear wheel axle with the
correct bolt.
2.2 Tyre pressure check
A periodical check of the tyre pressure helps to keep the handbike efficient
and more comfortable.
Verify the tyre pressure value according to the value marked on the tyre.
The correct value for high-pressure tyres is approximately 7.5 BAR. The
specific value may vary and is always available on every tyre.
2.3 Checking the brakes
To check the functioning and the efficiency of the parking brakes perform the
following steps:
1. Try raising and spinning each wheel to see if it is blocked with the
brakes deactivated
2. Activate the brakes
3. Try raising and spinning the wheel to see if it is blocked.
If the wheel was blocked on step 1, the brakes’ cables are too tight
, if it is not
locked on step 3, they are too loose (See par. 3.5: adjusting brake tension).
2.4 Checking the accessories
Any accessory required at the time of the configuration of the handbike may
be shipped separately. If so they should be properly installed before using the
handbike.
7
3. Setting up COSTA KID
The handbike shipping setup matches the order form. The selected
parameters in the order form, should fit the customer at best. It is still possible
to perform further setup adjustments to meet even more the user’s needs.
Please refer to authorized and qualified personnel only to perform any
type of adjustment on the handbike.
8

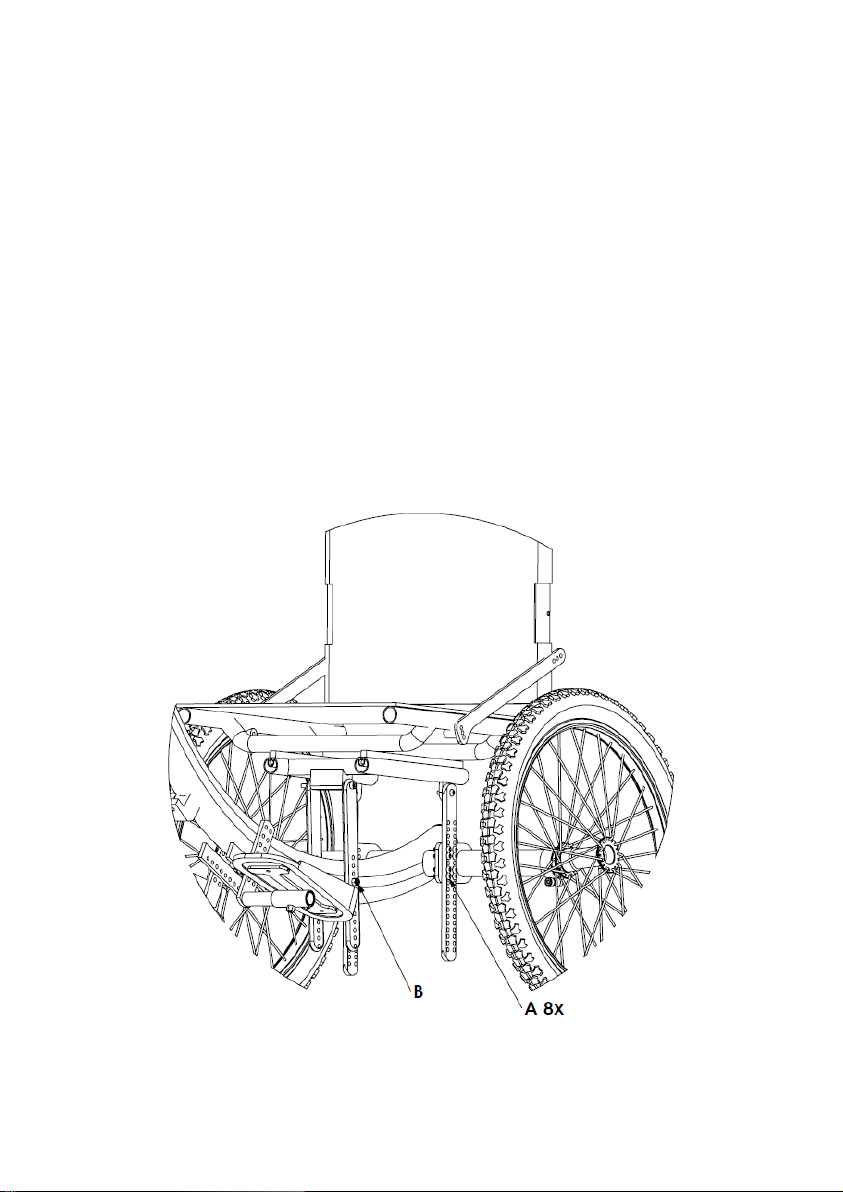

3.1 Setting the height of the seat
To change the seat height:
•Rear seat height: unscrew completely and remove all the 16 screws
marked as A on the drawing below, from the adjusting plate attached to
the hand-bike frame.
•Change the height of the seat matching the holes both in
the plates and
the frame.
•Put the screw back and tighten it.
•Front seat height: unscrew completely and remove the B screw from
the
adjusting plate attached to the hand-bike frame
•Change the height of the seat matching the holes in the plates and in
the
frame.
•Put all the screws back and tighten them properly.
9

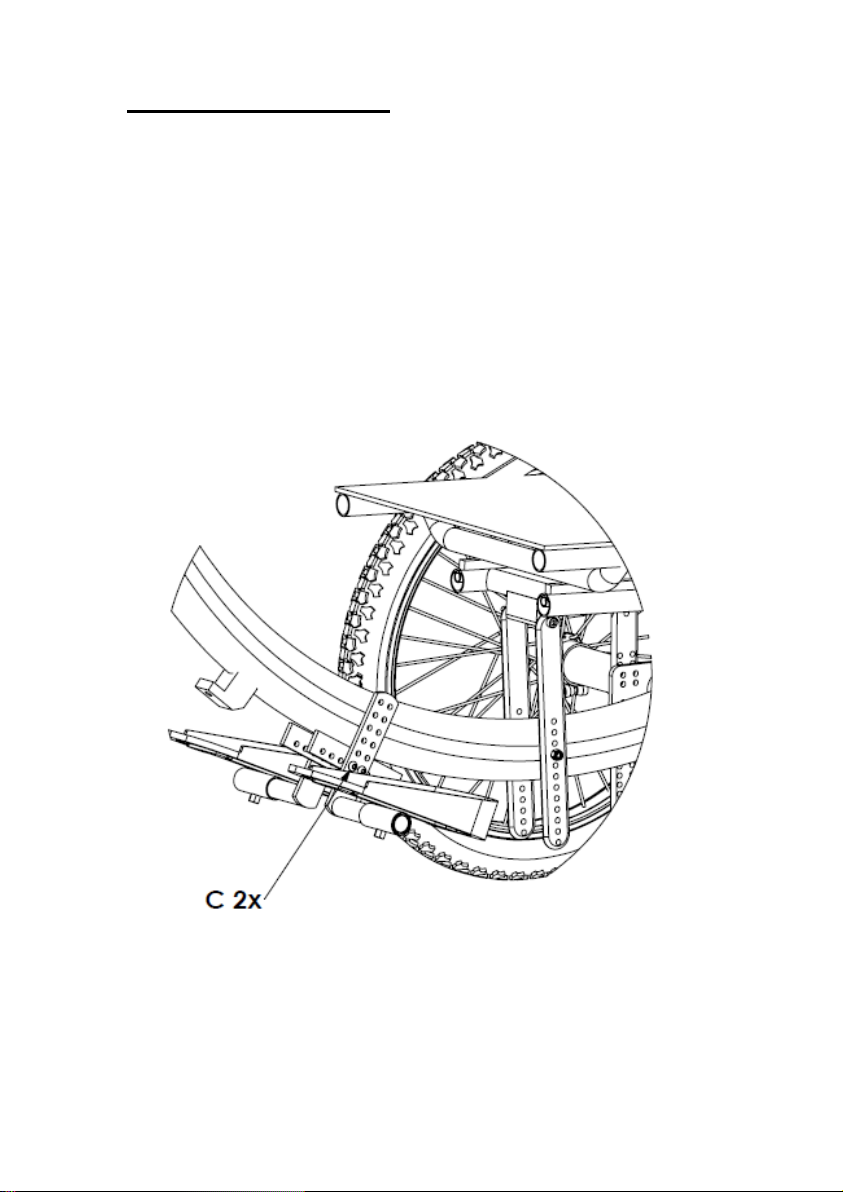

3.2 Setting the foot-rest position
To change the foot rest position horizontally and vertically:
•Remove the bracket-holding screws C at the side of the foot rest.
•Move the foot-rest to the desired position
•Tighten the screws properly.
10
3.3 Setting the back-rest angle
To change the back-rest angle:
•Remove the backrest-inclination screws D or E or both (on both sides)
•Find the desired position aligning the holes on the plate to those on the
seat and backrest tubes
•Put the screws back and tighten carefully all bolts back in place.
3.4 Moving the seat horizontally
It is possible if necessary to move the seat horizontally in the sleighs in order
to make the transfer easier.
Unscrews the thumbs screws F under the seat and move the seat in the
sleighs at the desired position. It is very important to tighten the
thumbscrews carefully again when the user is in the right position to
drive the hand-bike.
11
3.5 Adjusting brake tension
For V brakes (standard bike brakes):
1. Unscrew the bolt that holds the inner cable tension
2. Adjust the inner cable (lengthen it to lose the brake tension and tighten it
to increase it)
3. Tighten the bolt

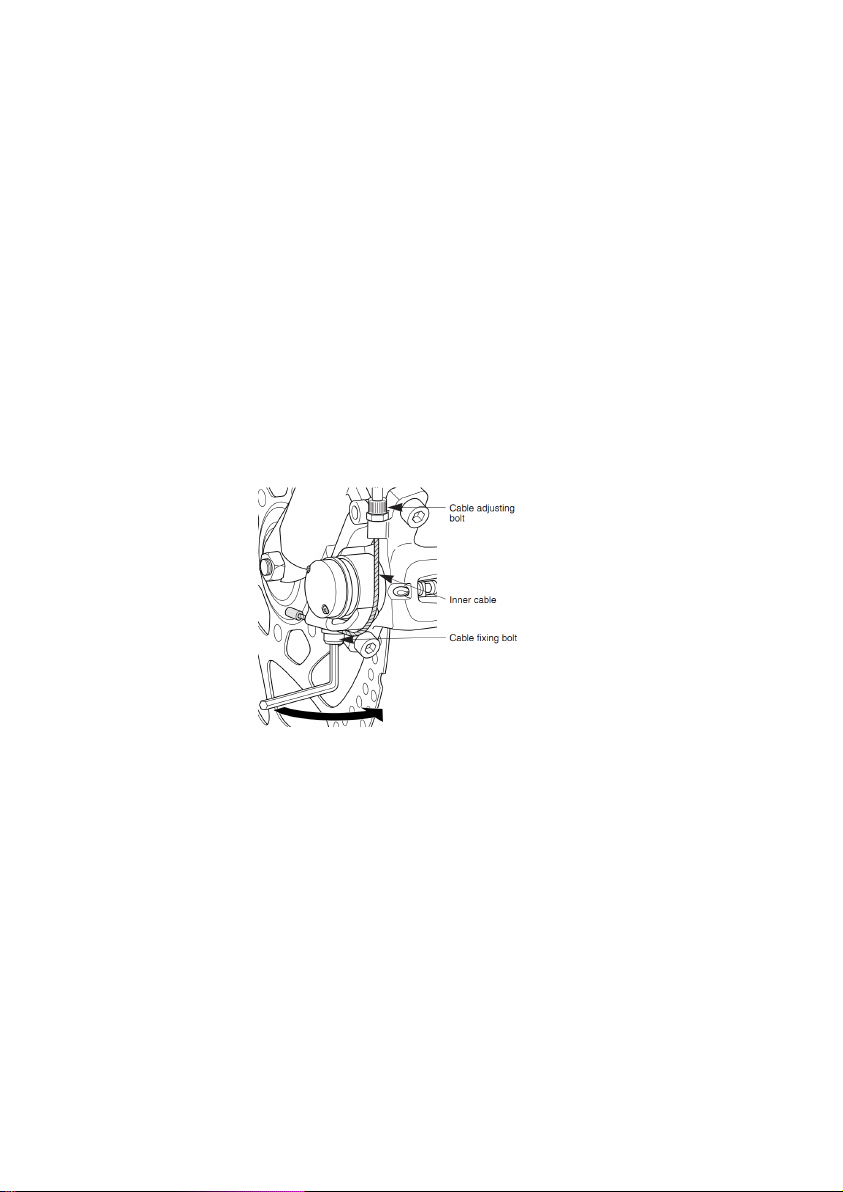

For disc brakes
•Screw/unscrew (unscrew to loosen tension/screw to in-crease it) the cable
adjusting bolt until reaching the desired tension
If this is not enough:
•Use an Allen wrench to unscrew the cable fixing bolt and, while releasing
the lever, manually position the cable to the desired position, then tighten
the screw back
Sometimes the brakes’ malfunctioning is not due to the cable tension, but to
the pads’ misplacement, if this is the case:
1. Screw/unscrew the pad adjusting screw
2. Then adjust the centre by loosening the screws that hold the centering-
adjustment holes tight, then move the whole caliper until the rotor is
precisely in its centre
3. Tighten the screws back
Centering-adjustment holes
12
4. Use of the handbike
Here are some suggestions and recommendations for proper use of the
handbike, also aimed at maintaining the security features in time and
duration. For any further information, consult qualified personnel.
•The hand-bike should be only used for the transport of a person and not of
objects in general
•Avoid contact with sea water and sand. If by any chance this happens
proceed to an immediate and accurate cleaning
•Perform a general check of the handbike periodically, in particular by
checking tyre inflations, the working of the axes fixing the rear wheels, the
efficiency of the brakes and lubricate when needed
•Clean periodically the handbike using a damp cloth and avoid even partial
immersion
•The handbike in specific setups can include among its parts some
chromed metal components. If you are allergic to chromium do not use the
device and inform the producer for the required substitutions, if not already
specified in the order form. Please notify the company if allergies or other
similar problems due to contact with materials making up the handbike are
developed
•The fabric used for the upholstery of the handbike is not waterproof. In
case of necessity it can be washed with water at low temperature
Keep the handbike away from heat sources, as not all coatings in
the order form are fireproof
13
5. Safety measures
It is suggested to verify the proper assembly and the efficiency of the
axle fixing of the rear wheel before using the hand-bike and always after
removing or assembling the rear wheels
In order to maintain the hand-bike efficient and safe it is suggested to
perform a maintenance schedule, regularly checking the functioning of its
parts
Ineffective maintenance operations and improper use of the device could
cause damage ad injury to the user
In case of transport by plane is recommended to reduce the tyre pressure
Before transferring from/to the hand-bike remember to activate the
parking brake
Maintenance, inspections and controls
Before each trip, check the efficiency of each brake.
Weekly:
Check the tyre pressure. Each tyre shows on the lateral bands the
maximum pressure for which they were designed. A flat tyre affects the
agility of the handbike and the required pushing effort.
Quarterly:
Check the wear of the tyres.
Check the efficiency of the bearings on the wheels.
Lubricate transmission parts (all moving mechanical parts including gears,
chain, wheel hubs and cranks).
It is recommended to refer only to authorized and qualified personnel to
perform adjustments and components replacement on the hand-bike.
14
6. Technical service
For any problems, fault or breakage please inform immediately the
authorized dealer supplying the following indications:
a) model
b) serial number
c) fault description
d) any reference or order number, if available, recorded on the
order form.
Every component of the hand-bike is available as spare part.
7. Warranty terms
•The frame is guaranteed for two years from the delivery date of the
wheelchair.
•Parts subject to normal wear and tear are not covered by the
guarantee, unless wear is caused by a manufacturing fault.
•The guarantee does not cover transport.
•If a fault occurs during the guarantee period, OFF CARR will:
oRepair the faulty part
oReplace the faulty part
•The guarantee does not cover damage caused by negligence,
improper use, mishandling or incorrect maintenance by unauthorised
personnel or by the user.
•OFF CARR is not responsible for damages caused during transport.
The forwarder company is the only responsible, therefore please
inform both the forwarder company and OFF CARR of any damage
that has been caused by the transport.
•This guarantee does not cover injury or others damages eventually
related to a malfunctioning of the wheelchair.
•The identification number label must never be removed from the
wheelchair frame, otherwise the guarantee is no longer valid
15
8. Packaging, shipping and delivery
All the OFF CARR hand-bikes are shipped in closed cardboard cases to
protect them from bumps and dust.
The package includes the handbike configured according with the order
form, this Instruction manual and a tool kit.
The handbike must be transported in trucks that protect it from
atmospheric agents, as shown on the packing box.
Upon receipt, check the box integrity and in case of problems
immediately notify them on the waybill.
Open the package, remove the handbike and check that it is not
damaged. In case of problems, note your remark on the waybill and
notify them immediately to the forwarder.
Once these checks have been carried out, place again the handbike in its
packing until its use and keep it in a dry place.
Do not place any objects over the packing case.
16
Materials differentiation
Handbikes are made of Aluminium alloy (Al 5754, Al6082, Al6061, Al2017),
steel (AISI303), stainless still, Carbon fibre, polyurethane, epoxy resins, other
composite materials.
Replaced parts and disposal of such materials must be in compliance with
the local applicable laws.
For product disposal contact your dealer.
OFF CARR s.r.l. reserves the right to make improvements and / or changes
its products without notice with respect of the device features, suitability and
certifications, the warranty contract and the availability of spare parts
according with the terms of law.
Table of contents
Other OFFCARR Bicycle manuals
