Offgridtec DEYE User manual

DEYE Microinverter SUN
User Manual
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

DEYE Mikroinverter SUN
Notes
Please keep this manual for future reference.
This manual contains all safety, installation and operating instructions for the DEYE
Microinverter SUN series.
. Explanation of the symbols
To enable the user to use the product efficiently and to ensure the safety of persons and
property, please read the related literature for the following symbols.Please read the literature for
the following symbols.
The entire system should be installed by professional and
technical personnel.
Tips: Indicates recommendations that may be referred to.
IMPORTANT:Indicates a critical note during operation, non-observance of which may result in incorrect operation of the device.
CAUTION:Indicates possible dangers which, if not avoided, may result in damage to the device.
CAUTION: Indicates the risk of electric shock, if not avoided, accidents may occur.
CAUTION: Hot surface: Indicates the danger of high temperatures which, if not avoided, may cause scalds
Read, observe and follow all safety and operating instructions before operating the device.
. Requirements for the professional and technical staff
•Professionally trained
•Familiar with the relevant safety regulations for the electrical system.
•Read this manual carefully and observe the associated safety instructions
2
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

3. Professional and technical personnel are allowed to..
•install the inverter in a certain place
•perform trial operation of the inverter.
•operate and maintain the inverter
4. safety instructions before installation
•When you receive the inverter, check whether any damage occurred during transportation.
Contact the transport company or our company in time if there are any problems.
•When placing or moving the inverter, you must follow the instructions in the manual.
•When installing the inverter, you must evaluate whether the work area presents an arcing
hazard.
•The inverter must be connected to a battery. It is recommended that the minimum capacity
(Ah) of the battery is five times the current equal to the rated output power of the inverter
divided by the battery voltage.
•Keep the inverter away from children and do not let them play near it.
•This inverter is an off-grid type. It is strictly forbidden to connect the inverter to the grid,
otherwise it will be damaged.
•This inverter is approved for stand-alone operation only. It is forbidden to connect several
units in parallel or in series; otherwise the inverter will be damaged.
5. safety instructions for mechanical assembly
•Before installation, make sure that the inverter does not have an electrical connection.
•Before installation, ensure that there is sufficient space for heat dissipation from the inverter. Do
not install the inverter in a harsh environment, such as a humid, greasy, flammable or explosive
environment, or an environment where dust accumulates.
3
DEYE Mikroinverter SUN
Notes
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

6. safety instructions for electrical connection
•Check that all wiring connections are tight to avoid the risk of heat build-up from loose
connections.
•Protective grounding must be connected to the ground. The cross-section of the wire should
not be less than 4mm2.
•The DC input voltage must correspond exactly to the parameter table. A DC input voltage
that is too high or too low will affect the normal operation of the inverter and may even
damage it
•It is recommended that the length of the connection between the battery and the inverter is
less than 3 meters. If the length is more than 3 meters, the current density of the connection
line should be reduced.
•A fuse or breaker should be used between the battery and the inverter; The rated current of
the fuse or breaker should be twice the inverter input current.
•DO NOT install the inverter near the flooded lead-acid battery, as the flying sparks from the
terminals may ignite the hydrogen released from the battery.
•The AC output terminal is only for connecting the load. DO NOT connect it to other power
sources or the utility grid, otherwise the inverter will be damaged. Switch off the inverter
before connecting loads.
•Do not connect battery chargers or other similar products to the input terminal of the
inverter; otherwise, the inverter will be damaged.
7. safety instructions for the operation of the inverter
•When the inverter is in operation, it generates waste heat and can thus heat up the surface.
The temperature may become very high; do not touch the enclosure.
•When the inverter is in operation, please do not open the enclosure.
•The AC output of the inverter is under high voltage, do not touch the cable terminal to avoid
electric shock.
4
DEYE Mikroinverter SUN
Notes
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

8. hazardous operations that can cause arcing, fire or explosion.
•Touching the end of the cable that has not been insulated and may be live.
•Touching the copper wire, terminals, or internal modules of the inverter, which may be
energized.
•The power cord connection is loose.
•Screw or other spare parts accidentally fall into the inverter.
•Improper operation by untrained non-professional or technical personnel.
When an accident has occurred, it must be handled by professional and technical
personnel. Improper operation would cause further serious accidents.
9. Safety instructions for decommissioning the inverter
•If the inverter has not been in operation for five minutes, the conductive modules may be
touched.
•The inverter may be restarted after eliminating the faults that affected the safety
performance.
•There are no parts inside that require maintenance.
DO NOT touch or open the enclosure after the inverter has been turned off within ten
minutes.
10. safety instructions for the maintenance of inverters
•It is recommended to check the inverter with a test device to ensure that it is free of
voltage and current.
•When performing electrical connection and maintenance work, put up a temporary
warning sign or erect barriers to prevent uninvolved personnel from entering the electrical
connection or maintenance area.
•Improper operation of the inverter can cause personal injury or equipment damage.
•To avoid static damage, please wear an anti-static wrist strap or avoid unnecessary
contact with the circuit board.
5
DEYE Mikroinverter SUN
Notes
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

After the start-up and test procedure (about 15 seconds), the inverter starts feeding, provided
that the PV module generates the start-up voltage of 20V required by the inverter (under load!).
Just read and follow the safety and
installation instructions below. You
can find and download the
instructions or other technical
documents on the manufacturer's
website: www.offgridtec.com

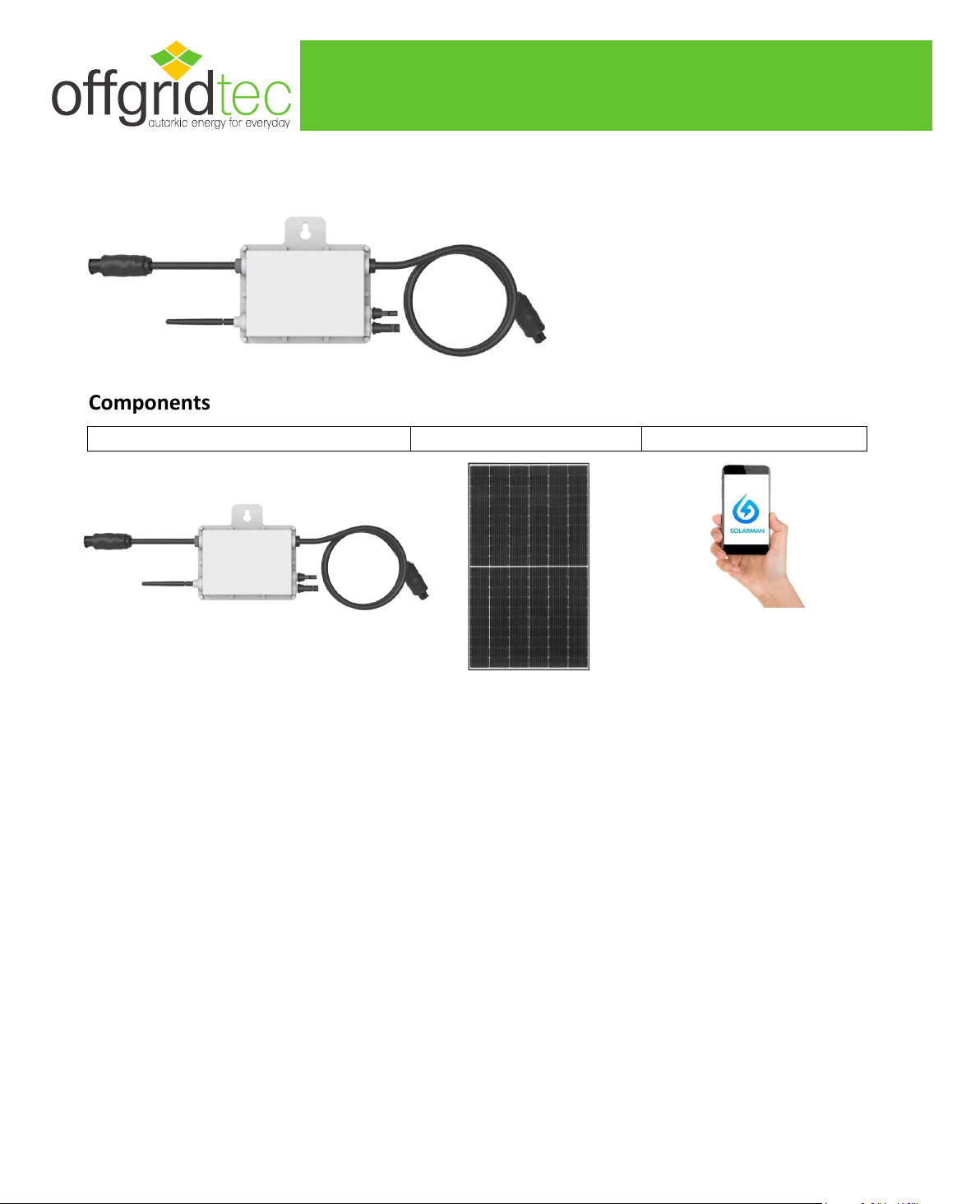

Components
Microinverter PV Module Solarman App
Installation and configuration
Install the microinverter and the PV module.
Screw the WiFi antenna to the microinverter.
Start up the microinverter by connecting the PV module and the AC connection cable.
The status LED signals the start-up of the microinverter.
-Start procedure: 3-fold fast red flashing intervals
-Test procedure: 2-fold slow red flashing intervals
-Feeding process: blue flashing intervals (slow = low output power / fast = high output
power)
6
DEYE Mikroinverter SUN
Overview
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

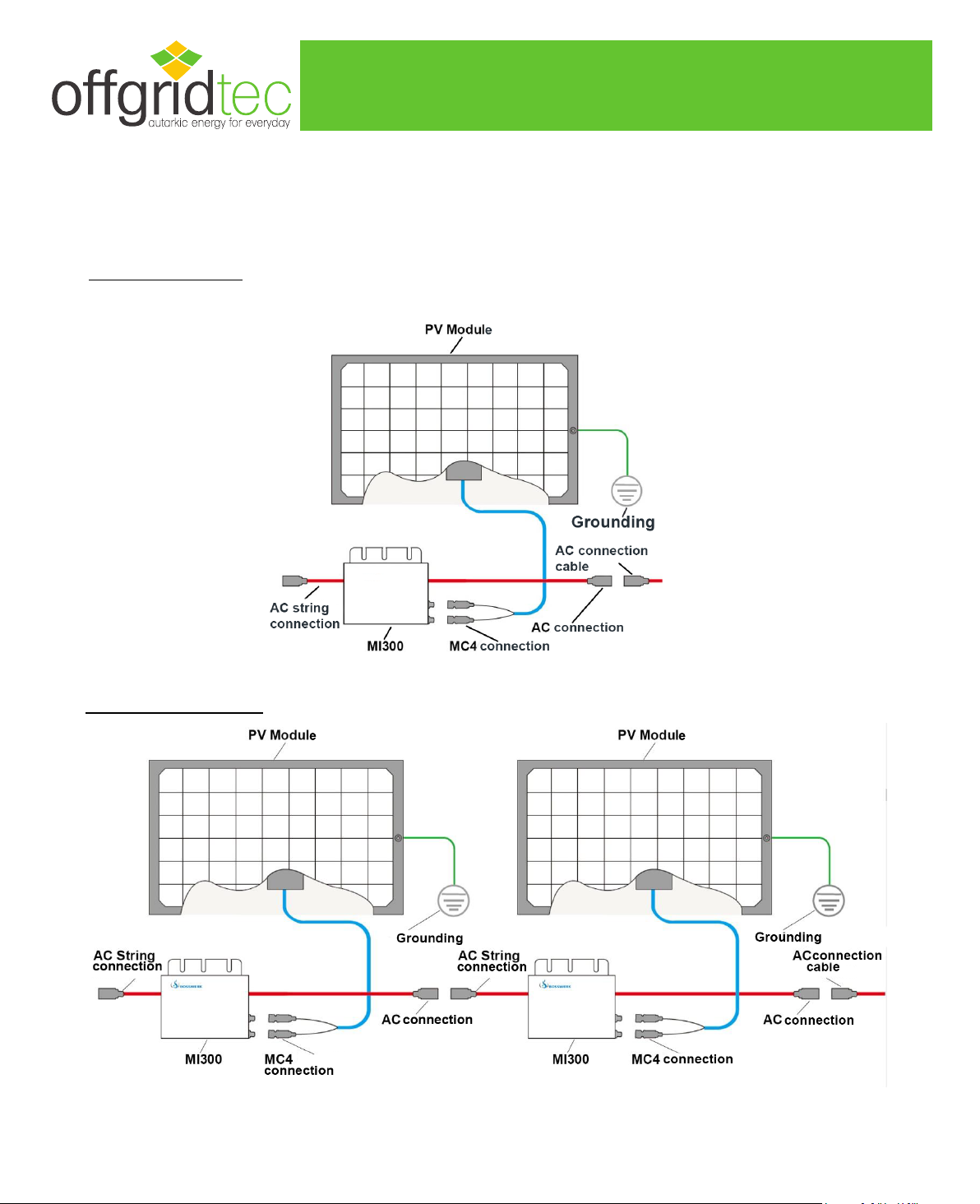

1. Installation
Assemble the microinverter(s) according to the following connection diagrams.
BOSSWERK MI300:
BOSSWERK 2x MI300:
7
DEYE Mikroinverter SUN
Installation
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

BOSSWERK MI600:
BOSSWERK 2x MI600:
2. monitoring device
1) Download and install the Solarman Smart smartphone app.
https://apps.apple.com/app/solarman-smart/id1469487897
https://play.google.com/store/apps/details?id=com.igen.xiaomaizhidian&hl=de&gl=US
NOTE:
All app permissions must be granted for proper function
(notifications, Bluetooth, location services, etc.).
8
DEYE Mikroinverter SUN
Installation
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

2) Start the smartphone app and create a new profile by selecting „Register a
new account“.
3) Enter your email address and press the
"Send" button under Verification Code.
You will now find a message with a 6-digit
code in your e-mail inbox. Enter this code
in the app under "Verification Code".
Then enter a password and click on
"Done".
4) Now press the "Add Now" button and
select "Yes" for the O&M request. Then
click on "Create Plant By Myself".
5) The Solarman Smart App will automatically detect your location. Then press the "Next" button.
9
DEYE Mikroinverter SUN
Installation
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

6) Now fill in all information of your PV system and press "Done":
-Plant Name
-Time Zone
-Plant Type
-System Type: PV plant type
-All on Grid: the generated power is fed directly
into the public power grid.
-Self-consumption: the generated power is used by
yourself and a surplus is fed into the public power
grid.
-Storage System: the PV system can store the
generated energy (batteries).
-Installed Capacity (kWp): Max. total capacity
(Decimal numbers are indicated with a dot!)
-Operating Date: Installation date
-Currency:
-Unit Price (EUR/kWh): Savings / kWh of your
energy supplier
-Total Cost (EUR): Assets Acquisition cost
The setup of your PV system in the Solarman Smart App is now complete.
7) Press the "Go to Add" button to add the WiFi interface (logger) of the inverter (not the serial
number of the inverter!). The WiFi serial number can be entered manually or scanned with the
smartphone camera.
10
DEYE Mikroinverter SUN
Installation
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

8) After you have added the
WiFi interface via "Add" and
"Done", go to "Go to
Configure". Select your WiFi
network and enter the
corresponding password.
Finally, go to "Start to
configure".
9) IYour network speed is checked and a
prompt appears to switch to the WiFi
settings of your smartphone and connect to
the WiFi interface of the inverter. To do
this, simply press the "Connect" button. In
the list of WiFi devices within range, select
the device "AP_XXXXXXX" (XXXXXXX stands
for the WiFi serial number of the inverter).
The password is "12345678". Once the WiFi
connection is established, go back to the
app, which tests the settings and transfers
them to the logger.
11
DEYE Mikroinverter SUN
Installation
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

10) The logger will be added to your PV system and after about 10 minutes the data will be displayed
in the Solarman Smart App.
Note:
The illustrations of the monitoring device refer to the IOS version of the Solarman Smart
App. The illustration may differ for the Android version.
If any of the steps listed cannot be completed successfully, exiting and relaunching the app
may help. It may be necessary to exit the app and restart it. Please make sure you have a
current version of your smartphone operating system to avoid possible compatibility
problems.
12
DEYE Mikroinverter SUN
Installation
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

Annex 1 - Disclaimer
The warranty does not apply under the following conditions:
Damage is caused by improper use or an unsuitable environment.
Damage is caused by improper use or an unsuitable environment.
Damage due to exceeding the operating temperature.
Arcing, fire, explosion and other accidents caused by failure to observe the destination or operating
instructions.
Disassemble and repair the inverter without authorization.
Damage caused by force majeure.
Damage caused by transport or handling.
Consequential damage due to connected devices
Changes without prior notice!
Version No. V1
13
DEYE Mikroinverter SUN
Installation
General information
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
WEEE-Reg.-Nr.DE37551136
Contact information
Tel: [phone]
Email: [email protected]
web: www.offgridtec.com
Christian & Martin Krannich
Account Sparkasse Rottal-Inn
Account: 10188985
BLZ: 74351430
IBAN: DE697435143000188985
BIC: BYLADEM1EGF (Eggenfelden)
Seat and local court
HRB: 9179 Register Court Landshut
Tax number: 141/134/30045 Ust-
IdNr: DE287111500 Court of
jurisdiction: Mühldorf am Inn

Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
Germany
Contact:
Tel [phone]
Mail [e-mail]
Onlineshop:
www.offgridtec.com
14
