Ohio Steel 4222V2 User manual

INSTRUCTIONS BEFORE USING THIS EQUIPMENT
READ AND FOLLOW ALL SAFETY RULES AND OPERATING
4222V2
22 cu ft LAWN SWEEPER
6004082 - REV C - 03/23
U.S. Patent No. 7,610,646
VIDEO ASSEMBLY GUIDE
SCAN HERE

Read and understand all safety rules and operating instructions before using this
tractor attachment.
Follow all safety rules and operating instructions provided by your tractor's
manufacturer when using attachment.
Never allow children or untrained persons to operate tractor or attachment.
Reduce tractor speed to slowest setting when towing or operating on slopes.
Operate up and down slopes, never across the face of slopes.
Do not carry passengers on tractor or attachment.
Avoid sudden turns or maneuvers.
Use caution when backing up to prevent damaging attachment.
Do not tow attachment on public roadways.
Do not remove warning decals from product.
Check product for worn, loose, or damaged parts before each use. If any damage
is present, repair the product before using.
Check product for loose or missing fasteners before each use. Tighten or replace
fasteners as needed before using.
Do not fasten rope to any part of your body or clothing.
Do not hold rope while tractor and Lawn Sweeper are in motion.
Do not use Lawn Sweeper near fire or smoldering debris.
Always fasten rope to tractor to avoid contact with wheels and brushes.
Always empty hopper before storing to avoid spontaneous combustion of contents.
Do not exceed tractor speed of 6 miles per hour when towing or operating Lawn
Sweeper.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
1
Safety Rules

If this product fails due to a defect in material or workmanship within THREE YEARS from the
date of purchase, we will at our option, only with receipt of purchase, repair or replace it free of
charge. This warranty excludes tires, wheels, brushes and bag, which are expendable and
become worn during normal use.
This warranty does not cover:
Repairs necessary because of operator abuse or negligence. •
Equipment used for commercial or rental purposes. •
Paint that is worn or faded due to normal use or exposure. •
To arrange for product repair visit ohiosteel.com/customer-support and fill out the warranty
repair form. You can also call 1-800-652-2321, ext. 212 to speak to our Customer Service Team
This warranty gives you specific legal rights, and you may also have other rights which may vary
from state to state. This warranty applies only while this product is in use in the United States.
IF YOU ARE MISSING PARTS DO NOT RETURN TO STORE
Email [email protected] or call 1-800-652-2321, ext. 212
Before you call,please email our customer service team at
[email protected] with the following :
A description of the issue you are having 1.
Photos of the issue that include an overall view and detailed view from 2.
multiple angles
If applicable, a short video showing the issue 3.
Replacement Parts:
You can place your parts order online at ohiosteel.com/partsstore
You can also reach our Customer Service Department at 1-800-652-2321, ext. 212 •
If you are ordering replacement part(s) for your product, please note that some parts are •
only available as a repair kit.
AttachReceipt Here:
2
Warranty

38 (x1)
41 (x2)
44 (x1)
43 (x1)
37 (x2)
10 (x4)
12 & 49 (x7)
48 (x2)
50 (x1)
40 (x2)
39 (x2)
(x1)
45 (x2)
46 (x2)
42 (x1)
6 (x2)
7 (x4)
8 (x4)
9 (x4)
11 (x1)
13 (x1)
14 (x1)
15 (x1)
47 (x2)
TOOLS REQUIRED FOR ASSEMBLY:
9/16" Open End Box Wrench •
NOTE: Hardware shown to scale
3
Carton Contents

10 96
8
7
13
14
13
DETAIL Q
SCALE 1 : 2
34

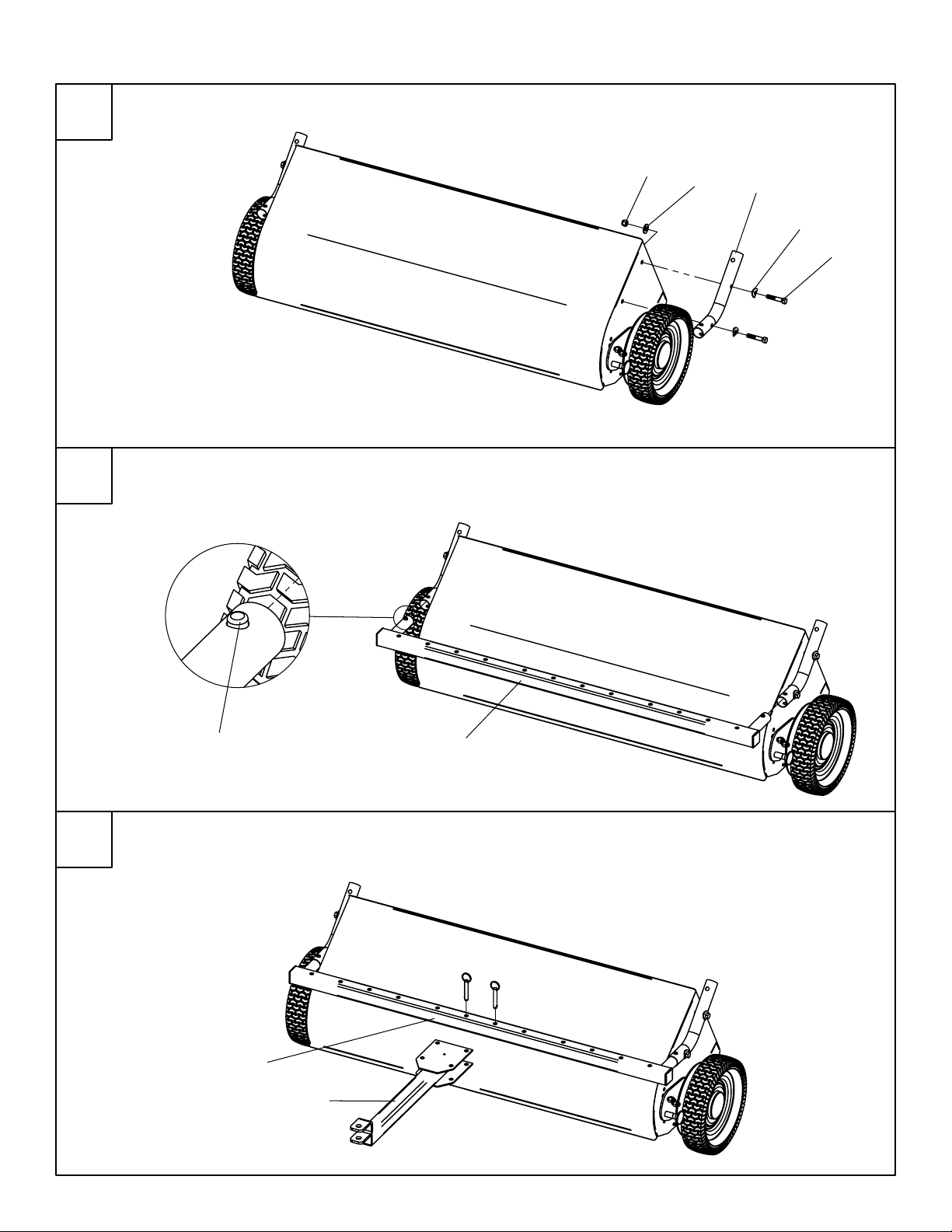

Attach Hitch Mount Tubes (6) to Sweeper Assembly and tighten hardware.
Attach Hitch Cross Tube Assembly (13) by depressing snap buttons and inserting into
Hitch Mount Tubes (34).
Install Hitch Assembly (14) using tethered quick release pins in desired position on Hitch
Cross Tube Assembly (13).
DO NOT OVERTIGHTEN.
4
Assembly Instructions
1
3
2

Shown Installed:
Insert Bottom Frame Tubes (39) into Center Frame Tube (41) and snap into position.
(Note that snap buttons are oriented up)
15
R
DETAIL R
SCALE 1 : 5
39
39
41
DETAIL S
SCALE 1 : 2
Snap Button
UP
51
First remove factory hand tightened nuts from studs. Use nuts to attach Height Adjustment
Handle (15) Using a 9/16" Open End Box Wrench.
5
Assembly Instructions
4
5

37
41
M
46
49
37
41
40
40
DETAIL D
SCALE 1 : 4
Snap Button
DOWN
51
Snap Button
UP
Frame into Hopper
39
39
DETAIL M
SCALE 1 : 6
46 49
Unroll and flatten hopper bag (38) from shipping state. Then, slide Hopper Stop Bar (42) into
pocket of Hopper Bag as shown.
Insert Top Frame Tubes (40) into Center Frame Tube (41) and snap into position.
(Note that snap buttons (51) are oriented down)
Unroll Hopper Bag
38
44
First, place bottom frame assembly into bottom of Hopper Bag (38). Second, Install Clevis
Pins (46) through Hopper Bag (38), Hopper Stop Bar (42), and Bottom Frame Tubes (39)
then secure with Hairpins(49).
6
Assembly Instructions
6
8
7

X
44
48
37
49
42
47
37 37
49
47
40
38
40
Snap Button
Down
39
DETAIL X
SCALE 1 : 9
45
49
39
40
First, Place top frame assembly into Hopper Bag (38). Second, Install Clevis Pins (45)
through Top Frame Tubes (40) and Bottom Frame Tubes (39) and secure with Hairpins (49).
Slide Hopper Pivot Rod (43) through Top Frame Tube (40) and Connecting Tube (37), then
through pocket of Hopper Bag (38), and then through both Connecting Tube (37) and Top
Frame Tube (40) on other side. Secure both ends with Washer (47) and Hairpin (49).
Frame into Hopper
45
49
38
7
Assembly Instructions
9
10

38
42 41
Velcro Tab
38 41 42
G
DETAIL G
SCALE 1 : 4
OPENING
R
DETAIL R
SCALE 1 : 1
T
Unscrew Thumb Screw from Tension Tube Assembly (44). Next, Hold Hopper Bag (38)
open and carefully insert Tension Tube Assembly (44) through opening in Hopper Bag and
into hole in bottom Center Frame Tube (41). Pull top Center Frame Tube over tension tube
and align holes.
Insert thumb screw that came with Tension Tube Assembly (44) through top Center Frame
Tube (41) and screw into top of Tension Tube. Secure Hopper Bag around Top Frame
Tubes with Velcro tabs.
SHOWN INSTALLED
SHOWN INSTALLED
8
Assembly Instructions
11
12

37
37
6
6
48
Do NOT fasten rope to any
part of your body or clothing.
5041
DETAIL V
SCALE 1 : 4
48

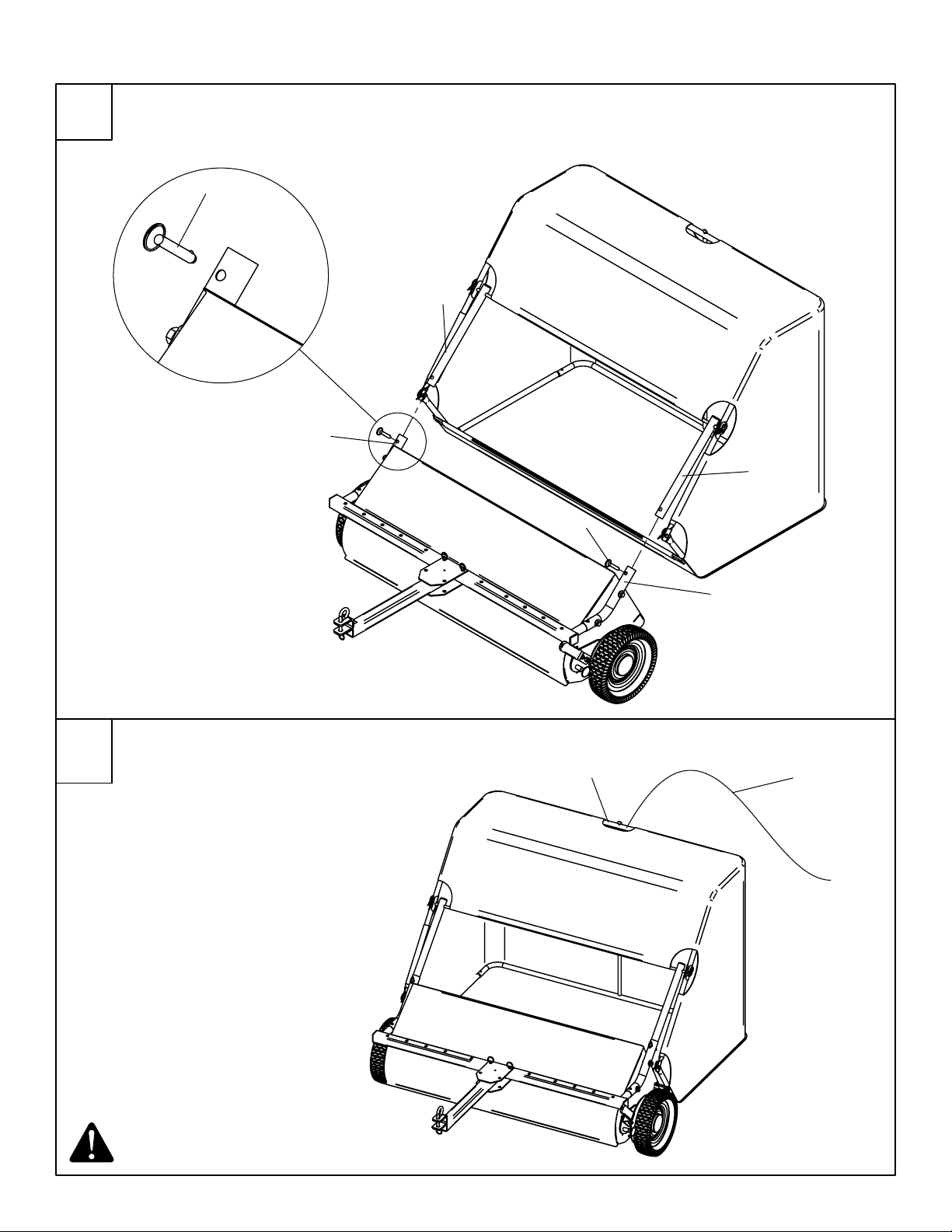

Insert Connecting Tubes (37) into Hitch Mount Tubes (6) and secure with Quick-Release
Pins (48). Install Hitch Pin (11) and secure with Hairpin(12).
Tie Dump Rope (50) securely around exposed section of Center Frame Tube(41).
9
Assembly Instructions
13
14

How to Sweep Lawn:
Remove large debris from lawn. 1.
Do not sweep if conditions are too wet or muddy. 2.
Attach Lawn Sweeper to tractor using supplied hitch pin. The reversable 3.
hitch allows the Lawn Sweeper to accomodate varying tractor hitch heights
by fliping over; choose the appropriate setting so that Lawn Sweeper hitch
tubes are roughly level with the ground and Bag is not touching the ground.
Attach dump rope to tractor so that it cannot contact the brushes or wheels. 4.
Start tractor engine and tow Lawn Sweeper to lawn in setting 7. 5.
Adjust brush height so that brushes extend roughly 1/2" below the tips of the 6.
grass. For best performance, always set the brushes to highest effective
setting to minimize resistance on brushes and wheels.
Engage tractor drive at its slowest speed and begin sweeping. Increase 7.
tractor speed as required to throw material to the back of the hopper bag.
DO NOT EXCEED 6 MPH.
Sweep in straight lines whenever possible and avoid sharp turns. 8.
Periodically check the sweeper while operating to ensure that wheels and 9.
brushes are rotating smoothly and that nothing is wrapped around the
brushes or brush shaft.
When filled, the hopper bag can be emptied by pulling the dump rope 10.
forward.
Before Using Lawn Sweeper:
Read all Safety Rules found on page 1. 1.
10
Operating Instructions

11
Operating Instructions
Periodic Maintenance:
Tighten fasteners as needed before each use. •
Empty hopper and thoroughly clean Lawn Sweeper after each use. •
Remove any materials that have wrapped around brushes or brush shaft •
after each use.
Lubricate wheel bearings and gears annually with a light coating of white •
lithium grease.
Offset Sweeping:
Remove both pins from drawbar. 1.
Slide drawbar on hitch cross tube to farthest holes on desired side. 2.
Re-pin both pins. 3.
Resume normal towing of sweeper. 4.
Durring opertion be mindful of wider towpath of sweeper 5.
How to Adjust Brush Height:
Place one hand on adjustment lever and use other hand to pull outward on 1.
plunger.
Move handle downwards to lower the brush height or upwards to raise the 2.
brush height.
Align the plunger with the nearest hole and release to select height setting. 3.

DETAIL W
SCALE 1 : 5
12
Operating Instructions

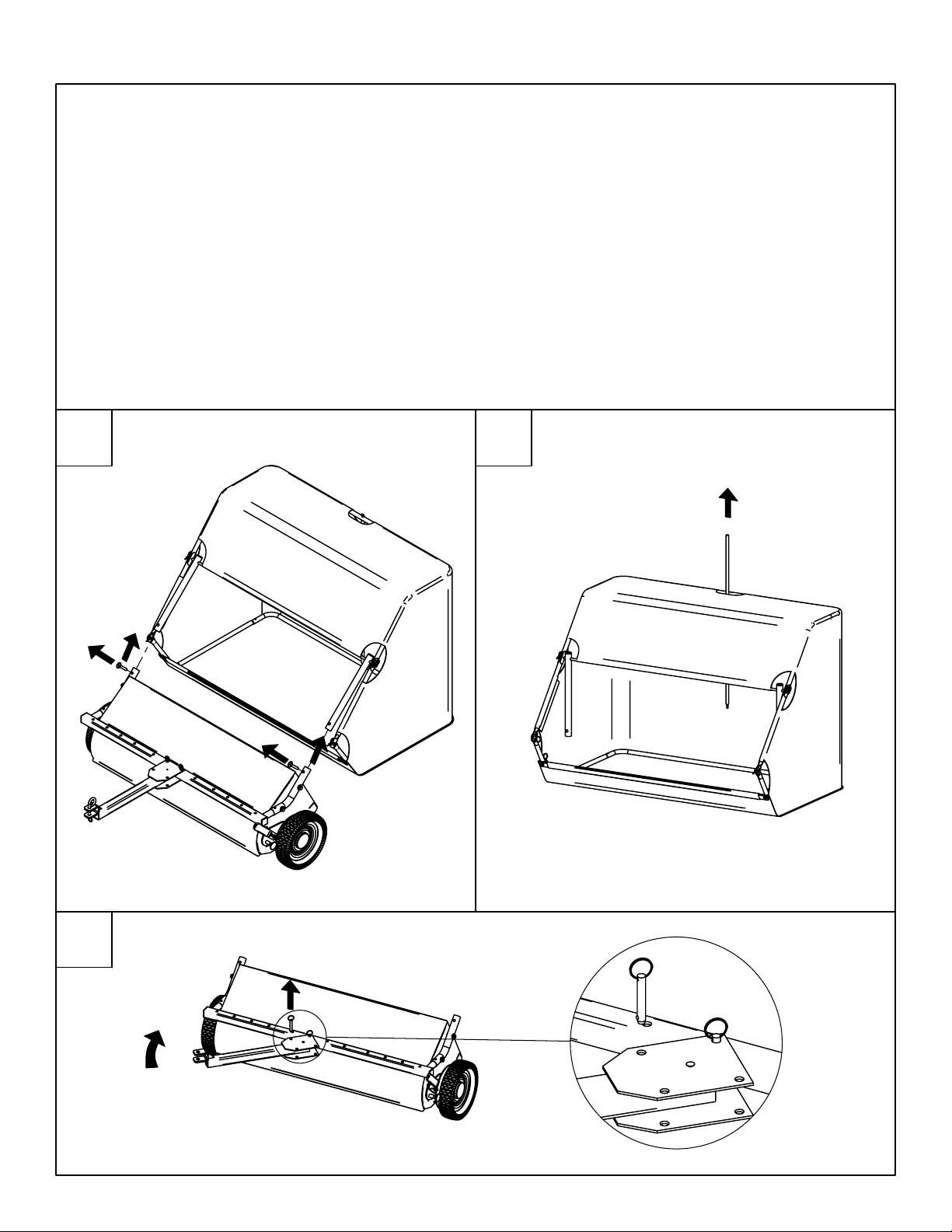

Storing Lawn Sweeper:
Empty hopper bag and thoroughly clean Lawn Sweeper before storing. 1.
Store Lawn Sweeper away from excessive heat to prevent damage. 2.
Brushes must not contact ground during storage to prevent damage. 3.
Remove quick-release pins to separate hopper bag from Lawn Sweeper. 4.
Carefully remove tension tube and collapse hopper bag for compact storage. 5.
Remove one quick-release pin from hitch, fold hitch onto cross hitch tube, 6.
and replace quick release pin.
4 5
6

ohiosteel.com/partsstore OHIO STEEL INDUSTRIES 1-800-652-2321
1
45
6
7
8
9
10
13
14
11
12
15 1617
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
2

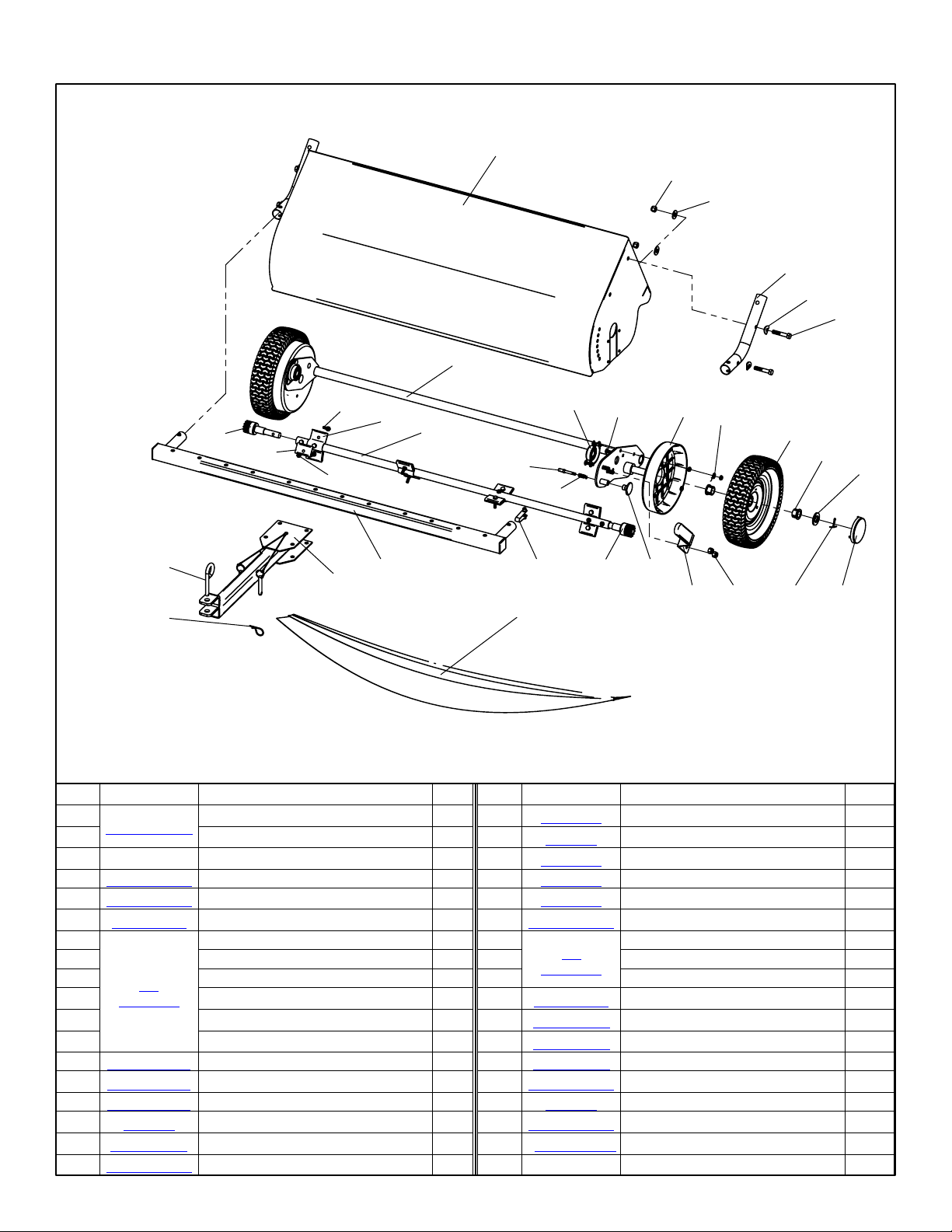

ITEM PART N0 DESCRIPTION QTY. ITEM PART N0 DESCRIPTION QTY.
1
6004353-G2
SWEEPER HOUSING 1 19 6000540 WHEEL BUSHING 4
2 WHEEL WELDMENT 1 20 307011 WHEEL(BUSHING INCLUDED) 2
21 6000539 DUST COVER 2
4
6000733-ZC
1/4" -20 X 1" CARRIAGE BOLT 8 22 6004023 PLUNGER KNOB 1
5
3000716-ZC
WASHER, 1/4" SAE 4 23 6004022 PLUNGER SPRING 1
6
307034-B2
HITCH MOUNT TUBE 2 24
6004020-ZC
PLUNGER PIN 1
7
KIT
6004344
3/8"-16 X 2" HEX BOLT 4 25
KIT
6000828
PINION ASSEMBLY, RIGHT 1
8 CURVED WASHER, 3/8" USS 4 26 PINION ASSEMBLY, LEFT 1
9 WASHER, 3/8" USS 4 27 BEARING ASSEMBLY 2
10 NYLOCK NUT, 3/8-16 UNC 4 28
307124-B2
SPIRAL BRUSH TUBE 1
11 3" HITCH PIN 1 29
307122-ZC
STEEL BRACKET 4
12 HAIRPIN 1 30
307121-ZC
STEEL CLAMP 8
13
6003953-B2
HITCH CROSS TUBE ASSEMBLY 1 31
300065-ZC
1/4" -20 LOCK NUT 22
14
6003965-B2
HITCH ASSEMBLY 1 32
3000539-ZC
1/4" -20 X 1-1/4" BOLT 14
15
6003957-B2
HEIGHT ADJ. HANDLE 1 33 307321 42" SPIRAL BRUSH 2
16 307241 WHEEL CAP 2 34
6000222-ZC
SNAP BUTTON 2
17
300081-ZC
COTTER PIN, 1/8" X 1-1/2" 2 35
3000618-ZB
NYLOCK NUT, 3/8-16 UNC 2
18
3000721-ZC
WASHER, 3/4" SAE 2
13
Repair Parts

38
41
40
51
47
49
45
4243
37
48
41
3951
44
46
49
50

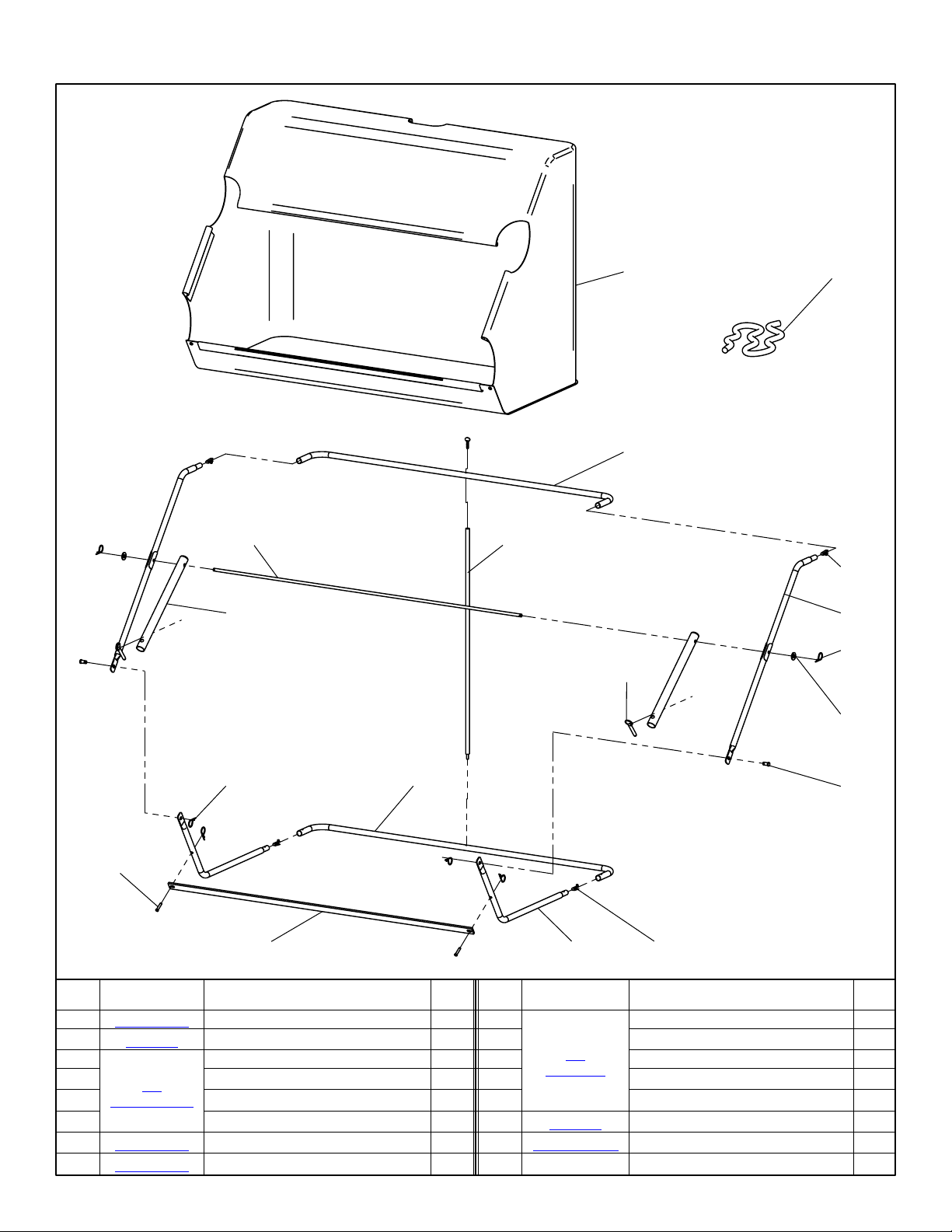

ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
37 307032-B2 CONNECTING TUBE 2 45
KIT
6004344
CLEVIS PIN, 3/8" X 1/2" 2
38 307331 HOPPER BAG 1 46 CLEVIS PIN, 1/4" X 1-1/4" 2
39
KIT
6004133-B2
BOTTOM FRAME TUBE 2 47 3/8" USS FLAT WASHER 2
40 TOP FRAME TUBE 2 48 QUICK-RELEASE PIN 2
41 CENTER FRAME TUBE 2 49 HAIRPIN 6
42 TENSION TUBE ASSEMBLY 1 50 307361 DUMP ROPE 1
43 307051-B2 HOPPER PIVOT ROD 1 51 6000208-ZC SNAP BUTTON 4
44 307061-B2 HOPPER STOP BAR 1
14
Repair Parts
ohiosteel.com/partstore
OHIO STEEL INDUSTRIES1-800-652-2321

MODEL # 4222V2
7
3
16504 42222
Manufactured in the U.S.A from
domestic and imported components
Proudly designed and
tested in Columbus, Ohio
