Ohio Steel 42TSC User manual

READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS BEFORE USING THIS EQUIPMENT
42TSC
22 cu ft LAWN SWEEPER
U.S. Patent No. 7,610,646
6000200 - REV J 3/11

Read and understand all safety rules and operating instructions before using this
tractor attachment.
Follow all safety rules and operating instructions provided by your tractor's
manufacturer when using attachment.
Never allow children or untrained persons to operate tractor or attachment.
Reduce tractor speed to slowest setting when towing or operating on slopes.
Operate up and down slopes, never across the face of slopes.
Do not carry passengers on tractor or attachment.
Avoid sudden turns or maneuvers.
Use caution when backing up to prevent damaging attachment.
Do not tow attachment on public roadways.
Do not remove warning decals from product.
Check product for worn, loose, or damaged parts before each use. If any damage
is present, repair the product before using.
Check product for loose or missing fasteners before each use. Tighten or replace
fasteners as needed before using.
Do not fasten rope to any part of your body or clothing.
Do not hold rope while tractor and Lawn Sweeper are in motion.
Do not use Lawn Sweeper near fire or smoldering debris.
Always fasten rope to tractor to avoid contact with wheels and brushes.
Always empty hopper before storing to avoid spontaneous combustion of contents.
Do not exceed tractor speed of 6 miles per hour when towing or operating Lawn
Sweeper.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
1
Safety Rules

39 (x1)
44 (x2)
45 (x1)
46 (x1)
55 (x2)
47 (x2)
25 (x2)
26 (x2)
5 (x2)
6 (x2)
3 (x1)
4 (x1)
50 (x2)
49 (x2)
53 (x2)
38 (x8)
54 (x2)
57 (x1)
17 (x1)
28 (x10)
29 (x11)
30 (x2)
31 (x2)
32 (x3)
27 (x4)
60 (x4)
(x1)
42 (x2)
40 (x2)

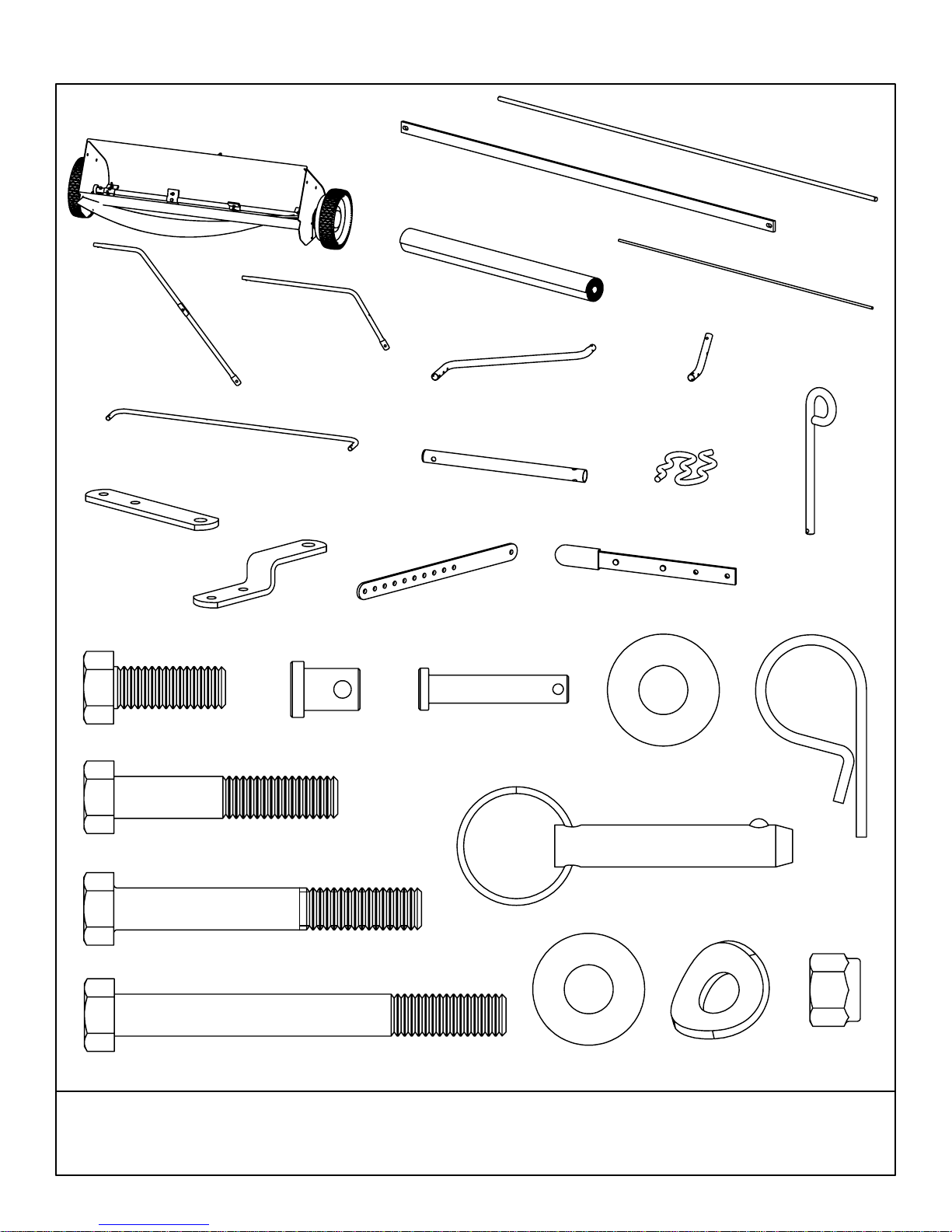

TOOLS REQUIRED FOR ASSEMBLY:
9/16" Wrench and Socket •
2
Carton Contents

29 60
26
28
27
31
3
29
25

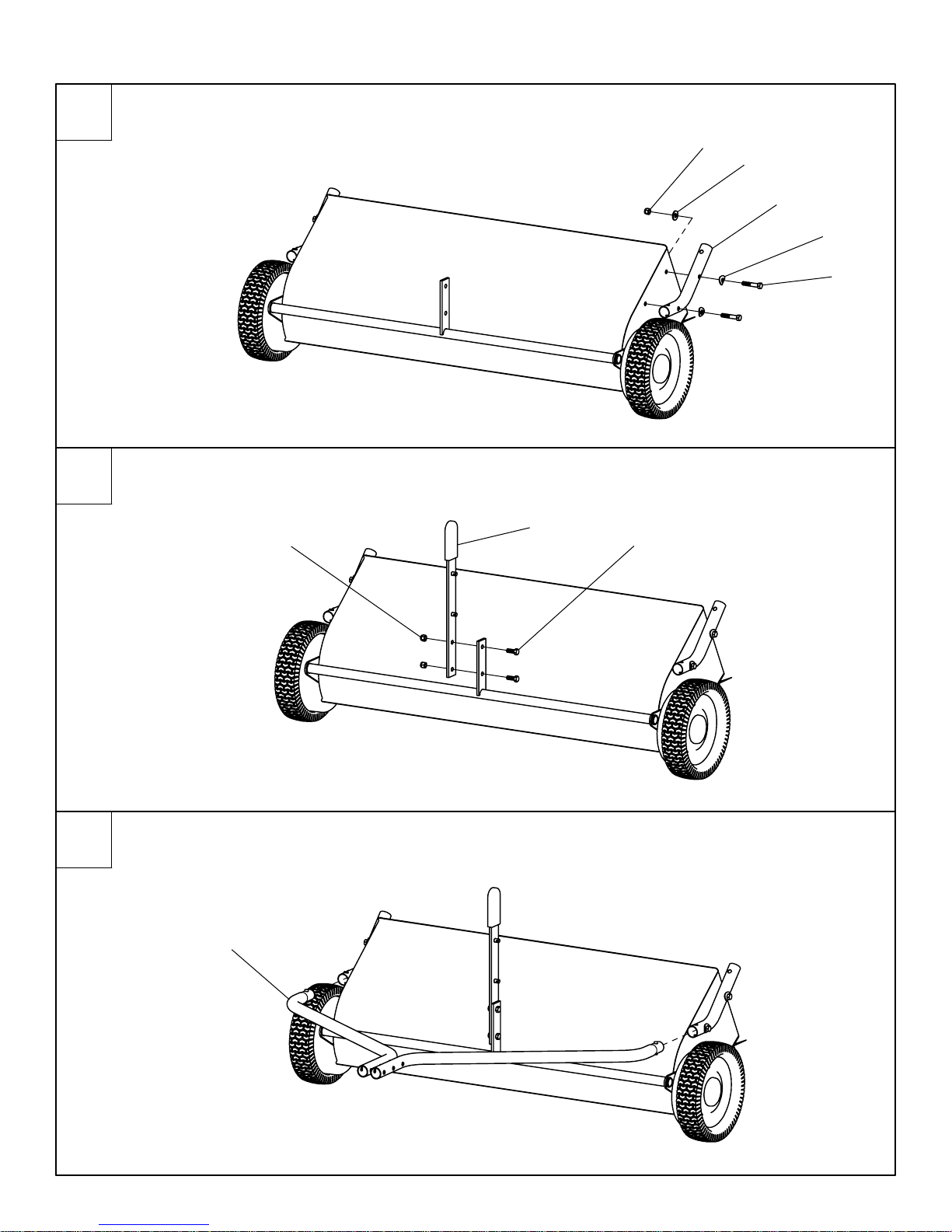

Attach Short Hitch Tubes to Sweeper Assembly and tighten hardware.
DO NOT OVERTIGHTEN.
Attach Handle to Height Adjustment and tighten hardware.
Insert Long Hitch Tubes into Short Hitch Tubes and snap into position.
3
Assembly Instructions
1
3
2

4
38
32
28
28
29
30
6
5
5
629
44
40
40

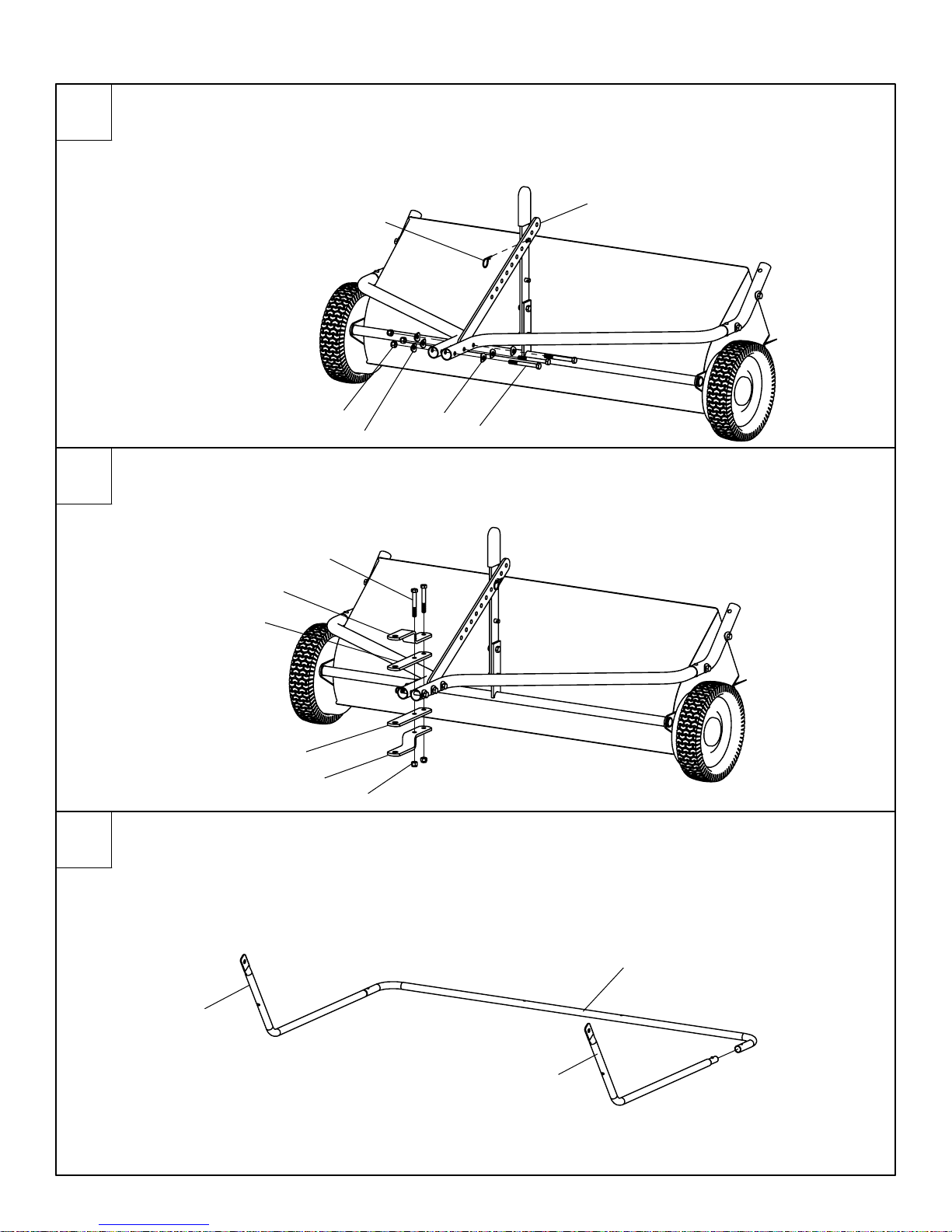

Install hardware through front two holes of Long Hitch Tubes as shown.
Hold Adjustment Lever in position and install third bolt as shown.
Pin Adjustment Lever to Handle.
DO NOT TIGHTEN
AT THIS TIME.
Install Clevis Bars as shown; Clevis bolts pass between Hitch Tube bolts.
Tighten Hitch Tube hardware first, then tighten Clevis hardware.
Insert Bottom Frame Tubes into Rear Frame Tube and snap into position.
4
Assembly Instructions
4
6
5

39
45
50
38
5038
42
44
42

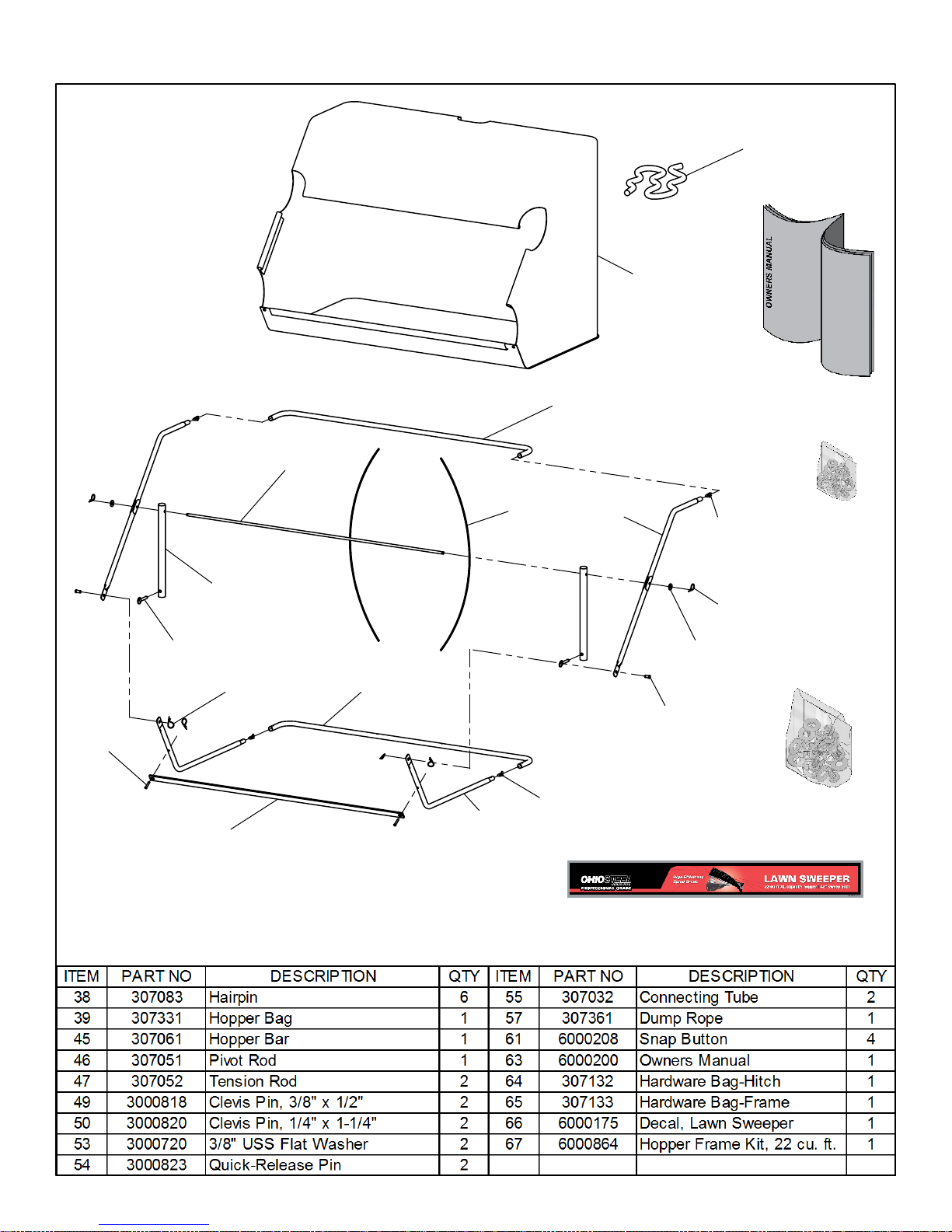

Slide Hopper Bar into pocket of Hopper Bag as shown.
Place bottom frame assembly into Hopper Bag.
Install Clevis Pins through Hopper Bag, Hopper Bar, and Bottom Frame Tubes
and secure with Hairpins.
Insert Top Frame Tubes into Rear Frame Tube and snap into position.
5
Assembly Instructions
7
9
8

38
49
49
38
38
46 53
55
55
38
53
Velcro Tab
47
Place top frame assembly into Hopper Bag.
Install Clevis Pins through Top Frame Tubes and Bottom Frame Tubes
and secure with Hairpins.
Slide Pivot Rod through Top Frame Tube and Connecting Tube, then through
pocket of Hopper Bag, then through Connecting Tube and Top Frame Tube.
Secure both ends with Washer and Hairpin.
Hold Hopper Bag open and carefully insert Tension Rods into holes in
Rear Frame Tubes.
Secure Hopper Bag around Top Frame Tubes with velcro tabs.
6
Assembly Instructions
10
12
11

54
54
38
17
57

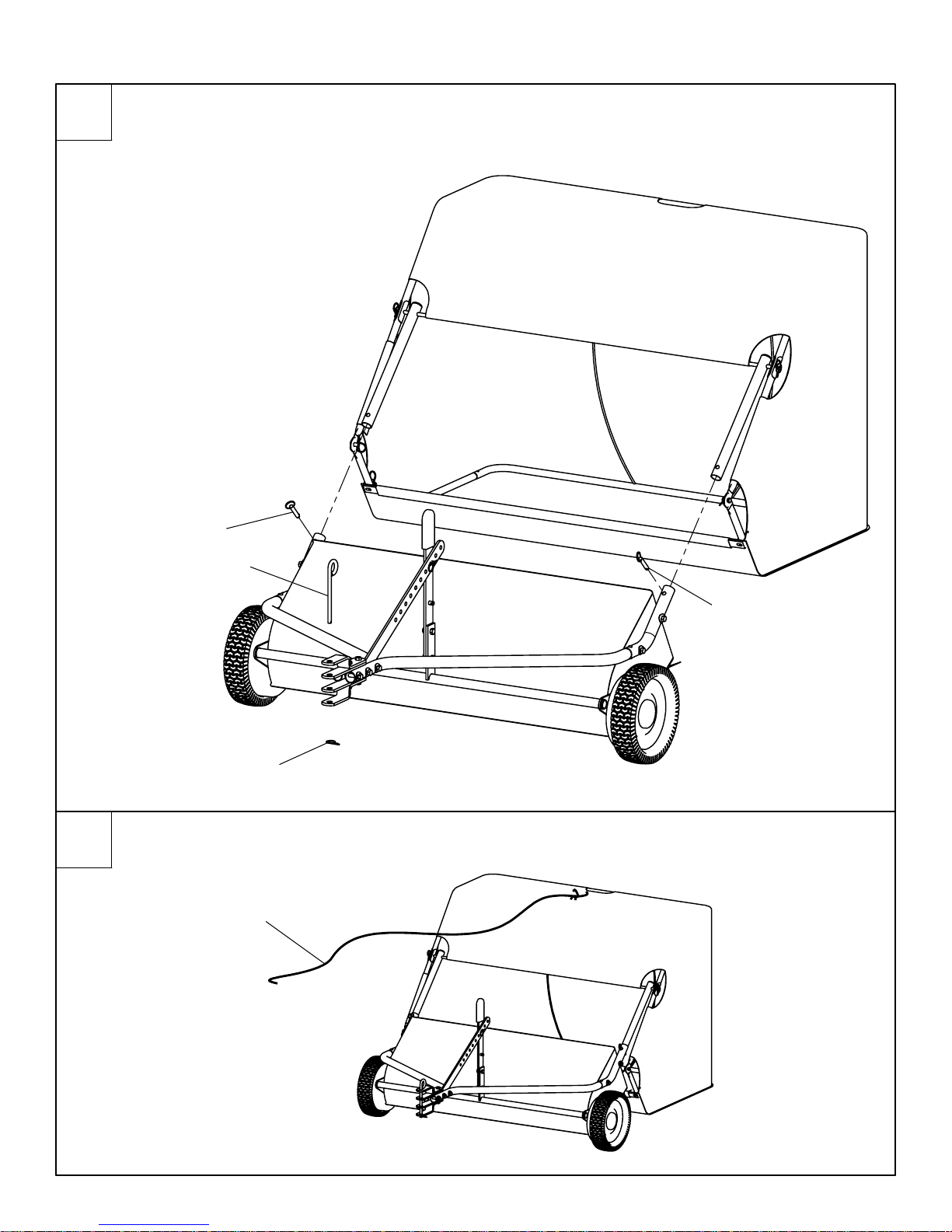

Insert Connecting Tubes into Short Hitch Tubes and secure with
Quick-Release Pins. Install Hitch Pin and secure with Hairpin.
Tie Dump Rope securely around exposed section of Rear Frame Tube.
7
Assembly Instructions
13
14

How to Sweep Lawn:
Remove large debris from lawn. 1.
Do not sweep if conditions are too wet or muddy. 2.
Attach Lawn Sweeper to tractor using supplied hitch pin. The multi-pronged 3.
hitch allows the Lawn Sweeper to accomodate varying tractor hitch heights;
choose the appropriate setting so that Lawn Sweeper hitch tubes are
roughly level with the ground.
Attach dump rope to tractor so that it cannot contact the brushes or wheels. 4.
Start tractor engine and tow Lawn Sweeper to lawn. 5.
Adjust brush height so that brushes extend roughly 1/2" below the tips of the 6.
grass. For best performance, always set the brushes as high as possible to
minimize resistance on brushes and wheels.
Engage tractor drive at its slowest speed and begin sweeping. Increase 7.
tractor speed as required to throw material to the back of the hopper bag.
Sweep in straight lines whenever possible and avoid sharp turns. 8.
Periodically check the sweeper while operating to ensure that wheels and 9.
brushes are rotating smoothly and that nothing is wrapped around the
brushes or brush shaft.
When filled, the hopper bag can be emptied by pulling the dump rope 10.
forward.
Before Using Lawn Sweeper:
Read all Safety Rules found on page 1. 1.
How to Adjust Brush Height:
Remove hairpin and detach adjustment lever from handle. 1.
Move handle downwards to raise the brush height or upwards to lower the 2.
brush height.
Align the handle pin with the nearest hole in the adjustment lever. Use the 3.
top or bottom pin on the handle, whichever provides the best alignment.
Secure adjustment lever to handle with hairpin. 4.
8
Operating Instructions

9
Operating Instructions
Periodic Maintenance:
Tighten fasteners as needed before each use •
Empty hopper and thoroughly clean Lawn Sweeper after each use •
Remove any materials that have wrapped around brushes or brush shaft •
after each use
Lubricate wheel bearings and gears annually with a light coating of grease •
Storing Lawn Sweeper:
Empty hopper bag and thoroughly clean Lawn Sweeper before storing. 1.
Store Lawn Sweeper away from excessive heat to prevent damage. 2.
Brushes must not contact ground during storage to prevent damage. 3.
Remove quick-release pins to separate hopper bag from Lawn Sweeper. 4.
Carefully remove tension rods and collapse hopper bag for compact storage. 5.
Detach adjustment lever from handle and depress snap buttons to remove 6.
hitch tubes from Lawn Sweeper for compact storage.

If this product fails due to a defect in material or workmanship within TWO
YEARS from the date of purchase, we will at our option repair or replace it free of
charge. This warranty excludes tires, wheels, brushes and bag, which are
expendable and become worn during normal use.
This warranty does not cover:
Repairs necessary because of operator abuse or negligence. •
Equipment used for commercial or rental purposes. •
Paint that is worn or faded due to normal use or exposure. •
To arrange for product repair call 1-800-652-2321, or return this product to place
of purchase for replacement.
This warranty gives you specific legal rights, and you may also have other rights
which may vary from state to state. This warranty applies only while this product
is in use in the United States.
In the space below record the purchase date of your Lawn Sweeper.
Model Number 42TSC
Purchase Date
Keep this Owner's Manual and your receipt in a safe place for future reference.
After the two year warranty period all replacement parts may be ordered by
calling 1-800-652-2321 .
When ordering replacement parts, always give the following information:
Product 22 cu ft LAWN SWEEPER •
Model Number 42TSC •
Part Number •
Part Description •
10
Warranty

REPLACEMENT PARTS ORDERING OHIO STEEL INDUSTRIES 1-800-652-2321
16 24
5922
59
22
15
24 22
14
24 13
2
38
34 59 34 2424
23
10
88
7
21
37
12
6
5
29
29
28
1
17
29 30 3
31 4
38 60
29
28
27
26
62
25
3228
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 4070004 42" HOPPER PANEL, FRONT 1
2 307115 TUBE, 42" HEIGHT ASSEMBLY 1
3 307201 SLEEVE, HANDLE 1
4 307113 ADJUSTMENT BAR 1
5 307042 CLEVIS PLATE, FLAT 2
6 307043 CLEVIS PLATE, BENT 2
7 307013 TIRE, WHEEL 2
8 6000540 BUSHING, WHEEL 4
9
10 6000539 DUST COVER 2
11
12 307241 CAP, WHEEL 2
13 307124 TUBE, SPIRAL BRUSH 1
14 307122 BRACKET, STEEL 4
15 307121 CLAMP, STEEL 8
16 307321 BRUSH, 42" 1
17 307082 1
18
19
20
21 3000721 WASHER, 3/4" SAE 2
22 3000539 1/4" -20 X 1-1/4" BOLT 14
23 3000716 1/4" WASHER SAE 3
24 300065 1/4" -20 LOCK NUT 20
25 307040 TUBE, HITCH 42" 2
26 307034 HITCH MOUNT TUBE 2
27 3000543 3/8"-16 x 2" Hex Bolt 3
28 3000722 WASHER, 3/8" USS 5
29 310061
NYLON INSERT LOCKNUT,
3/8-16 UNC
7
30
HBOLT 0.3750-
16x2.75x1-C
HBOLT 0.3750-16x2.75x1-C 1
31
HBOLT 0.3750-
16x1.25x1-S
3/8"-16 x 1" Hex Bolt 1
32 3000544 3/8"-16 x 3-1/2" Hex Bolt 1
33
34 6000733
1/4" -20 X 1" CARRIAGE
BOLT
6
35
36
37 300081 COTTER PIN, 1/8" X 1-1/2" 2
38 307083 2
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60 310073 WASHER, 3/8" USS 4
61
62 6000222 SNAP BUTTON, 3/8" 2
11
Repair Parts

REPLACEMENT PARTS ORDERING OHIO STEEL INDUSTRIES 1-800-652-2321
39
67
67 61
53
38
49
47
46
55
54
67
67 61
45
50
38
63
64
65
66
57
12
Repair Parts

www.OHIOSTEEL.com
[phone]
Designed And Tested In Columbus, Ohio
MODEL # 42TSC
2575 Ferris Road Columbus, OH 43224
[phone]
Manufactured In The U.S.A. From Domestic
And Imported Components
