INSTALLATION MANUAL
Applied Machines:
[Important]
Be sure to correctly follow the procedures in order as explained in this Installation Manual.
If you do not follow the procedure in order, the image trouble may occur.
E-12019. 5 Printed in Malaysia AAJT-9604-00
1. Outline of installation procedures
Main
body
FS-P04
WT-P03
MK-P09
EK-P10
EK-P09
UK-221
EK-P11
MK-P08
CU-202
EK-P08
KP-P03
AU-201S
AU-102
KH-P02
FK-517
PF-P22PF-P20
DK-P04
When installing the main body and associated options as a system, follow the order shown on the upper.
CAUTION
Main body mass: approx. 38.4 kg (84-11/16 lb)
• Lifting the main body in an awkward position or transporting it in a
poorly balanced position could result in personal injury. When trans-
porting the main body, assign an adequate number of persons to the
job and ensure that each person can take a good position of not be-
ing excessively loaded.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the correspond-
ing installation manual and perform the procedures correctly.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.

E-2
2. Installation space
(Unit: mm (inch))
Main body + PF-P20 + DK-P04 + CU-202
502
(19-3/4)
420
(16-9/16)
353
(13-7/8)
855 (33-11/16)
901 (35-1/2)
1045.5 (41-1/8)
916.5 (36-1/16)
323
(12-11/16)
606
(23-7/8)
1229 (48-3/8)
300
(11-13/16)
129
(5-1/16)
3. Pre-installation check items
(1) Select a level and stable place for installing the
machine.
(2) Be sure to use a power source of the voltage
and frequency indicated in the product specifi-
cations. Ensure that the current carrying capac-
ity of the power outlet is at least equal to the
current listed in the product specifications.
(3) Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
(4) Do not plug or unplug the power cord with wet
or dirty hands, otherwise you may get an elec-
tric shock.
(5) Avoid a hot and humid environment, or a place
exposed to direct sunlight.
(6) Avoid a dusty location, or a place near volatile
and flammable substances.
(7) Avoid a poorly ventilated place.
4. Notes on using touch panel
Be sure to instruct users on the following points.
• Pressing the touch panel hard may cause dam-
age.
• Do not strongly press the panel or press it using
the sharp tip of mechanical pencils.

E-3

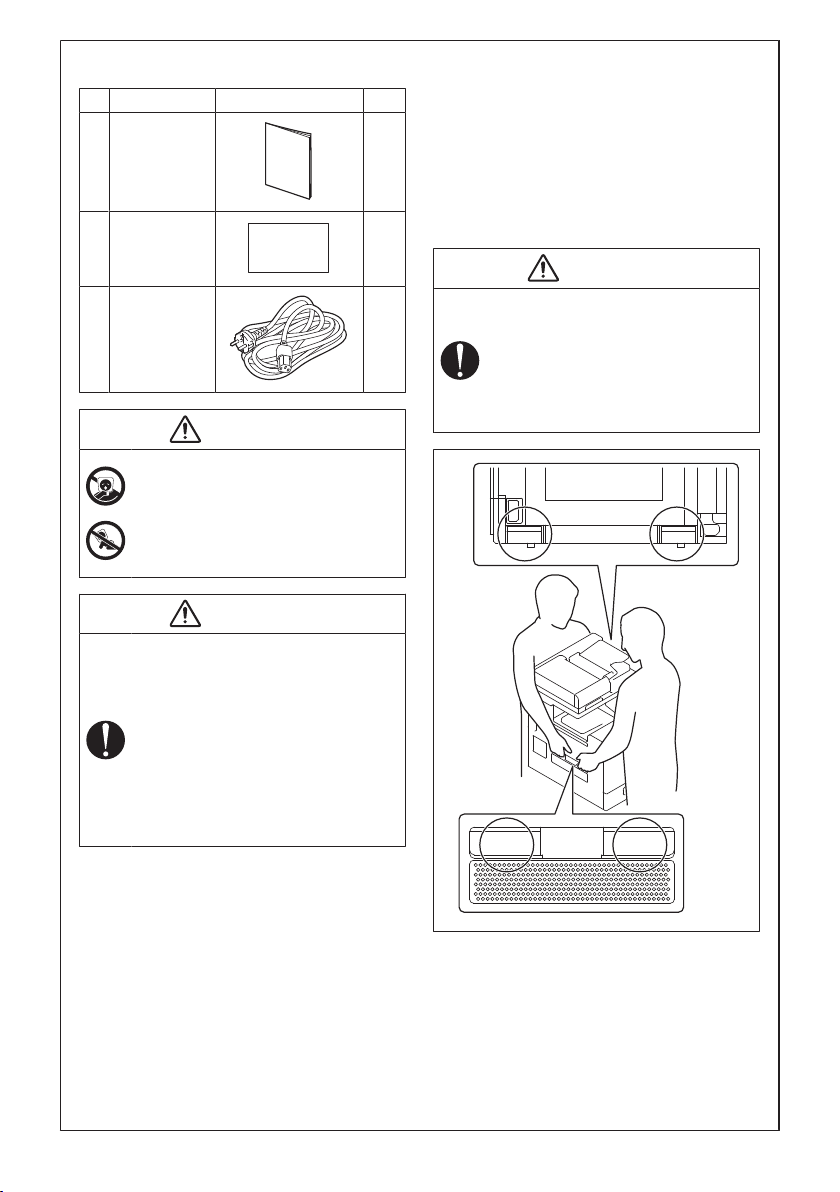

5. Accessory parts
No. Name Shape Q’ty
1. Installation
manual
1 set
2. Paper size la-
bel
1 set
3. Power cord 1
WARNING
Keep this bag away from babies and chil-
dren. Do not use in cribs, beds, carriages,
or playpens.
The thin film may cling to nose and mouth
and prevent breathing. This bag is not a
toy.
WARNING
If a power cord is not supplied, use only the
power cord that meets the following condi-
tions.
Failure to do this could result in a fire or
electrical shock.
• The power cord has voltage and cur-
rent rating appropriate for the rating
plate on this machine.
• The power cord meets regulatory re-
quirements for the area.
• The power cord is provided with
grounding pin/terminal.
* Power supply: 220-240V 7.5A
Note:
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the ap-
pearance of your machine to follow the instal-
lation procedure.
This does not cause any significant change or
problem with the procedure.
• If none of the later steps instruct you to use
the parts including screw and cover that you
removed following the instructions described
in this manual, discard them.
6. Unpacking the machine
(1) Raise and remove the packing carton.
(2) Remove the accessory parts and cushions on
the machine and open the plastic bag covering
the machine.
(3) Assign two or more persons and put their
hands at the positions indicated in the illustra-
tion to raise the machine from the box, and
place the machine on the horizontal and robust
place.
CAUTION
Main body mass: approx. 38.4 kg
(84-11/16 lb)
• Make sure to hold the positions shown
in the User’s Guide when transporting
this product.
• Holding where other than the shown
positions will drop the product result-
ing in an injury.

E-4
7. Removing protective tape, packing and
other shipping materials
(1) Remove the protective tape and the protective
materials.
(2) Open the automatic document feeder (DF) and
remove the protective tape and protective ma-
terial.
(3) Remove the protective tape and the protective
sheet.
(4) Open the front door.

E-5
(5) Remove the protective tape and the protective
sheet.

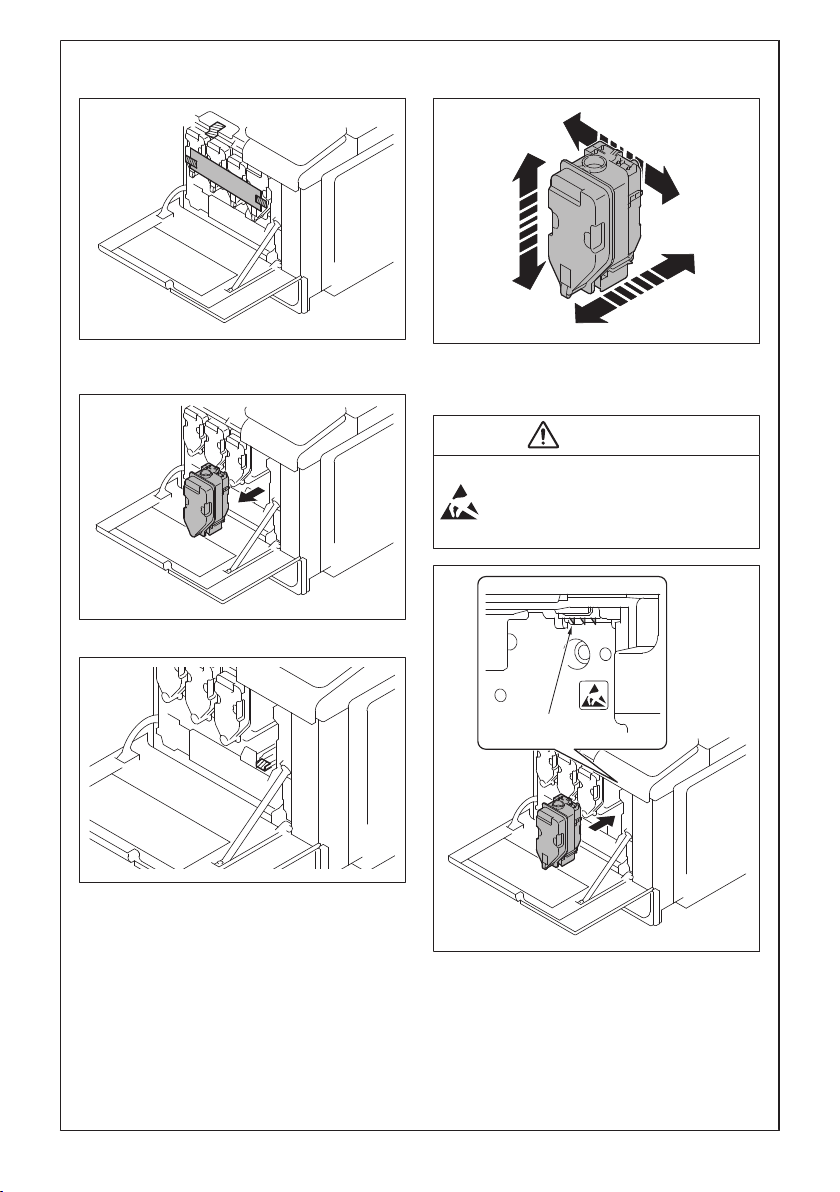

(6) Hold the handle of the toner cartridge, then pull
it out.
(7) Remove the protective tape.
(8) Hold the toner cartridge with both your hands,
then shake it several times.
(9) Check that the color of the toner cartridge
matches that of the insertion slot in the main
body, then push the toner cartridge to the back.
CAUTION
• Do not touch the toner cartridge and
the copper terminal of the imaging
unit.
• Static electricity may result in a mal-
function of the product.
Electrical contacts
(10) For the other toner cartridges, perform the
same procedure as steps (6), (8) and (9).

E-6
(11) Remove the protective tapes for the toner car-
tridges of each color to remove protective films.
Note:
Make sure that the toner cartridges are pushed all
the way in.
(12) Close the front door.
(13) Open the right door.
(14) Remove the protective sheet.
(15) Push down the lever of the fusing unit cover.
(16) Remove the protective materials (two places)
from the fusing section.
(17) Push up the lever of the fusing unit cover.
(18) Remove the protective materials from the trans-
fer roller unit.
(19) Close the right door.

E-7
(20) Slide out the tray 1 and remove the protective
tape and the protective sheet.
Note:
Take care not to touch the surface of the paper
feed roller. If you touch it by mistake, wipe off any
dirt on the roller surface using dry cloth.
8. Loading paper
(1) Slide the paper guide along the groove to the
appropriate paper size.
(2) Set paper with the printing side upward.
Note:
Make sure that the top level of the paper stack
does not exceed the ▼ (MAX) paper level indica-
tor.
(3) Slide the tray 1 back in.
9. Installing other options
To install other options, refer to the installation man-
ual for each option and follow the “Installation Pro-
cedures.”

E-8

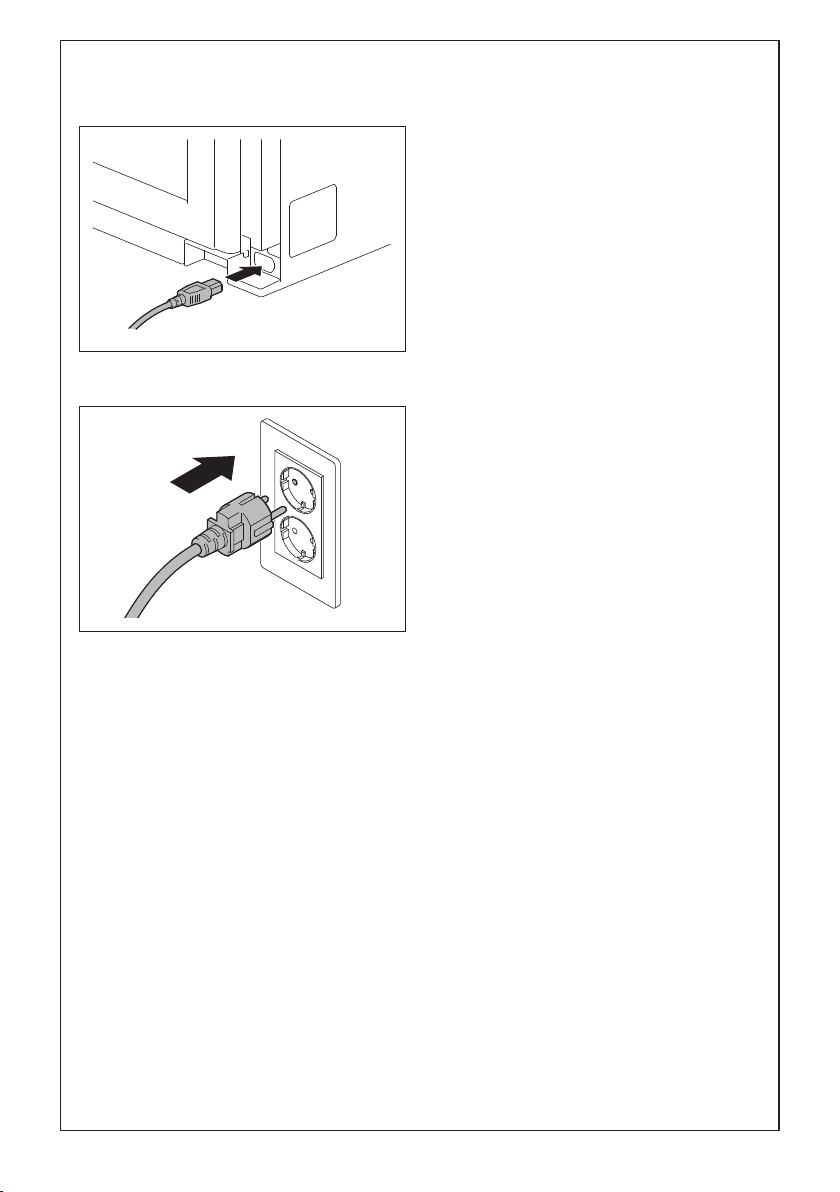

10. Connecting the power cord
(1) Connect the connector of the power cord to the
main body.
(2) Insert the plug of the power cord into the power
outlet.
11. Starting the machine
Open the power switch cover on the right side of the
main body, and turn ON the main power switch.
12. Date & Time Setting/Time Zone
Setting (Service Mode)
(1) Display the Service Mode screen. (For details
of how to display the Service Mode screen, see
the service manual.)
(2) Display the Date & Time Setting/Time Zone
Setting screen. (To display the Date & Time
Setting/Time Zone Setting screen, press Stop
→ 3 on the control panel.)
(3) Do not input date and time but touch “Entry” of
the Date & Time Setting.
(4) Input the time zone using up/down keys or di-
rect keys.
(5) Touch “Entry” of the Time Zone Setting.
(6) Touch “Apply.”
(7) Touch “OK.”
(8) Touch “Next.”
13. Serial number input
Note:
Serial number input is needed only for the optional
devices that have been or will be installed.
(1) Touch the item you want to enter and input the
serial number.
(2) Touch “END.”
(3) For other devices, enter their serial number in
the same way.
(4) Touch “END.”
(5) Touch “Next.”
14. Unit change
Note:
This function allows the user to select the type of
message that will appear when the replacement
time arrives for each of the different units.
(1) Select the appropriate message type for each
unit.
(2) Touch “Service.”

E-9
15. Performing Non-Image Area Erase
Check
Note:
Perform the below at the site where customer
uses the machine.
(1) Select the Non-Image Area Erase Check func-
tion as follows: Machine → Non-Image Area
Erase Check.
(2) Open fully the DF.
Note:
• Do NOT place a document on the document
glass.
• Clean the document glass if dirty.
(3) Press the Start key.
(4) Make sure that “Result” is “OK.”
Note:
If “Result” is “NG1” or “NG2”, review the place and
direction of installation, or take measures to block
the light source (by covering it, etc.), then perform
installation checking again.
(If a fluorescent light or other bright light sources
exist right above the main body, the light source
can hinder installation checking and cause opera-
tion errors in the Non-Image Area Erase Check.
For detailed information, see the service manual.)
(5) Touch “OK.”
16. Configuring other options
(1) If any of the following options are installed, re-
fer to the “Configuration procedures” of the in-
stallation manual for each option and configure
the option(s).
• Authentication Unit AU-201S/AU-102
• Local Interface Kit EK-P09
• Local Interface Kit EK-P10
• Upgrade Kit UK-221
• FAX Kit FK-517
• Clean Unit CU-202
• Network Fax
(2) Exit from the Service Mode and return to the
initial screen.
17. Restarting the machine
Open the power switch cover on the right side of the
main body, turn OFF the main power switch, then
turn it ON again after more than 10 second.
18. Connecting the network cable
(1) Connect the main body and networking equip-
ment (HUB) using the network cable.
Note:
The following shows the recommended network
cables that correspond to each communication
speed.
• 10BaseT/100BaseTX: Category 5
• 1000BaseT: Category 5E, Category 6
Network port
LED1
LED2
(2) Check LEDs for lighting conditions.
LED1：
Should light up steadily if the link network con-
nection has been made.
LED2：
Should blink according to the communications
status of the ACT network.

E-10
19. Network setting
Make the TCP/IP address setting for the network.
Note:
Consult the network administrator for the setting
value to be entered and make settings as re-
quired.
(1) Touch “Utility.”
(2) Touch “Admin.”
(3) Enter the administrator password and then
touch “OK.”
The administrator setting screen will be dis-
played.
(4) Touch “Network” → “TCP/IP Setting” → “TCP/
IP Setting1.”
(5) Select “Manual Setting” radio button of “IP Ad-
dress Setting Method*,” and perform the follow-
ing settings.
IP Address:
IP address of the controller
Subnet Mask:
Subnet mask of the network, to which the ma-
chine is connected
Default Gateway:
IP address of the default gateway
(6) Touch “OK.”
(7) Touch “OK” on the pop-up window.
(8) Touch “<” twice to return to the HOME screen,
then touch “Maintenance.”
(9) Touch “PING TX Address” to make the opera-
tion check of TCP/IP.
(10) Touch the “✕” icon on the upper right of the
screen and return to the Utility screen.
20. Confirming the copy sample
After completing all the steps, take a sample copy in
color mode, and confirm the image.
If image troubles occur, first turn OFF and ON the
Main Power Switch, and then redo the steps from
“12.Date & Time Setting/Time Zone Setting (Service
Mode)} E-8” to “14.Unit change} E-8”.
21. Affixing the labels
(1) Affix the paper size label on the tray 1 that cor-
respond to the size of paper used.
32.5 ± 0.5 mm
30.4 ± 0.5 mm
