OLT GS63-TG-METAL User manual

Important Information:
- It is the sole responsibility of the customer to check with your local municipal or county by-laws before
ordering this product to confirm it complies with building codes in your area.
- If the product is elevated, any structural and building code requirements are solely the customer's
responsibility, and should be abided by.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep
snow off roof frequently.
- In areas with high or gusty wind conditions, it is advisable to install the structure securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are tightly affixed.
- All structures purchased from Outdoor Living Today are covered for a period of one year for defects in
manufacturing and workmanship. Costs incurred for customer installations are not included.
- Failure to use supplied parts included in this kit could result in poor product performance and may void your
warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our
written instructions.
Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 1
Thank you for purchasing a
6x3 Garden Saver. Please
take the time to identify all
the parts prior to assembly.
Version #1.1
May 3, 2023
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support Line
@ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to courier
replacement parts, free of charge, within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper
installation, maintenance and repair.
Stock Code:
GS63-TG-METAL
6x3 GARDEN
SAVER
WITH METAL ROOF
ASSEMBLY MANUAL

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 2
What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construction area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local utilities company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundation you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly
Manual.
If doing the assembly yourself, have all the necessary tools ready to go•
and in working condition. A list of required tools can be found after the
parts list.
One helper is recommended to assist in constructing your chalet.•
It generally takes two people less than a day to assemble a chalet. If you’re
hiring a contractor, their rate should be in line with that duration of work.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 3
Foundation Types for 6x3 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (35” x 73”) or larger.
- 6” Deep foundation.
- 0.6 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 0.6 Cubic Yards of gravel required, approximately 6 wheelbarrows.
- 5 - 4x4 Pressure Treated Stringers 34 3/4” long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 0.6 Cubic Yards of gravel required, approximately 6 wheelbarrows.
- 8 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
86 1/4”
47 3/4”
6” Deep
5 - 4”x4”x34 3/4”
8 Patio Stones
Floor FrameConcrete Foundation Completed Foundation
14 3/16”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation
73”
35”
86 1/4”
47 3/4”
86 1/4”
47 3/4”

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 4
Thank you for purchasing our 6x3 Garden Saver.
Please take the time to identify all the parts prior to assembly.
Note: Trim and Skirting pieces are graded with the best face being rough sawn.
Rough sawn cedar is much easier to paint and stain.
Parts List
A. - Floor Section
Floors
1 - Floor Section - 35” x 73”
1 - Mid Floor Joist - 1 1/2” x 2 1/2” x 70”
Steps
1
B. - Wall Section
Main Wall Panels
4 - Rear/Side Walls - 35” x 63 1/4” - Identical
4 - Top Wall Plates - 1 1/2” x 1 1/2” x 35”
2 - Front Narrow Walls - 12 1/2” x 61 3/4” - Identical
Header/Wall Extenders
1 - Front Header - 1 1/2” x 1 1/2” x 70”
1 - Interior Door Header - 1 1/2” x 1 1/2” x 44 7/8”
2 - Left/Right Side Angle Gables - 6 1/2” x 35”
2 - Wall Extenders - 6 1/4” x 35”
1 - Rear Top Plate - 1 1/2” x 1 1/2” x 70”
Shelves
Storage Shelf Supports
Short (2 - 3/4” x 2 1/2” x 12 1/2”)
Long (2 - 3/4” x 2 1/2” x 35”)
2 - Storage Shelves - 11 1/2” x 31 7/8”
2 - 11
12 - 23
24 - 25
C. - Roof Section
Roof
3 - Metal Roof Panels - 39” Length
3 - Battens - 3/4” x 3 1/2” 74 1/4”
4 - Batten Spacers - 3/4” x 1 1/2” x 12 3/8”
6 - Foam Enclosures
26 - 34
D. - Trim / Misc. Section
Lower Skirting
2 - Lower Rear Skirting - 1/2” x 2 1/2” x 35”
2 - Lower Side Skirting - 1/2” x 2 1/2” x 33”
Lower Front Skirting
Short (2 - 1/2” x 2 1/2” x 11 1/8”)
Long (1 - 1/2” x 2 1/2” x 47 1/4”)
Filler Trim
8 - Front/Rear Filler Trims - 5/8” x 1 1/2” x 30”
1 - Front Header Filler Strip - 5/8” x 1” x 69 1/2”
1 - Rear Top Plate Filler Strip - 5/8” x 1 1/2” x 69 1/2”
36
37 - 40
D. - Trim / Misc. Section Cont.
Outer Wall Trim and Fascia
1 - Upper Front Horizontal Trim - 1/2” x 2 1/2” x 74 1/4”
2 - Side Fascia Trims - 1/2” x 2 1/2” x 37 5/8” - Angle Cut
Ends
2 - Front Wide Corner Trims - 1/2” x 3 1/2” x 70 3/8”
2 - Front Side Corner Trims - 1/2” x 2 1/2” x 70 3/8” - Angle
Cut End
2 - Rear Wide Corner Trims - 1/2” x 3 1/2” x 67 3/4”
2 - Rear Side Corner Trims - 1/2” x 2 1/2” x 65 1/2” - Angle
Cut End
1 - Upper Rear Horizontal Trim - 1/2” x 2 1/2” x 67 1/4”
1 - Rear Center Trim - 1/2” x 2 1/2” x 65 1/8”
2 - Vertical Door Frame Trim - 1/2” x 2 1/2” x 64 1/4”
Door System
1 - Door Threshold (Bevel) - 1/2” x 2 5/8” x 44 7/8”
2 - Left/Right Doors - 22 1/4” x 61 3/8”
1 - Door Flange - 1/2” x 2 1/2” x 61 3/8”
4 - Vertical Interior Door Stops - 3/4” x 3/4” x 29 7/8”
Miscellaneous
1 - Front Horizontal Trim - 1/2” x 3” x 67 1/4”
1 - Metal Drip Edge - 60”
1 - Front Middle Trim - 1/2” x 2 1/2” x 2 5/8"
2 - Metal Peak Cap - 60”
1 - Metal Roof Edge Trim (96”)
** Plus 2 Cedar Shingle Shims - discard after shimming
doors
Steps
41 - 48
49 - 61
62 - 65
Note: We recommend you drill a 1/8” pilot hole for each
screw to avoid splitting wood. The hole depth should be
equal to 3/4 the length of screw.

Tools Required (Not Provided)
Safety Equipment Required (Not Provided)
Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 5
Hardware Kit (Provided)
6x3 GARDEN SAVER - METAL ROOF
3/4”
1 1/2”
T Hinge
x 4 pcs
Door
Handle
x 2 pcs
Black Headed Screw
Finishing
Square Drive Bit
Safety Glasses
Work Gloves
Ladder
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Silver
Barrel Bolt
Drop Latch
1/8” & 3/8” Drill Bits
1 1/2”
Black Headed Bolt with Silver Nut and Washer
24 pcs
195 pcs
4 pcs
1 pc
1/2 ”x 2 1/2” x 2 1/2”
Plywood Spacer
3/8” Wrench
2 1/2”
3/4”
2”
Black Headed Screw
Silver
1 1/4”
100 pcs
14 pcs
45 pcs
5 pcs
1” 7 pcs
1/4”x 2”
Metal Roof Screw
14 Pcs
1/4” Nut Driver
1 pc

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 6
Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold.
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularily.
- Routinely remove needles and leaves from Metal Roof.
Painting/Staining
- Your cedar shed, if left untreated, will weather to a silvery grey colour.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can
be stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Foundation
8.
Floor Plywood
Wall Panel
Dab of caulking
Strip of roofing paper over
apex of roof panels
Floor Runner
Small gap
between bevel
siding and
window trim

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 7
1. Locate Floor Joist and position at center of Floor Section
and flush with framing as illustrated above. Attach with 2 - 2 1/2”
Brown Screws per end. Flip over and lay Floor Section on a
level foundation only. Patio Stones or a Concrete Slab both
make excellent foundations. (See Page 3 for more information
on foundations). Use a level to confirm and shim Floor Joist as
required.
A. Floor Section
Parts
Floor Joist
(1 1/2” x 2 1/2” x 70”) x 1
Floor Section
(35” x 73”) x 1
Hardware
2 1/2” Brown Screws
x 4 total
Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Floor Joist
Floor Section

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 8
2. For each Rear and Side Wall Panel, carefully lay Panel face down. Position and attach a Top Wall
Plate to top of wall studs of each Wall Panel with 2 - 2 1/2” Brown Screws. Position so Plates are
flush with framing.
Parts
Rear/Side Wall Panels
(35” x 63 1/4”) x 4
Top Wall Plates
(1 1/2” x 1 1/2” x 35”) x 4
Hardware
2 1/2” Brown Screws
x 8 total
Top Wall Plate
Important:
Pilot hole ALL 2x2 Wall Studs
with 1/8” drill bit prior to screwing.
This will make it much easier
to attach together.
B. Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Long Shelf
Supports (2)
Wall
Panels (4)
Side Angle
Gables (2)
Short Shelf
Supports (2)
Storage Shelves (2) Front Narrow Walls (2)
Interior Door
Header
Front Header
Wall Extenders (2)
Rear Top Plate
Top Wall Plates (4)
Due to packaging constraints, top wall plates must be attached prior to erecting walls.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 9

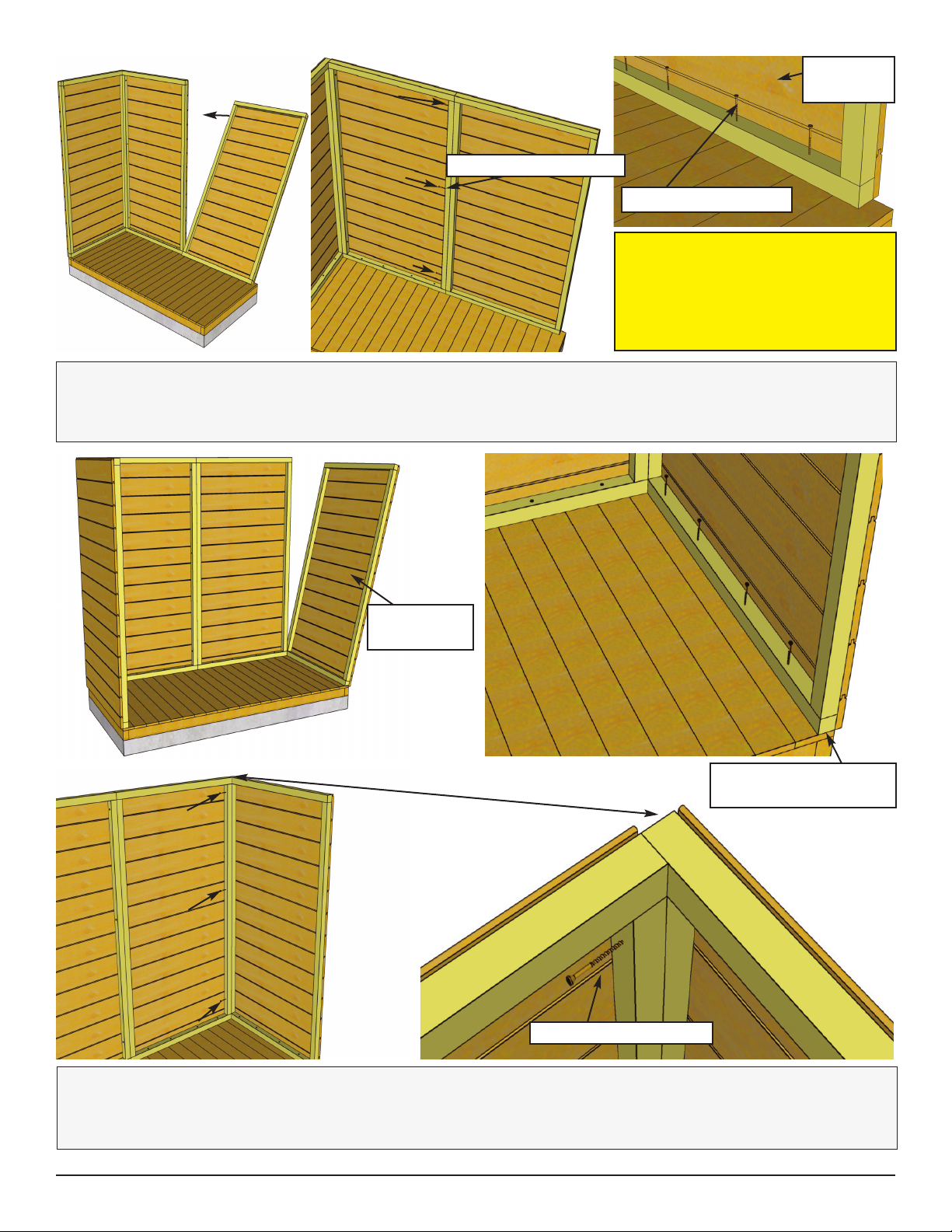

3. With Wall Plates properly attached, orientate completed Walls around the Floor. Be sure to leave
room to work. Front Narrow Walls will be required in this section.
Front
Rear Wall Panels
Front Narrow
Walls
Front
Left Side Wall Panel
Wall frame flush with outside
of Floor on the side. Wall
siding will overhang Floor.
Left Side Wall
4. Starting with Left Side Wall, lift up and position so framing is flush
with Floor at both front and rear of shed. Make sure Wall frame is flush
with outside of Floor on the side. When Wall is positioned correctly,
secure Bottom Wall Plate to Floor with 4 - 2 1/2” Brown Screws.
Rear
Bottom Wall Plate
Before completely
attaching walls to floor
(Steps 6-10), check to
make sure door opening is
45” wide. See Step 15
for illustration.
Hardware (Steps 4 - 8)
2 1/2” Brown Screws
x 25 total
4 - 2 1/2” Brown Screws
Wall frame flush
with outside of
Floor at the front.
Wall frame flush with
outside of Floor at
the rear.
Side Wall Panel
Side Wall Panel
Floor

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 10
Rear Corner
Rear Wall
5. With your helper holding the Side Wall Panel, position a Rear Wall Panel in rear corner.
Important: Align Wall Framing Flush with Floor Framing.
Left Side Wall
Rear Wall Panel
Wall frame flush
with outside Floor.
Wall siding will
overhang Floor.
6. When Side and Rear Walls are aligned in corner correctly, Wall framings will be flush. Attach
Wall framings together with 3 - 2 1/2” Brown Screws. Secure Bottom Wall Plate to Floor with
4 - 2 1/2” Brown Screws.
Left Side Wall
2 1/2” Brown
Screws
2 1/2” Brown Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 11
7. Position second Rear Wall Panel on Floor as per Step 6. Attach Wall frames together at top,
middle and bottom with 3 - 2 1/2” Brown Screws. Secure Bottom Wall Plate to floor with
4 - 2 1/2” Brown Screws. Important: Confirm Siding on Rear Wall Panels are aligned.
Rear Wall
Panel
Expert Advice - If you’re placing the
shed tight up against a fence or wall, you
may consider attaching the Rear Corner
and Center Trim on Rear Wall seam first.
See Steps 44 - 47. Attach both Rear
Walls together, secure Rear Center Trim,
then attach Side Wall Panel.
2 1/2” Brown Screw
Right Side
Wall Panel
8. In the corner, align and attach Right Side Wall framing to Rear Wall framing with
3 - 2 1/2” Brown Screws as per Step 6. Secure Bottom Wall Plate of Side Wall to Floor with
4 - 2 1/2” Brown Screws.
Wall frame flush with
outside of Floor.
2 1/2” Brown Screws
2 1/2” Brown Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 12
9. Locate Front Narrow Walls and
position Wall framing flush with Side Wall
framing in corner. Importnat: Make sure
Narrow Wall is positioned right side up.
Front Narrow Wall
Wall Framings Flush
Side Wall
10. Align Wall framing flush with outside of Floor framing. When correctly positioned, secure
Bottom Wall Plate to Floor with 2 - 2 1/2” Brown Screws. Attach vertical Wall framings together at
top, middle and bottom with 3 - 2 1/2” Brown Screws.
Wall frame flush
with Floor. Siding
will overhang Floor.
Before attaching,
make sure door
opening is 45” wide.
See Step 15.
11. Align and attach the second Front
Narrow Wall Panel as per Step 10.
12. Locate Front Header and place on top of
Front Narrow Wall framings.
Front Header
Parts (Steps 9 - 11)
Front Narrow Wall Panels
(12 1/2” x 61 3/4”) x 2
Hardware (Steps 9 - 11)
2 1/2” Brown Screws
x 10 total
2 1/2” Brown
Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 13

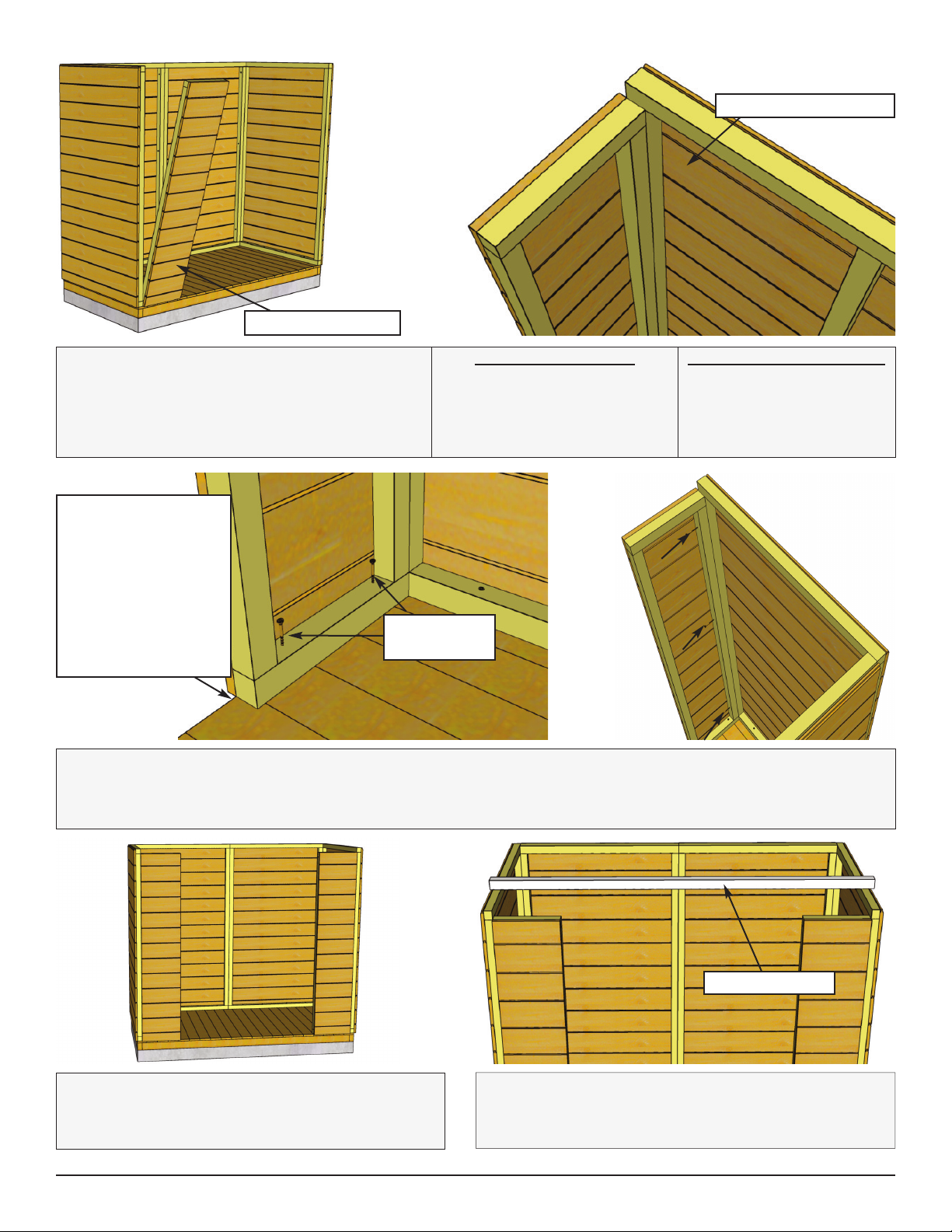

15. When all Walls are attached together,
check door width at top and bottom. Door width
should be 45” wide. If required, loosen Narrow
and Side Wall plate screws, adjust door width
and re-secure. There can be an 1/8” tolerance in
the width but top and bottom width should be the
same.
45”
16. Locate both Left/Right Side Angle Gables. Place Right Side Angle Gable on Side Wall Panel
frame. Note: Bottom siding of Gable will overhang and cover siding of Side Wall.

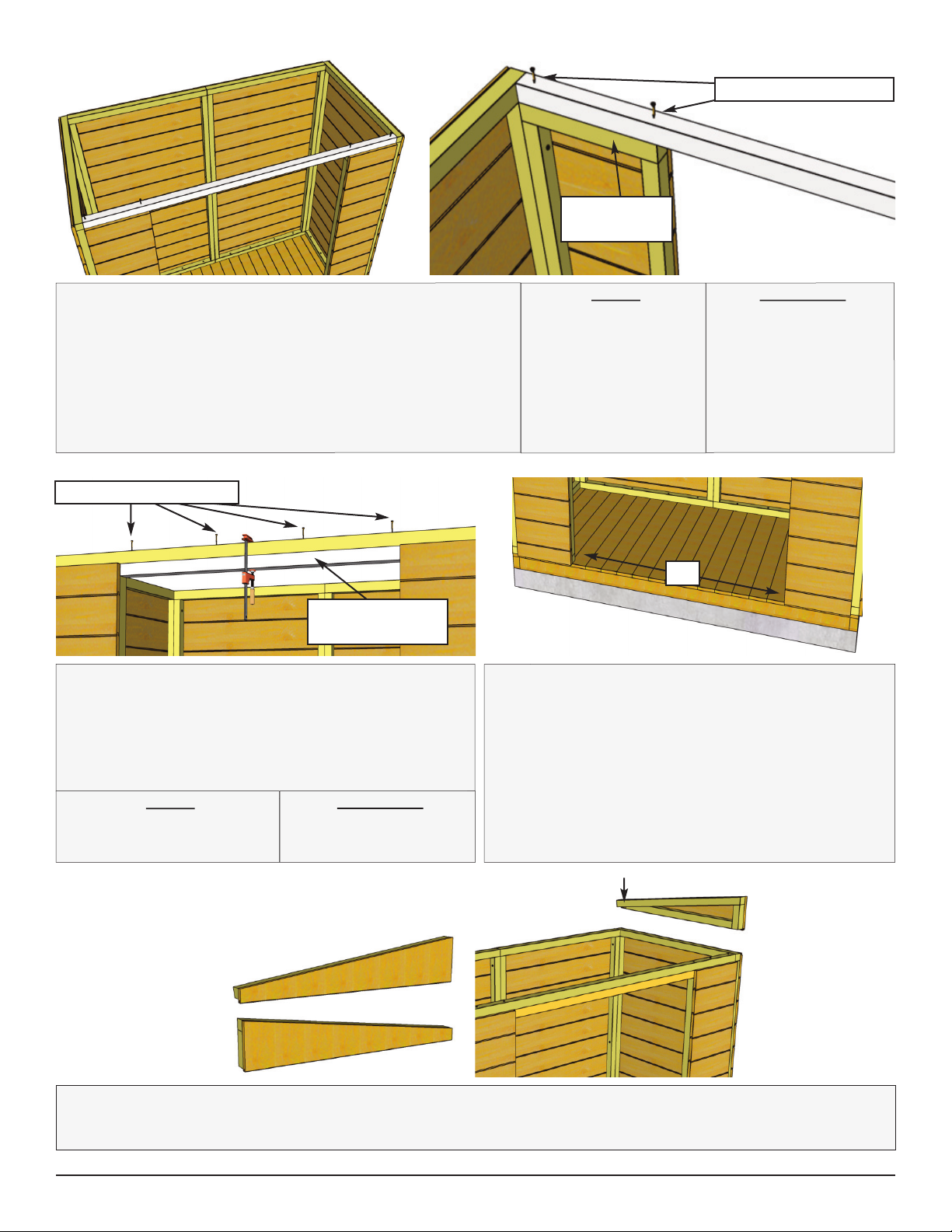

14. Position Interior Door Header underneath
and flush with Front Header. Attach with 4 - 2 1/2”
Brown Screws. Screw down from the Front
Header into Interior Door Header. Use Clamp to
hold Interior Door Header.
Interior Door
Header
Parts
Interior Door Header
(1 1/2” x 1 1/2” x 44 7/8”)
Hardware
2 1/2” Brown Screws
x 4 total
2 1/2” Brown Screws
Side Wall Panel
Front
13. With Front Header positioned evenly on Narrow
Wall top plates and flush against Side Wall top framing,
secure using 4 - 2 1/2” Brown Screws screwing down
from the top of Front Header down into the upper
Narrow Wall plates. Have your helper push side walls
against end of Front Header to achieve tight fit if
possible.
Parts
Front Header
(1 1/2” x 1 1/2” x 70”)
Hardware
2 1/2” Brown
Screws
x 4 total
Front Header
Narrow Wall
Top Plate
2 1/2” Brown screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 14
17. Align Wall framing of Right Side Angle Gable and Side Wall so they are flush at the front. The
siding for both Walls should also align evenly from front to back.
Siding
lines up.
Wall framings
flush.
Tongue and
groove of siding
will align.
Parts (Steps 17 - 19)
Left/Right Side Angle Gables
(6 1/2” x 35”)
Hardware (Steps 17 - 19)
2 1/2” Brown Screws
x 8 total
18. With Right Side Angle Gable and Side Wall aligned correctly, secure together from the inside with
4 - 2 1/2” Brown Screws.
2 1/2” Brown
Screws
2 1/2” Brown
Screws
19. Complete opposite Left Side Angle Gable positioning and attachment as per Steps 17 & 18.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 15
20. Locate one Wall Extender and place on Front Header with siding of Wall Extender
overhanging Front Header.
Siding will overhang
Front Header.
21. With Wall framing aligned, attach Wall Extender to both the Right Side Angle Gable framing and
the Front Header with 5 - 2 1/2” Brown Screws.
Parts (Step 21 - 22)
Wall Extenders
(6 1/4” x 35”) x 2
Hardware (Step 21 - 22)
2 1/2” Brown Screws
x 12 total
22. Position and secure second Wall Extender as per Steps 20 & 21. Additionally, attach to first Wall
Extender with 2 - 2 1/2” Brown Screws.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 16

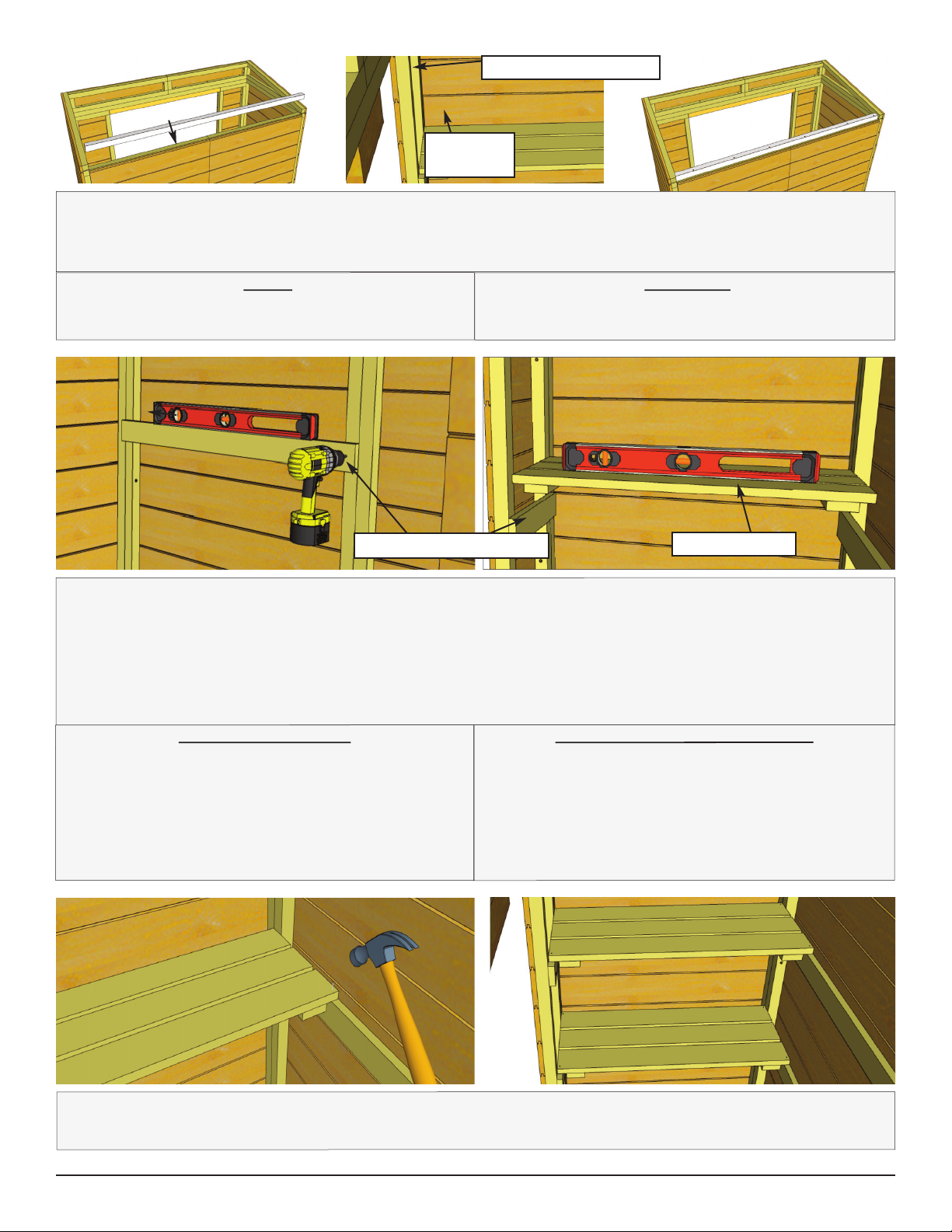

24. Storage Shelf positioning is flexible so decide what height configuration suits your needs.
Gather your Storage Shelf Supports. The short Support (12 1/2”) attaches to the Narrow Wall, the
long (35”) to the Rear Wall. Position using a Level, and drill Pilot Holes to prevent ends of
Supports from splitting. Attach first Support using 2 - 1 1/4” Screws. Place Storage Shelf on
attached Support, Level, and mark position of second Support. Pilot Hole and secure second
Support.
Storage Shelf
Rear Wall
Side Wall
25. Place Storage Shelf on top of supports and secure with 4 - 1 1/2” Finishing Nails. Complete
2nd Shelf (if desired) as per Steps 24 & 25.
Storage Shelf Support
Parts (Steps 24 - 25)
Short Storage Shelf Supports
(3/4” x 2 1/2” x 12 1/2”) x 2
Long Storage Shelf Supports
(3/4” x 2 1/2” x 35”) x 2
Storage Shelves
(11 1/2” x 31 7/8”) x 2
Hardware Parts (Steps 24 - 25)
1 1/4” Brown Screws
x 8 total
1 1/2” Finishing Nails
x 8 total

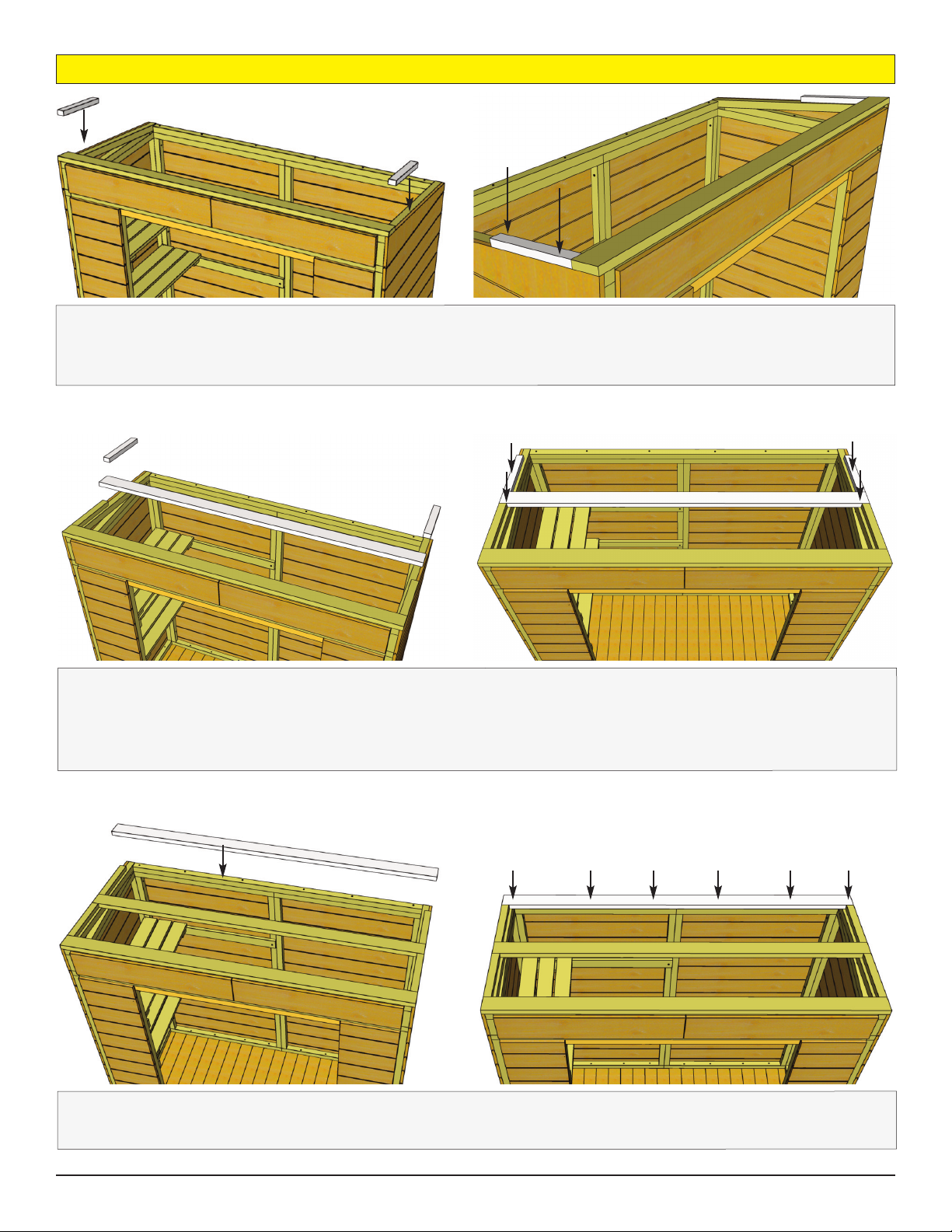

23. Locate Rear Top Plate and place on top of Rear Walls. With Rear Top Plate positioned evenly
and flush against Rear Wall framing, secure using 6 - 2 1/2” Brown Screws screwing down from the
top of Rear Top Plate down into the Rear Wall top plates.
Parts
Rear Top Plate
(1 1/2” x 1 1/2” x 70”)
Hardware
2 1/2” Brown Screws
x 6 total
Rear Wall
Top Plate
2 1/2” Brown Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 17
Parts (Step 26 - 29)
Battens (3/4” x 3 1/2” x 74 1/4”) x 3
Batten Spacers (3/4” x 1 1/2” x 12 3/8”) x 4
Hardware (Step 26 - 29)
1 1/4” Brown Screws
x 22 total
26. Locate first row of Roof Battens and position on top of Side Angle Gables and Wall
Extenders at the front. Batten will sit flush with framing at front and flush with siding of Side Angle
Gable at the side. Attach Batten with 6 - 1 1/4” Brown Screws, one at each end into top of Side
Angle Gable, and into framing of Wall Extender. Important pre-drill pilot hole with 1/8” drill bit first to
prevent from splitting.
Flush at Framing
and Siding
C. Roof Section
Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to
starting.
Metal Roof
Panels (3)
Foam Enclosures(3)
Batten
Spacers (4)
Roof Battens (3)

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 18
27. Place 2 Batten Spacers below each end of the attached Batten, lengthwise along Side Angle
Gable. Ensure Batten Spacer is tight with Batten. Attach Batten Spacer to top of Side Angle Gable
using 2 - 1 1/4” Brown Screws.
28. Locate another Roof Batten and position flush with previously attached Batten Spacers. Attach
with 2 - 1 1/4” Brown Screws, one at each end into framing of Side Angle Gables. Attach a second
row of Batten Spacers flush with the bottom edge of this middle Batten row via the same method as
Step 27.
29. Locate the last Roof Batten and attach flush with previously attached Batten Spacers via the
same method as Step 26, using a total of 6 - 1 1/4” Brown Screws.
Important: Pre-drill Batten Spacers with 1/8” bit before fastening.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 19

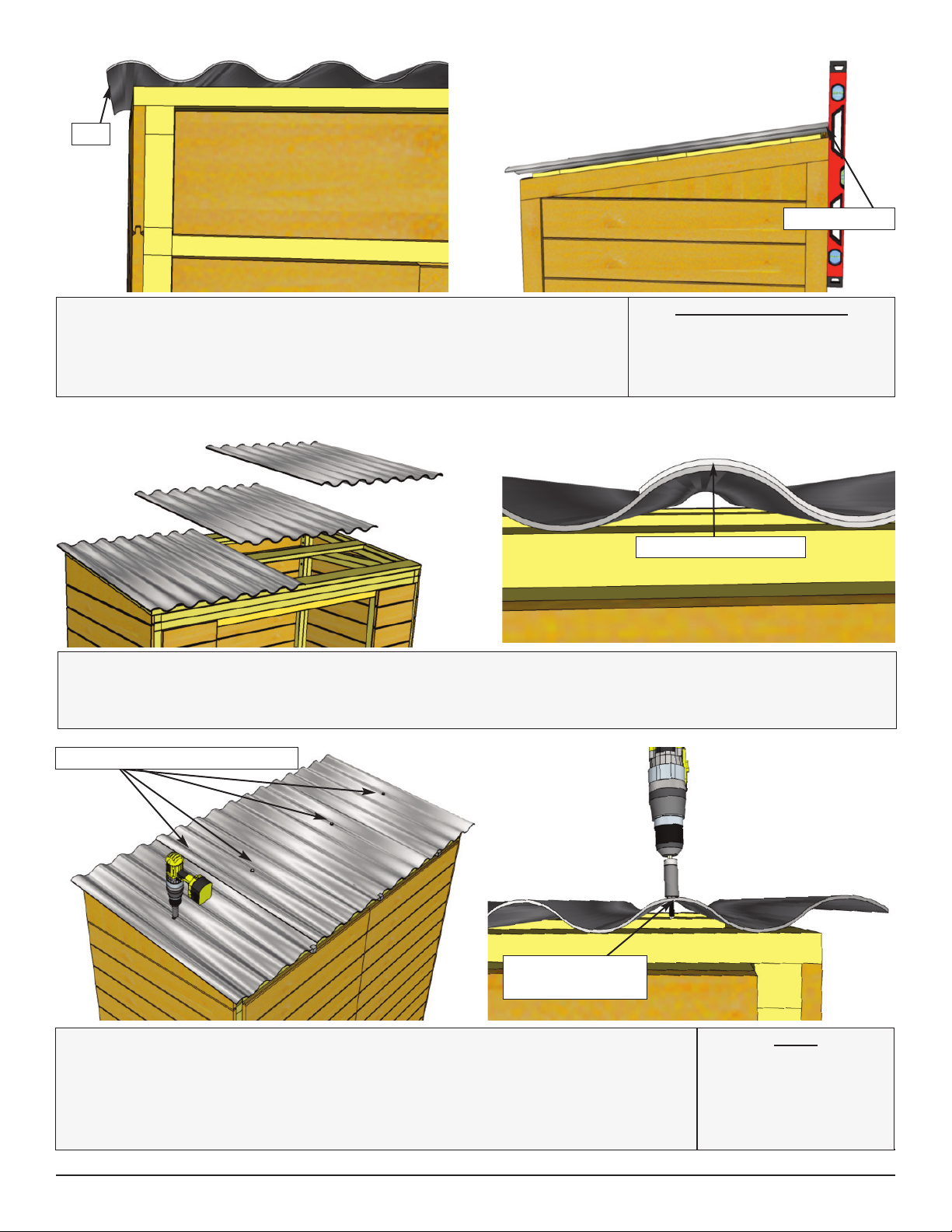

30. Locate first Metal Roof Panel and place on Battens. Overhang
the Metal Roof Panels past the Battens on the sides by
approximately 3/4” and flush at the rear when Side Fascia and Rear
Corner Trims are attached in later steps.
31. Make sure Metal Roof Panels are overlapping. Adjust the position of remaining Metal Roof Panels
on Battens as per Step 30. Overlap Metal Roof Panels to achieve desired overall width. Overall width
past the end of Battens can vary from 3/4” to 3” depending on your personal preference.
Flush at rear
3/4”
Roof Panel overlap
Parts (Steps 30 - 31)
Metal Roof Panel (39”) x 3
32. Using 4 - 2” Metal Roof Screws and 1/4” Nut Driver (included), secure
Metal Roof Panels down to middle Batten row. Metal screw is self-tapping, do
not overtighten. Screw through Roof Panels into center of Batten. Eight more
2” Metal Screws will be required to further secure Metal Roof Panels and to
complete Metal Ridge Caps in later steps.
Parts
2” Metal Roof Screws
x 4
1/4” Nut Driver
x 1
Screw into peak
not valley.
Screw into center of Battens.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 20
33. Insert Foam Enclosures between Metal Roof Panels and Battens at the
Rear. Enclosures may need to be snipped down in length to fit. Enclosures will
prevent moisture and unwanted bugs, etc. from entering your shed through
here.
Parts
Foam Enclosures
x 3
34. Using 4 - 2” Metal Roof Screws and 1/4” Nut Driver, secure Metal
Roof Panels down to lower Battens. Metal screws are self-tapping, do not
overtighten!
Parts
2” Metal Roof Screws
x 4
1/4” Nut Driver
x 1
Insert Foam
Enclosures
Screw into center of Battens
