OLT SSGS1212 User manual

12x12 Sunshed Garden
Shed Interior Wall Kit
Assembly Manual
Version #1
Oct 7th, 2019
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
Thank you for purchasing a 12x12 Sunshed
Garden Shed Interior Wall Kit. Please take the
time to identify all the parts prior to assembly.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1

Thank you for purchasing our 12x12 Sunshed Garden Shed Interior Wall.
Please take the time to identify all the parts prior to assembly.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2
A. Ceiling Section
1A: Ceiling Gable Cleats - 2 pcs @3/4” x 2 1/2” x 30"& 2 pcs @71”
2A: Ridge Cap Sleeves- 2 pcs (3 1/2”w x 4 1/4” h) (66 1/4 & 64 3/4” long)
3A: Ceiling Plywood -(L/R) Long- 2 pcs - 3/8” x 43” x 72 1/2”
4A: Ceiling Plywood -Center Long- 1 pc - 3/8” x 45” x 72 1/2”
5A: Ceiling Plywood -(L/R) Short -2 pcs - 3/8” x 43” x 32 1/2”
6A: Ceiling Plywood -Center Short - 1 pc - 3/8” x 45” x 32 1/2”
7A Ceiling Trim 2 pcs @1/4” x 2 1/2” x 30 7/8”) & 2 pcs @ 1/4” x 2 1/2” x 70”
8A: Rafter Gussets - 2 pcs. 2 1/2”w x 5 1/4”h x 51 3/4”
9A: Interior Soffits - 6 pcs @1/2” x 3 1/2” x 19”
B. Wall Section
1B: Interior Wall Cleats - 2 pcs @ 1 1/2” x 2 1/2” x 12”
2B: Solid Side Wall (Outside Panels L/R) - 2 pcs.(42 3/4”w x 74 1/2”h)
3B: Solid Side Wall (Center Panel) - 1 pc (45 1/4”w x 74 1/2”h)
4B: Double Window Wall (Outside Panels L/R) - 2 pcs.(42 3/4”w x 74 1/2”h)
5B: Double Window Wall (Center Panel) - 1 pc.(45 1/4”w x 74 1/2”h)
6B: Single Window Rear Wall (Outside Panels L/R) - 2 pcs.(45”w x 74 1/2”h)
7B: Solid Rear Wall (Center Panel) - 1 pc.(45 1/4”w x 74 1/2”h)
8B: Single Window Front Wall (Outside Panels L/R) - 2 pcs.(45”w x 74 1/2”h)
9B: Narrow Front Wall (Center Panel) - 1 pc (11 3/4”w x 74 1/2”h)
10B: Front/Rear Gable Center Panels - 2 pcs(45 1/4”w x 27 1/2”h)
11B: Front/Rear Gable Panels L/R - 4 pcs(45”w x 19 1/4”h)- Triangular Shaped
12B: Top Plate for Bottom Dutch Door - 1 pc @ 3/4” x 3 1/2” x 31 1/2”
13B: Top Door Plywood -1 pc - 3/8” x 31 3/8”w x 29 3/16”
14B: Bottom Door Plywood -1 pc - 3/8” x 31 3/8”w x 41 3/16”
C. Trim Section
1C - Vertical Door Stop -Door Jamb Side 1 pc @7/8” x 2” x 72 1/2”
2C: Vertical Door Stop -Narrow Wall Side 1 pc @ 7/8” x 1/2” x 72 1/2”)
3C: Top Horizontal Door Stops 1 pc @3/4” x 2” x 33 5/8”
4C - Vertical Door Trim - Jamb Side 1 pc @1/4” x 2” x 92 1/2” - angle cut 22.5 1 end
5C:- Top Horizontal Door Trim -Filler trim attached 1 pc @1/2” x 2” x 33 1/2”
6C - Vertical Door Trim - Narrow Wall Side 1 pc @ 1/4” x 2” x 72”
7C - Horizontal Side Wall/Ceiling Trim 4 pcs@1/4” x 2” x 65”
8C - Gable Wall/CeilingTrims 4 pcs @1/4” x 2” x 70” 22.5 deg. cut ends
9C Vertical Side Wall Trims 4 pcs @1/4” x 2” x 73 1/2”
10C -Vertical Front/Rear Trims 3 pcs @1/4” x 2” x 92 1/2” ang. cut 22.5 deg 1 end (L/R)
11C - Rafter Bottom Trims 3 pcs @1/2” x 1 1/2” x 31 3/4” & 2 pcs @ 31 3/4”
12C: Large Window Inserts - 4 pcs @21 1/16”w x 26 3/8”h
13C: Small Window Inserts - 6 pcs @16 3/4”w x 24”h
14C: Barrel Bolt and Door Handle Attachment
Steps
Steps
1
2 & 3
9
13
14
15
18
19
25 & 26
24
21-23
20
11-12
35
35
37
42
39
43 & 44
46
45
46
4-7
5
8-10
Steps
41
40
39
38
37
36
33 & 34
29-32
28 & 29
27
16 & 17
47

2 1/2”
1 1/4”
Hardware Kit (Provided)
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
2
Ladders
Screw Gun/Drill Tape Measure
Hammer Level
Tools Required (Not Provided)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3
1/8” Drill Bit
12X12 Sunshed Interior Wall Kit HARDWARE PACKAGE
Optional Materials and Tools - Not Included in Kit
Materials to Insulate Shed prior to installing Interior Wall Kit
2” thick Foam Board Insulation
700 sq ft. (covers walls and ceiling)
144 sq ft additional for floor
6 mm Poly - Air Vapor Barrier -
Tools -
Staple Gun
Utility Knife
Caulking Gun and Caulking
Med. Barrel Bolt
-11 Pcs
S1 - 2 1/2” Screws - 8 Pcs
S2 - 1 1/4” Screws - 190 Pcs
N1 - 1 1/2” Finishing Nails - 320 Pcs
BR1 - Square Drive Bit
Y3 - Black Handle
SB1 - 3/4” Screws
Black Headed
Wood Clamp
4”
BT2 - Torx Drive Bit
ST 2 - Torx Screws - 7 Pcs

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
Exploded view of all parts necessary to complete Interior Ceiling Section. Please Identify all parts
prior to starting your project.
Rafter Gussets -
2 pcs
Ceiling Trim 2 pcs
Ridge Cap Sleeves-
2 pcs
Ceiling Section Exploded
1. Locate long and short cleats.
Position cleat on top of gable framing
tight against rafter. Clamp and screw
to gable frame with 3 - 1 1/4” screws
in short cleat and 3 - 1 1/4” and a
longer 2 1/2” screw in extendor
framing.
A. Ceiling Section
Parts
1A - Celing Gable Cleats
(3/4” x 2 1/2” x 70”) x 2
(3/4” x 2 1/2” x 30”) x 2
Hardware
S1 - 2 1/2” Screws
x 2 total
S2 - 1 1/4” Screws
x 12 total
1A: Ceiling Gable
Cleats
Ceiling Plywood-
(L/R) Long
Ceiling Plywood -
Center Long- 1 pc
Ceiling Plywood -
Center Short - 1 pc
Interior Soffits -
6 pcs
Ceiling Plywood -
(L/R) Short -2 pcs
Rafter
Cleat
Flush
2 1/2” screw

2. Lift up one of the Ridge Cap Sleeves
and position over ridge board. Leave 1”
gap from gable wall. Screw from underside
of sleeve using 3 - 1 1/4” screws.
3. Push second sleeve tight together
with attached sleeve and attach as
per Step 2.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5
Parts
2A - Ridge Cap Sleeve
(3 1/2” x 4 1/4” x 66 1/4”) x 1
(3 1/2” x 4 1/4” x 64 3/4”) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total
1” gap

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
4. Locate long ceiling plywood (43”
wide) and position up against rafter
and ceiling gable cleat. Position
squarly and attach with 1 1/4” screws.
5. Lift long center plywood up and position on
rafters.
Hardware
S2 - 1 1/4” Screws
x 12 total
6. When center ceiling plywood is
positioned correctly on rafters, attach
with 12 - 1 1/4” screws. Make sure to
screw into mid rafter as well as
perimeter rafters.
Page 6
Parts
3A - Long Ceiling Plywood
(left or right)
(3/8” x 43” x 72 1/2”) x 1
Hardware
S2 - 1 1/4” Screws
x 12 total
Parts
4A - Ceiling Plywood (Center)
(3/8” x 45” x 72 1/2”) x 1

7. Attach remaining long ceiling plywood
to rafters as per Step 4.
8. Lift up outside short ceiling plywood
(43” wide) and position and attach like
Step 4. Use only 8 screws to secure.
9. Lift and position short ceiling
plywood (45” wide) and secure as per
Step 5. Use only 8 screws to secure.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7
Parts
3A - Center Ceiling Plywood
(3/8” x 43” x 72 1/2”) x 1
Hardware
S2 - 1 1/4” Screws
x 12 total
Parts
5A - Short Ceiling Plywood
(3/8” x 43” x 32 1/2” long) x 1
Hardware
S2 - 1 1/4” Screws
x 8 total
Parts
6A - Center Ceiling Panel
(3/8” x 45” x 32 1/2” long) x 1
Hardware
S2 - 1 1/4” Screws
x 8 total

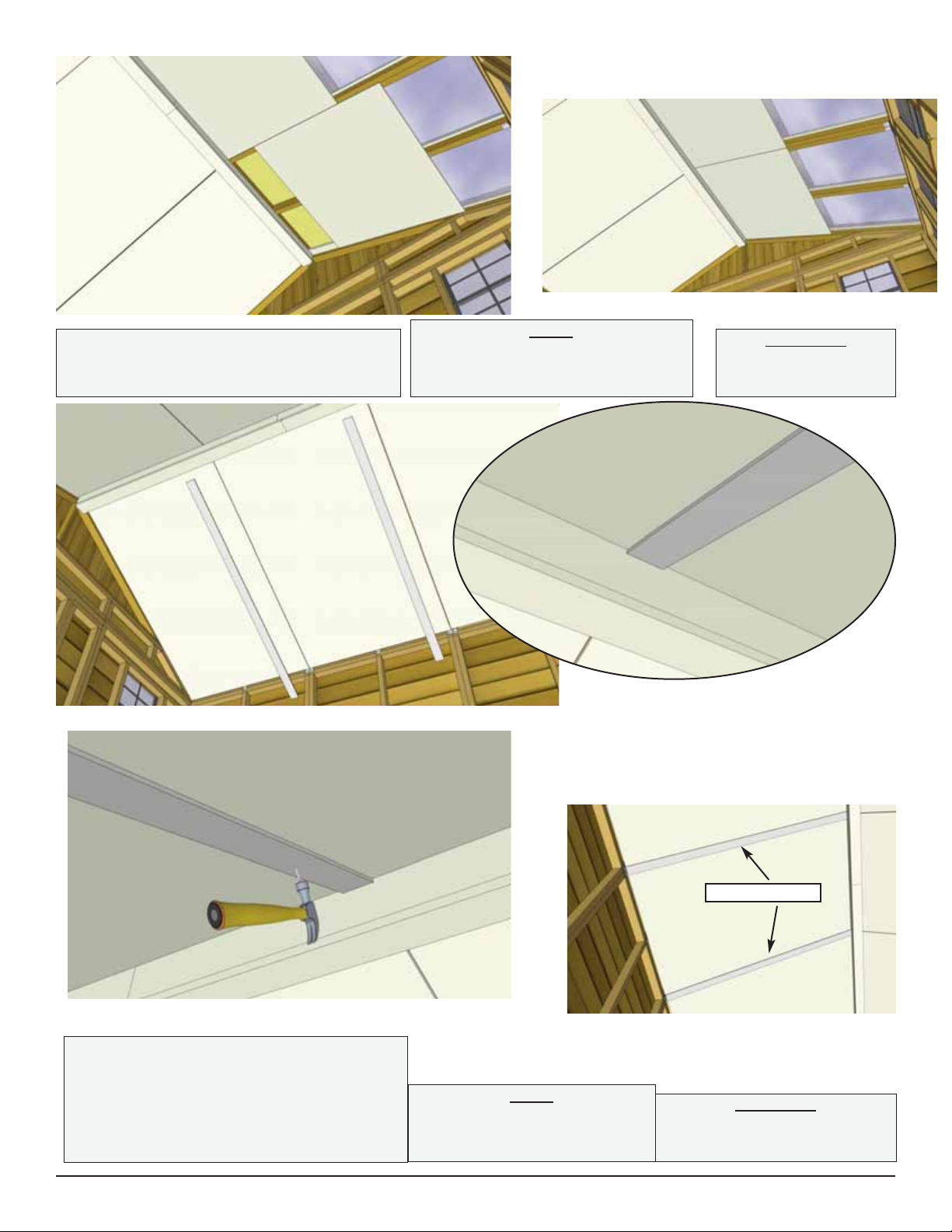

10. Attach final ceiling plywood panel
to rafters as per previous steps.
11. Locate long ceiling trim and posi-
tion over ceiling seam evenly to cover
gap. Attach with 6 finishing nails per
piece.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8
Parts
5A - Short Ceiling Plywood
(3/8” x 43” x 32 1/2” long) x 1
Hardware
S2 - 1 1/4” Screws
x 8 total
Parts
7A - Long Ceiling Trim
(1/4” x 2 1/2” x 70”) x 2
Hardware
N1 - 1 1/2” Finishing Nail
12 total
Long Ceiling Trim

13. Locate both rafter gussets. On a
ladder, position 1st gusset evenly against
ceiling trim as shown above. Drill pilot holes
with appropriate angles first. Secure with
2 - 4” Torq screws per side. Complete both
gussets. Torx Drive Bit required!
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9
Parts
8A - Rafter Gussets
(2 1/2” x 5 1/4” x 51 3/4”) x 2
Hardware
ST2 - 4” Torq Screws
x 8 total
12. Locate short ceiling trim and
position over ceiling seam evenly to
cover gap. Attach with 4 finishing nails
per piece.
Parts
7A - Short Ceiling Trim
(1/4” x 2 1/2” x 30 7/8”) x 2
Hardware
N1 - 1 1/2” Finishing Nail
8 total
Short Ceiling Trim
2 screws/side
Ceiling Trim
Bit found in Hardware Bag!
BT2 - Torx Drive Bit
Torx Bit Required for Step 13

B. Wall Section
15. Position cleat against rear wall in corner
approximately halfway up wall. Attach with 2 - 2
1/2” screws. Cleat provides an edge to screw inte-
rior wall to in Step 16. Complete opposite corner.
Parts
1B - Interior Wall Cleats
(1 1/2” x 2 1/2” x 12”) x 2
Rear Walls
Cleats
Hardware
S1 - 2 1/2” Screws
x 4 total
14. Interior Soffits sit tight up against polygal roof
and support cleats. Soffits may need to cut short to
fit correctly. Attach each with 4 - 1 1/2” nails. Nail
into edge of short ceiling plywood. Complete all six.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10
Parts
9A - Interior Soffit
(1/2” x 3 1/2” x 19”) x 6
Hardware
N1 - 1 1/2” Nails
x 24 total
Soffit
Ceiling Plywood
Flush
Tight against Polygal
Support Cleat
Flush
Tight against Polygal
Support Cleats
Tight against
Polygal

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11
16. Locate solid left wall panel (42 3/4” wide).
The left panel will have wall siding recessed on
the left side as illustrated above. Position on wall
studs and secure with 6 - 1 1/4” screws.
Parts
2B - Solid Side Wall -Left
(42 3/4”w x 74 1/2”h) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total
Siding gap
on left side.
17. Locate solid right wall panel (42 3/4” wide).
The right panel will have wall siding recessed on
the right side as illustrated above. Position on wall
studs and secure with 6 - 1 1/4” screws.
Pre-drill siding
with 1/8” drill bit.
Pre-drill siding
with 1/8” drill bit.
Parts
2B - Solid Side Wall -Right
(42 3/4”w x 74 1/2”h) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total
Siding gap
on right side.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12
18. Locate solid center wall panel (45 1/4”
wide). Center panel wall siding is flush with
plywood backing. Position between previously
installed panels on wall studs and secure with
6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Pre-drill siding
with 1/8” drill bit.
There are 2 Solid Center Wall
Panels that are identical. The
second panel is used in
Step 23 on the rear wall.
Pre-drill siding
with 1/8” drill bit.
Parts
3B - Solid Side Wall -Center
(45 1/4”w x 74 1/2”h) x 1
19. Locate double window wall, left and right
wall panels (42 3/4” wide). The panels will be
recessed on the outside edge as per Steps
16-17. Position on wall studs and secure as
previously illustrated.
Parts
4B - Double Window Wall
Outside Panels (Left/Right)
(42 3/4”w x 74 1/2”h) x 2
Hardware
S2 - 1 1/4” Screws
x 12 total

20. Locate double window center wall
panel (45 1/4” wide). Panel wall siding will
be flush with plywood backing. Position
between previously installed panels on wall
studs and secure with 6 - 1 1/4” screws.
Parts
5B - Double Window Wall
Center Panel
(45 1/4”w x 74 1/2”h) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total
Pre-drill siding
with 1/8” drill bit.
21. Locate single window wall panel (45” wide).
All single window wall panels (4) are built exactly
the same and are interchangeable. Position in rear
corner. Slide edge tight in corner against side wall
plywood backing. Adjust panel so window openings
match. Secure with 6 - 1 1/4” screws.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13
Parts
6B - Single Window Wall
Rear Panel
(45”w x 74 1/2”) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14
Parts
6B - Single Window Wall
Rear Panel
(45”w x 74 1/2”) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total
22. Locate a second single window wall panel
(45” wide). Position in opposite rear corner. Slide
edge tight in corner against side wall plywood
backing. Adjust panel so window openings match.
Secure with 6 - 1 1/4” screws.
23. Once panel is correctly position on
wall framing, secure with 6 - 1 1/4” screws.
Pre-drill siding
with 1/8” drill bit.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15
Pre-drill siding
with 1/8” drill bit.
25. Locate the third single window wall panel
(45” wide). Position in front left corner as per
Step 21. Slide edge tight in corner against
side wall plywood backing. Adjust panel so
window openings match. Secure with 6 - 1
1/4” screws.
24. Locate solid center wall panel (45 1/4”
wide). Center panel wall siding is flush with
plywood backing on edges. Position between
previously installed panels on wall studs and
secure with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
7B - Solid Rear Wall -Center
(45 1/4”w x 74 1/2”h) x 1
Parts
8B - Single Window Wall
Front Panel
(45”w x 74 1/2”) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16
26. Locate the final single window wall panel
(45” wide). Position in right front corner. Slide
edge tight in corner against side wall plywood
backing. Adjust panel so window openings
match. Secure with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
27. Position and attach narrow wall
panel next to door on wall framing.
Attach with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
9B - Narrow Front Wall Panel
(11 3/4”w x 74 1/2”h ) x 1
Parts
8B - Single Window Wall
Front Panel
(45”w x 74 1/2”) x 1
Pre-drill siding
with 1/8” drill bit.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17
28. Lift up front center gable panel
and slide notch up against roof ridge
board.
29. Once gable panel is aligned correctly, attach in 4
locations as illustrated above with 1 1/4: screws.
Locate front gable left panel side and position if front
corner against gable framing.
Parts
10B - Front Gable Center Panel
(45 1/4”w ” x 27 1/2”) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
Notch
Parts
11B - Front Gable Left Panel
(45 1/4”w ” x 19 1/4”) x 1
Gable siding overhangs wall siding
Pre-drill siding
with 1/8” drill bit.
Left Front Gable Panel
There are matching sets of
front and rear gable panels.
They are interchangable for
Steps 28-32.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18
30. When positioned correctly, gable siding will
overhang window wall siding with plywood back-
ing pushed tight together. Attach with 4 - 1 1/4”
screws.
31. Locate front gable right panel
side and position if front
corner against gable framing as per
Step 29-30.
Gable siding overhangs wall siding
Pre-drill siding
with 1/8” drill bit.
Hardware
S2 - 1 1/4” Screws
x 4 total
Hardware
S2 - 1 1/4” Screws
x 4 total
Parts
11B - Front Gable Right Panel
(45 1/4”w ” x 19 1/4”) x 1

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 19
32. Attach rear gable panels
as per Steps 28-31.
Parts
10B - Rear Gable Center Panel
(45 1/4”w ” x 27 1/2”) x 1
11B - Rear Gable Left Panel
(45 1/4”w ” x 19 1/4”) x 1
11B - Rear Gable Right Panel
(45 1/4”w ” x 19 1/4”) x 1
33. To accomodate interior door plywood,
the existing top plate on bottom door must be
removed first. Using a hammer, carefully pry
off the top plate and remove any hardware
Hardware
S2 - 1 1/4” Screws
x 12 total
Existing Top Plate on
Bottom Door to be
removed.

34. Position replacement top plate
on bottom and attach with 6 - 1 1/2”
nails.
35. Position top door plywood over
door framing. Confirm it is evenly
positioned on door and attach with 12 -
1 1/2” nails. Position bottom door ply-
wood on door. Position tight under new
top cap and attach with 12 - 1 1/2” nails.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 20
Parts
13B - Top Door Plywood
(3/8” x 31 3/8” x 29 3/16”h) x 1
14B - Bot. Door Plywood
(3/8” x 31 3/8” x 41 3/16”h) x 1
Parts
12B - Top Plate for Bottom
Dutch Door
(3/4” x 3 1/2” x 31 1/2”) x 1
Hardware
N1 - 1 1/2” Finishing Nails
x 6 total
3/8” overhang
Replace Top Plate
Hardware
N1 - 1 1/2” Finishing Nails
x 24 total
Top Plate
Flush
