9’ x 9’ Muskoka Cabin
Assembly Manual
Version #1.3
May 12, 2022
1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
Thank you for purchasing a
9x9 Muskoka Cabin. Please take
the time to identify all the parts
prior to assembly.
Safety Points and Other Considerations
Our products are built for use based on
proper installation on level ground and
normal residential use. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.
Customers are responsible for ensuring
a solid, level, well-draining site for
construction.
Please check with your local municipal
or county by-laws before ordering this
product to confirm it complies with
building codes.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it
is advisable to sweep snow off roof frequently.
- If the product is elevated, any structural and building code requirements are solely
the customer's responsibility, and should be abided by.
- In areas with high or gusty wind conditions, it is advisable to install the structure
securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are
tightly affixed.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.

What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construcon area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local ulies company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundaon you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly Manual.
If doing the assembly yourself, have all the necessary tools ready to go and in•
working condion. A list of required tools can be found aer the parts list.
One helper is recommended to assist in construcng your shed.•
It generally takes two people about 3 days to assemble a shed. If you’re
hiring a contractor, their rate should be in line with that duraon of work.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2

Foundation Types for 10x10 Muskoka Cabin
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (110 1/4” x 110 1/4”) or larger.
- 6” Deep foundation.
- 1.75 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.0 Cubic Yards of gravel required, approximately 18 wheelbarrows.
- 6 - 4x4 Pressure Treated Stringers 12’ long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.0 Cubic Yards of gravel required, approximately 18 wheelbarrows.
- 24 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
110 1/4”
110 1/4”
6” Deep
6 - 4”x4”x110 1/4”
24 Patio Stones
Floor Frame
Concrete Foundation Completed Foundation
17 3/4”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Completed Foundation
Gravel Foundation with Patio Pavers
Front Side Front Side Front Side
Front Side Front Side Front Side
Front Side Front Side
110 1/4”
110 1/4”
122 1/4”
122 1/4”
Front Side
122 1/4”
122 1/4”
Page 3

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
Thank you for purchasing our 10 x 10 Muskoka Cabin.
Please take the time to identify all the parts prior to assembly.
No Details Length Quantity
1118 1/8” 2
2149 5/8” 2
3149 5/8” 2
4149 5/8” 2
5149 5/8” 2
6143 5/16” 2
7137” 2
8118 1/8” 38
9118 1/8” 1
10 54 1/2” 2
11 48 1/2” 2
12 41 7/8” 20
13 15 3/4” 28
14 10 1/4” 28
s1 149 5/8” 1
s2 149 5/8” 1
s3 149 5/8” 4
b1 118 1/8” 2
f1 116 1/2” 2
g1 2
Triangular Gable
(Ships as 3 separate pieces)
Note: you may find the detailed drawings at the end of the manual.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5
No Details Length Quantity
15 Front Wind Flap 5/8” x 3 3/8” 78 3/4” 4
16 Top Wind Flap 5/8” x 3 3/8” 78 3/4” 4
17 Side Wind Flap 5/8” x 1 3/4” 149 5/8” 2
18 Flashing Rhomb (Detail plate) 2
19 Railing 3/4” x 4 3/8” 33 1/2” 2
20 Railing 3/4” x 4 3/8” 20 5/8” 4
21 Lath 1 3/16” x 1 3/4” 106 1/4” 2
22 Ladder Components 8
23 Floor Runners 1 1/2” x 3 1/2” 39” & 71” 6 each
24 Floor Boards (Main Floor) 1 1/8” x 5 1/8” 106 1/4” 21
25 Floor Boards (Loft) 1 1/8” x 5 1/8” 63” 21
26 Roof Boards 5/8” x 5 1/8” 76 3/4” 30
27 Roof Boards 5/8” x 5 1/8” 76 3/4” 30
28 Door 33” x 74 1/4” 1
29 Window (Side Walls) 34 1/4” x 30 1/4” 2
30 Window (Front Walls) 16 1/2” x 74 1/4” 2
31 Window (Loft) 20 1/2” x 20 1/2” 2
32 Metal Roof Panels 39 1/2” x 81” 10
33 Metal Ridge Cap 60” 3
34 Foam Enclosures 24” 24
35 Floor Frame Small 36 3/4” x 36 3/4” 3
36 Floor Frame Large 73 1/2” x 36 3/4” 3
37 Floor Joist Small 1 1/2” x 3 1/2” 33 13/16” 6
38 Floor Joist Large 1 1/2” x 3 1/2” 70 7/16” 6
39 Floor Plywood 5/8” x 36 3/4” 73 1/2” 3
40 Floor Plywood 5/8” x 36 3/4” 36 3/4” 3
41 Side Window Filler Strip 3/4” x 1 1/2” 34” 2
42 Side Window Trim Bundle 2
43 Side Window Interior Trim Bundle 2
44 Loft Window Trim Bundle 2
45 Loft Window Interior Trim Bundle 2
46 Ledger Strips 1 1/2” x 1 1/2” 53” 4
47 Facia Strips 3/4” x 1 1/2” 65” 4

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6
S1 - 2 1/2” Screws
S4 - 3” Screws
x 105
x 175
x 395
x 210
S2 - 1 1/4” Screws
N1 - 1 1/2” Finishing Nails
BR1 - Square Drive Bit x 1
x 2
Ladder
Screw Gun/Drill Tape Measure
Hammer
Level
Pliers
Tools Required (Not Provided)
1/8” Drill Bit
Safety Glasses Work Gloves
Safety Equipment Required
(Not Provided)
Wood Clamp
Utility Knife
MUSKOKA 9x9 HARDWARE PACKAGE
S3 - 2” Screws x 125 Silicon Caulking
x 80
1/4”x 2”
Metal Roof Screw
x 3
1/4” Nut Driver
Mallet Block
x 1
Helpful Tips for Assembly
- Screw through notches
- Mallet and block to pound in T&G of wall pieces
- Use a bar clamp to guide twisted pieces into place
- Optional 6” deck screws for center of boards if needed
- Some boards are not ID numbered but are identifiable by size in parts list
Rubber Mallet

1. Floor Section
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7

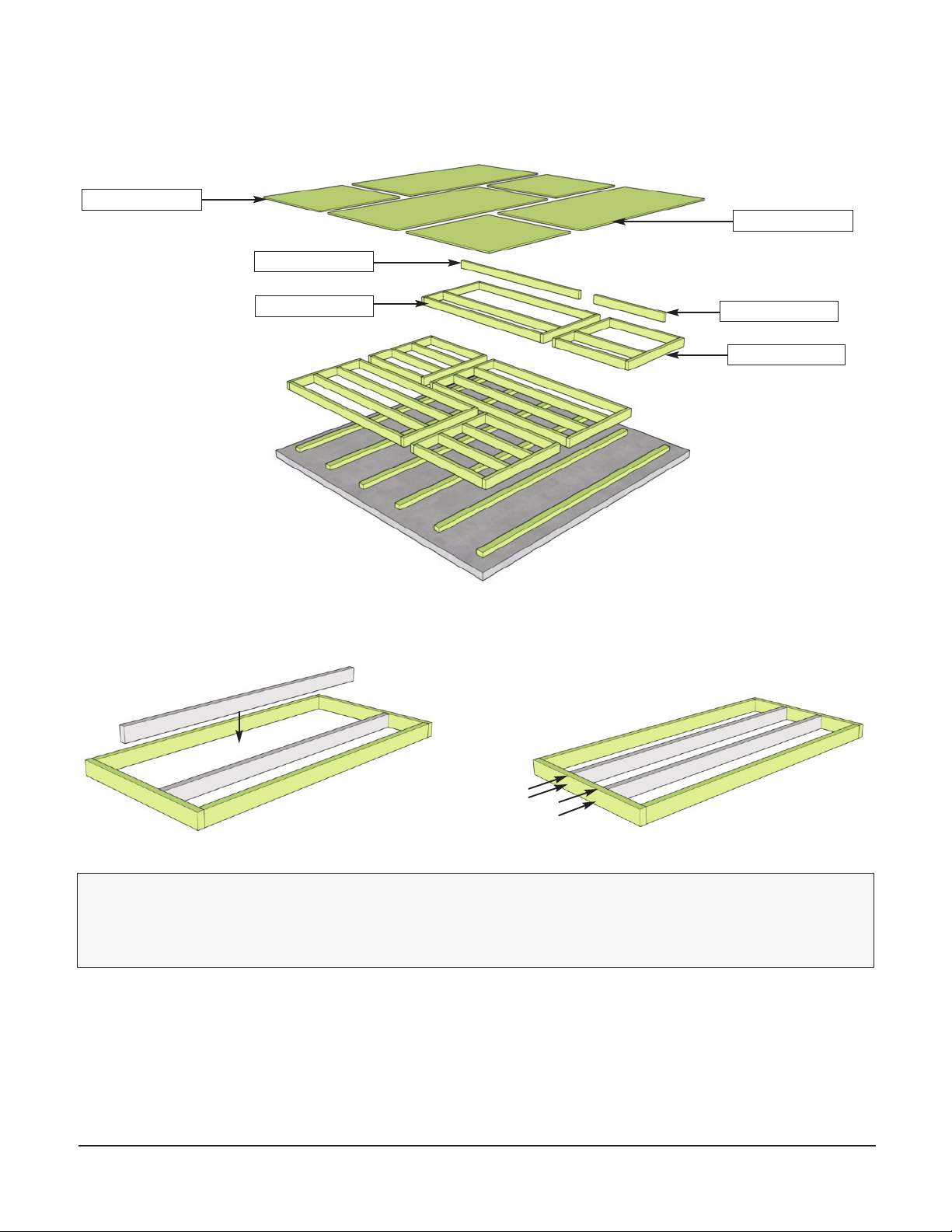

Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note: Floor Footprint is 110 1/4” wide x 110 1/4” deep.
1. Lay out Part 36 - Floor Frame and two Part 38 - Floor Joists as illustrated above. Position
Joists so they are spaced equally in Floor Frame and flush with framing. When correctly positioned,
attach each Joist with 4 - 2 1/2” Screws (2 per end). You can find the Square Drive Screw Bit in
the Hardware Kit Bag. Complete remaining Floor Frame the same.
Part 35 (3pcs)
Part 36 (3pcs) Part 37 (6pcs)
Part 38 (6pcs)
Part 39 (3pcs)
Part 40 (3pcs)

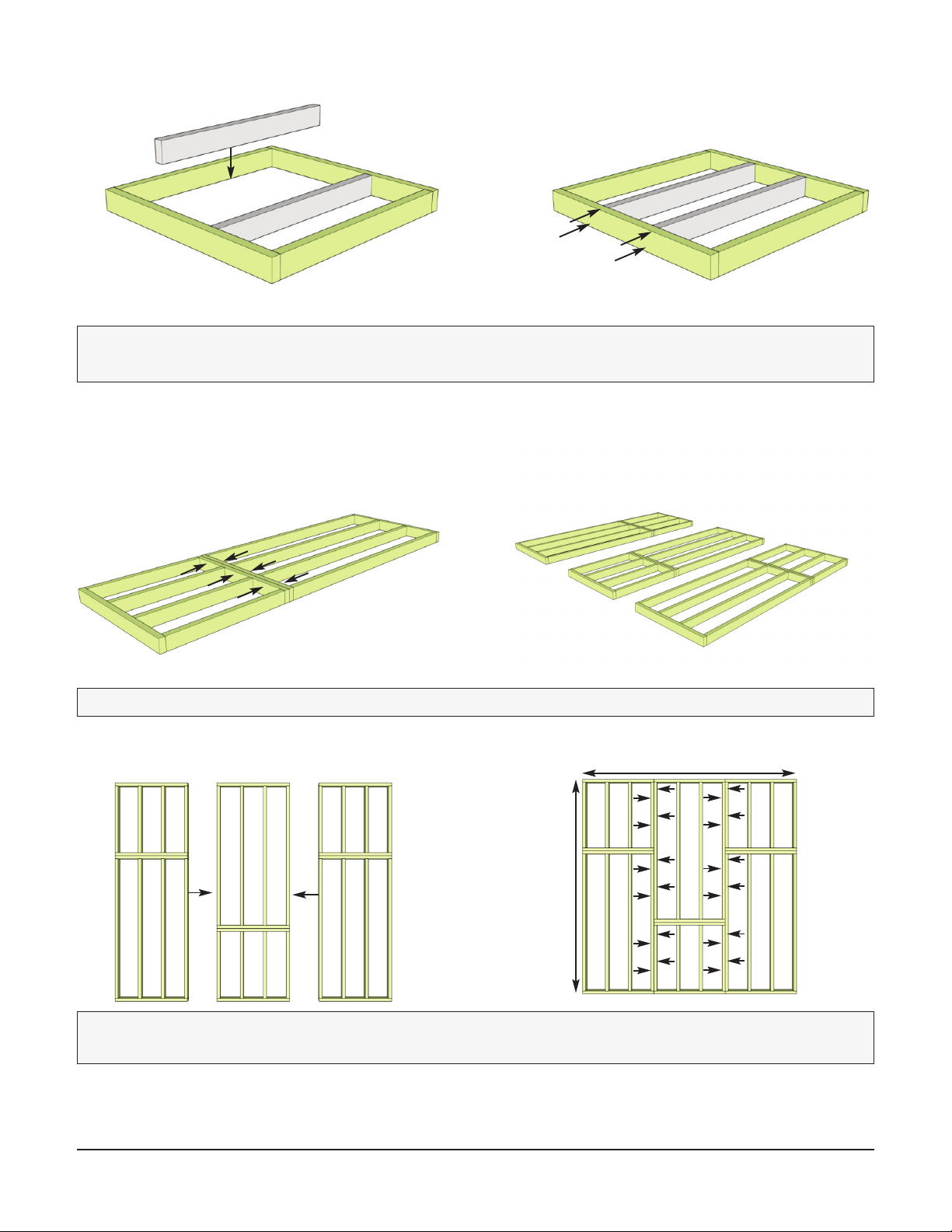

2 . Lay out Part 35 - Floor Frame and two Part 37 - Floor Joists as illustrated above and assem-
ble as per Step 1. Complete each frame.
3 . Screw Frames 35 & 36 together with 6 - 2 1/2” screws. Complete 3 sets of floor frames
4 . Screw each set of floor frames together with 24 - 2 1/2” screws. Have the middle floor running
the opposite direction as the outside one as illustrated.
110 1/4”
110 1/4”
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9

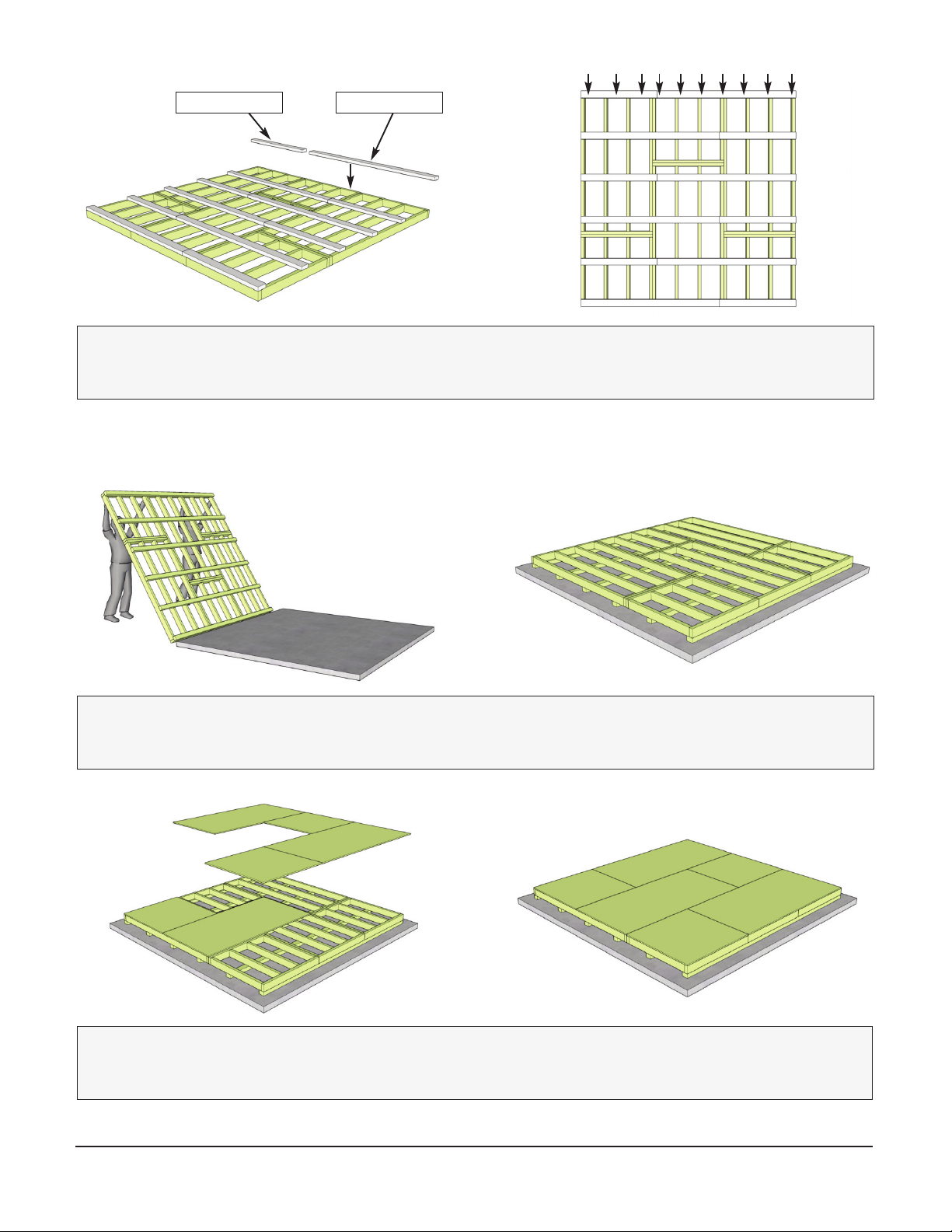

5. Locate Parts 23 - Floor Runners (12 Total). Place two on each edge of floor frame and evenly
space remaining 8. Run floor runners perpendicular to floor joists. Floor runners should be
approximately 18 3/4” apart Fasten each runner with 10 - 3” screws.
6. With floor runners attached to floor frame, carefully flip the floor over and place on to your
foundation. Caution, be careful when laying floor down not to bend or twist floor. Having a level
foundation is critical (see page 3 for foundation help).
7. Locate Parts 39 & 40 - Floor Plywood and position on top of completed floor joists. Ensure
Plywood Floor panels are positioned as above perpendicular to floor joists. Keep plywood seams
tight.
71” Runner39” Runner

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10

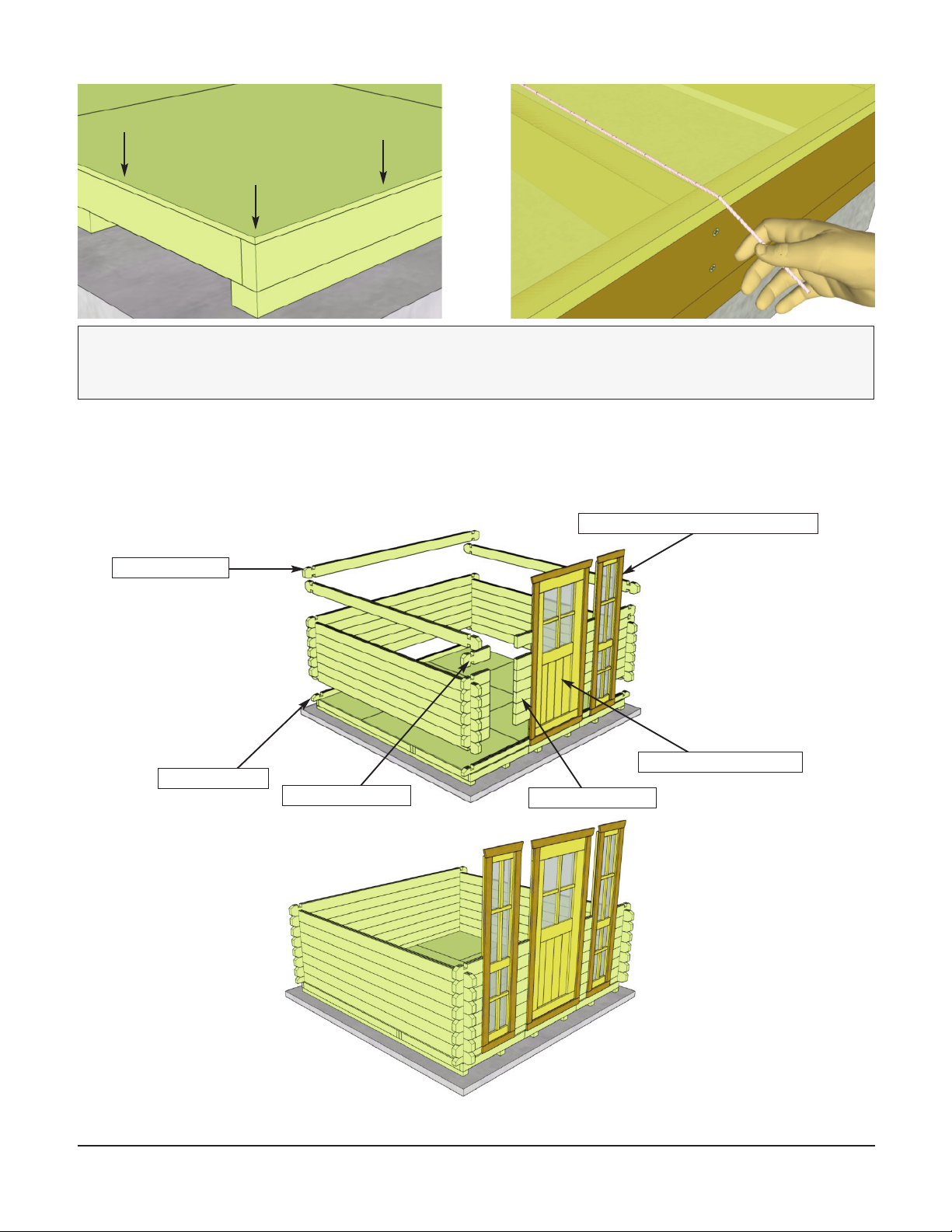

8. With Plywood in position on floor framing, attach with 1 1/4” screws every 16”
(Approximately 75 Total). Hint: Use a chalk line to mark location of floor joists for easy screw
placement.
2. Lower Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts
prior to starting.
Part 8 (38pcs)
Part 14 (14pcs)
Part 13 (14pcs)
Part 1 (2pcs) Part 28 Door (1pcs)
Part 30 Front Window (2pcs)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11
9. Locate Parts 1 (2 Total). Place one on each edge of floor frame. Use 2 Part 8’s from Step 10 to
ensure starter pieces are spaced correctly. Once positioned secure Part 1’s to floor using
1 - 3” screw in each end (4 total).
Important: Front door will
be positioned here
10. Locate Part 8 (2 Total). Place one on each edge of floor frame and interlock in the notch of
Part 1. Fasten each Part 8 with 2 - 3” screws, one in each end. Each board will be fastened this
way as you build your structure.
11. Locate a Part 8 and 2 Part 13’s. Place 1 Part 8 at the rear of Cabin and 2 Part 13’s at the
front. Fasten each notch with 1 - 3” screw.
Part 1 (2pcs)
Part 8 (2pcs)
Part 8 (1pc) Part 13 (2pcs)

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12
12. Locate 2 more Part 8’s, place and fasten as per Step 10.
13. Continue adding Part 8’s and Part 13’s until your side walls are stacked 7 boards high.
14. Locate Part 14 (14 Total). Position Part 14’s approximately 16 1/2” inches from Part 13. Use
the Door and Windows from Step 15 to confirm position, then secure each piece to Part 1 with
2 - 3” screws.
16 1/2”33”16 1/2”
Part 8 (2pcs)
Part 8 (16pcs) Part 13 (12pcs)
Part 14 (2pcs)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13

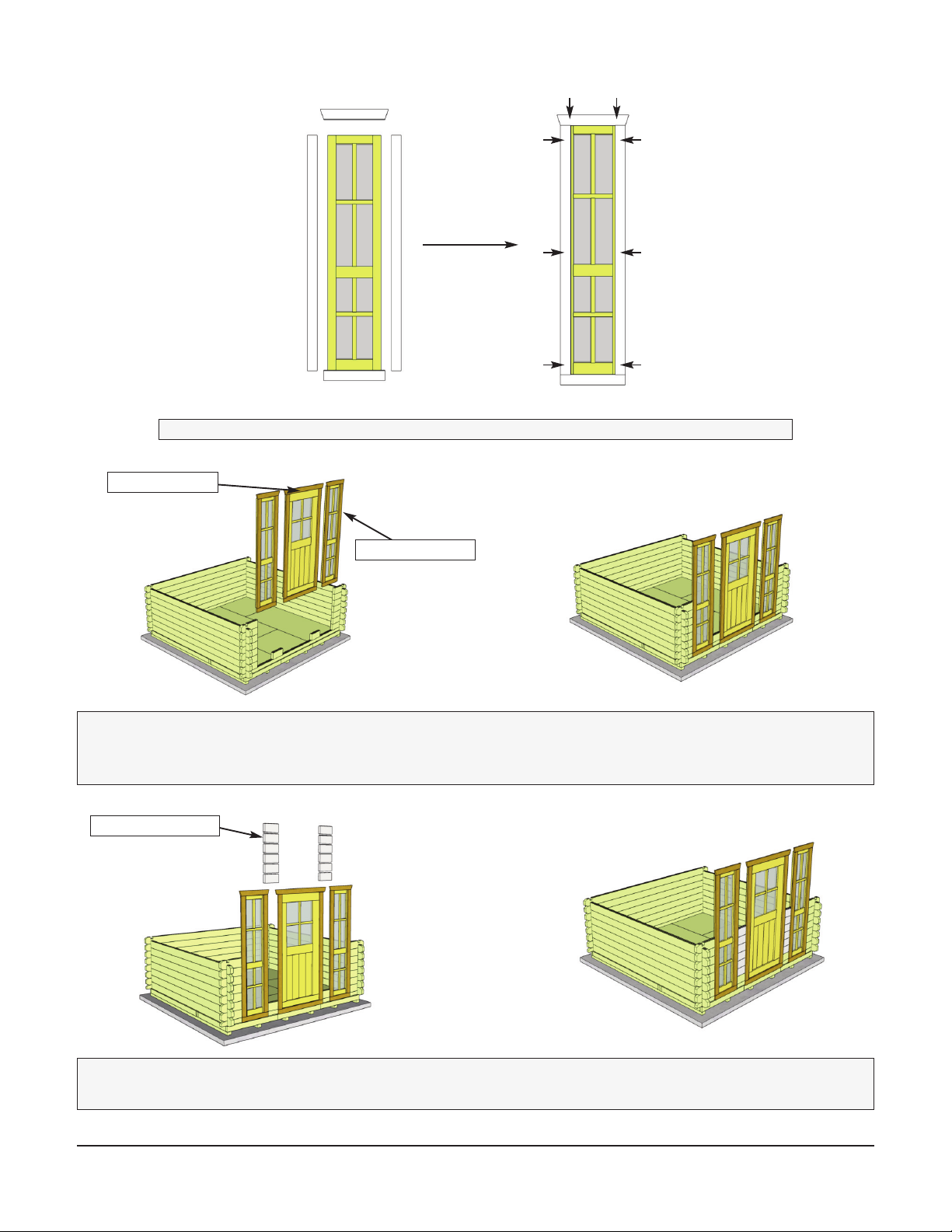

15. Locate Part 28 (Door) and Parts 30 (Front Windows). Ensure Door and Windows fit between
Part 14’s previously installed. Use a shim to keep the door off the ground. If you find it easier to
assemble the Bunkie without the doors you can leave them uninstalled till Step 23.
16. Locate Parts 14 (12 Total) to finish lower wall section. Stack each Part 14 between front win-
dow and doors until you reach 7 high.
Part 30 (2pcs)
Part 28 (1pc)
Part 14 (12pcs)
Note: Attach both top and side trims to front window panels before installation.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14

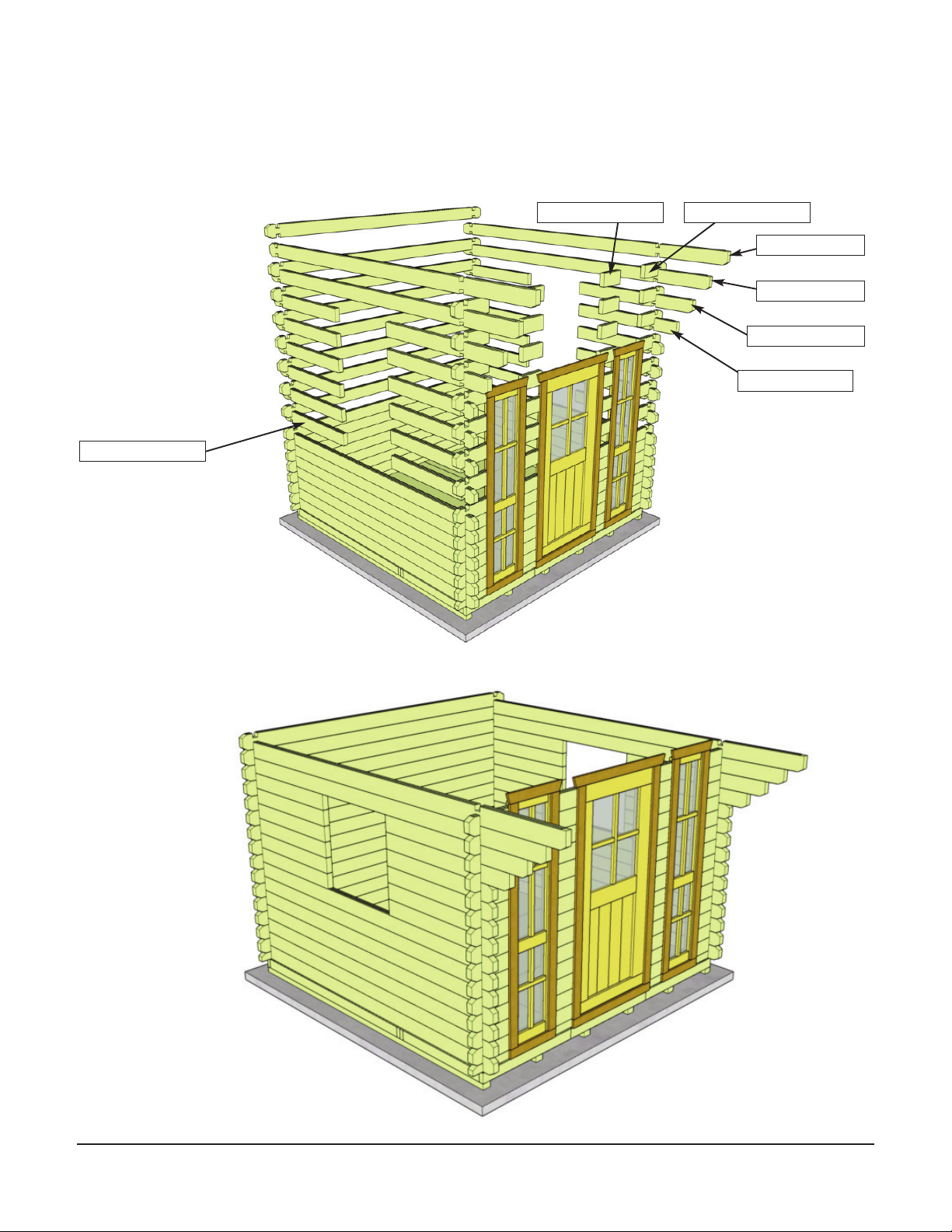

3. Upper Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts
prior to starting.
Part 12 (20pcs)
Part 11 (2pcs)
Part 6 (2pcs)
Part 7 (2pcs)
Part 10 (2pcs)
Part 14 (14pcs) Part 13 (14pcs)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15
17. Locate Parts 12 (20 Total) and 1 Part 8 for the rear wall. Part 12’s will allow for a window
opening while continue to build the walls.
18. Continue building the walls as per Step 17 until you have added boards 4 high around the
window opening.
19. Locate Parts 11 (2 Total). Continue adding to your walls as per Steps 17-18.
Part 11 (2pcs)
Part 12 (4pcs)
Part 8 (1pc)
Part 12 (12pcs)
Part 8 (3pcs)
Part 12 (2pcs)
Part 13 (2pcs)
Part 14 (2pcs)
Part 13 (2pcs)
Part 14 (2pcs)
Part 13 (4pcs)
Part 14 (4pcs)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16
20. Locate Parts 10 (2 Total). Continue adding to your walls as per Steps 17-18 but replace the
front Part 12’s with Part 10’s. Place one on each side.
21. Locate Parts 7 (2 Total). With boards stacked 6 high on either side of the window opening,
Place a Part 7 on top above the window opening.
22. Locate Parts 6 (2 Total). Attach Part 6 above Part 7 to complete upper wall section.
Part 10 (2pcs)
Part 7 (2pcs)
Part 12 (2pcs)
Part 8 (1pc)
Part 8 (1pc)
Part 6 (2pcs)
Part 8 (2pcs)
Part 13 (2pcs)
Part 14 (2pcs)
Part 13 (2pcs)
Part 14 (2pcs)
Part 13 (2pcs)
Part 14 (2pcs)

4. Loft Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts
prior to starting.
Part 2 (2pcs)
Part 5 (2pcs)
Part 4 (2pcs)
Part 3 (2pcs)
Part 9 (1pc)
Part 8 (11pcs)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18
23. Locate Part 9 (1 Total). Part 9 is notched out to fit over the front door and windows. If the front
door and windows have not been installed yet, install them now.
24. Locate Parts 2 (2 Total). Position on side walls and fasten.
25. Locate Parts 8 (4 Total) & Parts b1 (2 Total). Position on roof as illustrated above and fasten.
Part 9 (1pc)
Part 2 (2pcs)
Part b1 (2pcs)
Part 8 (4pcs)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 19

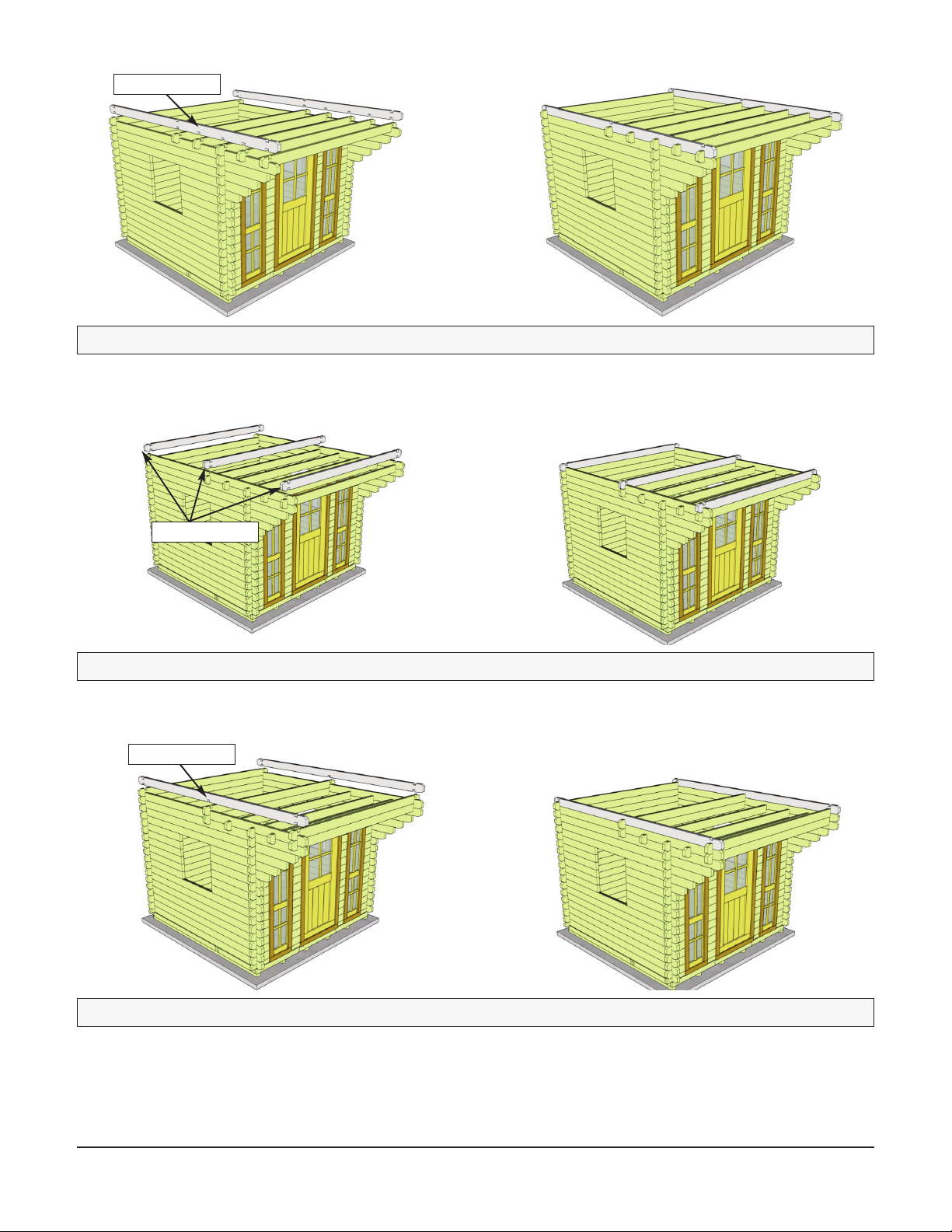

26. Locate Parts 3 (2 Total). Position on side walls and fasten.
27. Locate Parts 8 (3 Total). Position and fasten.
28. Locate Parts 4 (2 Total). Position on side walls and fasten
Part 3 (2pcs)
Part 4 (2pcs)
Part 8 (3pcs)

5. Loft Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts
prior to starting.
Part 25 (21pcs)
1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 20
29. Locate Parts 5 (2 Total). Position on side walls and fasten
30. First install Part 46 with 3 - 2” screws per strip to support floor boards. Locate Parts 25
(21 Total). Place on loft rafters (Parts b1 &8). With floor boards in position secure each board to loft
rafters with 4 - 2” screws per piece (84 Total). Be sure to screw through floor boards into loft
rafters. You can use the end pieces profile as a guide.
Part 46 (4pcs)
Part 5 (2pcs)
Part 8 (2pcs)
Part 46 flush
with Part 8
