OLT CB128-FJ-PLY User manual

12x8 Cabana Shed
FJ Bevel Model with Plywood Roof
Assembly Manual
Version #2.2
January 18, 2022
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
Thank you for purchasing
a 12x8 Cabana. Please take
the time to identify all the
parts prior to assembly.
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
Safety Points and Other Considerations
Our products are built for use based on
proper installation on level ground and
normal residential use. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.
Customers are responsible for ensuring
a solid, level, well-draining site for
construction.
Please check with your local municipal
or county by-laws before ordering this
product to confirm it complies with
building codes.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it
is advisable to sweep snow off roof frequently.
- If the product is elevated, any structural and building code requirements are solely
the customer's responsibility, and should be abided by.
- In areas with high or gusty wind conditions, it is advisable to install the structure
securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are
tightly affixed.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
Stock Code #
CB128-FJ-PLY
Roof Area: 112 sqft

What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construcon area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local ulies company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundaon you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly Manual.
If doing the assembly yourself, have all the necessary tools ready to go and in•
working condion. A list of required tools can be found aer the parts list.
One helper is recommended to assist in construcng your shed.•
It generally takes two people over two days to assemble a shed. If you’re
hiring a contractor, their rate should be in line with that duraon of work.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2

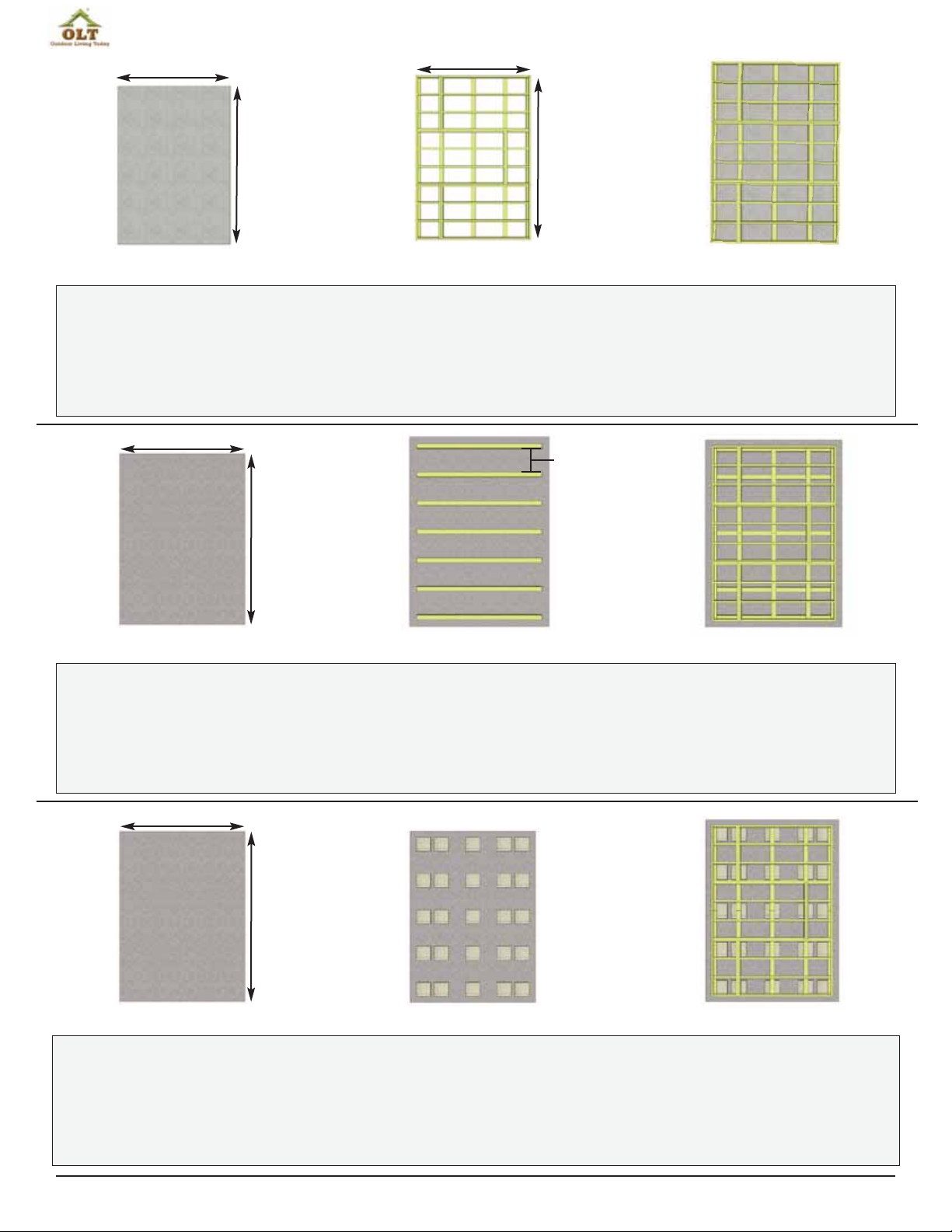

Foundation Types for 8x12 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (136 1/2” x 96”) or larger.
- 6” Deep foundation.
- 1.7 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximately 19 wheelbarrows.
- 7 - 4x4 Pressure Treated Stringers 8’ long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximately 19 wheelbarrows.
- 25 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
96”
136 1/2”
6” Deep
108”
148 1/2”
7 - 4”x4”x96”
25 Patio Stones
Floor FrameConcrete Foundation Completed Foundation
18 5/8”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation
96”
136 1/2”
108”
148 1/2”
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3

Thank you for purchasing our 12x8 Cabana Garden Shed.
Please take the time to identify all the parts prior to assembly.
Note: All Trim, Facia and Bottom Skirting pieces will be positioned rough face out when installed.
1. Floor Section
Floors
3 - 45 1/2” x 75” - Floor Joist Frames - Large
3 - 45 1/2” x 21” - Floor Joist Frames - Small
6 - 1 1/2” x 3 1/2” x 71 7/8” - Center Floor Joists - Unattached
10 - 1 1/2” x 3 1/2” x 68 3/16” - Floor Runners
3 - 45 3/8” x 74 7/8” - Plywood Floor - Large
3 - 45 3/8” x 20 7/8” - Plywood Floor - Small
2. Wall Section
Main Wall Panels
7 - 45 1/2” x 75” - Solid Wall Panels
7 - 1 1/2” x 2 1/2” x 45 1/2” - Bottom Wall Plates
2 - 45 1/2” x 75” - Window Wall Panels
1 - 12” x 73” - Narrow Wall Panel
Door Header & Jamb
1 - 1 1/2” x 3 3/8” x 73” - Vertical Door Jamb
1 - 2” x 3 3/8” x 45 1/2” - Door Header (Dado cut on edge)
Top Wall Plates & Gables
6 - 3/4” x 2 1/2” x 32” - Side Top Plates
(4 pieces angle cut on end, 2 piece straight cut both ends)
4 - 3/4” x 2 1/2” x 65 3/4” - Front & Rear Top Plates (angle cut edge)
4 - Gable Half Walls - Triangular Shaped
3. Rafter and Roof Section
Rafter Assembly
2 - 3/4” x 4 1/2” x 84” - Roof Ridge Boards
2 - 3/4” x 4 1/2” x 52 1/2” - Roof Ridge Boards
18 - 1 1/2” x 3 1/2” x 56 1/2” - Roof Rafters
4 - 1/2” x 4 1/2” x 68 1/4” - Soffits
4 - 3/4” x 1 1/2” x 48” Rafter Nailing Cleats
3 - 3/4” x 3 1/2” x 72” - Roof Gussets (angle cut on ends)
Roof
4 - 5/8” x 48” x 72” - Roof Plywood Large
4 - 5/8” x 8 5/8” x 72” - Roof Plywood Small
4. Trim & Miscellaneous Section
Outer Wall Trim
10 - 1/2” x 4 1/2” x 45 1/4” - Bottom Skirting (Bevel)
4 - 3/4” x 2 1/2” x 75” - Filler Trim
5 - 1/2” x 1 1/2” x 45 1/4” - Top Wall Trim (Bevel)
4 - 1/2” x 4 1/2” x 43 1/4” - Horizontal Gable Trim (Bevel)
4 - 1/2” x 3 1/2” x 79” - Corner Trim
4 - 1/2” x 5 1/2” x 82” - Wide Corner Trim
2 - 1/2” x 2 1/2” x 79” - Rear Wall Narrow Trim
2 - 1/2” x 2 1/2” x 77 1/2” - Side Wall Narrow Trim
Facia Trim
4 - 3/4” x 2 1/2” x 51” - Facia Nailing Strips
4 - 3/4” x 3 1/2” x 58” - Side Facia (Angle cut on ends - 2 right / 2 left)
4 - 3/4” x 3 1/2” x 71 3/4” - Front and Rear Facia
2 - Pentagon Facia Plate - For Side Facia Peaks
2 - Horizontal Gable Trim Detail Plates - 4 1/2” high
2 - Facia Detail Plates - 3 1/2” high
21-22
Steps
Steps
24-27
Steps
42-47
48-55
56-59
Steps
13-20
1-12
28-41
Parts List - Pages 2 and 3
Continued on next page
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4

12 x 8 CABANA - PLYWOOD ROOF - HARDWARE SHEET
S1 - 2 1/2”
S3 - 2”
S2 - 1 1/4”
SS2 - 3/4”
SB2 - 2”
N1 - 1 1/2”
Y1 - Tee Hinge x4
Silver
Finishing
Square Drive Bit
Hardware Kit (Provided)
Safety Glasses
Work Gloves
Safety Equipment
Required (Not Provided)
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Tools Required (Not Provided)
1/8” Drill Bit
Y4 - Black
Drop Latch
Y5 - Interior
Silver Barrel Bolt
250 Pcs
155 Pcs
28 Pcs
270 Pcs
2 Pcs
365 Pcs
10 Pcs
25 Pcs
Black Headed
Black Headed
Y30 - Single
Rafter Bracket x 6 Y31 - Double
Rafter Bracket x 4
Door Section
2 - 1/2” x 3 1/2” x 79” - Vertical Door Trim
1 - 1/2” x 2 1/2” x 79” - Front Wall Narrow Trim
1 - 1/2” x 1 1/4” x 32” - Horizontal Door Trim
1 - 1/2” x 1 1/4” x 7” - Horizontal Narrow Wall Trim
1 - 31 1/2” x 30” - Top Dutch Door Section
1 - 31 1/2” x 42” - Bottom Dutch Door Section
2 - 1/2” x 2 1/2” x 72” - Interior Vertical Door Stops
1 - 1/2” x 2 1/2” x 36” - Interior Top Horizontal Door Stop
Miscellaneous
2 - Metal Window Inserts
2 - Window Trim Pkgs - (1 - 24 1/16” angle cut / 3 - 23” square cut)
2 - Flower Box Kits
1 - Spare Wall Siding
2 - Spare Shingles - use to shim door, etc
Steps
68-71
60-67
Parts List - Pages 2 and 3
Ladder
SB1 - 3/4”
BR1
Y3 - Black Handle
Y9 - Ridge Board
Connector x 2
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5

Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold (if applicable).
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularly.
- Routinely remove needles and leaves from roof.
Painting/Staining
- Your cedar shed, if left untreated, will weather to a silvery grey colour.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can be
—stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Floor Runner
Foundation
8.
Floor Plywood
Wall Panel
Small gap between
bevel siding and
window trim
Dab of caulking
Strip of roofing paper over
apex of roof panels
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6

You can find the
Square Drive Bit for
the screws in with
the Hardware Kit Bag.
1. Lay out Large Floor Joist Frame and 2 Floor Joists as
illustrated above. Position Joists equally in Floor Joist Frame.
Use Small Floor Joist Frame as a template to determine
joist position. Position Joist so flush with framing.
Parts (Steps 1 - 6)
Floor Joists
(1 1/2” x 3 1/2” x 71 7/8”) x 6
Floor Joist Frames - Large
(45 1/2” x 75”) x 3
Floor Joist Frames - Small
(45 1/2” x 21”) x 3
Hardware (Steps 1 - 6)
S1 - 2 1/2” Screws
x 58 total
A. Floor Section
Plywood Floor
Large (3)
Floor Joist
Frames
Large (3)
Floor Runners (10)
Plywood Floor
Small (3)
Concrete Pad
(optional foundation method)
Floor Joist
Frames
Small (3)
Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note: Floor Footprint is 136 1/2” wide x 96” deep.
Flush
with
framing
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7

2. When correctly positioned, attach each Joist with 4 - 2 1/2” screws (2 per end). You can find the
Square Drive Screw Bit in the Hardware Kit Bag.
3. Lay out Floor Joist Frames as illustrated.
There are 3 larger and 3 smaller Frame Sections.
The Footprint for the floor when attached together
will be 136 1/2” wide x 96” deep.
5. Complete all large and small frame
attachments. Screw each completed section
together with 8 - 2 1/2” Screws.
Front of Shed
You can find the
Square Drive Bit for
the screws in with the
Hardware Kit Bag.

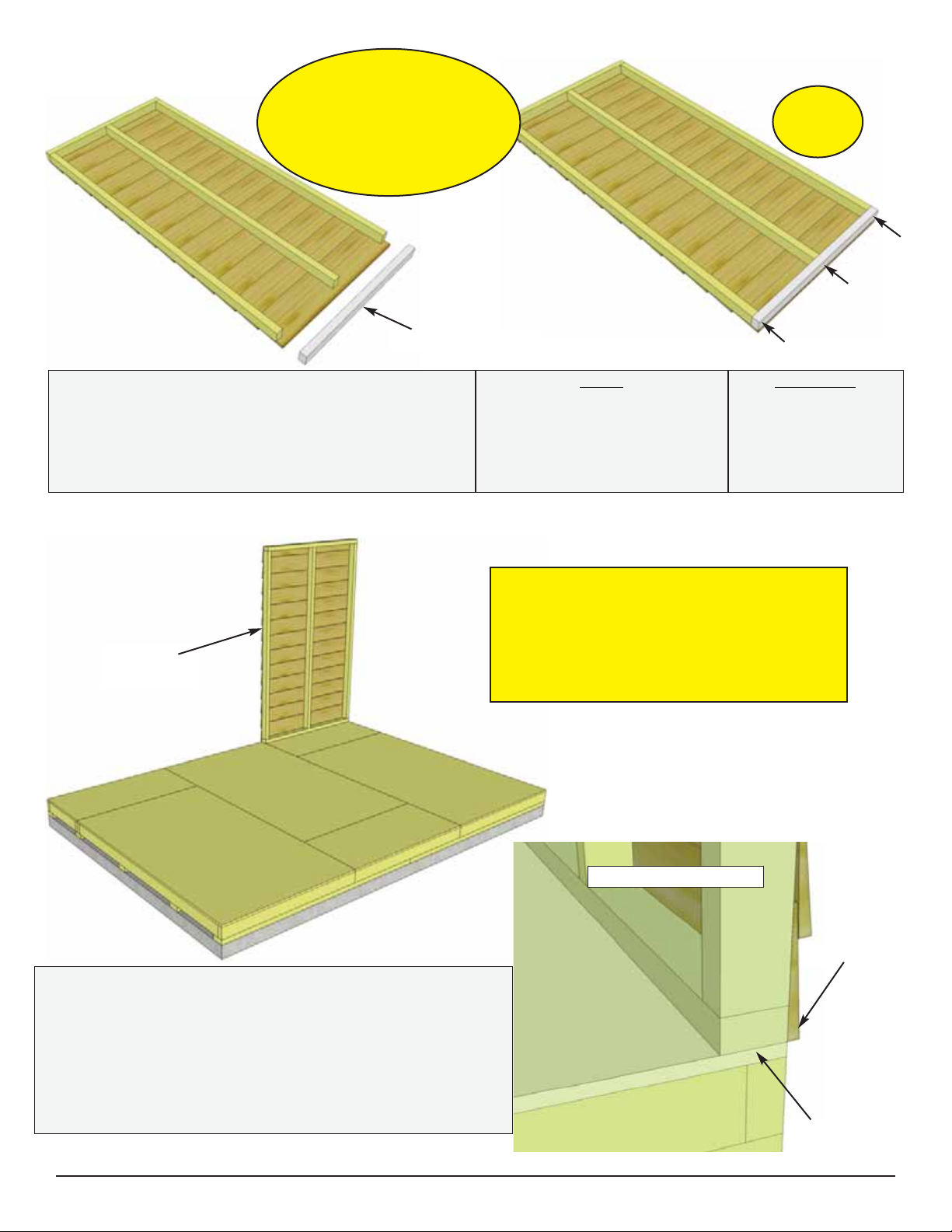

4. Attach each large and small floor joist
frame together with 6 - 2 1/2” Screws per
section.
96”
136 1/2”
6. When completed, your floor footprint
should be 136 1/2” wide x 96” deep.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

7. Attach Floor Runners to completed floor frame.
There are 2 Floor Runners per 136 1/2” side and
5 completed Runners in total. Use 6 - 2 1/2” Screws
per Runner.
Parts (Steps 7 - 9)
Floor Runners
(1 1/2” x 3 1/2” x 68 3/16”) x 10
Hardware (Steps 7 - 9)
S1 - 2 1/2” Screws
x 60 total
8. Make sure Runners are flush with
outside and front and rear floor framing
but not overhanging.
9. Complete remaining Floor Runners.
10. With Floor Runners attached, carefully flip the floor over
and place on your foundation.
Caution: you will need 2 people to assist you. Be careful when
laying floor down not to bend or twist floor. When in place, level
floor completely.
Note: The floor will be flipped over
and the floor runners will sit on your
foundation. It is important to note, that
having a level foundation is critical.
Choosing a foundation will vary between
regions. Typical foundations can be
concrete pads or patio stones positioned
underneath the floor runners.
Foundations
Concrete Slab
Foundation
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9

Hint: Use a chalk line
to mark location of floor
joists to determine
screw placement.
Front
11. Position all Large & Small Plywood Floor pieces
on top of completed floor joists. Plywood will sit flush with
outside of floor joist frame.
Parts (Steps 11 - 12)
Plywood Floor - Large
(45 3/8” x 74 7/8”) x 3
Plywood Floor - Small
(45 3/8” x 20 7/8”) x 3
Hardware (Steps 11 - 12)
S2 - 1 1/4” Screws
x 70 total (approx)
Important - Make sure floor is
level before moving on to wall
section. Use a level to confirm,
and shim floor joists as required.
12. With Plywood positioned correctly on
floor framing, attach with 1 1/4” Screws.
Use screws every 16”.
push plywood
together at seams.
Front
Completed Floor
configuration
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10

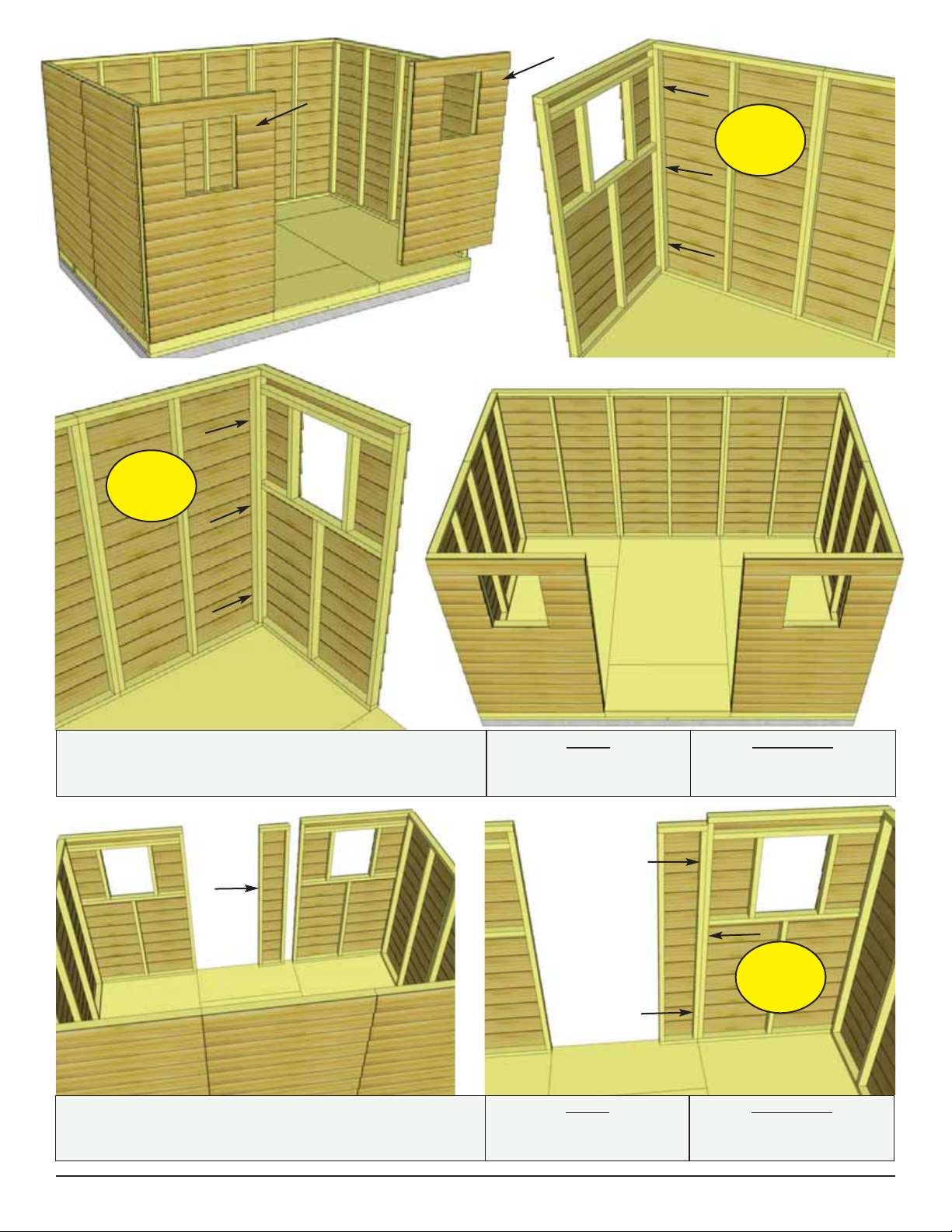

13. Lay out all the wall
panels and become
familiar with their location.
On Standard Kits, there
are 2 Window Wall
Panels, 7 Solid Wall
Panels and 1 Narrow
Wall Panel.
Make sure to position
panels right side up so
water is directed away
from and not into shed.
Look at window wall pan-
els to determine proper
wall position to confirm.
B. Wall Section
Exploded view of all parts necessary to complete the Wall Section.
Identify all parts prior to starting.
Window Wall
Panel (2)
Front and Rear Top Plates (4)
(Angle cut on edge)
Side Top Plates (6)
(4 Angle cut on one end
and 2 square cut.)
Gable Walls (4)
Door Jamb
Narrow Wall Panel
(12” wide)
Solid Wall
Panels (7)
Door Header Bottom Wall
Plates (7)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11

14. For each Solid Wall Panel, carefully lay panel
face down. Position and attach a Bottom Wall
Plate to bottom of wall studs of each wall panel with
3 - 2 1/2” Screws. Position so plates are flush with
framing.
Parts
Solid Wall Panels
(45 1/2” x 75”) x 7
Bottom Wall Plates
(1 1/2” x 2 1/2” x 45 1/2”) x 7
Hardware
S1 - 2 1/2” Screws
x 21 total
Important:
Pilot hole ALL 2x3 Wall
Studs with 1/8” drill bit prior
to screwing. This will make it
much easier to attach
together.
Pilot Hole
first.
Bottom Wall Plate
Side of Shed
15. Starting at Rear Corner, position a Solid Wall Panel
on top of plywood floor. The Wall Panel bottom framing
will sit flush with plywood. Wall siding will overhang the
floor. The Rear Wall panels will sit flush at the end of the
plywood floor with the side wall panels sandwiched
between them
Note: Siding will overhang the floor by approximately 1/2”.
1st Rear
Wall Panel
Front of Shed
1st Rear Wall Panel
side of shed
2x3 wall frame
Flush with
Floor Framing
1/2” overhang
Important - Make sure all walls are aligned
in their upright position. If not, water may
leak into your shed. Unsure if panel is
facing up or down? Compare solid wall
siding to window wall siding and match
orientation.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12

Do Not Attach Walls To
Floor Until Step 23
Side Wall
Rear Wall
Optional - Caulking seams
will help prevent moisture
from entering your shed.
Caulking not included in kit.
16. Position side solid wall into place on plywood floor. Butt both vertical
wall studs of side and rear walls together and attach with 3 - 2 1/2” Screws.
Screw at the bottom, middle and top of stud to secure properly.
Hardware (Steps 16 -18)
S1 - 2 1/2” Screws
x 18 total
Rear Wall
Side Wall
17. With the corner wall attachment complete, position a second Side Wall panel in place so bottom
2x3 wall framing is sitting flush with outside floor joists and plywood floor. Wall siding should overhang
floor by approximately 1/2”. When positioned correctly, attach both Side Wall panel studs together as
shown.
Pilot Hole
first.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13

18. Complete all Side and Rear Wall attachments as per Steps 15 - 17.
Pilot Hole
first.
Pilot Hole
first.
Pilot Hole
first.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14

Pilot Hole
first.
Pilot Hole
first.
19. Position and attach both Window Walls as
per Steps 15 - 18.
Parts
Window Walls
(45 1/2” x 75”) x 2
Hardware
S1 - 2 1/2” Screws
x 6 total
Pilot Hole
first.
20. Position and attach Narrow Wall as per
Steps 15 - 18.
Parts
Narrow Wall
(12” x 73”) x 1
Hardware
S1 - 2 1/2” Screws
x 3 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15

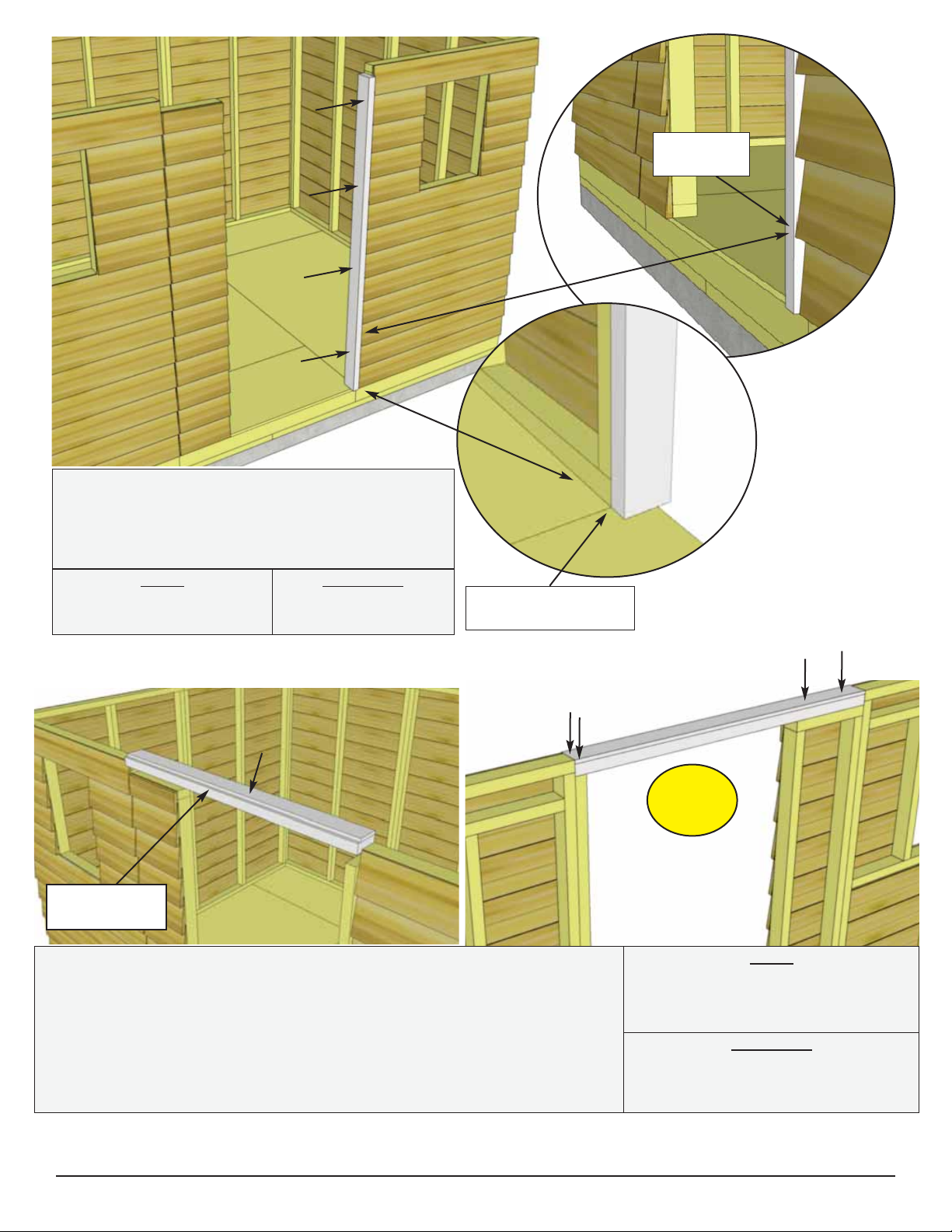

21. Attach Vertical Door Jamb to Window Wall
stud in door opening with 4 - 2 1/2” Screws.
Position so Jamb is flush with tip of bevel siding
on front Window Walls.
Parts
Vertical Door Jamb
(1 1/2” x 3 3/8” x 73”) x 1
Hardware
S1 - 2 1/2” Screws
x 4 total
Flush to tip
of Bevel.
Flush with Window
Wall stud on inside.
22. Attach Door Header to Vertical Door Jamb and Narrow Wall with
2 - 2 1/2” Screws per side. Header is 3 1/2” wide at bottom and has a
1/2” thick x 3” wide strip of wood stapled to the top creating a notch or
dado effect. This notch needs to be positioned on the top facing the
front. The notch is necessary as the roof panel may hang up on the
Header and must sit flush on the rafter tops when attached.
Pre-drill to prevent splitting!
Parts
Door Header
(2” x 3 3/8” x 45 1/2”) x 1
Hardware
S1 - 2 1/2” Screws
x 4 total
Notch to front
and on top.
Pilot Hole
first.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16

23. When all walls are attached together, check alignment with the floor. Bottom
of wall frames should sit flush with outside of floor framing, with siding overhanging
by approximately 1/2”. Confirm 32” wide door opening at bottom. When positioned
correctly, fasten Bottom Wall Plates to floor using 4 - 2 1/2” Screws per wall panel.
Hardware
S1 - 2 1/2” Screws
x 38 total
24. Position Side Top Plates (one side only) on top of wall studs so they are flush on the inside.
There are 3 Side Top Plate pieces per side (2 angle cut on one end and one straight cut - both
ends). Together, the plates should be centered evenly on the wall left to right. Attach by screwing
down into top wall framing with 3 - 2” Screws per plate.
Parts (Steps 24 - 25)
Side Wall Top Plates - 4 Angle Cut End, 2 Straight Cut
(3/4” x 2 1/2” x 32”) x 6
Front & Rear Wall Top Plates - Angle Cut Edge
(3/4” x 2 1/2” x 65 3/4”) x 4
Hardware (Steps 24 - 25)
S3 - 2” Screws
x 34 total
159 7/8”
159 7/8”
Angle
screws into perimeter
Floor Joists.
Pilot Hole
first.
32”
Advice: Prior to fastening walls and installing rafters, take time to confirm your walls are level, square and plumb.
Measure diagonal at top and bottom of walls corner-to-corner. This should be approximately 159 7/8”. More importantly,
if measurements are not within 1/4”, your walls are not square. Adjusting now will make it easier to install roof section.
Optional - Caulking
seams will help prevent
moisture from entering
your shed. Caulking
not included in kit.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17

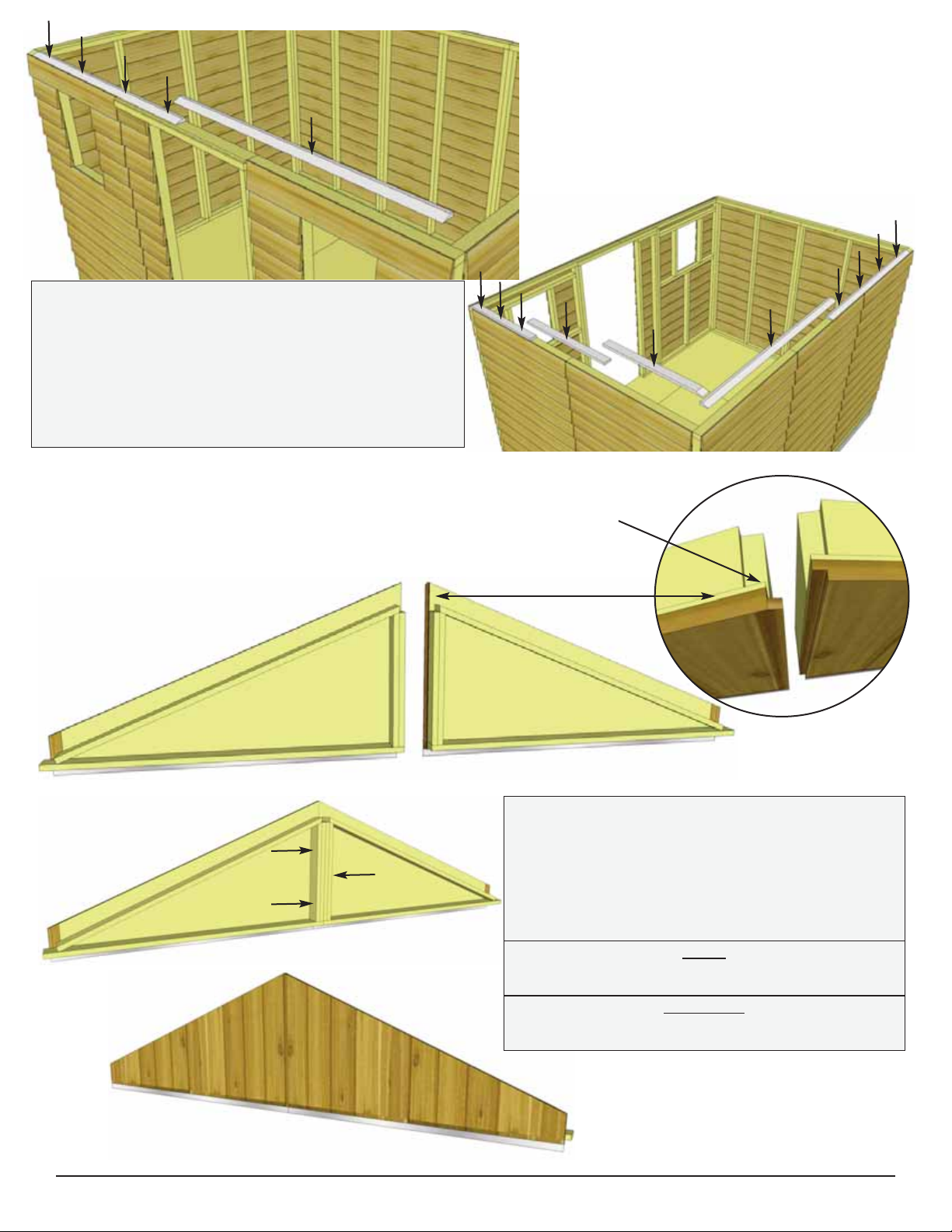

25. Next, attach the Front Top Plates. The Front
and Rear Top Plates are angle cut down the length.
Once again, position Top Plates on wall frame so
they are flush. Front and Rear Top Plates will fit
between Side Top Plates. Attach with 4 - 2” Screws
per plate. Complete all other Side &Rear Top Plate
attachments the same.
Male / Female Gable
Siding Overlap
26. Locate Triangular Gable Half Walls for
both sides of the shed. Align framing and wall
siding lap together. Screw center wall framing of
each piece together with 3 - 2 1/2” Screws.
Note: Prior to attaching, try each combination of
Gables for best fit.
Parts
Triangular Gable Half Walls x 4
Hardware
S1 - 2 1/2” Screws x 6 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18

Flashing overhangs
wall on outside.
27. Place completed Gable section so framing sits flush with the inside of the Top Wall Plate. It
should also be centered side-to-side on the Top Wall Plate. Gable Flashing overhangs wall on the
outside. Temporarily attach to Gables and Top Wall Plate with 2 - 2” Screws. Gables may need slight
adjustment in Step 37 when attachment will be completed with an additional 6 Screws. Screw from
the bottom of Gable framing down into Top Wall Plate and Wall Framing. Complete Gable positioning
and attachment on the other side.
Hint: Use a straight edge to check the angle of the Gable framing and Top Plate. Both angles should
line up (see diagram above).
Hardware
S3 - 2” Screws x 4 total
Use a straight edge to check
that angle of Gable lines up
with Top Wall Plate angle.
Adjust Gable for best fit.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 19

C. Rafter and Roof Section
Exploded view of all parts necessary to complete the Roof Section.
Identify all parts prior to starting.
Ridge Board
Ridge Board
Metal Ridge Board Connector
8 - 3/4” screws
28. Locate (1 each) Long &Short Ridge Boards
and attach together with a metal Ridge Board
Connector using 8 - 3/4” Screws. Total Length when
connected is 136 1/2”. Connect other set of Ridge
Boards the same. Position metal Ridge Board
Connector evenly on Ridge Boards.
Parts
Ridge Boards - Long
(3/4” x 4 1/2” x 84”) x 2
Ridge Boards - Short
(3/4” x 4 1/2” x 52 1/2”) x 2
Hardware
SS2 - 3/4” Screws
x 16 total
Y9 - Ridge Board
Connector
x 2 total
Large Plywood
Roof Panel (4)
Roof
Rafters
(9 per side)
18 total
Ridge Boards (4)
52 1/2” and
84” long
Soffits (4)
Metal Ridge
Board Connectors
(2)
Roof Gussets (3)
Rafter
Brackets
Double (4)
Single (6)
Rafter Nailing
Cleats (4)
Small Plywood
Roof Panel (4)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 20
