OLT FL Bevel User manual

12x4 GardenSaver Shed
Sliding Doors - FJ Bevel & Ply Roof
Assembly Manual
1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
Thank you for purchasing a
12x4 GardenSaver Shed with
Sliding Double Doors. Please take
the time to identify all the parts
prior to assembly.
Safety Points and Other Considerations
Our products are built for use based on
proper installation on level ground and
normal residential use. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.
Customers are responsible for ensuring
a solid, level, well-draining site for
construction.
Please check with your local municipal
or county by-laws before ordering this
product to confirm it complies with
building codes.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it
is advisable to sweep snow off roof frequently.
- If the product is elevated, any structural and building code requirements are solely
the customer's responsibility, and should be abided by.
- In areas with high or gusty wind conditions, it is advisable to install the structure
securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are
tightly affixed.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
Version #2.0
March 16, 2021
Stock Code:
GS124-Slider-FJ-Ply
Roof Area: 55 sqft

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2
Thank you for purchasing our 12x4 Slider Lean-To Storage Shed. Please take the time to identify all the parts prior to assembly.
1. Floor Section
Floors
1A: 2 - 45 ½” x 70 ¾” - Floor Frames
1B: 4 - 1 ½” x 3 ½” x 67 3/4” - Floor Joists
1C: 2 - 1 ½” x 3 ½” x 45 ½” - Floor Runners - Short
1CC: 5 - 1 ½” x 3 ½” x 47 ½” - Floor Runners - Long
1D: 2 - 5/8” x 45 3/8” x 70 5/8” - Plywood Floor
2. Wall Section
Main Wall Panels
2AA: 5 - 45 ½” x 75” - Side/Rear Wall Panels
2AB: 5 - 1 5/8” x 2 ½” x 45 ½” - Bottom Wall Plates - Side/Rear Walls
2BA: 2 - 35” x 73” - Front Wall Panels
2BB: 2 - 1 5/8” x 2 ½” x 35” - Bottom Wall Plates - Front Walls
Door Headers
2C: 2 - 2” x 3 ½” x 26 ¼” - Door Headers - Short
2D: 1 - 2” x 3 ½” x 84” - Door Header - Long (88” Aluminum Strip Attached)
2E: 1 - 1 ½” x 3” x 66 ½” - Interior Door Header
Extender Walls
2F: 2 - Top Triangular Siding Pc for Angle Wall Extenders
2G: 2 - 45 ¼” - Angle Wall Extenders - Left/Right
2H: 3 - 9” x 45 ½” - Wall Extenders
2I: 3 - 1 1/2” x 2 1/2” x 42 3/8” - Wall Extender Cleats
Wall Cleats
2J: 1 - ¾” x 3 ½” x 84” - Horizontal Wall Cleat - Long
2K: 2 - ¾” x 3 ½” x 26 ¼” - Horizontal Wall Cleats - Short
3. Rafter and Roof Section
Rafters
3A: 9 - 1 ½” x 2 ½” x 54” - Rafters
3B: 2 - ½” x 3 ½” x 48” - Front Soffits - Left/Right
3C: 1 - ½” x 3 ½” x 45 ½” - Front Soffit - Center
3D: 2 - ½” x 3 ½” x 48” - Rear Soffits - Left/Right
3E: 1 - ½” x 3 ½” x 45 ½” - Rear Soffit - Center
Roofs
3F: 2 - 5/8” x 48” x 50” - Outside Large Roof Plywood Panels
3G: 1 - 5/8” x 48” x 45 1/2” - Center Large Roof Plywood Panel
3H: 2 - 5/8” x 50” x 5 3/4” - Outside Small Roof Plywood Panels
3I: 1 - 5/8” x 45 1/2” x 5 3/4” - Center Small Roof Plywood Panel
3J: 2 - ¾” x ¾” x 51” - Facia Nailing Strips
14-15, 23
Steps
Steps
16-21
22
Steps
31-36
7-13
1-6
25-30
Parts List - Pages 2, 3, and 4
Continued on next page

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3
4. Trim & Miscellaneous Section
Bottom Skirting
4A: 5 - ¾” x 4 ½” x 45 ¼” - Side/Rear Bottom Skirting (FJ Bevel Siding)
4B: 3 - ½” x 4 ½” x 45 ¼” - Front Bottom Skirting
4BB: 3 - ½” x 1 ½” x 45 ¼” - Top Wall Trims (FJ Bevel Siding)
Filler Trim
4C: 4 - ½” x 2 ½” x 42” - Front Corner Filler Trims
4D: 4 - ¾” x 2 ½” x 38” - Rear Corner Filler Trims
Door System
4E: 2 - Aluminum Door Tracks (with brackets attached)
4F: 2 - 36” x 73” - Sliding Doors
4G: 2 - 1 ½” x 2 ½” x 61 1/8” - Lower Door Track
4HA: 3 - ½” x 4 ½” x 44 ¼” - Lower Door Track Cover
4IA: 3 - 1 ½” x 3 ½” x 3” - Sliding Door Track Stops
4J: 1 - ¾” x 3 ½” x 71 ½” - Interior Door Flange
4KA: 2 - 1 ½” x 3 ½” x 66 ½” - Track Overlay - Top
4KB: 2 - ¾” x 5 ½” x 67” - Track Overlay - Front
4KC: 2 - ½” x 3 ½” x 5 ½” - Track Overlay - Ends
4KD: 3 - ½” x 4 ¼” x 44 ¼” - Track Overlay - Sill (Bevel)
Outer Wall Trim
4L: 2 - ½” x 5 ½” x 88 ¾” - Front Corner Trims
4M: 2 - ½ x 2 ½” x 88 ¾” - Side Front Corner Trims
4N: 2 - ½” x 5 ½” x 78 ½” - Rear Corner Trims
4O: 2 - ½” x 2 ½” x 80” - Side Rear Corner Trims
4P: 2 - ½” x 2 ½” x 78 ½” - Rear Middle Trims
4Q: 2 - ½” x 2 ½” x 7 ½” - Front Middle Trims
Facia
4R: 2 - ½” x 5 ½” x 54 1/8” - Side Facia (Angle Cut Ends)
4S: 4 - ½” x 5 ½” x 50 ½” - Front and Rear Facia - Left/Right
4T: 2 - ½” x 5 ½” x 45 ½” - Front and Rear Facia - Center
4U: 5 - Trim Detail Plates (5 ½” high)
Windows
4W: 2 - Window Inserts 18 1/4”w x 23”h
4X: 2 - Window Trim Kits
1 - Top pc - 24 1/16” Length - Angle Cut Ends
3 - Side/Bottom pcs - 23” Length
Miscellaneous
4Y: 1 - 45 ¼” - Extra Piece of Bevel Wall Siding
- Use if side/rear wall panel siding is damaged or to shim floor or door.
4Z: 1 - 36” - Extra Piece of Lap Siding
- Use if front wall panel siding is damaged
60-62
55-59
51-54
37-39
40-41
42-50
Steps
Advice: Wood has a tendancy to split when
screwing near the ends of a board. To prevent
splitting, it is always recommended to pre-drill
pilot holes before screwing into these areas.
Note: All Trim, Facia and Bottom Skiring pieces will be positioned rough face out when installed.

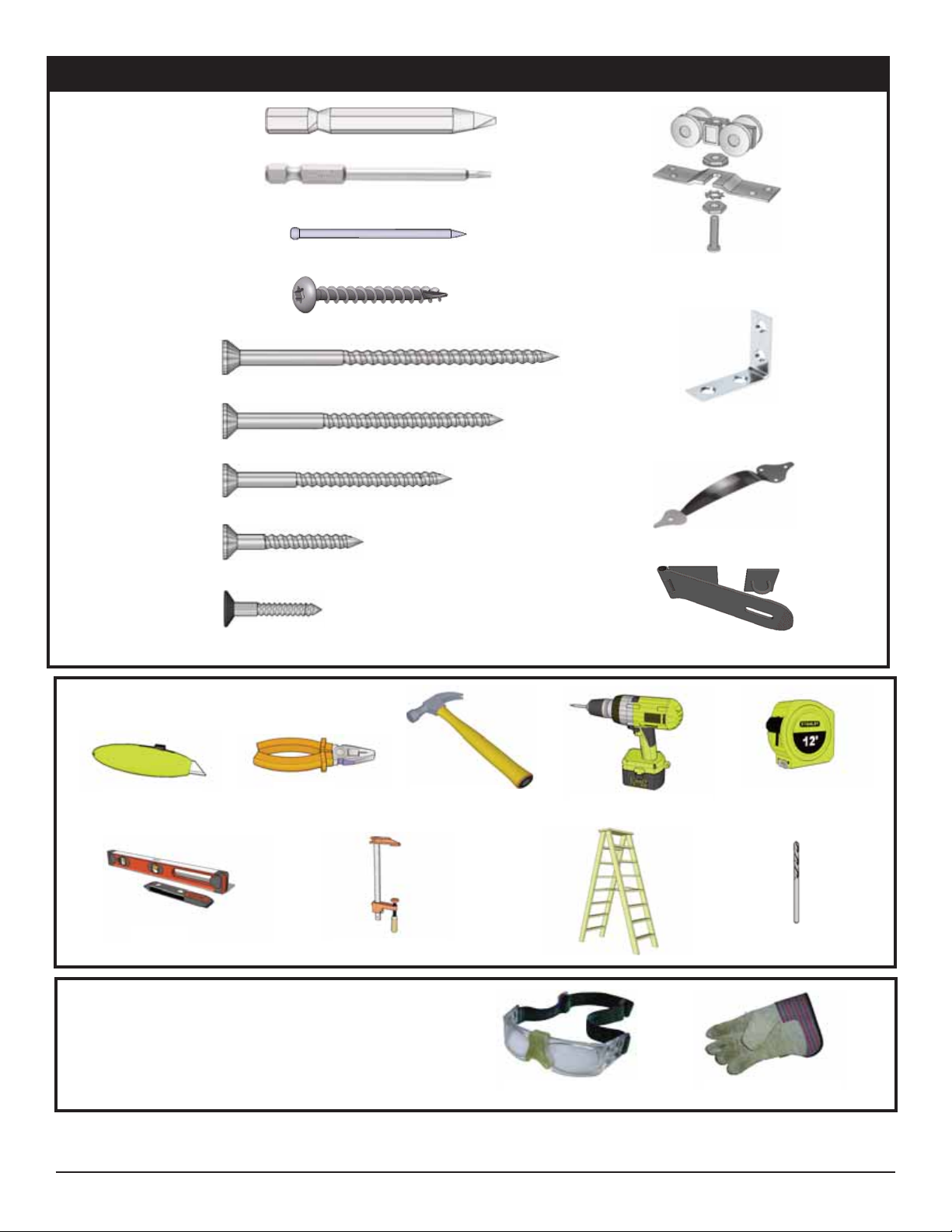

S1 - 2 1/2” Screws
S4 - 3” Screws
x 245
x 25
x 210
x 330
S2 - 1 1/4” Screws
N1 - 1 1/2” Finishing Nails
BR1 - Square Drive Bit x 2
Y3 - Black Handle x 2
Y11 - Black Hasp x 1
x 18
SB1 - 3/4” Screws
Black Headed
Ladder
Screw Gun/Drill Tape Measure
Hammer
Level
Pliers
Tools Required (Not Provided)
1/8” Drill Bit
Wood Clamp
Utility Knife
12X4 GardenSaver Shed with Sliding Double Doors and Plywood Roof HARDWARE PACKAGE
Y35 - Roller
Assembly x 4
Safety Glasses Work Gloves
Safety Equipment Required
(Not Provided)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
ST1 - 1 1/2” Torx Screws x 12
S5 - 4” Screws
Y2 - 90° Metal
Bracket (Roof) x 4
x 8
BT2 - Torx Drive Bit x 1

Before starting your project become familiar with this assembly manual and determine if you can
complete the project yourself or will require a professional contractor. Please note that certain
counties and municipalities require building permits prior to installation. We recommend to all
consumers that they check with their local county/municipality for these specifics prior to purchasing
any of our products since this is your sole responsibility.
Prior to the product arriving, clear the construction area. Remove all debris; roots, grass, rocks, etc.
Make sure the ground slopes away from the site at least 10 feet in all directions. If necessary, build
up the soil in the center of the site and slope away for the high point to provide drainage. Fill in any
low spots within the perimeter of the site. A slope of 1/8 inch per foot is enough to prevent water
accumulation. We recommend excavating the site 4-6 inches deep and laying gravel or crushed
rock where drainage may be a concern.
What type of foundation should I use?
Patio Stone Foundation : If the ground is stable and has sufficient drainage, you can set patio
stones directly on firm compacted soil. If not, consider laying down sand and then gravel or crushed
rock. Excavate the site making it about 12” wider and longer than the floor footprint. Excavate down
approximately 4-6 inches deep. Lay 1-2 inches of sand first and then fill with 3-4 inches of gravel or
rock for good drainage and support. Most of our sheds and playhouses include floors with support
runners. Support each runner with 4-5 patio stones (less for smaller sheds). Patio stones can be
anything from a mid size brick to a round our square 12” long by 1 1/2” thick stone. Place stones
directly under the floor runners, check for level and adjust height as necessary. Having a solid and
level foundation is the most critical piece of work you can do to make the project go smoothly. Most
of this work can be done prior to your shed arriving!
4x4 Pressure Treated Beam Foundation : You can build directly on pressure-treated beams or
railroad ties laid on a properly prepared construction site as mentioned above. Run beams
perpendicular to floor runners. Use a 2x4 straight piece of lumber on edge and a carpenter's level
to position correctly. To prevent the beams from shifting, secure them with ½ inch rebar inserted
through holes drilled in the beams and driven 3 to 4 feet into the ground. Leave each side or end of
the foundation open to promote drainage and air circulation beneath the floor. Consider using a wire
mesh or equivalent to prevent pesky critters from gaining access on ends.
Concrete - Slab Foundation : Typically a slab 3-4 inches thick laid over a sub-base of 4 inches of
gravel or crushed rock is sufficient but may vary depending on your geographic location. Using
either mix your own concrete or having it delivered by truck, ready to pour, depends on how much
time and effort you have to dedicate to the project. In any event, make sure you excavate the slab
area to a depth 6 inches. This would put the finished slab surface approximately 2 inches above
ground (remember you will be using 4 inches of gravel as your subbase). For example, a slab for
our 8’x12’ SpaceMaker Shed will require approximately 1 cubic yard of premixed concrete.
For more detailed information on how to pour your concrete-slab foundation or any other questions
regarding specifications, foundations and permits, please visit our website at
www.outdoorlivingtoday.com or call our Customer Support Line at 1-888-658-1658 to speak with
a Product Representative.
* Please note that all measurements in our Detailed Assembly Manuals may be subject to change without notice. Please
confirm exact foundation size with Outdoor Living Today if you have any concerns or questions.
What Can I Do Before My Shed Arrives?
1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5

You can find BR1 - Square
Drive Bit for the screws in
with the Hardware Kit Bag.
1. Floor Section
Flush with framing
top/bottom.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6

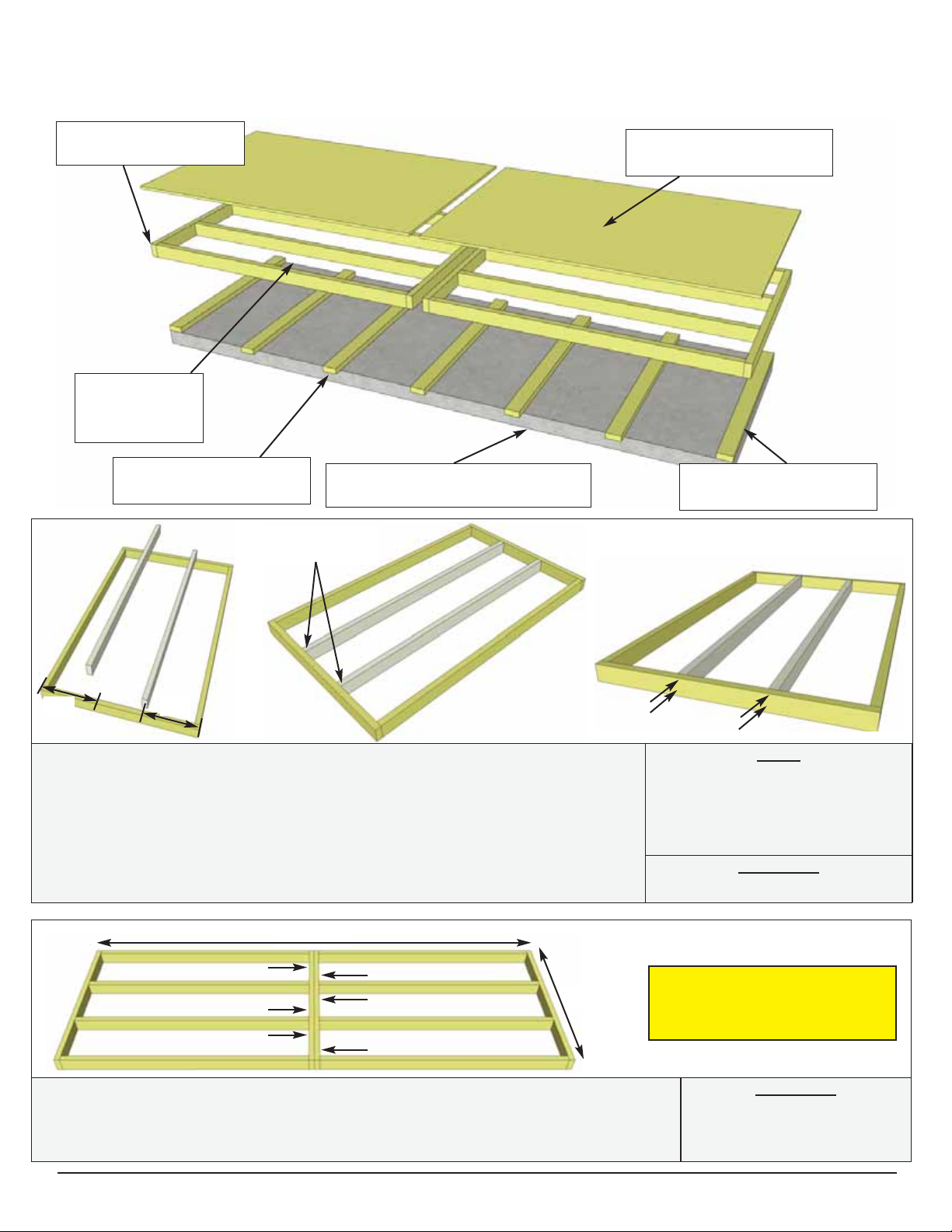

Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note: Floor Footprint is 141 1/2” wide x 45 1/2” deep.
2. Lay out both complete floor joist frames as illustrated. The footprint for the
floor when attached together will be 141 1/2” wide x 45 1/2” deep. Attach
frames together with 6 - 2 1/2” Screws.
Hardware
S1 - 2 1/2” Screws x 16 total
1. Lay out 1A - Floor Frame and two 1B - Floor Joists as illustrated
above. Position the center of each Joist 15” from the outer edge of Floor
Frame. When correctly positioned, attach each Joist with
4 - 2 1/2” Screws (2 per end). You can find the Square Drive Screw
Bit in the Hardware Kit Bag. Complete remaining Floor Frame the
same.
Parts
1A - Floor Joist Frames
(45 1/2” x 70 3/4”) x 2
1B - Floor Joists
(1 1/2” x 3 1/2” x 67 3/4”) x 4
Hardware
S1 - 2 1/2” Screws
x 6 total
141 1/2”
45 1/2”
15”
15”
Plywood Floor - 2pcs.
(Part 1D)
Floor Frames - 2pcs.
(Part 1A)
Floor Runners - 2pcs.
(Part 1C)
Concrete Pad
(optional foundation method)
Center Floor
Joists - 4pcs.
(Part 1B)
Floor Runners - 5pcs.
(Part 1CC)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7

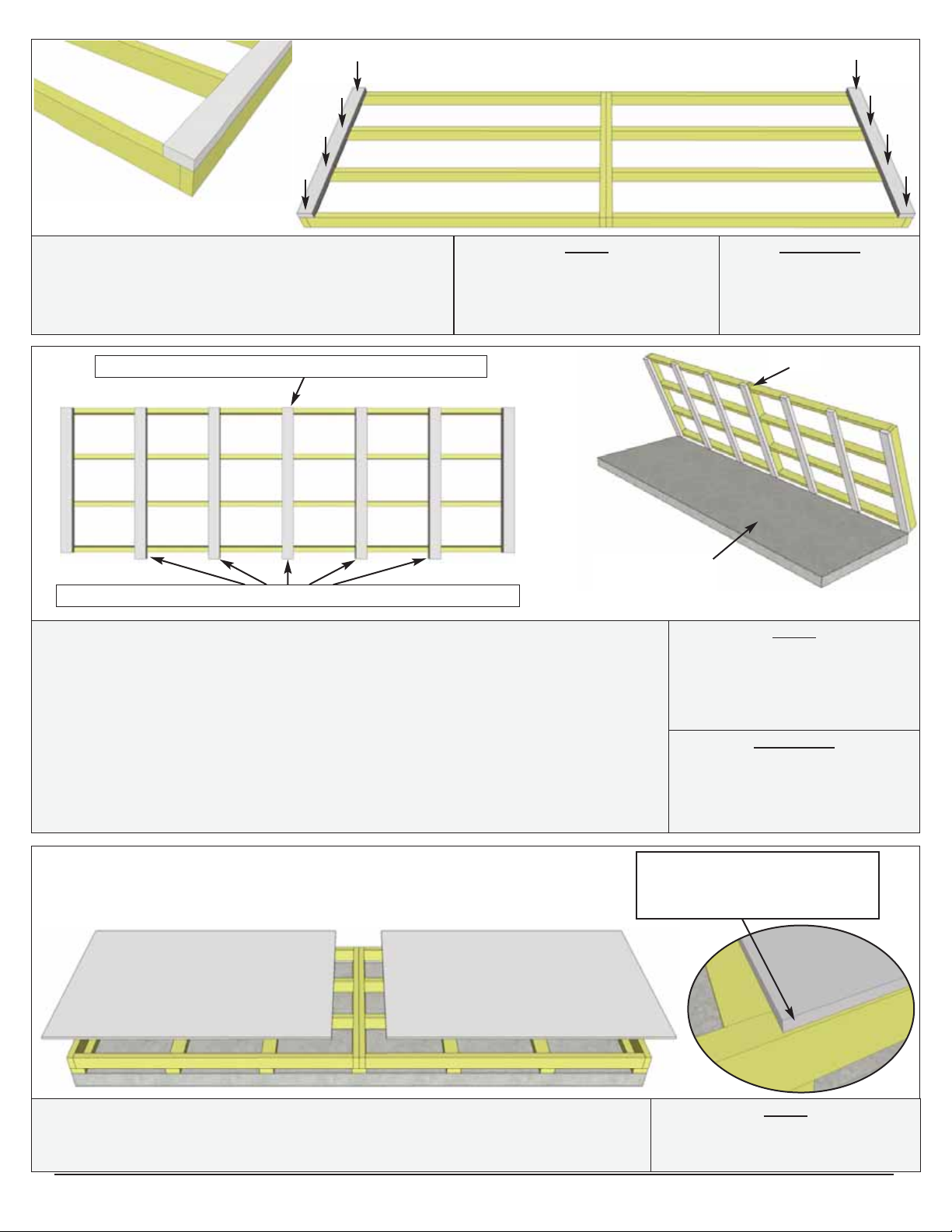

3. Position 1C - Floor Runners - Short on each
side of the completed floor frame. Runners should
be flush with corners but not overhanging. Attach
with 4 - 2 1/2” Screws per Runner.
Parts
1C - Floor Runners - Short
(1 1/2” x 3 1/2” x 45 1/2”) x 2
Hardware
S1 - 2 1/2” Screws
x 8 total
4. Align 1CC - Floor Runners - Long evenly spaced as shown above and
flush with the back of the Floor Frame. On the front, Runners will extend 2”
past the Floor Frame to provide support for the Sliding Door Track later in
the Assembly. Attach with 4 - 2 1/2” Screws per Runner.
With Floor Runners attached, carefully flip the floor over and place on your
foundation. Caution - Be careful when laying floor down not to bend or twist
floor. Note: Having a level foundation is critical. Choosing a foundation will
vary between regions. Typical foundations can be concrete pads or patio
stones positioned underneath the floor runners.
5. Position 1D - Plywood Floor on top of completed floor frames.
Plywood will sit slightly inset from outside of floor frame.
Parts
1D - Plywood Floor
(5/8” x 45 3/8” x 70 5/8”) x 2
Note: Plywood is cut slightly
smaller than floor framing.
Keep plywood seams tight.
Parts
1CC - Floor Runners - Long
(1 1/2” x 3 1/2” x 47 1/2”) x 5
Hardware
S1 - 2 1/2” Screws
x 20 total
Long Floor Runners overhanging Floor Frame on front.
Floor Runners flush with Floor Frame on back.
Concrete Slab
Foundation
Front

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8
6. With Plywood positioned correctly on floor framing, attach with 1 1/4” Screws.
Use screws every 16” around perimeter of each floor section and 3 screws
through each mid joists.
Hardware
S2 - 1 1/4” Screws
x 40 total (approx.)
Advice: Use chalk line to
mark location of mid
joists for interior screws.
2. Wall Section Exploded view of all parts necessary to
complete the Wall Section. Identify all
parts prior to starting.
Angled Wall
Extenders
- 2pcs. (Part 2G)
Side/Rear Wall
Panels - 5pcs.
(Part 2AA)
Bottom Wall Plates
- 5pcs. (Part 2AB)
Front Wall Panels - 2pcs.
(Part 2BA)
Horizontal Wall Cleats
- 3pcs. (Parts 2J & 2K)
Wall Extenders
- 3pcs. (Part 2H)
Top Triangular
Siding Piece - 2pcs.
(Part 2F)
Front Wall Bottom
Plates - 2pcs.
(Part 2BB)
Interior Door Header
- 1pc. (Part 2E)
Door Headers - 3pcs.
(Parts 2C & 2D)
Wall Extender
Cleats - 3pcs.
(Part 2I)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9
Bottom Wall Plate
You can find BR1 -
Square Drive Bit for
the screws in with the
Hardware Kit Bag.

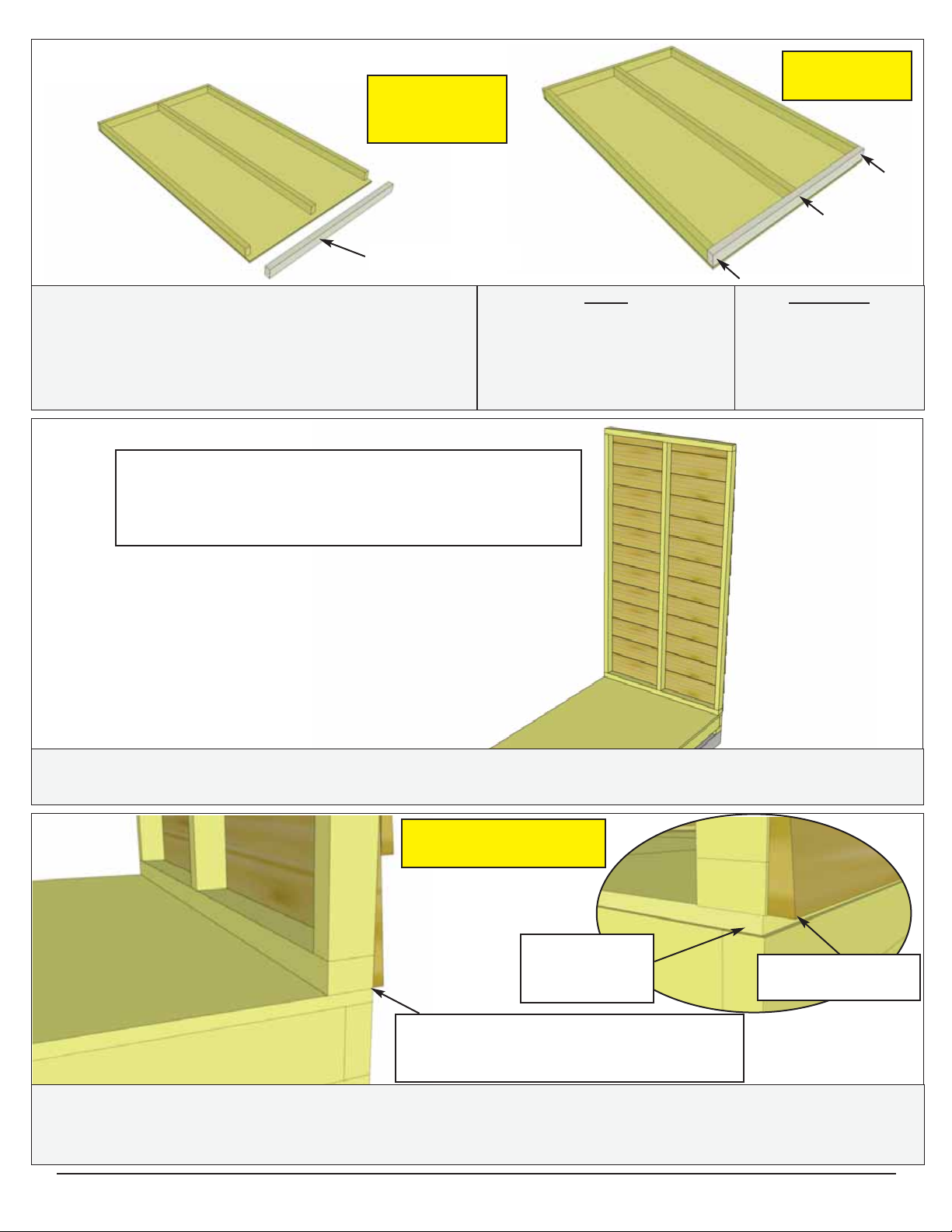

7. Carefully lay 2AA - Side/Rear Wall Panels face
down. Position and attach 2AB - Bottom Wall
Plates to bottom of wall studs of each wall panel
with 3 - 2 1/2” Screws. Position so plates are flush
with framing. Complete 4 remaining solid walls.
Parts
2AA - Side/Rear Wall Panels
(45 1/2” wide x 75” high) x 5
2AB - Bottom Wall Plates
(1 5/8” x 2 1/2” x 45 1/2”) x 5
Hardware
S1 - 2 1/2” Screws
x 15 total
Ensure bottom plate
is flush side-to-side
with wall studs
Important: Make sure all walls are aligned in their
upright position. If not, water may leak into your shed.
Unsure if panel is facing up or down?
Recently attached Bottom Plate is on bottom of panel.
Outside 2x3 framing of wall panel should
be positioned flush with the outside of
floor framing when properly aligned.
9. The rear wall panels will sit even with the floor frame and the sidewall panels will be sandwiched
between the front and rear wall panels. The floor plywood may be slightly recessed.
Note: Siding will overhang the floor frame by approximately 1/2”.
8. Starting on one side, position a Solid Wall Panel on top of plywood floor. The Wall Panel bottom framing
will sit flush with the outside of the floor frame. Wall siding will overhang the floor.
Siding overhangs
floor frame by 1/2”
Floor plywood
may be slightly
recessed
Do Not Attach Walls
To Floor until Step 24.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10
Side Solid Wall
Rear Solid Wall
Be sure that the rear
wall panels fit
between the side wall
panels (sandwiched).
Optional - Caulking
seams will help prevent
moisture from entering
at seam. Caulking not
included in kit.
11. With the corner wall attachment complete, position a second rear wall panel in place so bottom
2x3 wall framing is sitting flush with outside floor joists. Wall siding should overhang floor by
approximately 3/4”. When positioned correctly, attach both side wall panel studs together as per Step 10.

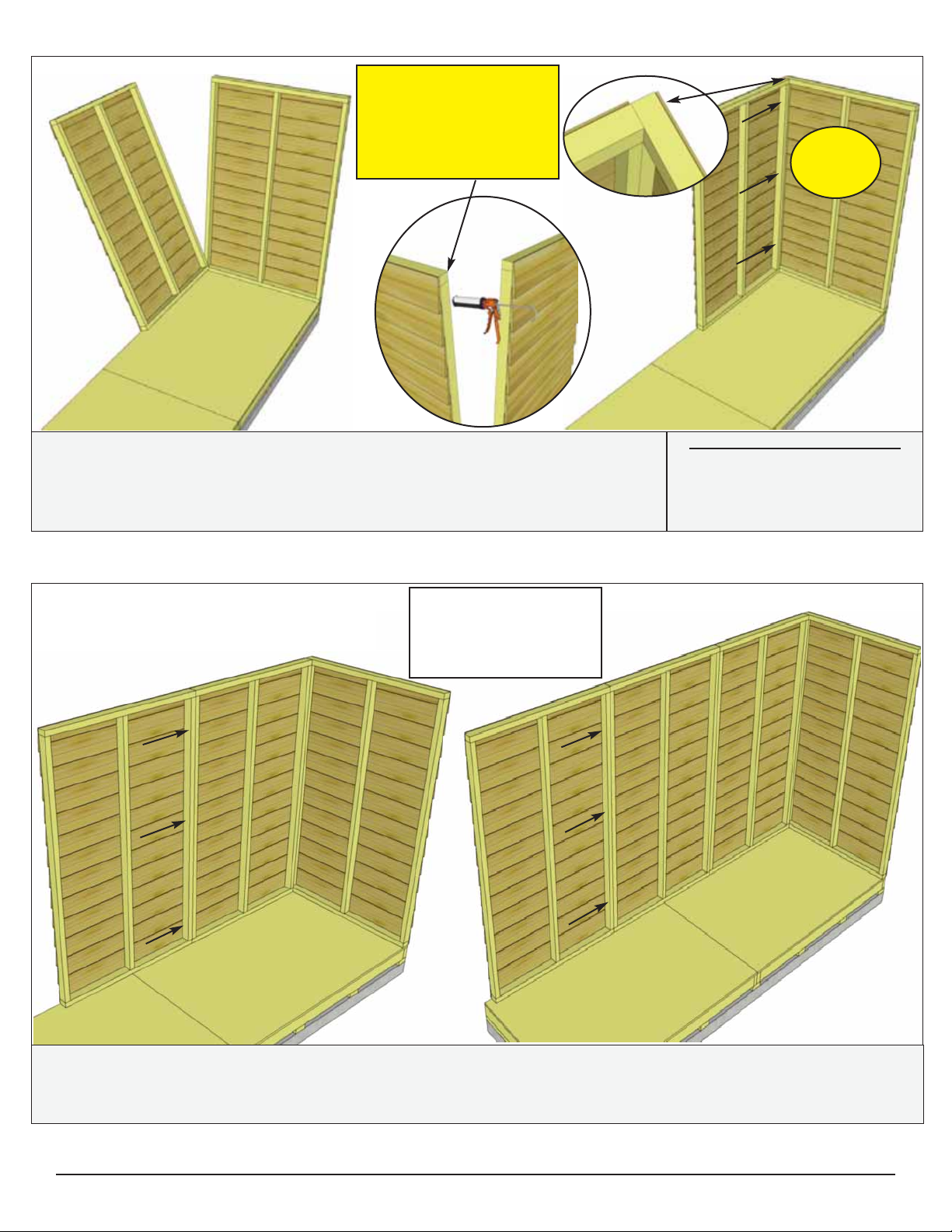

10. Position rear solid wall into place on plywood floor. Butt both vertical wall
studs of side and rear walls together and attach with 3 - 2 1/2” Screws.
Screw at the bottom, middle and top of stud to secure properly.
Note: Drill pilot holes in studs to prevent splitting.
Hardware (Steps 10 - 12)
S1 - 2 1/2” Screws
x12 total
Pilot Hole
first.
Side Wall
