OLT Bayside User manual

10ft Octagon Bayside
Gazebo Assembly
Manual
Jan 10th, 2017
Revision #19
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
Thank you for purchasing a
10 ft Bayside Gazebo. Please take
the time to identify all the parts prior
to assembly. The parts list can be found
on Page 2 of this Manual. Sorting parts
will help you organize and prepare for
each section. There are 7 sections:
A. Floor Section
B. Rafter Section
C. Rail Section
D. Floor Section
E. Roof Section
F. Cupola Section
G. Miscellaneous Section
Safety Points and Other Considerations
Our products are built for use based on proper installation and normal residential use, on level ground. Please
follow the instruction manual when building your Gazebo and retain the manual for future maintenance
purposes.
Some of the safety and usage measures you may wish to consider include:
-snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep the
snow off the roof(s).
-if the product is elevated, any structural and building code requirements are solely the customer's
responsibility, and should be abided by.
-in high or gusty wind conditions it is advisable to keep the structure securely grounded.
-have a regular maintenance plan to ensure screws, doors, windows and parts are tight.
Customer agrees to hold Outdoor Living Today Partnership and any Authorized Dealers free
of any liability for improper installation, maintenance and repair.
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support
Line @ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to
courier replacement parts, free of charge, within 10 business days of this notification. Replacement
parts will not be provided free of charge after the 30 day grace period.
We recommend reviewing this Assembly
Manual thoroughly before starting this
project. Become familiar with the tools
required and where and when assistants
are necessary. If you’re planning on
finishing the Gazebo in a weekend, we
recommend completing up to Step 47
on your first day.

Thank you for purchasing our 10ft Bayside Gazebo Kit.
Please take the time to identify all the parts prior to assembly.
Parts List:
A. Floor Section (Page 4-11)
1 - 5 1/4” - Diameter Octagon Core Block
8 - 1 1/2” x 5 1/2” x 55 1/4” - Main Floor Joist
8 - 1 1/2” x 5 1/2” x 24 3/4” - “T” Post Mount Plate / Main Floor Joist
8 - 1 1/2” x 5 1/2” x 42 3/8” - Mid Floor Joist
8 - 1 1/2” x 5 1/2” x 12” - Interior Core Brace - angle cut on ends
8 - 1” x 5 1/2” x 48 3/4” - Outer Rim Joists
8 - 3 1/2” x 3 1/2” x 91 1/4” - Posts - Angle Cut on Top / Drilled on Bottom
1 - Plywood Post Spacing Template - Angle cut on ends
B. Rafter Section (Page 12-14)
8 - 3 1/2” x 3 1/2” x 58 1/8” - Rafters (Angle Cut on each end)
8 - 1 1/2” x 6” x 14 7/8” -Octagon SkyBox Pieces (Cut,Dado and Drilled)
C. Rail Section (Page 15-19)
7 - 43 5/8” x 36” - Hand Rail Section
14 - 9/16” x 3 1/8” x 40” - Hand Rail End Caps - Dog Ear and Router edges.
8 - 43 5/8” x 10” - Upper Rail Section
8 - 9/16” x 3 1/8” x 15 1/4” - Upper Rail End Caps -Right Side (Angle Cut One End with Hole)
8 - 9/16” x 3 1/8” x 15 1/4” - Upper Rail End Caps -Left Side (Angle Cut One End with Hole)
8 - 1 1/2” x 3 1/2” x 55” - Mid Rafters
D. Floor Section (Page 20-23)
8 - Pre-assembled Deck Floor Panels - Triangular Shaped
8 - 1” x 5 1/2” x 50 5/8” - Perimeter Deck Board- notched for Post
8 - 1” x 5 1/2” x 13 1/4” - 2nd to last Deck Board
8 - 1” x 5 1/2” x 8 5/8” - Last Deck Board
1 - 1” x 10” - Octagon Center Deck Piece
E. Roof Section (Page 24-28)
8 - Large Roof Panels
8 - Facia Boards - 1” x 4 1/2” x 54 5/8” - Angle Cut on ends
16 - 1 1/2” x 5 1/2” x 22 5/8” - Corner Brackets - 8 left / 8 right
F. Cupola Section (Page 29-33)
8 - Side Rail Sections - 14 7/8” wide
1 - Small Core Block- Octagon
8 - 1 1/2” x 1 1/2” x 24” - Rafter (angle on both ends)
8 - 3/4” x 1 1/2” x 18” - Facia
8 - Small Roof Panels
24 - Cupola Ridge Caps (2 1/2’ wide “V” shaped) 8 - 16” long / 8 - 14 1/2” long / 8 - 10 1/2” angle ends
1 - Top Cap & Ball Top
G. Miscellaneous Section (Page 34-36)
8 - Facia Corner Detail Plates (Small)
8 - Rim Joist Corner Detail Plates (Large)
80 - Cedar Roof Ridge Cap Shingles
(8 need to be trimmed for last row)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2

10’ BAYSIDE GAZEBO HARDWARE SHEET
2”
1 1/2”
1 1/4”
Finishing
Shingle
Hardware Kit (Provided)
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
Ladder
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Tools Required (Not Provided)
1/8” Drill Bit
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3
3”
Carriage Bolts x 40 pcs.
Square Drive Bit
Utility Knife
1/2” Wrench
Flange Nuts x 40 pcs.
In Florida, additional hardware may be required that is
not included in kit due to hurricane winds. Please
check with local building code to confirm.
2”
Stainless Steel
5 1/2” long
340 pcs
460 pcs
50 pcs
70 pcs
210 pcs
1 pc

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
A. Floor Section
1. Locate both the Long Main Floor Joist and
the “T” Post Mount Plate. Angle cut ends
must be positioned to the outside.
Pre-drilled holes will align with Posts later in Step
10. Please review this step to confirm correct “T”
Post Mount Plate orientation. Use 4 - Carriage
Bolts to align Joist with “T” Plate prior to attach-
ing. Joist must be evenly spaced between bolts.
Remove Carriage Bolts when correctly aligned.
2. With pieces properly orientated, screw
“T” Plate and Joist together with 2 - 3” screws. Make
sure pieces are flush with each other on the top and
bottom. Complete all 8 Long Main Floor Joist and “T”
Post Mount Plate Connections. Once again, check
alignment prior to attaching together.
Long Main Floor Joist
55 1/4” long
“T” Post Mount
with Holes Drilled
Drilled Holes
Measure to center of Plate
Joist evenly
spaced between
bolts.
3. Locate the 5 1/4” Diameter
Octagon Core Block. Place at
end of one of the Long Main
Floor Joists.

4. Position end of joist equally on one side of the
Core Block. Angle screw with 3 - 3” screws from
the top and sides. Joist and top of Core Block
should sit flush with each other.
Note, Drill 1/8” pilot holes in joist prior to screwing
to prevent splitting.
5. Lay completed Core Block / Joist Assembly on
flat level surface.
6. Position and angle screw the
second joist assembly to opposite
side of Core Block.
7. Continue to add Joist Assemblies to
Core Block.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5

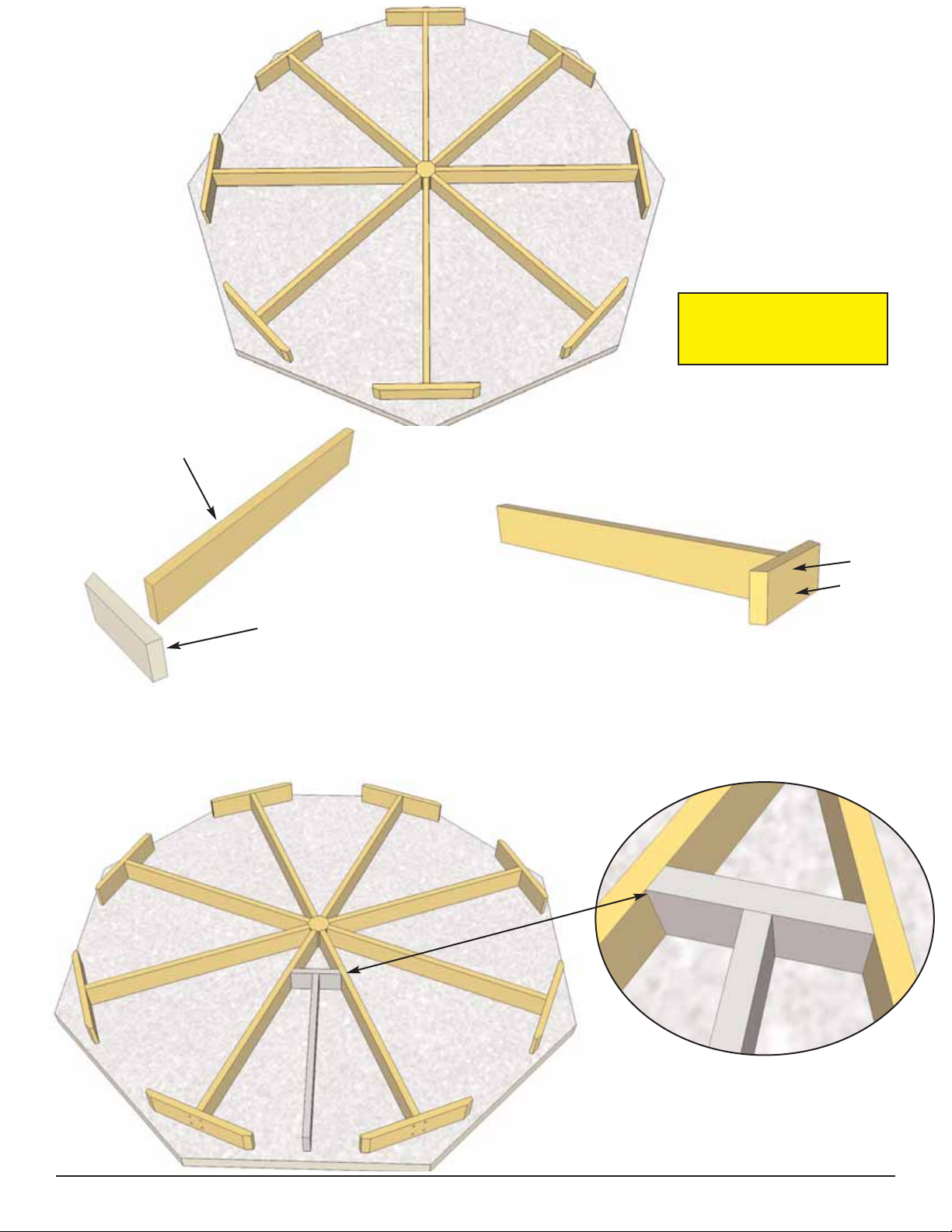

8. At this stage, your
gazebo floor should look
similar to the illustration to
left.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6
9. Locate and position a Mid Floor Joist (42 3/8” long) and an Interior Core Brace (12” long). Make
sure the longer side of Core Brace is flush with the end of the joist and attach together with 2 - 3”
screws. Once again, make sure Core Brace is centered and flush with joist. Complete all 8 attachments.
Interior Core Brace
(angle cut on ends)
12” long
Mid Floor Joist
10. Set completed Mid Joist / Core Brace
Assembly between the main Joist
Assemblies but do not attach.
Important: To confirm
Doorway location, refer
to Step 16.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7
12. Locate 3 1/2” x 3 1/2” Posts. Align
first Post with four drilled holes in bottom
aligned with “T” Post Mount Plates.
Important: Be sure to align Post so top
angle cut is high to the inside.
Angle Cut of Post
(high side = inside)
11. Position remaining Mid Joist / Core Brace Assemblies
roughly between the main Joist Assemblies. Some adjusting
will be necessary to form a symmetrical pattern.
4 Holes Drilled
in bottom of
each Post
Do not
attach until
Step 22.

15. From the inside, slide a
Flange Nut over bolt and tighten.
Important:
Only snug Carriage Bolts at this
stage. After Handrail and Upper
Baluster Section are installed,
come back and firmly tighten all
Carriage Bolts with a wrench.
13. When holes are
aligned, slide 4 - Carriage
Bolts from the outside
through Post and “T” Post
Mount Plates.
14. Complete all four “T” Post
Mount and Post Carriage Bolt
attachments.
Important:
Once again, only snug Carriage Bolts
at this stage. After Handrail and Upper
Baluster Section are installed, come
back and firmly tighten with wrench.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8
Flange Nut

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9

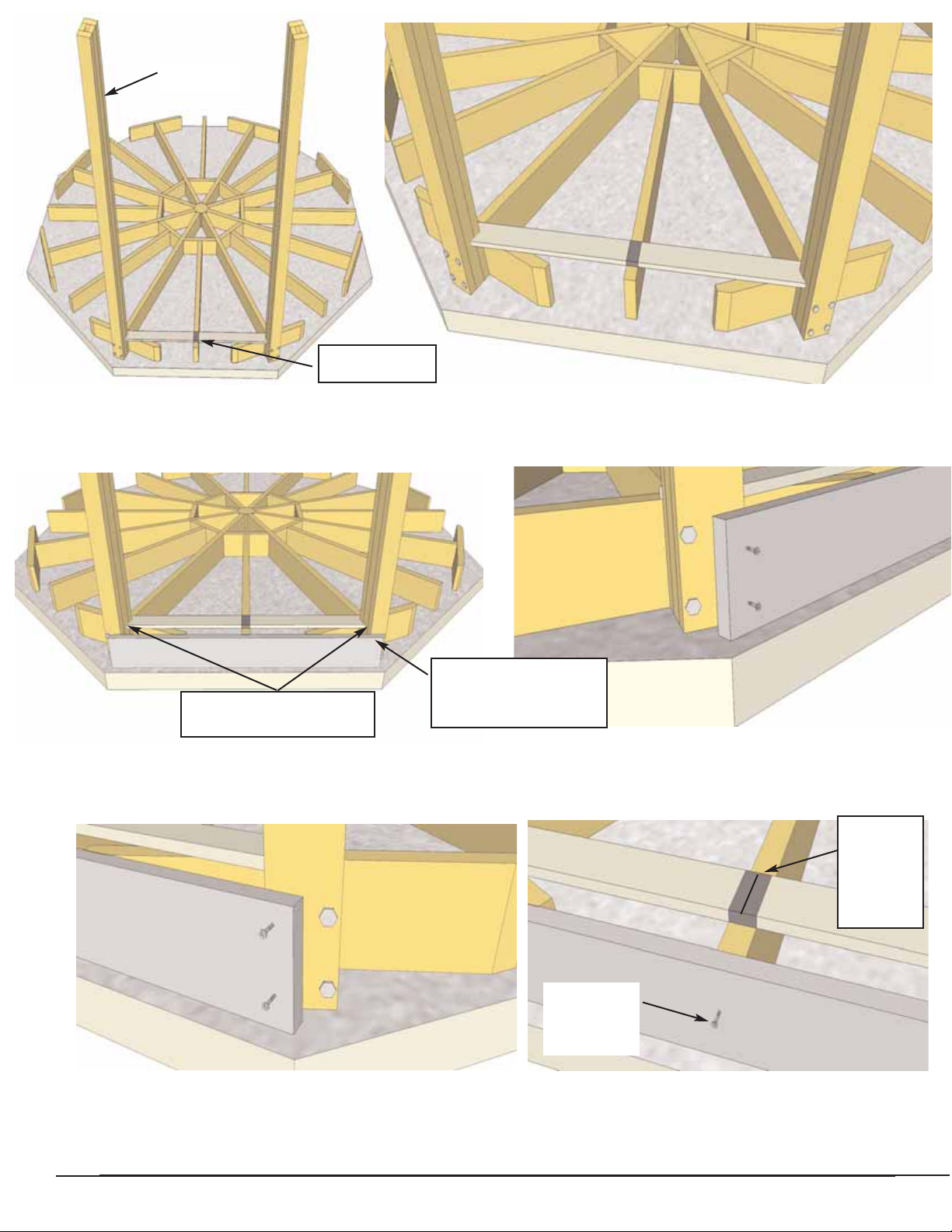

16. Locate 2nd Post and Plywood Post Spacing Template. Align and secure Post to Joist Assembly
as per Steps 12-15. Using the Post Spacing Template, slide between posts as illustrated above.
17. Locate one Outer Rim Joist (1” x 5 1/2” x 48 3/4”) and position evenly from side to side between each
Post. Level Rim Joist with top of “T” Post Mount. Screw Rim Joist to Post with 2 - 3” screws.
2nd Post
Plywood Post
Spacing Template
Push posts together
tight against Template.
18. Before attaching opposite end of Rim Joist to Post, push Post tight against Template and then
attach Rim Joist to Post with 2 - 3” screws. Line up Mid Joist with Mid Joist Template Marker and
when correctly centered attach Mid Joist to Rim Joist with 1 - 3” screw.
Line up
Mid Joist
with
Template
Marker.
1 - 3”
screw into
Mid Rafter.
Level with top of “T”
Post Mount. See
Step 23.
Door Way

21. Continue to attach Posts and
Outer Rim Joists until all 8 are
complete. Continue to use Post Spacing
Template to confirm correct spacing.
Remember- Align Post with high side to
the inside.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10
19. Locate 3rd Post. Align and secure Post as per Steps 12-15. Using the Post Spacing Template,
position 3rd Post as per Step 16.
3rd Post
20. With 3rd Post correctly positioned,
align and attach the Outer Rim Joist as per
Step 17 - 18.
Any gaps between the ends Rim Joists
will be covered by Rim Joist Detail
Plates in Step 121.
Angle Cut of Post
(high side = inside)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11
22. Secure Core Brace
Assembly to Main Joists with
4 - 3” screws. Make sure tops of
Interior Core Brace and Main
Joists are flush with each other
as Decking will sit on this
attached in Steps 50-64.
Flush
23. With all Mid Joist Assemblies secured,
screw the “T” Post Mount into Rim Joist from
inside with 2 - 3” screws on angles. Be care-
ful to screw on angle so fastener does not
come through Rim Joist. Complete all 8
sides.
Important:
Use a level to confirm all
Floor Joists are level and
that the overall Floor is level.
Adjust as necessary.
Support Floor Structure as
required.
Make sure that Posts are
plumb. Check each Post in
both directions with a level
and adjust as required.
“T” Post Mount
and Rim Joist at
same height.

Octagon Skybox
Rafter
Notch on bottom
“V” Notch in end

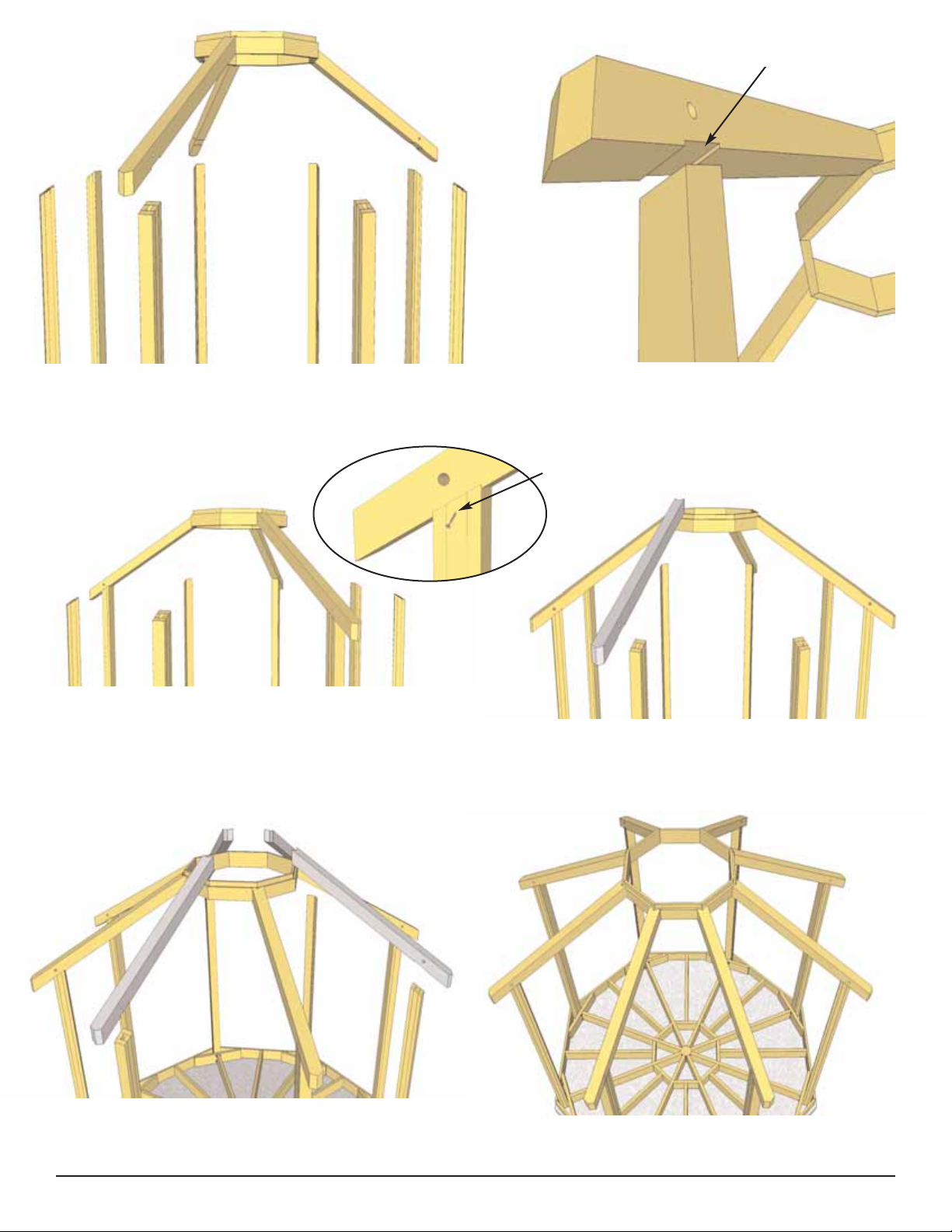

24. Locate 8 Skybox Pieces placing them with
Dado cut facing out and to the top.
25. Position 2 pieces
together so angle cut ends
line up. When correctly
aligned, screw together
using 2 - 3” screws and 1
2” screw in top dado ledge
as shown in left illustration.
Attach remaining pieces to
complete Skybox.
26. With your helper, lift the Octagon Skybox
up with the dado or “notch” of the Skybox facing
up. Place the “V” end of the Rafter in a corner of
Skybox
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12
3” screws
B. Rafter Section
2” screw
3” screws
Angled Ledge
not accurately
shown in
picture.
Caution - Next you will be installing Rafters. Rafters
will be unstable until Upper Rails Sections are
completed in Step 34. Rafters must be secured to
Upper Rails and cannot be left unattended.

27. Align and secure Rafter end as illustrated above with 4 - 3” screws
from the inside of the Skybox.
Important- Be sure to support Skybox/Rafter Assembly as unit will be
unstable until at least 3 Rafters are attached.
Important - Prior to lifting Rafters onto Posts, Upper Rails in Step 34 must be completed.
Align Rafter Corners
flush with ledge of
Skybox.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13
Important - Depending on the # of helpers you have available will determine how many rafters
can be attached to Skybox prior to lifting up. Our illustration shows 3 Rafters = 2 additional
helpers.
Screw from
inside of
Skybox into
Rafter
Flush with
Ledge.
28. With your helper still supporting the Skybox/
Rafter Assembly, position and attach a second rafter
as illustrated to the left and as per Step 27.
29. Complete 3rd Rafter attachment
as shown above and as per Step 28.

30. With the help of at least 2 assistants and Step Ladders, lift up your partially completed Skybox/
Rafter Assembly and place Rafters on top of Posts. The Post will sit in the notch of the Rafter.
31. Angle screw each Rafter/Post
connection together with 1 - 3” screw from
Post into Rafter. Slightly countersink
screwhead.
33. Complete remaining Rafter attachments and secure as per Step 27 and Step 31.
Post will sit in
notch of rafter.
32. Standing on ladders, position and attach a 4th Rafter
to the Skybox and Post as per Step 27 and Step 31.
Remember to align the Rafter correctly with Skybox ledge.
angle screw from side
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14

C. Rail Section
35. Lift a completed Upper Rail Section
up and place between the Rafters and
Posts.
Once Upper Rail alignment is confirmed,
complete remaining Upper Rail
Assemblies.
36. Position Upper Rail Section so Pre-drilled holes in End Caps line up with Pre-drilled holes in
Rafter. With holes aligned, carefully hammer Carriage Bolt through Upper Rail Section and Rafter.
Do not secure washers and nuts of Carriage Bolts until Step 37.
Bang Carriage Bolts
through holes.
34. Locate Upper Rail Sections (8) and Upper
Rail End Caps (8 left / 8 right). Align Caps on
Rail Section flush at the bottom and evenly
spaced from side to side. See Pictures to the
right to confirm alignment prior to attaching.
Left and Right Upper
Rail End Caps.
Flush at
bottom.
Evenly
spaced
from side
to side.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15
Bevel edge of cap
positioned to outside.
Important- Left and Right Upper Rail
Ends Caps must be aligned correctly.
Upon completion of first Rail Section,
test fit Section as per Step 35.
Counter
sunk hole
to outside.
Outside View
Inside View
Attach with
4 - 2” screws.
Straight
edge of
cap to
inside.

41. To complete Handrail Sections, locate Hand Rails and Hand Rail End Caps. Position End Cap
flush with Bottom Rail. Evenly space End Caps from side to side with both Top and Bottom Rails.
Align rounded corners of End Caps against rail.
Flush
39. Lift up, position and secure all remaining Upper
Rail Sections using Steps 36-38. Important -
Snug Bolts down but don’t over-tighten.
40. On your last Upper Rail Section, use Carriage
Bolt from the first section to secure. Use Wood
Clamps or have assistant push Rail / Rafter together.
37. Lift a second Upper Rail Section into place and
slide carriage bolt through End Cap hole. Place a
flange nut over bolt and snug nut down.
38. Hammer in 3rd Carriage Bolt into left side of
second Upper Rail Section as per Step 36.
Flange Nut.
3rd Carriage
Bolt
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16
2nd Upper Rail Section
Hand Rail Section
Hand Rail
End Caps
Rounded edge to inside.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17
42. When correctly positioned, attach with 4 - 2” screws. Complete all Handrail Sections now.
Important- Drill 1/8” Pilot Holes in End Caps to prevent splitting. Be sure to drill into Handrails.
43. Starting on right side of Doorway, position first Handrail Section between Posts. Position bottom of
Handrail Section 4 1/2” above top of the Rim Joist. Position End Cap of Handrail Section equally from front
to rear or best fit on Post.
44. With Handrail Section positioned correctly, screw End Cap to Posts with 3 - 2” screws per side.
Position and secure a second Handrail Section between Posts moving Counter Clockwise
direction. Once again, use 3 - 2” screws per side to secure.
Doorway
Measure 4 1/2” from
top of Rim Joist.

46. With both the Upper Rail and Handrail Sections complete, go back and tighten all the Carriage
Bolts in the “T” Post Mount Plate and Rafter with a Wrench. Be careful not to over tighten bolts.
Complete one side and then the opposite side. This will create an equal tightening of all the
components.
Tighten with
Wrench
47. To completely secure
Rafter / Post and Upper Rail
Sections, place 2 - 2” screws
from the side framing of Upper
Rail Section into Posts.
In Florida, additional hardware
may be required that is not
included in kit due to hurricane
winds. Please check with local
building code to confirm.
45. Complete remaining Handrail Sections
positioning and securing as per Step 44.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 19

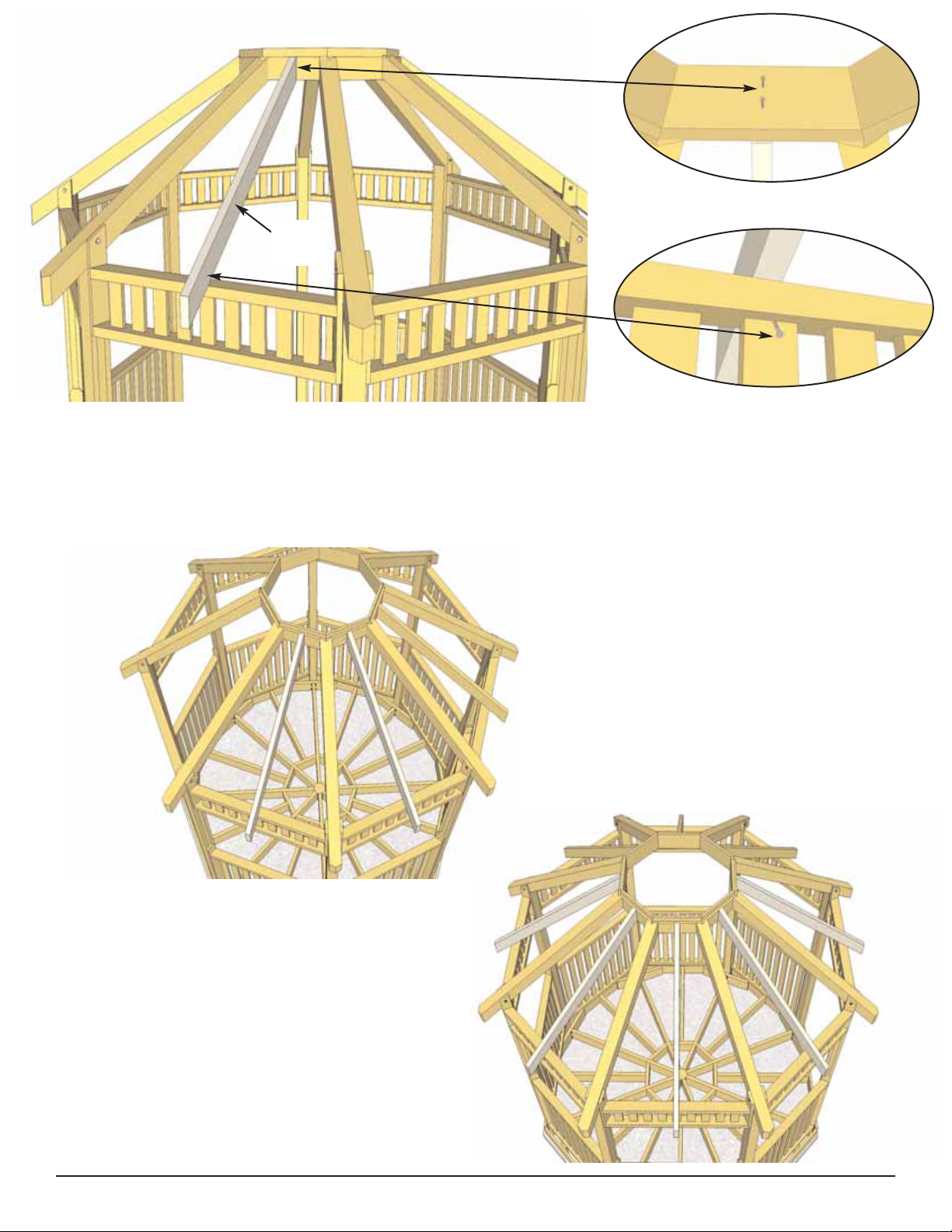

48. Locate 8 Mid Rafters (1 1/2” x 3 1/2” x 55”). Center Mid Rafter from side to side on Skybox
and on the same vertical plane as the Corner Rafters. Use a Straight Edge to assist you. Attach
Mid Rafter from inside the Skybox with 2 - 3” screws. Center Mid Rafter on Upper Rail Section
(the midpoint of the Upper Rail Sections is approximately 20 1/2”). From the inside, angle screw
a 3” screw from Upper Rail Section into bottom of Mid Rafter.
Mid
Rafter
Inside of Skybox
Inside of Upper Rail Section
49. Complete remaining Mid Rafters
as per Step 48.

50. Locate the 8 pie-shaped Panelized
Floor Panels.
Floor Panel
51. Lift up and lay your first Panelized
Floor Panel on Floor Joists.
52. Position Floor Panel so it sits
equally on Floor Joists.
Sits equally on Joists
Floor Joist
Important- Do not secure Floor
Panel to Joists until all Floor Boards
are in place and properly
positioned. See Step 55 to secure
Floor Panels completely.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 20
D. Floor Section Important- If you have purchased a Screen Kit
Option, Floor Screening must be installed prior to
Step 50 (Floor Panel installation), please refer to
Screen Kit Option Assembly Manual for instructions.
