9 ft Naramata Spa Shelter
Assembly Manual
Outdoor Living Today
Thank you for purchasing a
Naramata /Getaway Spa Shelter from
Outdoor Living Today. Please take
the time to identify all the parts
prior to assembly.
Safety Points and Other Considerations
Our products are built for use based on
proper installation and normal residential use,
on level ground. Please follow the
instruction manual when building your
shelter and retain the manual for
future maintenance purposes.
Some of the safety and usage measures you may wish to consider include:
-snow load ratings vary by geographical location. If heavy or wet snowfall
occurs, it is advisable to sweep the snow off the roof(s).
-if the product is elevated, any structural and building code requirements are
solely the customer's responsibility, and should be abided by.
-in high or gusty wind conditions it is advisable to keep the structure securely grounded.
-have a regular maintenance plan to ensure screws, doors, windows and parts are tight.
Customers agree to hold Outdoor Living Today and any Authorized Dealers free of any liability for
improper installation, maintenance and repair of any Outdoor Living Today products.
In the event of a missing or broken piece, simply call the Outdoor Living Today
Customer Support Line @ 1-888-658-1658 within 30 days of the delivery of your
purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Version #8
Feb 20th, 2015

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Parts Lists:
A. Wall Section
4 - 3 1/2” x 3 1/2” x 92” long Posts
4 - Upper Railing Sections 13”h x 101”long (Getaway = 10”high- wood)
8 - 1 1/2” x 3 1/2” x 54” Top Plates (cut on 45 degree on 1 end)
B. Roof Section
1 - Skybox - 5 1/2” high x 37” x 37”
4 - 1 1/2” x 3 1/2” Corner Rafters with Side Cleats- 58 3/8” long
4 - 1 1/2” x 3 1/2” Center Rafters with Side Cleats - 42” long
8 - 1 1/2” x 3 1/2” Mid Rafters (without Side Cleats) - 42” long
4 - Left Side Roof Sections
4 - Right Side Roof Sections
1 - Bundle of Filler Shingles (16” long & 4 Top Row Trimmed)
32 -Regular Cedar Roof Ridge Caps
4 - 10” long Cedar Roof Ridge Caps with Roofing Paper attached
4- 42” long x 3” wide Flex Flashings for Skylight
4 - 1/2” x 3 1/2” x 36” long Skylight Trims
Assembly Time:
1 Day (does not include site preparation)
Specifications:
Outside Post to Post Dimensions
108” w x 108” w
Inside Post to Post Dimensions
101” w x 101”w
Overall Dimensions with Roof Overhang
120”w x 120”w x 116”h
Overall Weight
750 Lbs
Thank you for purchasing one of our Naramata Spa Shelters.
Please take the time to identify all the parts prior to assembly.
Page 2

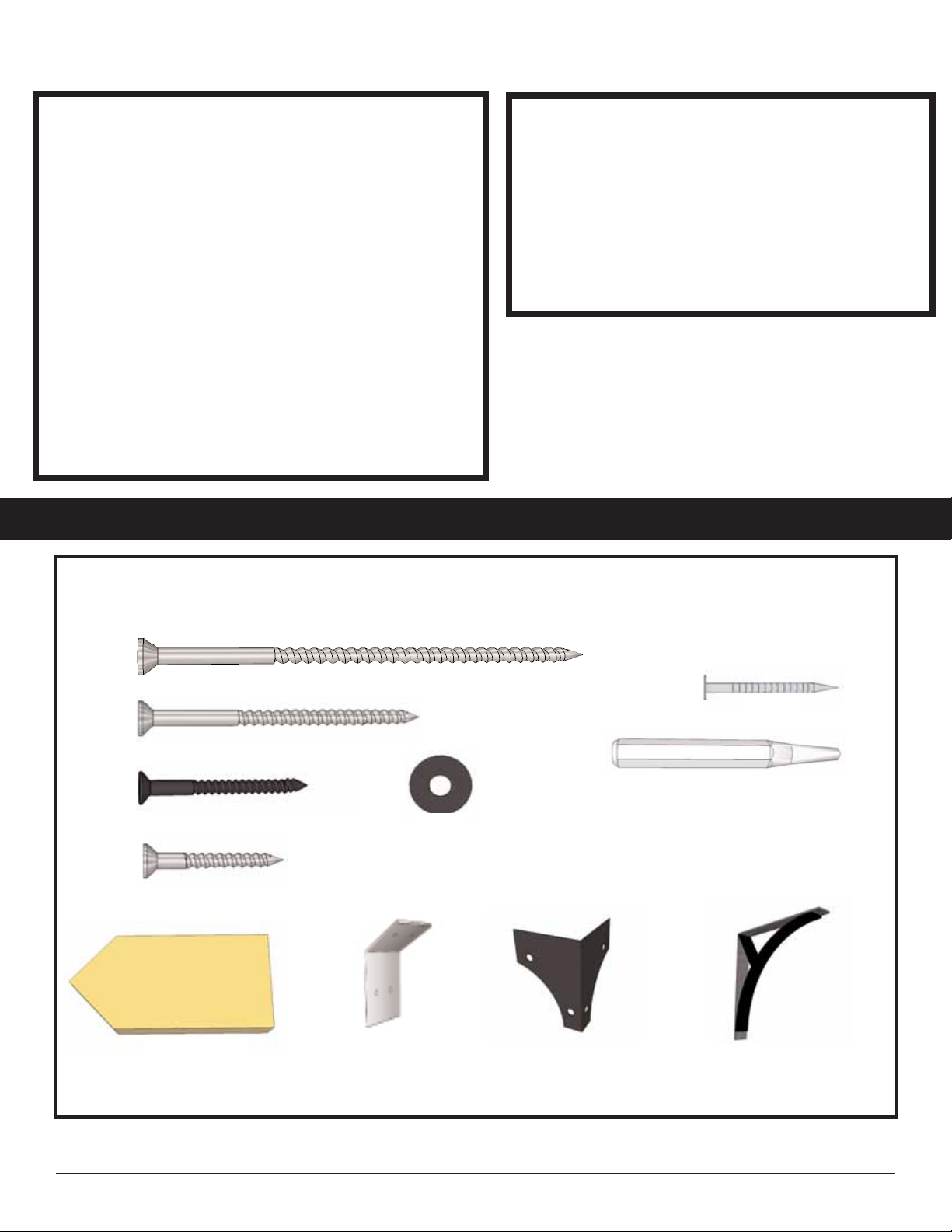

9’x9’ NARAMATA HARDWARE SHEET
2 1/2”
Note: screws and nails shown actual size.
1 1/4” Shingle
Hardware Kit (Provided)
4”
Square Drive Bit
Simpson Strong
Tie x 4
2”
Wooden Rafter
Corner Block
Washer
4 - Corner Post/Top Plate Cap
(Naramata Only)
8 - Corner Brackets (Black
Aluminum) (Getaway = Wood
Brackets)
1 1/4”

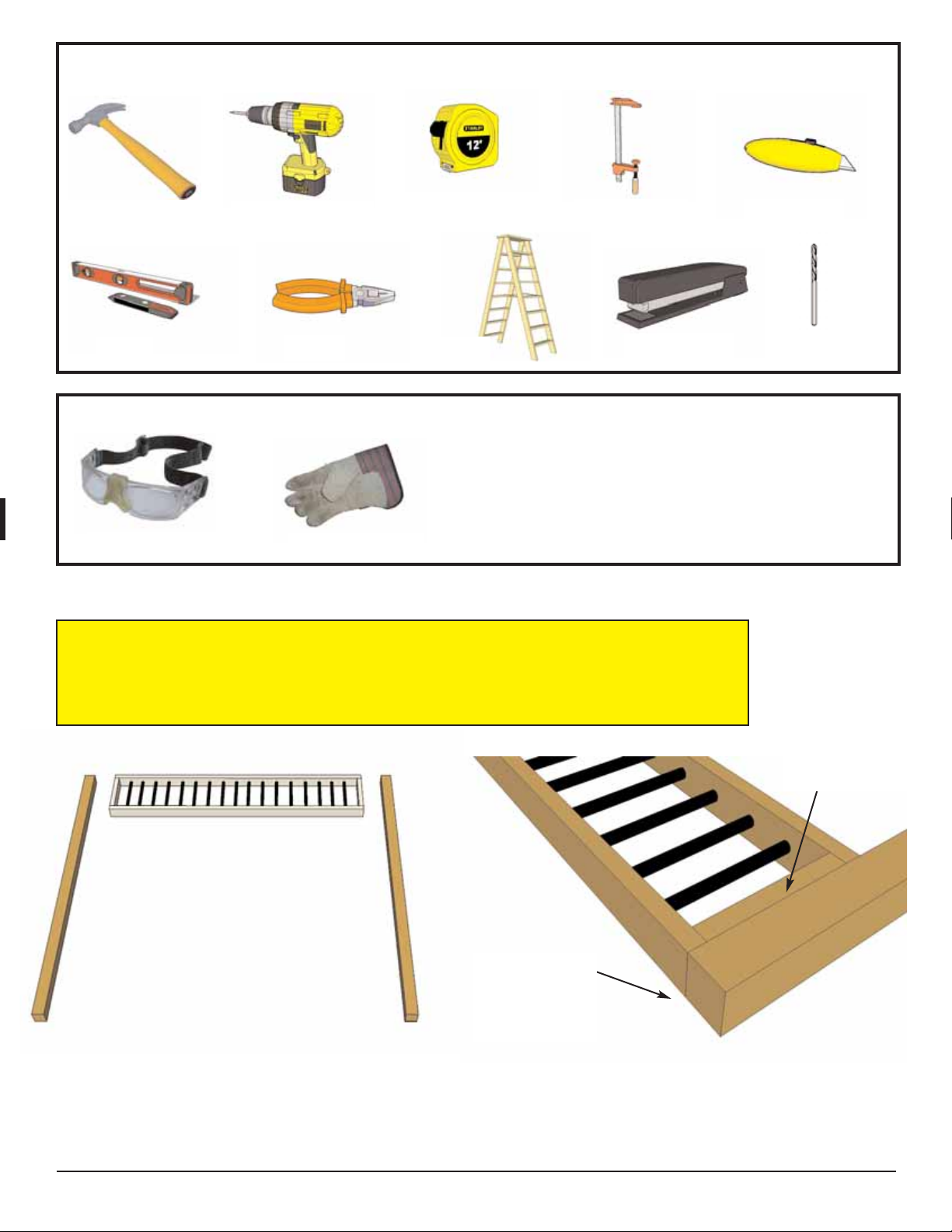

1. On a flat level surface, position 2 - 4x4
Posts and 1 Upper Baluster Section
together as shown above.
2. Place both Posts and the Upper Baluster
Section flush with each other.
Top of Post
flush with top
of Baluster
section.
Framing of
Baluster Section
flush with Post
Important - Assembly Manual shows illustrations for Naramata Model.
Please follow general assembly instructions for Naramata. Refer to
Parts List for any differences between Models.
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
Ladder
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Tools Required (Not Provided)
1/8”Drill Bit
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3
Utility Knife
Stapler

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4

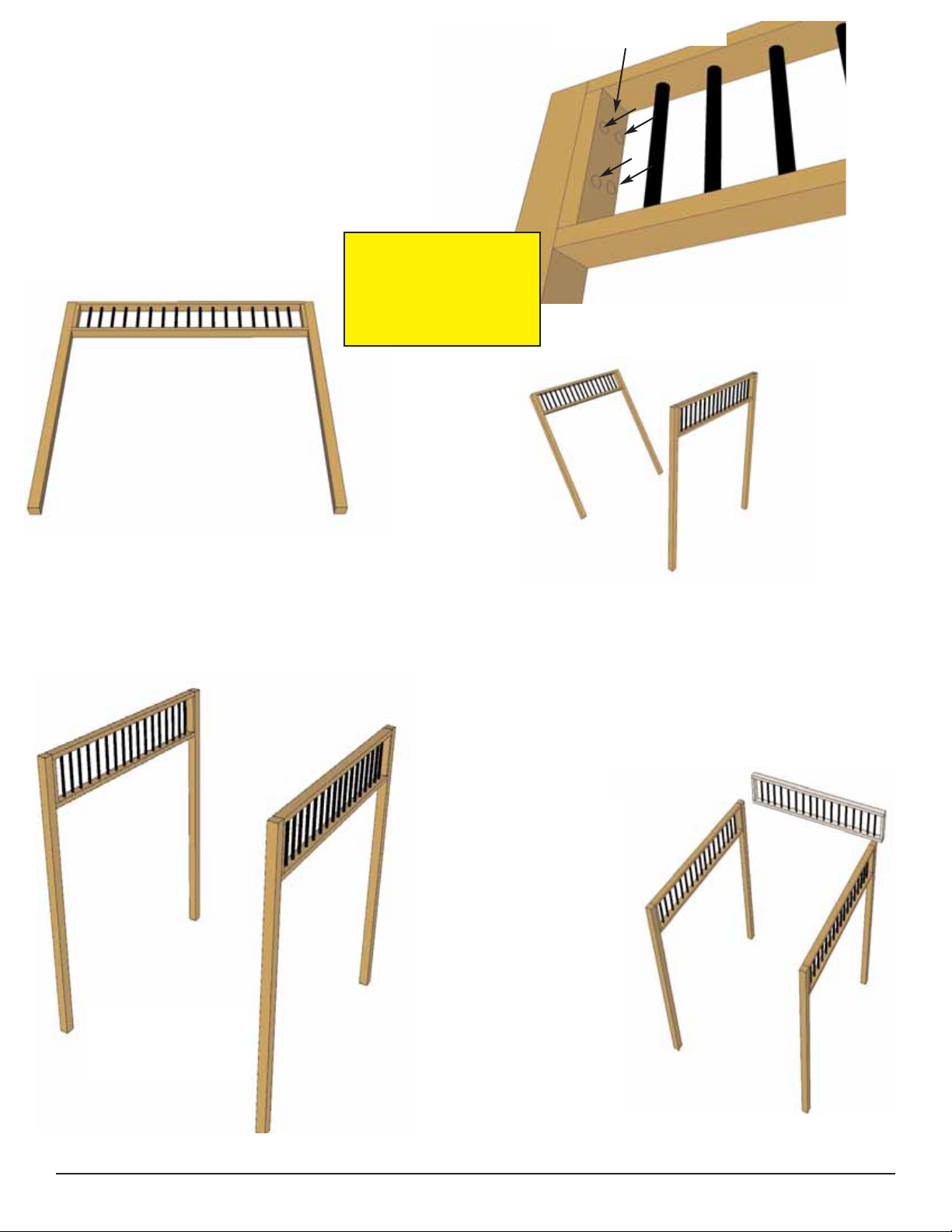

3. When Post and Baluster Section are
position correctly, fasten together with
4 - 2 1/2” screws per side.
Hint- screw both front sides (2 screws per
side) flip assembly over and complete the
other sides.
2 1/2” screws here.
4. Complete 2nd Post/Upper Baluster
Attachments.
5. Standing the Post/Baluster Assemblies will be
easier with 2 extra helpers. Carefully raise one of
the section up first and steady with 1 helper.
Raise the second assembly up and steady with
your other helper.
6. While both sections
are held in place by
your helpers, locate a
3rd Upper Baluster
Section and place
between both sections.
Have your helper stand
close to your end to
assist you with the
lifting of the Baluster
Section while still
keeping the assembly
steadied.
Place assemblies
approx. 9 feet
apart.
You can find the
Square Drive Bit for
the screws in with
the Hardware Kit
Bag.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5

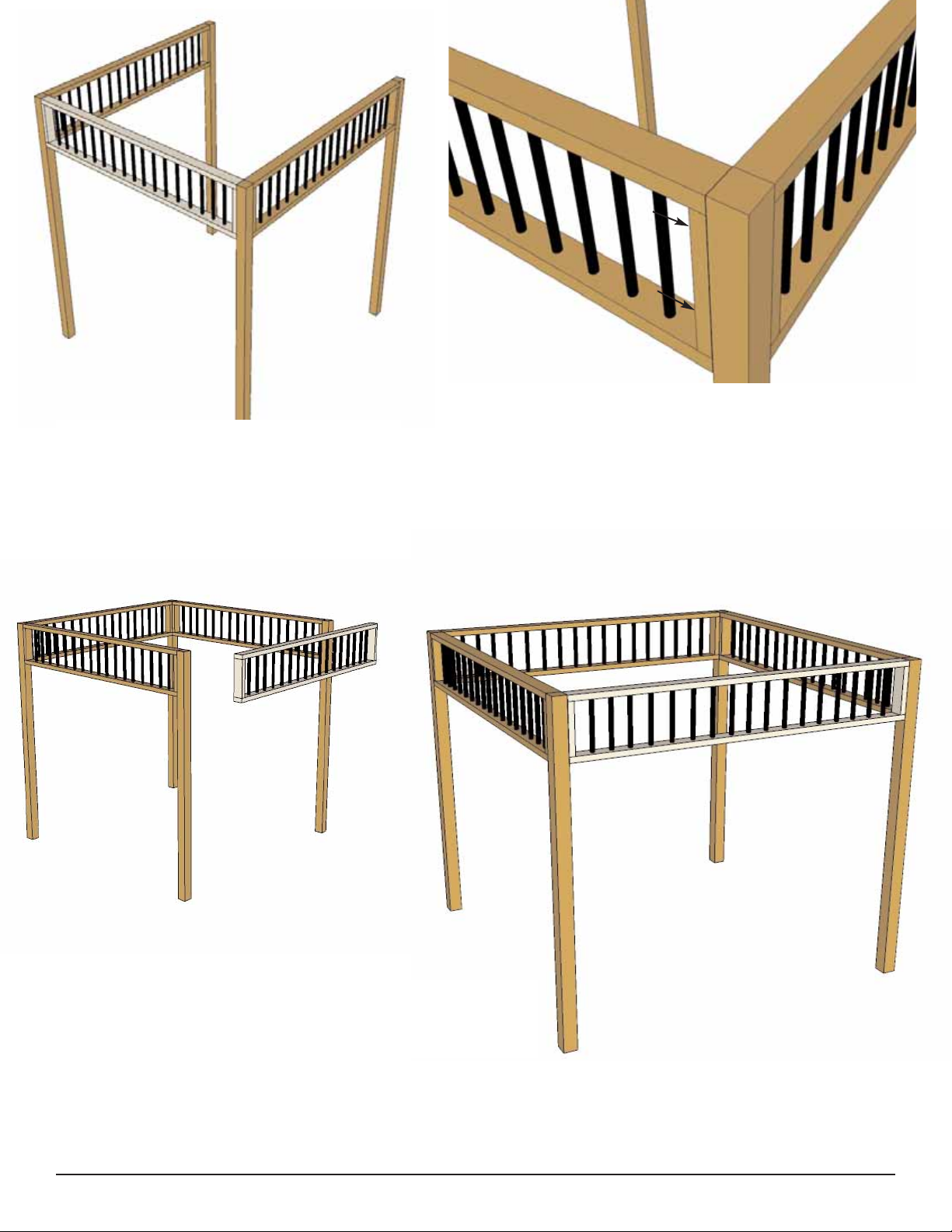

7. Place the 3rd Upper Baluster Section
into place so both post and framing are
flush with each other as per Step 2.
8. When positioned correctly, attach Upper
Baluster Section to Post with 4 - 2 1/2” screws per
side as described in Step 3. At this stage, the
post/baluster assemblies should be able to support
themselves.
9. Complete the final Upper Baluster
Attachment.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6

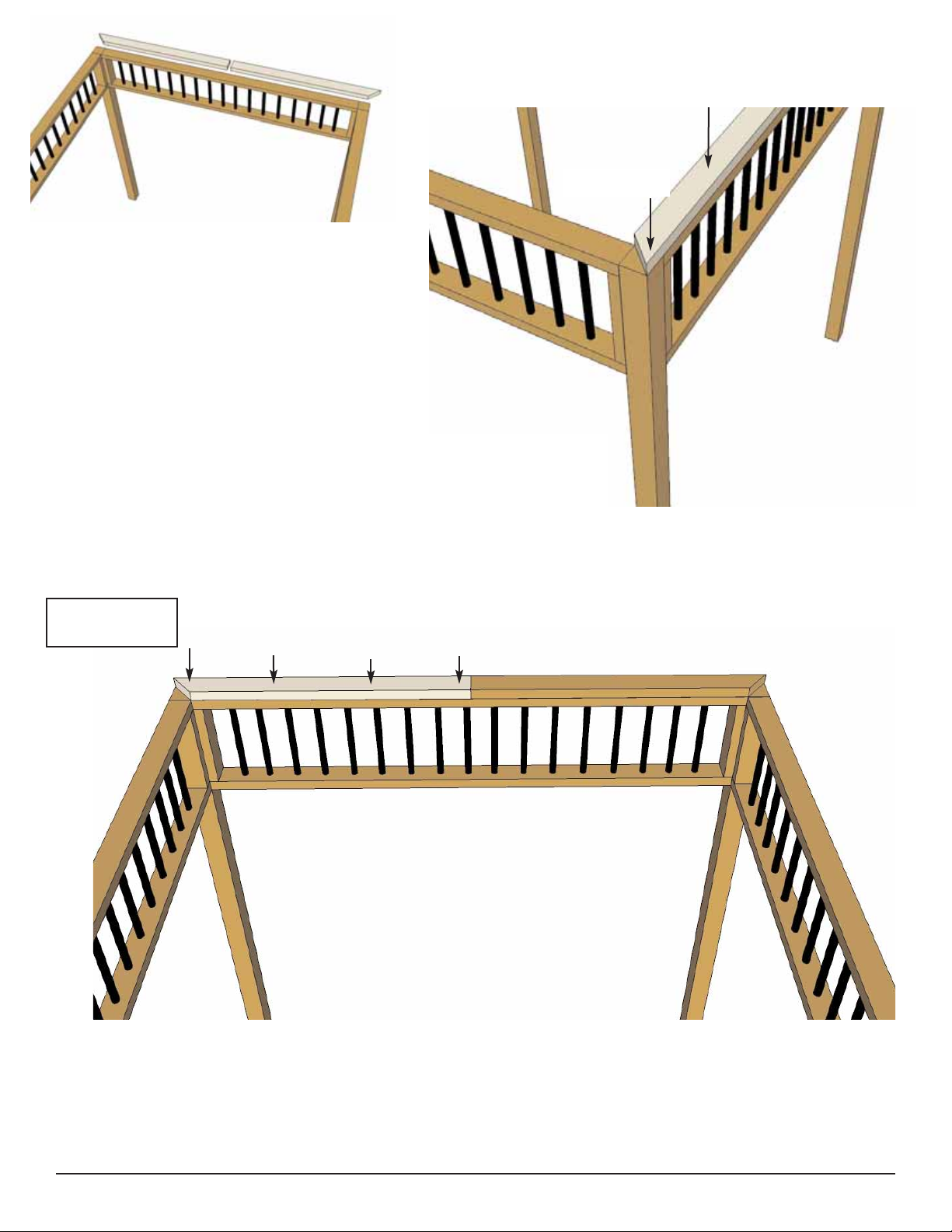

10. Next, attach Top Plates. The Top
Plates will tie your post and balusters
together. There are 2 Top Plates per side
(left and right both with a 45 degree cut on
the end. Locate and position on top of
post/baluster assembly.
11. Place Top Plate so the 45 degree cut
on the end sits over the post approximately
halfway as illustrated above. When
positioned correctly, attach to post/baluster
assembly with 4 - 2 1/2” screws per piece.
Make sure to place a screw from top plate
into post. Drill pilot hole to prevent splitting.
2 1/2” screw
2 1/2” screw
12. Position 2nd Top Plate on post/baluster
assembly and fasten down as per Step 11.
Drill end screw
into Post.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7
13. Position 3rd Top
Plate down and attach
to post/baluster
assemblies as
described earlier.
3rd Top
Plate.
Both Top Plates should
be flush and sitting on
the post equally.
14. Complete remaining
Top Plate attachments
working in a clockwise
direction.
When completed, you are ready to
start Corner Bracket Attachments.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8
15. Locate all 8 Black Powder Coated
Aluminum Corner Brackets and Black
2” Screws.
Position Corner Bracket on post and
underside of baluster section centering in
the middle of each.
Attach with Black screws into the
Brackets pre-drilled holes.
Important- Do not over-tighten bracket
screws. Use screw driver to finish off.
centered on bottom
of baluster section
centered on
post
Note:
Prior to attaching
Brackets, use a level to
square up your posts.
16. Complete all remaining Corner Bracket attachments.
Even though Corner Brackets are engineered to be exactly
90 degrees, use a square or a level to align your post prior to
attaching each bracket.
Time to Start the Roof!
17. Locate your Skybox. Dimension of Skybox
is 5 1/2” high x 37” l x 37” l.
Dado to top

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9
From the outside, toenail a 2 1/2” screw
from rafter top into Skybox. Drilling a pilot
hole will prevent end splitting.
19. While still supporting your
Skybox, complete all other Corner
Rafters. When complete, your
Skybox/Corner Rafter will support
itself.
20. Before attaching the Center Rafters to
Skybox, first attach Simpson Strong Ties
(long side down) to bottom of rafter. Attach
tie with 2 - 1 1/4” screws where rafter angle
changes.
Toenail
2 1/2” screw
Corner Rafter
(flush to bottom of
Skybox)
18. While your helper holds up the Skybox, attach the first
Corner Rafter to the Skybox from the inside. Secure the Corner
Rafter to the Skybox with 2 - 2 1/2” screw. Screw into seam of
Skybox straight into the rafter. Make sure Rafter is flush to bottom
of Skybox. (Corner Rafters will be your longest rafters.)
Simpson
Strong Tie
(Silver)
Center Rafters
also have
cleat.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10
23. Finally, attach Mid Rafters to
Skybox. There are 8 Mid Rafters and
each is positioned on the edge of the
Skybox. Attach as per other rafters.
22. Toenail the Center
Rafter to Skybox with a
2 1/2” screw. Rafter will
be flush at the bottom.
Complete all other
Center Rafter/Skybox
attachments.
Important- Be careful
not to bend or scratch
attached Simpson
Strong Ties.
Toenail
with 2 1/2”
screw
Center Rafter
Center Rafter
Inside of Skybox
Strong
Tie
Mid Rafter is
positioned
on edge of
Skybox
Mid Rafter
(no cleat)
Mid Rafter
21. Prior to attaching Center Rafters,
find the Skybox midpoint (18.5” on
center). Secure rafter at midpoint with
2 - 2 1/2” screws from inside of Skybox
into rafter.
MAKE SURE RAFTER IS FLUSH AT
BOTTOM OF SKYBOX.
Skybox Midpoint
2 - 2 1/2”
screws

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11

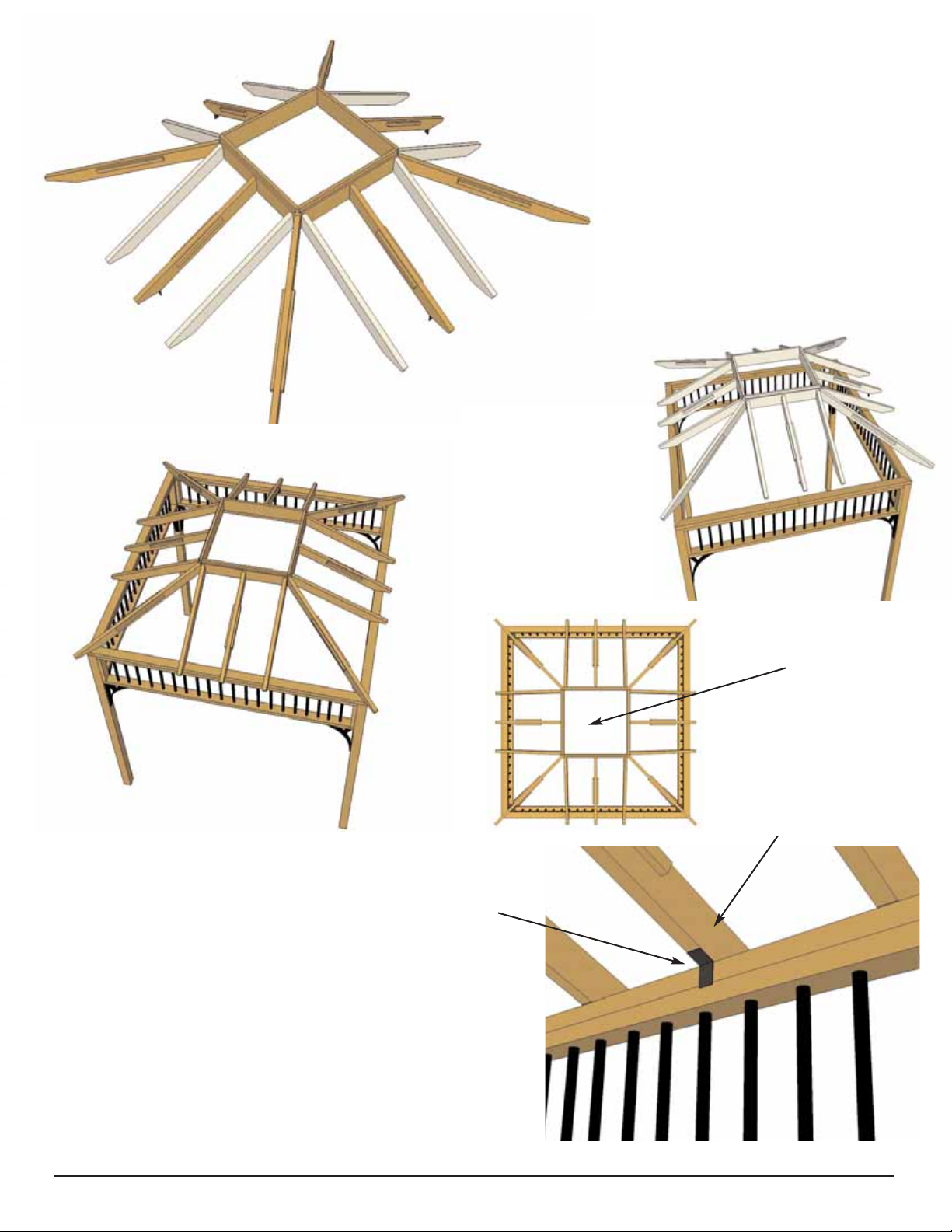

24. Picture illustrated to left
shows all Mid, Center and
Corner Rafter attachments.
Next Step...
Positioning the rafter sections
on the post/baluster section.
25. With 2 or 3
helpers, carefully lift
up your completed
rafter section and
place on top of your
post/baluster section.
Position Rafters in
their approx. location.
Birds eye view
of rafters sitting
on top plates.
26. When inside the Naramata, the Center
Rafter Simpson Strong Tie should sit flush against
Top Plate and be centered between posts. Check
all Center Rafter locations and when positioned
correctly, screw the Strong Ties into Top Plate /
Baluster with 2 - 1 1/4” screws per side.
Simpson
Strong Tie
Center Rafter

27. Position Corner Rafters so
they sit equally on corners of Top
Plates. Screw rafters down into
plates with 1 - 4” screw.
Corner Rafter
Screw Corner
Rafter down with
4” screw.
Pilot hole first to
make it easier to
screw.
Mid Rafters
28. Screw Mid and Center Rafters down into
Top Plates with a 4” screw per rafter similar to
Step 27.
Center
Rafter
29. Finally, to secure Corner Rafters, position
Locking Corner Lock Blocks in bottom corner
or Corner Rafter and secure with 2 - 2 1/2”
screws. Complete all 4 corners.
30. From the outside, attach all 4
Black Aluminum Corner Post/Top
Plate Caps to top of outer post in
corners. Use 2- 2” black screws to
secure. Caps should be flush with
Top Plate and Corner Rafter.
Corner Post/Top Plate Caps not
included in Getaway Model.
Time to Start the Roof!
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12
Cap flush at
top
2 1/2 screws

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13

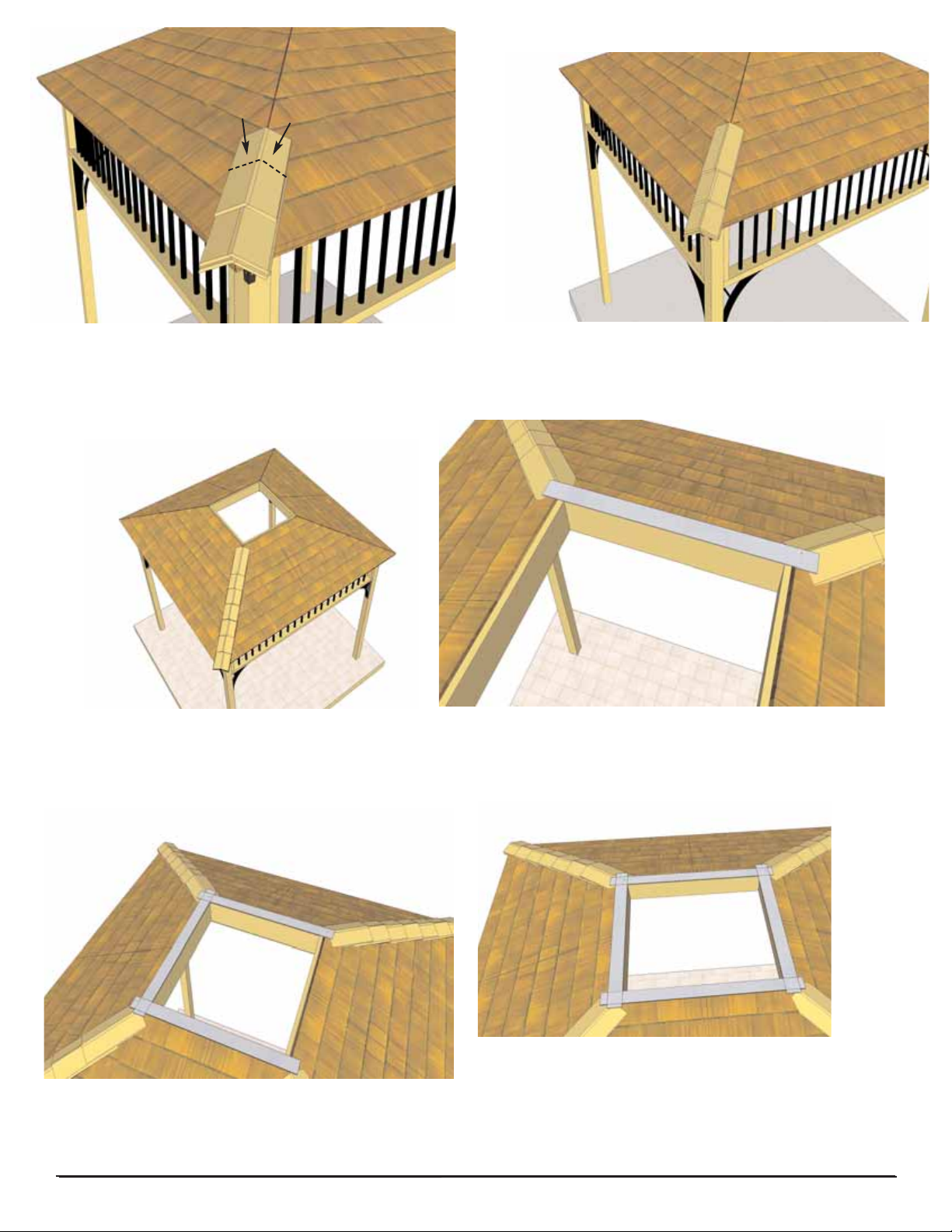

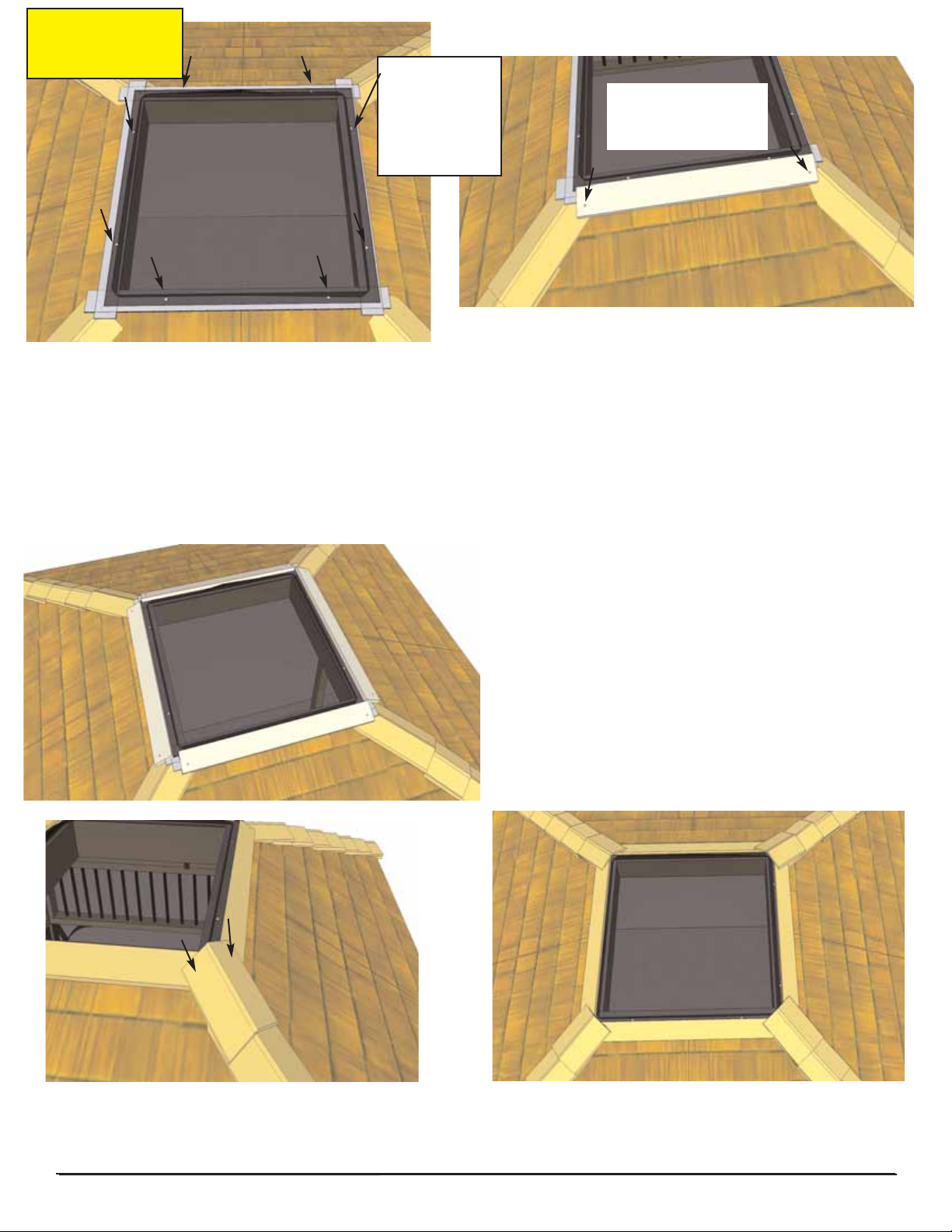

31. You will need a step ladder to complete the roof
section. Be Careful when working on the ladder!
Lift and position the first Right Sided Roof Section into
place on the rafters. (There are 4 Right and Left Sided
Roof Panels).
32. Place Right Sided Panel so it sits
approximately 1/2 way on the Center
Rafter
33. Position roof so panel sits flush in Dado
Slot of Skybox and is centered approximately
1/2 way on Center Rafter.
34. When Right SIded Roof Panel is
positioned correctly, attach roof panel to Corner
Rafter with 3 - 2 1/2” screws.
DO NOT SCREW ROOF PANEL DOWN TO
CENTER RAFTER AT THIS POINT!
1/2 way
on rafter
SkyBox
Roof is sitting in dado slot and
sitting 1/2 on Center Rafter
Center Rafter
3 - 2 1/2”
screws
into
Corner
Rafter

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14
35. Lift and place the second roof panel into
position. We show a Left Sided Roof Section
being attached.
36. Position and attach as per Steps 31-34.
Important - There will be small gaps or seams
where roof panels come together. We suggest that
before completely attaching roof panels down that
you tack panels down initially. You may want to
reposition roofs slightly after all the panels are up
to get the best fit for your Naramata.
37. Continue adding Roof Panels. Remember,
there will be small seams between roof panels
that will be covered later. It is more important to
center the panels correctly on the rafters.
38. The illustration to the right shows the
Naramata with all the roof panels
positioned correctly on the roof rafters.
Once again, you may want to reposition
some of roof panels to get the best fit.
When completed, complete all Roof Panel/
Corner Rafter Attachments. Do not screw
panels to Center Rafters at this point.
Birds eye of
partially
completed
roof

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15
39. Secure Roof Panels to Center Rafter
using 2 - 2 1/2” screw. Make sure to screw
into Center Rafter 40. Slide first 18” long Filler Shingle where roof
panels meet until flush at bottom.
41. Screw first Filler Shingle down to
Center Rafters as per Step 40.
Screw first filler
shingle down to
rafters using
1 - 2 1/2” screw per
panel (2 in total).
Make sure to screw
into both rafter.
attach above the
exposure line.
exposure line
42. Locate all Roof Ridge Caps. Note, Ridge Caps are offset to one another. Place 1st Ridge Cap on roof
seam slightly overhanging roof end and attach with 2 - 1 1/4” Shingle Nails. Position 2nd Ridge Cap offset to
1st. Align on top and nail down with 2 Shingle Nails approximately 9” from Ridge Cap butt.
7 1/2”
Offset

43. Place 3rd Ridge Cap 7 1/2” up from butt of 2nd Cap and nail with 2 Shingle Nails
approximately 9” from the butt. Make sure to alternate Ridge Cap offsets as you complete each row.
Position and attach 4th Ridge Caps as previously described.
44. Complete remaining Long Ridge Caps. On top of the roof, carefully position Skylight/Roof
Flashing on Skybox. Space evenly from side to side on Skybox making sure Flashing does not
protude past the Skybox on the inside. Staple down to Skybox when in correct position.
7 1/2”
7 1/2”
45. Complete alignment and attachment of remaining Flashing Strips as per Step 44.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16

49. Place 10” long Roof Ridge Cap over Skylight Trim. Align and Drill 2- 1/8” pilot holes in each
end of Cap. Carefully screw Ridge Cap down to Skylight Trim with 2 - 1 1/4” screws. Complete all
corners.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17
Near end, Hand
tighten Screws to
prevent cracking.
46.Prior to lifting your Skylight into place, carefully
remove the blue protective layer of plastic. Lift up and
carefully place the skylight into position on the Skybox.
The Skylight is pre-drilled for your convenience.
Use 8 - 2” black screws with neoprene washers to
attach. Screw down so Skylight is snug only. Do not
overtighten or Skylight will crack. Hand tighten only.
47. Position Skylight Trim to cover Flashing.
Drill 1/8” pilot holes near both ends and attach
with 2 - 2 1/2” screws. Screw trims to rafters if
possible.
Use 1 1/2”
black screws
with neoprene
washers
attached
Drill 1/8” Pilot Hole
in Skylight Trim
prior to attaching.
48. Complete alignment and attachments
of remaining Skylight Trims as per Step 47.

Page 18

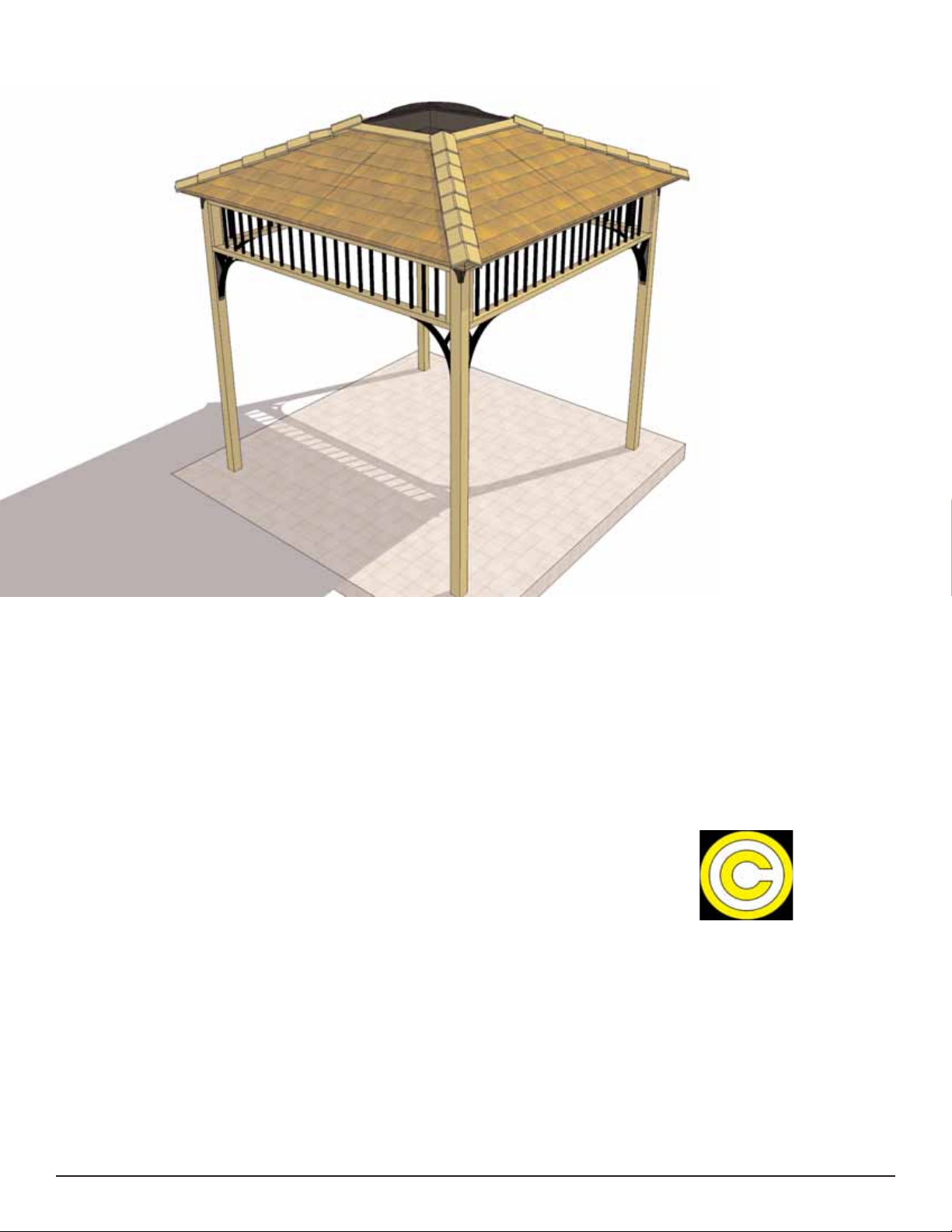

Congratulations on building your 9x9 Naramata Spa Shelter!
Note; Our Spa Shelters are shipped as an unfinished product. If exposed to the elements, the
western red cedar lumber will weather to a silvery-gray color. If you prefer to keep the cedar lumber
looking closer to the original color, we suggest that you treat the wood with a good oil base wood
stain. You may also wish to paint your new shed rather than stain it. In both cases we recommend
that you consult with a paint and stain dealer in your area for their recommendations.
We hope your experience assembling the Naramata Spa Shelter has been both positive and rewarding.
We value your feedback and would like to hear back from you on how well we are doing in the
following areas:
1. Customer Service
2. On Time Shipping
3. Motor Freight Delivery
4. Quality of Materials
5. Assembly Manual
6. Overall Satisfaction.
Please call, write or email us at:
CanadianAddress
9393 287th Street
Maple Ridge, British Columbia
Canada V2W 1L1
United StatesAddress
P.O. Box 96
Sumas, Washington
USA 98295
Outdoor Living Today
Toll Line: 1.888.658.1658 | Fax: [phone] | [e-mail]
The materials contained in this
Assembly Manual may be downloaded
or copied provided that ALL copies
retain the copyright and any other
proprietary notices contained on the
materials. No material may be
modified, edited or taken out of context
such that its use creates a false or
misleading statement or impression as
to the positions, statements or actions.
