Instruction Manual
Dishwasher
Model OFI700

2
Thank you for purchasing an Omega appliance
Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a
welcome addition to the family.
Omega caters to style-savvy customers who look for balance between stunning form and clever function.
This means a combination of sleek, chic, sophisticated design yet effortless functionality.
And we source from the best. The best craftsmanship. The best innovation. From the best international
design-houses.
All brought together under an appliance that stands for design-led balance.
Please take the time to read through the following instruction manual to familiarise yourself with the
installation, operation requirements and maintenance to ensure optimum performance.
Further Information
For important information about your Omega Appliance such as warranty registration, manuals, features,
and specifications please visit omegaappliances.com.au (if you are in Australia) and
omegaappliances.co.nz (if you are in New Zealand) or contact our Customer Care team on the below email
or phone numbers.
Registering Your Warranty
For peace of mind you can register your warranty at omegaappliances.com.au. Further information on the
Warranty can be found at the end of this manual.
Contact Us
Our customer service team is here to help you with any question or concern.
Both teams are on call Monday to Friday 8.30am to 5.00pm and of course you can always send an email at
your convenience.
Australia Contact Details
Monday to Friday 8.30am – 5.00pm
Email: [email protected]om.au
Phone: [phone]
New Zealand Contact Details
Monday to Friday 8.30am – 5.00pm
Email: [email protected]
Phone: [phone]
To stay up to date and find simple and easy recipes, follow us on our socials:
facebook.com/omegaappliances
instagram.com/omegaappliances_aus

3
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE AP P LIAN CE.
It is important that you retain these instructions, proof of purchase as well as other important documents about
this product for future reference.
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect
installation or improper use of the appliance.
Due to continual product development, Omega reserves the right to alter specifications and appearances without
notice.
Contents
Important Safety Warnings............................................................................................................................................... 4
Product Description........................................................................................................................................................... 5
Installation Instruction ...................................................................................................................................................... 6
Operation Instruction...................................................................................................................................................... 12
Maintenance and Cleaning ............................................................................................................................................. 26
Troubleshooting Tips....................................................................................................................................................... 30
Error Codes...................................................................................................................................................................... 33
Product Specification ...................................................................................................................................................... 34
Australian & New Zealand Product Warranty Statements of Standard Warranty Conditions ....................................... 35
Disposal Information
•Most of the packaging materials are recyclable. Please dispose of these materials through your local
recycling depot or by placing them into appropriate collection containers.
•If you wish to discard this product, please contact your local authorities and ask for the correct method
of disposal.

4
Important Safety Warnings
1. This appliance is intended to be used in household and similar applications , such as:
a. staff kitchen areas in shops, offices and other working environments;
b. farm houses;
c. by clients in hotels, motels and other residentialtype environments;
d. bed and breakfast type environments.
2. The appliance is not to be used by persons (including children) with reduced Physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction. Children being supervised not to play with the appliance.
3. The door is not left in the open position since this could present a tripping hazard.
4. When loading items to be washed:
a. Locate sharp items so that they are not likely to damage the door seal.
b. WARNING: Knives and other utensils with sharp points must be loaded in the basket with
their points facing down or placed in a horizontal position.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
6. After having installed the appliance, the switched outlet must always be in an accessible position.
7. WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if
swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when
the door is open. Check that the detergent receptacle is empty after completion on the wash cycle.
8. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip
forward.
9. Check that the detergent powder is empty after completion of the wash cycle.
10. Use only detergent and rinse additives designed for automatic dishwasher.
11. Do not operate your dishwasher unless all enclosure panels are properly in place.
12. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
13. The appliance is to be connected to the water mains using new hose sets and that old hose-sets
should not be reused.
14. During installation, the power supply cord must not be excessively or dangerously bent or flattened.
15. Maximum: 14 place settings.
16. Maximum: 1 MPa inlet water pressure.
17. Minimum: 0.04 MPa inlet water pressure.
18. This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least resistance of electric current.
19. This appliance is equipped with an earthing conductor plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
20. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
21. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
22. Use only detergent and rinse agents recommended for use in an automatic dishwasher.
23. During installation, the power supply must not be excessively or dangerously bent or flattened.
This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock,
do not immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft cloth moisten with mild soap,
and then use a dry cloth to wipe it again.

5
Product Description
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions before using it for the first
time.
Product Overview

6
Installation Instruction
Product Dimensions
Height (H) 815 mm
Width (W) 598 mm
Depth (D1) 550 mm (with the door closed)
Depth (D2) 1150 mm (with the door opened 90°)

7
Installation Instruction
Water Supply and Drain
Cold water connection
Connect the cold water supply hose to a threaded 3/4 inch connector and
make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of
time, let the water run to make sure that the water is clear. This precaution is
needed to avoid the risk of the water inlet to be blocked and damage the
appliance.
About the safety supply hose
The safety supply hose consists of the double walls. The hose's system guarantees its intervention by
blocking the flow of water in case of the supply hose breaking and when the air space between the supply
hose itself and the outer corrugated hose is full of water.
WARNING
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher.
If your sink has one, it is recommended that the hose be disconnected and the hole plugged.
How to connect the safety supply hose
1. Pull the safety supply hoses completely out from storage compartment located at rear of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread 3/4 inch.
3. Turn water fully on before starting the dishwasher.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

8
Installation Instruction

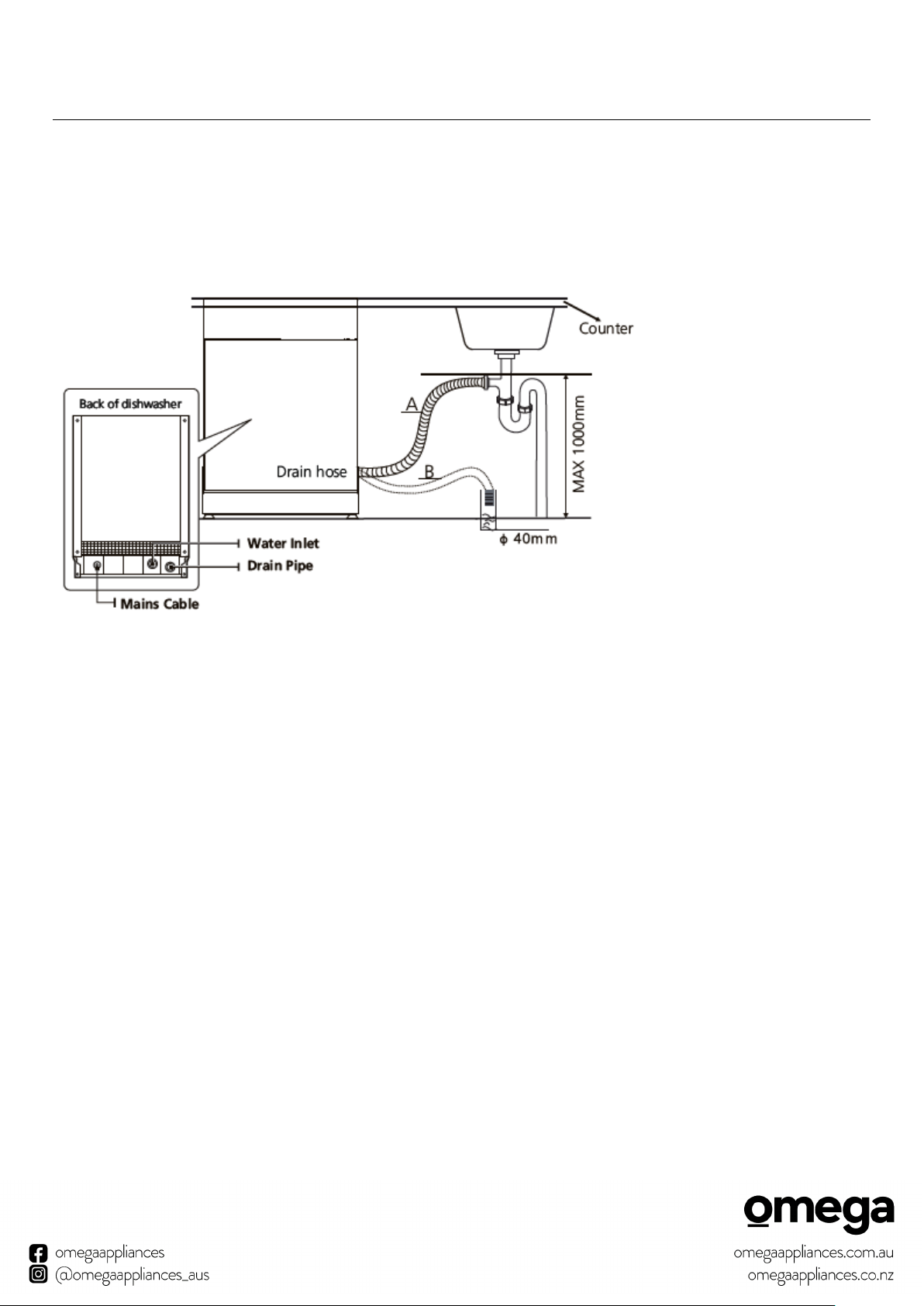

Connection of Drain Hoses
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making
sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of
the hose must not be immersed in water to avoid the back flow of it.
Please securely fix the drain hose in either position A or position B
How to drain excess water from hoses
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It
will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and
lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the
water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher
could be reduced.
Syphon connection
The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The
water drain hose should be fixed.

9
Installation Instruction
Position the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that
can be positioned either to the right or the left sides to facilitate proper installation.

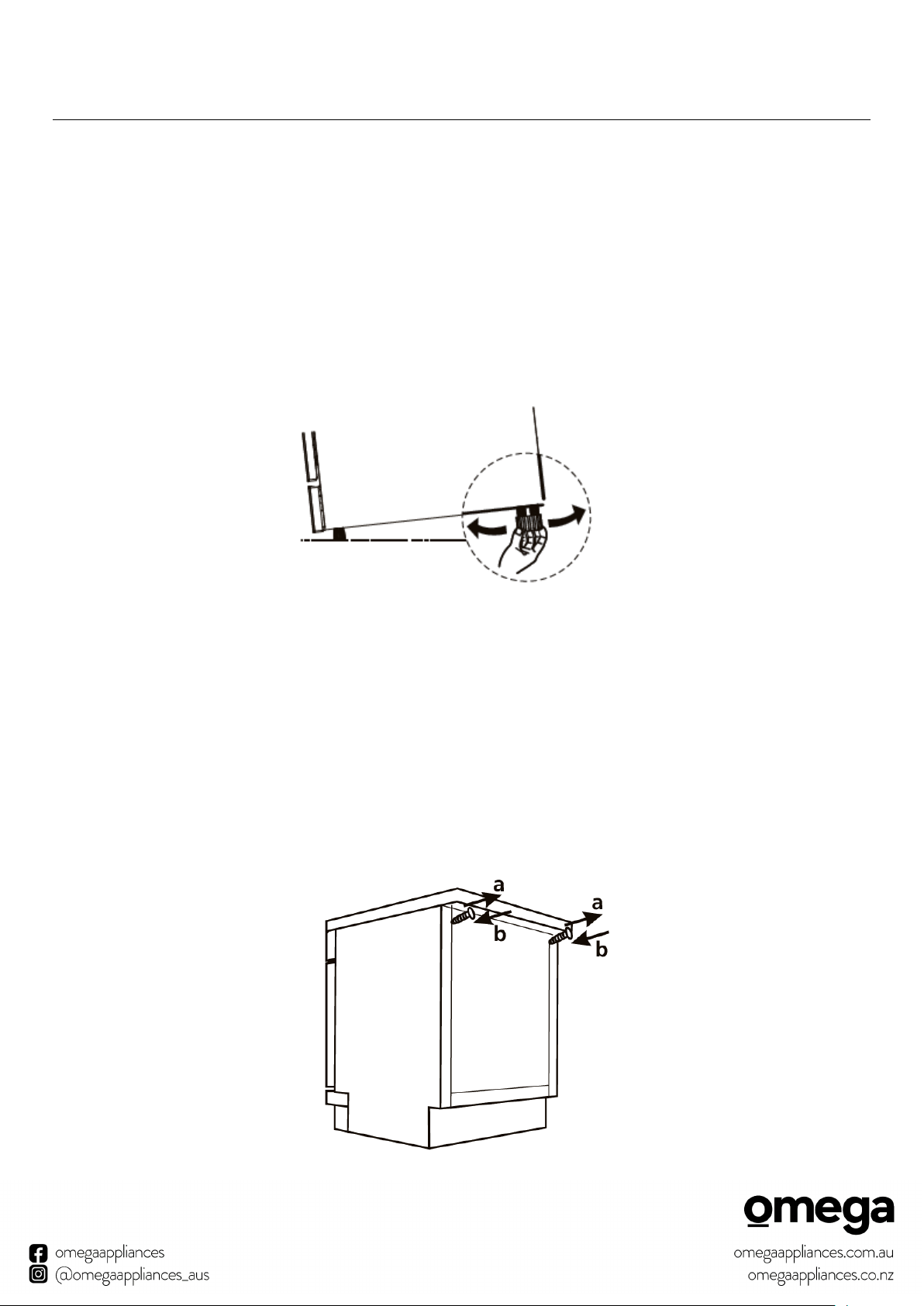

Levelling the appliance
Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of
the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.
Underneath existing work top
(When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under
which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by
unscrewing the screws under the rear edge of the top (a).
Attention
After removing the work top, the screws must be screwed again under the rear edge of the top (b).
The height will then be reduced to 815 mm, as scheduled by the International Regulations (ISO) and the dishwasher
will fit perfectly under the kitchen working top.

10
Installation Instruction

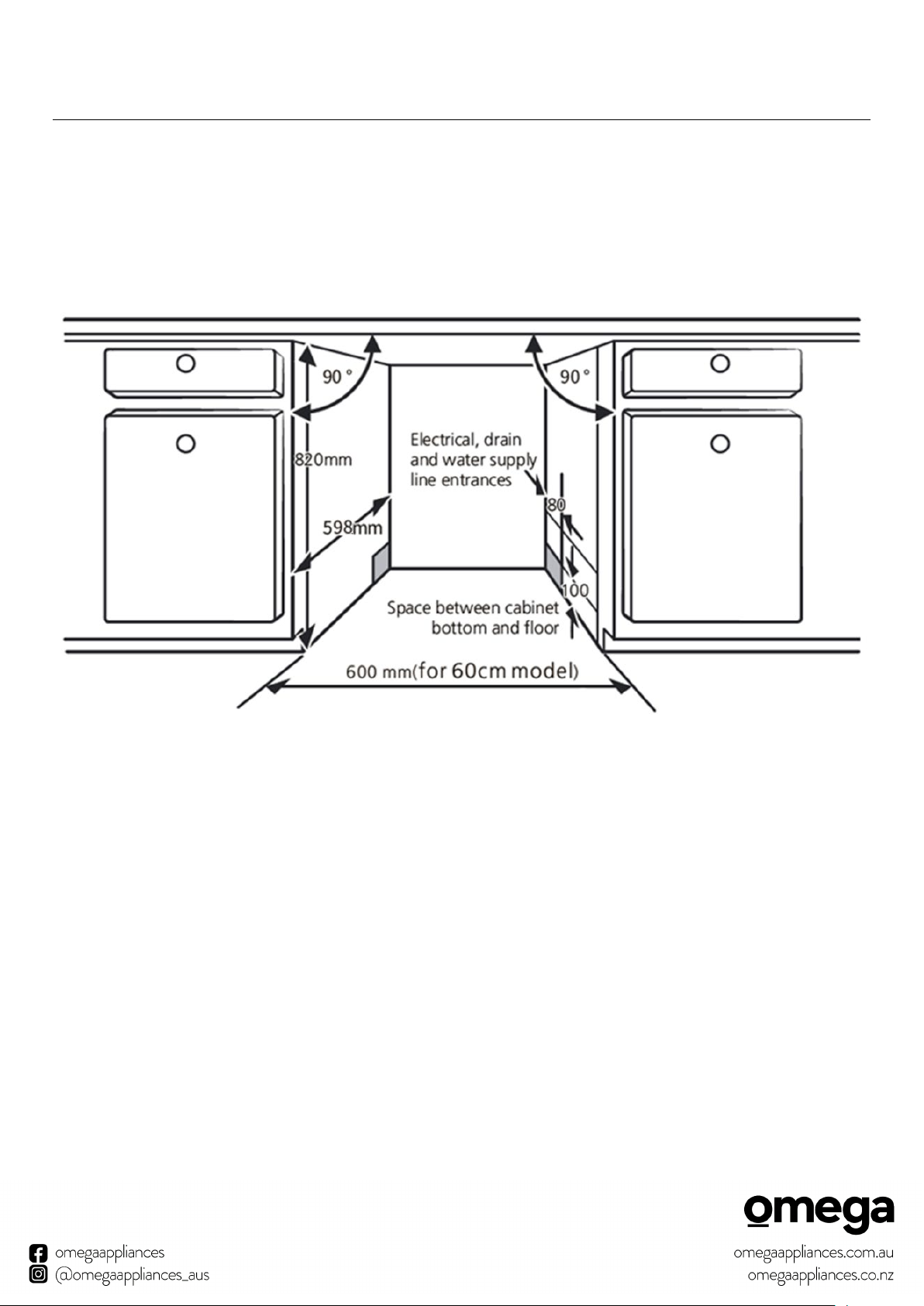

Dishwasher installation steps
The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.
1. Less than 5 mm between the top of dishwasher and cabinet and the outer door should be aligned to the
cabinet.

11
Installation Instruction
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
The installation of the pipes and electrical equipment should be done by professionals.
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection from the power cord.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate
power supply.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert
the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance
must be connected is not appropriate for the plug, replace the socket,
rather than using an adaptors or the like as they could cause overheating and burns.
WARNING: Ensure that proper earthing exists before use.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
an electric shock by providing a path of least resistance of electric current. This appliance is equipped with
a cord having an equipment-earthing conductor and an earthing plug.
The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check
with a qualified electrician or service representative if you are in doubt whether the appliance is properly
earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet
installed by a qualifiedelectrician.
WARNING: After having installed the appliance, the switched outlet must always be in an accessible position.

12
Operation Instruction

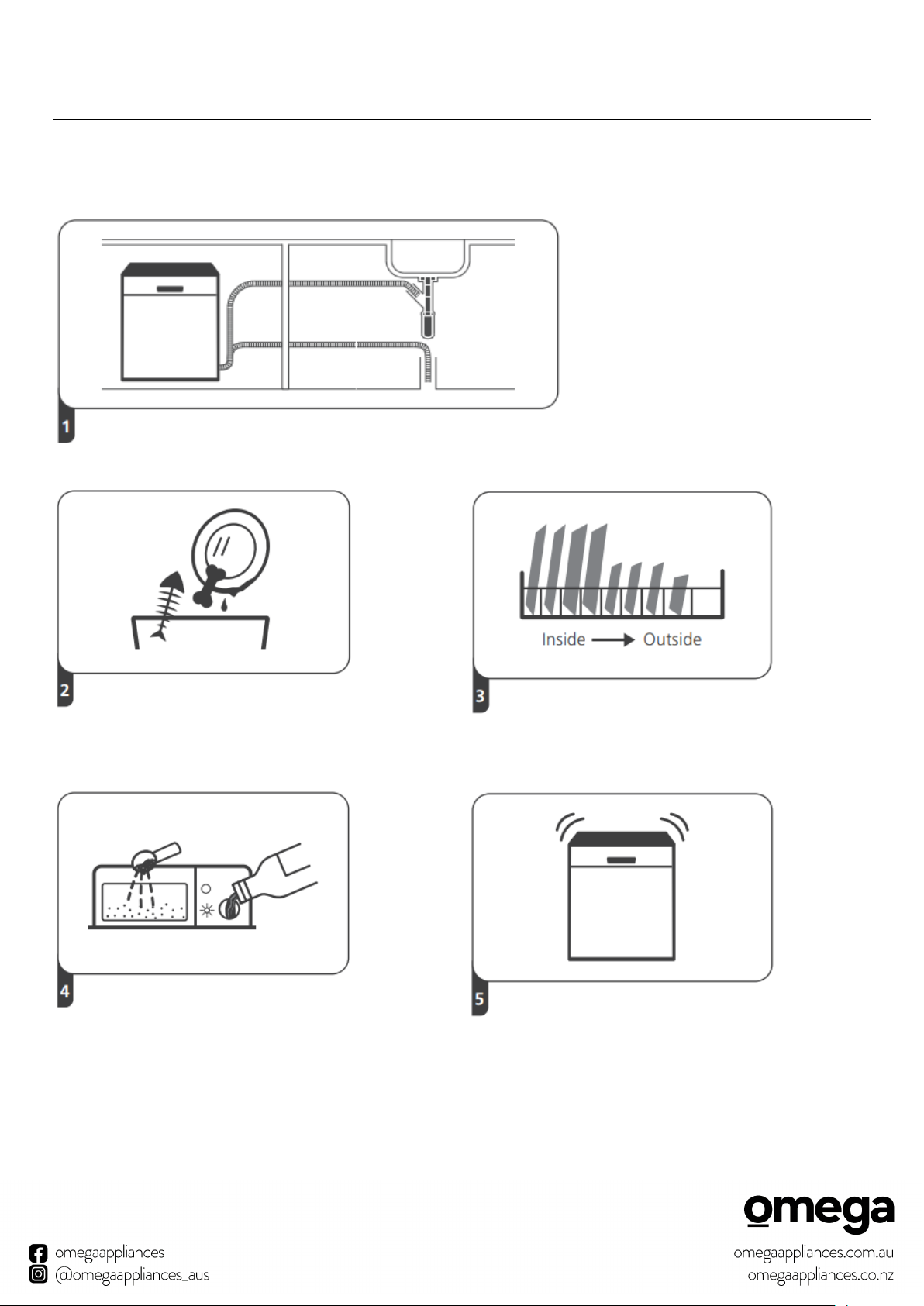

QUICK USER GUIDE
Please read the corresponding content the instruction manual for detailed operating method.
Removing the larger residue
on the cutlery
Loading the baskets
Filling the dispenser
Selecting a program and running
the dishwasher
Install the dishwasher
(Please refer to “Installation Instruction” Section

13
Operation Instruction
USING YOUR DISHWASHER

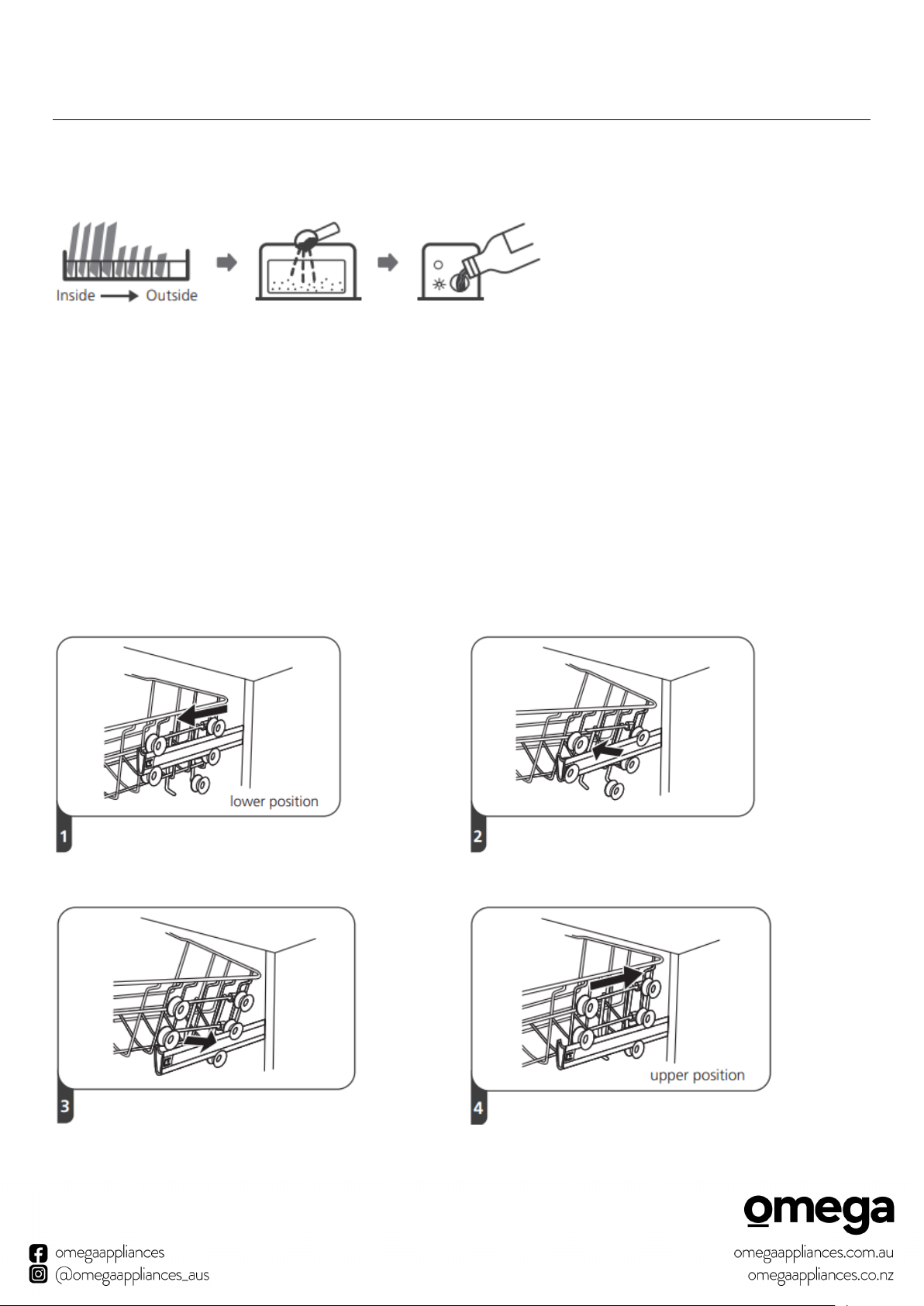

Before using your dishwasher:
1. Loading the basket
2. Fill the rinse aid dispenser
3. Fill in detergent
Basket Used Tips

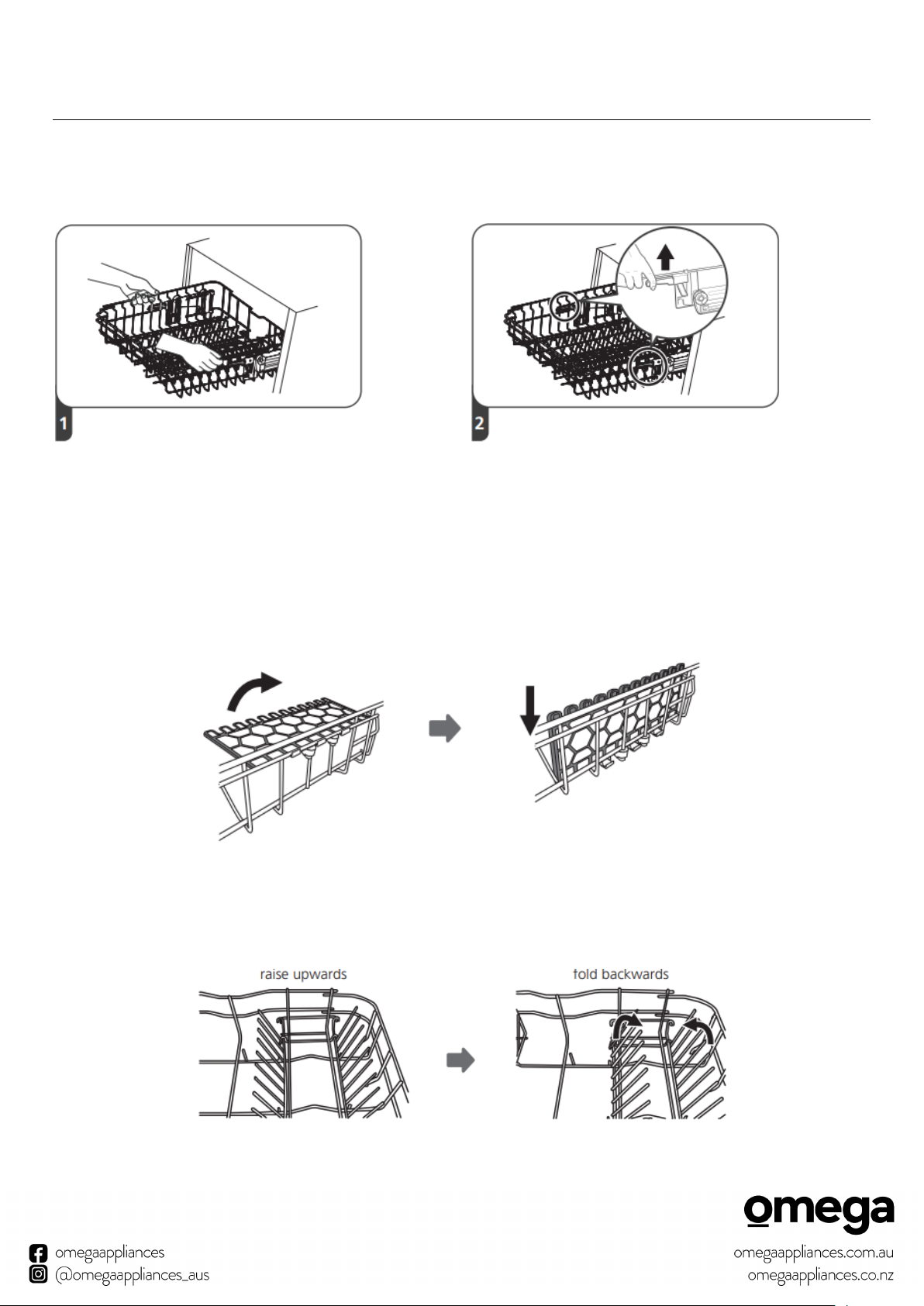

Adjusting the upper basket
Type 1:
The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or
lower basket.
To adjust the height of the upper rack, follow these steps:
Pull out the upper basket.
Remove the upper basket.
Re-attach the upper basket to upper or
lower rollers.
Push in the upper basket.

14
Operation Instruction
USING YOUR DISHWASHER
Type 2:
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall
glasses against it. You can also remove it when it is not required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
To raise the upper basket, just lift the
upper basket at the center of each side
until the basket locks into place in the
upper position. It is not necessary to lift
the adjuster handle.
To lower the upper basket, lift the adjust
handles on each side to release the
basket and lower it to the lower position.

15
Operation Instruction
Control Panel
Operation (Button)
Power Press this button to turn on your dishwasher, the screen will light up.
Half-load When you have about or less than 6 place setting dishware to wash, you can
choose this function to save energy and water. (It can only be used with
Intensive, Heavy, ECO, Glass and 90 min.)
Extra drying To dry dishes more completely.
(It can only be used with Intensive, Heavy, ECO, Glass, 90min).
Delay
Press this button to set the delayed hours for washing. You can delay the start of
washing up to 24 hours. One press on this button delays the start of washing by
one hour.
Program
Indicator
Press this button to select the appropriate washing program, the
selected program indicator will be lit.
For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes
that have been sitting with dried food on them for a while.
For heavily soiled loads, such as pots, plates, glasses, and lightly soiled pans.
For normally soiled loads, such as pots, plates, glasses and lightly soiled pans,
standard daily cycle.
For lightly soiled crockery and glass.
For lightly soiled plates and pans that need quick wash.
A Shorter wash for lightly soiled loads that do not need drying

16
Operation Instruction
Warning
indicator
If the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse
aid and requires a refill.
Progress
indicator
when the program is end, the indicator will be lit.
Screen
To show the reminding time and delay time, error codes etc.

17
Operation Instruction
Preparing and Loading Dishes
•Consider buying utensils which are identified as dishwasher-proof.
•For delicate items, select a program with the lowest possible temperature.
•To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the
program has ended.
For washing the following cutlery/dishes
Are not suitable
•Cutlery with wooden, horn china or mother-of-pearl handles
•Plastic items that are not heat resistant
•Older cutlery with glued parts that are not temperature resistant
•Bonded cutlery items or dishes
•Pewter or copper items
•Crystal glass
•Steel items subject to rusting
•Wooden platters
•Items made from synthetic fibres
Are of limited suitability
•Some types of glasses can become dull after a large number of washes
•Silver and aluminum parts have a tendency to discolor during washing
•Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to
rinse the dishes under running water.
For best performance remove follow these loading guidelines.
Place objects in the dishwasher in the following way:
•Items such as cups, glasses, pots/pans, etc. are faced downwards.
•Curved items, or ones with recesses, should be loaded on a slant so that water can run off.
•All utensils are stacked securely and cannot tip over.
•All utensils are placed in the way that the spray arms can rotate freely during washing.
•Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
•Dishes and items of cutlery must not lie inside one another, or cover each other.
•To avoid damage, glasses should not touch one another.

18
Operation Instruction
•The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups.
•Long bladed knives stored in an upright position are a potential hazard! Long and / or sharp items of
cutlery such as carving knives must be positioned horizontally in the upper basket.
•Please do not overload your dishwasher. This is important for good results and for reasonable
consumption of energy.
Note: Very small items should not be washed in the dishwasher as they could easily fall through the basket.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the
lower basket first, followed by the upper basket.
Loading the upper basket
The upper basket is designed to hold more delicate and lighter
dishware such as glasses, coffee and tea cups and saucers,
as well as plates, small bowls and shallow pans (as long as
they are not too dirty).Position the dishes and cookware so
that they will not get moved by the spray of water.
Loading the lower basket
We suggest that you place large items and the most difficult to
clean items are to be placed into the lower basket: such as
pots, pans, lids, serving dishes and bowls, as shown in the
figure below. It is preferable to place serving dishes and lids
on the side of the racks in order to avoid blocking the rotation
of the top spray arm. The maximum diameter advised for
plates in front of the detergent dispenser is of 19 cm, this not
to hamper the opening of it.
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
WARNING

19
Operation Instruction
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may cause bad performance.
For the best washing effect, please load the basket refer to standard loading options.
Function of the Rinse Aid and Detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which
can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your
dishwasher is designed to use liquid rinse aids.
When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control panel is on, you can always estimate the amount from the
color of the optical level indicator located next to the cap. When the rinse-aid container is full, the indicator will be
fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be
less than 1/4 full. As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as
illustrated below.
WARNING
Do not let any item extend through the
bottom.
Always load sharp utensils with the sharp
point down!
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any
other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would
damage the appliance.

20
Operation Instruction
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt
out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.
Filling the Rinse Aid Reservoir
WARNING
•Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent fresh
and dry.
Don't put powdered detergent into the dispenser until you are ready to wash dishes.
•Dishwasher detergent is corrosive! Keep dishwasher detergent out
of the reach of children.
