OMEGAbilance Freestyle User manual

Electronic Scales
Freestyle
User manual
Man. Use Freestyle-rev03
Translated from Italian to English - www.onlinedoctranslator.com

WARNINGS
To obtain the best performance from the scale and ensure maximum life
for all its parts, it is NECESSARY TO FOLLOW SCRUPULOUSLY the
installation and use rules contained in this manual.
In the interest of the customers it is recommended to have the maintenance and,
where necessary, the repair of the equipment carried out by the concessionary
companies we have prepared for our ASSISTANCE ORGANIZATION as these
companies are provided with appropriate equipment and particularly trained
personnel.
Please note that no responsibility can be attributed to our organization for
incorrect interventions performed by unauthorized services and for any
damage resulting from the use of non-original spare parts.
Furthermore, our organization declines all responsibility for improper
use made with the scales it produces, including connection to
peripherals and terminals not specifically provided for or in any case not
included in the approval provision.
THIS MANUAL MUST BE KEPT AVAILABLE TO METRIC INSPECTORS AND SUPERVISORY STAFF.
THE ABOVE AVAILABILITY CONSTITUTES THE CONDITION FOR THE REGULAR USE OF THE INSTRUMENT
AND FOR THE ADMISSION TO THE PERIODIC VERIFICATION REQUIRED BY THE REGULATIONS IN FORCE.
Page 2 of 47
Man. Use Freestyle-rev03

M.LIBRA ODELS
F.REESTYLE ADVANCE AS
Page 3 of 47
Man. Use Freestyle-rev03

F.REESTYLE ADVANCE CS
Page 4 of 47
Man. Use Freestyle-rev03

F.REESTYLE ADVANCE PLC
Page 5 of 47
Man. Use Freestyle-rev03

F.REESTYLE ADVANCE PL
ManualM.F.anre.eUS.storyleFrORand andmsAndtygLtoAnd-B.kingthevto0n3ce Rev.03

F.REESTYLE ADVANCE PL DOUBLE PRINT
This configuration allows the operation of the two printers in the following ways:
-Double label printer configuration
-It allows the printing of two label layouts of different dimensions through the use of a printer with a
label roll, for example 58x40 mm, and on the second printer the possibility of printing a label of
different dimensions, for example 80x80 mm.
-Configuration of a label printer and a continuous roll printer
-It allows you to print on the label roll when operation is in "single ticket" mode, while with the other printer it allows
you to print a multi-weighted transaction receipt. In the case of the continuous roll, you can choose between
traditional support with liner, support material for adhesive paper, or even linerless rolls (self-adhesive)
-Double receipt printer configuration
-Allows direct printing of each operator on continuous roll. Also in this case you can use a traditional
support with liner, support material for adhesive paper, or even linerless rolls (self-adhesive)
Page 7 of 47
Man. Use Freestyle-rev03

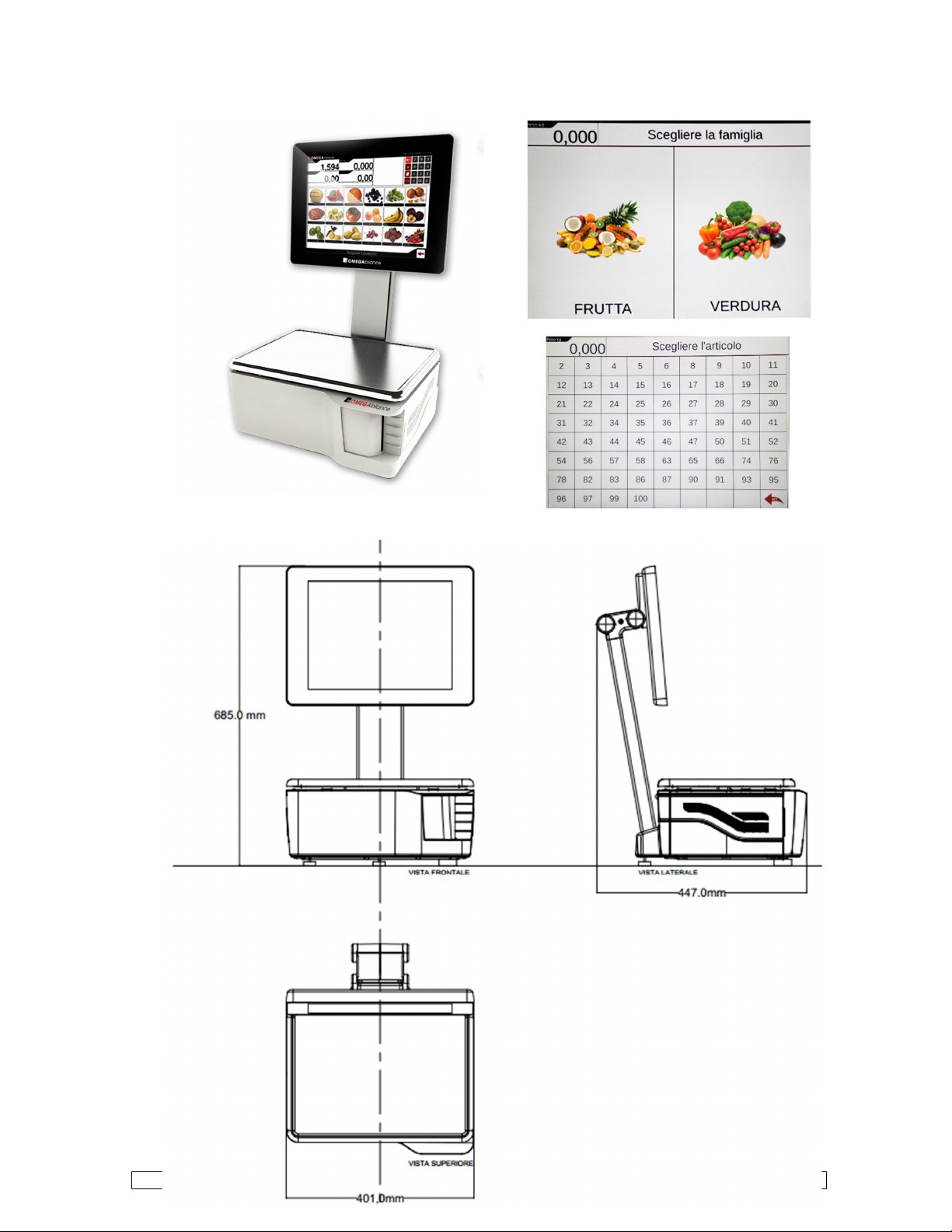

F.REESTYLE EXTREME AS
Man. Use Freestyle-rev03

F.REESTYLE EXTREME CS
Page 9 of 47
Man. Use Freestyle-rev03

F.REESTYLE EXTREME PLC
Page 10 of 47
Man. Use Freestyle-rev03

F.REESTYLE EXTREME PL
11 of 47
Man. Use Freestyle-rev03

C.THERMAL ARTA
The quality of the thermal paper used on Omega equipment is critically important to the life of the
thermal print head.
For this reason, it is recommended that you use a type of paper that conforms to the specification below.
In addition to paper quality, the following types of roll can be installed on all printers:
-roll with labels. The classic rolls of labels with liner support of farie types of material
-continuous non-adhesive roll. The normal non-adhesive paper rolls that are used with all thermal
printers
-traditional adhesive continuous roll. Rolls of adhesive paper placed on liner support made of farie types of
material
-continuous self-adhesive roll (linerless). Self-adhesive rolls that allow printing without having to have a
support, liner.
One of the main paper producers in the world is FASSON, whose technical data sheet is attached
Page 12 of 47
Man. Use Freestyle-rev03

THEINSTALLING THE SCALE
TOLIMENTATION
The installation of the "OMEGA Freestyle" scale must be done with great care and attention, in
order to ensure maximum operating safety of the equipment.
Therefore it is essential to strictly observe the following rules:
-Power the scale only with the power supply supplied, this power supply must be connected to a
preferential line (220 V±10% - 50 HZ) that starts directly from the meter or from the distribution
panel avoiding that the same connects other equipment with high absorption (refrigerator
compressors, slicers, neon lamps, etc.). The power supply line of the instruments must be
connected to a single electrical phase to avoid imbalances in the interconnections of the scales.
-Install a socket with side earth contacts (SCHUCO) for each scale; the connection to the earth
line is essential to allow the OMEGA Freestyle scale to work correctly. It is also advisable that
auxiliary sockets useful for test instruments are available near the scales.
ATTENTION!AN ELECTRIC LINE WITHOUT AN EARTH WIRE COULD CAUSE IMPROPER OPERATION
OF THE SCALE OR DAMAGE TO ITS ELECTRONIC CIRCUITS. THEREFORE, WE DISCLAIM ANY
LIABILITY FOR ANY OPERATING DEFECTS OR FOR ACCIDENTS TO THE OPERATORS RESULTING
FROM THE NON-COMPLIANCE OF WHAT WE RECOMMEND.
SWITCHING ON THE SCALE AND AUTOMATIC ZEROING
The switching on of the scale must be carried out only with the plate unloaded, clean and without objects above it and the
scale will be placed with the weight system at “zero”.
By selecting the power key, the scale loads the operating system and starts automatically. Both the operator
display and the customer display will show in sequence some boxes containing the messages relating to the
scale start-up operations. Such messages indicating the completion of the various initialization operations,
including:
During this phase, the operator's side display shows the following display sequence:
-turning on the scale
This image remains present during the first phase of switching on the scale in which the system is loaded. In
the next phase, the scale presents the initialization phases on the operator display.
Page 13 of 47
Man. Use Freestyle-rev03

Once the checks and verifications have been completed, the scale prepares for start-up, consequently all the display sections
will be enabled for the assigned functions.
The scale is functional and ready for use. Graphics like the one in the figures below are shown on the customer
and operator side displays
Operator side
Customer side
Page 14 of 47
Man. Use Freestyle-rev03

S.PUNISHMENT OF THE SCALE
For turn off the scale, you need to follow the procedure:
-Press the "Power on / off”Located on the back of the scale
-A message will be shown informing you of automatic shutdown after 30 seconds, in case this is
not canceled
-Press the "ENTER"To start the shutdown procedure (the OmegaBilance logo and the progress bar
appear on the display)
Page 15 of 47
Man. Use Freestyle-rev03

T.BALANCE BAR
Thekeyboards used on the scales are differentiated for the various models and are presented in this section.
TODVANCE 61 KEYS
The keyboard is divided into 5 different blocks:
-Block with NUMERIC keyboard
-Direct PLU lock with keyboard
-Lock with OPERATOR KEYS
-Lock with FUNCTION KEYS
-Lock with SERVICE KEYS
-
SERVICE keys OPERATOR keys
The block contains14keys highlighted as follows:
-V1 - V6 = operator keys
The block consists of6keys to which specific functions have been
assigned:
-
-
-
-
-
T.=transfers the weight displayed in the tare PT=allows
you to set a manual tare value FIX=allows you to lock /
unlock the tare value X=arithmetic operations
attributed to non-weighed products OP =allows you to
select an operator greater than 6
+ and - =currently not used
-= key to reopen the receipt
-
-
= key to carry out reversals
TOT. / ENTER = key to close customer service
E TICKET = key to obtain a single immediate
ion
-
FUNCTION keys
The block is composed
they take on different functions according to
the state in which the scale is located. During
the programming phase, priority is given to the
symbol contained in the key. In the normal
phase it is possible to associate a specific
macro-function. (F1 - F2 - F3 - F4)
from4keys that
DIRECT PLU keys
Contains32keys to which they can be associated
stored on the scale. The same keyboard the
programming phase assumes the alphanumeric
with priority assigned to the symbol c
NUMERIC keys
The block consists of11keys that
have only a numeric function.
the PLUs
to during
function
n held in the single keyor
Page 16 of 47
Man. Use Freestyle-rev03

TODVANCE 100 KEYS
There keyboard consists only of the DIRECT PLU keyboard block
DIRECT PLU keys
Contains100keys to which the PLUs stored on the
scale can be associated.
Page 17 of 47
Man. Use Freestyle-rev03

AndXTREME AS (SELF-SERVICE SCALE)
For
pos
this scale model does not have a predefined keyboard as it uses a TOUCH PANEL so it is possible to
modify its configuration.
Yuphowever, it takes as an example a keyboard configuration suitable for most needs for use
specific in SELF-SERVICE mode.
SELECTION keys
The block consists of2main keys one
FRUIT and the other VEGETABLES
Once selected, the family presents a new
keyboard configuration with the display
of the various articles ready for selection
This new keyboard configuration used for the
selection of the articles is composed of100keys.
However, it is always possible to perform a new
reconfiguration while maintaining an adequate
proportion between key size and number of keys
present
Page 18 of 47
Man. Use Freestyle-rev03

AndXTREME PLC - PL - CS
There keyboard is divided into 5 different blocks:
-Block with NUMERIC keyboard
-Direct PLU lock with keyboard
-Lock with OPERATOR KEYS
-Lock with FUNCTION KEYS
-Lock with SERVICE KEYS OPERATOR keys
The block contains14keys highlighted in orange, divided as
follows:
-
-
-
-
-
V1 - V10 = operator keys RC =
key to reopen receipt ST = key
to make reversals
ENTER = key to close customer service SINGLE
TICKET = key to obtain a single immediate
transaction
same keyboard during the programming phase, some
different characteristics, giving priority to symbols
FUNCTION keys
The block is composed
they take on different functions according to
the state in which the scale is located. Each
of these can be associated with a specific
macro-function. (F1 - F2 - F3 - F4 - F5 -
from6keys that
On the
keys assume
contents
DIRECT PLU keys
It contains keys to which the PLUs stored on the
scale can be associated. They are programmed by
Net7 in the “Keyboard Editor” menu.
NUMERIC keys
The block consists of11keys that
have only one function
numerical.
SERVICE keys
The block consists of
specifics:
-
from6keys to which functions have been assigned
T.=transfers the weight displayed in the tare PT=allows
you to set a manual tare value FIX=allows you to lock /
unlock the tare value X=arithmetic operations attributed
to non-weighed products OP =allows you to select an
operator greater than 15
+ and - =currently not used
-
-
-
-
-
Page 19 of 47
Man. Use Freestyle-rev03

UTILIZZO OF THE SCALE
THESETTING THE PRICE
The price per kg can be set indifferently before or after placing the goods on the weighing pan.
By setting the price with the numeric keypad, the display will show "PRICE € / Kg" for calculating the
amount of the item placed on the scale plate.
It is possible to execute the transaction immediately if, after setting the price of the item, you proceed directly
to the identification of the operator.
The button "C.”Allows you to cancel any setting errors.
All the totals of the weighs whose prices have been entered directly with the alphanumeric keyboard will
be totalized as "ARTICLE 0" and "FAMILY 0".
It is possible to inhibit the use of article 0; in this case the operator will be able to use only the prices stored and associated
with the PLUs (programming using the “Network 7” management software).
RECALL OF PRICES and STORED TARE (PLU)
To recall a stored price (PLU) press the key"PLU ",use the numeric keypad to compose the number
of the product to be treated and press"ENTER "to confirm. In addition to the price and the tare, a
description and possibly an image will appear on the display according to what has been
programmed.
It is possible to execute the transaction immediately if, after setting the article number, you proceed
directly to the identification of the operator.
The scale is equipped with a keyboard designed to quickly recall the stored products (the maximum number
varies according to the type of keyboard present).
Normally the keys of this keyboard recall a number of product codes according to the number of “direct PLU”
keys, but it is possible to program the keyboard to recall the data of the most used products.
The maneuver for entering prices and PLU data to be stored is possible using the "Network 7"
management software.
MULTIPLICATION OF GOODS SOLD BY THE BODY
If the number of products sold in bulk or returns is more than one, after setting the unit price, or
recalling a PLU as explained above, it will be possible to carry out a multiplication operation.
By pressing the key"X ",by typing the number of pieces on the numeric keypad and confirming with the "
ENTER"the result of the operation will be automatically calculated and displayed together with the number of
items counted and the unit price.
The scale, inhibited by the normal weighing function for the entire duration of the operation, returns active
only when the operator is identified to record the transaction or by selecting another PLU or by pressing the
key"C ".
It is possible to execute the transaction immediately if, after setting the number of pieces, you proceed directly
to the identification of the operator.
DEDUCTION OF TARE VALUES
On the OMEGA Freestyle scale the tare values can be deducted in two different ways allowing the
determination of the net weight. Reference has already been made to the tare associated with a PLU. If this
has not been programmed or is not adequate, you can proceed as follows:
AUTOMATIC TARE
After placing the container or sheet of paper whose weight must be deducted on the weighing plate, by
pressing the "T.”The weight value detected will be displayed as TARE and not as WEIGHT.
MANUAL TARE
If you already know the value of the weight you want to tare, you can proceed as follows:
- by pressing the key"PT "the message "MANUAL TARE" will appear
- with the numerical keyboard the value of the tare to be deducted will be set
- by pressing the key"ENTER "the operation is confirmed and the scale returns to the normal weighing
function.
The maneuver listed above must be performed before placing the goods on the weighing pan and the
symbol"PT "on the displays it will indicate that the tare value has been set via the keyboard. If the tare
value entered, with any of the two systems listed above, is not correct, it can be canceled by pressing the
key"T "with unloaded plate.
Page 20 of 47
Man. Use Freestyle-rev03
