Digital Automatic Blood Pressure Monitor
ModelHEM-907
Table of Contents
Be Sure to Read This Section
Notes on Safety..................................1
Know Your Unit
Features of the Product......................4
Components of the Product ...............5
Options...........................................6
Names and Functions of the Parts.....7
Names of the Parts.........................7
Functions and setting
while the unit is in use ....................9
Preparations before Measurement
How to Apply the Cuff ......................11
How to Use the Power Source.........13
How to Use the AC Adapter............13
Installation and Replacement
of Battery Pack.............................14
How to Measure Blood Pressure
How to Measure Blood Pressure .....15
SINGLE Mode ..............................16
AVG. Mode...................................18
MANU. Mode................................20
CHECK Mode...............................22
How to Clean the Unit after Use ........23
List of Error Codes...........................24
Troubleshooting ...............................25
Specifications
Specifications...................................26
Exemptions on warranty...................27
MEMO (Blank pages)..................28-30
Thank you very much for purchasing the
OMRON Digital Automatic Blood Pressure
Monitor.
Please read this Instruction Manual thoroughly
to ensure safe and correct use of the monitor.
Please keep this Instruction Manual for future
reference.
INSTRUCTION MANUAL
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 1

1
Notes on Safety
Warning
Do not wrap the cuff over the arm where intravenous injection or transfusion is
being conducted.
• Intravenous injection or transfusion will not be possible.
Do not erroneously connect the air tube or the cuff to the tube of other
equipment connected to intracorporeal organ.
• Air may get into the blood vessels.
When a person other than the doctor or medical employee uses this monitor,
self-diagnosis of the measured results or treatment is dangerous. Please
consult and follow the instruction of the doctor.
• Self-diagnosis may worsen the disease.
If you encounter any problem during measurement such as inflation does not
stop, remove the cuff or pull out the air tube from the main unit.
• If inflation does not stop, there is danger of peripheral neuropathy.
If the fluid inside the battery gets in your eye, rinse the eye with lots of water
without rubbing, then seek medical treatment immediately.
• If left unattended, there is danger of loss of eyesight.
Do not use this unit in places where inflammable gas, such as highly
inflammable anesthetic, may be generated or in a high-pressure oxygen room
or an oxygen tent.
• It may cause ignition and explosion.
Do not use the exclusive battery pack (option) for other equipment.
Do not throw the battery pack into fire, or heat, or disassemble it.
• It may cause heat, ignition, short-circuit or rupture.
Do not touch the AC adapter with wet hands.
• You may suffer electric shock.
If you are going to leave this unit unused for a long time, be sure to unplug the
AC adapter from the electric outlet.
• This is to avoid danger of electric shock, electric leak or fire due to
deteriorated insulation.
Be sure to unplug the AC adapter from the electric outlet when installing,
removing, or cleaning the part(s).
• This is to avoid danger of electric shock or injuries.
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 1

2
Be Sure to Read This Section
Caution
Notes on Safety
In the following cases, check the readings with the stethoscope.
(1) When an irregular pulse wave is displayed
• The reading may be erroneous due to external vibration or patient's body
movement.
(2) When erroneous reading takes place or the measured value is doubtful
• The reading may be erroneous due to external vibration or patient's body
movement.
• An error may have occurred or the blood pressure cannot be measured for
patient with peripheral circulatory disturbance or extreme hypotension.
• An error may occur if patient has extremely short variation of blood pressure
such as arrhythmia.
Be sure to use the AC adapter appropriate for your country.
• If not, it may cause fire or you may suffer electric shock.
Do not share an electric outlet with other unit or electric appliance.
• It may cause fire or you may suffer electric shock.
After cleaning this unit, dry it well, then plug the AC adapter in the electric
outlet.
• If not, you may suffer electric shock.
Insert the AC adapter to the electric outlet as far as it goes.
Do not use the AC adapter with dust accumulated on it.
• There is danger of electric shock, or there may be short circuit or fire
ignition.
If you encounter any trouble with the main unit, immediately stop using, turn
off the unit, unplug the AC adapter from the electric outlet, then contact the
repair department.
• There is danger of electric shock, or there may be short circuit or fire
ignition.
Do not disassemble or remodel this unit.
• There is danger of electric shock or injury, or there may be fire, or trouble.
Do not use any cuff other than the one exclusive for this unit.
• If not, result may be erroneous.
Do not use this unit on infants.
• Blood pressure may not be measured correctly.
Do not use this unit on patient using a pump oxygenator.
• The unit can not measure correctly.
Do not use AC adapter and battery pack that are not specified for this unit.
• It may cause fire or you may suffer electric shock.
Do not short-circuit the polarities of the optional battery pack with a metal
object such as wire.
If the fluid in the battery drip on your skin or clothes, immediately wash off the
fluid with water.
• You may suffer injury.
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 2

3
Notes on Safety
Caution
Do not use a cellular phone near this unit.
• This unit may malfunction.
Do not use this unit in a moving vehicle.
• This may result in erroneous measurement.
Do not install parts and/or instrument that are not specified for this unit.
• It may cause damage to the unit.
Do not use broken power cord or AC adapter, or loose electric outlet.
• There is danger of electric shock, or there may be short circuit or fire
ignition.
Do not pull the power cord when unplugging the AC adapter from the electric
outlet.
• The power cord will be disconnected or short-circuited, and may cause fire
or you may suffer electric shock.
Do not scratch, damage, modify, forcibly bend, pull, twist, bundle the cord of
AC adapter, or place heavy materials on it, or pinch it.
• You may suffer electric shock or there may be electric leak and fire because
of deteriorated insulation.
Do not install or store this unit where it may be sprayed with water or
medication.
• There is danger of electric shock.
General advice
Do not place or put anything on this unit.
Do not apply strong shock to or drop this unit.
Turn off power and unplug the AC adapter from the electric outlet before moving the unit.
Read the instruction manual of the other devices to be used at the same time with this unit, to
understand and be aware of the interaction between the devices.
Before using the unit
• Check if all cords and tubes are securely connected.
• Operate the Buttons to check that this unit operates normally before use.
When using the unit
• Do not inflate the cuff without being wrapped over the arm.
• Do not use torn cuff.
• Be sure that the patient do not touch the Buttons of this unit.
After using the unit
• Clean and store this monitor and accessories.
• Do not clean this unit with gasoline, paint thinner, or high concentration alcohol.
• Do not disinfect this unit by autoclave or gas sterilization (EOG, formaldehyde, or high
concentration ozone).
Do not install or store this unit in the following places.
• Under direct sunlight
• Dusty or salty environment
• At an inclined position, or subject to vibration and/ or shock
• Storage of chemicals or where gas may be generated
• At high temperature and high humidity
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 3

4
Be Sure to Read This Section
Know Your Unit
Features of the Product
OMRON Digital Automatic Blood Pressure Monitor, Model HEM-907 is developed to measure
blood pressure with accuracy and simple operation in the doctor's consultation room or at bedside.
• One-push operation
Just by wrapping the cuff and pushing the START Button (to start measurement), blood pressure
and pulse rate can be measured. Measurement is made by oscillometric method.
• Automatic pressure setting
When the P-SET (Pressure Setting) Knob is set to "AUTO," this unit will automatically inflate the
cuff to the optimal pressure according to each patient's blood pressure. Cumbersome pressure
value setting operation is not necessary.
• Large and easy to read display
With the use of an LCD display, display of figures is large and easy to read.
• Quiet operation
Because this unit is designed for quiet operation, it can be used in the hospital room at night.
• Average Mode (AVG. Mode)
Just by wrapping the cuff and pushing the START Button (to start measurement), this unit will
automatically start to measure for two or three times. After the measurements, the average values
of systolic and diastolic blood pressures and pulse rate of measurements are displayed. The
results of each measurement can also be called. By changing the setting, the number of
measurements and the interval can be changed.
• Auscultation Mode (MANU. Mode)
This unit can measure blood pressure by using a stethoscope. The unit inflates and deflates the
cuff automatically, then displays the pressure values. As the pressures during deflation are digitally
displayed and synchronized with the pulse rate, they can be read with accuracy. The deflation
speed after confirming the systolic pressure and immediately before the diastolic pressure can be
accelerated.
INTELLISENSE blood pressure monitor is a global brand name of blood pressure monitor
equipped with bio-information sensing and high performance fuzzy logic technology, which are
the key technologies of OMRON. With this excellent sensing technology, the monitor can
achieve "accurate measurement".
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 4

5

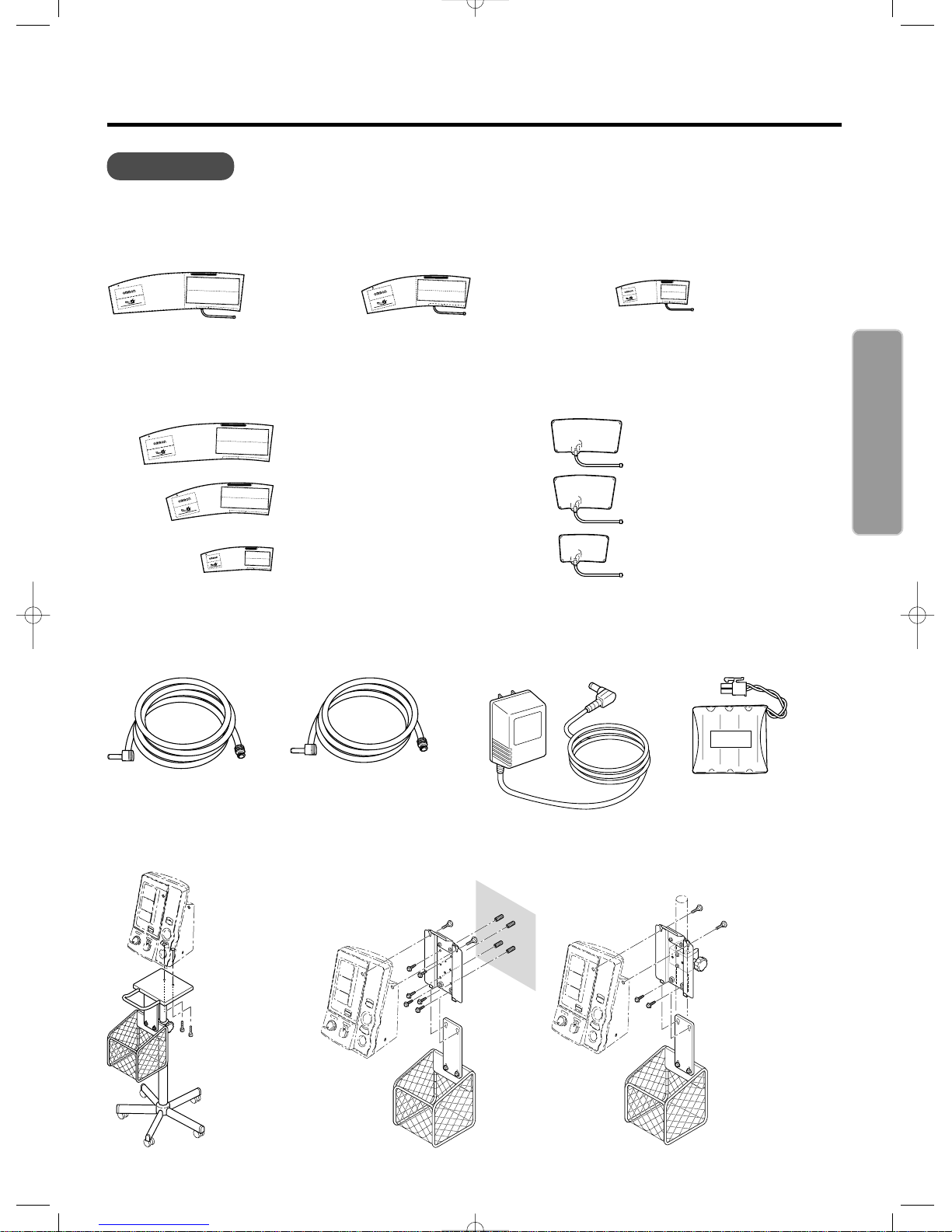

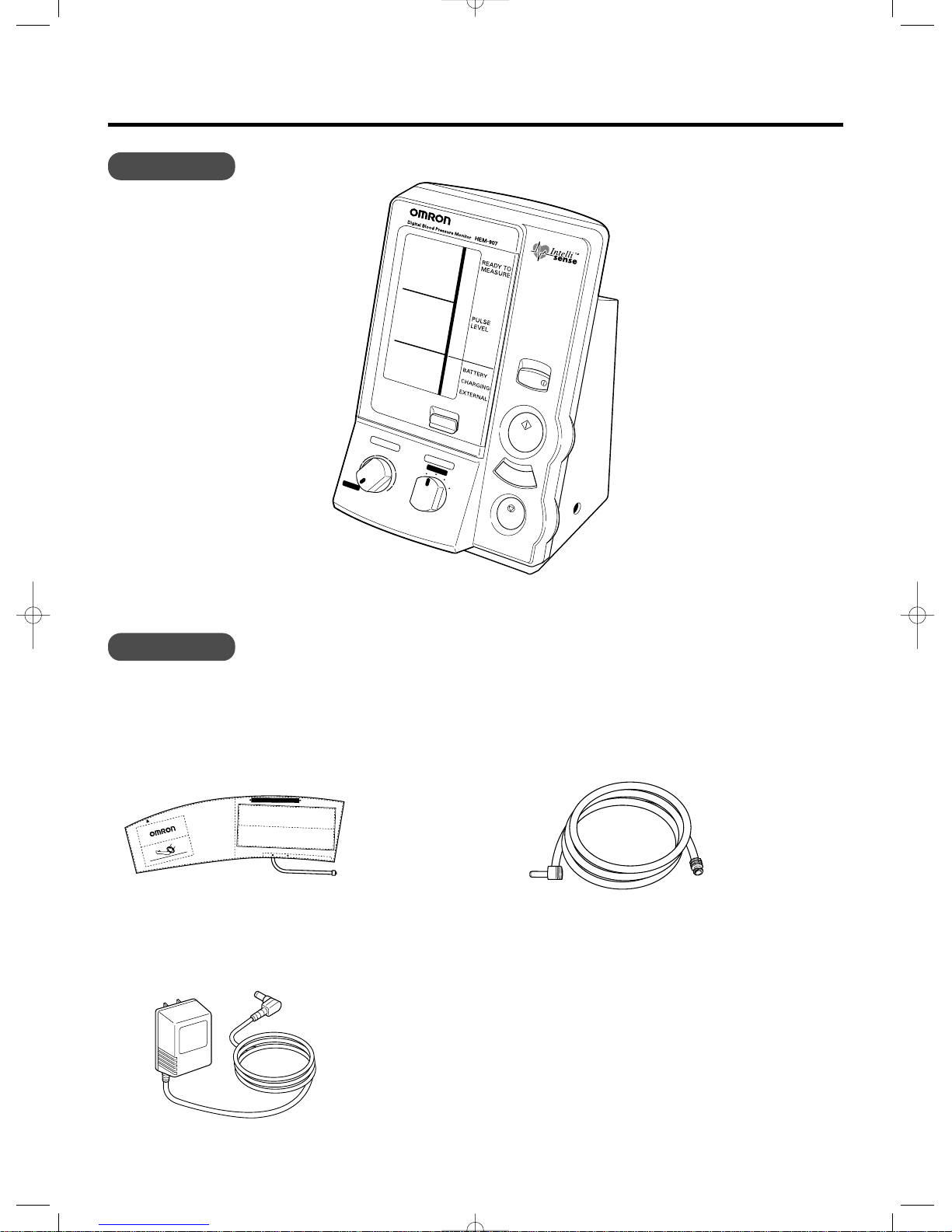

Components of the Product
HIDE
P-SET
100
AUTO
140180
220
260
280
MODE
AVG.MANU.
CHECK
SINGLE
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
RANGE
MINMAX
INDEX
ART.
22~32cm(9"~13")
REF
HEM-CR19
TUBE
Main unit
Accessories
Air tube 1.0m (39 1/3") *
Model: HEM-TUBE-100
Cuff / bladder set M *
Model: HEM-970-CR19
Applicable arm circumference:
22 to 32 cm
AC adapter
Model: (Refer to OMRON dealer for the appropriate AC adapter).
Note: Actual AC adapter may look different from illustration.
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 5

6
Know Your Unit
Components of the Product
Cuff / bladder set L
(with built-in bladder) *
Model: HEM-907-CL19
Applicable arm circumference:
32 to 42 cm
Cuff / bladder set S
(with built-in bladder) *
Model: HEM-907-CS19
Applicable arm circumference:
17 to 22 cm
Stand exclusive for this unit *
Model: HEM-907-STAND Wall-hanging kit * Model: HEM-907-WKIT
Bladder (three types) *
Pole-mounting kit *
Model: HEM-907-PKIT
Cuff (three types) *
Cuff / bladder set M
(with built-in bladder) *
Model: HEM-907-CR19
Applicable arm circumference:
22 to 32 cm
INDEX
ART.
RANGE
MIN MAX
32~42cm(13"~17")
REF
HEM-CL19
RANGE
MINMAX
INDEX
ART.
22~32cm(9"~13")
REF
HEM-CR19
ART.
RANGE
MINMAX
INDEX
REF
HEM-CS19
17~22cm(7"~9")
INDEX
ART.
RANGE
MINMAX
32~42cm(13"~17")
REF
HEM-CL19
RANGE
MIN MAX
INDEX
ART.
22~32cm(9"~13")
REF
HEM-CR19
ART.
RANGE
MINMAX
INDEX
REF
HEM-CS19
17~22cm(7"~9")
Options
Cuff L (with no bladder)
Model:HEM-907-CUFFL
Cuff M (with no bladder)
Model: HEM-907-CUFFM
Cuff S (with no bladder)
Model: HEM-907-CUFFS
Bladder L
Model: HEM-907-BLDRL
Bladder M
Model: HEM-907-BLDRM
Bladder S
Model: HEM-907-BLDRS
Battery pack (48H907N) *
Model: HEM-907-PBAT
Air tube 1.3 m *
Model: HEM-TUBE-130 Air tube 1.0 m *
Model: HEM-TUBE-100 AC adapter
Model: (Refer to OMRON
dealer for the appropriate AC
adapter).
Items attached with
an asterisk (*) are
consumables and
not covered by the
guarantee.
Please understand
that the
specifications of
accessories and
options are subject
to change without
prior notice.
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 6

7
Names and Functions of the Parts
Main unit
1.Display: Displays blood pressure values, pulse rate, and pulse wave level.
2.HIDE Button: Switches between display and non-display of measured results.
3.DC jack: Connects the AC adapter.
4.P-SET (pressure setting) Knob: In the AUTO position, inflation pressure is automatically set.
Otherwise, inflation pressure can be set between 100 and 280 mmHg.
5.MODE Selector: Selects the mode of measurement.
• One-time Measurement Mode (SINGLE Mode): Measurement with automatic inflation
• Average Mode (AVG. Mode): Automatically measures two (or three) times consecutively.
• Auscultation Mode (MANU. Mode): Automatic inflation, automatic deflation, and pressure display (does not measure
blood pressure).
• Check Mode (CHECK Mode): Checks the accuracy of pressure display. Displays only pressure.
6.ON/OFF (power) Button: Turns on or off the power of the unit.
7.START Button : Starts the measurement.
8. DEFLATION (deflation control) /Display Switch Button:
• In the MANU. Mode; Deflates the cuff by approximately 5 to 10 mmHg with each push of the button.
• In the AVG. Mode; Switches the display of average values and the measurement results with each push.
9.Air Connector: Connects the air tube.
10.STOP Button: Stops the measurement and deflates air rapidly.
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
mmHg
SYS
mmHg
DIA
BPM
PULSE
AC
DC8V
1. Display
2. HIDE (non-display) Button
3. DC jack
4. P-SET (pressure
setting) Knob
5. MODE Selector
6. ON/OFF (power)
Button
7. START Button (to
start measurement)
8. DEFLATION
(deflation control)
/Display Switch
Button
9. Air Connector
10. STOP Button
Names of the Parts
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 7

8
Know Your Unit
Names and Functions of the Parts

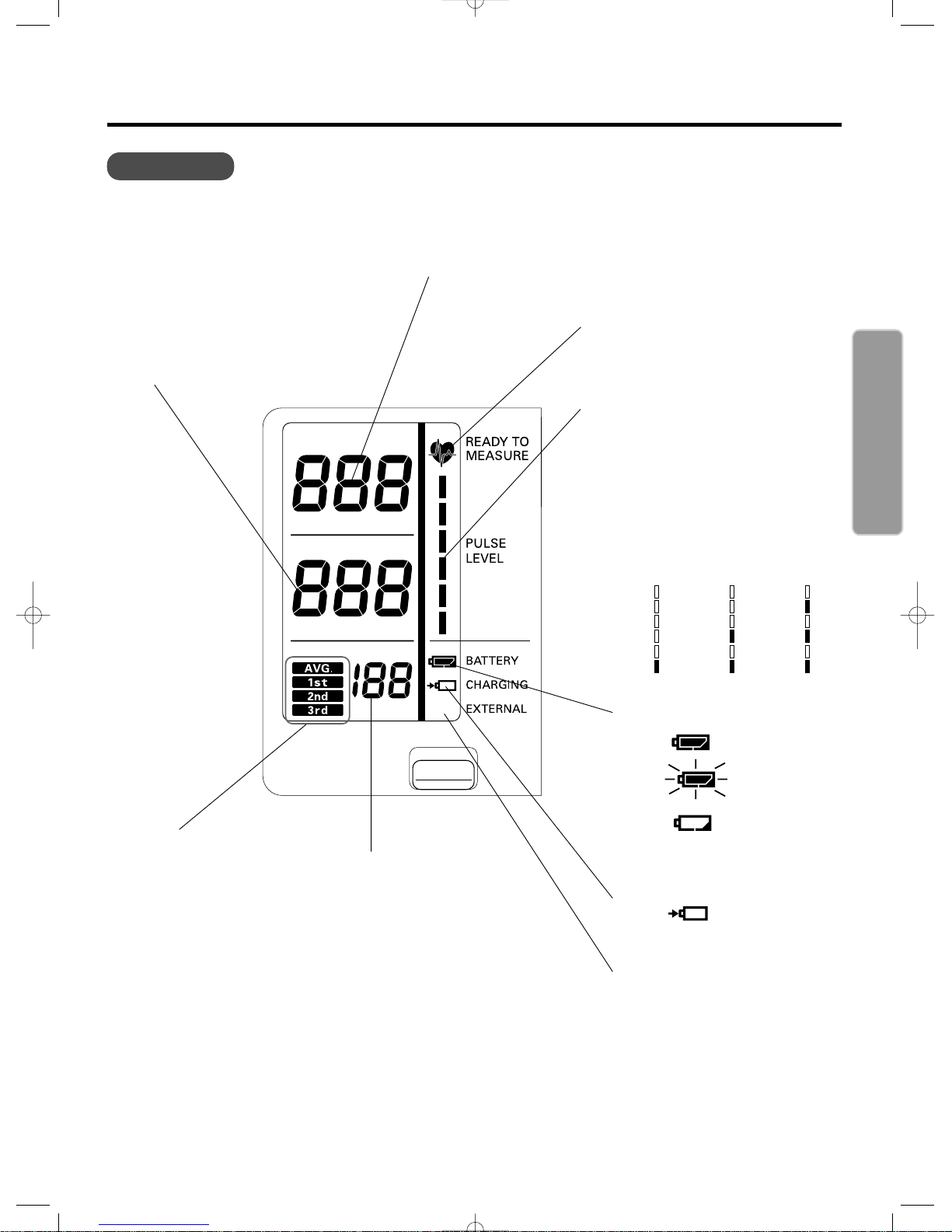

Display
HIDE
BPM
mmHg
PULSE
SYS
mmHg
DIA
AC
Systolic blood pressure
When the measurement is finished: Displays systolic blood pressure.
When an error occurred: Displays error code.
In the CHECK Mode: Displays pressures.
Diastolic blood pressure
During measurement: Displays pressures.
When the measurement is finished: Displays
diastolic blood pressure.
In the CHECK Mode: Displays pressures.
Pulse rate
When the measurement is
finished: Displays pulse rate.
Contents when the AVG.
Mode is selected
AVG.: Mean value
1st : First measurement
2nd : Second measurement
3rd : Third measurement
Ready to Measure /
Pulse rate synchronization
Pulse level /
Number of irregular pulse waves
Number of irregular pulse waves: The pulse
wave with a difference of more than 25%
from the average interval of pulse waves is
determined as irregular. Number of irregular
pulse waves is displayed up to three times.
Battery level
Displays for the operable level.
Blinks for a low charged
level
Displays for the inoperable
level.
Charging
Displays when the battery
pack is being charged.
External power source
Displays AC when the unit is connected
to the external power source via the AC
adapter.
Example of display
No. of arrhythmias
123
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 8

9
Names and Functions of the Parts
Functions and setting while the unit is in use
(1) Pressure setting function
A function that can switch the pressure setting
Inflation can be set by AUTO (automatic setting) method or the pressure value setting method.
AUTO (Automatic setting): Can be used when the SINGLE, AVG., or MANU. Mode is selected.
The unit estimates the systolic blood pressure value during inflation and inflates to an appropriate
cuff pressure.
Pressure value setting method: Pressure value can be set between 100 and 280 mmHg. Set the
pressure value at about 30 to 40 mmHg higher than the expected systolic pressure.
• To set the P-SET to "AUTO," turn the P-SET Knob counterclockwise as far as it goes until you can hear a click sound.
• In the "AUTO" setting, proper inflation may not be possible when the systolic blood pressure is expected to be more than 220
mmHg. Use the unit in the pressure value setting method.
• If the cuff cannot be inflated to the pressure necessary for the measurement, it may be re-inflated automatically.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
(2) Non-display function
A function not to display measurement results. However, the cuff
pressure during measurement is displayed.
This function can be used in the SINGLE and AVG. Modes.
By each push of the Button, display or non-display of
the measurement results is switched.
HIDE
(3) Manual deflation control function
A function to accelerate deflation by pushing the DEFLATION
(deflation control) / Display Switch Button during deflation.
This function can be used in the MANU. Mode.
With each push of the Button, deflation speed is
accelerated by 5 to 10 mmHg.
BPM
mmHg
PULSE
SYS
mmHg
DIA
AC
AC
Display Non-display
P-SET
HIDE
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 9

10
Know Your Unit
Names and Functions of the Parts
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
AC
P-SET
100
140 180
220
MODE
AVG. MANU.
CHECK
SINGLE
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
AC
P-SET
100
140 180
220
MODE
AVG. MANU.
CHECK
SINGLE
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
AC
P-SET
100
140 180
220
MODE
AVG. MANU.
CHECK
SINGLE
List of Functions for each Mode
Pressure setting
function
Non-display
function
Manual deflation
control function
Single
measurement
(SINGLE) Average
(AVG.) Auscultation (MANU.) Check (CHECK)
Function
Measurement
Mode

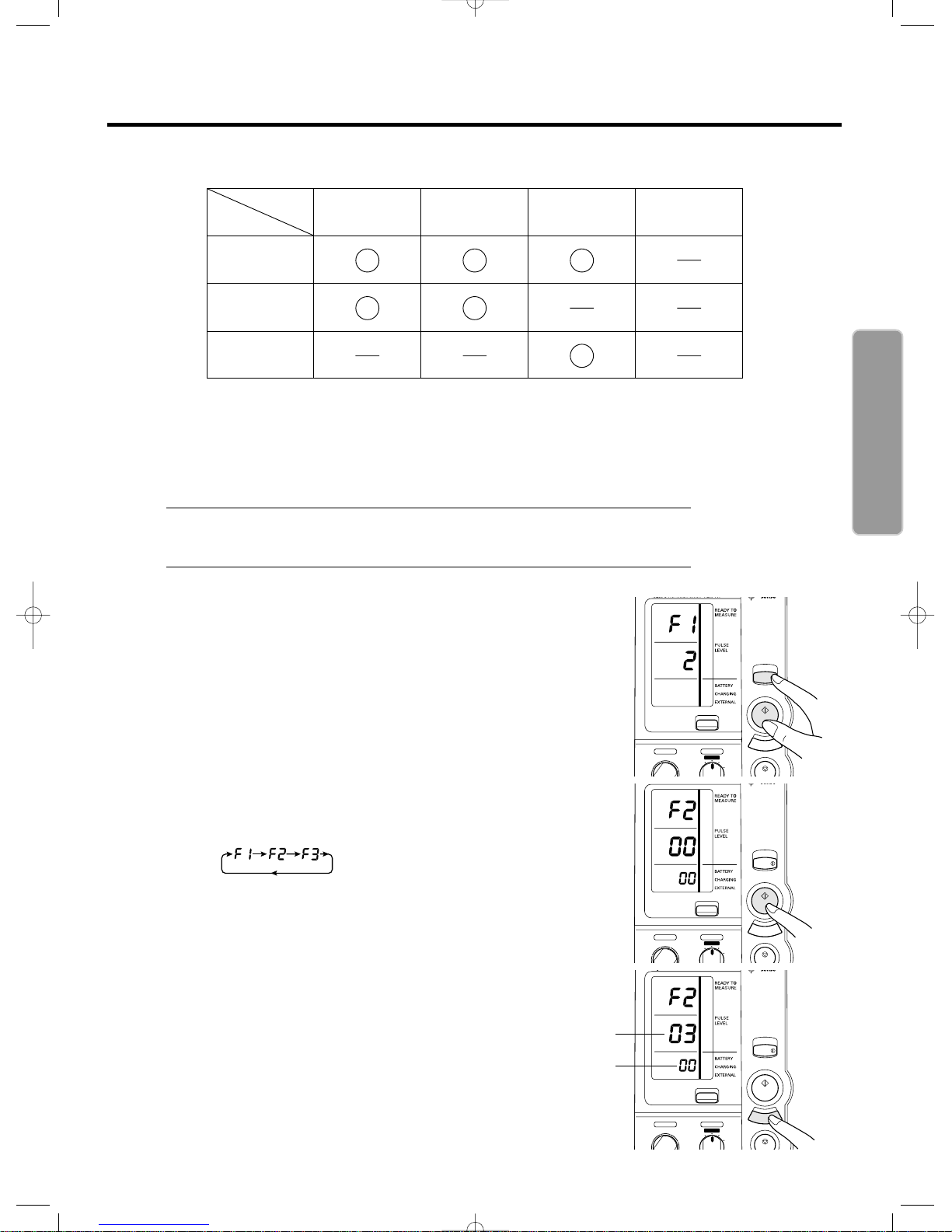

(4) Function setting
You can set the number of measurements, the waiting time until the start of 1st measurement, and
the measurement interval for the AVG. Mode.
Items to set Set value
F1 Number of measurements 2 times, 3 times
F2 Waiting time until the start of 1st measurement 0 sec, 3 min, 5 min, and 10 min.
F3 Measurement interval 5 sec, 30 sec, 1 min, and 2 min.
Note: The bold letters represent the factory-set values.
Procedure to change the set values
1) When the power is OFF, push the ON/OFF (power) Button for
more than three seconds while holding the START Button
and change the mode to the Setting Change Mode.
(F1 is displayed.)
2) Push the START Button and select the items from F1 to F3.
Each time you push the START Button, the items change in
the order of .
3) Push the DEFLATION (deflation control)/
Display Switch Button to change the set values.
4) When the setting is finished, push the ON/OFF (power)
Button to turn off the power. The setting is now changed.
min
sec
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 10

11
How to Apply the Cuff
INDEX
ART.
RANGE
MIN MAX
32~42cm(13"~17")
REF
HEM-CL19
RANGE
MINMAX
INDEX
ART.
22~32cm(9"~13")
REF
HEM-CR19
ART.
RANGE
MIN MAX
INDEX
REF
HEM-CS19
17~22cm(7"~9")
TUBE
TUBE
TUBE
General advice
• Do not inflate the cuff before it is wrapped over the
arm.
• Do not use torn cuff.
1. Select the cuff according to the arm
circumference of the patient.
Arm circumference Name of the cuff
17 - 22 cm Cuff / bladder set S(option)
22 - 32 cm Cuff / bladder set M
32 - 42 cm Cuff / bladder set L(option)
• Use cuff that is suitable for the size of the patient's
arm.
• If a cuff not suitable for the arm size is used, blood
pressure may not be measured correctly.
• Check the following before wrapping the cuff.
1) The bladder is securely installed in the cuff.
2) The bladder is not twisted inside the cuff.
3) The bladder tube is protruding from the cuff as
shown in the Figure on the right.
2. Connect the air tube securely.
• When connecting the air tube to the main unit,
securely connect the air plug to the base of the air
connector.
• Securely connect the air tube and the cuff/bladder
set by rotating them as shown in the Figure.
• If you connect the attached 1 m air tube, the air
tube can be used with the entire length of 1.2 m.
3. Prepare the patient to be ready to
wrap the cuff.
• Wrap the cuff directly on the arm as a rule.
• If the cuff is wrapped over a thick cloth or by
rolling up a jacket or a shirt, blood pressure may
not be measured correctly.
Do not wrap the cuff over the arm to which
intravenous injection or transfusion is being
conducted.
• Intravenous injection or transfusion will be
impossible.
Do not erroneously connect the air tube or the
cuff to the tube of other equipment connected
to intracorporeal organ.
• Air may get into blood vessel.
Warning
ART.
TUBE
The cuff of OMRON Digital Automatic Blood Pressure Monitor HEM-907 plays an important role of
collecting the information on blood vessels. Please wrap the cuff correctly according to the procedure.
Cuff
Air tube
Air connector
Air plug
Cuff side Air tube side
Extract the air tube from .
TUBE
Enlarged figure of
the circled part
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 11

12
Preparations before Measurement
How to Apply the Cuff

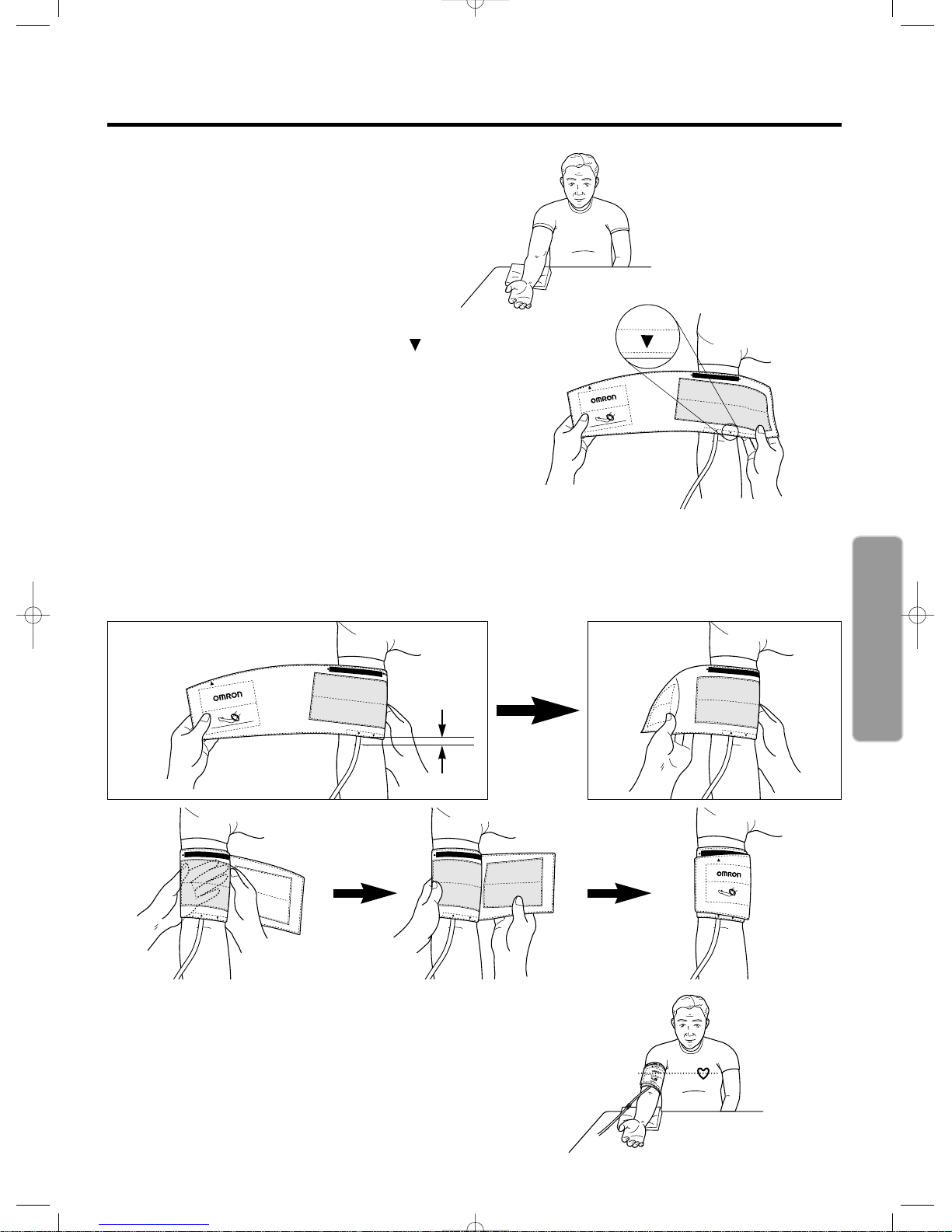

5. Align the Artery Position Mark
with the brachial artery.
ART.
6. Wrap the cuff snugly using both
hands and securely fasten it with the
Velcro tape. At this time, the lower
edge of the cuff must be placed
1.2 cm to 2.5 cm above the inner
side of elbow joint.
• If the INDEX is positioned outside the RANGE, select the cuff suitable for the patient's arm circumference and
wrap it again.
• If the cuff is not wrapped snugly, blood pressure may not be measured correctly.
• The cuff wrapped diagonally along the shape of the arm does not affect the measurement value.

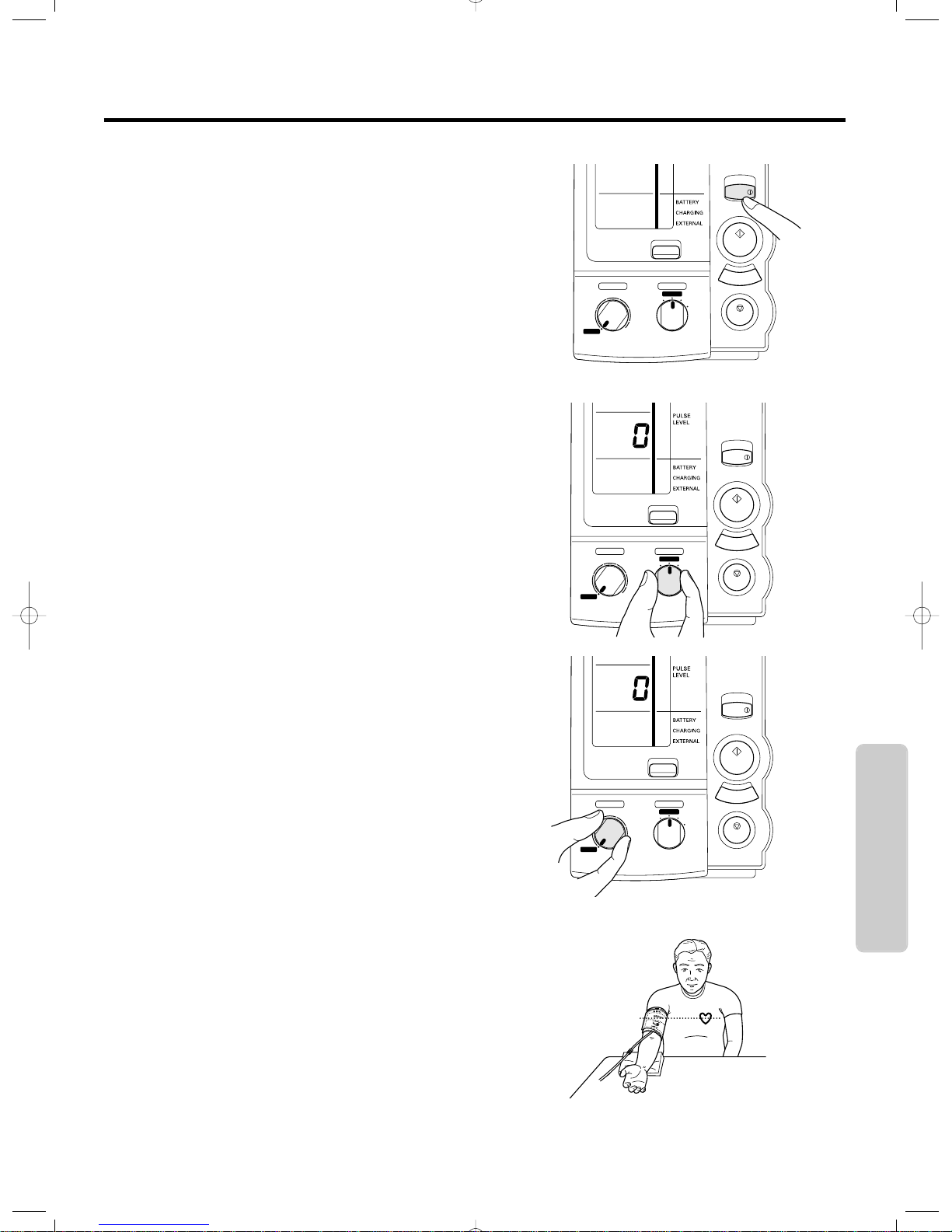

7. Keep the level of the cuff at the same
level as the heart during the
measurement.
• For the correct measurement, keep the level of
the cuff to the same level as the heart.
RANGE
MIN
MAX
INDEX
ART.
22~32cm(9"~13")
REF
HEM-CR19
ART.
TUBE
MIN
ART.
RANGE
TUBE
RANGE
ART.
TUBE
ART.
RANGE
TUBE
TUBE
ART.
INDEX
22~32cm(9"~13")
REF
HEM-CR19
RANGE
ART.
4. Place the right hand of the patient
with the palm of hand facing upward.
MIN
INDEX
ART.
22~32cm(9"~13")
REF HEM-CR19
RANGE
TUBE
1.2-2.5 cm
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 12

13
How to Use the Power Source
General advice
• Read the instruction manual of the other devices to
be used at the same time with this unit to
understand and be aware of the interaction between
the devices.
• Be sure to operate the Buttons to check this unit for
correct operation.
Do not use this unit in places where
inflammable gas, such as highly inflammable
anesthetic, may be generated or in a high
pressure oxygen room or an oxygen tent.
• It may cause ignition and explosion.
Do not touch the AC adapter with wet hands.
• You may suffer electric shock.
Warning
Be sure to use the AC adapter appropriate for
your country.
• It may cause fire or you may suffer electric
shock.
Do not install or store this unit where it may
be sprayed with water or medication.
• You may suffer electric shock.
Caution

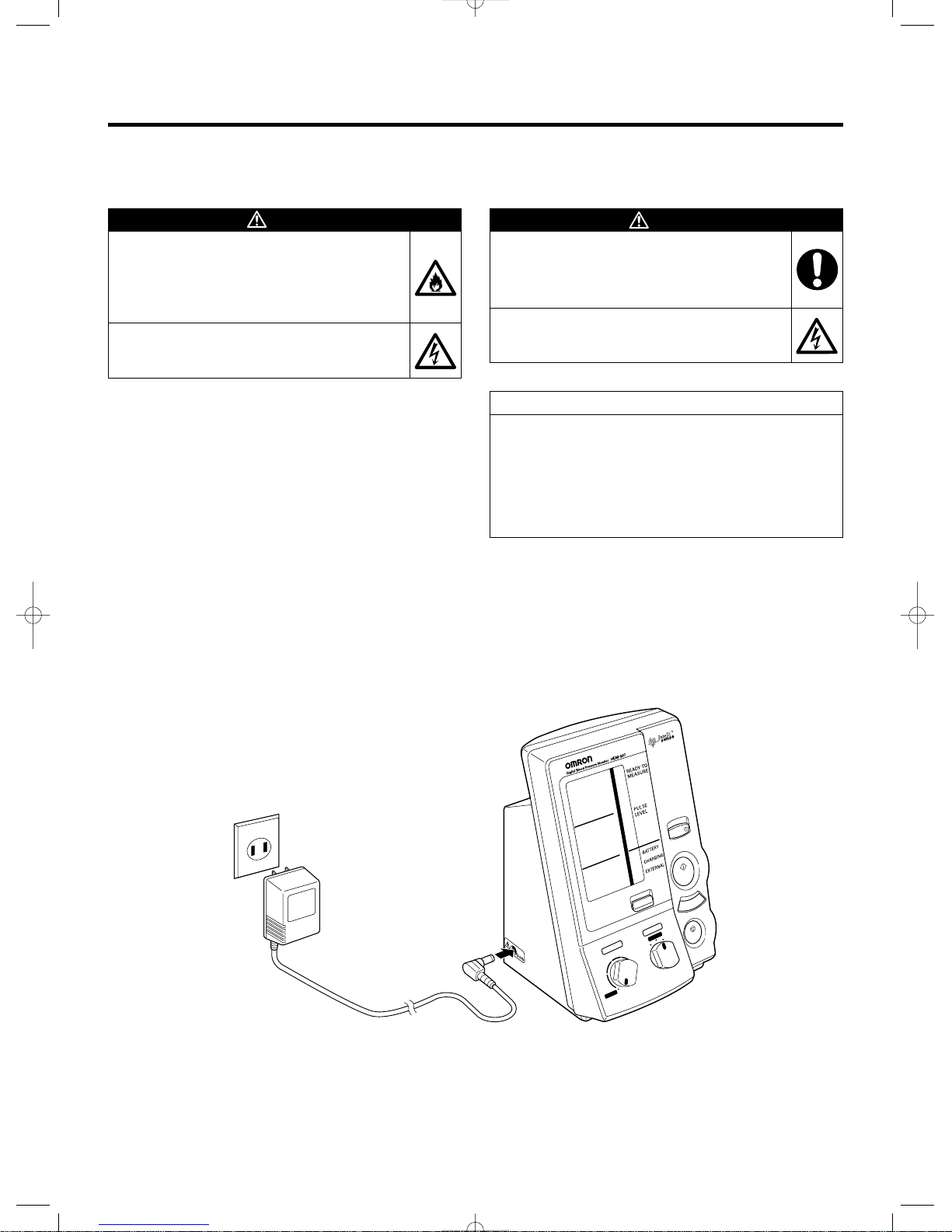

Connect the AC adapter to the DC jack of the main unit [1] and the electric outlet [2].
DC8V
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
• When using the optional battery pack
48H907N (Model: HEM-907-PBAT), the unit
also function as the charger.
[1]
[2]
How to use the AC adapter
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 13

14
Preparations before Measurement
How to Use the Power Source

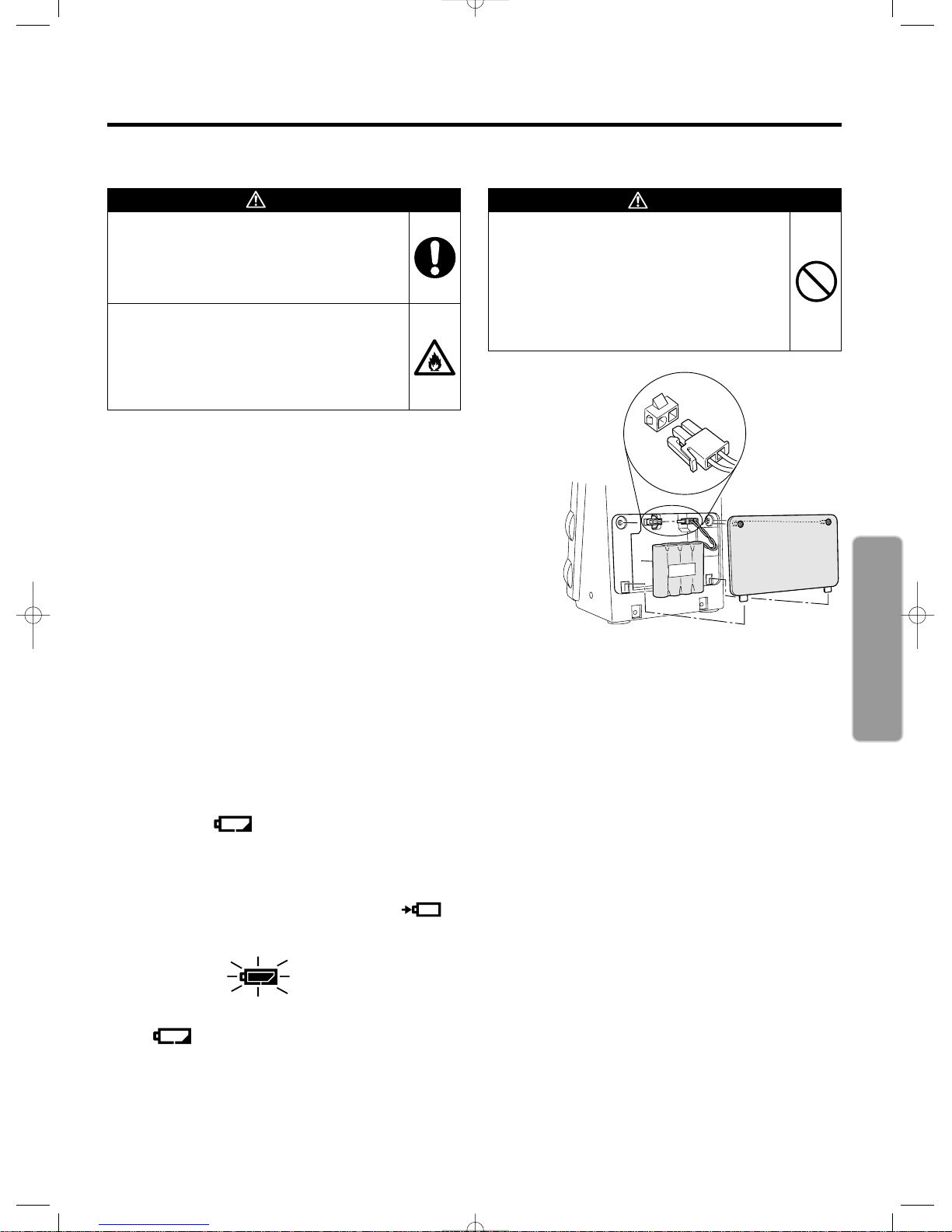

1. Remove the two screws on the upper portion of
the cover of this unit, then remove the battery
cover.
2. Installation: Connect the battery pack to the
connector in the battery cover to install it.
Replacement: Disconnect the battery pack
from the connector and replace with a new one.
3. Install the battery cover and fasten it with
screws. At this time, be careful not to pinch the
lead wire.
4. Connect the main unit and the AC adapter, then charge the battery pack. The
battery pack is not charged when you purchase the monitor. When you use the
battery pack for the first time, charge it for more than twelve hours before use.
Battery life
• You can use the unit for approximately three hundred measurements with one charge.
• Approximate life of battery pack is two years. However the battery pack life from each charging
may be shortened depending on the state of using. If the interval between charging becomes
short and a mark appears frequently, replace it.
Charging time
• At approximately five seconds after connecting the AC adapter, the battery pack will start
charging automatically.
• While the battery is being charged, a mark turns on.
• The battery can be charged in approximately twelve hours.
Battery low
• Even after a mark starts to blink, you can use the battery for twenty to thirty
measurements. However if the Battery Low Mark starts to blink, charge
it soon.
• If a mark is displayed, the battery is low (blood pressure cannot be measured.) Please
charge the battery.
Automatic Power Off
• If you use the unit with the battery pack, the unit will turn off automatically in approximately five
minutes even if you forget to turn off the power.
• While the AC adaptor is connected, the Auto Power Off function does not work.
If the fluid in the battery gets into your eye, wash
the eye with sufficient water without rubbing the
eye, then immediately consult the doctor for
treatment.
• There is danger in losing your eyesight.
Do not use the exclusive battery pack (option)
other than for this unit.
Do not throw the battery pack into fire, or heat,
or disassemble it.
• It may cause heat, ignition, short-circuit, or
rupture.
Warning
Do not short-circuit the polarities of the
optional battery pack with a metal object such
as wire.
If the fluid in the battery is stained on your
skin or clothes, immediately wash off the fluid
with water.
• You may suffer injury, or the battery may
leak, heat, ignite fire, or explode.
Caution
Installation and Replacement of Battery Pack (option)
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 14

15
How to Measure Blood Pressure
General advice
• Be sure that the patient should not touch the unit.
If any abnormal matter occurs during the
measurement such as inflation does not stop,
remove the cuff or pull out the air tube from
the main unit.
• You may suffer peripheral neuropathy.
Warning
List of Measurement Modes
To measure
only once SINGLE Mode Refer to Page
20.
To measure two
times (or three times)
automatically and
consecutively AVG. Mode Refer to Page
22.
To measure by
using a
stethoscope MANU. Mode Refer to Page
24.
To check the
accuracy of
pressure display CHECK Mode Refer to Page
26.
In the following cases, check the readings
with the stethoscope.
(1) When an irregular pulse wave is displayed
• The reading may be erroneous due to
external vibration or patient's body
movement.
(2) When erroneous reading takes place or
the measured value is doubtful
• The reading may be erroneous due to
external vibration or patient's body
movement.
• An error may have occurred during
measurement or when measurement is not
possible for patient who has peripheral
circulatory disturbance or extreme
hypotension.
• An error may have occured due to extreme
short variation of blood pressure such as
arrhythmia.
Do not use cellular phone near the unit.
• The unit may malfunction.
Do not use this unit in a vehicle.
• It may result in erroneous measurement.
Caution
HEM-907-draft(Eng) 9/21/00 4:07 PM Page 15

16
How to Measure Blood Pressure
How to Measure Blood Pressure (in SINGLE Mode)
ART.
1. Push the ON/OFF (power) Button to
turn on the power.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
2. Set the MODE Selector to "SINGLE".
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
mmHg
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
3. Set the P-SET (pressure setting)
Knob to "AUTO" or to the target
inflation-pressure value.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
mmHg
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
4. Wrap the cuff around the patient's
arm. (Refer to Pages 11 and 12.)
HEM-907-draft(Eng) 9/21/00 4:08 PM Page 16

17
How to Measure Blood Pressure (in SINGLE Mode)
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
mmHg
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
5. Push the START Button to start the
measurement.
• Do not push the
START Button without
wrapping the cuff on
the arm.
• If you want to stop
measurement, push
the STOP Button. The
unit will deflate quickly.
HIDE
BPM
mmHg
PULSE
SYS
mmHg
DIA
AC

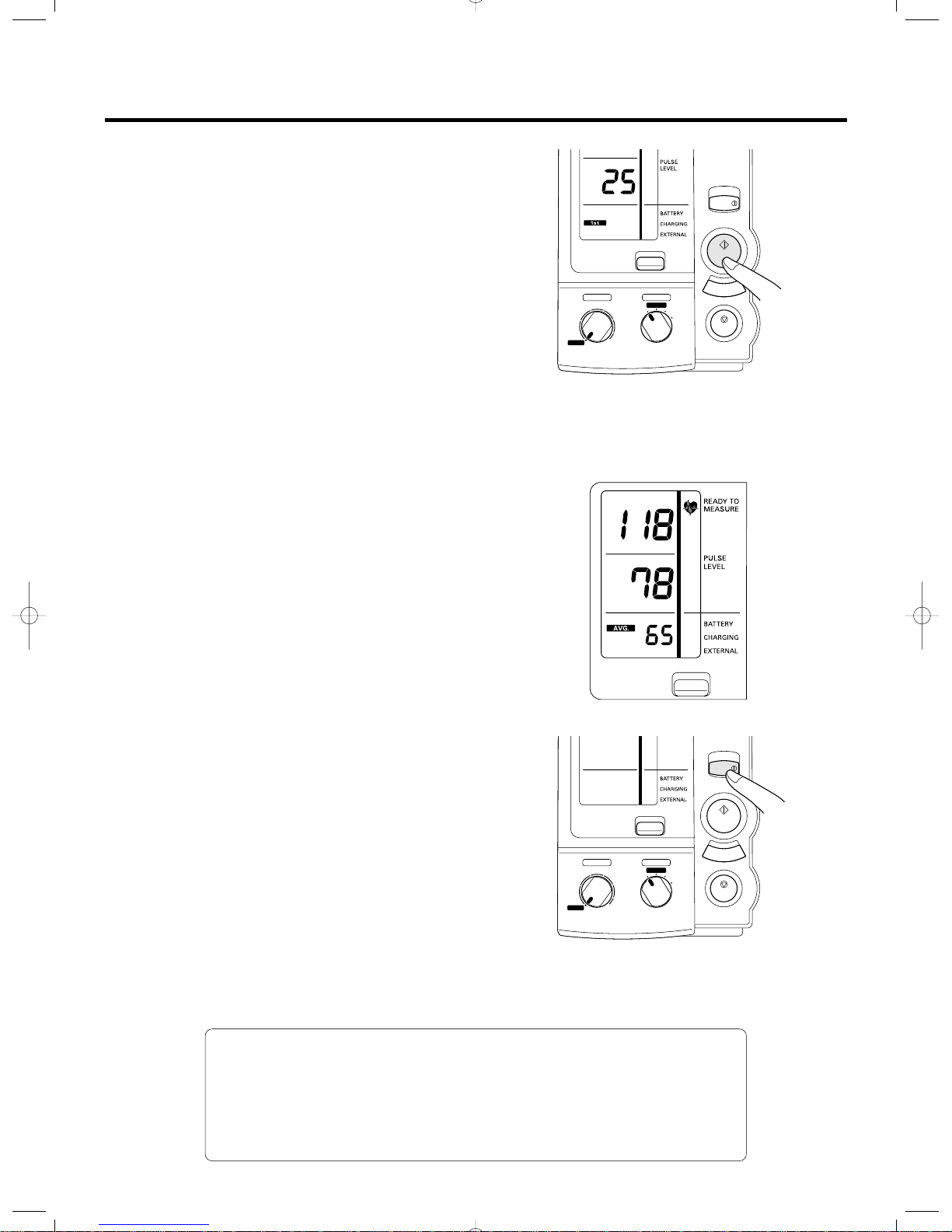

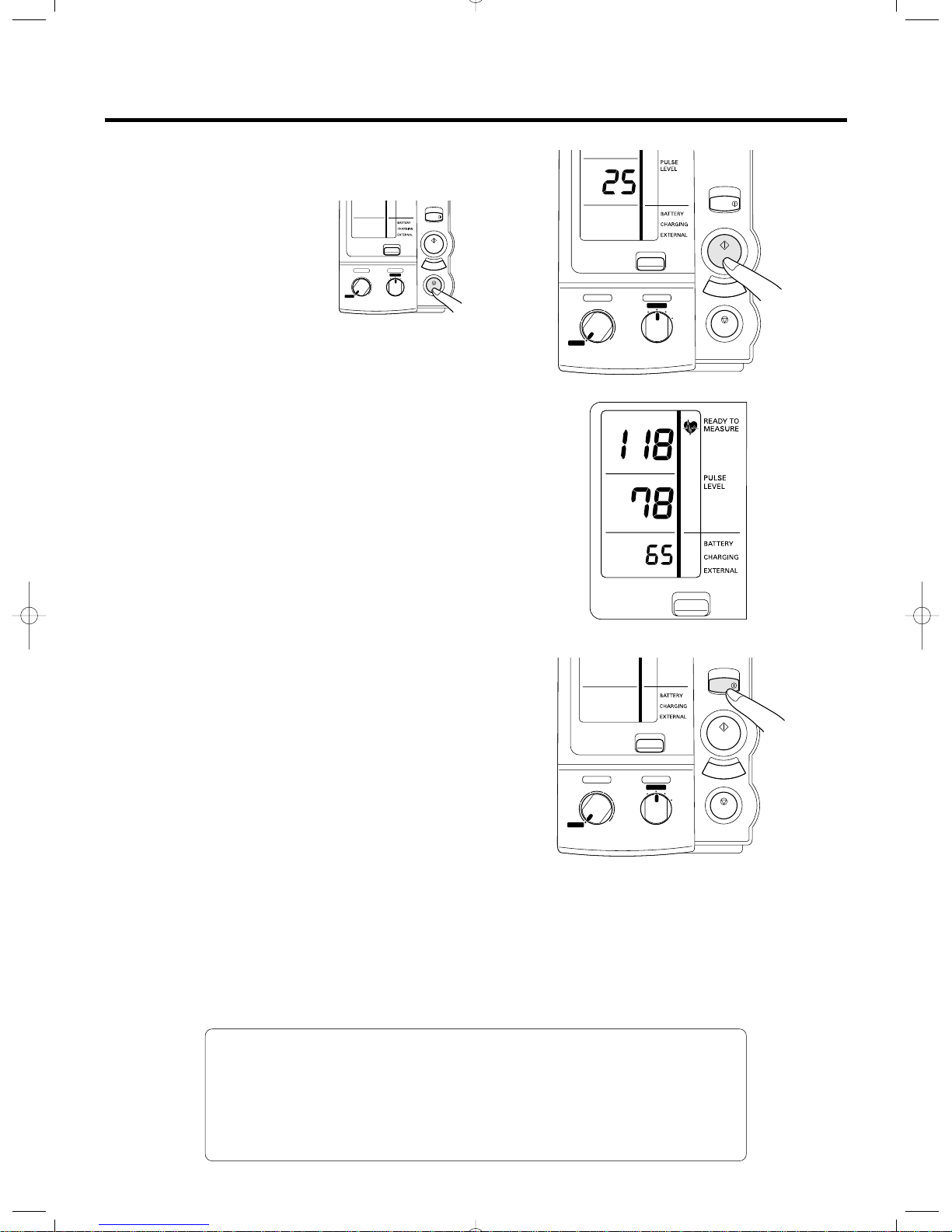

6. The measurement results are
displayed.
• While the battery pack is in use, the
monitor will turn off automatically in
approximately five minutes and the
display (measurement results) will
disappear. (Automatic Power Off)
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
7. Push the ON/OFF (power) Button to
turn off the power.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
If the monitor detects a noise during the measurement or
determines that the pressure value is not correct, an error
display appears (Er1 to 9). In this case, refer to Page 24 for the
remedial actions and start the measurement again.
HEM-907-draft(Eng) 9/21/00 4:08 PM Page 17

18
How to Measure Blood Pressure
How to Measure Blood Pressure (in AVG. Mode)
ART.
1. Push the ON/OFF (power) Button to
turn on the power.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
2. Set the MODE Selector to "AVG.".
The factory-set values are set as follows:
• Number of measurements: 2
• Waiting time until the 1st measurement:
0 sec.
• Interval: 1 min.
To change these factory-set values, refer to
Page 10.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
mmHg
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
3. Set the P-SET (pressure setting)
Knob to "AUTO" or the target
inflation-pressure value.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
mmHg
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
4. Wrap the cuff around the patient's
arm. (Refer to Pages 11 and 12.)
HEM-907-draft(Eng) 9/21/00 4:08 PM Page 18

19
How to Measure Blood Pressure (in AVG. Mode)
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
mmHg
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
5. Push the START Button to start the
measurement.
The unit automatically starts measurement according to
the waiting time until the start of 1st measurement.
After displaying the results of 1st measurement, the
monitor will measure blood pressure for the set number of
times automatically at the specified intervals.
• For the setting of the number of measurements, the
waiting time until the start of 1st measurement, and the
interval, refer to Page 10.
• If you want to stop measurement, push the STOP
Button. The unit will deflate quickly.
• If erroneous reading takes place during the
measurement, the monitor will automatically start
measurement again. If erroneous reading takes place
twice consecutively, measurement will be stopped
automatically.
• Do not push the START Button without wrapping the
cuff on the arm.
HIDE
BPM
mmHg
PULSE
SYS
mmHg
DIA
AC
6. The measurement results are
displayed.
After the measurement is finished, average values will be
displayed.
Each time the DEFLATION (deflation control)/
Display Switch Button is pushed, the results for each
measurement and the average value will be displayed.
• While the battery pack is in use, the monitor will turn off
automatically in approximately five minutes and the
display (measurement results) will disappear.
(Automatic Power Off)
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
7. Push the ON/OFF (power) Button to
turn off the power.
If the monitor detects a noise during the measurement or
determines that the pressure value is not correct, an error
display appears (Er1 to 9). In this case, refer to Page 24 for the
remedial actions and start the measurement again.
HEM-907-draft(Eng) 9/21/00 4:08 PM Page 19
