Omron M2 Eco User manual

Digital Automatic Blood Pressure Monitor
Model M2 Eco
• Instruction Manual
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
M2Eco
EN
RU
IM-HEM-7051-RU-04-03/09
1649529-2D
HEM-7051_EN-RU.book Page 1 Thursday, January 8, 2009 9:09 AM

2
Contents
Contents....................................................................................2
Introduction ..............................................................................3
Important Safety Information ..................................................4
1. Overview ..............................................................................5
2. Preparation ..........................................................................8
2.1 Installing/Replacing the Batteries.....................................8
2.2 Setting the Date and Time .............................................10
2.3 Adjusting the Settings Modes ........................................13
3. Using the Unit....................................................................14
3.1 How to Sit Correctly When Taking a Measurement .......14
3.2 Applying the Arm Cuff ....................................................16
3.3 Taking a Reading...........................................................19
3.4 Instructions for special conditions ..................................23
3.5 Using the Memory Function ...........................................24
4. Quick Reference Guide.....................................................27
5. Handling Errors and Problems ........................................28
5.1 Error Messages..............................................................28
5.2 Troubleshooting .............................................................30
6. Maintenance and Storage.................................................32
7. Optional Parts....................................................................35
8. Technical Data...................................................................36
9. Some Useful Information about Blood Pressure ...........38
HEM-7051_EN-RU.book Page 2 Thursday, January 8, 2009 9:09 AM

3
EN
Introduction
Thank you for purchasing the OMRON M2 Eco Upper Arm Blood
Pressure Monitor.
The OMRON M2 Eco is a fully automatic blood pressure monitor,
operating on the oscillometric principle. It measures your blood
pressure and pulse rate simply and quickly. For comfortable controlled
inflation without the need for pressure pre-setting or re-inflation the
device uses its advanced “IntelliSense” technology.
The unit also stores up to 60 measurements in memory and calculates
an average reading based on the three most recent measurements
taken within 10 minutes of the last reading. (If there are only two
readings in memory for that period, the average will be based on two
readings. If there is only one reading in memory for that period, that
reading will be displayed as the average value.)
Please read this instruction manual thoroughly before using
the unit. For specific information about your own blood
pressure, CONSULT YOUR DOCTOR.
HEM-7051_EN-RU.book Page 3 Thursday, January 8, 2009 9:09 AM

4
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and
arteriosclerosis.
You should never change the dosage of medication prescribed by
your doctor.
Use the M2 Eco only for yourself.
Caution:
• Do not leave the unit unattended with infants or persons who
cannot express their consent.
• Do not use the unit for any purpose other than measuring
blood pressure.
• Do not use a cellular phone near the unit. This may result in
incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
• Do not apply strong shocks and vibrations to or drop the main
unit and arm cuff.
• Please observe the following points.
- Do not insert the batteries with their polarities incorrectly aligned.
- Replace old batteries with new ones immediately.
- When you are not going to use the unit for a long period of time
(approximately three months or more), take out the batteries.
- Do not use new and used batteries together.
- Do not use batteries of a different type together.
- Only use four “AA”manganese or alkaline batteries with this unit.
Do not use other types of batteries.
- When using batteries, the battery liquid may leak and damage the
main unit.
• Do not forcibly bend the arm cuff or bend the air tube
excessively.
• When removing the air tube, pull on the air plug at the
connection with the main unit not the tube itself.
• Do not inflate the arm cuff when it is not wrapped around your
arm.
HEM-7051_EN-RU.book Page 4 Thursday, January 8, 2009 9:09 AM

5
1.Overview
EN
1. Overview

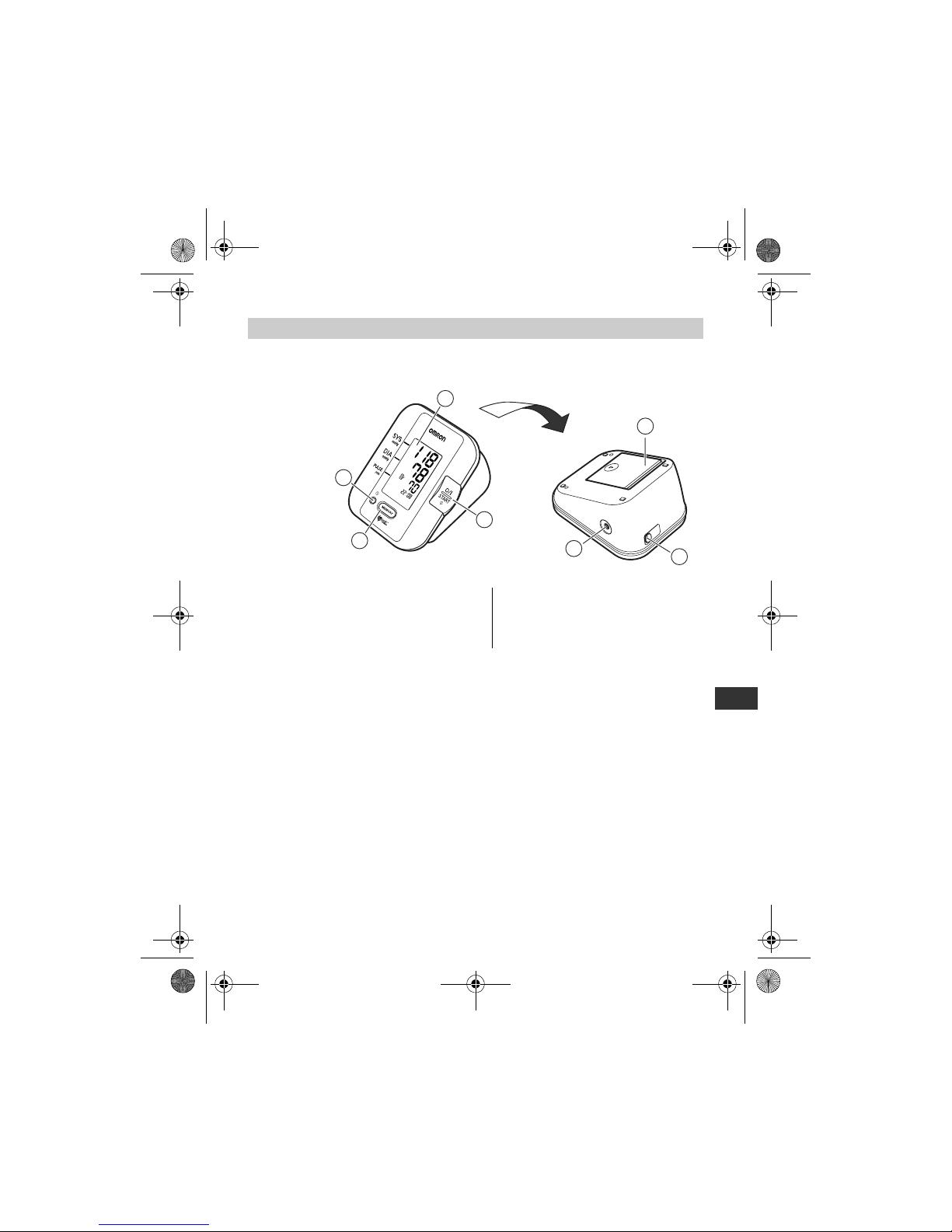

Main unit
A. Display
B. O/I START button
C. MEMORY button
D. SET button
E. Battery compartment
F. A i r j a c k
G. AC adapter jack (for optional
AC adapter)
B
D
A
C
E
G
F
M2 Eco
HEM-7051_EN-RU.book Page 5 Thursday, January 8, 2009 9:09 AM

6
1.Overview
Arm Cuff
If air starts to leak from the arm cuff, please replace with a new
one. (Refer to Chapter 7 “Optional Parts”.)
H. Arm cuff
(Medium cuff: arm circumference 22-32 cm)
I. Air Tube
J. Air Plug
IH
J
HEM-7051_EN-RU.book Page 6 Thursday, January 8, 2009 9:09 AM

7
1.Overview
EN

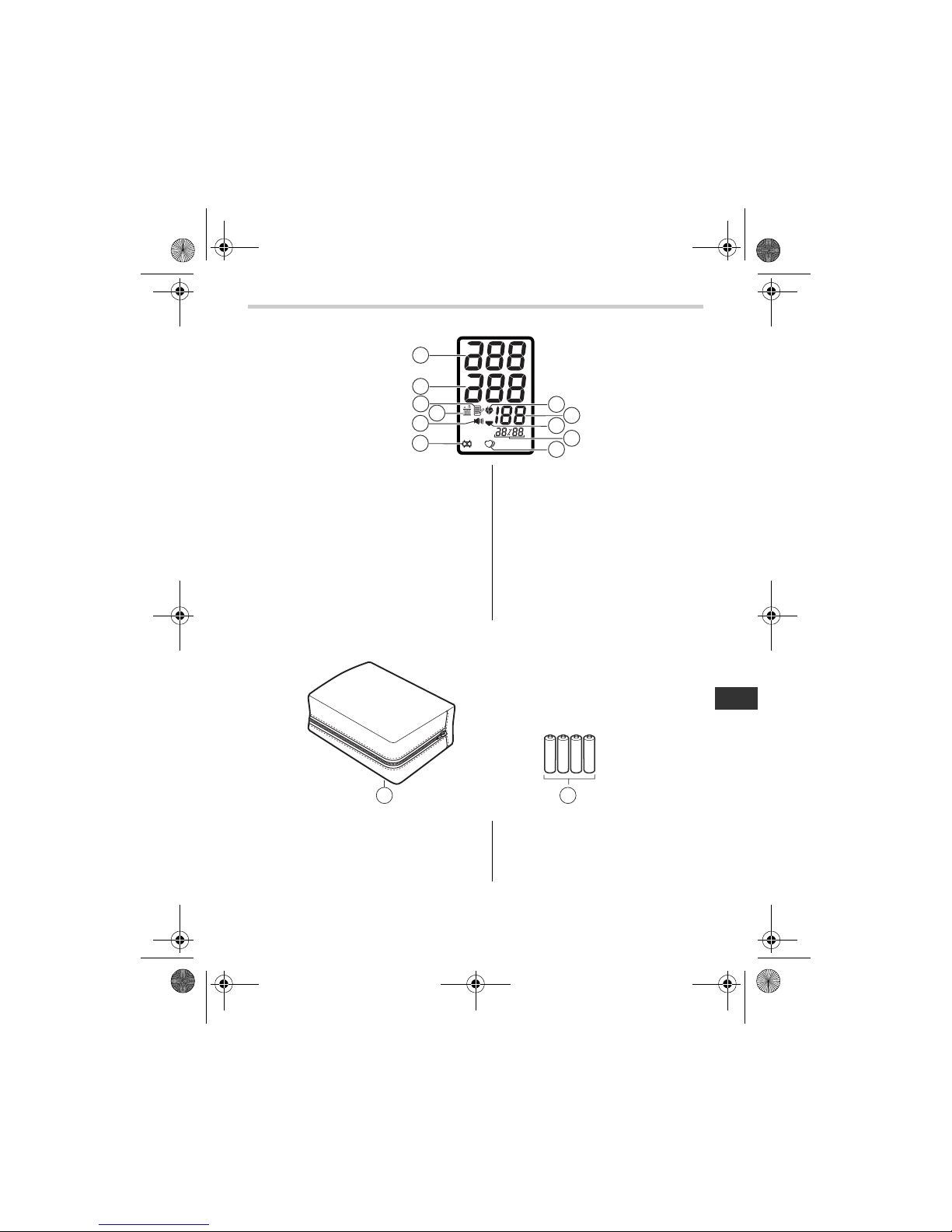

Display
Package contents
K. Systolic blood pressure
L. Diastolic blood pressure
M. Memory symbol
(Displayed when viewing
values stored in memory)
N. Average value symbol
(Displayed when viewing value
for the last three
measurements)
O. Buzzer symbol
P. Battery low symbol
Q. Heartbeat symbol
1. (Flashes during measurement)
2. (If flashing after measurement
complete indicates blood
pressure out of recommended
range)
R. Pulse display
S. Deflation symbol
T. Date/Time display
U. Irregular heartbeat symbol
V. Storage case
W. Four “AA” alkaline (LR6)
batteries
• Instruction manual
• Guarantee card
• Blood pressure pass
• Blood Pressure Monitor unit
K
Q
S
L
N
O
M
R
T
U
P
WV
HEM-7051_EN-RU.book Page 7 Thursday, January 8, 2009 9:09 AM

8
2.Preparation
2. Preparation
2.1 Installing/Replacing the Batteries
1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or replace four “AA”size
batteries so that the + (positive)
and - (negative) polarities
match the polarities indicated
on the battery compartment.
4. Put the battery cover back in
place.
Slide the battery cover as indicated, until it clicks into place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.
HEM-7051_EN-RU.book Page 8 Thursday, January 8, 2009 9:09 AM

9
2.Preparation
EN

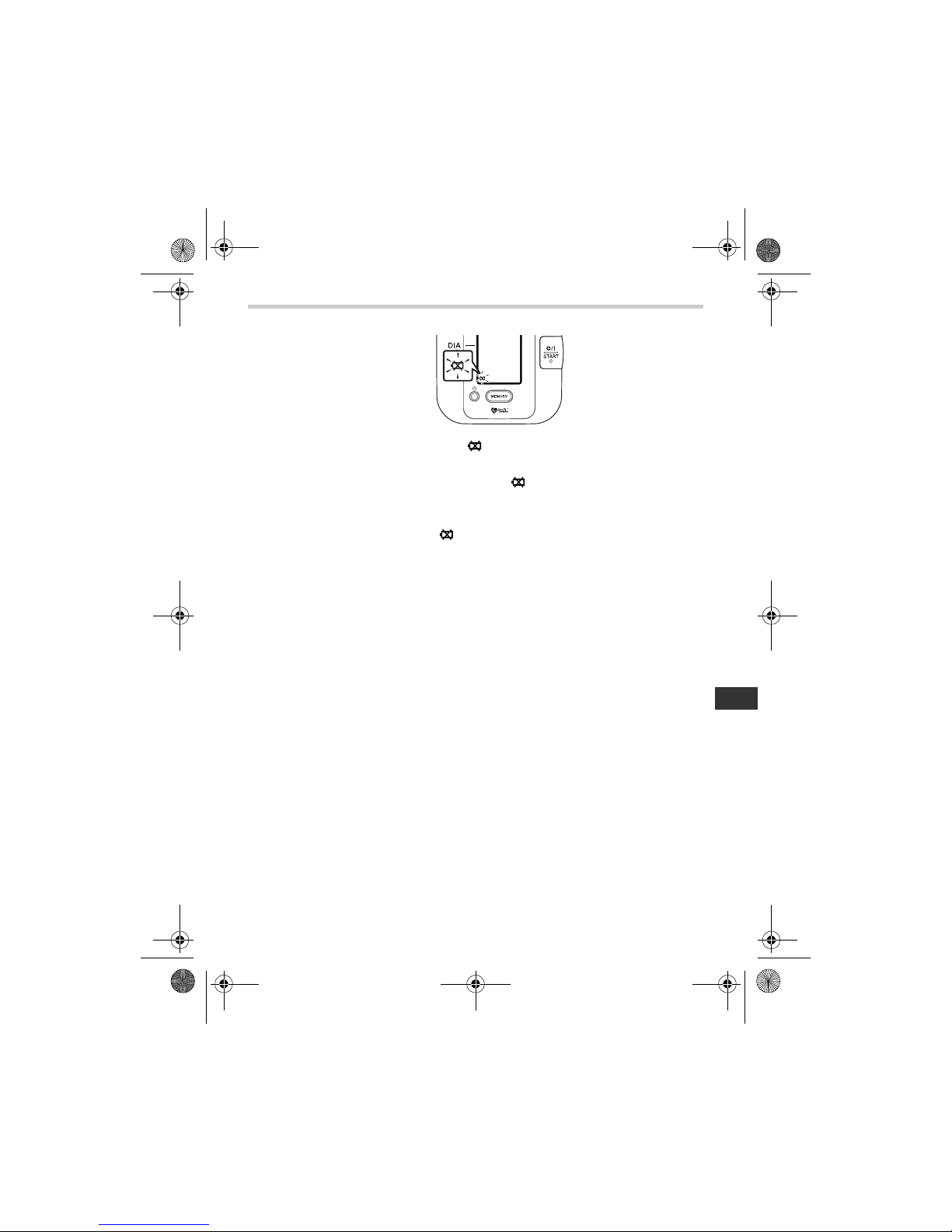

Battery Life & Replacement
If the battery low symbol ( ) appears on the display, replace
all four batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will still
be able to use the unit for a short while. You should replace
the batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries are
exhausted. You should replace the batteries with new ones
at once.Turn the unit off before replacing the batteries.
• Remove the batteries if the unit will not be used for three
months or more.
• If the batteries have been removed for more than 30 seconds,
the Date/Time setting will need to be reset. See “2.2 Setting
the Date and Time” for details.
• Dispose of batteries according to applicable local regulations.
Four new “AA”alkaline batteries will last for approximately
1500 measurements, when used to take two measurements a
day.
Since the supplied batteries are for monitoring use only, they
may have a shorter life and not last for 1500 measurements.
HEM-7051_EN-RU.book Page 9 Thursday, January 8, 2009 9:09 AM

10
2.Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 60
measurements values in its memory and calculates an average
value based on the three most recent measurements taken
within 10 minutes of the last reading. (If there are only two
readings in memory for that period, the average will be based
on two readings. If there is only one reading in memory for that
period, that reading will be displayed as the average value.) To
make use of the memory and average values functions:
• Set the unit to the correct date and time before taking a
measurement for the first time.
• If the batteries have been removed for more than 30 seconds,
the Date/Time setting will need to be reset.

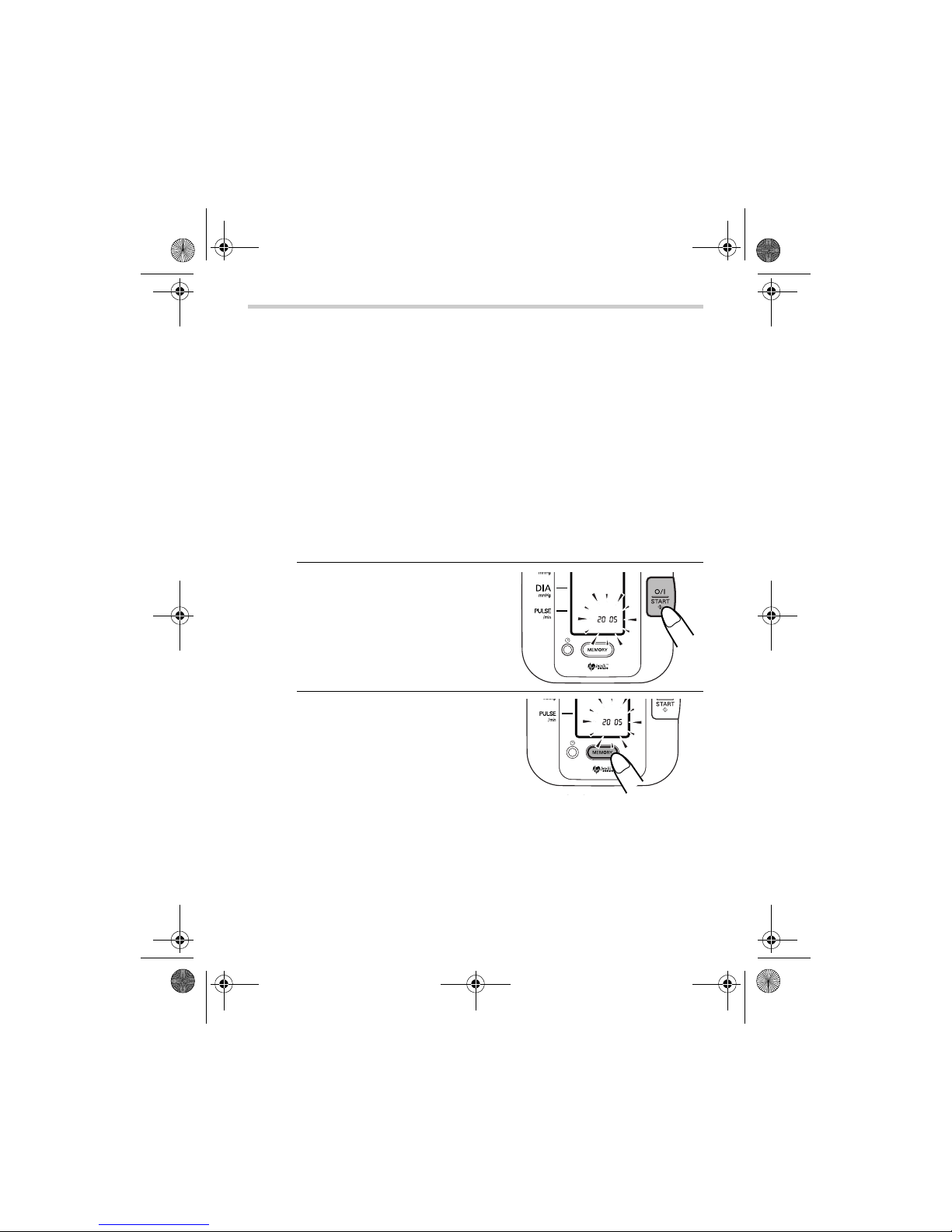

1. When the O/I START button is
pressed to turn the unit on for
the first time after inserting
batteries, the year digits
(2005) will flash on the
display.
2. Press the MEMORY button to
advance the digits one at a
time.
Notes:
• The range for the year
setting is 2005 to 2030. If the
year reaches 2030, it will
return to 2005.
• If you hold down the
MEMORY button, the digits
will advance rapidly.
HEM-7051_EN-RU.book Page 10 Thursday, January 8, 2009 9:09 AM

11
2.Preparation
EN

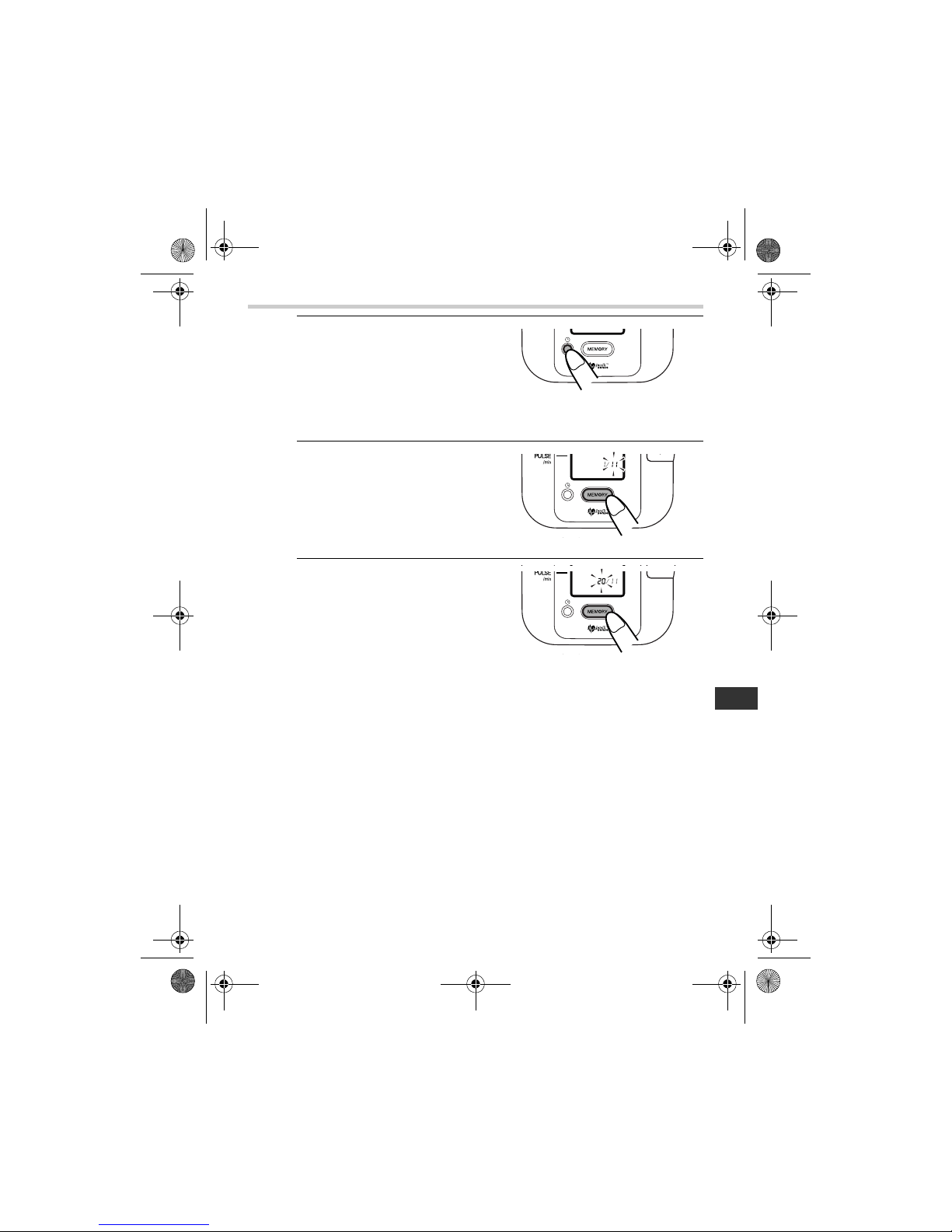

3. Press the SET button to
confirm the setting when the
desired number appears on
the display.
The year is set and the month
digits flash on the display.
4. Repeat steps 2 and 3 to set
the month.
The month is set and the day
digits flash on the display.
5. Repeat steps 2 and 3 to set
the day.
The day is set and the hour
digits flash on the display.
HEM-7051_EN-RU.book Page 11 Thursday, January 8, 2009 9:09 AM

12
2.Preparation
6. Repeat steps 2 and 3 to set
the hour.
The hour is set and the
minutes digits flash on the
display.
7. Repeat steps 2 and 3 to set
the minutes.
The minutes settings is set.
The unit automatically turns
itself off after the minute
setting has been set.
To adjust the date and time,
press the Set button while the
monitor is in standby mode.
HEM-7051_EN-RU.book Page 12 Thursday, January 8, 2009 9:09 AM

13
2.Preparation
EN
2.3 Adjusting the Settings Modes
You can modify the options for the various settings of your unit.
This is done by pressing the SET button to select a setting,
then pressing the MEMORY button to select the options for that
setting. After selecting a setting, press the O/I START button to
confirm the setting and turn the power off.
Buzzer Mode
When Buzzer mode is on, the unit emits sounds, during
measurement, and when measurement is complete.
1. Press the SET button once
while the unit is turned off.
The buzzer symbol
appears on the display.
2. Press the MEMORY button to select
“on”or “off”.
The setting alternates between “on”
and “off” with each press of the
MEMORY button.
The default setting is “on”.
3. When you have selected the desired setting, press the O/I
START button to turn the unit off.
Notes:
• If you want to adjust the date or time, press the SET button
after setting the buzzer setting, follow steps for setting date
and time (Refer to 2.2) press the O/I START button to turn the
unit off.
• If you forget to turn the unit off, it will automatically shut itself
off after five minutes.
HEM-7051_EN-RU.book Page 13 Thursday, January 8, 2009 9:09 AM

14
3.Using the Unit
3. Using the Unit

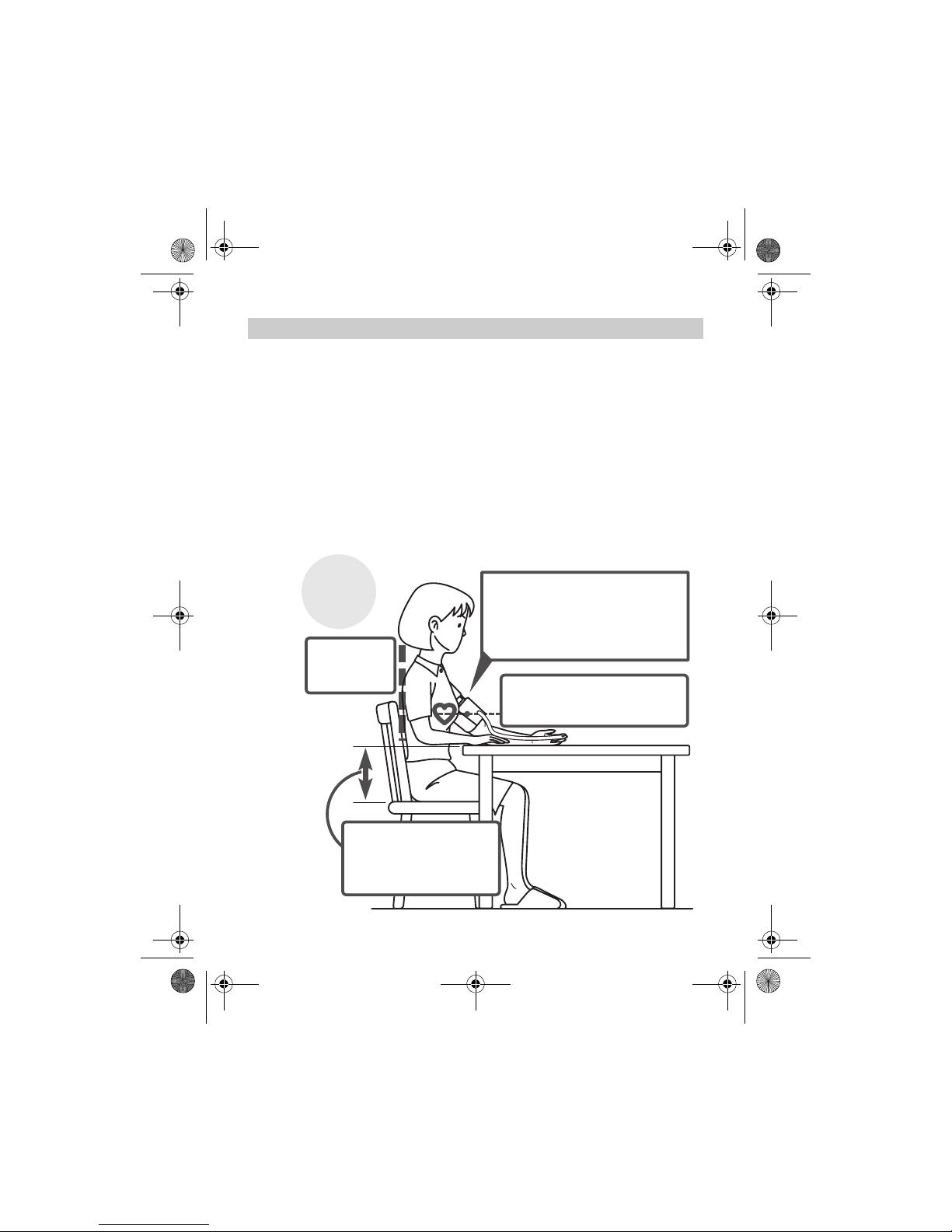

3.1
How to Sit Correctly When Taking a Measurement
You can take a measurement on either your left or right arm.
Note:
• Measurements should be taken in a quiet place and you
should be in a relaxed, seated position. Make sure that the
room is not too hot or cold.
• Do not take measurement after bathing, drinking alcohol, or
exercising.
• Do not move or talk during measurement.
Correct
Posture
Remove tight fitting clothing from
your upper arm, and any thick
clothing such as a sweater.
Do not place the cuff over thick
clothes and do not roll up your sleeve
if it is too tight.
Sit upright
with your
back straight.
Place your arm on a table so
that the cuff will be at the same
level as your heart.
The gap between the
chair and the top of the
table should be between
25cm to 30cm.
HEM-7051_EN-RU.book Page 14 Thursday, January 8, 2009 9:09 AM

15
3.Using the Unit
EN
Notes:
• Correct posture during measurement is necessary to get accurate
results.
• You should also try to measure your blood pressure at the same time
each day. (Within 1 hour after waking up is recommended.)
Incorrect Posture
These situations could lead to higher blood pressure values due to
strain or the arm cuff being lower than the heart.
If the arm cuff is at a lower position than your heart use cushions
etc., to adjust the height of your arm.
•Arched back (leaning
forwards)
•Sitting cross-legged
•Sitting on a sofa or at a low
table so that you tend to lean
forward
HEM-7051_EN-RU.book Page 15 Thursday, January 8, 2009 9:09 AM

16
3.Using the Unit
3.2 Applying the Arm Cuff
Notes:
• Be sure to wrap the arm cuff correctly so that you get accurate
results.
• Measurements can be taken in light clothing. However, please
remove thick clothes, such as sweaters, before taking a
reading.
• You can take a measurement on either your left or right arm.
The blood pressure can differ between the right arm and the
left arm and therefore also the measured blood pressure
values can be different. Omron recommends to always use
the same arm for measurement. If the values between the two
arms differ substantially, please check with your doctor which
arm to use for your measurement.
Taking measurements on the left arm
1. Insert the air plug into the air jack on
the left side of the main unit.
HEM-7051_EN-RU.book Page 16 Thursday, January 8, 2009 9:09 AM

17
3.Using the Unit
EN
2. Put your left arm through the cuff
loop.
The air tube should run down the
inside of your forearm and be in line
with your middle finger.
Note: If the cuff is not assembled,
pass the end of the cuff
furthest from the tubing
through the metal D-ring to
form a loop. The smooth cloth
should be on the inside of the
cuff loop.
HEM-7051_EN-RU.book Page 17 Thursday, January 8, 2009 9:09 AM

18
3.Using the Unit

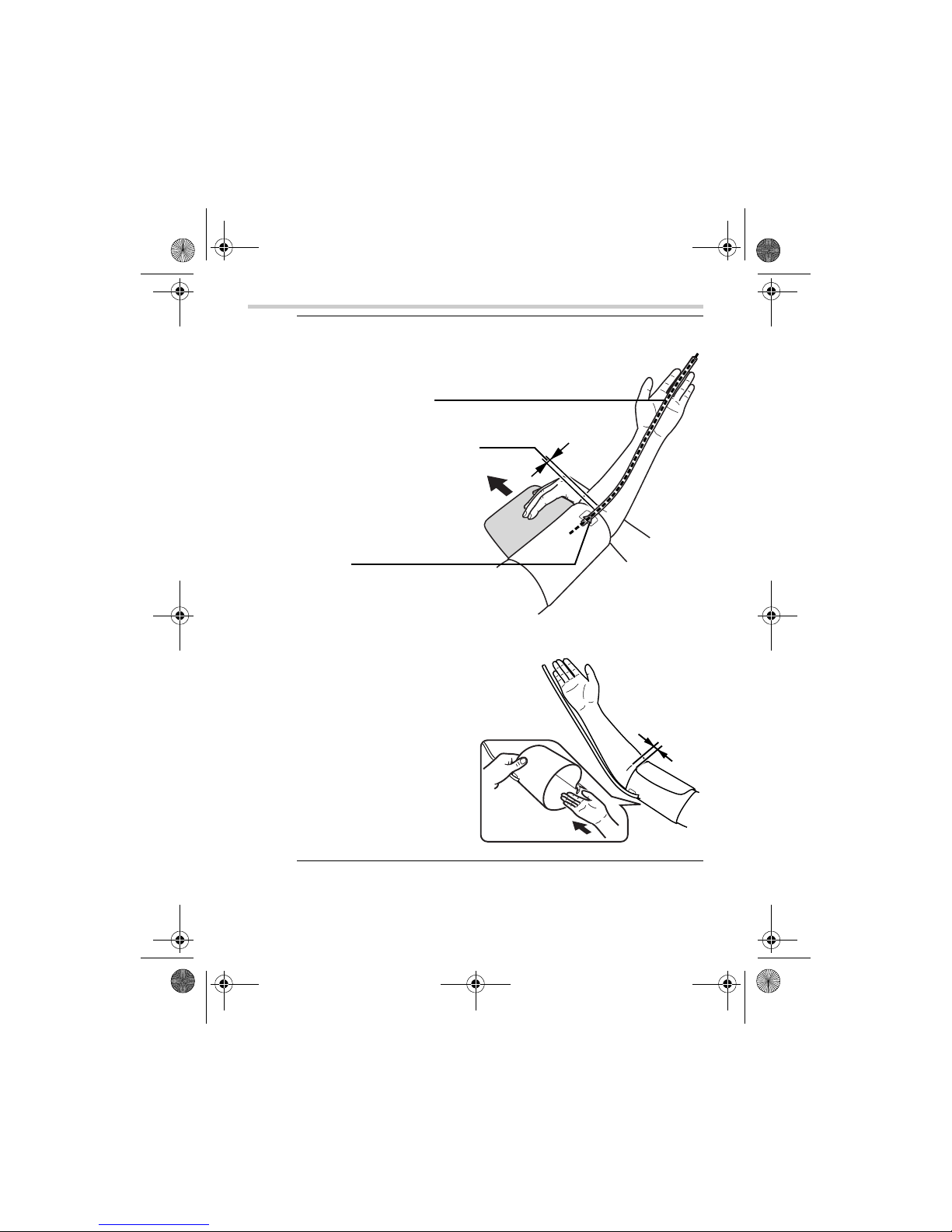

3. Position the arm correctly.
Taking measurements on the right arm
Apply the cuff so that the
air tube is at the side of
your elbow.
• Be careful not to rest
your arm on the air tube,
or otherwise restrict the
flow of air to the cuff.
• The cuff should be 1 to 2
cm above the elbow.
4. When the cuff is positioned correctly, close the fabric fastener
FIRMLY.
1) The air tube should run
down the inside of your
forearm and be in line with
your middle finger.
2) The bottom of the cuff
should be approximately 1
to 2 cm above your elbow.
3) Apply the cuff to your
upper arm so that the
coloured marker (blue
arrow under tube) is
centered on the middle of
your inner arm and points
down the inside of the
arm.
1 to 2 cm
HEM-7051_EN-RU.book Page 18 Thursday, January 8, 2009 9:09 AM

19
3.Using the Unit
EN
3.3 Taking a Reading
1. Press the O/I START button to turn on the unit.
Sit in a chair with your feet flat on the floor and place your arm
on a table so that the cuff will be at the same level as your
heart. Keep still and do not talk during measurement.
During measurement, the buzzer (if set to “on”) will beep in
rhythm with your heartbeat.
Note: To cancel a measurement, press the O/I START button
to turn off the unit and to release the air in the arm cuff.
Common Causes of Inaccurate Results
Leaning forwards.Arm cuff is too loose. Movement or talking
during measurement.
Note: If the arm cuff is at a lower position than
your heart use cushions etc., to adjust the
height of your arm.
HEM-7051_EN-RU.book Page 19 Thursday, January 8, 2009 9:09 AM

20
3.Using the Unit

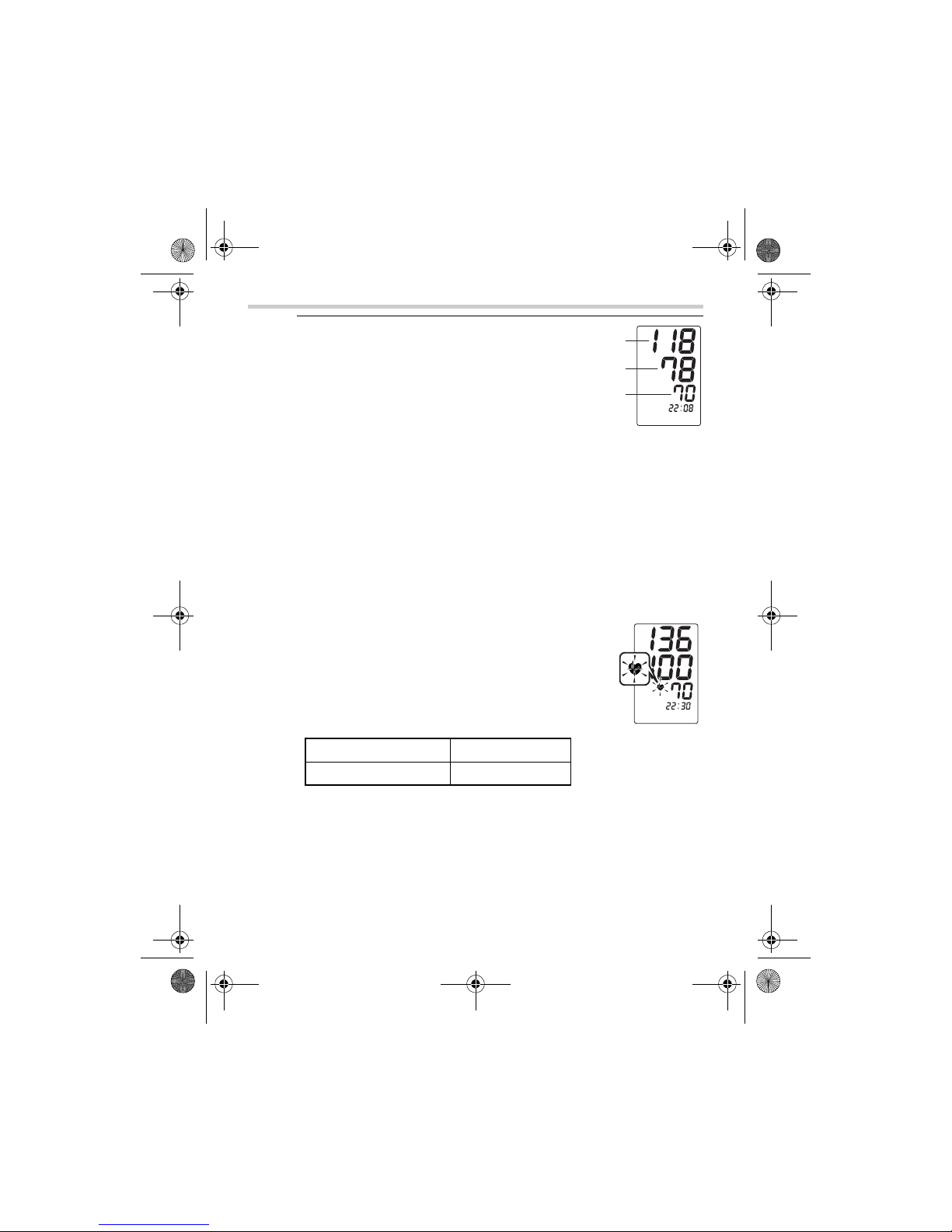

2. Check the measurement results.
The unit automatically stores blood
pressure and pulse rate into its
memory. Refer to “3.5 Using the
Memory Function”.
The buzzer will sound when
measurement is completed.
Notes:
• Self-diagnosis of measured results and treatment are
dangerous. Please follow the instructions of your doctor.
• Wait 2-3 minutes before taking another blood pressure
measurement. Waiting between readings allows the arteries
to return to the condition prior to taking the blood pressure
measurement.
Important:
• If your systolic or diastolic pressure is outside
the standard range, the heartbeat symbol will
blink when the measurement result is
displayed.
Recent research suggests that the following
values can be used as a guide to high blood
pressure for measurements taken at home.
This criteria is for home blood pressure measurement.
For professional office blood pressure measurement criteria,
please refer to Chapter 9 “Some Useful Information about
Blood Pressure”.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
Diastolic blood
pressure
Systolic blood
pressure
Pulse display
HEM-7051_EN-RU.book Page 20 Thursday, January 8, 2009 9:09 AM
