Omron MX 3 Plus User manual

Instruction manual page 1
Gebrauchsanweisung Seite 13
Gebruiksaanwijzing pagina 25
Mode d’emploi page 37
Manuale de instructone pagina 49
Manual de instrucciones pagina 61
Automatic
Blood Pressure Monitor
DIA
mmHg
SYS
mmHg
MX3 Plus
PULSE/min
MX3 Plus
IM-HEM-742-E-2-04/06
26032701 Manual MX3 Plus Cover 06-04-2006 15:07 Pagina 1

1
MX3 Plus English
1How to obtain meaningful blood
pressure readings 1
2Overview 2
3Preparation 3
4Operation 4
5Memory 7
6Error: causes and rectifications 8
7Maintenance and spare parts 8
8Technical data 9
9General information about blood
pressure 11
DIA
mmHg
SYS
mmHg
MX3 Plus
PULSE/min

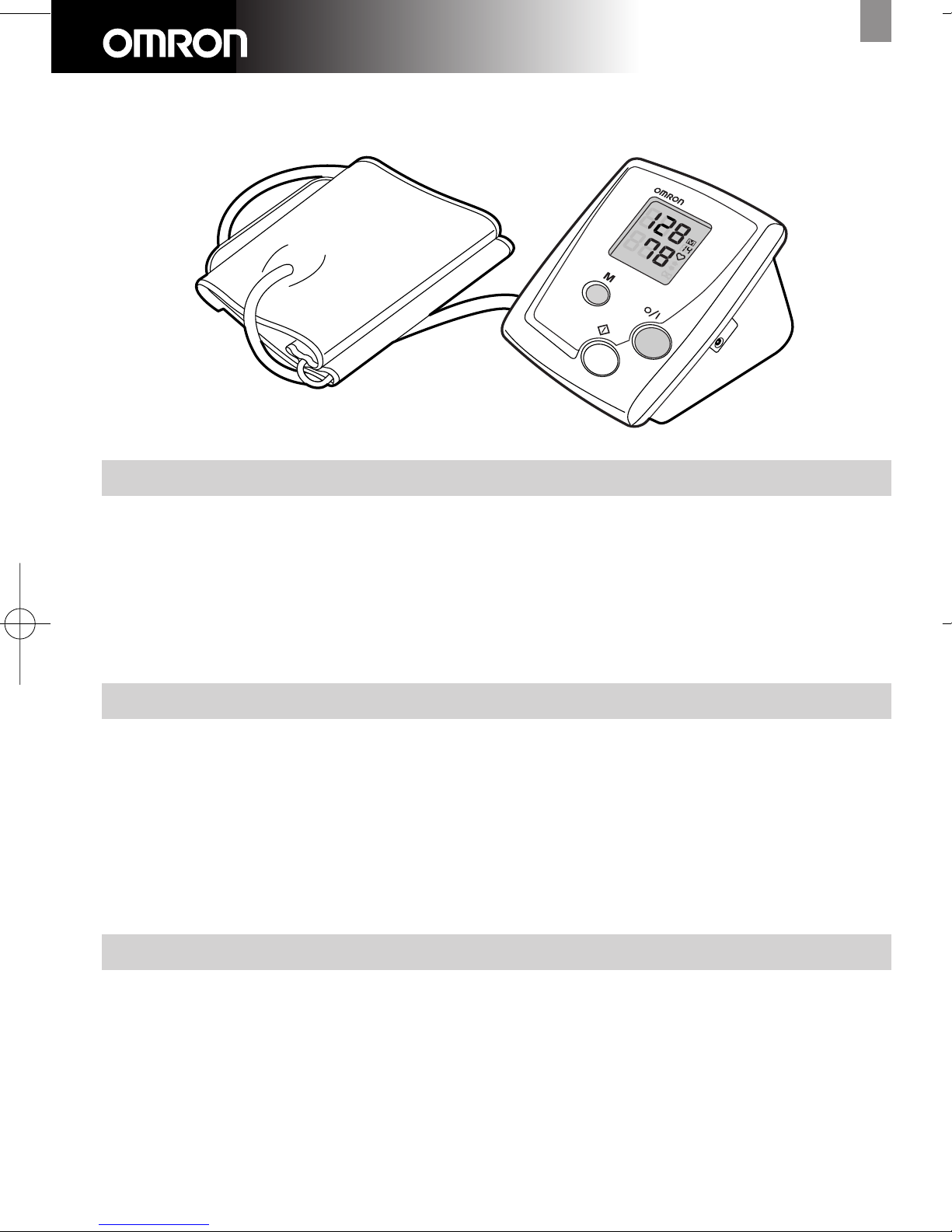

The OMRON MX3 Plus measures your blood pressure and pulse simply and quickly
from the arm, without the use of an inflation bulb or stethoscope. The measurement
values are stored in the memory of the OMRON MX3 Plus.
The OMRON MX3 Plus includes a standard cuff for arm circumferences ranging from
22-32 cm. Optional large cuffs (32-42 cm) can be applied.
Introduction
1How to obtain meaningful blood pressure readings
Table of contents
General
•The OMRON MX3 Plus is not suitable
for measuring the frequency of cardiac
pacemakers.
•Consult your doctor during pregnancy,
arrhythmia and arteriosclerosis as this
can influence the measurement.
• Avoid eating, drinking (alcohol),
smoking, sportand taking a bath before
measurement.
• Be calm and relaxed before and during
measurement.
• You should never change the dose of
medicines prescribed by your doctor.
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 1

F A
E
D
B
G CH
J
K
DIA
mmHg
SYS
mmHg
MX3 Plus
PULSE/min
2
MX3 Plus English
• Store the OMRON MX3 Plus in a dry,
closed place with a temperature
between -20°C and 60°C.
• Remove the batteries if you not intend
to use the OMRON MX3 Plus for 3
months or more.
Tips for use
• Check your blood pressure at least twice
aday (before breakfast, after work).
• Do not measure your blood pressure
while you are in a vehicle.
• Always measure on the same arm.
• Wrap the cuff around your arm before
start of measurement.
Caution
• Operating temperature between 10°C
and 40°C.
• Operating environment must be free
from excessive vibrations, shocks,
magnetic fields,electrical noise, etc.
• Stay out of sunlight during measuring.
• Keep portable phones 5 meters away
during measurement.
• Do not wrap the cuff around any object
other than your arm.
• Do not fold the cuff and the tube.
• Do not drop the OMRON MX3 Plus.
ADisplay
BMemoryrecall
button
CStart button
DOn/off button
EAC adapter jack
FCuff
GAir tube
HAir plug
JBattery
compartment
KAir jack
2Overview
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 2

3
MX3 Plus English

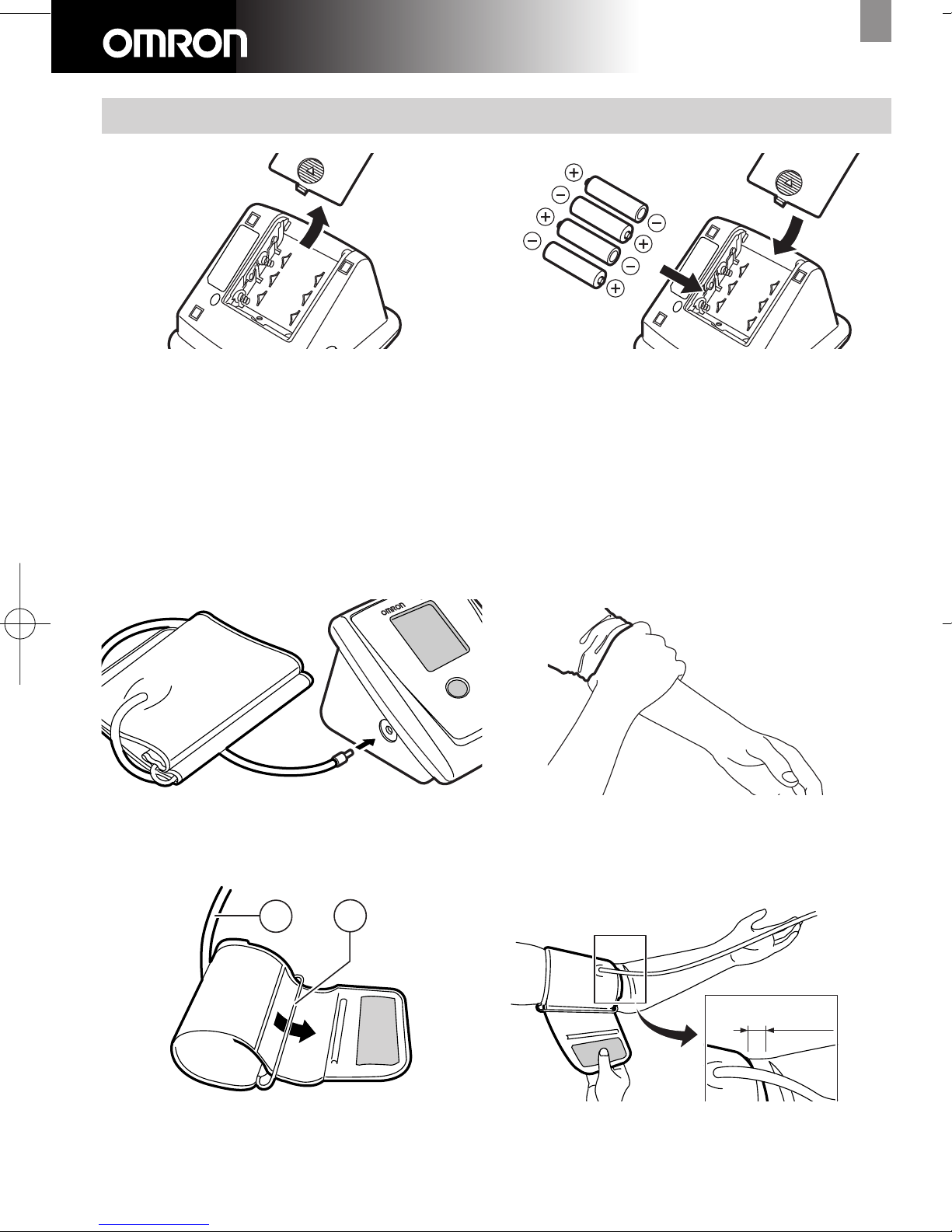

Insert batteries
1Slide off the battery cover. 2Insert four batteries as indicated in the
battery compartment and close
compartment
Caution!Use four identical 1.5V
alkaline batteries type AA LR6!
PULSE/min
SYS
mmHg
DIA
mmHg
M
MX3
Connect cuff
1Insert air plug in air jacket.
L
G
Fit cuff
Caution!Do not inflate the cuff when not
wrapped around the arm!
1Bare your arm.
Caution!Push up your sleeve: avoid
constricting the blood flow!GAir tube
LRing
3Preparation
2Pass the end of the cuff through the ring.
Caution!Keep the air tube on the
outside!
3Put your armthrough the loop.
Note: keep the tube even with your
middle finger.
1-2 cm
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 3

MX3 Plus English
4
Note: for right arm use keep the tube
parallel with your little finger!
4Hold the end of the cuff and wrap it
around your arm.
Caution!Be sure the cuff fits closely;
do not pinch your arm!
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
D
C
B
P
M
N
V
U
T
S
R
Q
Control functions
BMemory recall button
CStart button
DOn/off button
Measurement
MSystolic blood pressure in mmHg.
NHeartsymbol: flash - measurement
takes place, light up - finish
measurement.
PDiastolic blood pressure in mmHg.
QMemory display: values in memory.
RPulse: heartbeats per minute.
SBattery exhausted: batteries are
weak/exhausted.
TDeflation: cuff deflates and
measurement finishes.
UInflation: cuff inflates and measurement
starts.
VMemoryposition: 1to 14.
1-2 cm
4Operation
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 4

MX3 Plus English
5
Caution!Allow an interval of at least three minutes between two successive measurements!
1Sit comfortably at a table with your feet
flat on the floor and rest your arm on
the table.
2Relax your arm and turn your palm
upward.
Caution!Cuff at heart height during
measurement!
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
3Press on/off button.
Caution!Wait for zero and the heart symbol to continue!
4Press start button
Note: the unit inflates the cuff to 170
mmHg. If required the unit
automatically increases the pressure by
40 mmHg.
Note:press and hold the start button to
set pressure higher than 170 mmHg.
Caution!Do not inflate over 280
mmHg!
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 5

MX3 Plus English
6

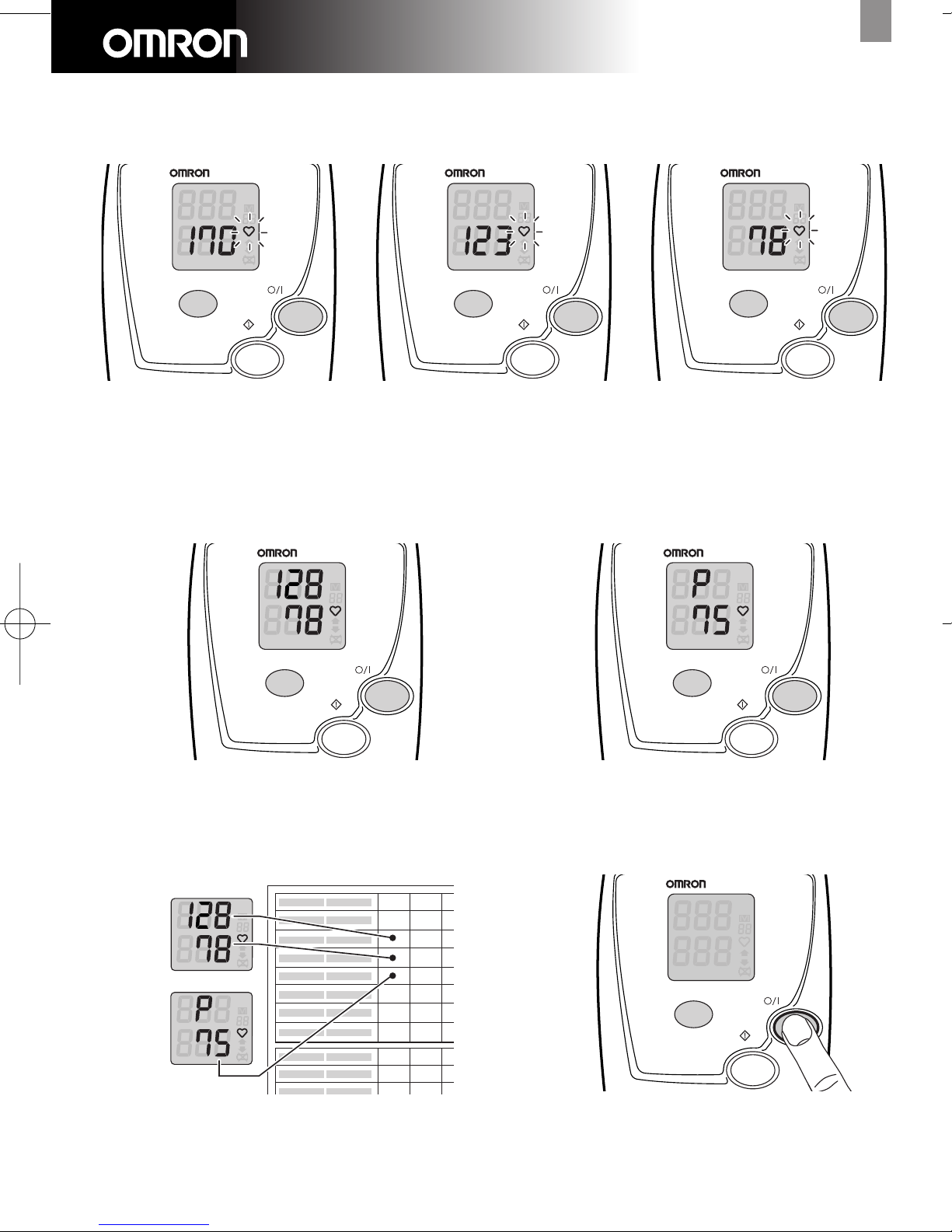

Note:the cuff deflates automatically. Caution!Sit still, do not move and do not
speak!
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
Read display
2Note values in your personal blood
pressure pass.
3Press on/off button to turnoff power.
Note: power automatically shuts of in 5
minutes.
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
1Read the values of blood pressure and pulse from the display.
Note: display shows blood pressures and heartbeats alternately.
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 6

7
MX3 Plus English
M
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
Recall previous values
1Press on/off button to turn on power.
2Press memory recall button for latest
and previous values.
Note: display shows alternately blood
pressures and heartbeats.
3Press on/off button to turn off power.
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
M
PULSE/min
DIA
mmHg
SYS
mmHg
M
MX3 Plus
PULSE/min
DIA
mmHg
SYS
mmHg
M
W
Erase memory
WMemory position of latest and previous
values (1-14).
1Press on/off button to turnon power. 2Press the memoryrecall button for 2-3
seconds and then, whilst continuing to
press the recall button, press the start
button.
Caution!All stored values will be erased!
Press on/off button to turn off power.
5Memory
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 7

8
MX3 Plus English

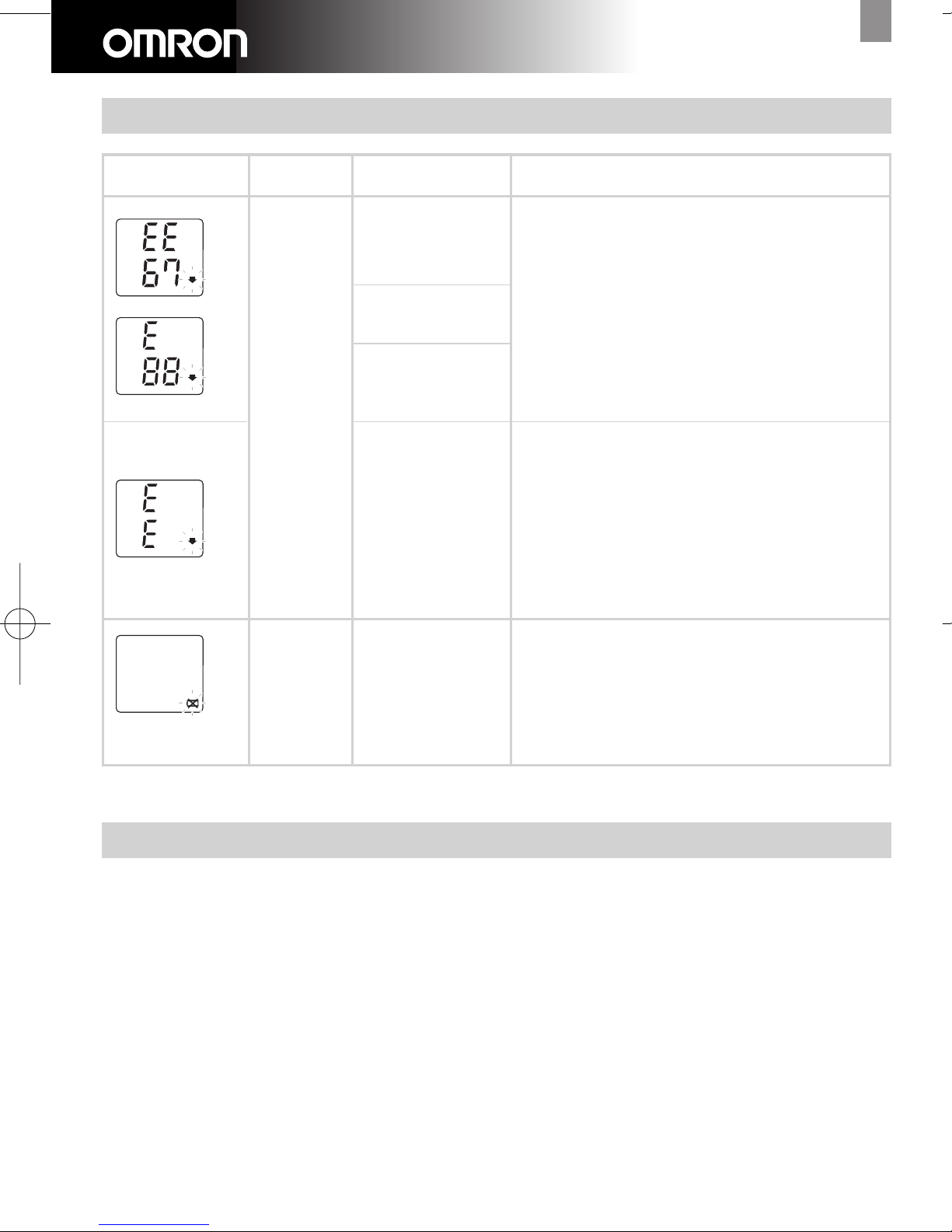

Indication Error Cause Rectification
Correct Cuff pressure
reading low
not
possible Movement
Very weak
artery pulse
Cuff pressure
too high
LowBatteries weak/ Fit four new identical 1.5V
voltage exhausted alkaline batteries type AA
LR6
Display empty
• Use a soft, slightly moistened cloth to
clean the OMRON MX3 Plus.
Caution!Do not use petrol, thinners or
similar solvents!
• Use a soft, moistened cloth and soap to
clean the cuff.
Caution!Do not wash the cuff!
Caution!Do not use petrol, thinners or
similar solvents!
• Do not carry out repairs of any kind
yourself. If a defect occurs consult your
OMRON retail outlet or distributor as
mentioned on the packaging.
Calibration
•It is recommended to have the OMRON
MX3 Plus inspected every two years to
ensure correct function and accuracy.
Consult your OMRON retail outlet or
OMRON distributor as mentioned on the
packaging.
Replace batteries
• Remove the battery out of the battery
6Error: causes and rectifications
7Maintenance and spare parts
Wait for at least three minutes to repeat
measurement.
Inflate the cuff 40 mmHg higher than
previous value.
Follow instructions, repeat
measurement.
Wait for at least three minutes to repeat
measurement.
Inflate the cuff 30 mmHg lower than
previous value.
Follow instructions, repeat
measurement.
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 8

MX3 Plus English
9
Product name OMRON MX3 Plus
Model HEM-742-E
Display Digital LCD
Measuring range Pressure: 0 - 299 mmHg / Pulse: 40 - 180 beats/minute
Accuracy Pressure: ± 3 mmHg
Pulse: ± 5% of display reading
Inflation Automatic by electric pump
Deflation Automatic pressure release valve
Rapid pressure release Automatic exhaust valve
Pressure detection Capacitive pressure sensor
Measuring method Oscilliometric
Power supply 4x1.5V alkaline batteries type (LR6) AA
AC adapter (optional part)
Battery life New batteries will last for approximately 300 measurements
Operating temperature/humidity +10°C to +40°C / 30% to max. 85% relative humidity
Operating environment Free from excessive vibrations, shocks, magnetic fields,
electrical noise,etc.
Storage temperature/humidity -20°C to +60°C /10% to max. 95% relative humidity
Weight Approximately 350 gr including cuff, excluding batteries
Outer dimensions Approximately 118 mm (W) x 90 mm (H) x 130 mm (D)
Cuff dimensions Approximately 145 mm (W) x 480 mm (L)
Arm circumference 22 cm to 32 cm
Accessories Cuff, instruction manual, guarantee card, blood pressure pass
Optional parts Large cuff for arm circumferences between 32 - 42 cm, AC adapter
Note Subject to technical modification without prior notice
=Type B 0197
Manufacturer OMRON HEALTHCARE Co., Ltd.
24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto, 615-0084 Japan
EU-representative OMRON HEALTHCARE EUROPE B.V., Kruisweg 577, NL-2132 NA
Hoofddorp
This device fulfils the provisions of the EC directive 93/42/EEC (Medical Device Directive). This blood
pressure monitor is designed according to the European standard EN1060, Non-invasive
sphygmomanometers Part 1: General Requirements and Part 3: Supplementary requirements for
electromechanical blood pressure measuring systems.
8Technical data
compartment and insert four new identical
1.5V alkaline batteries type AA LR6
batteries.
Spare parts
• Due to high company quality standards,
OMRON considers the main unit as a
non-serviceable part because the need
for proper calibration after replacement
of high tech components.
Attention!Disposal of used batteries
should be carried out in accordance with
the national regulations for the disposal
of batteries.
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 9

10
MX3 Plus English
Important information regarding
Electro Magnetic Compatibility (EMC)
With the increased number of electronic
devices such as PC’s and mobile
(cellular) telephones, medical devices in
use may be susceptible to
electromagnetic interference from other
devices. Electromagnetic interference
may result in incorrect operation of the
medical device and create a potentially
unsafe situation.
Medical devices should also not interfere
with other devices.
In order to regulate the requirements for
EMC (Electro Magnetic Compatibility)
with the aim to prevent unsafe product
situations, the IEC60601-1-2 standard
has been implemented. This standard
defines the levels of immunity to
electromagnetic interferences as well as
maximum levels of electromagnetic
emissions for medical devices.
This medical device manufactured by
OMRON Healthcare conforms to this
IEC60601-1-2:2001 standard for both
immunity and emissions.
Nevertheless,special precautions need
to be observed:
Do not use mobile (cellular) telephones
and other devices, which generate strong
electrical or electromagnetic fields,near
the medical device. This may result in
incorrect operation of the unit and create
apotentially unsafe situation.
Recommendation is to keep a minimum
distance of 7 m. Verify correct operation
of the device in case the distance is
shorter.
Further documentation in accordance
with IEC60601-1-2:2001 is available at
OMRON Healthcare Europe at the
address mentioned in this instruction
manual.
Documentation is also available at
www.omron-healthcare.com.
Correct Disposal of This Product
(Waste Electrical & Electronic
Equipment)
This marking shown on the product or its
literature, indicates that it should not be
disposed with other household wastes at
the end of its working life. To prevent
possible harm to the environment or
human health from uncontrolled waste
disposal, please separate this from other
types of wastes and recycle it responsibly
to promote the sustainable reuse of
material resources.
Household users should contact either
the retailer where they purchased this
product, or their local government office,
for details of where and howthey can
take this item for environmentally safe
recycling.
Business users should contact
their supplier and check the
terms and conditions of the
purchase contract. This product
should not be mixed with other
commercial wastes for disposal.
This product does not contain any
hazardous substances.
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 10

MX3 Plus English
11
Blood circulation
The blood circulation is responsible for
supplying the body with oxygen. Blood
pressure is the pressure exerted on the
arteries.
The systolic blood pressure value (higher
pressure or top value) represents the
blood pressure produced by contraction of
the heartmuscle.
The diastolic blood pressure value (lower
pressure or lower value) represents the
blood pressure produced by relaxation of
the heart muscle.
Classification of blood pressure
The World Health Organisation (WHO)
and the International Society of
Hypertension (ISH) developed the blood
pressure classification. This classification
is based on the blood pressure values
measured while sitting on a chair in the
outpatient department of a hospital.
Health and blood pressure
The incidence of hypertension increases
with age. In addition, a lack of exercise,
excess body fat and high levels of choles-
terol (LDL), which sticks to the inside in
blood vessels, reduces elasticity of these
vessels. Hypertension accelerates arterial
sclerosis which can lead to very serious
conditions such as strokeand myocardial
infarction. For these reasons it is very
important to know whether the blood
pressure is within a healthy range. Blood
pressure fluctuates from minute to minute,
throughout the day. Therefore it is essential
to take regular measurements to help you
identify an average blood pressure.
Symptoms of high blood pressure
High blood pressure can go unnoticed for
along time,since it does not cause notice-
able symptoms. The following are all
possible causes of abnormally high blood
Optimal blood
pressure
(target value)
Normal blood
pressure
Normal systolic value
Mild hypertension
Moderate hypertension
Severe hypertension
Systolic blood pressure
(mmHg)
Diastolic
blood
pressure
(mmHg)
80
180
160
140
130
120
85 90 100 110
According to the blood pressure classification by the WHO/ISH.
9General information about blood pressure
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 11

MX3 Plus English
12
pressure:
• Overweight
• High cholesterol level
• Smoking
• Excessive alcohol consumption
• Stress and emotional upset
• Excessive consumption of salt
• Lack of physical exercise
• Genetic/hereditary predisposition
• Underlying illnesses, such as kidney
disorders or endocrine disturbance
Blood pressure measurement
Measuring your blood pressure daily
enables you to recognize high blood
pressure at an early stage and obtain
medical treatment.
The oscillometric method of measurement
determines your blood pressure by
measuring the pressure fluctuations
caused bythe pulse waves.
Since your blood pressure fluctuates
within a day(see graphic next page), you
should always measure it at the same
time each day to ensure that the
measurements are genuinely comparable.
At the doctor’s surgery, nervousness and
tension may cause your blood pressure to
be higher than in familiar circumstances at
home. This is known as “White Coat
Hypertension”.
Treatment of high blood pressure
If your blood pressure reaches upper
values of 140 - 160 mmHg and lower
values of 90 - 95 mmHg in repeated
measurements over several days, you
should consult your doctor for detailed
medical examination. You can assist the
treatment prescribed by your doctor in the
following ways:
• Loose weight and lower your cholesterol
level by reducing the calories and fat in
your diet. Cut down on animal fats and
eat more fruit and vegetables.
• Reduce the consumption of alcohol.
• Reduce the intakeof salt: the German
League for Combating High Blood
Pressure recommends six grams of salt
per day (i.e. one teaspoon) on average.
• Stop smoking.
• Take regular exercise.
Example: fluctuation within a day (male, 35 years old)
mmHg
200
150
100
50
6 12 18 24
Upper curve: systolic blood pressure
Lower curve: diastolic blood pressure
Time of day
26032701 MX3Plus GB 01-12 14-04-2006 15:31 Pagina 12
