Omron SYSDRIVE 3G3XV-EV2 Series User manual

SYSDRIVE 3G3XV Inverter
3G3XV--EV2
Operation Manual
Revised November 1997

!
!
!
v
Notice:
OMRON products are manufactured for use according to proper procedures by a qualified operator
and only for the purposes described in this manual.
The following conventions are used to indicate and classify precautions in this manual. Always heed
the information provided with them. Failure to heed precautions can result in injury to people or dam-
age to the product.
DANGER Indicates information that, if not heeded, is likely to result in loss of life or serious
injury.
WARNING Indicates information that, if not heeded, could possibly result in loss of life or
serious injury.
Caution Indicates information that, if not heeded, could result in relatively serious or
minor injury, damage to the product, or faulty operation.
OMRON Product References
All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers
to an OMRON product, regardless of whether or not it appears in the proper name of the product.
The abbreviation “Ch,” which appears in some displays and on some OMRON products, often means
“word” and is abbreviated “Wd” in documentation in this sense.
The abbreviation “PC” means Programmable Controller and is not used as an abbreviation for any-
thing else.
Visual Aids
The following headings appear in the left column of the manual to help you locate different types of
information.
Note Indicates information of particular interest for efficient and convenient operation
of the product.
1, 2, 3... 1. Indicates lists of one sort or another, such as procedures, checklists, etc.
OMRON, 1993
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any
form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permis-
sion of OMRON.
No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is
constantly striving to improve its high-quality products, the information contained in this manual is subject to change
without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no
responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the informa-
tion contained in this publication.

TABLE OF CONTENTS
vii
SECTION 1
SYSDRIVE 3G3XV Inverter Main Unit 1. . . . . . . .
1-1 Part Names of the 3G3XV 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2 Receiving 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3 Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4 Wiring 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-5 Operation 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-6 Specifications 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2
Digital Operator 27. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1 Digital Operator Components 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2 Function/Constant Setting 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-3 Digital Operator Operation Example 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-4 Constant Initialization and Write-protection 33. . . . . . . . . . . . . . . . . . . . . . .
2-5 Corrective Function 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-6 Monitor 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-7 Function/Constant List 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-8 Description of Functions and Constants 43. . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 3
Troubleshooting and Maintenance 65. . . . . . . . . . . . .
3-1 Fault Display 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2 Correcting Motor Faults 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-3 Maintenance 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Revision History 73. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ix
About this Manual:
This manual provides operating procedures and parameter specifications for the SYS-
DRIVE 3G3XV All-Digital Low-Noise Inverter.
Section 1 describes handling, wiring, operation, and specifications of the SYSDRIVE
3G3XV series (hereinafter called 3G3XV).
Section 2 outlines the digital operator performance,constants, operation, etc.
Section 3 describes maintenance, periodic inspections, troubleshooting, etc.
Before using the 3G3XV, a thorough understanding of this manual is recommended.
This manual will be of great help for daily maintenance, inspection and troubleshooting.
WARNING Failure to read and understand the information provided in this manual
may result in personal injury or death, damage to the product, or product
failure. Please read each section in its entirety and be sure you
understand the information provided in the section and related sections
before attempting any of the procedures or operations given.
!

1
SECTION 1
SYSDRIVE 3G3XV Inverter Main Unit
This section describes handling, wiring, operation, and specifications of the SYSDRIVE 3G3XV series.
1-1 Part Names of the 3G3XV 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2 Receiving 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3 Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3-1 Location 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3-2 Mounting Space 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3-3 Dimensions in Inches (mm) 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4 Wiring 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4-1 Terminal Blocks 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4-2 Standard Wiring Diagram 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4-3 Main Circuit 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4-4 Control Circuit 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-5 Operation 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-5-1 Checking Before Operation 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-5-2 Setting Before Operation 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-5-3 Test Run Method 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-6 Specifications 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-6-1 200-V-class Specifications 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-6-2 400-V-class Specifications 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-6-3 Optional Units 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-6-4 Peripheral Units 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

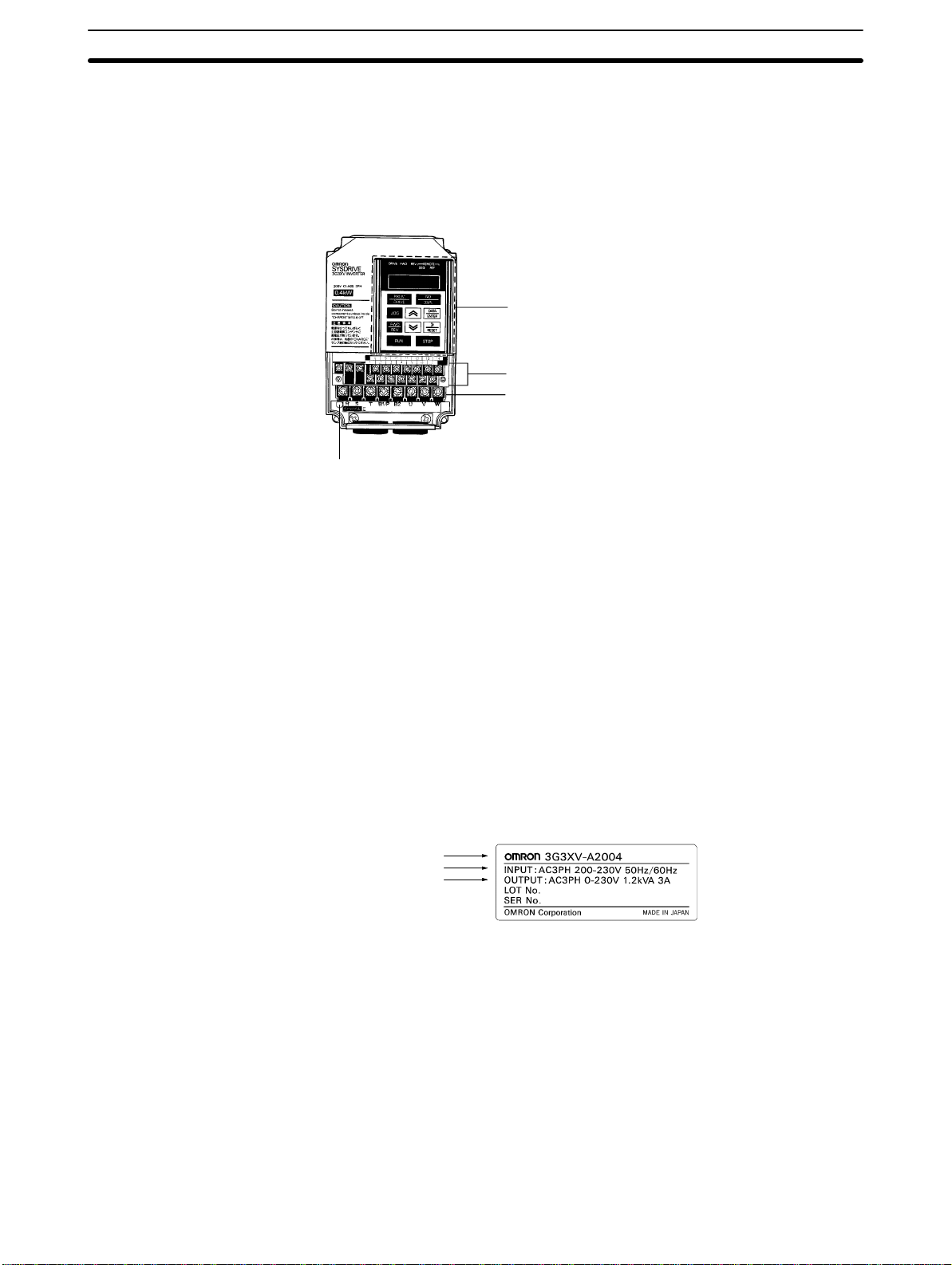

1-1 Part Names of the 3G3XV
The following diagram shows the main components of the SYS-
DRIVE 3G3XV. The terminal block cover has been removed to
expose the terminal blocks. Refer to
1-4-1 Terminal Blocks for
details on removing the terminal block cover.
Digital Operator
(Model 3G3XV-PJVOP110)
Set the operating constants with the
Digital Operator. (3G3XV-series only)
Control circuit terminal block
CHARGE indicator
Do not touch the main circuit ter-
minals when this indicator is lit.
Main circuit terminal block
1-2 Receiving This SYSDRIVE 3G3XV has been put through demanding tests at
the factory before shipment.
After unpacking, check for the following.
•Verify the part numbers with the purchase order sheet and/or
packing slip.
•Transit damage.
If any part of 3G3XV is damaged or lost, immediately notify the
shipper.
Nameplate Data
Inverter Model
Input specifications
Output specifications
Receiving Section 1-2

!
!
3

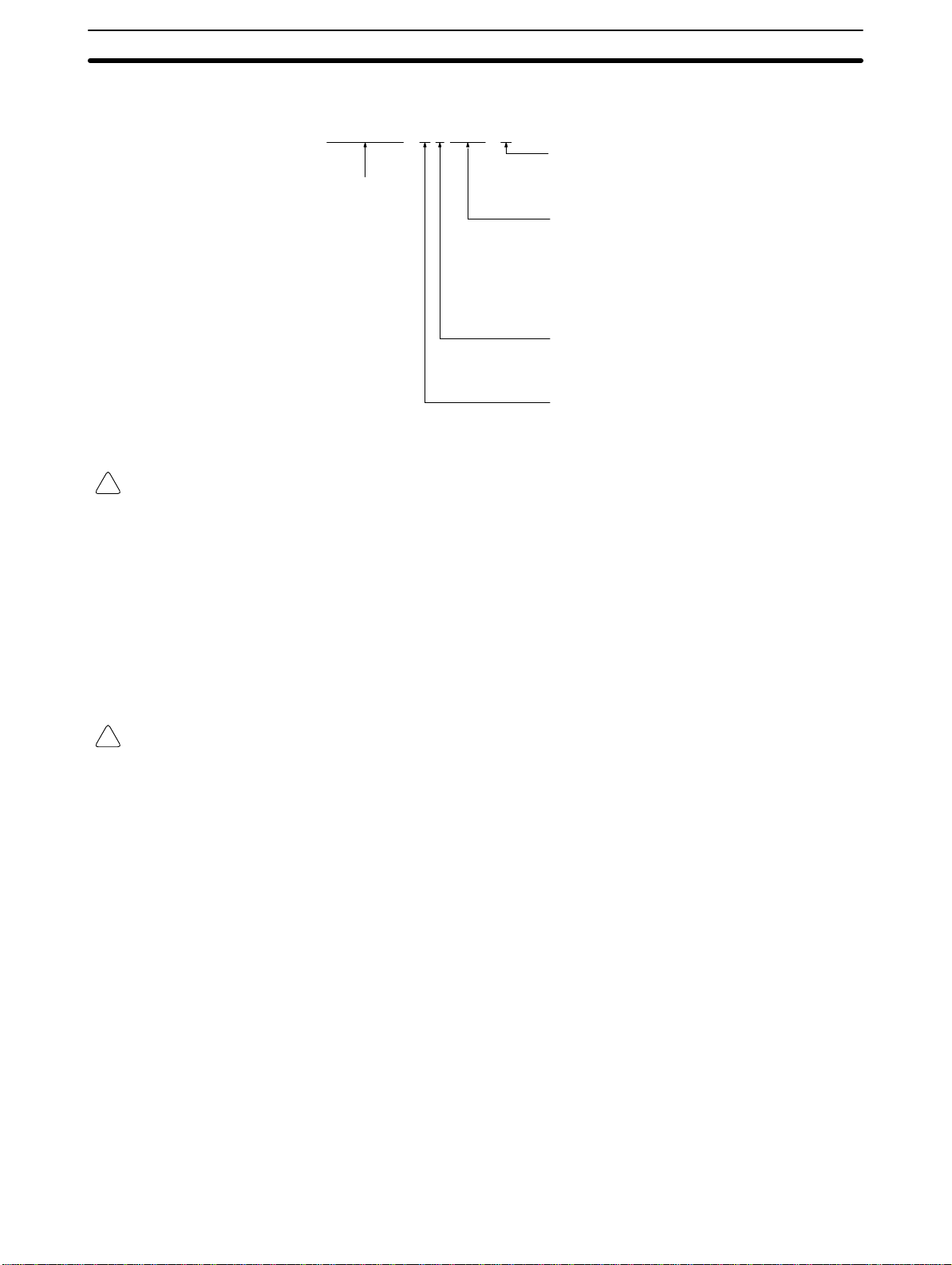

Inverter Model Numbers
Country
EV2: European countries
(E: Old model)
None:Japan
Max. Applicable Motor Capacity
001: 0.1 kW
002: 0.2 kW
004: 0.4 kW
..
..
..
037: 3.7 kW
Voltage Class
2: 3-phase, 200 V
4: 3-phase, 400 V
B: Single-phase, 200 V
Protective Structure
A: Enclosed wall mounting
P: Optional structure
3G3XV-A4002-EV2
3G3XV-series
WARNING
1, 2, 3... 1. After turning off the main circuit power supply, do not touch cir-
cuit components until the “CHARGE” indicator is extinguished.
The capacitors are still charged and can be quite dangerous.
2. Do not change the wiring while power is applied to the circuit.
3. Do not check signals during operation.
4. Be sure to ground 3G3XV using the ground terminal G (E).
5. Never connect main circuit output terminals, T1 (U), T2 (V), T3
(W), to AC main circuit supply.
Caution
1, 2, 3... 1. All the constants of 3G3XV have been adjusted at the factory.
Do not change their settings unnecessarily.
2. Do not perform withstand voltage test on any part of the 3G3XV
Unit. This electronic equipment uses semi-conductors and is
vulnerable to high voltage.
1-3 Installation
1-3-1 Location Location of the equipment is important to achieve proper perfor-
mance and normal operating life.
The 3G3XV Units should be installed in areas where the following
conditions exist.
•Ambient temperature:
–10°to 40°C, 14°to 104°F (with top cover on)
–10°to 45°C, 14°to 113°F (with top cover off)
•Protected from rain or moisture.
Installation Section 1-3

!
4
•Protected from direct sunlight.
•Protected from corrosive gases or liquids.
•Free from airborne dust or metallic particles.
•Free from vibration.
•Free from magnetic noise.
Caution To house multiple SYSDRIVE 3G3XVs in a switchgear, install a
cooling fan or some other means to cool the air entering the
Inverter below 113°F (45°C).

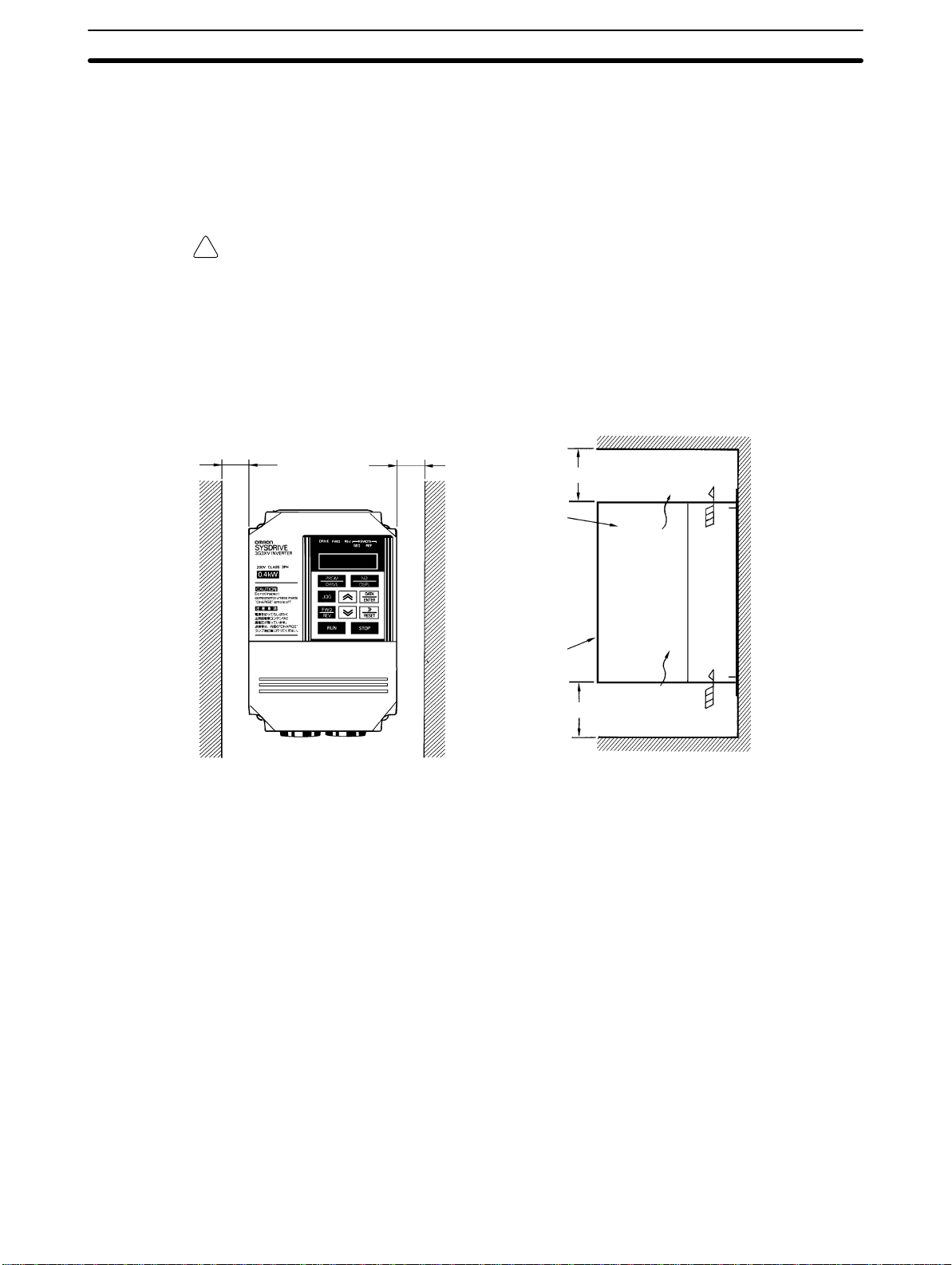

1-3-2 Mounting Space
Install the 3G3XV vertically and allow sufficient space for effective
cooling as shown in below.
1.18 in (30 mm)
OR MORE 1.18 in (30 mm)
OR MORE
(a) Front View. (b) Side View
AIR
AIR
3.94 in (100 mm) OR MORE
3.94 in (100 mm) OR MORE

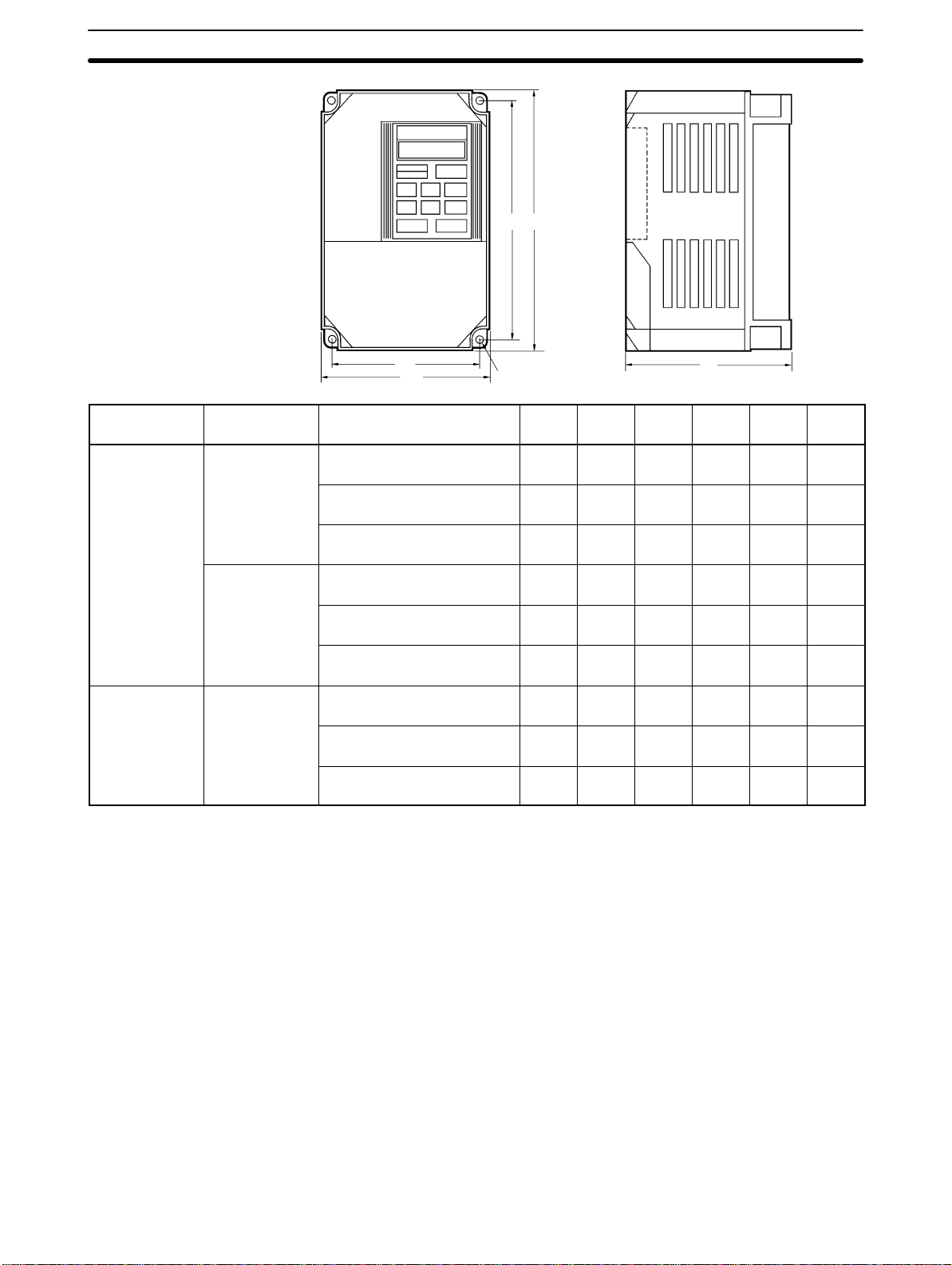

1-3-3 Dimensions in Inches (mm)
The Unit dimensions vary from model to model, as shown in the
following diagram and table.
Installation Section 1-3

5
W1
W
H1 H
Four, d dia. D
Voltage Phase Max. Applicable
Motor Output HP (kW) W W1 H H1 D d
200 V 3-phase 0.13 to 0.5 (0.1 to 0.4) 4.13
(105) 3.66 (93) 5.91 (150) 5.43 (138) 3.94 (100) 0.20 (5)
1/2 (0.75/1.5) 5.51
(140) 5.04 (128) 5.91 (150) 5.43 (138) 5.43 (138) 0.20 (5)
3/5 (2.2/3.7) 5.51
(140) 4.96 (126) 7.87 (200) 7.32 (186) 6.69 (170) 0.22 (5.5)
Single-phase 0.13 to 0.5 (0.1 to 0.4) 5.51
(140) 5.04 (128) 5.91 (150) 5.43 (138) 5.43 (138) 0.20 (5)
1/2 (0.75/1.5) 5.51
(140) 4.96 (126) 7.87 (200) 7.32 (186) 6.69 (170) 0.22 (5.5)
3/5 (2.2/3.7) 7.48
(190) 6.89 (175) 7.87 (200) 7.28 (185) 7.48 (190) 0.23 (5.8)
400 V 3-phase 0.25/0.5 (0.2/0.4) 5.51
(140) 4.96 (126) 7.87 (200) 7.32 (186) 4.72 (120) 0.22 (5.5)
1/2 (0.75/1.5) 5.51
(140) 4.96 (126) 7.87 (200) 7.32 (186) 6.69 (170) 0.22 (5.5)
3/5 (2.2/3.7) 7.48
(190) 6.89 (175) 7.87 (200) 7.28 (185) 7.48 (190) 0.23 (5.8)
1-4 Wiring Connect the main circuit and control circuit wiring securely, as
described below.
Note Use closed-loop connectors sized for the gauge of wire being
used. Attach the connectors using a crimping tool recommended
by the connector manufacturer.
1-4-1 Terminal Blocks
The main circuit and control circuit terminal blocks are at the bot-
tom of the Inverter under a terminal cover.
Removing/Attaching the Terminal Cover
To remove the terminal cover, squeeze the sides of the cover (1),
and lift up (2) at the same time, as shown in the following diagram.
Reverse these steps to attach the cover.
Wiring Section 1-4

6
(1)
(1)
(2)
Terminal Position The main circuit and control circuit terminal blocks are shown
below. Terminal numbers are usually shown on the terminal num-
ber nameplate, but the terminal numbers are printed on the printed
board on some Inverters.
Main circuit
terminal block
Control circuit
terminal block
CHARGE indicator
Grounding terminal
Fault signal
output terminal
(FLT– A, B, C)
Wiring Section 1-4

7
1-4-2 Standard Wiring Diagram
Models with Digital Operators can be operated from the Digital
Operator only by main circuit wiring. When these models are oper-
ated by control circuit terminals, control constant change is
required. For details refer to
2-8-2 Operation Mode Selection .
Models without Digital Operator (with blind cover) are preset in
Operation Mode from control circuit terminals at the factory prior to
shipping.
Main circuit
power supply
Only terminal L1(R),
L2(S) for single-phase
power supply
L1 (R)
L2 (S)
L3 (T)
L1 (R)
L2 (S)
L3 (T)
MCCB
Braking resistor (optional)
B1/(+) B2
T1 (U)
T2 (V)
T3 (W)
IM
G (E)
1
2
3
4
5
10
6
8
9
11
0V
13
14
7
2KΩ0 to +10 VDC
4 to 20 mA
PP
G (E)
Sequence common terminal (0v)
Forward
Run/Stop
Reverse
Run/Stop
Fault reset
FM
12
11
FL T-A
FL T-B
FL T-C
Fault contact output
contact capacity:
less than 1 A for
250 VAC and 30 VDC
External fault
Analog monitor
Multifunction contact input
Power supply for speed setting:
+12 V 20 mA
Shielded lead connection terminal
Master command
0 to +10 VDC(2 KΩ)
Current command
4 to 20 mA(250 Ω)
Standard Wiring Diagram
Multlfunction
output open
collector less
than 48 V 50 mA
During run
Frequency
agreement
Multi-step speed
setting 1
Analog output
0 to + 10 VDC.
(Factory setting is
output frequency)
3G3XV
2KΩ
Note 1. indicates shielded leads. Pindicates twisted-pair
shielded leads.
2. Terminal 10 (12 VDC) has a maximum output current capacity
of 20 mA.
3. Terminal symbols: indicates the main circuit, and indicates
the control circuit.
Wiring Section 1-4

8
4. When using the optional braking resistor (3G3IV-
PERF150WJ), place a thermal overload relay between the
braking resistor and Inverter to prevent the braking resistor
from overheating. In addition, use a sequencer to break the
power supply side on the thermal overload relay trip contact.
1-4-3 Main Circuit
Main Circuit Wiring Connect wiring as shown below.
IM
L1 (R)
L2 (S)
L3 (T)
L1 (R)
L2 (S)
L3 (T)
T1 (U)
T2 (V)
T3 (W)
G(E)
B1/⊕B2 Motor
MCCB
3-phase power supply
200 to 230 VAC, 50/60 Hz,
380 to 460 VAC, 50/60 Hz
Braking resistor or
Braking Resistor Unit (optional)
Only terminal L1 (R), L2 (S)
for single-phase power supply
3G3XV
Note Circuit terminal block screw size is M4
Main Circuit Terminals
3G3XV Main Circuit Terminals
Terminal Description
L1(R) Main circuit power input
“L ”d“L” d f i l h i ifi i
L2(S) “L1” and “L2” are used for single-phase input specifications.
L3(T)
T1(U) Inverter output
T2(V)
T3(W)
B1/⊕Braking resistor or Braking Resistor Unit connector (options)
B2
gg ()
G (E) Grounding (Ground resistance should be 100 ohms or less.)
Note: Use screw for frame ground.
Main Circuit Terminal Arrangement
3-phase series (all Models):
L1
(R) L2 (S) L3 (T) B1/⊕B2T1 (U) T2 (V) T3 (W)
200-V single-phase series, 0.13 to 2 HP (0.1 to 1.5 kW):
L1
(R) L2 (S) B1/⊕B2T1 (U) T2 (V) T3 (W)
NoteThe third terminal is blank.
Wiring Section 1-4

9
200-V single-phase series, 3/5 HP (2.2/3.7 kW):
L1
(R) L2 (S) B1/⊕B2T1 (U) T2 (V) T3 (W)
Molded-case Circuit Breaker (MCCB)
Be sure to connect MCCBs between the power supply and 3G3XV
input terminals L1 (R), L2 (S), L3 (T). Recommended MCCBs are
listed in the tables below.
When a ground fault interrupter is used select the one with no influ-
ence for high frequency. When using an ordinary type, the setting
current should be 200 mA or over per Unit and operating time,
0.1 sec or over to prevent malfunction.
Molded-case Circuit Breakers and Magnetic Contactors
200-V-class 3-phase Input Series:
3G3XV
Model
3G3XV--EV2 A2001 A2002 A2004 A2007 A2015 A2022 A2037
3G3XV Capacity (kVA) 0.3 0.6 1.1 1.9 2.5 4.2 6.7
Rated output current (A) 0.8 1.5 3 5 6.5 11 17.5
Molded-case Circuit Breakers 5 A 5 A 5 A 10 A 20 A 20 A 30 A
200-V-class Single-phase Input Series:
3G3XV
Model
3G3XV--EV2 AB001 AB002 AB004 AB007 AB015 AB022 AB037
3G3XV Capacity (kVA) 0.3 0.6 1.1 1.9 2.5 4.2 6.7
Rated output current (A) 0.8 1.5 3 5 6.5 11 17.5
Molded-case Circuit Breakers 5 A 5 A 10 A 20 A 20 A 40 A 50 A
400-V-class 3-phase Input Series:
3G3XV
Model
3G3XV--EV2 A4002 A4004 A4007 A4015 A4022 A4037
3G3XV Capacity (kVA) 0.8 1.2 2.0 3.0 3.7 6.1
Rated output current (A) 1 1.6 2.6 4 4.8 8
Molded-case Circuit Breakers 5 A 5 A 5 A 10 A 10 A 20 A
Surge Absorber The surge absorbers should be connected to the coils of relays,
magnetic contactors, magnetic valves, or magnetic relays. Select
the type from the table below.
Surge Absorbers
Coils of magnetic contactor and control relay Surge absorber (see note)
Model Specifications
200 to 230 V Large-size magnetic contactors DCR2-50A22E 250 VAC, 0.5 µF + 20 Ω
Control relay
LY-2, -3 (OMRON)
MM-2, -4 (OMRON)
DCR2-10A25C 250 VAC, 0.1 µF + 100 Ω
400- to 460-V Units DCR2-50D100B 1,000 VDC, 0.5 µF + 220 Ω
Note Made by MARCON Electronics. Marketed in Japan.
Wiring Section 1-4

!
10
Wiring
Main Circuit Input/Output•Phase rotation of input terminals L1 (R), L2 (S), L3 (T) is available
in either direction, clockwise and counterclockwise.
•When Inverter output terminals T1 (U), T2 (V), and T3 (W) are
connected to motor terminals T1 (U), T2 (V), and T3 (W), respec-
tively, motor rotates counterclockwise, viewed from opposite
drive end, upon forward operation command. To reverse the rota-
tion interchange any two of motor leads.
•Never connect AC main circuit power supply to output terminals
T1 (U), T2 (V), and T3 (W).
•Care should be taken to prevent contact of wiring leads with the
3G3XV cabinet, or a short-circuit may result.
•Never connect the power factor correction capacitor or noise filter
to 3G3XV output.
•Never open or close contactors in the output circuit unless
Inverter is properly sized.
Caution The withstand voltage between the motor’s phases is insuffi-
cient.
When the motor is connected to the Inverter’s output, a surge is
generated between the Inverter’s switching and the motor’s coil.
Normally the maximum surge voltage is three times the Inverter’s
input power supply voltage (i.e., 600 V for 200-V class, and
1,200 V for 400-V class). Be sure to use a motor with a withstand
voltage between the motor’s phases that is greater than the maxi-
mum surge voltage. In particular, when using a 400-V-class
Inverter, use a special motor for Inverters.
Wiring Section 1-4

11
Wire Sizes and Types
200-V-class 3-phase Input Series:
Circuit Model
3G3XV
Inverter
i
Terminal symbol Terminal Wire size Wire type
3G3XV capacity
y
screw AWG mm2
yp
Main
circuit A2001 0.3 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5 Power cable:
600 V
G (E) 14-10 2 to 5.5
600
vinyl-sheathed
lead or
A2002 0.6 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5 lead or
equivalent
G (E) 14-10 2 to 5.5
A2004 1.1 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
A2007 1.9 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
A2015 2.5 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 12-10 3.5 to 5.5
G (E) 14-10 2 to 5.5
A2022 4.2 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 12-10 3.5 to 5.5
G (E) 14-10 2 to 5.5
A2037 6.7 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 12-10 3.5 to 5.5
G (E) 14-10 2 to 5.5
Control
circuit Common to all ––– 1 to 14,
FLT-A, FLT-B, FLT-C M3.5 20-14 0.5 to 2 Shielded lead
or equivalent
Models G (E)
q
200-V-class Single-phase Input Series:
Circuit Model
3G3XV
Inverter
i
Terminal symbol Terminal Wire size Wire type
3G3XV capacity
y
screw AWG mm2
yp
Main
circuit AB001 0.3 kVA L1 (R), L2 (S), B1/⊕, B2, T1
(U), T2 (V), T3 (W) M4 14-10 2 to 5.5 Power cable:
600 V
G (E) 14-10 2 to 5.5
600
vinyl-sheathed
lead or
AB002 0.6 kVA L1 (R), L2 (S), B1/⊕, B2, T1
(U), T2 (V), T3 (W) M4 14-10 2 to 5.5 lead or
equivalent
G (E) 14-10 2 to 5.5
AB004 1.1 kVA L1 (R), L2 (S), B1/⊕, B2, T1
(U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
AB007 1.9 kVA L1 (R), L2 (S), B1/⊕, B2, T1
(U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
Wiring Section 1-4

12
Circuit Wire typeWire sizeTerminal
screw
Terminal symbolInverter
capacity
Model
3G3XV
Circuit Wire type
mm2 AWG
Terminal
screw
Terminal symbolInverter
capacity
Model
3G3XV
Main
circuit AB015 2.5 kVA L1 (R), L2 (S), B1/⊕, B2, T1
(U), T2 (V), T3 (W) M4 14-10 2 to 5.5 Power cable:
600 V
G (E) 14-10 2 to 5.5
600
vinyl-sheathed
lead or
AB022 4.2 kVA L1 (R), L2 (S), B1/⊕, B2, T1
(U), T2 (V), T3 (W) M5 12-8 3.5 to 8 lead or
equivalent
G (E) 14-8 2 to 8
AB037 6.7 kVA L1 (R), L2 (S), B1/⊕, B2, T1
(U), T2 (V), T3 (W) M5 10-8 5.5 to 8
G (E) 14-8 2 to 8
Control
circuit Common to all ––– 1 to 14,
FLT-A, FLT-B, FLT-C M3.5 20-14 0.5 to 2 Shielded lead
or equivalent
Models G (E)
q
400-V-class 3-phase Input Series:
Circuit Model
3G3XV
Inverter
i
Terminal symbol Terminal Wire size Wire type
3G3XV capacity
y
screw AWG mm2
yp
Main
circuit A4002 0.8 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5 Power cable:
600 V
G (E) 14-10 2 to 5.5
600
vinyl-sheathed
lead or
A4004 1.2 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5 lead or
equivalent
G (E) 14-10 2 to 5.5
A4007 2.0 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
A4015 3.0 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
A4022 3.7 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
A4037 6.1 kVA L1 (R), L2 (S), L3 (T), B1/⊕,
B2, T1 (U), T2 (V), T3 (W) M4 14-10 2 to 5.5
G (E) 14-10 2 to 5.5
Control
circuit Common to all ––– 1 to 14,
FLT-A, FLT-B, FLT-C M3.5 20-14 0.5 to 2 Shielded lead
or equivalent
Models G (E)
q
Wiring Section 1-4

!
13
Caution Observe the following guidelines when wiring.
•Lead size should be determined considering voltage drop of
leads. Select the lead size so that the voltage drop will be within
2% of the normal rated voltage. The voltage drop can be obtained
from the lead resistance (R) in Ω/km, wiring distance (D) in
meters, and current (I) in A using the following equation:
Phase-to-phase voltage drop in volts = √3 ×R ×D ×I ×10–3
•Insertion of AC reactor:
When the power supply capacity exceeds 600 kVA, connect an
AC reactor at the Inverter input side for power supply coordina-
tion. This reactor is also effective in improving the power factor
of the power supply.
•Wiring length between Inverter and motor:
If the total wiring distance between the Inverter and motor is
excessively long and the Inverter carrier frequency (main tran-
sistor switching frequency) is high, harmonic leakage current
from the cable will increase to affect the Inverter Unit or periph-
eral devices. If the wiring distance between the Inverter and
motor is long, reduce the Inverter carrier frequency as shown
below. The carrier frequency can be set with constant No. 40.
For details, refer to
2-8-18 Carrier Frequency . The carrier fre-
quency is set to 10 kHz at the factory prior to shipping.
Wiring distance between Inverter and motor Up to 30 m Up to 50 m Up to 100 m Over 100 m
Allowable carrier frequency
(Corresponding setting for constant no. 40) 15 kHz max. (6) 10 kHz max. (4) 5 kHz max. (2) 2.5 kHz max. (1)
Grounding Ground the casing of the 3G3XV using ground terminal G (E).
•Ground resistance should be 100 Ωor less.
•Never ground the 3G3XV in common with welding machines,
motors, and other large-current electrical equipment, or ground
pole. Run the ground lead in a separate conduit from leads for
large-current electrical equipment.
•Use the ground leads which comply with AWG standards and
make the length as short as possible.
•Where several 3G3XV Units are used side by side, all the Units
should preferably be grounded directly to the ground poles. How-
ever, connecting all the ground terminals of 3G3XV in parallel,
and grounding only one of 3G3XV to the ground pole is also per-
missible as shown below. However, do not form a loop with the
ground leads.
Good
(a)
Poor
(b)
Wiring Section 1-4

14
1-4-4 Control Circuit
Control Circuit WiringThe control signals are connected by screws. The following figure
shows the relationship between I/O signals (factory preset values)
and screw terminal numbers. The terminal functions shown in the
figure indicate standard setting prior to shipping. Since Operation
Mode from the Digital Operator is set for the Model with the Digital
Operator, it is necessary to change the control constants when
operation is performed from the control circuit terminals. For
details, refer to
2-8-2 Operation Mode Selection .
Main circuit
power supply
Only terminal L1(R),
L2(S) for single-phase
power supply
L1 (R)
L2 (S)
L3 (T)
L1 (R)
L2 (S)
L3 (T)
MCCB
Braking resistor (optional)
B1/(+) B2
T1 (U)
T2 (V)
T3 (W)
IM
G (E)
1
2
3
4
5
10
6
8
9
11
0V
13
14
7
2KΩ0 to +10 VDC
4 to 20 mA
PP
G (E)
Sequence common terminal (0v)
Forward
Run/Stop
Reverse
Run/Stop
Fault reset
FM
12
11
FL T-A
FL T-B
FL T-C
Fault contact output
contact capacity:
less than 1 A for
250 VAC and 30 VDC
External fault
Analog monitor
Multifunction contact input
Power supply for speed setting:
+12 V 20 mA
Shielded lead connection terminal
Master command
0 to +10 VDC(2 KΩ)
Current command
4 to 20 mA(250 Ω)
Standard Wiring Diagram
Multlfunction
output open
collector less
than 48 V 50 mA
During run
Frequency
agreement
Multi-step speed
setting 1
Analog output
0 to + 10 VDC.
(Factory setting is
output frequency)
3G3XV
2KΩ
Note 1. indicates shielded leads. Pindicates twisted-pair
shielded leads.
2. Terminal symbols: indicates the main circuit, and indicates
the control circuit.
Wiring Section 1-4

15
Control Circuit (Terminals Factory Preset)
Control Circuit Terminal Functions
Classification Terminal Signal name Function Signal level
Sequence
Input Signal 1Forward run/stop signal Forward run when “closed”,
stop when “open”. Photo-coupler
insulation input
Sg
2Reverse run/stop signal Reverse run when “closed”,
stop when “open”. 24 VDC 8 mA
3Fault reset signal Reset when “closed”.
4External fault External fault when “closed”.
5 Multi-step speed ref. 1 Multi-step
speed ref. 1 Multifunction contact input:
6Sequence control input
common terminal
s eed
ref.
1
effective
contact
in ut:
two signals
available to
select1
Analog Input
Signal 10 Power supply terminal
for frequency setting Speed ref. power supply 12 V (Allowable current 20 mA max.)
Sg
8Frequency ref. 0 to 10 V/Max. output
frequency 0 to 10 V (20 kΩ)
9 4 to 20 mA/Max. output
frequency 4 to 20 mA (250 Ω)
11 Common terminal for
control circuit 0 V –––
Sequence
OSil
13 During running “L” level at run Multifunction
i
Photo-coupler output
48 V 0 A
q
Output Signal 14 Frequency agreed
signal “L” level at set frequency =
output
frequency
contact input:
two signals
available to
select2
48 V, 50 mA max.
7Photo-coupler output
common –––
FLT-A Fault signal contact “Closed” between A and C at
fl
Contact capacity
20VAC1A
FLT-B
g
output fault
“
O
p
en
”
between B and C at
y
250 VAC: 1 A max.
30 VDC: 1 A max
FLT-C Fault signal contact
output common
“O
pen
”
b
etween
B
an
d
C
at
fault 30
VDC
: 1
A
max.
Analog Output
Signal 12 Frequency meter 0 to 10 V/Max. output frequency. 0 to 11 V max. 2 mA or less
Signal
11 Common
frequency.
Possible to select current
meter output.3
2
mA
or
less
Note 1. For details refer to 2-8-14 Multifunction Contact Input Function
Selection
.
2. For details refer to
2-8-15 Multifunction Output Function .
3. For details refer to
2-8-9 Multifunction Analog Output Monitor .
Control Circuit Terminal Arrangement
8 9 10 11 12 13 14
FLT FLT FLT 1 2 3 4 5 6 7
A B C
Wiring Section 1-4

16

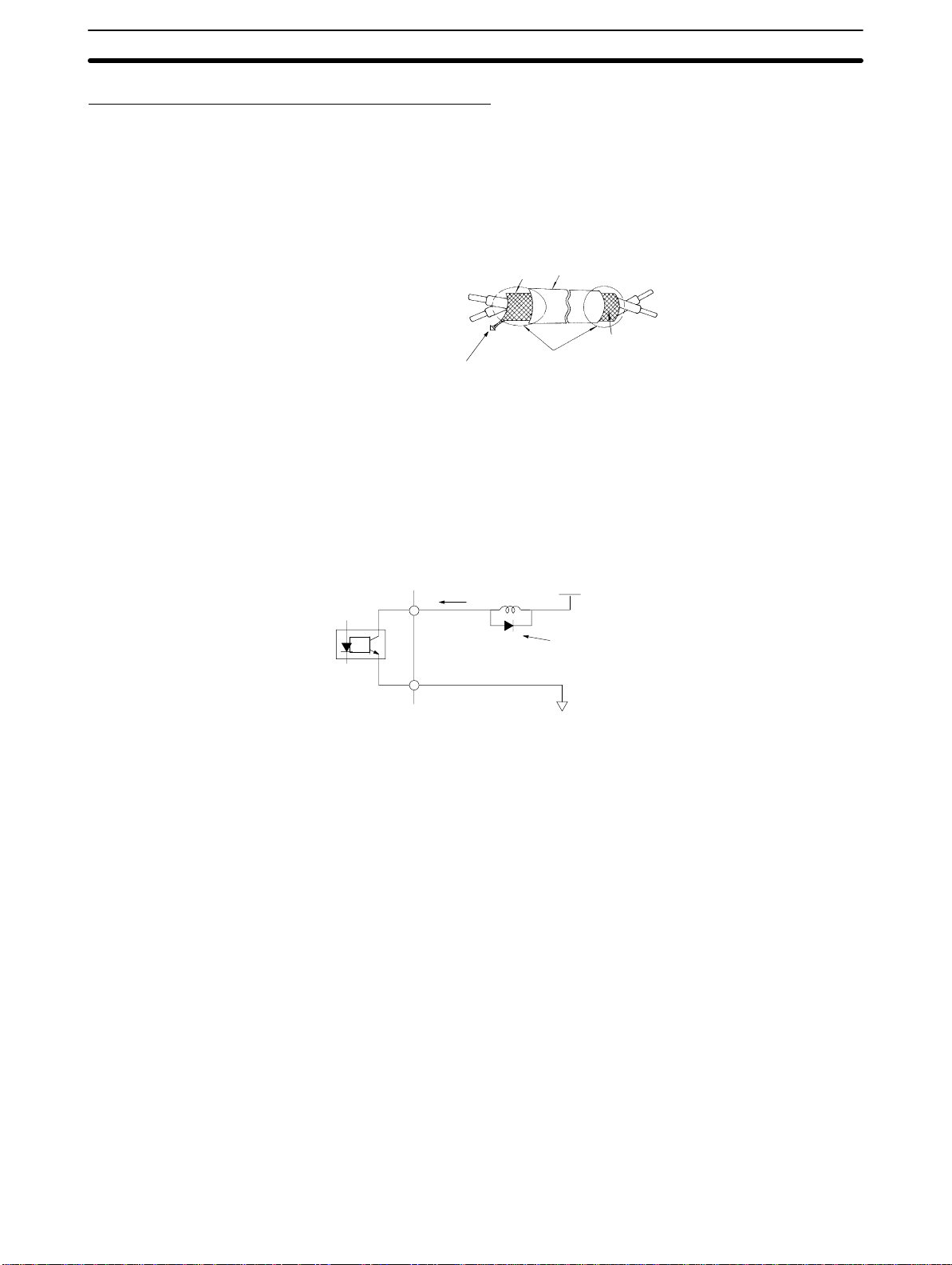

Precautions for Control Circuit Wiring
Take the following precautions when wiring.
1, 2, 3... 1. Separate the control signal line from power lines. Otherwise a
malfunction might occur.
2. For the frequency setting signal (analog), use a shielded lead
and be sure that the signal is terminated properly.
Armor
Never connect
Insulate these parts
with insulating tape
Connect shielded sheath
to main circuit grounding
terminal G (E).
Shielded
sheath
3. The wiring length of the control signal line must be 50 m or less.
4. To drive the contact input signal by transistor, use one having
ratings of 50 V 50 mA or more. Circuit leakage current at signal
OFF must be 100 µA or less.
5. To drive an inductive load (relay coil, etc.) by multifunction pho-
to-coupler output, be sure to insert a free wheel diode.
=
13.14
Free wheel diode
(100V, 100 mA or more)
48 V max.
50 mA max.
7
3G3XV
1-5 Operation
1-5-1 Checking Before Operation
Check the following items after completion of installation and wir-
ing:
•No fault in wiring. Especially, the power supply is connected to the
output terminals T1 (U), T2 (V), and T3 (W).
•No short-circuit because of wiring contamination (dust, oil, etc.).
•Screws and terminals are not loosened. Wiring is provided prop-
erly.
•Wiring is not grounded.
•Load status is good.
For safe operation, before operation, the motor must be able to
operate alone by separating it from the coupling or belt which con-
nects the motor and machine.
When the motor is operated with the machine directly connected,
pay close attention.
Operation Section 1-5
