Omron H3CR-A User manual

1
CONTENTS
Selection Guide 2..................................
Glossary 8........................................
Technical Information 10.............................
Standards 11.......................................
Enclosure Ratings 15................................
Timers
H3CR-A 16................................................
H3CR-F/G/H 36............................................
H3DR-A/P/M 65............................................
H3DR-F/G/H 89............................................
H3CA 109.................................................
New H3Y 123..............................................
H3M 132..................................................
H3FA 137.................................................
H3T 145..................................................
H5CL 151.................................................
H5BR 159.................................................
H5CR 174.................................................
H5AN 189.................................................
H5CN 201.................................................
H2C 211..................................................
H2A 219..................................................
STP 224...................................................
H5F 231..................................................
H5S 241..................................................
H5L 252..................................................
H2F 265..................................................
H2E 270..................................................
H5RA 273.................................................
H3BA 280.................................................
H3BH 295.................................................
H3BG 301.................................................
H3BF 308.................................................
Y92A-jjN Cover 313......................................
H3G (see note) 316..........................................
H3CT (see note) 321.........................................
Note: These products may not be available in certain areas.

Selection Guide
2
Classification Solid-state Timer
Model H3CR-A H3CR-F H3CR-G H3CR-H
Features DIN 48 x 48-mm
Multifunctional Timer
with many times
ranges, operating
modes and wide
power supply ranges
DIN 48 x 48-mm
Solid-state Twin
Timers
DIN 48 x 48-mm
Solid-state Star-delta
Timers
DIN 48 x 48-mm
Solid-state Power
OFF-delay Timers
Appearance and dimensions
48
48
52.3
48
48
52.3
48
48
63.7
48
48
63.7
Time range (60 Hz) 0.05 s to 300 h 0.05 s to 300 h 0.5 to 120 s 0.05 s to 12 min
Supply voltage 100 to 240 VAC
(50/60 Hz),
12 VDC, 24 VDC/VAC
(50/60 Hz),
48 to 125 VDC
100 to 240 VAC
(50/60 Hz),
12 VDC, 24 VDC/VAC
(50/60 Hz),
48 to 125 VDC
100 to 120 VAC
(50/60 Hz), 200 to
240 VAC (50/60 Hz)
100 to 120 VAC
(50/60 Hz), 200 to
240 VAC (50/60 Hz),
24 VAC/VDC
(50/60 Hz), 48 VDC,
100 to 125 VDC
Power consumption 10 VA, 1.5 W,
2VA/1W 10VA,1W,2VA/1W, 1.5 W 6VA/2.4W, 12 VA/2.6 W 0.18 VA, 0.25 VA, 0.24 VA, 130 mW,
330 mW
Accuracy of operating time !0.3% max. !0.3% max. !0.3% max. !0.3% max.
Control output 5 A at 250 VAC 5 A at 250 VAC 5 A at 250 VAC 5 A at 250 VAC
Contact
configuration Time-limit DPDT SPDT Solid-
state DPDT SPST-NO SPST-NO DPDT SPDT
c
o
g
u
a
t
o
Instantaneous --- SPDT --- --- SPST-NO --- --- ---
Life expectancy 20 x 106operations 20 x 106operations 20 x 106operations 10 x 106operations
EMC Conforms to EN50081-2,
prEN50082-2 Conforms to EN50081-2, prEN50082-2 Conforms to EN50081-2, prEN50082-2 Conforms to EN50081-2, prEN50082-2
Approved standards UL, CSA,
conforms to VDE UL, CSA, conforms to VDE UL, CSA, conforms to VDE UL, CSA, conforms to VDE
Page 16 37 43 51
Classification Solid-state Timer
Model H3DR-A H3DR-P H3DR-M
Features DIN-track mounted, standard 22.5-mm width timer range
Appearance and dimensions
22.5
75
100
22.5
75
100
22.5
75
100
Time range (60 Hz) 0.1 s to 120 h 0.1 s to 120 h 0.1 s to 10 min
Supply voltage 100 to 240 VAC (50/60 Hz),
12 VDC, 24 VDC/VAC
(50/60 Hz)
100 to 120 VAC (50/60 Hz),
200 to 240 VAC (50/60 Hz),
24 VDC/VAC (50/60 Hz)
110 to 120 VAC (50/60 Hz),
220 to 240 VAC (50/60 Hz),
24 VDC/VAC (50/60 Hz)
Power consumption 10 VA, 1 W, 2 VA/1W 6 VA, 10 VA, 2 VA/1 W 6 VA, 10 VA, 2 VA/1 W
Accuracy of operating time !1% max. !1% max. !2% max.
Control output 5 A at 250 VAC 5 A at 250 VAC 5 A at 250 VAC
Contact
f
i
t
i
Time-limit DPDT SPDT SPDT
configuration Instantaneous --- --- ---
Life expectancy 20 x 106operations 20 x 106operations 20 x 106operations
EMC Conforms to EN50081-2,
prEN50082-2 Conforms to EN50081-2, prEN50082-2 Conforms to EN50081-2, prEN50082-2
Approved standards UL, CSA, conforms to VDE UL, CSA, conforms to VDE UL, CSA, conforms to VDE
Page 65 65 65

Selection Guide
3
Classification Solid-state Timer
Model H3DR-F H3DR-G H3DR-H
Features DIN 22.5-mm Solid-state Twin
Timers DIN 22.5-mm Solid-state Star-delta Timers DIN 22.5-mm Solid-state Power OFF-delay Timers
Appearance and dimensions
22.5
75
100
22.5
75
100
22.5
75
100
Time range (60 Hz) 0.1 s to 12 h 1to120s 0.1 to 120 s
Supply voltage 100 to 240 VAC (50/60 Hz),
48 VAC (50/60 Hz),
24 VAC/VDC (50/60 Hz),
12 VDC
100 to 240 VAC (50/60 Hz),
48 VAC (50/60 Hz),
24 VAC/VDC (50/60 Hz)
100/110/120 VAC (50/60 Hz),
200/220/240 VAC (50/60 Hz),
24 VAC/VDC (50/60 Hz),
48 VAC/VDC (50/60 Hz)
Power consumption 8.2 VA, 1.7 VA, 1.3 VA/0.6 W,
0.4 W 11 VA, 1.2 VA, 0.9 VA/0.45 W 0.5 VA, 0.8 VA, 0.17 VA/0.13 W, 0.36 VA/0.34 W
Accuracy of operating time !1% max. !1% max. !1% max.
Control output 5 A at 250 VAC 5 A at 250 VAC 5 A at 250 VAC
Contact
f
i
t
i
Time-limit SPDT SPST-NO SPDT
configuration Instantaneous --- --- ---
Life expectancy 20 x 106operations 20 x 106operations 10 x 106operations
EMC Conforms to EN50081-2,
prEN50082-2 Conforms to EN50081-2, prEN50082-2 Conforms to EN50081-2, prEN50082-2
Approved standards UL, CSA, conforms to VDE UL, CSA, conforms to VDE UL, CSA, conforms to VDE
Page 90 95 100
Classification Solid-state Timer
Model H3CA H3Y H3M
Features DIN-sized (48 x 48 mm, 45 x
75 mm) Timer with digital
setting and LCD display -
multifunctions
Subminiature Timer
incorporating exclusive IC ideal
for sequence control
Solid-state Timer with variable
time ranges
Appearance and dimensions
48
48
89
28
21.5
50
40
67.1
Time range (60 Hz) 0.1 s to 9.990 h 0.5sto3h 0.05 to 30 h
Supply voltage 24 to 240 VAC (50/60 Hz),
12 to 240 VDC 100, 110, 120, 200, 220, or 240 VAC (50/60 Hz),
12, 24, 48, 100, or 110 VDC
100/110/120, 200/220/
240 VAC (50/60 Hz),
12, 24, 48, 100, or 110 VDC
Power consumption 2to10VA,1to2W 2VA,2W 5VA/2W,2W
Accuracy of operating time !0.3%!0.05 s !2% !1%
Control output 3 A at 250 VAC 5 A at 250 VAC 5 A at 250 VAC
Contact
configuration Time-limit SPDT SPDT, DPDT DPDT, 3PDT,
4PDT Solid-state DPDT SPDT
c
o
g
u
a
t
o
Instantaneous --- SPDT --- --- SPDT
Life expectancy 10 x 106operations 10 x 106operations 20 x 106operations
EMC --- Conforms to EN50081-2,
prEN50082-2 (except IEC801-4) ---
Approved standards UL, CSA, SEV UL, CSA UL, CSA
Page 109 123 132

Selection Guide
4
Classification Solid-state Timer Digital Timer
Model H3FA H3T H5CL
Features DIP type Timer for PC
board-use provides contact
and solid-state output
PCB-mounting time unit for
high-frequency applications Easy-to-see and easy-to-operate DIN 48 x
48-mm Digital Timer with
IP66/NEMA 4 protection
Appearance and dimensions
20
33
6.5
14.3
48
48
78.5
Time range (60 Hz) 0.1 s to 60 min 0.1to60min 0.001 s to 999.9 h
Supply voltage 5, 6, 12, or 24 VDC;
5/6, 12/24 VDC 12 to 24 VDC 100 to 240 VAC (50/60 Hz), 12 to 24 VDC
Power consumption 80 to 330 mW 60 mW, 120 mW Approx. 10 VA, 3 W
Accuracy of operating time !0.5% !2% !0.01%!0.07 s (power start)
!0.005%!0.03 s (control signal start)
Control output Contact output: 3 A at 250 VAC
Solid-state output: 150 mA at
30 VDC
Solid-state: 100 mA 3 A at 250 VAC
Contact
configuration Time-limit SPST-NO + SPST-NC,
solid-state SPST-NO SPDT Solid-state
c
o
g
u
a
t
o
Instantaneous --- --- --- ---
Life expectancy 10 x 106operations --- 10 x 106operations
EMC --- --- Conforms to EN50081-2,
prEN50082-2
Approved standards UL, CSA --- UL, CSA
Page 137 145 151
Classification Digital Timer
Model H5BR H5CR H5AN
Features 72 x 72-mm Timer with
easy-to-use functions 1/16 DIN Timer with easy-to-use function DIN-sized (72 x 72 mm) Quartz Timer with multiple functions
Appearance and dimensions
72
72
106
48
48
69.7
Time range (60 Hz) 0.01 s to 9999 h 0.001 s to 9999 h 0.01 s to 9999 h
Supply voltage 100 to 240 VAC (50/60 Hz),
24 VAC/12 to 24 VDC 100 to 240 VAC (50/60 Hz), 24 VAC (50/60 Hz), 12 to
24 VDC
100 to 240 VAC (50/60 Hz),
12 to 24, 48, or 100 VDC
Power consumption 8VA,5W 3VA/1W,5VA,2W 10 VA, 5 W
Accuracy of operating time !0.01%!0.05 s (power start)
!0.005%!0.03 s (control signal
start)
!0.01%!0.05 s (power start)
!0.005%!0.03 s (control signal
start)
!0.01%!0.05 s (power start)
!0.005%!0.03 s (control signal
start)
Control output Contact output: 5 A at 250 VAC Contact output: 5 A at 250 VAC Contact output: 3 A at 250 VAC
Solid-state output: 100 mA at
30 VDC
Contact
f
i
t
i
Time-limit SPDT, solid-state SPDT Solid-state SPDT, solid-state
configuration Instantaneous --- --- --- ---
Life expectancy 10 x 106operations 10 x 106operations 10 x 106operations
EMC Conforms to EN50081-2,
prEN50082-2 Conforms to EN50081-2, prEN50082-2 ---
Approved standards UL, CSA UL, CSA UL, CSA
Page NO TAG 174 189

Selection Guide
5
Classification Digital Timer Motor Timer
Model H5CN H2C H2A
Features Miniature DIN-sized (48 x
48 mm) Quartz Timer with
abundant series versions
DIN-sized (48 x 48 mm, 45 x
75 mm) Motor Timer with
variable time range
Miniature, high-performance
Motor Timer
Appearance and dimensions
Time range (60 Hz) 0.001sto99h59min 0.2to30h 0.2 s to 28 h
Supply voltage 100 to 240 VAC (50/60 Hz),
12 to 48 VDC 110, 115, 120, 220, 240 VAC (50/60 Hz),
100 VAC (50 Hz),
100/110 VAC (60 Hz),
200 VAC (50 Hz),
200/220 VAC (50 Hz)
100, 110, 200, or 220 VAC
(50/60 Hz)
Power consumption 12 VA/2.5 W, 2.5 W 3.5 VA Approx. 3 VA
Accuracy of operating time !0.01%!0.05 s (power start)
!0.005%!0.03 s (control signal
start)
!0.5% !2%
Control output Contact output: 3 A at 250 VAC
Solid-state output: 100 mA at
30 VDC
6 A at 250 VAC 2 A at 250 VAC
Contact
f
i
t
i
Time-limit SPDT, solid-state SPDT SPDT
configuration Instantaneous --- SPDT SPDT SPST-NO
Life expectancy 10 x 106operations 30 x 106operations 1x10
6operations
Approved standards UL, CSA UL, CSA UL, CSA
Page 201 211 219
Classification Motor Timer Digital Daily Time Switch Weekly Time Switch
Model STP H5F H5S
Features Best-selling Motor Timer with
high repeat accuracy Easy-to-operate Daily Time Switch for various time control Weekly Time Switch for various time controls
Appearance and dimensions 70.5
48
86.7
48
Time range (60 Hz) 0.4 s to 28 h 24hx1week 1 week
Supply voltage 100/110, 200/220 VAC
(50/60 Hz) 100 to 240 VAC (50/60 Hz) 100 to 240 VAC (50/60 Hz), 24 VDC
Power consumption Approx. 5 VA Approx. 2 VA Approx. 3 A
Accuracy of operating time !0.5% !0.01%!0.05 s max. !0.01%!0.05 s
Control output Time-limit contact:
3 A at 250 VAC
Instanteneous contact:
1.5 A at 250 VAC
Contact output: 15 A at
250 VAC 15 A at 250 VAC
Contact
f
i
t
i
Time-limit SPDT SPST-NO SPST-NO x 2 circuits
configuration Instantaneous SPDT, SPST-NO --- ---
Life expectancy 1x10
6operations 50 x 103operations 50 x 103operations
Approved standards UL, CSA UL, CSA UL, CSA
Page 224 231 241

Selection Guide
6
Classification Daily Time Switch 24-hour/Weekly Time Switch 24-hour Time Switch
Model H5L H2F H2E
Features Easy programming with large
LCD display and interactive
function
Up to 96 ON/OFF cycles from
DIN-sized (72 x 72 mm) Timer ON/OFF operation in units of 15 minutes
Appearance and dimensions
Time range (60 Hz) 24hx7days 24 h/1 week 24 h
Supply voltage 100 to 240 VAC (50/60 Hz) 100 to 240 VAC (50/60 Hz) 100/110 or 200/220 VAC
(50/60 Hz)
Power consumption 7VA 3VA,1or4VA 2VA
Accuracy of operating time !0.01%!0.05 s !3minor!30 min !5min
Control output 15 A at 250 VAC, 12 A at
250 VAC 15 A at 250 VAC 15 A at 250 VAC
Contact
f
i
t
i
Time-limit DPST-NO SPST-NO, SPDT SPST-NO, DPST-NO
configuration Instantaneous --- --- ---
Life expectancy 100 x 103operations 2 years min. 2 years min.
Approved standards UL, CSA, SEV UL, CSA ---
Page 252 265 270
Classification Others
Model H5RA H3BA H3BH
Features Replaces rotary cams for
repeat pattern control DIN-sized (48 x 48 mm, 45 x 75-mm) Timer with selectors to
cover 64 specifications
DIN-sized (48 x 48 mm) Power
OFF-delay Timer
Appearance and dimensions
Time range (60 Hz) 0.01 s to 99.9 h 0.05 s to 100 h 0.05 s to 10 min.
Supply voltage 100 to 240 VAC (50/60 Hz) 24, 50, 100/110/120, or
200/220/240 VAC (50/60 Hz),
12, 24, 48, or 110 VDC
100/110/120, or
200/220/240 VAC (50/60 Hz),
24, 48, 100, or 110 VDC
Power consumption 10 W max. 10 VA, 1 W 0.5 VA, 0.7 W
Accuracy of operating time !0.1%!30 ms !0.3% !0.3%
Control output Solid-state output: 100 mA at
30 VDC 5 A at 250 VAC 5 A at 250 VAC
Contact
f
i
t
i
Time-limit Solid-state SPDT SPDT DPDT DPDT SPDT
configuration Instantaneous --- --- SPDT --- --- ---
Life expectancy --- 20 x 106operations 10 x 106operations
Approved standards UL, CSA UL, CSA, SEV UL, CSA
Page 273 280 295

Selection Guide
7
Classification Others
Model H3BG H3BF H3G
Features DIN-sized (48 x 48 mm, 45 x
75 mm) Star-delta Timer DIN-sized (48 x 48 mm) Twin Timer Low-cost, plug-in Solid-state Timer
Appearance and dimensions
Time range (60 Hz) 0.5 to 100 s 0.05 s to 100 h 0.1sto3h
Supply voltage 100/110/120, or
200/220/240 VAC (50/60 Hz) 100/110/120, or 200/220/240 VAC (50/60 Hz),
24, 48, 100, or 110 VDC
24, 100/110/120, or
200/220/240 VAC (50/60 Hz)
12 to 24 VDC
Power consumption 10 VA, 2 W 10 VA/2 W 3.4 VA
Accuracy of operating time !0.3% !0.3% !2%
Control output 5 A at 250 VAC 5 A at 250 VAC 5 or 7 A at 250 VAC
Contact
f
i
t
i
Time-limit SPST-NO SPST-NO DPDT SPDT DPDT
configuration Instantaneous SPST-NO --- --- ---
Life expectancy 20 x 106operations 20 x 106operations 10 x 106operations
Approved standards UL, CSA UL, CSA UL,CSA,SEV
Page 301 308 316
Classification Others
Model H3CT
Features DIN 48 x 48 mm standard size
Analogue Timer
Appearance and dimensions 63.7
48
48
Time range (60 Hz) 0.1 s to 30 h
Supply voltage 100/110/120 or
200/220/240 VAC (50/60 Hz),
12, 24 VDC
Power consumption 9.3 VA, 4.4 VA, 1.3 W, 1 W
Accuracy of operating time !1%
Control output 5 A at 250 VAC
Contact
f
i
t
i
Time-limit SPDT
configuration Instantaneous SPDT
Life expectancy 10 x 106operations
Approved standards ---
Page 321

8
Glossary
Ambient Operating Temperature
Theambient temperatureat whichadevicecanbeusedinthecon-
tinuously operated state.
Ambient Storage Temperature
Theambienttemperatureatwhichadevice,without powerapplied,
maybestoressafely.
Automatic Reset
To automatically return the timer to the “0” state after the lapse of
given time.
Dielectric Strength
The maximum voltage a dielectric can withstand without rupturing.
DOWN Display Digital Timer
Thetimerwhosedisplayprogressesindescendingsequence(from
thesetvalueto0).
Electrical Reset/External Reset
To reset timer by applying a required voltage to the reset circuit.
Electrical Life Expectancy
A life expectancy of a timer when the control output of the timer is
operated to switch the specified voltage/current load connected to
the control output.
Holding Time
Theperiodoftimefromthecompletionofthetime-limit operationto
the start of the reset operation.
Humidity
Theambient humidity at whicha devicecan be usedin thecontinu-
ously operated state.
Instantaneous Contact
The contact that performs instantaneous operation.
Instantaneous Operation
The operation to place the output in the ON or OFF state upon ap-
plication of the required voltage to the operating circuit.
Insulation Resistance
Theresistanceofferedbyaninsulatingmaterialtotheflowofcurrent
resulting from an impressed DC voltage.
Integrating Operation
The operation to obtain an output when the sum of the operating
times stopped or released by gate signals coincides with the set
time.
Malfunction Durability Shock
The threshold of shock beyond which a device can no longer oper-
ate properly by satisfying the prescribed ratings.
Malfunction Durability Vibration
Thethreshold of vibrationbeyond whichadevice cannolongerop-
erate properly by satisfying the prescribed ratings.
Manual Reset
To mechanically reset the timer by manual operation.
Mechanical Durability Shock
Thethresholdofshockbeyondwhichanabnormalityisexpectedto
occur in the appearance or function of a device.
Mechanical Durability Vibration
Thethresholdofvibrationbeyondwhichanabnormalityisexpected
to occur in the appearance or function of a device.
Mechanical Life Expectancy
A life expectancy of a timer when the control output of the timer is
operated under no load condition.
OFF-delay Timer
An output signal is generated upon application of a voltage to the
operating circuit. The output signal is removed after the lapse of a
givenpresettimefromtheinterruptionofthevoltagebeingsupplied
to theoperating circuit. The timer remains in the OFFstate until the
re-application of the voltage to the operating circuit.
This timer is also available in two types; one with a power supply
also serving as an operating circuit, and the other with separate
power supply and operating circuit. With the former type, restric-
tions are placed on the available types, operate time, etc.
(a) When the operating circuit is a power source
(b) When the operating circuit is an input signal source
T
T
OFF Time
The period of time from the start of the timer’s reset operation until
the application of a required voltage to the operating circuit.
OFF Time Characteristic
A change in operating time when the operate time in a given OFF
time and the OFF time are changed.
Formula for calculation:
OFF time characteristic
=!x 100 (%)
TM x 3 -- TM3
TMs
where,
TM3: Average value of operating times measured during the
OFF time of 1 second.
TM x 3: Average value of operating times measured during the
OFFtimewhichcausesthemaximumdeviation fromTM3
which the OFF time range of 1 hour from the specified re-
setting time.
TMs: Maximum scale time
ON-delay Timer
An output signal is generated after the lapse of a given preset time
from the application of voltage to the operating circuit.
The output signal is held until the operating circuit is turned off, and
is removed upon turning off the operating circuit, causing the timer
to return to its operable state.
This timer is available in two types; one with a power supply also
serving as an operating circuit, and the other, with separate power
supply and operating circuit.
Inthecaseofmotortimers,thelattertypeprovidesanhigherrepeat
accuracy.
(a) When the operating circuit is a power source
(b) When the operating circuit is an input signal source
T
T

9
ON Time
The period of time during which a required voltage is being applied
to the operating circuit.
Operating Time
The period of time from the application of a required voltage to the
operatingcircuituntilthecompletionofthetime-limitcontactopera-
tion.
Operating Voltage Range
Theallowablefluctuationrangeofsuchavoltageascontrolvoltage
or signal voltage required to operate a device.
Power Consumption
The maximum wattage used by a device within its operating range
at the specified temperature and humidity.
Depending on the internal power circuit system of the model, both
apparent power and active power are indicated for the AC power
supply. Refer to the apparent power whendesigning a transformer.
Example:H3CA-8AAC:10VA/1W
Apparent power Active power
Repeat Accuracy
Differences of operating times measured when the timer repeats
operation under the same condition with a given setting time.
Formula for calculation (with operating time measured more than
5times):
Repeat accuracy
=!x x 100 (%)
T max. -- T min.
TMs
1
2
where,
T max.: Maximumvalueofoperatingtimesmeasuredat thesame
set time
T min.: Minimum value of operating times measured at the same
set time
TMs: Maximum scale time
Since the repeat accuracy is expressed in terms of a percentage
against the maximum setting time, the absolute value of therepeat
accuracy does not change even if the setting time is changed.
Accordingly, the time specification should be taken into account as
muchaspossible,sothatthetimermaybeusedinthevicinityoffull
scale.
Repeat Cycle (Cyclic) Operation
The operation to repeat ON/OFF at each given operating time.
Repeat Cycle (Cyclic) Timer
Anoutputsignalisgeneratedandremovedrepetitivelyaccordingto
the times of the set ON and OFFwhile a voltage is being applied to
the operating circuit.
TTTT
Resetting Time
Theperiodoftimefromtheinterruptionofthevoltagesuppliedtothe
operating circuit during or after the time-limit operation until the re-
turn of the timer to its initial state.
Operating
time Resetting time
Holding
time
Self-reset/Power-OFF Reset
To automatically reset the timer by interrupting the voltage being
supplied to the operating circuit.
Setting Error
A difference between the actual operating time and scale time.
Formula for calculation (with operating time measured more than
5times):
Setting error
= x 100 (%)
TM -- Ts
TMs
where,
TM: Average value of measured operating times
Ts: Set time
TMs: Maximum scale time
Time-limit Contact
The contact that performs time-limit operation.
Time-limit Operation
The operation to obtain an output after the set time by applying the
required voltage to the operating circuit.
Time-limit Reset
To return the timer to the original condition after the set time by
changing the output state from ON to OFF upon application of the
required voltage to the operating circuit.
UP Display Digital Timer
Thetimerwhosedisplayprogressesinascendingsequence(from0
to the set value).
Variation Due to Temperature Change
Achangeinoperatingtimewhentheambienttemperaturechanges
within a permissible range.
Formula for calculation (with operating time measured more than
5time):
Variation due to temperature change
=!x 100 (%)
TMx2-- TM s 2
TMs
where,
TM2: Average value of operating times measured at 20"C
TMx2: Averagevalueofoperatingtimesmeasuredatatempera-
turewhichcausesthemaximumdeviationfromTM2within
the specified ambient temperature range.
TMs: Maximum scale time

10
Variation Due to Voltage Change
A change in operating time when the voltage of the control power
source changes within the permissible fluctuation range.
Formula for calculation (with operating time measured more than
5time):
Variation due to temperature change
=!x 100 (%)
TMx1-- TM 1
TMs
where,
TM1: Average value of operating times measured at rated volt-
age
TMx2: Average value of operating times measured at a voltage
whichcauses themaximumdeviationfromTM1withinthe
permissible fluctuation range.
TMs: Maximum scale time
Technical Information
Symbols Used in Internal Connection Diagram of Timers
Name and symbol Description Name and symbol Description
NO contacts Normally open contacts (A pair of
contacts which are normally open
when no relay input is applied.)
Time-limit operation,
time-limit resetting
contacts
A
ANO contacts
NC contacts Normally closed contacts (A pair of
contacts which are normally closed
when no relay input is applied.)
A
B
BNC contacts
Transfer contacts
A
B
Transfer contacts (NO and NC
contacts which have a common
contact terminal are collectively called
“transfer contacts”.)
A variety of contacts shown in Aand B
are all transfer contacts with NC
contact arranged either on the right
side or on the upper side.
Manually operated,
automatic resetting
contact
A
B
C
Contacts which reset upon release of
the hand, and used as the contacts to
operate pushbutton switches.
ANO contacts
BNC contacts
CTransfer contacts
Time-limit operating
contacts
A
ANO contacts Synchronous motor A miniature timer which operates in
synchronization with power frequency.
A
B
BNC contacts Relay An electromagnetic relay
Time-limit resetting
contacts
A
ANO contacts LED Used to indicate the operating state of
the timer.
A
B
BNC contacts Neon lamp Used to indicate the operating state of
the timer.

11
Standards
National Standards
NK
Electrical Appliance
and Material Control
Law of Japan
uR
C
UL
CSA
JO
VDE
W9876
LR
FIMKO (SETI)
F
SEMKO
S
NEMKO
N
BSI
GL
GL DEMKO
D
TÜV
E
IMQ
KEMA
K
SEV
+
UTE
TheIECisastandardizationcommissionfoundedin1908topromoteunificationandcoordinationof
international standards relating to electricity. It is headquartered in Geneva, Switzerland.
At present there are 43 member nations in the IEC including Japan, and these member nations are
quickly conforming to the IEC standards.
Anonprofitorganizationestablishedin1894bytheAmericanassociationoffireinsurancecompan-
ies.
Underwriters Laboratories (abbreviated to UL hereafter) conducts approval testing on all kinds of
electrical products. In many U.S. cities and states, UL approval is legally required on all electrical
items sold.
InordertoobtainULapprovalonanelectricalproduct,allmajorinternalcomponentsalsorequireUL
approval.
UL offers two classifications of approvals, the listing mark and the recognition mark.
AListingMark constitutes a entirelyapproval ofa product.Productsdisplay theListingMarkshown
below.
LISTING MARK
u
TheRecognitionMarkappliestothecomponentsusedinaproduct,andthereforeconstitutesamore
conditional approval of a product. Products display the Recognition Mark shown below.
R
RECOGNITION MARK
This association descended from anonprofit, non-government standardization organization estab-
lishedin1919.Inadditiontoindustrialstandardization,theassociationnowcarriesoutsafetytesting
on electrical products.
CSA has closer ties to government agencies than UL, so that electrical products not approved by
CSAcannotbesoldinCanada.Non-approvedgoodsbeingsoldillegallymayhavetobewithdrawn.
CSAapprovalisknownas“certification,”andconsequently,CSA-approvedequipmentisreferredto
as “certified equipment.” Products display the mark shown below. For a conditional certification,
products display component acceptance mark.
C
CERTIFICATION MARK
IEC (International
Electrotechnical
Commission)
UL Standards (Underwriters
Laboratories INC.)
CSA Standards (Canadian
Standards Association)

12
CENELECisthe“EuropeanCommitteeforElectrotechnicalStandardization”jointlyfoundedin1973
by the EEC (European Economic Community) and EFTA (European Free Trade Association). It is
headquartered in Brussels, Belgium and currently has 18 member nations.
FacedwithEuropeanmarketunificationin1992,CENELECtookontheveryimportanttaskofcreat-
ing unified European standards and is energetically proceeding with the creation of standards.
The CENELEC standards can be broadly divided into two groups: EN (European Norm) and HD
(Harmonized Document).
ECmembernationsmustusetheENstandardsfornationalstandardswithoutanychanges,butthey
can use national standards that are have the same general content as the HD standards, so some
differences in content are allowed with the HD standards.
TheVDE(Germanelectricaltechnician’sassociation),establishedin1893,ismainlyresponsiblefor
carrying out safety testing and approval administration of electrical products.
CompliancewithVDEstandardsisnotproscribedunderGermanlaw,however,theextremelyheavy
penaltiesimposedonthemanufacturerofanunapprovedproductwhichcausesanelectric-shockor
fire mean that compliance is effectively compulsory in practice.
TheVDEofferstwomajorclassificationsofapproval:theVDEMark(belowleft)forproductsthatcan
beusedindependentlyonthemarket,andtheMonitoringMark(belowright)forcomponentsthatare
built into other products. The number inside the Monitoring Mark is the VDE registration number.
W
VDE MARK MONITORING MARK
9876
ThesearethestandardsoftheLloyd’sRegisterofShipping,headquarteredinLondon.AlloftheOM-
RONcontrol components approvedinLRareUMS ships, theunmannedengine-room shipclassifi-
cation in the Lloyd’s Register.
Unlike the safety standards such as UL, the devices are checked to ensure that they can function
sufficiently under the environmental conditions when they are used in ships.
When adevice is approved, Lloyd’s Register doesn’t apply the passing mark on the product, but in-
cludes it on the list of approved products that it publishes every year.
Automation equipment and devices receive tests and inspections based on the provisions of the
steel-ship regulations and can be formally approved if the tests are passed.
Testingattheproductionfactorycanbepartiallyorentirelyomittedwhenautomationequipmentand
devices that have been formally approved are installed on ships.
Asageneralrule,manufacturersofapprovedproductsindicatethattheproductsbeingshippedhave
been approved. (It is also acceptable to affix a label to products which require it.)
TheproductsgovernedbytheElectricalApplianceandMaterialControlLaw(EAMCL)areelectrical
appliances generallyusedinthehomeoroffice.It doesnot apply tootherindustrial electricalequip-
ment.
ElectricalequipmentfallingundertheauspicesoftheEAMCLareknownaselectricalappliancesand
divided into first-grade and second-grade appliances according to their dangerousness and how
widespread their use.
First-gradeappliancescandisplaythesymbolshownontheupper-leftwithanauthorizationnumber
and be manufactured and sold if they pass the formal authorization tests prior to manufacture. Se-
cond-gradeappliancescandisplaythesymbolshownonthelower-leftwithanauthorizationnumber
and be manufactured and sold if the manufacturer reports the main principles of manufacturing.
JO
First-grade
appliance symbol Second-grade appliance symbol
Reference This mark is applied to products shown to conform to all relevant EC directives.
The EC directives that apply directly to this company’s products are theLow-voltage directives and
EMC directives. The Mechanical directives apply indirectly.
As a general rule, the CE marking is required for final products that appear on the market, but isn’t
required for the internal components in the product.
CENELEC (Comite
Europeen de Normalisation
Electrotechnique)
VDE Standards (Verband
Deutscher
Electrotechnischer e.V.)
LR (Lloyd’s Register of
Shipping)
NK (Nippon Kaiji Kyokai)
Electrical Appliance and
Material Control Law of
Japan
1. CE Marking

13
TheTÜVorganizationsareprivate,non-profitorganizationswhoseparentorganization,theGerman
Boilermaker’s Federation, was founded in 1875 to prevent boiler accidents. There are 14 indepen-
dent TÜV organizations within Germany (such as TÜV Rheinland, TÜV Bayern, etc.).
TheTÜVorganizationsinspectabroadrangeof industrialmachineryandequipment,butis alsoen-
trusted bythegovernment toinspect andapprove electricalproducts basedonthe VDEstandards.
TÜV approval is equally valid as VDE approval, and TÜV approval by any of the 14 independent
organizations is valid with the others.
There are two types of approval marks, the mark on the upper-left is applied to equipment and the
mark on the lower-left is applied to parts within the equipment.
This non-profit organization was established in 1960 and tests mainly household electrical ap-
pliances based on BS standards.
There are two types of BEAB approval marks, the mark on the left is applied to equipment and the
mark on the right is applied to parts within the equipment. Application of the parts approval mark is
optional.
Both UL and CSA require normal TV rating approval for switches and relays used for power supply
switching inappliances such as televisions and radios. ULaccepts tungsten ratings (25,000 switch
operations) for relays.
TheTVratingstestisperformedusinganormaltungstenloadon6samples.Thetungstenlampload
has a inrush current about 10 times the normal current and the switching test is performed 25,000
times on each sample.
The TV ratings display indicates the tested amperage. For example, a switch passing the test for a
normal current of 2 A (at 120 VAC) would be indicated by “TV--2”.
TheconditionsforloadsotherthanresistiveloadsaredifferentfortheNorthAmericanstandards(UL
and CSA) and the standards for each European country (VDE, SEMKO, etc.).
InNorthAmerica,thetestsforloadsotherthanresistiveloadsarenormallyperformedwitha“general
purposeload”witha0.75to0.80powerfactor,butinEuropeancountriesthetestsareperformedwith
an inductive load with a 0.4 power factor.
EMC
Directive 89/336/EEC Concerning Electromag-
netic Compatibility
The EMC Directive is anew-approach directive laying downequip-
ment protection requirements and leaving it to standards, primarily
harmonized standards or, failing that, national standards, to define
product characteristics.
The EMC Directive is a total harmonization directive, i.e., its provi-
sions replace the national provisions concerned.
TheEMCDirectivemustbetransposedintonational lawby1stJuly
1991. Its provisions have applied since 1st January 1992.
ThewidescopeoftheEMCDirectivehasdemonstratedtheoverrid-
ing need to provide for a transitional period, so as to ensure a har-
moniouschangeoverfromtheapplicationofsystemsofapurelyna-
tional character to an exclusive Community system.
That is why, on 28 April 1992, the Council adopted Directive
92/31/EEC with a view to allowing a transitional period until 31 De-
cember 1995.
During this transitional period, a manufacturer will have the choice
of placing on the market/putting into service:
#Products manufactured in accordance with the EMC Directive,
whereby the free movement of the product is guaranteed
pursuant to the Directive, or
#Products manufactured in accordance with national regulations
or possibly with technical specifications of a non-mandatory
nature, whereby free movement of the product will be
guaranteed pursuant to Article 30 of the EEC Treaty, albeit
subject tothepossiblederogationsprovidedforinArticle36and
the jurisprudence of the European Community Court of Justice.
2. TÜV (Technischer
Überwachungs -- Verein)
3. BEAB (British Electrotechnical
Approvals Board)
4. Switches and Relays Rated for
Televisions (UL, CSA)
5. Types of Loads

14
Normative References
EN50081-1
1992
Electromagnetic compatibility --
Emission standard
Part 1: Residential, commercial and light industry
EN50081-2
1993
Electromagnetic compatibility --
Emission standard
Part 2: Industrial environment
EN50082-1
1992
Electromagnetic compatibility --
Immunity standard
Part 1: Residential, commercial and light industry
prEN50082-2
1994
Electromagnetic compatibility --
Immunity standard
Part 2: Industrial environment
EN55011
1990
Limits and methods of measurement of radio disturbance charac-
teristics of industrial, scientific and medial (ISM) radio-frequency
equipment
EN55022
1985
Limits and methods of measurement of radio disturbance charac-
teristics of information technology equipment
EN60204-1
1992
Safety of machinery --
Electrical equipment of machines
Part 1: General requirements
EN61000-4-8
1993
Electromagnetic compatibility
Part 4: Testing and measurement techniques
Section 8: Power frequency magnetic field immunity test
ENV50140
1993
Electromagnetic compatibility --
Basic immunity standard
Radiated, radio-frequency electromagnetic field --
Immunity test
ENV50141
1993
Electromagnetic compatibility --
Basic immunity standard
Conducted disturbances inducted by radio-frequency fields --
Immunity test
IEC801-2
1991
Electromagnetic compatibility for industrial-process measurement
and control equipment
Part 2: Electrostatic discharge requirements
IEC801-3
1984
Electromagnetic compatibility for industrial-process measurement
and control equipment
Part 3: Radiated electromagnetic field requirements
IEC801-4
1988
Electromagnetic compatibility for industrial-process measurement
and control equipment
Part 4: Electrical fast transient/burst requirements
IEC801-5 (Draft)
1993
Electromagnetic compatibility for industrial-process measurement
and control equipment
Part 5: Surge voltage immunity requirements
IEC801-6 (Draft)
1993
Electromagnetic compatibility for industrial-process measurement
and control equipment
Part 6: Immunity to conducted disturbances induced by radio fre-
quency fields.
IEC68-2-2
1974
Environmental testing
Tests B: Dry heat
IEC68-2-30
1980
Environmental testing
Test Db and guidance: Damp heat, cyclic (12 + 12 hour cycle)
IEC68-2-36
1973
Environmental testing
Test Fdb: Random vibration wide band
Reproducibility Medium
IEC529
1983
Degrees of protection provided by enclosures
MIL-STD-810E
1989
Method 514.4: Vibration
ASTM D 4728
1987
Standard test method for random vibration testing of shipping con-
tainers
Note: Abbreviations
EMC: Electromagnetic compatibility
EMS: Electromagnetic susceptibility
EMI: Electromagnetic interference
RF: Radio frequency
ISM: Industrial, scientific and medical equipment

15
Enclosure Ratings
IP-66G
Protection against harmful ingress of water
Protection against solid foreign objects
Protection Specification Code (International Protection) (IEC529)
Japan Electrical Manufacturers Association’s standards (JEM1030)
Protection against oil
Protection Against Solid Foreign Objects
Grade Protection Criteria
5Dust protected Limited ingress of dust permitted (no harmful deposit).
6Dust-tight Totally protected against ingress of dust.
Protection Against Harmful Ingress of Water
Grade Protection Criteria Examination method
4Water splash from all
directions Protected against water
splashed from all directions;
limited ingress permitted.
Spray water from all directions for 10 minutes using the test
device shown below.
Flow per water spray hole:
0.07 l/min
5Housing jets from all
directions Protected against
low-pressure jets of water
from all directions; limited
ingress permitted.
Spray water from all directions for one minute per m2of
external surface area and for a total time of no less than 3
minutes using the test device shown below.
12.5 l/min
2.5to3m
Discharging nozzle dia.: 6.3
6Strong hosing jets from all
directions Protected against strong
jets of water, e.g. for use on
shipdecks; limited ingress
permitted.
Spray water from all directions for one minute per m2of
external surface area and for a total time of no less than 3
minutes using the test device shown below.
100 l/min
2.5to3m
Discharging nozzle dia.: 12.5
JEM Standards
Protection Against Oil
Grade Protection Criteria Criteria
FOilproof Protected against improper
operation due to oil drops or
spray from any direction.
No penetration of oil to the extent of interfering with proper
operation after dropping the specified cutting oil on a test device
for 48 hours at a rate of 0.5 lper hour.
GOil resistant Protected against
penetration of oil drops or
spray from any direction.
No penetration of oil after dropping the specified cutting oil on a
test device for 48 hours at a rate of 0.5 lper hour.

16

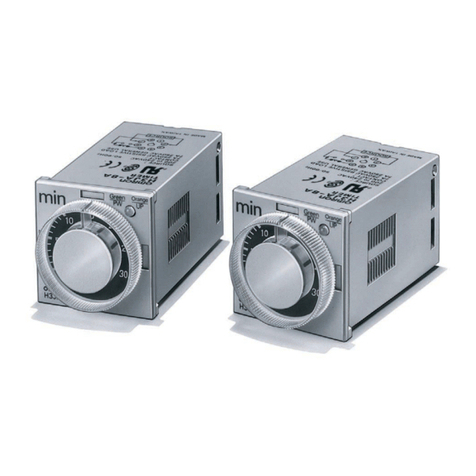

Solid-state Timer H3CR-A
DIN 48 x 48-mm Multifunctional Timer
with Many Time Ranges, Operating
Modes and Wide Power Supply Ranges
A wide AC power supply range (100 to 240 VAC)
andawideDCpowersupplyrange(48to125VDC)
reduces the number of timer models kept in stock.
Handles a wide range of applications through six
operating modes.
Enables easy sequence checks through instanta-
neous outputs for a zero set value at any time
range.
Only 80 mm long when panel-mounted with a
Socket (excluding H3CR-A8EL).
Setting rings (order separately) to enable consis-
tent settings and to limit the setting range.
Panel Covers (order separately) to enable various
panel designs.
All Units offer a wide time range (0.05 s to 300 h).
Enables self-holding circuit or run-monitoring with
instantaneous contact.
Conforms to VDE0435/0110 and approved by UL
and CSA.
Conforms to EMC standards.
Six-language instruction manual provided.
RC
Ordering Information
Outputs Supply voltage 11-pin models 8-pin models
Contact 100 to 240 VAC (50/60 Hz) H3CR-A H3CR-A8
12 VDC
24 VDC/VAC (50/60 Hz)
48 to 125 VDC
Transistor (Photocoupler) 12 VDC H3CR-AS H3CR-A8S
24 VDC/VAC (50/60 Hz)
Time-limit contact and 100 to 240 VAC (50/60 Hz) --- H3CR-A8EL
instantaneous contact 24 VDC/VAC (50/60 Hz) H3CR-A8E
48 to 125 VDC
Note: Specify both the model number and supply voltage when ordering.
Example: H3CR-A 12 VDC Supply voltage
Accessories (Order Separately)
Flush Mounting Adaptor Y92F-30
Y92F-73 (not for H3CR-A8EL)
Y92F-74 (not for H3CR-A8EL)
Y92F-70 (for only H3CR-A8EL)
Y92F-71 (for only H3CR-A8EL)
Socket 8-pin 11-pin
Track Mounting/
Front Connecting
Socket
P2CF-08 P2CF-11
Back Connecting
Socket P3G-08 P3GA-11

H3CR-A H3CR-A
17
Mounting Track 50 cm (l)x7.3mm(t) PFP-50N
1m(
l)x7.3mm(t) PFP-100N
1m(
l)x16mm(t) PFP-100N2
End Plate PFP-M
Spacer PFP-S
Protective Cover Y92A-48B
Time Setting Ring
Setting a specific time Y92S-27
Limiting the Setting Range Y92S-28
Panel Cover
Color (Munsell No.) Model
Light Gray (5Y7/1) Y92P-48GL
Black (N1.5) Y92P-48GB
Medium Gray (5Y5/1) Y92P-48GM
Note: The Time Setting Ring and Panel Cover are sold together.
Hold-down Clip
Specification Model
For PL08 and PL11 Sockets Y92H-7 (not for H3CR-A8EL)
Y92H-1 (for only H3CR-A8EL)
For PF085A Socket Y92H-8 (not for H3CR-A8EL)
Y92H-2 (for only H3CR-A8EL)
Specifications
General
Item H3CR-A/-AS H3CR-A8/-A8S H3CR-A8EL/-A8E
Operating mode A: ON-delay
B: Flicker OFF start
B2: Flicker ON start
C: Signal ON/OFF-delay
D: Signal OFF-delay
E: Interval
A: ON-delay
E: Interval
Pin type 11-pin 8-pin
Input type No-voltage input ---
Time-limit output type H3CR-A/-A8: Relay output (DPDT)
H3CR-AS/-A8S: Transistor output (NPN/PNP)* Relay output (SPDT)
Instantaneous output type --- Relay output (SPDT)
Mounting method DIN track mounting, surface mounting, and flush mounting
EMC Emission Enclosure: EN55011 Group 1 class A
Emission AC Mains: EN55011 Group 1 class A
Immunity ESD: IEC801-2: 4 kV contact discharge (level 2)
8 kV air discharge (level 3)
Immunity RF-interference: ENV50140: 10 V/m (80 MHz to 1 GHz) (level 3)
Immunity Conducted Disturbance: ENV50141: 10 V (0.15 to 80 MHz) (level 3)
Immunity Burst: IEC801-4: 2 kV power-line (level 3)
2 kV I/O signal-line (level 4)
Approved standards UL508, CSA C22.2 No.14, LR/NK
Conforms to VDE0435/2021, VDE0110
Conforms to EN50081-2, prEN50082-2
*The internal circuits are optically isolated from the output. This enables application of either NPN or PNP transistors.
Time Ranges
Time unit s (sec) min h(hrs) x10 h (10 h)
Setting 0Instantaneous output (To obtain instantaneous output, set to below 0.) (see note)
1.2 0.05 to 1.2 0.12 to 1.2 1.2to12
30.3to3 3to30
12 1.2to12 12 to 120
30 3to30 30 to 300
Note: Instantaneous output is available with all H3CR-A models.

H3CR-A H3CR-A
18
Ratings
Rated supply voltage 100 to 240 VAC (50/60 Hz), 12 VDC, 24 VDC/VAC (50/60 Hz), 48 to 125 VDC
Operating voltage range 85% to 110% of rated supply voltage (90% to 110% at 12 VDC)
Power reset Minimum power-opening time: 0.1 s
No-voltage input ON impedance: 1 k$max.
ON residual voltage:1 V max.
OFF impedance: 100 k$min.
Power consumption 100 to 240 VAC: approx. 10 VA; 12 VDC, 48 to 125 VDC: approx. 1.5 W;
24 VDC/VAC: approx. 2 VA (AC), approx. 1 W (DC)
Control outputs Time limit contacts: 5 A at 250 VAC, resistance load (cos%=1)
Transistor output: Open collector (NPN/PNP), 100 mA max. at 30 VDC max.,
residual voltage: 2 V max.
Instantaneous contact: 5 A at 250 VAC, resistance load (cos%=1)
Characteristics
Accuracy of operating time !0.3% FS max. (!0.3%!10 ms in a range of 1.2 s)
Setting error !5% FS !0.05 s max.
Reset time Min. power-opening time: 0.1 s max.
Min. pulse width: 0.05 s (H3CR-A/-AS)
Influence of voltage !0.5% FS max. (!0.5%!10 ms in a range of 1.2 s)
Influence of temperature !2% FS max. (!2%!10 ms in a range of 1.2 s)
Insulation resistance 100 M$min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between current-carrying metal parts and exposed
non-current-carrying metal parts)
2,000 VAC, 50/60 Hz for 1 min (between control output terminals and operating circuit)
1,000 VAC, 50/60 Hz for 1 min (between contacts not located next to each other)
Impulse withstand voltage 3 kV (between power terminals) for 100 to 240 VAC, 48 to 125 VDC, 1 kV for 12 VDC,
24 VDC/VAC
4.5 kV (between current-carrying terminal and exposed non-current-carrying metal parts) for
100 to 240 VAC, 48 to 125 VDC, 1.5 kV for 12 VDC, 24 VDC/VAC
Noise immunity !1.5 kV (between power terminals) and !600 V (between input terminals), square-wave noise
by noise simulator (pulse width: 100 ns/1 &s, 1-ns rise)
Static immunity Malfunction:8 kV
Destruction:15 kV
Vibration resistance Destruction:10 to 55 Hz with 0.75-mm double amplitude each in three directions
Malfunction:10 to 55 Hz with 0.5-mm double amplitude each in three directions
Shock resistance Destruction:980 m/s2(100G) each in three directions
Malfunction:98 m/s2(10G) each in three directions
Ambient temperature Operating:--10"Cto55
"C (with no icing)
Storage: --25"Cto65
"C (with no icing)
Ambient humidity Operating: 35% to 85%
Life expectancy Mechanical:20 million operations min. (under no load at 1,800 operations/h)
Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
Case color Light Gray (Munsell 5Y7/1)
Enclosure ratings IEC: IP40
Weight Approx. 90 g; approx. 110 g (H3CR-A8EL/-A8E)

H3CR-A H3CR-A
19
Engineering Data
Reference: A maximum current of 0.15 A can be switched at 125 VDC (cos%=1)
and a maximum current of 0.1 A can be switched if L/R is 7 ms. In
both cases, a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (failure level: P).
Load current (A)
30 VDC L/R = 7 ms
250VAC/30VDC
(cos%=1)
250 VAC (cos%=0.4)
Switching operations (x 10 )
3
10,000
5,000
1,000
500
100
Nomenclature
Power indicator (green) (Flashes when Timer
operates; lit when Timer stops operating) Operating mode display window
Operating mode selector (select
a mode from A, B, B2, C, D, and
E (H3CR-A and -AS), A and E
(H3CR-A8, -A8S, -A8EL, -A8E)
Scale range display windows
Time unit display window
Time unit selector (select one
from sec, min, hrs, and 10h)
Time setting
knob (set time)
Output indicator (orange)
Time range selector
(select one from
1,2,3,12, and 30)
Operation
Block Diagrams
H3CR-A/AS
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
Time range/
unit selectors
Counting
circuit
Operating
mode selector
Output circuit
Reset input, start input, and gate input Input circuit Indicator
circuit
Power-ON
indicator Output-ON indicator

H3CR-A H3CR-A
20
H3CR-A8/A8S
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
Time range/
unit selectors
Counting
circuit Output circuit
Indicator
circuit
Power-ON
indicator Output-ON indicator
Operating
mode selector
H3CR-A8EL/-A8E
Instantaneous
output circuit
AC (DC) input
Power supply
circuit
Zero setting
detection
circuit
Oscillation
circuit
Time range/
unit selectors
Counting
circuit Output circuit
Indicator
circuit
Power-ON
indicator Output-ON indicator
Operating
mode selector
I/O Functions
Inputs Start Starts time-measurement.
(for -A/-AS) Reset Interrupts time-measurement and resets time-measurement value. No time-measurement is made
and control output is OFF while the reset input is ON.
Gate Prohibits time-measurement.
Outputs Control output Outputs are turned ON according to designated output mode when preset value is reached.
