Omron NA-series Instructions for use

Programmable Terminal NA-series
Practices Guide
Creating Basic Pages
NA5-15W□□□□
NA5-12W□□□□
NA5-9W□□□□
NA5-7W□□□□
V421-E1-02

2
■ Introduction
This guide provides reference information on editing pages of the NA. It does not provide safety
information.
Be sure to obtain the NA-series Programmable Terminal User's Manuals, read and understand the safety
points and other information required for use, and test sufficiently before actually using the equipment.
(1) All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or
otherwise, without the prior written permission of OMRON.
(2) No patent liability is assumed with respect to the use of the information contained herein. Moreover,
because OMRON is constantly striving to improve its high-quality products, the information contained
in this manual is subject to change without notice. Every precaution has been taken in the preparation
of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is
any liability assumed for damages resulting from the use of the information contained in this
publication.
(3) Trademarks
• Sysmac and SYSMAC are trademarks or registered trademarks of OMRON Corporation in Japan
and other countries for OMRON factory automation products.
• Windows, Visual Basic, and Excel are either registered trademarks or trademarks of Microsoft
Corporation in the United States, Japan, and other countries.
• Other company names and product names in this document are the trademarks or registered
trademarks of their respective companies.
• Microsoft product screen shots reprinted with permission from Microsoft Corporation.
• The product pictures and drawings contained in this document are the graphical images, which may
be different from the actual articles.

3
Terms and Conditions Agreement
Warranty, Limitations of Liability
Warranties
Exclusive Warranty
Omron’s exclusive warranty is that the Products will be free from defects in materials and
workmanship for a period of twelve months from the date of sale by Omron (or such other period
expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
Limitations
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED,
ABOUT NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OF THE PRODUCTS. BUYER ACKNOWLEDGES THAT IT ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF
THEIR INTENDED USE.
Omron further disclaims all warranties and responsibility of any type for claims or expenses
based on infringement by the Products or otherwise of any intellectual property right.
Buyer Remedy
Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the form
originally shipped with Buyer responsible for labor charges for removal or replacement
thereof) the non-complying Product, (ii) repair the non-complying Product, or (iii) repay or
credit Buyer an amount equal to the purchase price of the non-complying Product; provided
that in no event shall Omron be responsible for warranty, repair, indemnity or any other
claims or expenses regarding the Products unless Omron’s analysis confirms that the
Products were properly handled, stored, installed and maintained and not subject to
contamination, abuse, misuse or inappropriate modification. Return of any Products by
Buyer must be approved in writing by Omron before shipment. Omron Companies shall not
be liable for the suitability or unsuitability or the results from the use of Products in
combination with any electrical or electronic components, circuits, system assemblies or any
other materials or substances or environments. Any advice, recommendations or
information given orally or in writing, are not to be construed as an amendment or addition to
the above warranty.
See http://www.omron.com/global/ or contact your Omron representative for published
information.
Limitation on Liability; Etc
OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR
COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER
SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT
LIABILITY.
Further, in no event shall liability of Omron Companies exceed the individual price of the
Product on which liability is asserted.

4
Application Considerations
Suitability of Use
Omron Companies shall not be responsible for conformity with any standards, codes or
regulations which apply to the combination of the Product in the Buyer’s application or use
of the Product. At Buyer’s request, Omron will provide applicable third party certification
documents identifying ratings and limitations of use which apply to the Product. This
information by itself is not sufficient for a complete determination of the suitability of the
Product in combination with the end product, machine, system, or other application or use.
Buyer shall be solely responsible for determining appropriateness of the particular Product
with respect to Buyer’s application, product or system. Buyer shall take application
responsibility in all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO
LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS
BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS
PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL
EQUIPMENT OR SYSTEM.
Programmable Products
Omron Companies shall not be responsible for the user’s programming of a programmable
Product, or any consequence thereof.
Disclaimers
Performance Data
Data presented in Omron Company websites, catalogs and other materials is provided as a
guide for the user in determining suitability and does not constitute a warranty. It may
represent the result of Omron’s test conditions, and the user must correlate it to actual
application requirements. Actual performance is subject to the Omron’s Warranty and
Limitations of Liability.
Change in Specifications
Product specifications and accessories may be changed at any time based on
improvements and other reasons. It is our practice to change part numbers when published
ratings or features are changed, or when significant construction changes are made.
However, some specifications of the Product may be changed without any notice. When in
doubt, special part numbers may be assigned to fix or establish key specifications for your
application. Please consult with your Omron’s representative at any time to confirm actual
specifications of purchased Product.
Errors and Omissions
Information presented by Omron Companies has been checked and is believed to be
accurate; however, no responsibility is assumed for clerical, typographical or proofreading
errors or omissions.

5
Contents
Terms and Conditions Agreement........................................................................3
Warranty, Limitations of Liability.............................................................................................3
Application Considerations .....................................................................................................4
Disclaimers .............................................................................................................................4
Related Manuals .....................................................................................................7
１Introduction....................................................................................................8
１-１Overview ..................................................................................................................8
１-２System Configuration...............................................................................................9
１-３Procedure to Create Pages....................................................................................10
２Project Creation...........................................................................................11
２-１Creating Projects....................................................................................................11
２-２Starting up Sysmac Studio.....................................................................................12

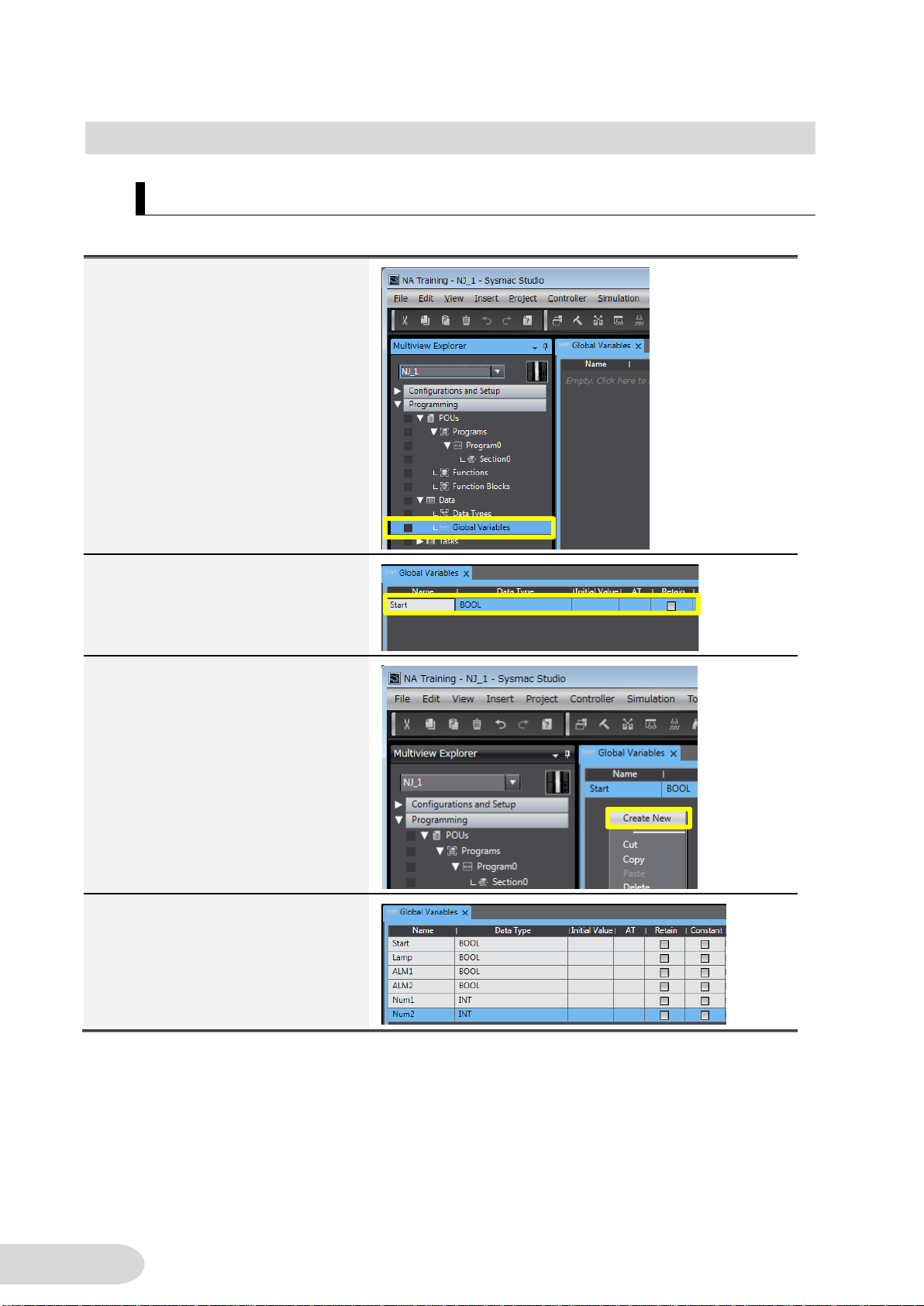

２-３Registering Global Variables..................................................................................14
３Basic Settings ..............................................................................................15
３-１Adding an NA .........................................................................................................15

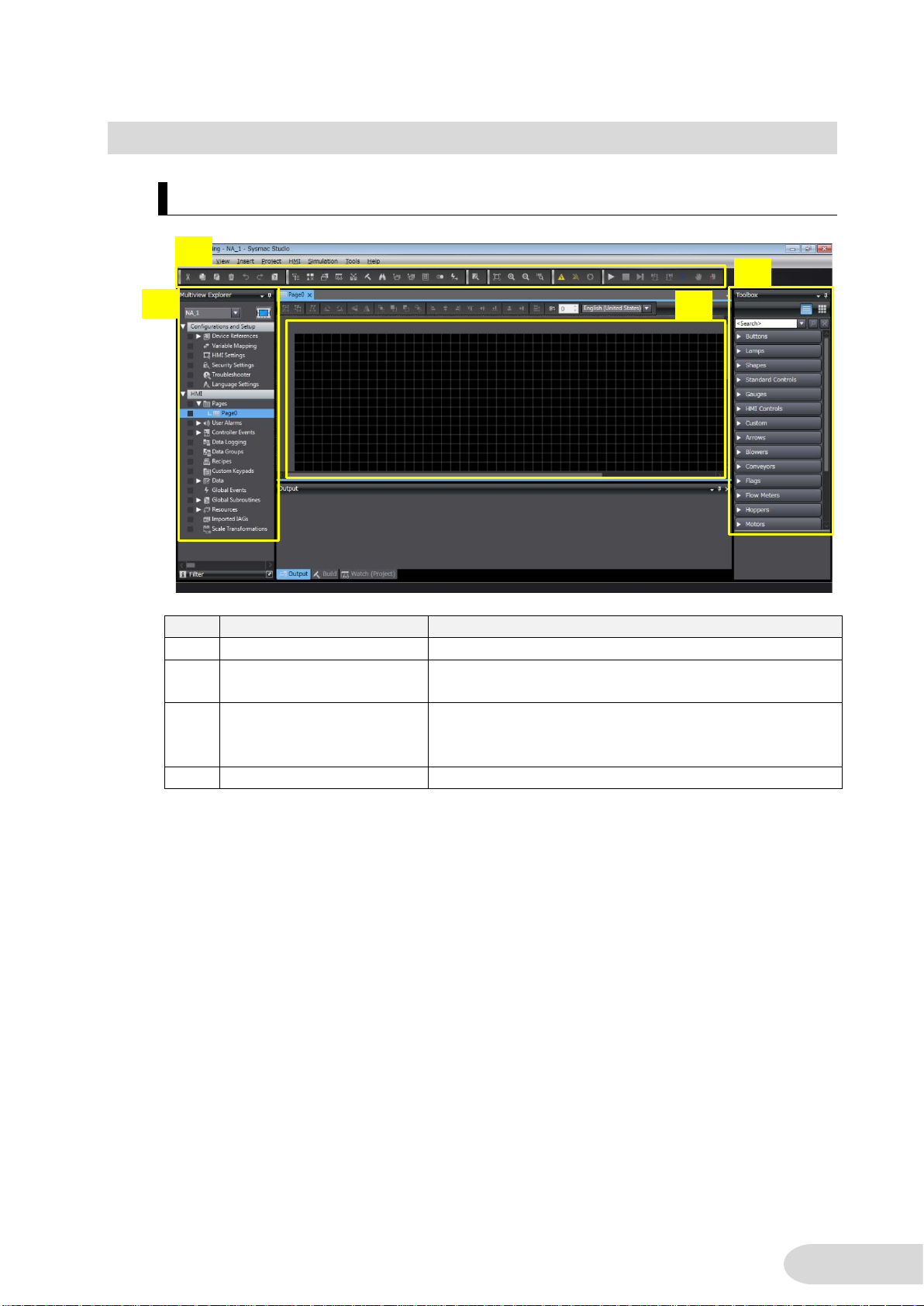

３-２Sysmac Studio Window Components for Creating NA Pages...............................17
３-３NA Communication Settings ..................................................................................18
３-４Registering Variables.............................................................................................19
４Creating Basic Pages..................................................................................22
４-１Adding Pages.........................................................................................................23
４-２Creating ON/OFF Switches....................................................................................27
４-３Creating Bit Lamps.................................................................................................30
４-４Creating Labels......................................................................................................34
４-５Off-line Testing 1....................................................................................................36
４-６Creating the Button to Switch Pages .....................................................................37
４-７Creating Data Display/Edit Objects........................................................................41
４-８Creating Gauges....................................................................................................46

6
４-９Off-line Testing 2....................................................................................................48
４-１０ Creating Alarms......................................................................................................49
４-１１ Displaying PDF Files..............................................................................................55
４-１２ Displaying Videos...................................................................................................56
５Check on the Actual Unit ............................................................................57
５-１Creating a Ladder...................................................................................................57
５-２Synchronization......................................................................................................58
５-３Operations..............................................................................................................60
６Integrated Simulation..................................................................................61
７Reference Materials.....................................................................................62
７-１Correspondence Table of Data Types between the NJ-series Controllers and the
PTs .........................................................................................................................62
７-２NA Series Lineup....................................................................................................63
Revision History ...................................................................................................64

7
Related Manuals
The following manuals are related to this manual.
Cat.No.
Model
Manual Name
W504
SYSMAC-SE2□□□
Sysmac Studio Version 1 Operation Manual
V117
NA5-15W□□□□
NA5-12W□□□□
NA5-9W□□□□
NA5-7W□□□□
NA-
series Programmable Terminal Hardware User’s
Manual
V118 NA5-15W□□□□
NA5-12W□□□□
NA5-9W□□□□
NA5-7W□□□□
NA-
series Programmable Terminal Software User’s
Manual
V119
NA5-15W□□□□
NA5-12W□□□□
NA5-9W□□□□
NA5-7W□□□□
NA-
series Programmable Terminal Device Connection
User’s Manual
V120 NA5-15W□□□□
NA5-12W□□□□
NA5-9W□□□□
NA5-7W□□□□
NA-series Programmable Terminal Startup Guide

8
１Introduction
In this chapter, you will learn what information is required to create the pages on the
NA-series PTs while confirming the contents included in this guide. You will also learn the
system configuration required and the procedure for creating pages.
１-１Overview
１-１-１Overview
As summarized below, this guide explains the procedures to perform settings of the NA
series, to create basic pages, and to transfer them to the actual unit.
１．Creating Projects
・Creating a Project
・Registering Global Variables
・NA Communication Settings
・Registering Variables
２．Creating Basic Pages
・Adding Pages
・ON/OFF Switches
・Bit Lamps
・Labels
・Off-line Testing
・Button to Switch Pages
・Data Edit/Display
・Gauges (Graphs)
・Alarms
・PDF Display
・Video Display
・Integrated Simulation
３．Check on Actual Unit
・Synchronization
・Operation

9
１-２System Configuration
１-２-１System Configuration
The NA series can include multiple NJ units or NA units within a single project as shown in
the figures below.
This guide deals with the projects for the one-to-one (1:1) NJ-NA configuration where a
single NJ is connected with a single NA.
The figure below shows the configuration used in this guide.
The Ethernet is used for communications between the NJ series and NA series, as well as
for the screen data transfer from the PC.
A single project A single project
HUB
IP Address: 192.168.250.10
IP Address: 192.168.250.20
IP Address: 192.168.250.1
Port１

10
１-３Procedure to Create Pages
１-３-１Procedure to Create Pages
Create an NJ project.
Define global variables for the NJ.
Specify the configuration and settings for the NA.
Create necessary global variables on the NA mapping table.
Edit pages.
Add an NA to the NJ project.
Build the NA project.
Integrated NJ and NA simulation
Transfe
Check the operation.
Synchronization

11
２Project Creation
This chapter describes the settings for the NJ that are required before creating pages of the NA
series.
２-１Creating Projects
２-１-１Creating a Project
There are two ways to create a project to create pages for the NA series as described
below:
(1) Add NA to the existing NJ project.
(2) Create a new NA project.
In this guide, you will practice (1).
For (2), refer to the reference materials at the end of the guide.

12
２-２Starting up Sysmac Studio
２-２-１Starting up Sysmac Studio
Start up Sysmac Studio in either way described below:
•Double-click the icon on the desktop.
•Select [START]-[All Programs]-[OMRON]-[Sysmac Studio]-[Sysmac Studio].
２-２-２Creating a New Project
1.
First, create a new project for the
NJ.
Click [New Project] on the Project
window.
2.
Specify the following items, and
click [Create]. A project file is then
created.
・Project name
“Arbitrary project name”
・Device
“NJ301-1100” *
・Version
“1.07” *
* Specify the model and version of
the NJ to be connected. The
versions that are supported for
the NA series are 1.01 and later.

13
２-２-３Changing the Controller Name
２-２-４Confirming the IP Address
To connect NJ with Sysmac Studio via EtherNet/IPTM, confirm the IP address of the NJ side
as described below.
1.
For easy identification, change the
controller name.
Right-click the NJ icon and select
“Rename”.
2.
Change the controller name to
“NJ_1”.
1.
Double-click [Configurations and
Setup]-[Controller Setup]-[Built-in
EtherNet/IP Port Settings].
2.
Confirm that the IP address is
specified as “192.168.250.1”.

14
２-３Registering Global Variables
２-３-１Registering Global Variables
To exchange data with the NA, register the global variables of the NJ.
1.
Double-click
[Programming]-[Data]-[Global
Variables].
2.
Click the variable table and register
a variable name.
3.
Subsequently, right-click on the
variable table and select “Create
New”. Otherwise, press the “Insert”
key.
4.
Register all of the variables listed
on the right.

15
３Basic Settings
This chapter describes the basic procedure to create an NA project, to specify
communication settings, and to register variables.
３-１Adding an NA
３-１-１Adding an NA
1.
Add an NA to the project.
Select [Insert]-[HMI]-[NA5].
2.
Select an option from among the
list according to the actual unit.
For example, if you use a 12-inch
model, select “12W001□”.
For details on models, refer to
Chapter 7.
3.
Select the version.
4.
An NA is now added, and the
display is changed accordingly.

16
5.
Change the NA name for easy
identification. Right-click the NA
icon and select “Rename”.
6.
Change the name to “NA_1”.

17
３-２Sysmac Studio Window Components for Creating NA Pages
３-２-１Sysmac Studio Window Components for Creating NA Pages
Name Description
① Mutiview Explorer Used to select items to set or pages to create.
② Edit Pane Used to perform configuration settings or to create
pages.
③ Toolbar The frequently-used functions such as
“
Build
”
or
“Synchronization” are collected here to facilitate
execution.
④ Toolbox Contain the objects to make screendata.
④
②
①
③

18
３-３NA Communication Settings
３-３-１NA Communication Settings
Specify the Ethernet communication settings following the procedure below.
1.
Double-click [Configurations and
Setup]-[HMI Settings].
2.
Click the “TCP/IP” icon.
3.
Set 192.168.250.20 in “IP
Address”.

19
３-４Registering Variables
３-４-１Variable Mapping Scheme
1.When an NJ exists within the same project in which an NA exists, all of the NJ’s global
variables will be automatically reflected in the NA’s variable mapping table.
2.You can select the variables required to create the pages of the NA series and register
them as the NA series’ global variables. (“Create Device Variable”)
The function is called “variable mapping”, and the names of the NA’s global variables
allocated at this time are specified as “NJ controller name_NJ global variable name”.
When NA is connected with NJ at 1: N, each NJ is identified by the controller name.
Precautions for Correct Use
If you change the variable type or other items of the NJ while variable mapping has
been already performed, a mapping error may occur because the change is
Sysmac Studio Project
NJ
Program
I/O
Map
Global
Variables
NA
Page
Variable
Mapping
Global
Variables
Hardware 2
1
Controller name: NJ_1
Variable: start Variable: start Variable: start
Variable: NJ_1_start
Variable: NJ_2_start
Variable: NJ_3_start
Controller name: NJ_2 Controller name: NJ_3

20
automatically reported to the NA.
３-４-２Variable Mapping Procedure
1.
Double-click [Configurations and
Setup]-[Variable Mapping].
2.
The controllers that exist within the
project appear on the table.
When you click the arrowhead to
the left of “NJ_1”, the categories of
the variables defined for the NJ_1
controller appear.
3.
Subsequently, when you click the
arrowhead to the left of “User
Variables”, you can confirm the
variables defined as global
variables.
4. Perform variable mapping for all the
user variables.
Select all the variables from “ALM1”
to “Start” and then right-click on the
rows to select “Create Device
Variable”.
5.
The NA variables are now created.
The names of the variables are
specified as “Controller name_NJ
variable name”.
