Omron POWLI BX75XS2 User manual

•This manual gives you important information to use the BX75XS2 safely and therefore be sure
to read it before installation and use.
•Keep this manual handy at the place where you install the BX75XS2 so that you can read it
whenever necessary.
Uninterruptible Power Supply (UPS)
Instruction Manual
BX75XS2
01-cover.pm65 03.6.20, 11:11 AMPage 1 AdobePageMaker6.5J/PPC

Introduction
Notes on the use of the Unit
●The unit is designed and manufactured for use for OA equipment such as personal computers.
Do not use it when very high reliability and safety are required as listed below.
•Medical equipment that may cause death directly
•Applications that may cause injury (applications that directly affect the operation and control
of planes, ships, railroads, elevators, and so on)
•Applications that are always subjected to vibration such as cars and ships
•Applications in which a failure of this product may cause significant damage or effect to
the society and public
(essential computer systems, main communication equipment, public transportation
systems, and so on)
•Equipment with the same level of importance
●For equipment that greatly affects the safety of people and maintaining public functions,
special considerations must be taken for operation, maintenance, and management, such
as duplication of the system and emergency power generation facilities.
●Observe the contents of this manual such as the use conditions and environments.
●If you want to use the unit for an important system that requires very high reliability, contact
us;______
●Do not modify/alter the unit.
●The unit is designed for use inside Japan only. Do not use it in foreign countries.
•If the voltage or frequency of the power supply differs, a failure or fire may occur.
•the unit does not comply with overseas safety standards and the EMI standards/regula-
tions.
•For power supply, use a commercial power of AC100V (50Hz/60Hz).
©OMRON Corporation. 2002 All Rights Reserved.
Introduction
Thank you for purchasing the POWLI BX75XS2 Uninterruptible Power Supply (UPS).
the unit is designed specifically to personal computers.
●It protects (backs up) personal computers, displays, peripherals, and so on up to a power
consumption of 750VA/450W from failure of power supply such as power failures and volt-
age variations.
●It protects connected devices from surge coming from power line.
●You can easily replace batteries by yourself.
Read this manual thoroughly to make the most of the unit.
Disclaimers
We are not liable to all damage including malfunction and failure of equipment, connected devices,
and software and other secondary damage even if it is caused by the use of our product.
02-Introduction 03.6.20, 11:11 AMPage 1 AdobePageMaker6.5J/PPC

1
IMPORTANT SAFETY INSTRUCTION
1. SAVE THESE INSTRUCTIONS.
This manual contains important instruction for Model BX75XS2.
That should be followed during instruction of the UPS and batteries.
2. SYMBOL
This symbol indicates earth ground.
This symbol indicates turining on UPS.
This symbol indicates turining off UPS.
3. INTERNAL BATTERY.
Internal battery voltage is 24Vdc.
4. TEMPERATURE RATING.
Maximun ambit temperature of UPS 40°C.
5. ENVIRONMENT
The unit is intended for installation in a temperature controlled, indoor area
free of conductive contaminants.
03-Important-p1 03.6.20, 11:11 AMPage 1 AdobePageMaker6.5J/PPC

2
Table of Contents
■Table of Contents ■
Introduction
IMPORTANT SAFETY INSTRUCTION .............................................................................................................. 1
Safety precautions ............................................................................................................................................. 3
1. Preparation ................................................................................................................................................... 9
1-1 Checking the contents ......................................................................................................................... 9
1-2 Name of each part ............................................................................................................................... 9
1-3 Explanetion of symbol used on unit..................................................................................................... 9
2. Installation and connection ......................................................................................................................... 10
2-1 Precautions and notes on installation and connection ...................................................................... 10
2-2 Installation and connection ................................................................................................................ 13
2-3 Checking the operation ..................................................................................................................... 15
3. Preparation for Operation ........................................................................................................................... 17
3-1 Charging the battery .......................................................................................................................... 17
3-2 Measuring the initial value of backup time ........................................................................................ 17
3-3 Recharging the battery ...................................................................................................................... 17
4. Operation .................................................................................................................................................... 18
4-1 Precautions and notes on operation.................................................................................................. 18
4-2 Start and stop procedures and basic operation................................................................................. 19
4-3 Interpreting a beep and display ......................................................................................................... 21
4-4 Suspending a beep ........................................................................................................................... 22
4-5 Description of the self-diagnostic test function .................................................................................. 22
4-6 Description of the auto battery test function ...................................................................................... 23
4-7 Changing the setting of the functions ................................................................................................ 23
5. Maintenance and inspection ....................................................................................................................... 25
5-1 Checking the battery ......................................................................................................................... 25
5-2 Replacing the battery ........................................................................................................................ 26
5-3 Cleaning ............................................................................................................................................ 29
6. Using the Contact Signal ............................................................................................................................ 30
7. Measuring the backup time (checking the discharge time of the battery) .................................................. 33
7-1 Measuring method of the backup time .............................................................................................. 33
7-2 Estimated backup time ...................................................................................................................... 33
8. Troubleshooting .......................................................................................................................................... 35
9. Description of related products ................................................................................................................... 36
9-1 Using the Network Line Surge Protection Function........................................................................... 36
9-2 Using the UPS monitoring software .................................................................................................. 37
References ....................................................................................................................................................... 40
A. Specifications ........................................................................................................................................ 40
B. Related products................................................................................................................................... 40
C. Dimensional outline drawing (unit: mm) ................................................................................................ 41
D. Circuit block diagram ............................................................................................................................ 42
04-contents-p2 03.6.20, 11:11 AMPage 2 AdobePageMaker6.5J/PPC

3
Safety precautions
:Indicates prohibition. For example, indicates that disassembly is prohibited.
:Indicates obligation. For example, indicates that grounding is necessary.
Misuse may cause death or serious injury.
Warning
Caution
Safety precautions
●The safety symbols and their meaning used in this manual are as follows:
* Property damage means damage to houses/household effects, livestock, and pets.
Note that events categorized as a caution required matter also may cause more serious results under certain
conditions.
Do not use this product when very high reliability and safety are required
as listed below. (This product is designed and manufactured for use for
OA equipment such as personal computers.)
●Medical equipment or system that may cause death directly.
●Applications that directly affect the safety of people (For example, the operation and control
of cars and elevators).
●Applications in which a failure of the unit may cause significant damage to the society and
public (For example, essential computer systems and main communication equipment.)
●Applications with the same level of importance.
Warning
Important information for safe operation is described.
Be sure to read it before installation and start of use.
Misuse may cause injury or property damage.
Carry the unit considering its weight and balance, and place it on a stable
and robust base.
●Dropping or toppling the unit may cause injury.
●The weight of the unit is approximately 7.7 kg.
●If you drop the unit, stop using it and have an inspection and repair be done.
For repair, contact us; ____
Keep plastic package bags out of reach of children.
●They may put their heads into it, and may be suffocated.
Be sure to connect the input plug of the unit to a wall outlet (commercial
power) of 100VAC (50/60Hz).
●Connecting it to a wall outlet (commercial power) of a different voltage may cause a fire.
●The unit may fail.
Caution (for installation and connection)
05-safty-p3-8 03.6.20, 11:11 AMPage 3 AdobePageMaker6.5J/PPC

4
Safety precautions
Connect the unit to a wall outlet (commercial power) with a current capacity
larger than 12A.
●Otherwise, the power cord may be heated.
●When an equipment of the maximum output capacity is connected, the current flows up to
12A.
Provide secure grounding.
●For a 3P wall outlet, directly connect the 100-VAC input plug of the unit to it. Not doing so may
cause an electric shock in the case of unit failure or electric leakage.
●When you use a 3P-2P conversion plug for 100-VAC input plug, be sure to perform grounding
before connecting the 100-VAC input plug into a wall outlet (commercial power).
Do not disconnect the grounding before disconnecting the 100-VAC input plug from a wall
outlet (commercial power).
●Grounding is necessary to enable its surge protection function.
Do not disassemble, repair, or modify the unit.
●Doing so may cause an electric shock or a fire.
Do not install the unit in other than specified orientations.
●Dropping or toppling the unit may cause injury.
●If you install the unit in an orientation other than specified, the unit cannot be protected from a
battery fluid leakage.

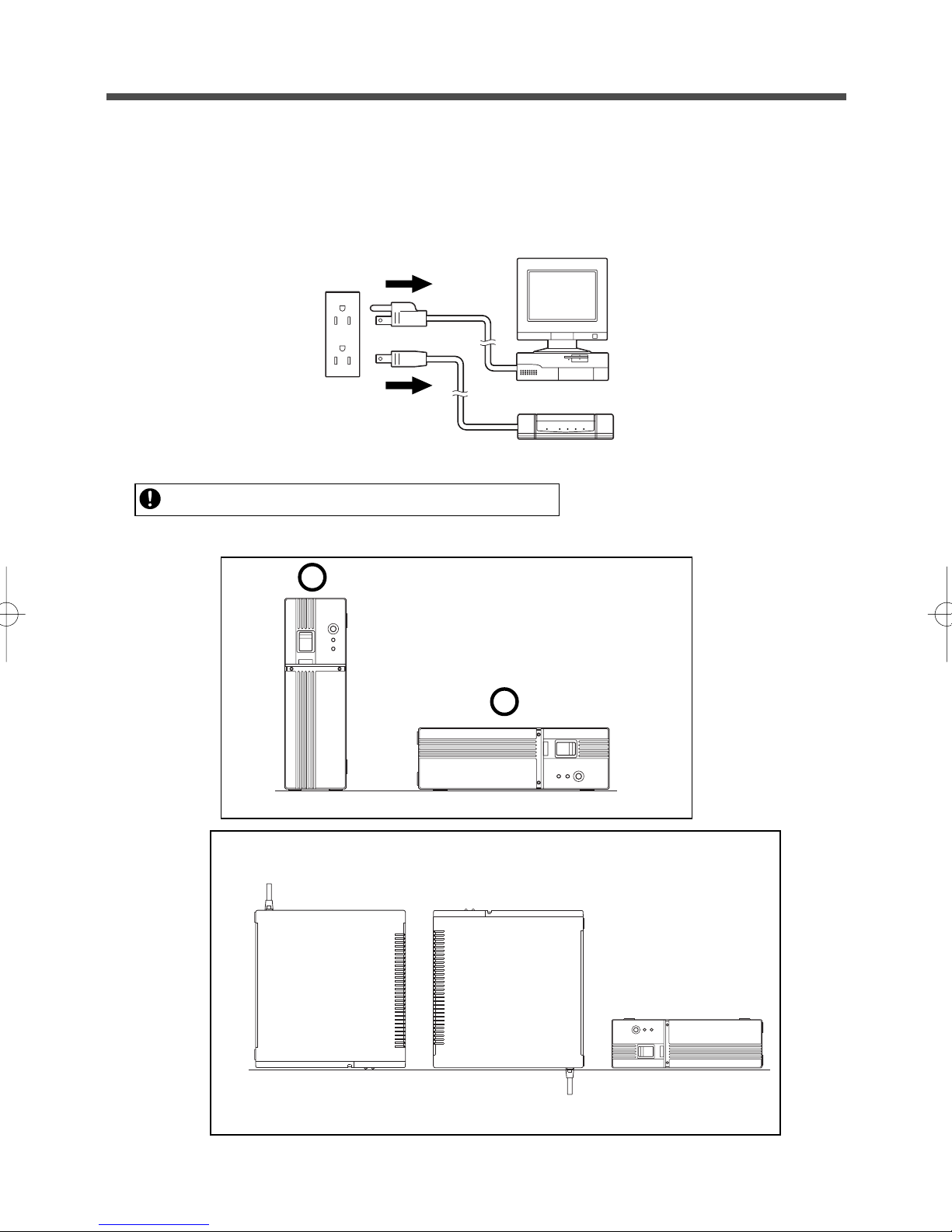

When installing the unit vertically, do not put any object on it.
When installing the unit horizontally, do not put any object heavier than
25kg.
●Doing so may cause distortion of/damage to the case, which may cause a fire.
Do not use the unit where the maximum temperature exceeds 40°C.
●The battery becomes weak rapidly and may cause a fire.
●Doing so may cause a failure or malfunction of the unit.
Do not install or store the unit in the places listed below.
●The humidity is lower than 10%. The humidity is higher than 85%. A closed place such as in a
cabinet without clearance. There is flammable gas or corrosive gas. A place subject to vibra-
tion or shock. Outdoors.
●Installation or storing the unit in such a place may cause a fire.
Do not use the unit in a closed place or do not cover the unit.
●Doing so may cause abnormal heating or a fire.
Do not connect equipment that exceeds the output capacity of the unit.
●The current protection of the unit may operate, which may stop the output.
●The wiring of the plug strip heats up, which may cause a fire.
Do not pinch or tie the cable of the unit.
●Doing so may cause the cable to be damaged or heated, which may cause an electric shock
or a fire.
●If the cable is damaged, stop using the unit and the cable must be repaired.
For repair, contact us; ____
Caution (for installation and connection)
05-safty-p3-8 03.6.20, 11:11 AMPage 4 AdobePageMaker6.5J/PPC

5
Safety precautions
Do not wet or pour water onto the unit.
●Doing so may cause an electric shock or a fire.
●If you wet the unit, stop using it and the unit must be inspected and/or repaired.
For repair, contact us; ____
When the battery is dead, replace it immediately or stop using the unit.
●Continuing the use of it may cause a fire.
Wipe the 100-VAC input plug clean of dirt with a dry cloth occasionally.
●Settled dust may cause a fire.
If you notice abnormal sound or smell, smoke, or leakage from the inside,
immediately turn off the power switch and disconnect the 100-VAC input
plug from a wall outlet (commercial power).
●Using the unit under such conditions may cause a fire.
●If you notice such a condition, never use the unit and contact us; ____ for inspection and
repair.
●Use the unit under the conditions in which you can immediately disconnect the 100-VAC input
plug from a wall outlet (commercial power) in the case of an abnormal event.
If fluid leaks from the unit, do not touch the fluid.
●Doing so may cause blindness or burns.
●If the fluid contacts your eyes or skin, wash it out with lots of clean water and consult your
doctor.
Caution (for use)
*The values in the table are the expected life under standard
use conditions and are not guaranteed.
Ambient temperature
20°C
30°C
Expected life
4 to 5 years
2 to 2.5 years
Caution (for installation and connection)
●This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit The
unit contains no user serviceable parts.Only factory service personnel may perform repairs.
●Connection to any other type of receptacle other than a two-pole,three-wire grounded recep-
tacle may result in shock hazard as well as violate local electical codes.
●Do not allow liquids or any foreign object to enter the UPS.DO not place beverages or any
other liquid-containing vessels on or near the unit.
●This unit intended for installation in a controlled environment (temperature controlled, indoor
area free of conductive contaminants).Avoid installing the UPS in locations where there is
standing or running water,or excessive humidity.
●Do not attach a power strip or surge suppressor to the UPS.
●Do not attach non-computer-related items,such as medical equipment,life-support
equipment,microwave ovens,or vacuum cleaners to UPS
●With the installation of the equipment it should be prevented, that the sum of the leakage
current of the UPS and the connected consumer does not exceed 3.5mA.
05-safty-p3-8 03.6.20, 11:11 AMPage 5 AdobePageMaker6.5J/PPC

6
Safety precautions
Perform replacement on a stable and flat place.
●Handle the battery carefully not to drop it.
●Not doing so could cause injury or burns due to liquid (acid) leakage.
Use a specified battery for replacement.
●Not doing so may cause a fire.
●Product model: BP75XSX (battery pack for BX75XS2)
Do not replace the battery in a place where there is flammable gas.
●Spark may occur when connecting the battery, which may cause an explosion or fire.
If fluid (dilute sulfuric acid) leaks from the battery, do not touch the fluid.
●Doing so may cause blindness or burns.
●If it contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.
Do not disassemble or modify the battery.
●Doing so could cause dilute sulfuric acid leak, which could cause blindness and burns.
Do not drop the battery or do not give strong impact on it.
●Dilute sulfuric acid may leak.
Do not short the battery with metal objects.
●Doing so could cause an electric shock, fire or burn.
●Some electrical energy still remains inside the spent battery.
Do not put the battery into fire or do not break it.
●The battery may explode or leak dilute sulfuric acid.
●A battery can present a risk of electrical shock and high short circuit current.The following
precautions should be observed when working on batteries:
1) Remove watches, rings, or other metal objects from the hands.
2) Use tools with insulated handles.
3) Wear rubber gloves and boots.
4) Do not lay tools or metal parts on top of batteries.
5) Disconnect charging source prior to connecting or disconnecting batteries terminals.
Caution (for battery replacement)
When maintaining connected equipment, turn off the power switch.
●Even if you disconnect the AC input plug while the UPS is operating, the power output of the
BX75XS2 is not stopped and 100 VAC is supplied from the wall outlet.
●Do not use liquid or spray detergent.
Do not disassemble, repair, or modify the unit.
●Doing so may cause an electric shock or a fire.
If fluid leaks from the unit, do not touch the fluid.
●Doing so may cause blindness or burns.
● If the fluid contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.
Do not throw the unit into fire.
●The lead battery in the unit may explode, or leak dilute sulfuric acid.
Caution (for maintenance and discarding)
05-safty-p3-8 03.6.20, 11:11 AMPage 6 AdobePageMaker6.5J/PPC

7
Safety precautions
Notes
When moving the unit from a cold place to a warm place, leave it for several hours
before using it.
●If the unit is moved to a warmer place and the power is turned on soon, the unit failure may occur due to
condensation to the unit.
Charge the battery for at least 12 hours soon after purchasing the unit.
●If you do not use the unit for a long time after the purchase, the property of the battery may deteriorate and
the battery may become unusable.
●To charge a battery, connect the 100-VAC input plug of the unit to a wall outlet (commercial power).
When storing the unit, charge the battery for at least 12 hours and turn off the power
switch.
●Even if the unit is not used, the battery gradually discharges, and if it is left for a long time, it goes into an
over discharge state.
The backup time may become shorter or the battery may become unusable.
●The storable period of the built-in battery of the unit is 6 months after complete charging.
●If you want to store the battery longer than 6 months, connect the AC input plug of the unit to a commercial
power wall outlet for at least 12 hours within 6 months.
●Turn off the power switch of the unit during storage.
Do not short the output lines of the unit each other and the output lines to the ground.
●The unit may fail.
Do not connect the 100 VAC input plug of the unit to its Power Supply Output
Receptacle during the Battery Mode.
●The unit may fail.
Do not connect a page printer (laser printer, etc.) to the unit.
●The Commercial Power Mode and Battery Mode are repeated frequently, which may shorten the life of the
battery.
●As the peak current of a page printer is large, an excess of the connection capacity or a power failure due
to instantaneous voltage drop may be detected.
Do not use the unit for devices that malfunction due to an instantaneous power
failure of 10msec (0.01 second) or less.
●The connected device may stop due to switching time of 10msec or less.
Do not use the unit for inductive devices such as fluorescent lamps.
●Connected devices may stop due to a rectangular wave output.
●Inductive devices include devices incorporating transformers, coils, motors, and so on for their input.
Caution (for battery replacement)
●Servicing of batteries should be performed or supervised by personnel knowledgeable of
batteries and the required precautions. Keep unauthorized personnel away from batteries.
05-safty-p3-8 03.6.20, 11:11 AMPage 7 AdobePageMaker6.5J/PPC

8
Safety precautions
Notes
Do not install or store the unit in a place exposed to direct sunlight.
●The rise of temperature may cause the built-in battery to deteriorate rapidly and become unusable.
Do not perform a withstand voltage test.
●The input circuit has a built-in surge absorption device. A withstand voltage test may break it.
●When performing an insulation resistance test, use the 250VDC range.
Before turning off the commercial power, turn off the power switch of the unit.
If you cannot turn off the power switch, it is recommended to use UPS monitoring
software to automatically stop the unit with the minimum backup time.
●When you stop commercial power, the Battery Mode starts. If you frequently use the unit in the Battery Mode
after turning off the commercial power, charging and discharging of the battery is repeated and the battery
life decreases extremely. The less the amount of charging and discharging is, the less the adverse effect on
the life becomes.
Explanation
Usual operation
●You may either leave the power switch of the unit on (operation status) or turn it off each time when stopping
the connected system. You can choose either of the operation methods for your convenience. We recom-
mend turning off the power switch when you do not use connected devices for a long time.
●The battery is charged when the 100 VAC input plug of the unit is connected to a wall outlet (commercial
power).
End of Battery Mode
●If a power failure lasts long, the battery discharges and power output from the unit stops. Shut down your
computer after performing appropriate procedure (for example, saving data) while the unit supplies power.
Reboot
●If the battery discharges completely during a power failure, the unit stops. After the recovery from the power
failure, the unit automatically restarts and supplies power. If you do not want to restart connected devices,
turn off the power switch of either the unit or the connected devices.
Notes
Recycling and Discarding the Battery
●The UPS uses a lead acid battery. It is recyclable, precious resources. Please recycle it
when you replace it or discard the produce you do not use any more.
Pb
05-safty-p3-8 03.6.20, 11:11 AMPage 8 AdobePageMaker6.5J/PPC

9
1. Preparation

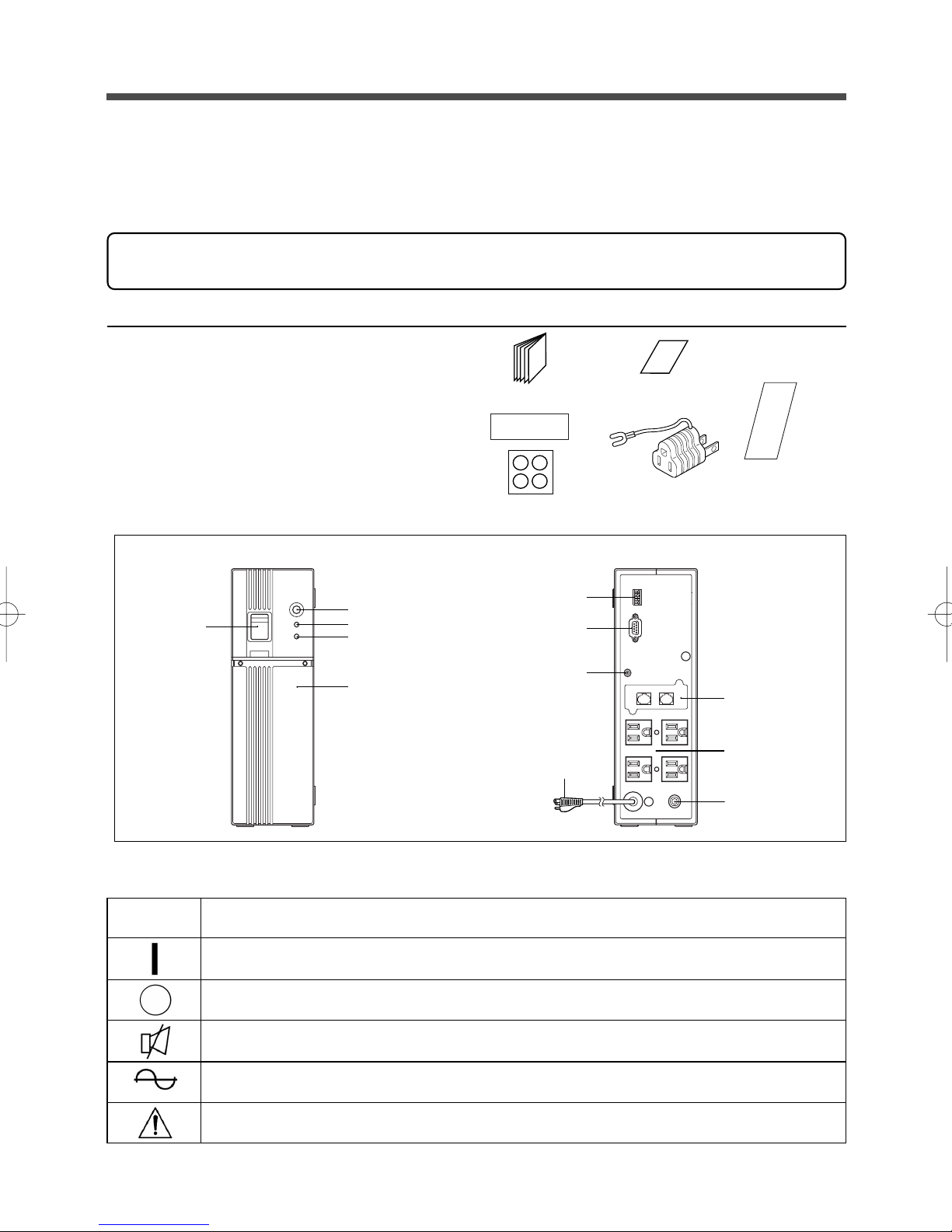

1-2 Name of each part
1. Preparation
1-1 Checking the contents
Check whether all the package contents are included and there is no damage found on their appearance.
If you should notice defects or anything wrong, contact us; ____
BX75XS2
1. Instruction Manual ................................... 1 pc.
2. Warranty card .......................................... 1 pc.
3. User registration card .............................. 1 pc.
4. 3P-2P conversion adapter ....................... 1 pc.
5. Rubber feet .............................................. 4 pc.
6. Label (Judgment of Operation Mode) ..... 1 pc.
Front view Rear view
1-3 Explanetion of symbol used on unit
Symbol Description
Start the UPS.
Stop the UPS.
Suspend a beep.
UPS output power enable, supplied by operating on line mode, battery mode.
UPS has Error.
Grounding
Terminal
AC Input Overcurrent
Protection
100VAC Input
Cord and Plug
Setting Switch
Network Surge
Protection
(Option)
Contact Signal
Connector
Power Supply
Output Receptacle
Power Switch
Beep Stop/Test Switch
Alarm Lamp (red)
Power Output (green)
Battery Replacement
Cover
Instruction Manual User registration card
3P-2P conversion plug
Rubber feet
Warranty card
Lavel
85
200
06-chp1-p9 03.6.20, 11:11 AMPage 9 AdobePageMaker6.5J/PPC

10
2. Installation and connection
Caution (for installation and connection)
2. Installation and connection
2-1 Precautions and notes on installation and connection
Carry the unit considering its weight and balance and place it on a stable
and robust base.
●Dropping or toppling the unit may cause injury.
●The weight of the unit is approximately 7.7 kg.
●If you drop the unit, stop using it and the unit must be inspected and/or repaired.
For repair, contact us; ____
Keep plastic package bags out of reach of children.
●They may put their head into it, and may be suffocated.
Be sure to connect the input plug of the unit to a wall outlet (commercial
power) of 100VAC (50/60Hz).
●Connecting it to a wall outlet (commercial power) of a different voltage may cause a fire.
●The unit may fail.
Connect the unit to a wall outlet (commercial power) with a current capacity
larger than 12A.
●Otherwise, the power cord may be heated.
●When the equipment of the maximum output capacity is connected, the current flows up to
12A.
Provide secure grounding.

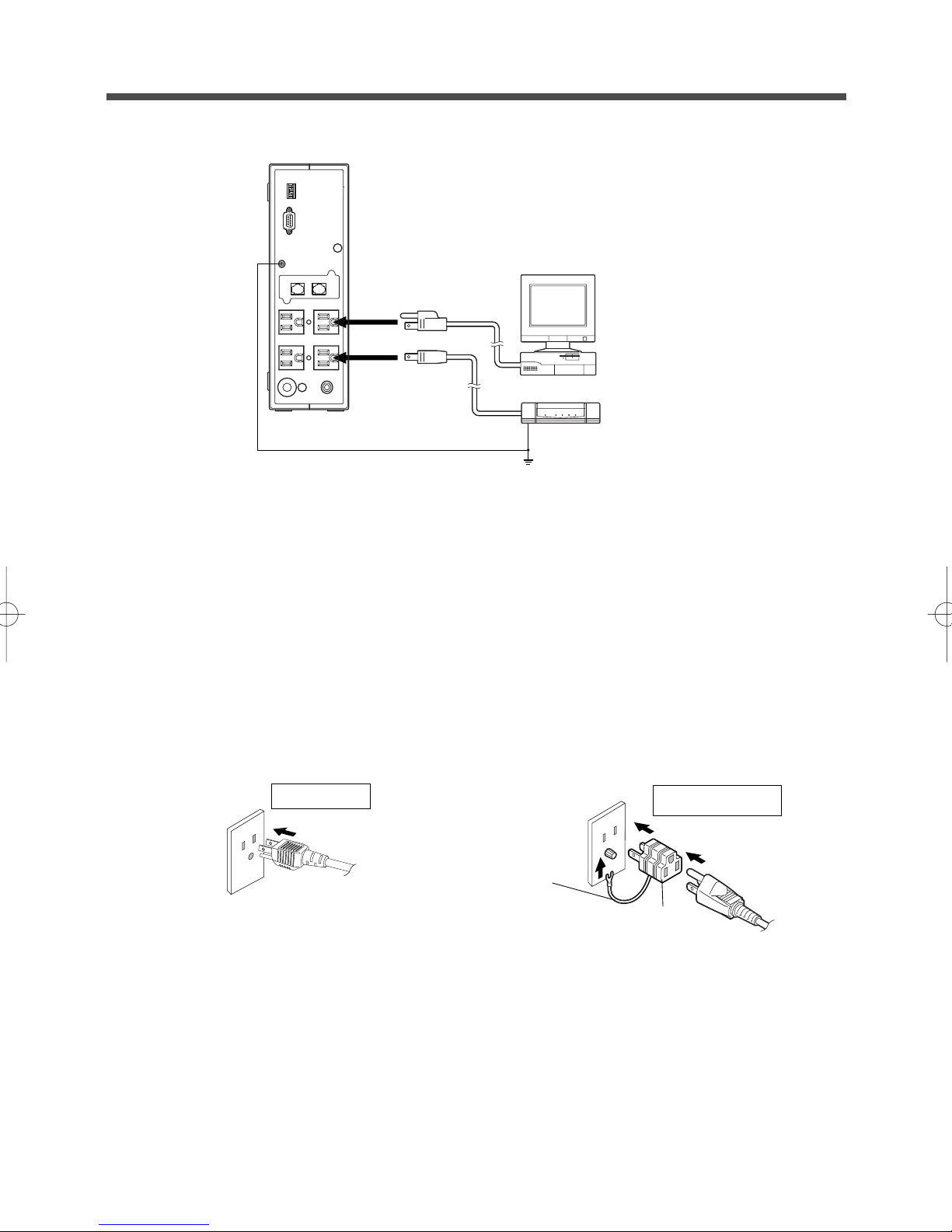

●For a 3P wall outlet, directly connect the 100 VAC input plug of the unit to it.
(Refer to "2. Installation and connection" on page 13.)
Not doing so may cause an electric shock in case of a operation failure or any leakage.
●When you use the 3P-2P Conversion Plug for the 100 VAC input plug, be sure to perform
grounding before connecting the 100 VAC Input Plug into a wall outlet (commercial power).
Do not disconnect the grounding before disconnecting the 100 VAC input plug from a wall
outlet (commercial power).
●Grounding is necessary to enable its surge protection function. For repair, contact us; ____
Do not disassemble, repair, or modify the unit.
●Doing so may cause an electric shock or a fire.
Do not install the unit in other than specified orientations.
●Dropping or toppling the unit may cause injury.
●If you install the unit in an orientation other than specified, the unit cannot be protected from a
battery fluid leakage.
When installing the unit vertically, do not put any object on it.
When installing the unit horizontally, do not put any object heavier than
25kg.
●Doing so may cause distortion of/damage to the case, which may cause a fire.
07-chp2-1-p10-12 03.6.20, 11:11 AMPage 10 AdobePageMaker6.5J/PPC

11
2. Installation and connection
Notes
When moving the unit from a cold place to a warm place, leave it for several hours
before using it.
●If the unit is moved to a warmer place and the power is turned on soon, the unit failure may occur due to
condensation to the unit.
Charge the battery for at least 12 hours soon after purchasing the unit.
●If you do not use the unit for a long time after the purchase, the property of the battery may deteriorate and
the battery may become unusable.
●To charge a battery, connect the 100 VAC input plug of the unit to a wall outlet (commercial power).
When storing the unit, charge the battery for at least 12 hours before storage.
●Even if the unit is not used, the battery gradually discharges, and the battery is left for a log time, it goes into
an over discharge state.
The backup time may become shorter or the battery may become unusable.
●The storable period of the built-in battery of the unit is 6 months after complete charging.
●If you want to store the battery longer than 6 months, connect the AC input plug of the unit to a commercial
power wall outlet for at least 12 hours within 6 months.
●Turn off the power switch of the unit during storage.
Do not short the output lines of the unit each other and the output lines to the ground.
●The unit may fail.
Caution (for installation and connection)
Do not use the unit where the maximum temperature exceeds 40°C.
●The battery becomes week rapidly, which may cause a fire.
●Doing so may cause a failure or malfunction of the unit. Do not install or store the product in
the places listed below.
Do not install or store the unit in a place as listed below.
●The humidity is lower than 10%. The humidity is higher than 85%. A closed place such as in a
cabinet without clearance. There is flammable gas or corrosive gas. A place subject to vibra-
tion or shock. Outdoors.
●Installation or storing the unit in such a place may cause a fire.
Do not use the unit in a closed place or do not cover the unit.
●Doing so may cause abnormal heating or a fire.
Do not connect equipment that exceeds the output capacity of the unit.
●The current protection of the unit may operate, which may stop the output.
●The wiring of the plug strip heats up, which may cause a fire.
Do not pinch or tie the cable of the unit.
●Doing so may cause the cable to be damaged or heated, which may cause an electric shock
or a fire.
●If the cable is damaged, stop using the unit and the cable must be repaired.
For repair, contact us; ____
07-chp2-1-p10-12 03.6.20, 11:11 AMPage 11 AdobePageMaker6.5J/PPC

12
2. Installation and connection
Notes
Do not connect the 100 VAC input plug of the unit to its Power Supply Output
Receptacle during the Battery Mode.
●the unit may fail.
Do not connect a page printer (laser printer etc.) to the unit.
●The Commercial Power Mode and Battery Mode are repeated frequently, which may shorten the life of the
battery.
●As the peak current of a page printer is large, an excess of the connection capacity or a power failure due
to instantaneous voltage drop may be detected.
Do not use the unit for devices that malfunction due to an instantaneous power
failure of 10msec (0.01 second) or less.
●The connected device may stop due to the switching time of 10msec or less.
Do not use the unit for inductive devices such as fluorescent lamps.
●Connected devices may stop due to a rectangular wave output.
●Inductive devices include devices incorporating transformers, coils, motors, and so on for their input.
Do not install or store the unit in a place exposed to direct sunlight.
●The rise of temperature may cause the built-in battery to deteriorate rapidly and become unusable.
Do not perform a withstand voltage test.
●The input circuit has a built-in surge absorption device. A withstand voltage test may break it.
●When performing an insulation resistance test, use the 250 VDC range.
07-chp2-1-p10-12 03.6.20, 11:11 AMPage 12 AdobePageMaker6.5J/PPC

13
2. Installation and connection
2-2 Installation and connection
Connection to back up your computer and peripherals
(1) Disconnect all AC input plugs of your computer and peripherals from a wall outlet (commercial power).
(2) Install the unit.
●Do not use this unit in an orientation other than the correct ones shown in the figure below.
Write the date of starting use on the label on the side.
Vertical Correct installation orientation
*Stick the attached rubber feet in the 4 corners on the bottom surface.
Horizontal
Wrong installation orientation
Placing the left side
downward.
✕
✕✕
Placing the front
downward.
Placing the rear
downward.
Computer
Modem or other
peripheral
Wall outlet
(commercial power)
08-chp2-2-p13-16 03.6.20, 11:11 AMPage 13 AdobePageMaker6.5J/PPC

14
2. Installation and connection
100 VAC input 
plug of the unit
Plug of connected

device

Connect it directly. Use the attached 3P-2P 
Conversion Plug.

Attached 3P-2P 
Conversion Plug 


Wall outlet 
(commercial power)

Connect the
grounding wire to the
grounding terminal
equipped to the
building. (Grounding 
means must be
provided if there is
none.)
Wall outlet 
(commercial power)


(3) Connect devices you want to back up to the Power Supply Output Receptacles of the unit.
You can connect devices of up to 750 VA (7.5A) or 450W in total.
(4) When the installation and connection are complete, connect the 100 VAC input plug of this unit to a wall
outlet (commercial power).
When you connect the 100 VAC input plug of this unit to a wall outlet (commercial power), battery charging
automatically starts regardless of the on/off state of the Power Switch and charging completes within 12
hours.
•Even if the input plug of a device you want to connect is 2-pin type, you can connect it
directly to the Power Supply Output Receptacle of the UPS. Note that if the input plug is
2-pin type with a grounding wire, connect the grounding wire to the Grounding Terminal
of the UPS.
•IF you want to use an AC adaptor, connect it to a Power Supply Output Receptacle of
the UPS with sufficient space for the connection.
●Precautions for grounding connection
The backup function of the unit will not be affected even if you do not ground it, but please note the
following:
•Attenuation effect against surge voltage caused by lightning, etc. decreases.
•If connected devices are not grounded, you may get an electric shock due to leak current when you
touch metal parts.
< 3P wall outlet > < 2P wall outlet >
Computer
Modem or other peripheral
A Grounding Terminal is provided for such cases
as the AC plug does not provide any grounding
means.
08-chp2-2-p13-16 03.6.20, 11:11 AMPage 14 AdobePageMaker6.5J/PPC

15
2. Installation and connection
2-3 Checking the operation
When you are complete with connecting devices to the unit, the backup function must be confirmed.
Check that the Battery Mode is performed normally according to the following procedure.
This operation check simulates a power failure by disconnecting the AC input plug from a wall outlet.)
(1) Turn on the Power Switch of this unit.
The beeper sounds and the Power Output Lamp goes on.
After 5 secounds, the self-diagnostic test is performed in Battery Mode for approximately 3 seconds.
When the self-diagnostic test finishes successfully, switching to 100 VAC output from commercial power is
performed and the following display is obtained.
(If the battery voltage is low, the self-diagnostic test is not performed and the operation starts immediately,
using output from commercial power.)
(2) Bring all the connected devices into operation.
(Including devices connected to the AC outlet of your PC.)
Operate the devices in a way in which abrupt power stop does not damage the connected devices, data,
etc.
This unit has been charged prior to shipment. However, the backup time becomes shorter when using it for
the first time due to spontaneous discharge. We recommend charging this unit before using it.
(3) Under this condition, check the display lamps and a beep of this unit.
Are they in the same status as shown below?
Are the same as shown above. ➜The operation is normal. Proceed to (4).
Are not the same as shown above. ➜The operation is abnormal. One of the description in "3. Display
and beep when a failure occurs in equipment" of "4-3 Interpreting a
beep and display" on page 21 must apply.
Take necessary measures and then proceed to (4).
(4) Disconnect the 100-VAC input plug of this unit from a wall outlet (commercial power).
The UPS enters Battery Mode.
(5) In Battery Mode, check the display lamps and a beep of the unit.
Are the lamps in the same status as A or B below?
(Red) Alarm Off
(Green) Power Output On
(Red) Alarm Off
(Green) Power Output On
Beep None
Power Supply Output Receptacles Supply power (connected devices are powered).
AB
(Red) Alarm
(Green) Power Output
Beep (when the beep setting is ON)
Beep (when the beep setting is OFF)
Power Supply Output Receptacles
Off
Blinks with an interval of 4 seconds
Beeps with an interval of 4 seconds
None
Supply power.
(Connected devices are powered.)
Off
Blinks with an interval of 1 second
Beeps with an interval of 1 second
None
Supply power.
(Connected devices are powered.)
08-chp2-2-p13-16 03.6.20, 11:11 AMPage 15 AdobePageMaker6.5J/PPC

16
2. Installation and connection
Are the same as shown above. ➜When A: Operation is normal. The battery is charged sufficiently.
➜When B: Operation is normal, but the battery is not sufficiently
charged.
Are not the same as shown above. ➜Operation is abnormal. Check the status of lamps and beep and
turn off the Power Switch.
•If the display is No.7 or No.8 of "3. Display and beep when a
failure occurs in equipment" of "4-3 Interpreting a beep and dis-
play" on page 21, take necessary measures and then go back
to (1) on page 15.
•If no Battery Mode is performed and the UPS and the connected
devices stop, insufficient charging of the battery is suspected.
Connect the 100 VAC input plug of the UPS to a wall outlet (com-
mercial power), charge the battery for approximately 6 hours,
and then go back to (4) on page 15.
•If the problem persists after checking the 2 points above, con-
tact us; ____
(6) Connect the 100 VAC input plug to a wall outlet (commercial power) again.
The Power Output Lamp stops blinking and turns on without intervals, and the beeper stops.
(The status is as shown below.)
Checking the operation is now complete.
Installation and connection is now complete.
(Red) Alarm Off
(Green) Power Output On
Beep None
Power Supply Output Receptacles Supply power (connected devices are powered).
08-chp2-2-p13-16 03.6.20, 11:11 AMPage 16 AdobePageMaker6.5J/PPC

17
3. Preparation for operation
3. Preparation for operation
3-1 Charging the battery
When you connect the 100 VAC input plug of this unit to a wall outlet (commercial power), the battery
charging automatically starts regardless of the on/off state of the Power Switch, and it is fully charged
within 12 hours.
●This unit has been charged prior to shipment. However, the backup time becomes shorter when using it for
the first time due to spontaneous discharge. We recommend charging this unit before using it.
●When you do not perform "3-2 Measuring the initial value of backup time" described next, proceed to "4.
Operation."Page 18
3-2 Measuring the initial value of backup time
●Before starting operation for the first time, measure the backup time initial value of the unit in your environ-
ment. You can use it as a guide to check the battery.
See also
"7. Measuring the backup time" →Page 33
3-3 Recharging the battery
The battery is discharged completely when the backup time is measured, so you need to recharge it before
using the UPS.
●You can use connected devices while recharging the battery, but the backup time when a power failure
occurs is shorter until the battery is fully charged.
(If a power failure occurs immediately after the start of charging, backup stops immediately.)
See also
Charge the battery as described in "3-1 Charging the battery."
Preparation for starting operation is now complete.
09-chp3-p17 03.6.20, 11:11 AMPage 17 AdobePageMaker6.5J/PPC

18
4. Operation
4. Operation
4-1 Precautions and notes on operation
Do not wet or dash water onto the unit.
●Doing so may cause an electric shock or a fire.
●If you wet the unit, stop using it and the unit must be inspected and/or repaired.
For repair, contact us; ____
If the battery is dead, replace it immediately or stop using the unit.
●Continued use of the unit may cause a fire.
●For information on how to check the battery, refer to "5. Maintenance and inspection" on page 25.
●For information on how to replace the battery, refer to "5-2 Replacing the battery" on page 26.
Wipe the 100 VAC input plug clean of dirt with a dry cloth occasionally.
●Leaving dirt for a long time may cause a fire.
If you notice abnormal sound or smell, smoke, or leakage from the inside,
immediately turn off the Power Switch of this unit and disconnect the
100-VAC input plug from a wall outlet (commercial power).
●Continued use of this unit under such conditions may cause a fire.
●If you notice such a condition, never use the unit and contact us; ____ for inspection and
repair.
●Use the unit under the conditions in which you can immediately disconnect the 100 VAC input
plug from a wall outlet (commercial power) in the event of the occurrence of an abnormal
condition.
If liquid leaks from this unit, do not touch the fluid.
●Doing so may cause blindness and/or burns.
●If it contacts your eyes or skin, wash it out with lots of clean water and consult your doctor.
Caution (while in use)
*The values in the table are the expected life under the standard
use conditions and are not the guaranteed values.
Ambient temperature
20°C
30°C
Expected life
4 to 5 years
2 to 2.5 years
Notes
Before turning off the commercial power, turn off the Power Switch of this unit.
If you cannot turn off the Power Switch, it is recommended to use the UPS
monitoring software to automatically stop the unit in the minimum backup time.
●If you stop commercial power with the Power Switch in the ON position, the Battery Mode starts. If you
frequently use the unit in the Battery Mode after turning off the commercial power, charging and discharg-
ing of the battery is repeated and the battery life decreases extremely. The less the amount of charging
and discharging is, the less the adverse effect on the life becomes.
10-chp4-p18-24 03.6.20, 11:11 AMPage 18 AdobePageMaker6.5J/PPC
