LCG Thunder 400 User manual

FOR YOUR OWN SAFETY, PLEASE READ THIS USER
MANUAL CAREFULLY BEFORE POWERING OR
INSTALLING YOUR LED WASH, Save it for future
reference.

1
TABLE OF CONTENTS
LED Strobe Fixture
1.GETTING STARTED ................................................................... 2
UNPACKING ..................................................................................................... 2
INTRODUCTION............................................................................................... 2
Powering Up! ................................................................................................... 2
Getting A Hold Of Us........................................................................................... 2
SAFETY INSTRUCTIONS .................................................................................. 3
2. MEETFIXTURE LED STROBE FIXTURE ................................. 4
MAIN FEATURES............................................................................................... 4
DMX Quick Reference (1/3/4/6/7/16-Channel Modes) .............................................. 4
DMX Quick Reference (3/9-Channel: Pixel Modes).................................................. 4
Figure 1: The fixture Pin-Up Picture....................................................................... 5
3. SETUP......................................................................................... 7
Fuse Replacement.............................................................................................. 7

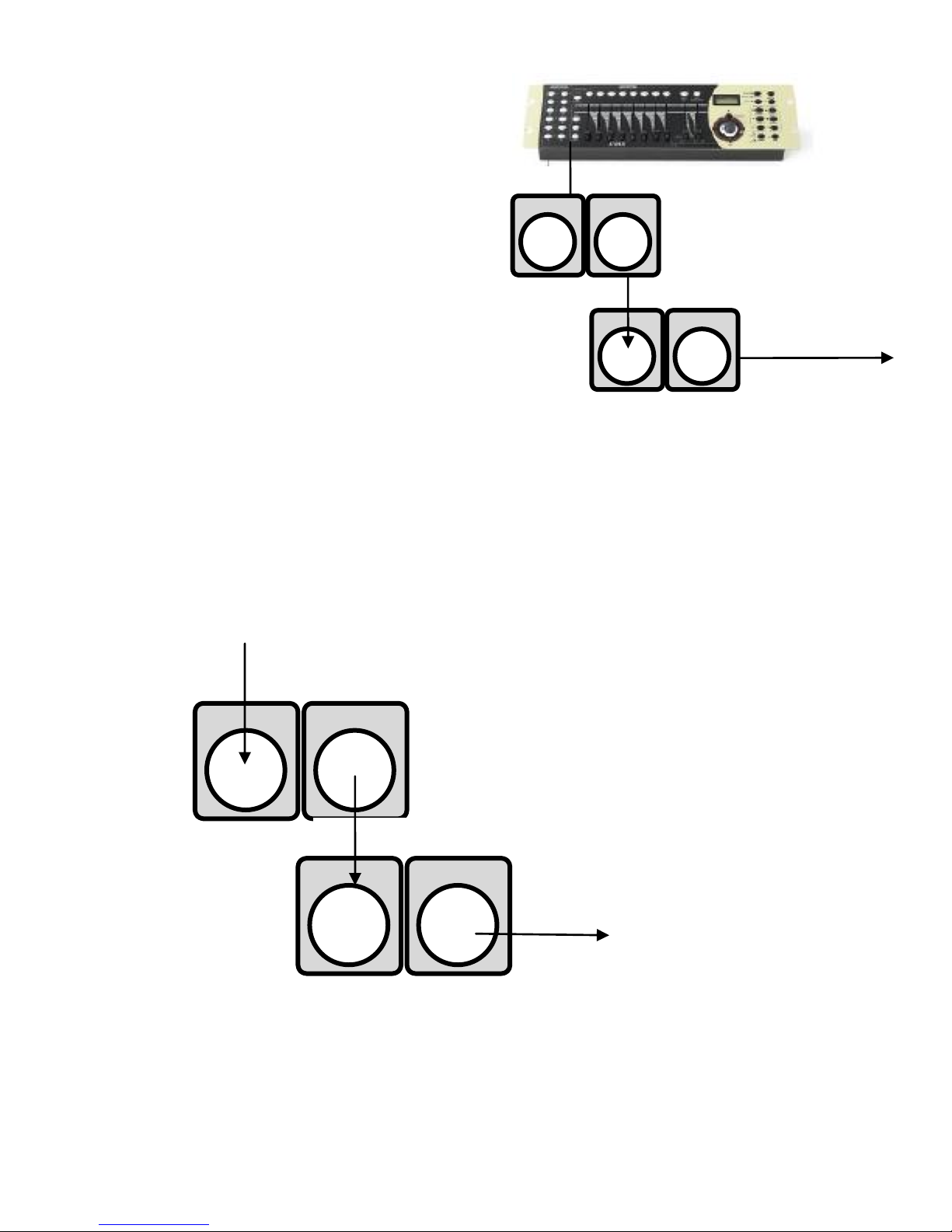

Connecting A Bunch of Fixtures........................................................................... 7
Data/DMX Cables............................................................................................... 8
Cable Connectors............................................................................................... 8
Take It To The Next Level: Setting Up DMX Control................................................. 9
Fixture Linking (Master/Slave Mode)...................................................................... 9
Mounting & Rigging........................................................................................... 10
4. OPERATING ADJUSTMENTS ................................................ 11

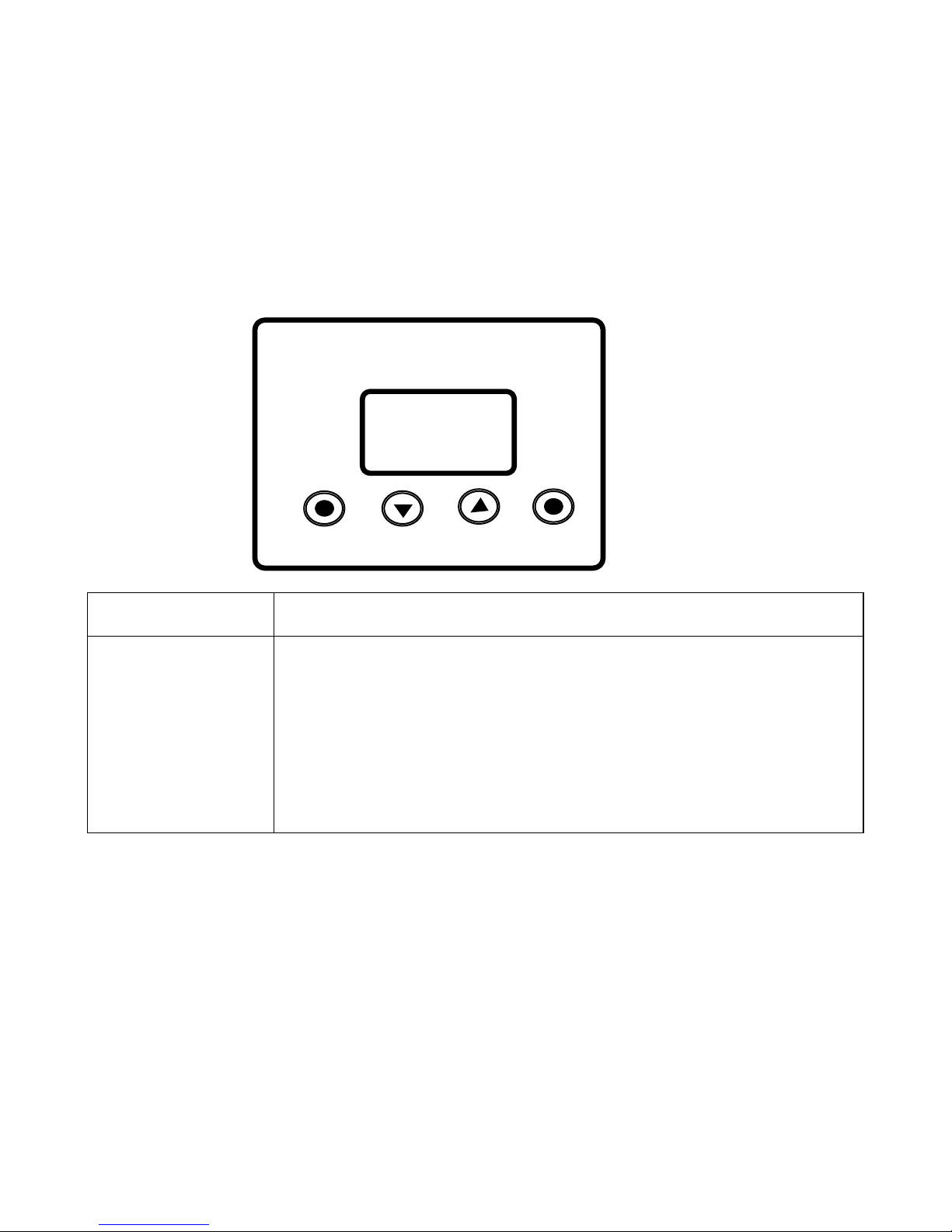

The Control Panel............................................................................................. 11
Control Panel Menu Structure............................................................................. 12
DMX Mode...................................................................................................... 13
Set the Starting DMX Address: ........................................................................... 13
Select the DMX Channel Mode:.......................................................................... 13
Master/Slave Mode:.......................................................................................... 13
Auto & Standalone Modes:................................................................................. 13
Auto Mode:...................................................................................................... 13
Auto Program Speed:........................................................................................ 13
Temperature:................................................................................................... 14
Signal Loss Settings:......................................................................................... 14
LCD Display On/Auto Off: .................................................................................. 14
Key (Button) Protection Mode:............................................................................ 14
Test Mode: ...................................................................................................... 14
DMX Values In-Depth (16-Channel Mode)............................................................ 15
DMX Values In-Depth (7-Channel Mode).............................................................. 15
Troubleshooting............................................................................................. 17
5. APPENDIX ............................................................................... 18
MAINTENANCE............................................................................ 18
Tech Specs! ................................................................................................... 18

2
1.GETTING STARTED
UNPACKING
• 1 x LED Strobe
• 1 x Base Plate /Mounting Brackets
• A Sweet Safety Cable & eyebolt
• A Power Cord
• User Manual
Carefully check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your unit for
damage and be sure all accessories necessary to operate the unit have arrived
intact. In the event damage has been found or parts are missing, please
contact our customer support team for further instructions. Please do not return
this unit to your dealer without first contacting customer support at the number
listed below.
INTRODUCTION
Congratulations, you have just purchased one of the most innovative
and reliable lighting fixtures on the market today! Please read and understand
the instructions in this manual carefully and thoroughly before attempting to
operate this unit, This manual contains important information regarding safety
protocol that must be strictly adhered to at all times.
Powering Up!
All fixtures must be powered directly off a switched circuit and cannot be run
off a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all fixtures have a voltage select switch, so please verify that the
fixture you receive is suitable for your local power supply. See the label on the fixture or
refer to the fixture’s specifications chart for more information. A fixture’s listed current
rating is its average current draw under normal conditions. Check the fixture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your fixture may result if the line voltage applied
does not match the voltage indicated on the voltage selector switch. All
fixtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please contact your dealer.
Disclaimer: The information and specifications contained in this document are subject to
change without notice. We assumes no responsibility or liability for any errors or
omissions that may appear in this user manual. We reserves the right to update the
existing document or to create a new document to correct any errors or omissions at any
time. You can get the latest version of this document from your dealer.

3
SAFETY INSTRUCTIONS
Please note: Certain people with epilepsy and photosensitivity may
suffer a seizure if exposed to flashing or strobe lighting. If strobe
lighting is to be used in a production, warnings should be posted at the
front of house or entrance doors to the theater as well as in a program,
if distributed. Example: “WARNING: Strobe lights are used during this
performance.”
• Please keep this User Guide for future use. If you sell the unit to someone else, be
sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that the
line voltage you are connecting to is not higher than that stated on the decal or rear
panel of the fixture.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in
(50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse and
be sure to replace with same fuse size and type.
• ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its cord.
Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized
technicalassistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your distributor.
Please read these instructions carefully
they include the important information
about the installation usage and
maintenance of this products

4
2. MEETFIXTURE LED STROBE FIXTURE
MAIN FEATURES
• Super bright output via 1,452 white SMD LEDs
• Intense built-in strobe programs + random strobe
• 3/9-segment pixel modes can safely be used as wash (max 40% brightness)
• Built-in over heat protection temperature sensor to extend the lamp life
• Variable electronic strobe & 16-bit dimmer
• User adjustable fl ash rate of 0-30 fl ashes per second
• Flash duration can be set from 0-650ms in DMX mode
• 7000Hz LED scan rate
• 4-button easy to use LCD control panel menu
• Aluminum mounting bracket with locking knobs + base plate
• 3-pin & 5-pin DMX Input/Output
• PowerCon™ compatible AC power In/Out connectors
DMX Quick Reference (1/3/4/6/7/16-Channel Modes)
Channel Mode
Function
1
3
4
6
7
16
1
1
1
1
1
Master Dimmer (0-100%)
-----
-----
-----
2
2
2
Segment 1-3 Intensity (0-100%)
-----
-----
-----
3
3
3
Segment 4-6 Intensity (0-100%)
-----
-----
-----
4
4
4
Segment 7-9 Intensity (0-100%)
2
2
5
5
5
Flash duration (0-full on)
1
3
3
6
6
6
Strobe rate (0-30Hz)
-----
-----
4
7
7
Built-In Effects
-----
-----
-----
-----
-----
8
Segment 1 Intensity (0-100%)
-----
-----
-----
-----
-----
9
Segment 2 Intensity (0-100%)
-----
-----
-----
-----
-----
10
Segment 3 Intensity (0-100%)
-----
-----
-----
-----
-----
11
Segment 4 Intensity (0-100%)
-----
-----
-----
-----
-----
12
Segment 5 Intensity (0-100%)
-----
-----
-----
-----
-----
13
Segment 6 Intensity (0-100%)
-----
-----
-----
-----
-----
14
Segment 7 Intensity (0-100%)
-----
-----
-----
-----
-----
15
Segment 8 Intensity (0-100%)
-----
-----
-----
-----
-----
16
Segment 9 Intensity (0-100%)
DMX Quick Reference (3/9-Channel: Pixel Modes)
3-Channel Pixel Mode
9-Channel Pixel Mode
1
Segment 1-3 Intensity (0-100%)
Segment 1 Intensity (0-100%)
2
Segment 4-6 Intensity (0-100%)
Segment 2 Intensity (0-100%)
3
Segment 7-9 Intensity (0-100%)
Segment 3 Intensity (0-100%)
4
Segment 4 Intensity (0-100%)
5
Segment 5 Intensity (0-100%)
6
Segment 6 Intensity (0-100%)
7
Segment 7 Intensity (0-100%)
8
Segment 8 Intensity (0-100%)
9
Segment 9 Intensity (0-100%)

5
Figure 1: The fixture Pin-Up Picture
Figure 2: The Rear Connections
1452pcs Bright LEDs
Locking
Knobs
Mounting
Bracket
Durable Cast
Aluminum
Housing
Natural Convection
Heat Sink Cooling
Easy-To-Use4-Button
LCD Control Panel
AC Power Out
3 pin XLR
AC Power in

6

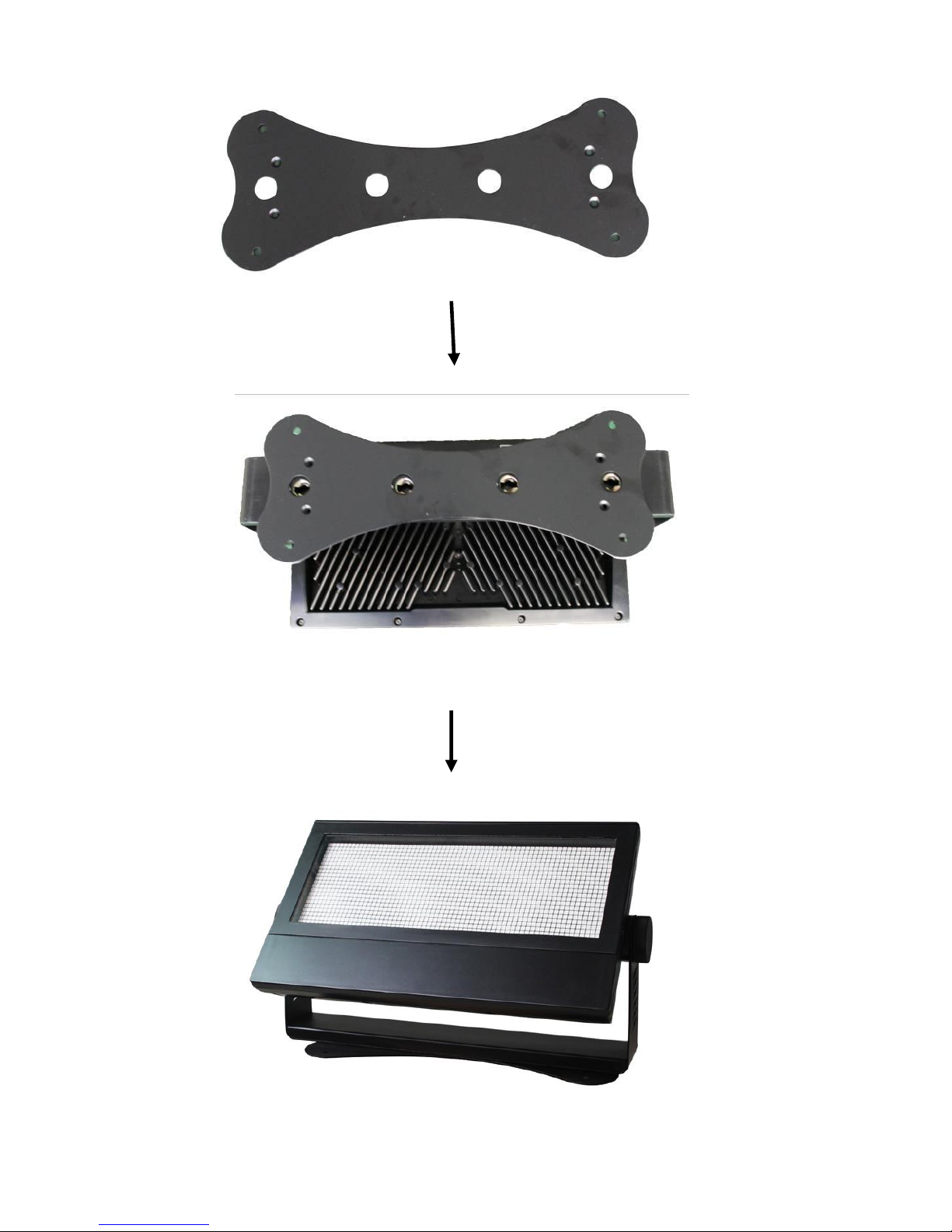

Figure 3: Setting on the floor

7
3. SETUP
Fuse Replacement
CAUTION! The fixture utilizes a high-output switch-mode power
supply with an internal fuse. Under normal operating conditions, the
fuse should not require replacement. The fuse is field replaceable,
however it is an advanced procedure suited to qualified individuals.
Should your fixture fuse require replacement, please contact
Your dealer for instructions.

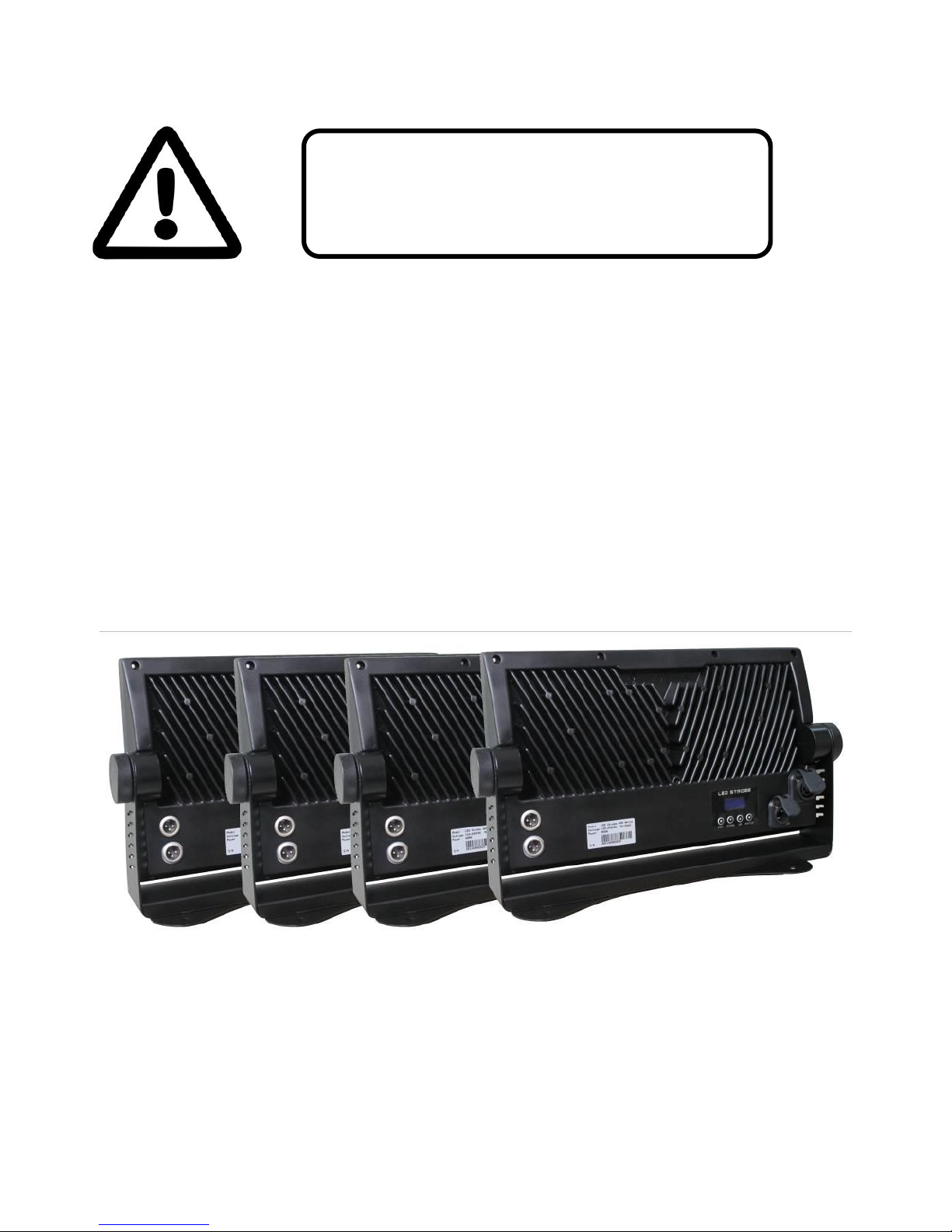

Connecting A Bunch of Fixtures
Follow the guide below to properly link fixtures. Power the first fixture in the chain
with a standard cable (provided with fixture). Then jump each subsequent fixture
with a properly rated jumper cable. WARNING: DO NOT POWER LINK MORE
THAN (4) FIXTURES IN ONE SINGLE CHAIN, ELECTRICALOVERLOAD MAY OCCUR.
Do not link more than (4) fixtures in a single chain. Electrical overload may
occur and damage fixtures and possibly create a fire hazard. Installation
should be performed by a qualified professional
Before replacing a fuse, disconnect
power cord, Always replace with
the same type and rating of fuse

8
Data/DMX Cables
To link fixtures together you’ll need data cables. You should use data grade
cables that can carry a high quality signal and are less prone to
electromagnetic interference.
For instance, Belden© 9841 meets the specifications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but
note that they cannot transmit DMX data as reliably over long distances.
In any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors –30 pF/ft.
Maximum capacitance between conductor & shield –55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 –140 ohms
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR
connector on the other end.
CAUTION: Do not allow contact between the common and the fixture’s chassis ground.
Grounding the common can cause a ground loop, and your fixture may perform erratically.
Test cables with an ohm meter to verify correct polarity and to make sure the pins are
not grounded or shorted to the shield or each other.
AWord on Termination: DMX is a
resilient communication protocol,
however errors still occasionally occur.
Termination reduces signal errors, and
therefore best practices include use of
terminator in all circumstances. If you
experiencing problems with erratic
fixture behavior, especially over long
cable runs, a terminator may help
improve performance.
To build your own DMX
Terminator:
Obtain a 120-ohm, 1/4-watt
resistor, and wire it between pins
2 & 3 of the last fixture. They are
also readily available from
specialty retailers

9
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the
DMX cable to the female connector (output)
on the controller
Step 2: Connect the female connector of the
DMX cable to the first fixture’s male connector
(input). Note: It doesn’t matter which
fixture address is the first one connected. We
recommend connecting the fixtures in terms
of their proximity to the controller, rather than
connecting the lowest fixture number first,
and so on.
Step 3: Connect other fixtures in the chain
from output to input as above. Place a DMX
terminator on the output of the final
fixture to ensure best communication.
Fixture Linking (Master/Slave Mode)
1. Connect the (male) 3 pin connector side of the
DMX cable to the output (female) 3 pin connector of
the first fixture.
2. Connect the end of the cable coming from
the first fixture which will have a (female) 3 pin
connector to the input connector of the next fixture
consisting of a (male) 3 pin connector. Then,
proceed to connect from the output as stated above
to the input of the following fixture and so on.
A quick note:
Often, the setup
for
Master-Slave and
Standalone
operation
requires that the
first fixture in the
chain be initialized
for this purpose via
either settings in
the control panel
or DIP-switches.
Secondarily, the
fixtures that follow
may also require a
slave setting.
Check the “Operating Adjustments” section in this manual for
complete instructions for this type of setup and configuration.
DMX OUT
DMX IN
DMX IN
DMX OUT
First Fixture in
Chain
Next Fixture
in Chain
To Next Fixture
To Next Fixture
DMX IN
DMX IN
DMX OUT
First Fixture in Chain
Next Fixture
in Chain
DMX out

10
Mounting & Rigging
This fixture can be mounted in any orientation (vertical, horizontal). Always
make sure there is adequate ventilation and no flammable surfaces within 2
feet (.6 meters) of the fixture. You can mount the fixture using fixture clamps
or with threaded bolt type hardware. Always install the included safety eyebolt
and cable when mounting in overhead or wall locations (see images below for
reference).
Warning: Do not mount the fixture in the ventilation path of a nearby
heating supply duct. The heated airflow will cause fixture failure due to
overheating
SAFETY EYEBOLT & CABLE
Install the included eyebolt into the threaded hole on the back of the housing
(see images above). Then install the safety cable to the eyebolt. Anchor the
safety cable to the truss or other secure mounting surface. Overhead and wall
installations should be performed only by qualified professionals. Incorrect
installations can result in personal injury or death, or damage to property.
Always use lock-washers on all installation hardware. Also use a thread-locking

11
compound onthreaded bolts as an extra precaution to ensure that the fixture
installation is secure and safe.
4. OPERATING ADJUSTMENTS
The Control Panel
All the goodies and different modes possible with the fixture are
accessed by using the control panel on the front of the fixture. There
are 4 control buttons below the LCD display which allow you to navigate
through the various control panel menus.
Button
Function
<ESC>
<DOWN>
<UP>
<ENTER>
Used to access the menu or return to a previous menu
option
Scrolls through menu options in descending order
Scrolls through menu options in ascending order.
Used to store the current menu or option within a menu
The LCD control panel display shows the menu items you select from
the menu map on page #12. When a menu function is selected, the
display will show immediately the first available option for the selected
menu function. To select a menu item, press <ENTER>.
To navigate through the LCD control panel, use the <UP/DOWN>
buttons to scroll through the menu options. Press the <ENTER> button,
then use the <UP/DOWN> buttons to view any sub-menu options.
Press <ESC> to continue without saving, or press <ENTER> button,then the
<ESC> to save and return to the previous menu item.
LED STROBE
ESC
DOWN
UP
ENTER

12
Control Panel Menu Structure
Menu
Sub-menu
Address
Set DMX
Address
001-512
Auto
Mode 1
Auto Mode 1
Mode 2
Auto Mode 2
Mode 3
Auto Mode 3
Mode 4
Auto Mode 4
Mode 5
Auto Mode 5
Speed
000-031
Auto Run Speed
Test LED
All on
All On + Individual LED Segment
Testing
White 1 on
White 2 on
White 3 on
White 4 on
White 5 on
White 6 on
White 7 on
White 8 on
White 9 on
Temp
<ENTER>
Internal Temperature
Time
<ENTER>
Total Run Time
Config
Channel Mode
Channel 1 (1ch DMX mode)
Channel 3 (1ch DMX mode)
Channel 4 (1ch DMX mode)
Channel 6 (1ch DMX mode)
Channel 7 (1ch DMX mode)
Channel 16 (1ch DMX mode)
Pixel 3 (3ch DMX pixel control)
Pixel 9 (9ch DMX pixel control)
Key Mode
Key Lock
Menu buttons lock after 30sec of
inactivity (push more than once to
temporarily unlock buttons).
Key Unlock
Menu buttons are not locked.
DMX Status
Value Hold
Holds the last DMX values if signal is
lost
Value Clear
Clears the DMX values if signal is lost
Display Mode
LCD Display ON or Auto OFF
Temp Unit CS
Celsius degree and Fahrenheit degree
for selection
Load Default
Load Default Resets all values to
default

13
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Set the Starting DMX Address:
The default mode for the fixture is DMX, so the first menu item that you can edit is
the starting DMX address.
1.) Press the <UP/DOWN> buttons until you reach Address.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select a channel from 001-512.
4.) Press the <ENTER> button to confirm.
5.) Press the <ESC> button to return to the main menu.
Select the DMX Channel Mode:
1.) Press the <UP/DOWN> buttons until you reach Config.
2.) Push the <ENTER> button.
3.) Using the <UP/DOWN> buttons, highlight DMX Mode, then press <ENTER>.
4.) Use the <UP/DOWN> buttons to select 1, 3, 4, 6, 7, 16, or 3/9 pixel modes.
5.) Press <ENTER>, and then press the <ESC> button until you reach the
Address screen.
Master/Slave Mode:
1.) Disconnect fixture(s) from any DMX signal source.
2.) Set each fixture to matching DMX modes.
3.) Connect all fixtures together via DMX. The first fixture in the DMX chain will be
the master, followed by the slave fixtures.
4.) Connect DMX controller to the master unit for DMX control.
Load Default Settings:
1.) Press the <UP/DOWN> buttons until you reach Load Default.
2.) Push the <ENTER> button.
Auto & Standalone Modes:
Allows a single or Master/Slaved units to run factory installed programs at user selectable
speeds.
Auto Mode:
1.) Press the <UP/DOWN> buttons until you reach Auto.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select from Mode 1 to Mode 5.
4.) Press the <ENTER> button to confirm.
Auto Program Speed:
1.) Press the <UP/DOWN> buttons until you reach Speed.
2.) Push the <ENTER> button.
3.) Use the <UP/DOWN> buttons to select from 000-031.
4.) Press the <ENTER> button to confirm.

14
Additional Features:
Never thought you would ever see so many nifty neato features in a strobe light did you?
Temperature:
IMPORTANT - Brightness will decrease when the LED temperature rises over 55ºC.
If a temperature of +70ºC is reached, the overheat protection sensor will activate,
initiating blackout until a safe temperature is reached. It’s highly recommended
to not use the LEDs at full strobe brightness for longer than a 1 minute
period. You can safely use the fixture as a normal wash in 3/9 pixel modes
which are programmed to achieve a max of 40% strobe brightness.
1.) Press the <UP/DOWN> buttons until you reach Temp.
2.) Push the <ENTER> button.
3.) The display will show the current temperature in Celsius degrees.
Signal Loss Settings:
In the event of DMX signal loss, you can set the fixture to either hold its last
received DMX signal values, or clear them.
1.) Press the <UP/DOWN> buttons until you reach Config.
2.) Push the <ENTER> button.
3.) Using the <UP/DOWN> buttons, navigate to DMX Status, then press the<ENTER> button.
4.) Use the <UP/DOWN> buttons to select either Value Hold, or Value Clear.
5.) Press the <ENTER> button to confirm.
LCD Display On/Auto Off:
Display mode On will keep the LCD illuminated continually, Auto will shut the display
off after 30 seconds of inactivity.
1.) Press the <UP/DOWN> buttons until you reach Config.
2.) Push the <ENTER> button, and navigate to Display Mode.
3.) Push the <ENTER> button, then select either On or Auto, and press the<ENTER> button.
Key (Button) Protection Mode:
With Key Lock active, buttons will be unresponsive to any initial button press after
30 seconds of inactivity. Temporary unlock will occur with more than 1 button
press. To disable this feature, activate Key Unlock.
1.) Press the <UP/DOWN> buttons until you reach Config.
2.) Push the <ENTER> button.
3.) Press the <UP/DOWN> buttons until you reach Key Mode, then press<ENTER>.
4.) Use the <UP/DOWN> buttons to select either Key Lock, or Key Unlock, and
press the <ENTER> button.
Temp Unit CS
1.) Press the <UP/DOWN> buttons until you reach Config.
2.) Push the <ENTER> button, and navigate to Temp Unit CS
3.) Using the <UP/DOWN> buttons to select Celsius degree or Fahrenheit degree
Test Mode:
1.) Press the <UP/DOWN> buttons until you reach Test LED.
2.) Push the <ENTER> button.
3.) Now, you can choose to test all of the LEDs at once, or individually test each of its 9
segments. Use the <UP/DOWN> buttons to navigate, and press the<ENTER> to confirm.

15
DMX Values In-Depth (16-Channel Mode)
Ch.
Value
Fuction
1
000 <--> 255
Dimmer (0% <--> 100%)
2
000 <--> 255
Segment 1-3 Intensity (0% <--> 100%)
3
000 <--> 255
Segment 4-6 Intensity (0% <--> 100%)
4
000 <--> 255
Segment 7-9 Intensity (0% <--> 100%)
5
000 <--> 255
Flash Duration (0% <--> 100%)
6
000 <--> 255
Strobe Rate (0-30Hz)
7
000 <--> 005
006 <--> 042
043 <--> 085
086 <--> 128
129 <--> 171
172 <--> 214
215 <--> 255
Built-In Programs
No function
Ramp up effect (slow <--> fast)
Ramp down effect (slow <--> fast)
Ramp up-down effect (slow <--> fast)
Random effect (slow <--> fast)
Lightning effect (slow <--> fast)
Spike effect
8
000 <--> 255
Segment 1 Intensity (0-100%)
9
000 <--> 255
Segment 2 Intensity (0-100%)
10
000 <--> 255
Segment 3 Intensity (0-100%)
11
000 <--> 255
Segment 4 Intensity (0-100%)
12
000 <--> 255
Segment 5 Intensity (0-100%)
13
000 <--> 255
Segment 6 Intensity (0-100%)
14
000 <--> 255
Segment 7 Intensity (0-100%)
15
000 <--> 255
Segment 8 Intensity (0-100%)
16
000 <--> 255
Segment 9 Intensity (0-100%)
DMX Values In-Depth (7-Channel Mode)
Ch.
Value
Function
1
000 <--> 255
Dimmer (0% <--> 100%)
2
000 <--> 255
Segment 1-3 Intensity (0% <--> 100%)
3
000 <--> 255
Segment 4-6 Intensity (0% <--> 100%)
4
000 <--> 255
Segment 7-9 Intensity (0% <--> 100%)
5
000 <--> 255
Flash Duration (0% <--> 100%)
6
000 <--> 255
Strobe Rate (0-30Hz)
7
000 <--> 005
006 <--> 042
043 <--> 085
086 <--> 128
129 <--> 171
172 <--> 214
215 <--> 255
Built-In Programs
No function
Ramp up effect (slow <--> fast)
Ramp down effect (slow <--> fast)
Ramp up-down effect (slow <--> fast)
Random effect (slow <--> fast)
Lightning effect (slow <--> fast)
Spike effect

16
DMX Values In-Depth (6-Channel Mode)
Ch.
Value
What It Does
1
000 <--> 255
Dimmer (0% <--> 100%)
2
000 <--> 255
Segment 1-3 Intensity (0% <--> 100%)
3
000 <--> 255
Segment 4-6 Intensity (0% <--> 100%)
4
000 <--> 255
Segment 7-9 Intensity (0% <--> 100%)
5
000 <--> 255
Flash Duration (0% <--> 100%)
6
000 <--> 255
Strobe Rate (0-30Hz)
DMX Values In-Depth (4-Channel Mode)
Ch.
Value
Function
1
000 <--> 255
Dimmer (0% <--> 100%)
2
000 <--> 255
Flash Duration (0% <--> 100%)
3
000 <--> 255
Strobe Rate (0-30Hz)
4
000 <--> 005
006 <--> 042
043 <--> 085
086 <--> 128
129 <--> 171
172 <--> 214
215 <--> 255
Built-In Programs
No function
Ramp up effect (slow <--> fast)
Ramp down effect (slow <--> fast)
Ramp up-down effect (slow <--> fast)
Random effect (slow <--> fast)
Lightning effect (slow <--> fast)
Spike effect
DMX Values In-Depth (3-Channel Mode)
Ch.
Value
Function
1
000 <--> 255
Dimmer (0% <--> 100%)
2
000 <--> 255
Flash Duration (0% <--> 100%)
3
000 <--> 255
Strobe Rate (0-30Hz)
DMX Values In-Depth (1-Channel Mode)
Ch.
Value
Function
1
000 <--> 255
Dimmer (0% <--> 100%)
DMX Values In-Depth (3-Channel Pixel Mode)
Ch.
Value
What It Does
1
000 <--> 005
006 <--> 255
No Function
Segment 1-3 Intensity (0% <--> 100%)
2
000 <--> 005
006 <--> 255
No Function
Segment 4-6 Intensity (0% <--> 100%)
3
000 <--> 005
006 <--> 255
No Function
Segment 7-9 Intensity (0% <--> 100%)

17
DMX Values In-Depth (9-Channel Pixel Mode)
Ch.
Value
Function
1
000 <--> 005
006 <--> 255
No Function
Segment 1 Intensity (0% <--> 100%)
2
000 <--> 005
006 <--> 255
No Function
Segment 2 Intensity (0% <--> 100%)
3
000 <--> 005
006 <--> 255
No Function
Segment 3 Intensity (0% <--> 100%)
4
000 <--> 005
006 <--> 255
No Function
Segment 4 Intensity (0% <--> 100%)
5
000 <--> 005
006 <--> 255
No Function
Segment 5 Intensity (0% <--> 100%)
6
000 <--> 005
006 <--> 255
No Function
Segment 6 Intensity (0% <--> 100%)
7
000 <--> 005
006 <--> 255
No Function
Segment 7 Intensity (0% <--> 100%)
8
000 <--> 005
006 <--> 255
No Function
Segment 8 Intensity (0% <--> 100%)
9
000 <--> 005
006 <--> 255
No Function
Segment 9 Intensity (0% <--> 100%)
Troubleshooting
Symptom
Solution
Fixture Auto-
Shut Off
If it is stopped or dimmer than normal, the unit may have
shut itself off due to high heat. This is to protect the fixture
from overheating.
No Light Output Check to ensure fixture is operating under
No Light Output
Check to ensure fixture is operating under correct mode, IE
sound active/auto/DMX/Etc., if applicable.
Chase Speed
Too Fast/Slow
Check to ensure proper setup of speed adjustment.
No Power
Check fuse, AC cord and circuit for malfunction.
Blown Fuse
Check AC cord and circuit for damage, verify that moving
parts are not restricted and that unit’s ventilation is not
obstructed
Slow Movement
Check that speed channels are set appropriately.
Fixture Not
Responding /
Responding Erratically
Make sure all connectors are seated properly and securely.
Use Only DMX Cables and/or check cables for defects
Install a Terminator.
Reset fixture(s).
Fixture Moving
On Its Own
Verify proper mode of operation. Is the fixture in “Auto”
mode?

18
5. APPENDIX
MAINTENANCE
ALWAYS DISCONNECT POWER BEFORE CLEANING
NEVER REMOVE THE GROUND PRONG FROM POWER CORD
NEVER SPIN A FAN WITH COMPRESSED AIR,
this can damage components in your fixture
Your fixture will require regular cleaning to prevent a build up of dust and smoke debris
on the optics and housing. After disconnection of power, wipe down the fixture with a
damp cloth. Never use alcohol or solvents as this may damage the finish. Use glass
cleaner for glass surfaces such as external lens or mirrors. A dry paint brush is an
excellent tool to remove surface dust.
Be sure to periodically check for loose parts that could damage the fixture or potentially
allow the fixture to cause injury. Make sure all overhead and wall installations have a
secondary safety device installed such as a safety cable rated for your fixture type and
size. Check the power cord as well, make sure there is no damage that could cause
electrical shock, never remove the ground prong.
There are no user-servicable parts in this fixture. Do not attempt to open and repair this
fixture. Return to the factory for repair.
Tech Specs!
Weight & Dimensions
Width
17.8 in (45 cm), Base: 15.7 in (39.8 cm)
Depth
3 in (7.4 cm), Base: 6.3 in (15.8 cm)
Height
11.25 in (28.6 cm)
Weight
16.5 lbs (7.5 kg)
Power
Operating Voltage
100-240VAC 50/60Hz
Power Consumption
400W Max, 5A, pf: .75
Light Source
LED
1,452 white SMD LEDs, 50,000 hrs.
Optical
Beam Angle
120 degree
Luminous
37000LM
Thermal
Max.Operating Temp.
104 degrees F (40 degrees C) ambient
Control
Protocol
USITT DMX-512
DMX Channels
1/3/4/6/7/9/16 Channels
Input
3/5-pin XLR Male
Output
3/5-pin XLR Female
Operating Modes
Standalone, Master/Slave, Auto Mode
Other Information
A lot of things look cooler in slow motion. Eating isn’t one of them.
Warranty
1-year limited warranty
