One-Tool OTE6100Q User manual

One-Tool Portable Video Borescope
OTE6100Q portable video borescope is for
the global automotive service market the
latest launch of an important product,
specifically for the detection of automobile
evaporation box, combustion chamber,
three catalytic sensors and other difficult to
enter the narrow bending space. The
product has a unique temperature
protection. It is equipped with an portable
host, make it easy for users to accurately
make probe depth into the narrow space,
and it will display the clear video and
pictures on monitor .With advanced scalable
accessories and real-time temperature
display to meet your diverse testing needs.
Model:OTE6100Q

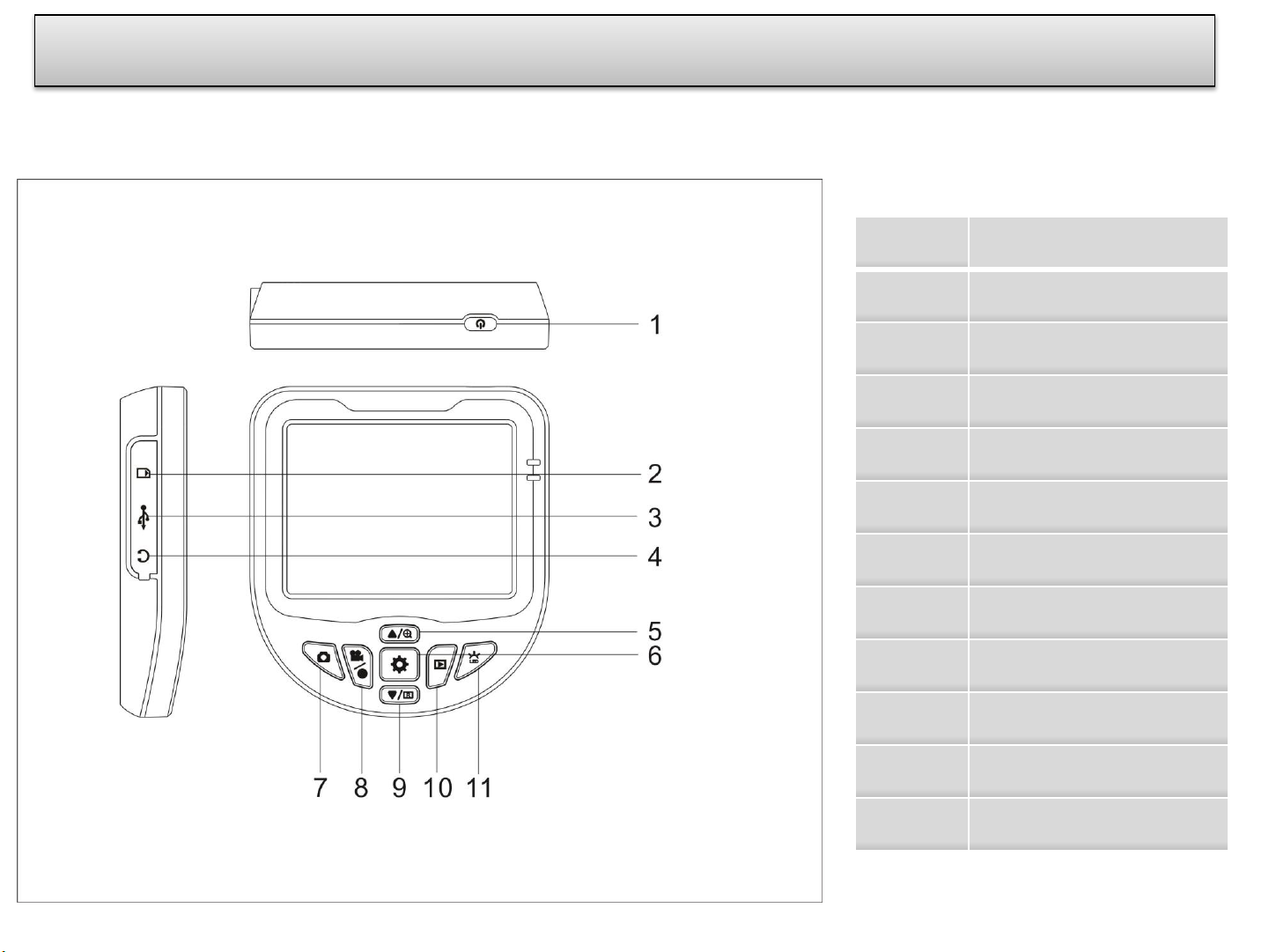

Product Appearance
1
、3.5 inch LCD Monitor
Item
1
Power on/off
2
TF Card
3
USB interface
4
TV output
5
Up/Zoom
6
Setting
7
Taking Picture
8
Video/OK
9
Down/Rotation
10
Preview/Playback
11
LED adjuster

Product Appearance
2
、Handle
Item
1
Flexible tube female
interface
2
Rotatable connector
3
photo shortcut button
4
Monitor slot
3
、Snake Tube
Item
1
Probe
2
snake tube
3
Fixed nut
4
Flexible tube male
interface

Operation Guide
•1、Install monitor：
•Install the monitor on the handle as shown, and make sure the installation not loose.
•2、Install snake tube：
•Install the snake tube male interface into the monitor famale interface,screwing clockwise,and make sure
the installation not loost.

3.1 Insert TF card
Before using the device, please insert TF card. Note: In order to ensure device on normally working, please try to use the nameplate C4 and above to operate.
After insert the card, it is best to format it.
3.2. Power on / off
press on / off.
3.3. pictures and videos
Photo: In monitor interface, Press taking pictures, photo files stored in the TF card DICM folder.
Camera: In monitor interface, press to start and end camera, video files stored in the TF card DICM folder.
3.4. Accessibility keys
LED adjustment: In monitor interface, press to adjust the snake tube LED lights brightness. three levels of brightness (off / Level 1 / Level2 / Level3)
Zoom key: In monitor interface, press to adjust the zoom optional. (X2 / X3 / X4)
Picture rotation: In monitor interface , press to realization of the screen rotation.
3.5. Settings
In monitor interface, press to realization language selection / time setting / automatic shutdown setting / memory card format .
3.6. File management
In monitor interface, press to enter the screen playback, and then press can file management interface. Can be locked / deleted.
3.7. Charging
Please use the 5V adapter or mobile power to connect Micro USB cable to charge. Charging voltage and current are 5V / 1A, too high voltage, it is possible to
burn the machine.
Operation Guide
•3、Monitor

Specification
Monitor
Screen Size：3.5’’ TFT LCD Monitor
Video resolution: AVI (640x480)
Photo resolution: JPEG (640x480)
Frame Rotation: 180°Rotation & Mirror image
freeze frame: YES
Zoom: 4x Variable Digital Zoom
Menu language: Traditional Chinese, Simplified
Chinese,English, French, German
Spanish, Japanese, Russian
Interface: Micro USB 2.0/ TV out/ card slot
TV out: PAL
Recording media: Micro SD Card
Power source: 18650 Li-Ion Battery (2600mAh)
Battery Life (typical): 4hours
Contents:
Monitor
Snake tube
TV-out
USB cable
4G TF card
18650 Li-Ion Battery
User manual
EU Environmental Protection
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authority or
retailer for recycling advices
5.5mm /8.5mm Probe
Diameter of camera
Lens 5.5mm /8.5mm
Resolution 720*576
FOV 60°
DOF 2-5cm /3-6cm
Lighting 6 white LED
Snake tube Length 1M (optional 3M）
Snake tube Material flexible metal
Camera

Application Environment
Operating
temperature
Probe in air: -10 to 70°C
in water: 5 to 70°C
console in air: -10 to 70°C
input：5V
Relative humidity all parts 15 to 90%
Ingress Protection
Probe IP67 waterproof
console Not Operable in blowing rain conditions
Not operable underwater.
For professional service personnel, this products can be used in the case
of non-disassemble or damage the instrument, used to detect the human
eye can not see the place. Can be precision instrument testing, engine
maintenance, vehicle repair, pipeline maintenance, building maintenance
and air conditioning evaportaor maintenance and so on.

Warning!
Important safety matters:
Please do not use our camera with other manufacturers monitor,even same interface.
Do not use the product in certain areas where it may be exposed to a wire or
charged area. The exposed metal parts can be electrically conductive and may
cause unexpected accident.
Do not allow children to operate the product separately, prohibit the use of the
product for medical or human testing.
Keep the product clean, avoid exposure, or be in direct contact with water, oil and
corrosive liquids.
Please take it lightly, do not overturn the tube.
Please try to use the original USB cable charge.

Guarantee terms
•Thank you for choosing this product, this product is a well-designed,
durable video industrtial endoscope. Under normal use and maintenance
should be able to play its superior performance. Within six months from
the date of purchase, if there is any damage caused by the manufacturing
process or components, we will provide free maintenance service for the
licensee and replace the parts as appropriate.
•Within six months from the date of purchase, you will receive a free
warranty service if our professional maintenance personnel have
confirmed that damages caused by the manufacturing process or the bad
parts .
•Snake tube is a vulnerable part, since the purchase date, the warranty for
six months. Normal use caused by wear, not including part of the warranty.
•The following conditions will not be available free of charge:
•Damage caused by improper storage.
•The customer is disassembling and causing damage.
•Damage caused by the customer's own modification.
•Damage caused by improper use.
•Damage caused by other irresistible factors.
