OneTouch ULTRA2 User manual

USER GUIDE
Blood Glucose Monitoring System
Replaces Owner’s Booklet
AW 06650003A
Rev. date: 06/2010

Contents:
Getting to know your system 1
Setting up your meter 4
Testing your blood glucose 8
Attaching flags or comments to your results 16
Reviewing past results and averages 18
Control solution testing 20
Caring for your system 22
8Troubleshooting and
detailed information about your system 24
Symbols
Cautions andWarnings: Refer to safety-related notes in this User Guide
and inserts that came with your meter and testing supplies.
Low battery
Direct current
The system described herein is covered by one or more of the following U.S.
patents: 5,708,247, 5,951,836, 6,241,862, 6,284,125, 7,112,265, D522,656
and D542,681. Use of the monitoring device included herein is protected
under one or more of the following U.S. patents: 6,413,410, 6,733,655,
7,250,105, 7,468,125. Purchase of this device does not act to grant a use
license under these patents. Such a license is granted only when the device
is used with OneTouch® Ultra®Test Strips. No test strip supplier other
than LifeScan is authorized to grant such a license.The accuracy of results
generated with LifeScan meters using test strips manufactured by anyone
other than LifeScan has not been evaluated by LifeScan.
Distributed by:
LifeScan, Inc.
Milpitas, CA 95035
Version G
As your partner in diabetes care, we oer
valuable diabetes-related knowledge, tools
and special oers online.
www.OneTouchDiabetes.com
www.OneTouchEnEspanol.com
Should you need additional assistance, we
welcome you to contact us
7 days a week, 8 a.m. – 10 p.m. Eastern Time.
1 800 227-8862 (English)
1 800 381-7226 (Español)
For assistance outside of these hours, please
contact your healthcare professional.
© 2009 LifeScan, Inc.
For:
LifeScan Europe
Division of Cilag GmbH
International
6300 Zug
Switzerland

Before you begin
Before using this product to test your blood glucose, carefully read this User Guide and the inserts that come with the OneTouch® Ultra®
Test Strips and OneTouch® Ultra® Control Solution. Take note of warnings and cautions throughout this User Guide, which are identied
with . Many people nd it helpful to practice the test with control solution before testing with blood for the rst time. See Section 6,
Control solution testing.
Intended use
The OneTouch® Ultra® 2 Blood Glucose Monitoring System is intended to be used for the quantitative measurement of glucose (sugar) in
fresh capillary whole blood. The OneTouch® Ultra® 2 System is intended for use outside the body (in vitro diagnostic use) by people with
diabetes at home and by health care professionals in a clinical setting as an aid to monitor the eectiveness of diabetes control. It should
not be used for the diagnosis of diabetes or for testing newborns.
Test principle
Glucose in the blood sample mixes with special chemicals in the test strip and a small electric current is produced. The strength of this
current changes with the amount of glucose in the blood sample. Your meter measures the current, calculates your blood glucose level,
displays the result, and stores it in its memory.
NOTE: If you have any questions about your OneTouch® Ultra® 2 Blood Glucose Monitoring System, contact LifeScan Customer Service at
1 800 227-8862 (7 days a week, 8 a.m. - 10 p.m. Eastern Time).

1
GETTING TO KNOW YOUR SYSTEM
Getting to know your system

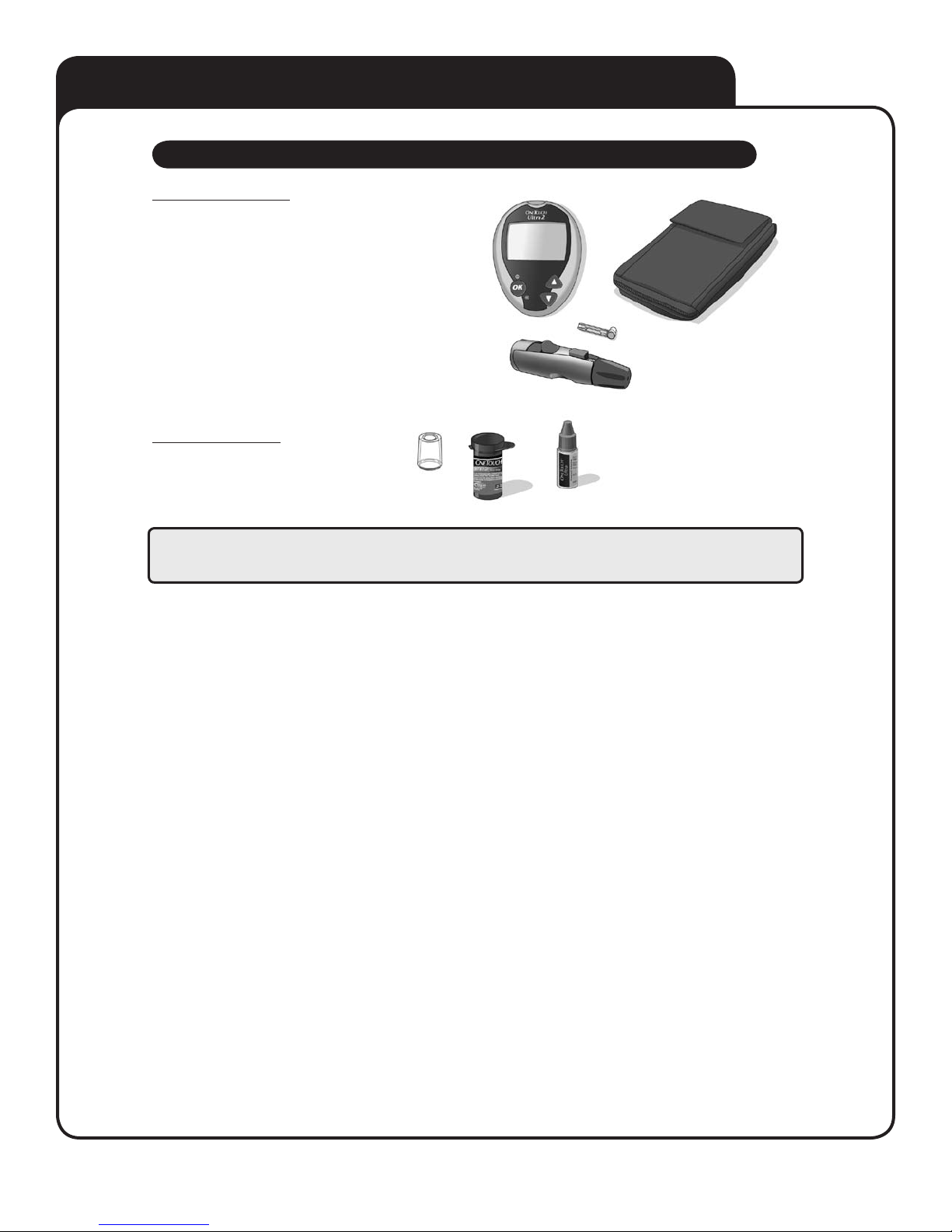

The OneTouch® Ultra® 2 Blood Glucose Monitoring System
INCLUDED WITH YOUR KIT:
a. OneTouch® Ultra® 2 Meter (batteries included)
b. Lancing Device
If another type of lancing device was included, see the separate
instructions that came with that lancing device.
c. Sterile Lancet
d. Carrying Case
If any of these items are missing from your kit, contact
LifeScan Customer Service at 1 800 227-8862
(7 days a week, 8 a.m. - 10 p.m. Eastern Time).
AVAILABLE SEPARATELY:
e. Clear Cap
f. OneTouch® Ultra® Test Strips
g. OneTouch® Ultra® Control Solution
a
b
c
d
WARNING: Keep the meter and testing supplies away from young children. Small items such as the battery door,
batteries, test strips, lancets, protective covers on the lancets, and control solution vial cap are choking hazards.
e
fgAsk for control solution where you
obtain your test strips.

2
GETTING TO KNOW YOUR SYSTEM
Getting to know your system
TEST STRIP
Edge to
apply sample
Conrmation
window
Contact bars
Insert into test port
METER
Display
mg/dL is the pre-set
unit of measure
Up and down buttons
Select or change information
Indicates selection available
using up or down button
Test port
Insert test strip here to
turn meter on for testing
OK button
Turns the meter on/o
Turns the backlight on/o
Conrms menu selections

3
GETTING TO KNOW YOUR SYSTEM
Turning your meter on
To perform a test, insert a test strip as far as it will go. The meter will briey perform system checks, then the display will
turn on.
or,
With the meter turned o, press and hold for two seconds
to access MAIN MENU. Check that the screen shows solid black
for two seconds. If it does, the display is working properly. If
the meter does not power on, try changing the meter battery.
See Replacing the batteries in Section 7.
Using the meter display backlight
When the meter is already on, press and hold for two seconds to turn the backlight on or o.
Turning your meter o
There are several ways to turn your meter o:
• Press and hold for ve seconds.
• Your meter will turn o by itself if left alone for two minutes.
• Go to MAIN MENU and press or to highlight METER OFF, then press .
• Before or after completing a test, remove the test strip. If you advance from the test result screen to the MAIN MENU by
pressing , removing the test strip will not turn the meter o. Use one of the three methods above.
CAUTION: If you see any light areas within the black
start-up screen, there may be a problem with the meter.
Contact LifeScan Customer Service at 1 800 227-8862
(7 days a week, 8 a.m. - 10 p.m. Eastern Time).

4
SETTING UP YOUR METER
Setting up your meter
Setting the meter language, date and time
You can change many of the settings that came pre-set with your meter. Before using your meter for the rst time or if you change the meter
battery, you should check and update these settings. Make sure you complete steps 1 through 8 below to ensure your desired settings are saved.
 Turn the meter on
With the meter turned o, press and hold for two seconds to access MAIN MENU.
 Get to the LANGUAGE screen
When using the meter for the rst time, or after changing the meter battery, you will automatically
start in the LANGUAGE screen.
In other cases, from the MAIN MENU, press or to select SET UP and press .
Then, press or to select METER SETTINGS and press .
 Choose a language
Now press or to highlight the language of your choice and press .
NOTE: If you select the wrong language, press and hold for ve seconds to turn the meter o.
Then, turn the meter back on and re-start from step 1.
 Set the date format
Press or to highlight the date format—choose month rst (MM-DD-YYYY) or day rst
(DD-MM-YYYY). To conrm your selection, press .

5
SETTING UP YOUR METER
 Set the date
In the DATE SET UP screen, press or to change the rst value and press .
Press or to change the second value and press .
Press or to change the year and press .
 Set the time format
Press or to select the time format you prefer—AM/PM or 24 HR, and press .
 Set the time
Press or to set the hour and press . Press or to set the minutes and press .
If you selected the AM/PM time format, press or to select AM or PM. To conrm your selection,
press .
8 Confirm your settings
The choice YES will be highlighted at the bottom of the screen. If your settings are correct, press to
conrm and save the settings and return to the MAIN MENU.
WARNING: The unit of measure mg/dL must be displayed here. If your display shows mmol/L rather than mg/dL,
contact LifeScan Customer Service at 1 800 227-8862 (7 days a week, 8 a.m. - 10 p.m. Eastern Time). You cannot change
the unit of measure. Use of the wrong unit of measure may cause you to misinterpret your blood glucose level, and may
lead to incorrect treatment.

6
SETTING UP YOUR METER
Check the code on the test strip vial before inserting the test strip
Code numbers are used to calibrate your meter with the test strips you are using.
Coding your meter
Your OneTouch® Ultra® 2 Meter allows you to attach optional notes to any blood glucose test result. See Section 4 Attaching ags or comments
to your results for the types of meal ags and comments you can attach to a result, and the reasons for using this feature.
If you do not wish to track separate result averages for before and after meals, nor attach comments to any test result, you may turn this
feature o. If you turn o the ags/comments feature, you will not see on the test result screen after you complete a blood glucose
test. You will be able to review the ALL RESULTS AVG screen, but not before - or after-meal averages. See Section 5, Reviewing past results
and averages, for more information about result averages.
To turn the flags/comments feature off or on:
 From MAIN MENU, press or to select SET UP and press
 From the SET UP screen, select FLAGS/COMMENTS and press
 Press or to highlight your response
Select YES if you wish to change the setting, or NO if you wish to leave it as it is.
Press to conrm your selection and return to MAIN MENU.
Turning the ags/comments feature o or on
If you want to cancel your settings and start the settings process over again, press or to highlight NO and press .You will be
returned to the LANGUAGE screen. Note that none of the settings you entered will be saved.

7
SETTING UP YOUR METER
CAUTION: Matching the code on the meter and the code on the test strip vial is essential to obtaining accurate
results. Each time you test, check to make sure the code numbers match.
Insert a test strip to turn on the meter
Remove a test strip from its vial. With clean, dry hands, you may touch the test strip anywhere on
its surface. Do Not bend, cut or modify the test strips in any way. Use each test strip immediately
after removing it from the vial. Insert the test strip into the test port as shown, with the three
contact bars facing you. Push the test strip in as far as it will go.
After the black start-up screen appears, the meter will display the code from your last
test. If a ashing “– –” appears instead of a code number, such as when you are rst
using the meter, follow the instructions in step 3 to change to a numerical code.
Match the code on the meter with the code on the test strip vial
If the code on the meter does not match the code on the test strip vial, press or to match
the code number on the test strip vial. The new code number will ash on the display for three
seconds, then briey stop ashing, after which the display will advance to the APPLY BLOOD
screen.
If the codes already match, press to go to the APPLY BLOOD screen. When you do not
make a change after ve seconds, the display will advance to the APPLY BLOOD screen.
The meter is now ready to perform a blood glucose test.
NOTE:
• If the APPLY BLOOD screen appears before you are sure the codes match, remove the test strip, and re-start from step 1.
• If you change APPLY BLOOD to APPLY CONTROL by mistake, press to change it back to APPLY BLOOD.
