Onkyo TX-8270 User manual

TX-8270
NETWORK STEREO RECEIVER
Instruction Manual
Mode d’emploi
Manual de instrucciones
Manuale di istruzioni
Bedienungsanleitung
Gebruikershandleiding
Grundläggande bruksanvisning
I
t
D
e
N
l
S
v
En
Fr
Es

2
Before Start
Table of Contents
Before Start ............................................................2
What's in the box .....................................................3
Part Names ............................................................4
Part Names .............................................................4
Install ......................................................................9

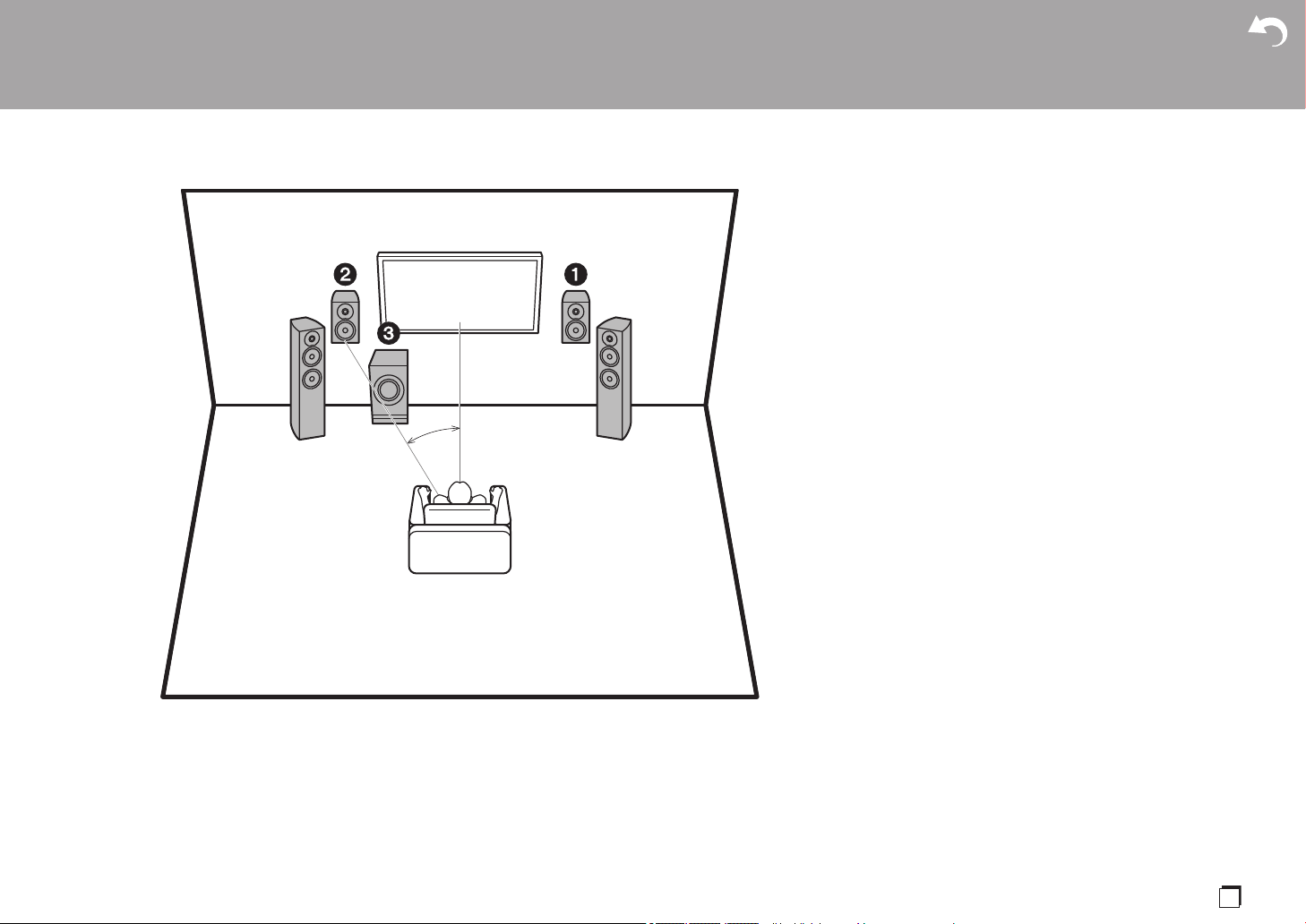

Step1: Speaker Layout ............................................9

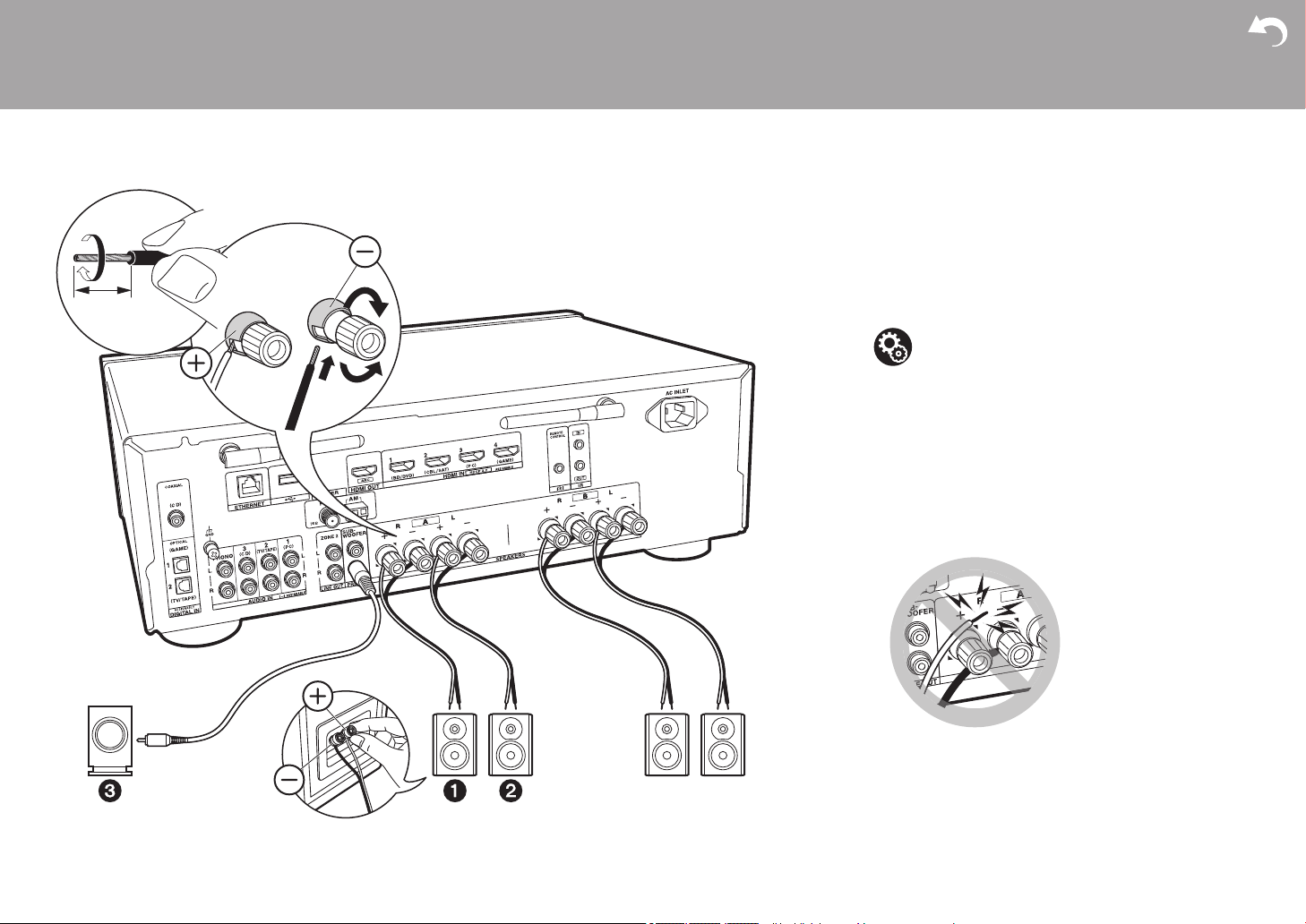

Step2: Connect the Speakers ............................... 10

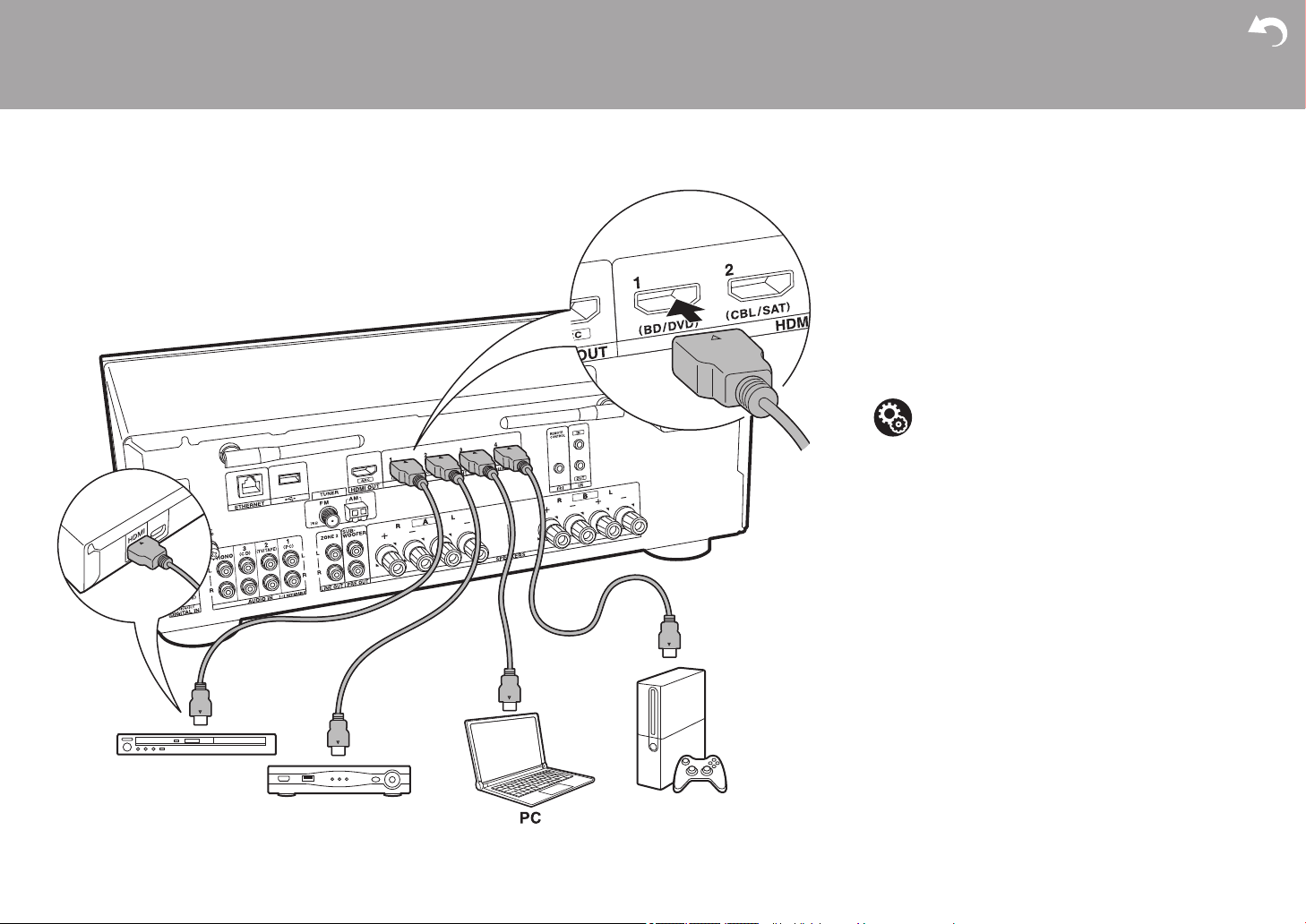

Step3: Connect the TV & AV Components ............ 11
Initial Setup ..........................................................17

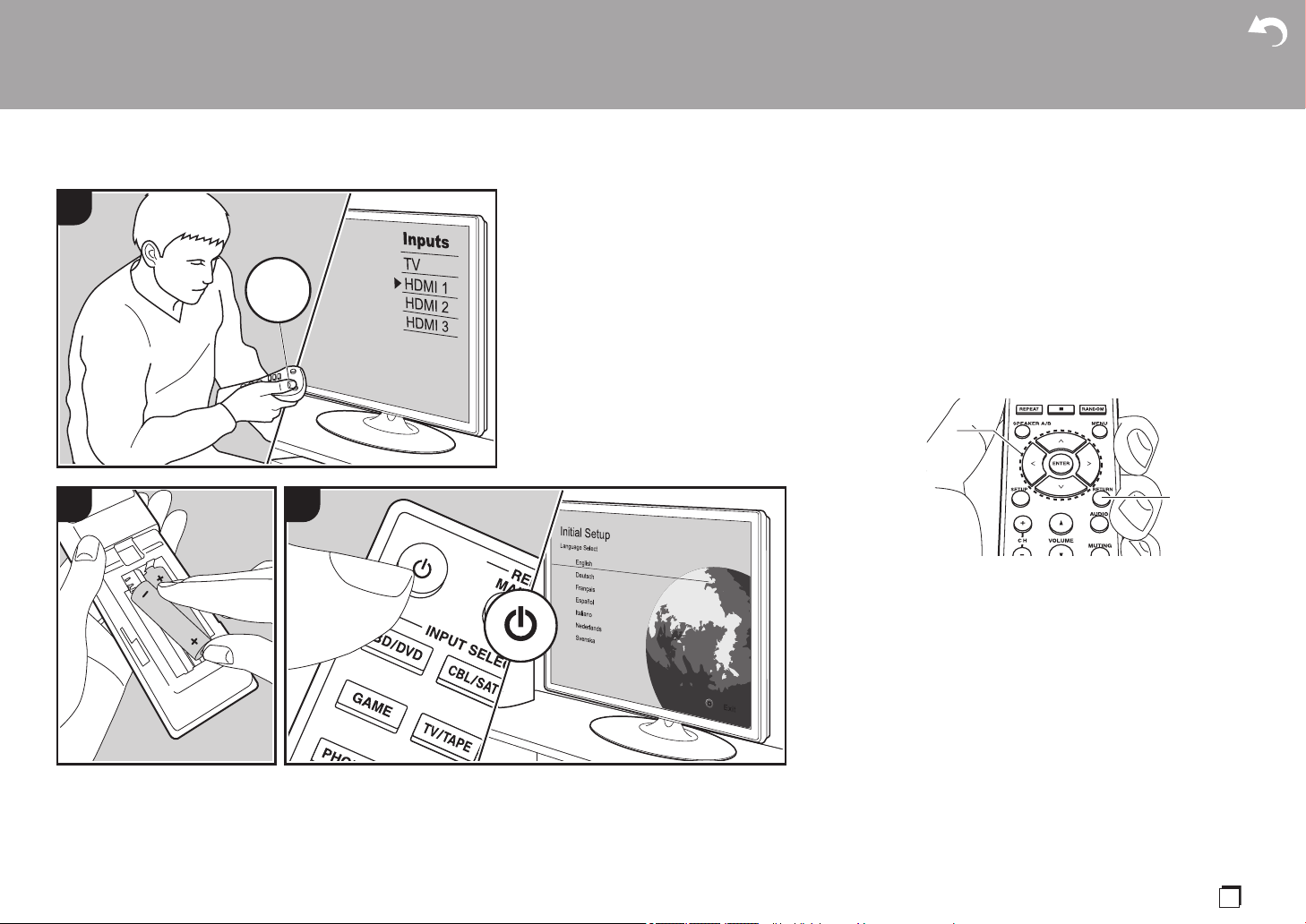

Initial Setup with Auto Start-up Wizard ..................17
Playback ..............................................................19

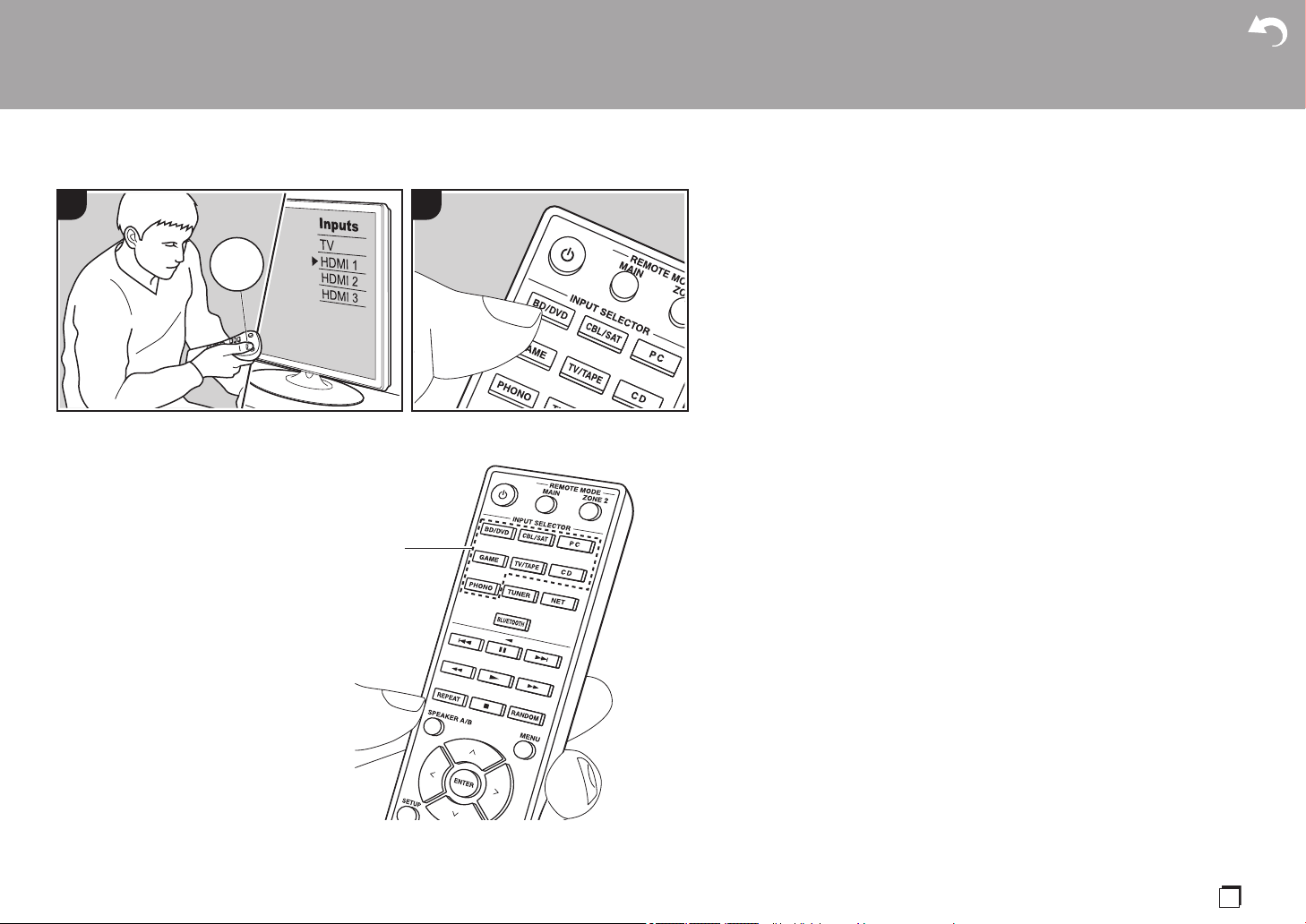

AV Component Playback ......................................19
BLUETOOTH
®
Playback ......................................20
Internet Radio .......................................................21
Spotify ...................................................................23
AirPlay
®
.................................................................24
USB Storage Device .............................................25
Listening To the AM/FM Radio (AM: North American
models only) ..........................................................26
Listening to DAB Digital Radio (European models
only) ...................................................................... 29
Music Server .........................................................31
Multi-zone .............................................................33
Supplementary information for player functions ....34
Advanced Setup ..................................................35
Setup Menu ...........................................................35
AUDIO Menu .........................................................46
Web Setup ............................................................48
Firmware Update ..................................................49
Supplementary Information ...............................52
Supplementary Information ...................................52
Others ..................................................................53
Troubleshooting ....................................................53
General Specifications ..........................................58
Reference Information ..........................................60
> Before Start > Part Names > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others

3
En

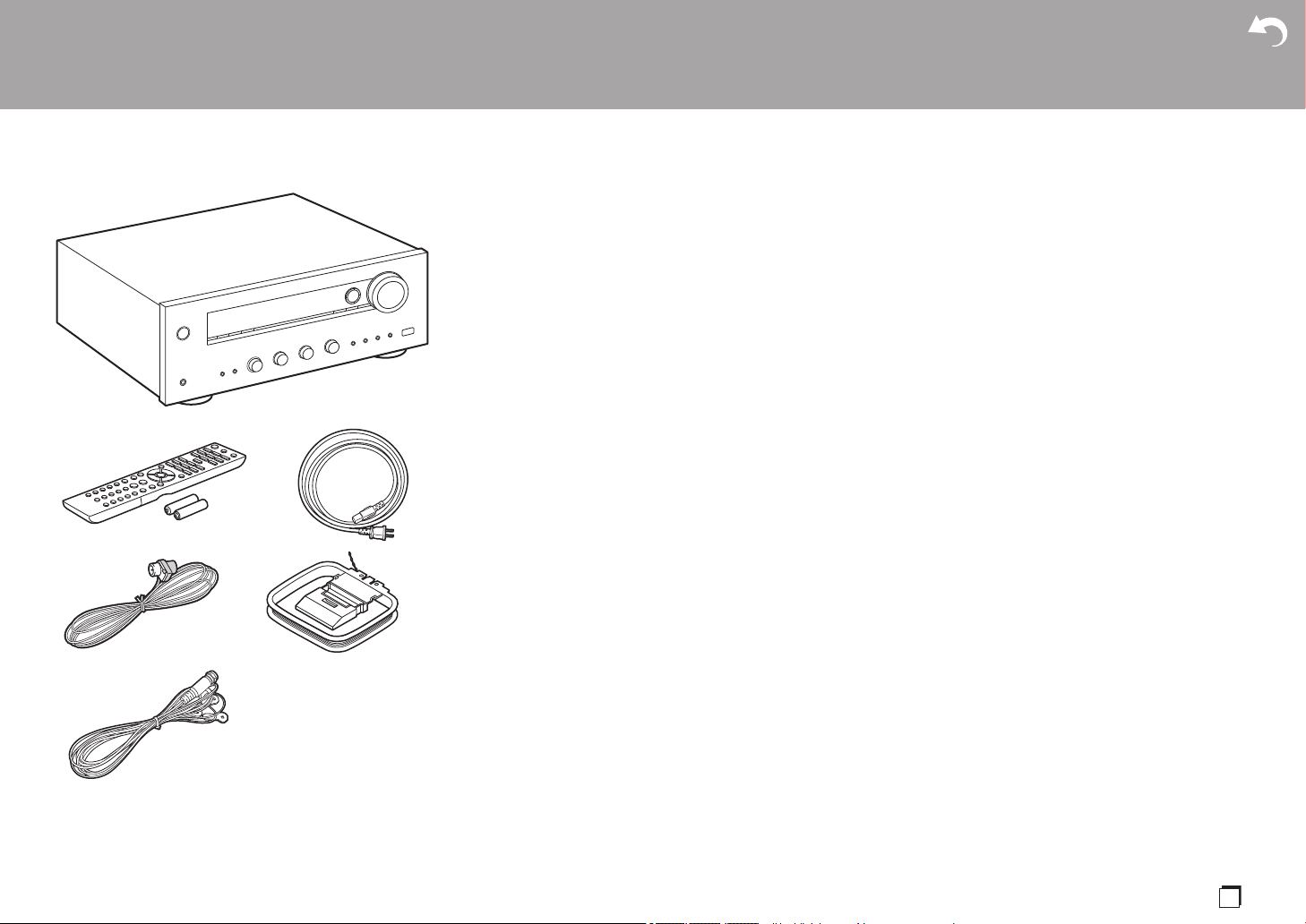

What's in the box
1. Main unit (1)
2. Remote controller (RC-903S) (1), batteries (AAA/R03)
(2)
3. Power cord (1)
4. FM indoor antenna (For North American models only) (1)
5. AM indoor antenna (For North American models only) (1)
6. DAB/FM antenna (For European models only) (1)
0Quick Start Guide (1)
* This document is an online instruction manual. It is not
included as an accessory.
0Connect speakers with 4 ≠ to 16 ≠ impedance. Note that
when connecting to both SPEAKERS A and B terminals,
connect speakers with 8 ≠ to 16 ≠ impedance to both A
and B.
0The power cord must be connected only after all other
cable connections are completed.
0We will not accept responsibility for damage arising from
the connection of equipment manufactured by other
companies.
0Functionality may be introduced by firmware updates
and service providers may cease services, meaning that
some network services and content may become
unavailable in the future. Furthermore, available services
may vary depending on your area of residence.
0Details on the firmware update will be posted on our
website and through other means at a later date.
0Specifications and appearance are subject to change
without prior notice.
> Before Start > Part Names > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
1
32
54
6

4
Par t Name s
Part Names
Front Panel
1. ÍON/STANDBY button
2. MENU button: Used to display the menu.
MEMORY button: Used to register DAB (European models)/AM (North American
models)/FM radio stations.
3. Play (1)/Pause(;) button: Used for play operations when playing Music Server or USB.
TUNING MODE button (North American models): Switches tuning to an AM/FM station
between automatic tuning and manual tuning.
TUNING MODE button (European models): Switches tuning to an FM station between
automatic tuning and manual tuning, and allows you to select the order for displaying
DAB stations.
4. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
are enabled that continue to work when this unit is in standby, such as HDMI Standby
Through and Network Standby.
5. Remote control sensor: Receives signals from the remote controller.
0The signal range of the remote controller is within about 16y/5 m, at an angle of 20° on
the perpendicular axis and 30° to either side.
6. ZONE 2 button: Controls the multi-zone function (P33).
7. OFF button: Switches the multi-zone function off (P33).
8. Display(P5)
9. SETUP button: You can show advanced setting items on the TV and display to provide
you with an even better experience (P35).
10. Cursors (D / C / B / A), ENTER button: Select the item with the cursors and press
ENTER to confirm. Use them to tune to stations when using TUNER (P26, 29).
11. RETURN button: Returns the display to the previous state during setting.
12. VOLUME
13. PHONES jack: Connect stereo headphones with a standard plug (Ø1/4z/6.3 mm
> Before Start >PartNames > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others




 
    

(European models)

5
> Before Start >PartNames > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
En
diameter).
14. PURE AUDIO button/LED (European models): Turns
on or off the Pure Audio mode which provides a purer
sound and turns off the display and cuts off analog
video circuits. The LED lights when it is on, the display
turns off, and the "Bass" and "Treble" settings are
disabled.
0Pure Audio mode cannot be selected when using the
Multi-zone feature. Activating the Multi-zone feature
while this mode is selected automatically switches
the listening mode to Direct.
15. RT/PTY button (European models): Used when
receiving stations transmitting text information.
16. DIMMER button (North American models): You can
adjust the brightness of the display in three steps. It
cannot be turned off completely.
17. SPEAKER A/B button: Select the terminals to output
audio from between SPEAKERS A/B.
18. INPUT dial: Switches the input to be played.
19. BASS dial: Adjusts the bass.
20. TREBLE dial: Adjusts the treble.
21. BALANCE dial: Adjusts the balance of the sounds
output from the left and right speakers.
22. BGM 1/2/3/4 buttons: Preset your favorite DAB
(European models)/AM (North American models)/FM
radio stations (P27, 30).
23. USB jack: A USB storage device is connected so that
music files stored in it can be played. You can also
supply power (5 V/1 A) to USB devices with a USB
cable.
Display
1. The currently selected speaker system lights.
2. Lights in the following conditions.
Ë: When headphones are connected
Z2: ZONE 2 is on.
: When connected via BLUETOOTH
: When connected by Wi-Fi
NET: When "NET" is selected with the input selector and the unit is
connected to the network. It will flash if the connection to the network is
not correct.
USB: When "NET" is selected with the input selector and the unit is
connected by USB and the USB device is selected. Flashes if the USB
is not properly connected.
HDMI: HDMI signals are input and the HDMI input selector is selected.
DIGITAL: Digital signals are input and the digital input selector is
selected.
3. Lights according to the type of input digital audio signals.
4. Lights in the following conditions.
RDS (European models): Receiving RDS broadcasting.
TUNED: Receiving DAB (European models)/AM (North American
models)/FM radio
FM ST: Receiving FM stereo.
SLEEP: Sleep timer has been set.
AUTO STBY: Auto Standby has been set.
5. Flashes when muting is on.
6. Speaker/Channel display: Displays the output channel of the
speakers.
7. This may light when performing operations with the "NET" input
selector.
8. Displays various information of the input signals.




6

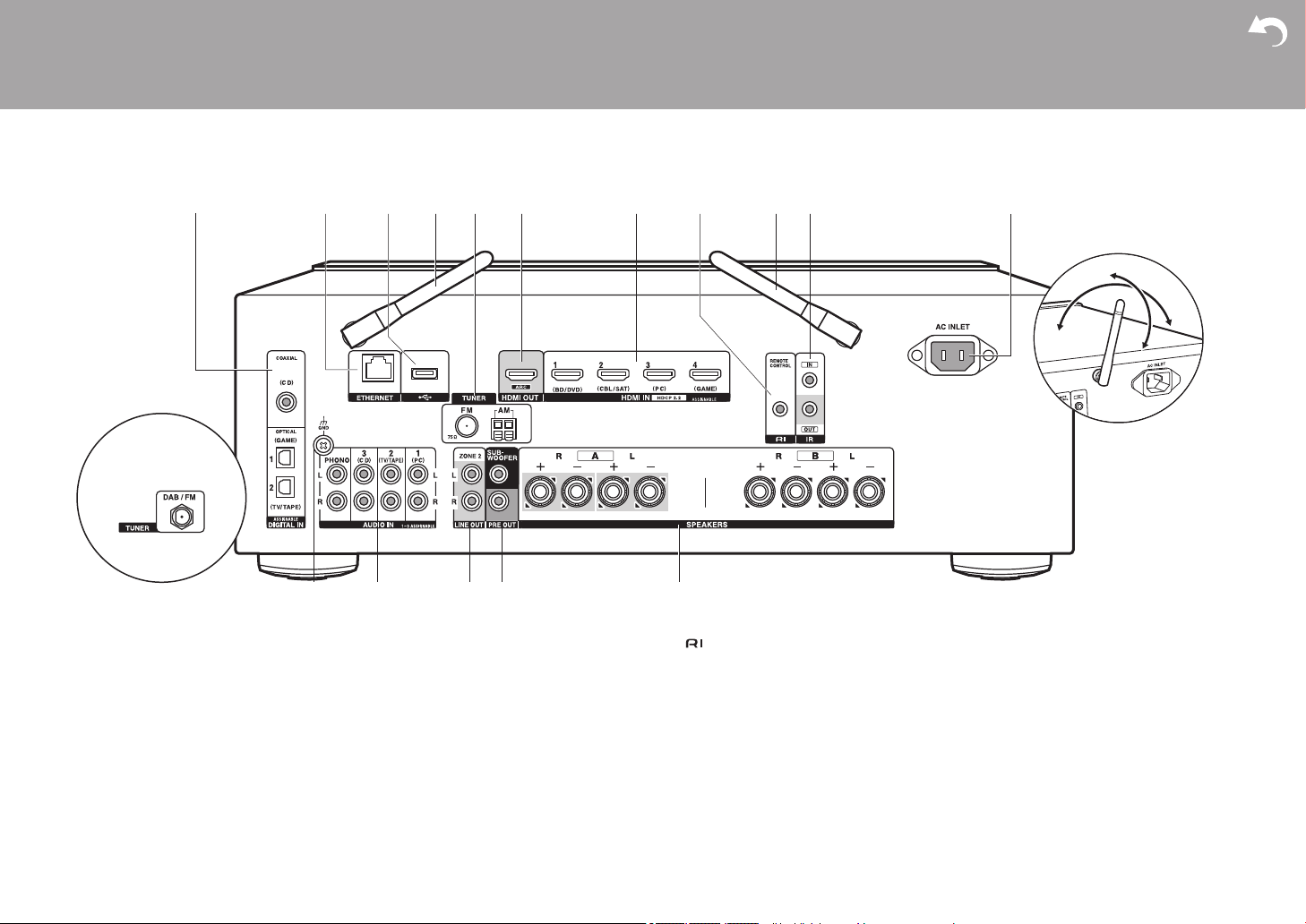

Rear Panel
1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals
with a digital optical cable or digital coaxial cable.
2. ETHERNET jack: Connect to the network with an Ethernet cable.
3. USB jack: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (5 V/500 mA) to USB devices with a USB cable.
4. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH wireless
technology enabled device. Adjust their angles according to the connection status.
5. TUNER AM/FM 75≠ terminals (North American models): The supplied antennas are
connected.
6. HDMI OUT jack: Connect a HDMI cable to transfer video signals and audio signals to a
TV.
7. HDMI IN jacks: Input video signals and audio signals with a HDMI cable connected to an
AV component.
8. REMOTE CONTROL jack: An Onkyo product with RI jack can be connected and
synchronized with this unit (P13).
9. IR IN/OUT terminals: Connected to the multi-room remote control kit. Special devices or
cables are necessary. For more information about preparation, contact the specialized
stores.
10. AC INLET: Connect the supplied power cord.
11. GND jack: The ground wire of the turntable is connected.
12. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
TUNER DAB/FM terminal (European models): The supplied antenna is connected.
13. ZONE 2 LINE OUT jacks: Output audio signals with an analog audio cable to a pre-main
amplifier in a separate room (ZONE 2).
14. SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable.
Up to two powered subwoofers can be connected. The same signal is output from each of
> Before Start >PartNames > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
180°
90°




   






(European models)

7
> Before Start >PartNames > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
En
the SUBWOOFER PRE OUT jacks.
15. SPEAKERS jacks: Connect speakers with speaker
cables. (North American models are banana plug
ready.) You can connect a set of left and right speakers
to each of the A/B terminals.
Remote Controller
1. ÍON/STANDBY button
2. INPUT SELECTOR buttons: Switches the input to be played.
3. Play buttons: Used to control play of a Music Server or device connected via
USB, or of RI connected devices.
0The , , and buttons can only be used when playing RI connected
devices.
4. REPEAT button: Used for repeat play operations when playing Music Server or
USB. Each time you press the button, the mode switches from (1-track
repeat) to (folder repeat).
5. SPEAKER A/B button: Select the terminals to output audio from between
SPEAKERS A/B.
6. Cursors (D / C / B / A), ENTER button: Select the item with the cursors and
press ENTER to confirm. When the folder or file lists are not shown on one
screen on the TV, press B/A to change the screen.
7. SETUP button: You can show advanced setting items on the TV and display to
provide you with an even better experience (P35).
8. CH (i/j) buttons: Used to select DAB (European models)/AM (North American
models)/FM radio stations.
9. Numbered buttons
10. DISPLAY button: Switches the information on the display. You can display
information such as the input source, volume, and input format when pressed
repeatedly during play.
11. DIMMER button: You can adjust the brightness of the display in three steps. It
cannot be turned off completely.
12. REMOTE MODE MAIN/ZONE 2 buttons: Controls the multi-zone function (P33).
13. RANDOM button: Used for random play operations when playing Music Server or
USB. Random turns on or off each time you press the button .
14. MENU button: Used to display the menu.
15. RETURN button: Returns the display to the previous state during setting.
16. AUDIO button: Settings such as "Tone" and "Level" can be made quickly during
play on the TV screen (P46).
17. VOLUME
18. MUTING button: Temporarily mutes audio. Press again to cancel muting.
19. CLR button: Deletes all characters you have entered when entering text on the
TV screen.
20. SLEEP button: Set the sleep timer.





















8
> Before Start >PartNames > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
Tips
When the remote controller isn't working: The
remote controller may have switched to the mode
for controlling ZONE 2. Press REMOTE MODE
MAIN to switch to the mode to control the main
room.

9
En
Install
Step1: Speaker Layout
Front speakers output front stereo sound. The powered
subwoofer reproduces bass sounds and enriches the
sound field. The optimal positioning for front speakers is ear
height. Placing the powered subwoofer between the front of
the listening position and a front speaker gives you a
natural sound even when playing music. You can connect
one more set of front speakers to this unit to use as a
Speaker B System. In this state, the front speakers 12
become the Speaker A System and you can switch the
same audio to output from A, B, or A+B. Press SPEAKER
A/B on the remote control to switch. The selection changes
in the order SPEAKER A, SPEAKER B, SPEAKER A+B
with each press.
0When connecting to both SPEAKERS A and B terminals,
connect speakers with 8 ≠ to 16 ≠ impedance to both A
and B.
1,2 Front Speakers
3 Powered Subwoofer
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
＊1
Speaker B Speaker B
¢1: 22° to 30°

10
Step2: Connect the Speakers
Up to two powered subwoofers can be connected. The
same signal is output from each of the SUBWOOFER PRE
OUT jacks. When connecting another set of front speakers
to use as the Speakers B System, connect them to the
SPEAKERS B terminals. Connect using the same method
described for SPEAKERS A. Note that when connecting to
both SPEAKERS A and B terminals, connect speakers with
8 ≠ to 16 ≠ impedance to both A and B.
Connect the speaker cable so the wires do not protrude from the
speaker jacks. If the exposed wires of the speakers touch the
rear panel or the + and - wires touch each other, the protection
circuit will be activated.
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
a
b
Speaker B
1/2˝
(12 mm)
a Speaker cable, b Subwoofer cable
Setup
0If a powered subwoofer is not connected, then
after Initial Setup is complete, settings are
required in the Setup menu. Press SETUP on the
remote controller, select "2. Speaker" -
"Configuration" and set "Subwoofer" to "No".
0 If any of the connected speakers have an
impedance of 4
≠ or more to less than 6 ≠ , or when
a Speaker B system is to be used, after completing
Initial Setup, you need to make some settings in the
Setup menu. Press SETUP on the remote
controller, select "2. Speaker" - "Configuration" and
set "Speaker Impedance" to "4ohms".

11
En
Step3: Connect the TV & AV Components
1. Connect the TV
To ARC TV
For a TV that supports the ARC (Audio Return Channel)
feature (*), use an HDMI cable and connect according to
illustration "a". Choose an HDMI IN jack on the TV that
supports ARC when connecting.
0Only PCM audio input is supported from a TV to this unit.
To Non-ARC TV
For a TV that does not support the ARC (Audio Return
Channel) feature (*), connect both the HDMI cable in
illustration "a" and the digital optical cable in "b".
0Connection with a digital optical cable is not necessary if
you will watch TV through a device such as a cable set-
top box (that is, not use a tuner built into the TV) that you
have connected to the input jack on this unit.
(*) ARC feature: This feature transfers TV audio signals via
HDMI cable so that you can play the audio from the TV
through this unit. Connection to an ARC compatible TV is
complete with one HDMI cable. Refer to the instruction
manual for your TV to see if it supports ARC.
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
TV
a
b
a HDMI cable, b Digital optical cable
Setup
0Settings are required to use the ARC function.
For "4. Audio Return Channel" (P18) in Initial
Setup, select "Yes".
0Refer to the instruction manual for the TV for TV
connections and instructions regarding settings
for CEC features and audio output.

12
2. Connect the HDMI AV Component
This is an example of connection with an AV component
that has an HDMI jack. With connection to an AV
component that conforms with the CEC (Consumer
Electronics Control) standard, you can use features such as
the HDMI CEC feature (*) that links with the input selector,
and the HDMI Standby Through feature which allows you to
play video and audio from AV components on the TV even
when this unit is in standby mode.
0To play 4K or 1080p video, use the high speed HDMI
cable.
(*) HDMI CEC feature: You can control features such as
linking input switching with the input selector and players
conforming to the CEC standard, switching audio to output
it from the TV or from this unit, and adjusting the volume
using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is
turned off.
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
BD/DVD
GAME
a
Cable/Satellite set-top
box
a HDMI cable
Setup
0When "Yes" is selected for "4. Audio Return
Channel" in Initial Setup (P18), the HDMI CEC
function and HDMI Standby Through function are
automatically enabled. If "No, Skip" is selected,
settings are required in the Setup menu after
Initial Setup is complete. Press SETUP on the
remote controller and make the settings in "5.
Hardware" - "HDMI".
0The audio from connected AV components can
only be played when the audio is PCM or DSD. To
play PCM audio, set the audio output on the AV
component to output PCM.

13
En
3. Connect the Audio Component
Example of a connection with an audio component.
Connect a CD player using a digital coaxial cable or analog
audio cable. You can connect a turntable that has an MM-
type cartridge to the PHONO jack.
0If the turntable has a built-in audio equalizer, connect it to
an AUDIO IN jack other than the PHONO jack. Also, if
the turntable uses an MC type cartridge, install an audio
equalizer compatible with the MC type cartridge between
the unit and the turntable, then connect to any AUDIO IN
jack other than the PHONO jack.
If the turntable has a ground wire, connect it to the GND terminal.
0By connecting an Onkyo component with RI jack to the
unit by using an RI cable and an analog audio cable, you
can link the unit’s power and input selection and enable
operation with this unit’s remote controller. For details,
refer to the instruction manual of the component with the
RI jack.
0Part of the function may not operate even if it is
connected via RI depending on the equipment.
0The RI dock function does not work if ZONE 2 is on.
0When connecting an RI dock, you must rename the
input selectors on the unit to make the system link
work. Select the GAME input selector to display
"GAME" on the main unit display. Then press and hold
RETURN on the main unit for 3 seconds to switch the
display to "DOCK".
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
OR
CD
a
b
Turntable
a Digital coaxial cable, b Analog audio cable

14
4. Multi-zone Connection
You can enjoy audio in the separate room by, for example,
playing a Blu-ray Disc player in the main room (where this
unit is located) and listening to internet radio in the separate
room (ZONE 2).
0DSD audio signals are not output to ZONE 2 with the
"NET" input selector.
Connections with an AV component
When outputting the audio of an external AV component to
ZONE 2, connect using an analog audio cable.
ZONE 2 LINE OUT
Connect the ZONE 2 LINE OUT jacks of the unit and the
LINE IN jacks of the pre-main amplifier in a separate room
with an analog audio cable.
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
LINE
IN
CD
a
ZONE2 LINE OUT
ZONE2
MAIN ROOM
a Analog audio cable
Setup
0To use this feature, settings are required in Initial
Setup, "3. Multi Zone Setup" (P18).

15
En
5. Connect Other Cables (North American
models)
Antenna Hookup
Move the antenna around while playing the radio to find the
position with the best reception. Use a thumb tack or similar
to attach the FM indoor antenna to a wall.
Network Hookup
Connect this unit to the network using wired LAN or Wi-Fi
(wireless LAN). You can enjoy Network Functions such as
internet radio by connecting to the network. If you connect
by wired LAN, connect to the router with an Ethernet cable
to the ETHERNET port as shown in the illustration. To
connect by Wi-Fi, after selecting "Wireless" in "2. Network
Connection" (P17) in Initial Setup, select the desired setting
method and follow the onscreen instructions to configure
the connection.
Power Cord Hookup
This model includes a removable power cord. The power
cord must be connected only after all other connections are
completed. Make sure you first connect the power cord to
AC INLET of the unit and then connect to the outlet. Always
disconnect the outlet side first when disconnecting the
power cord.
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
b
c
d
2
a
a FM indoor antenna, b AM indoor antenna, c Ethernet cable, d Power cord

16
5. Connect Other Cables (European models)
Antenna Hookup
Make sure the plug is pushed in all the way, then fix in place
by turning the nut to the right. Use a tack or similar to fix the
antenna to a wall.
Network Hookup
Connect this unit to the network using wired LAN or Wi-Fi
(wireless LAN). You can enjoy Network Functions such as
internet radio by connecting to the network. If you connect
by wired LAN, connect to the router with an Ethernet cable
to the ETHERNET port as shown in the illustration. To
connect by Wi-Fi, after selecting "Wireless" in "2. Network
Connection" (P17) in Initial Setup, select the desired setting
method and follow the onscreen instructions to configure
the connection.
Power Cord Hookup
This model includes a removable power cord. The power
cord must be connected only after all other connections are
completed. Make sure you first connect the power cord to
AC INLET of the unit and then connect to the outlet. Always
disconnect the outlet side first when disconnecting the
power cord.
> Before Start > Part Names >Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
a
b
c
a DAB/FM antenna, b Ethernet cable, c Power cord

17
En
Initial Setup
Initial Setup with Auto Start-up Wizard
Initial Setup starts automatically
When you turn the unit on for the first time after purchasing
it, Initial Setup is automatically shown on the TV to enable
you to make settings required for startup using simple
operations following onscreen guidance.
1. Switch the input on the TV to that assigned to the unit.
2. Put batteries into the remote controller of this unit.
3. Press Í on the remote controller to turn the unit on.
4. Select the item with the cursors of the remote controller
and press ENTER (a) to confirm your selection. To return
to the previous screen, press RETURN (b).
0If you terminate the procedure on the way or want to
change a setting made during Initial Setup, press SETUP
on the remote controller, and select "7. Miscellaneous" -
"Initial Setup" and press ENTER. To select the language
displayed again, change "OSD Language" (P35).
∫1. Source Connection
Check that each input source is connected correctly. Follow
the guidance, select the input you want to confirm, start
play of the selected player, and confirm that the images
appear on the TV and that sound is played.
∫2. Network Connection
Set up Wi-Fi connection with an access point such as a
wireless LAN router. There are the following two methods of
> Before Start > Part Names > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
1
2 3
TV
INPUT
a
b

18
connecting by Wi-Fi:
"Scan Networks": Search for an access point from this
unit. Find out the SSID of the access point beforehand.
"Use iOS Device (iOS7 or later)": Connect by sharing the
iOS device's Wi-Fi settings with this unit.
If you select "Scan Networks", there are a further two
choices of connection method. Check the following.
"Enter Password": Enter the password (or key) of the
access point to connect.
"Push Button": If the access point has an automatic
connection button, you can connect without entering a
password.
0If the SSID of the access point is not displayed, then in
the screen listing the SSIDs, select "Other..." with the A
cursor on the remote controller and press ENTER, then
follow the onscreen instructions.
Keyboard input
To switch between upper and lower case, select "A/a" on
the screen and press ENTER. To select whether to mask
the password with "¢" or display it in plain text, press
MENU on the remote control. Pressing CLR will delete all
the input characters.
0A confirmation screen asking you to agree to the privacy
policy is displayed during network setting. Select
"Accept" and press ENTER to indicate agreement.
∫3. Multi Zone Setup
Make these settings to enjoy audio in a room other than the
main room (ZONE 2).
∫4. Audio Return Channel
If you have connected a TV that supports ARC, select
"Yes". This unit's ARC setting turns on and you can listen to
the TV's audio through this unit.
> Before Start > Part Names > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others

19
En
Playback
AV Component Playback
Basic operations
You can play the audio from AV
components such as Blu-ray Disc players
through this unit.
Perform the following procedure when the
unit is on.
1. Switch the input on the TV to that
assigned to the unit.
2. Press the input selector (a) on the
remote controller with the same name as
the jack to which you connected the
player to switch the input.
For example, press the BD/DVD button
to play the player connected to the BD/
DVD jack. Press TV/TAPE to listen the
TV's sound.
0When the CEC link function works,
the input switches automatically when
you have connected a CEC compliant
TV and player to this unit using HDMI
connection.
3. Start play on the AV component.
> Before Start > Part Names > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
1
TV
INPUT
2
a

20
BLUETOOTH
®
Playback
You can wirelessly play music on a
smartphone or other BLUETOOTH
wireless technology enabled device.
Perform the following procedure when the
unit is on.
Pairing
1. When you press the BLUETOOTH
button, "Now Pairing..." is displayed on
this unit's display, and the pairing mode
is enabled.
2. Enable (turn on) the BLUETOOTH
function of the BLUETOOTH wireless
technology enabled device, then select
this unit from amongst the devices
displayed. If a password is requested,
enter "0000".
0This unit is displayed as "Onkyo TX-
8270 XXXXXX".
0To connect another BLUETOOTH
wireless technology enabled device,
press and hold BLUETOOTH until
"Now Pairing..." is displayed, then
perform step 2. This unit can store the
data of up to eight paired devices.
0The coverage area is 48y/15 meters.
Note that connection is not always
guaranteed with all BLUETOOTH
wireless technology enabled devices.
Playing Back
1. Perform the connection procedure on
the BLUETOOTH wireless technology
enabled device.
The input on this unit automatically
switches to "BLUETOOTH".
2. Play the music files. Increase the volume
of the BLUETOOTH wireless technology
enabled device to an appropriate level.
0Due to the characteristics of
BLUETOOTH wireless technology, the
sound produced on this unit may slightly
be behind the sound played on the
BLUETOOTH wireless technology
enabled device.
> Before Start > Part Names > Install > Initial Setup > Playback
Advanced Setup | Supplementary Information | Others
OnkyoTX-8270XXX
1 2 3
