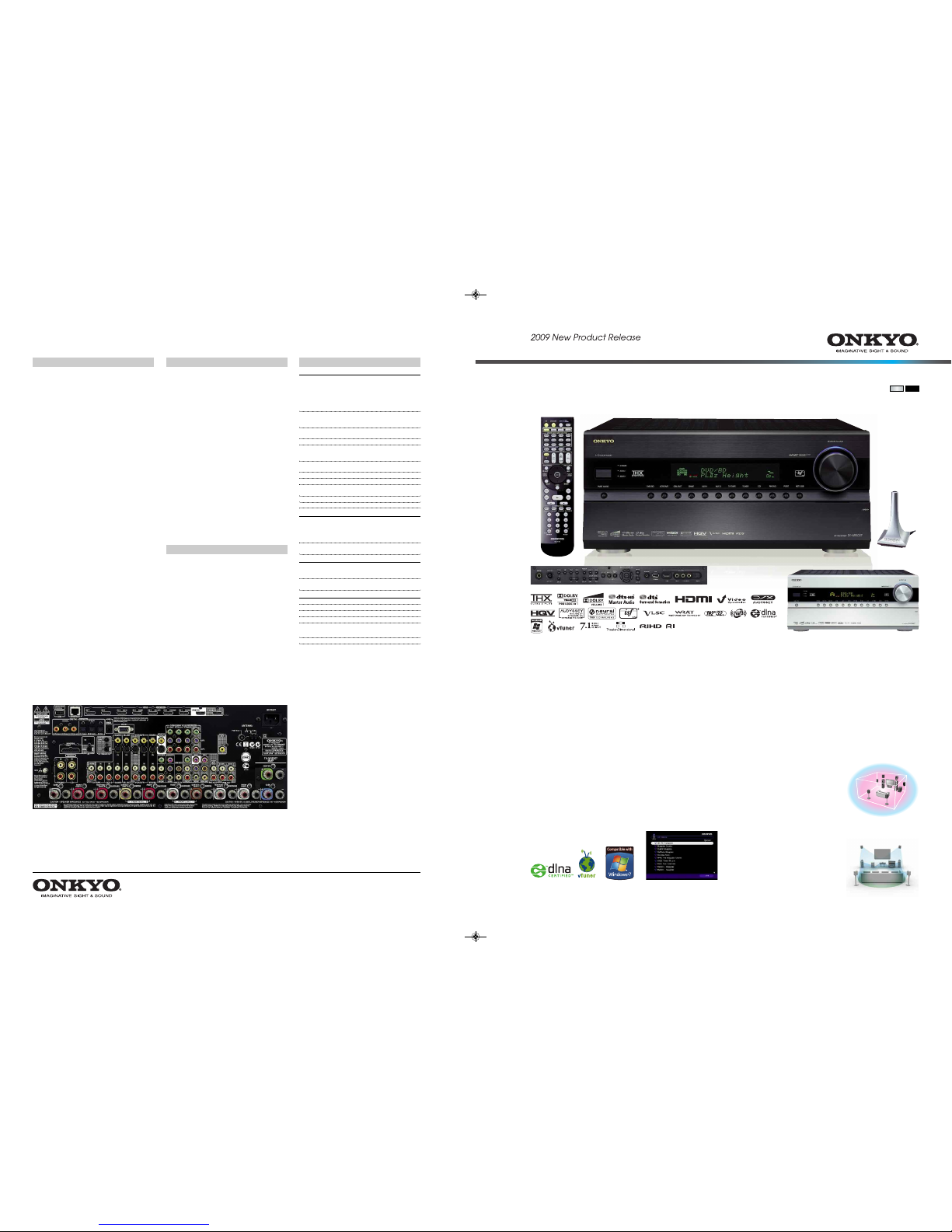

TX-NR5007 9.2-Channel A/V Surround Home Network Receiver
Top-of-the-Line Networking Powerhouse Sets the Standard
As Onkyo’s flagship model for the network generation, the TX-NR5007 offers a mouthwatering feature set designed to satisfy even the most
demanding home theater purist. The expanded 9.2-channel configuration allows you to enjoy multi-zone playback as well as the latest surround
formats by Dolby, DTS, and Audyssey. Advanced networking capability, meanwhile, enables you to incorporate PC-based audio and internet
radio into your home theater set-up. Video signals fed through this receiver get the luxury treatment, thanks to HQV Reon-VX processing, ISF
calibration, and 1080p upscaling of all video sources via HD I™1.3a. In the engine room, the TX-NR5007 boasts an impressive array of
audiophile-grade components, including large, customized transistors to drive high currents and 22,000 µF capacitors to support a huge and
stable power supply. Add to that high-quality 32-bit Burr-Brown DACs; ultra-low-jitter circuitry; and independent power supplies for amp, video,
and audio circuitry, and you have a networking powerhouse equipped to deliver an immaculate A/V performance every time.
TX-NR5007 9.2-Channel A/V Surround Home Network Receiver
NPR No. 09N63 08/09
Due to a pol cy of cont nuous product mprovement, Onkyo reserves the rght to change spec f catons and appearance wthout notce. THX Ultra2 Plus and THX Loudness Plus are trademarks of THX Ltd. THX may be regstered n some jur sdct ons. Manufactured under l cense from Dolby Laboratores.
Dolby, Pro Logc, and the double-D symbol are trademarks of Dolby Laboratores. DTS s a regstered trademark and the DTS logos and Symbol are trademarks of DTS, Inc. HQV s a reg stered trademark of Sl con Optx. Pod s a regstered trademark of Apple Inc., regstered n the U.S. and other
countres. Manufactured under lcense from Audyssey Laboratores. U.S. and fore gn patents pendng. DSX, MultEQ XT, Dynamc EQ, and Dynamc Volume are trademarks of Audyssey Laboratores. HDMI, the HDMI logo, and Hgh-Defn t on Mult meda Interface are trademarks or regstered trademarks
of HDMI Lcens ng LLC. The Neural Surround name and related logos are trademarks owned by Neural Aud o Corporaton. Aureus s a trademark of Texas Instruments. x.v.Color s a trademark of Sony Corporat on. VLSC, WRAT, Mus c Optm zer, and Theater-Dmensonal are trademarks of Onkyo
Corporaton. All other trademarks and reg stered trademarks are the property of ther respectve holders.
Onkyo Corporation 2-1 Nisshin-cho, Neyagawa-shi, Osaka 572-8540, JAPAN Tel: [phone] Fax: [phone] http://www.onkyo.co /
Onkyo China Li ited Unit 1 & 12, 9/F, Ever Gain Plaza Tower 1, 88 Container Port Road, Kwai Chung, N.T., Hong Kong, SAR of CHINA Tel: [phone] Fax: [phone] http://www.ch.onkyo.co /
Onkyo U.S.A. Corporation 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: [phone] Fax: [phone] http://www.onkyousa.co /
Onkyo Europe Electronics G bH Liegnitzerstrasse 6, 82194 Grobenzell, GERMANY Tel: [phone] Fax: [phone] http://www.eu.onkyo.co /
SPECIFICATIONS
AMPLIFIER SECTION
Power Output
Front L/R 280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Center 280 W (6 Ω, 1 kHz, 1 channel driven, JEITA)
Surround L/R 280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Surround Back L/R 280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Front Wide L/R or Front High L/R
280 W/Ch (6 Ω, 1 kHz, 1 channel driven, JEITA)
Dyna ic Power 400 W (3 Ω, Front)
300 W (4 Ω, Front)
180 W (8 Ω, Front)
THD (Total Har onic Distortion)
0.05% (Rated power)
Da ping Factor 60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and I pedance
200 mV/47 kΩ(Line)
2.5 mV/47 kΩ(Phono MM)
Output Level and I pedance
200 mV/470 Ω(Rec out)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz 100 kHz/+1 dB, -3 dB
Tone Control ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 110 dB (Line, IHF-A)
Speaker I pedance 4 Ω16 Ωor 6 Ω16 Ω
VIDEO SECTION
Input Sensitivity/Output Level and I pedance
Video
1.0 Vp p/75 Ω (Component and S-Video Y)
0.7 Vp p/75 Ω (Component PB/CB, PR/CR)
0.28 Vp p/75 Ω( S-Video C )
1.0 Vp p/75 Ω(Composite)
Co ponent Video Frequency Response
5 Hz 100 MHz, -3 dB
TUNER SECTION
Tuning Frequency Range
FM 87.5 MHz 108 MHz
AM 522 kHz 1,611 kHz
FM/AM Preset Me ory
40 stations
GENERAL
Power Supply AC 220 240 V~, 50/60 Hz
Power Consu ption 1,160 W
Di ensions (W x H x D) 435 x 198.5 x 463.5 mm
Weight 25.0 kg
■CARTON
Di ensions (W x H x D) 594 x 337 x 576 mm
Weight 30.8 kg
PC Audio and Internet Radio via Network Function with DLNA
1.5 and Windows 7 Compatibility
As one of nkyo’s new breed of receivers that can link directly to the internet or
to your home PC via a local network, the TX-NR5007 takes streaming audio and
internet radio to a whole new level. MP3, WMA, WMA Lossless, FLAC, WAV, gg
Vorbis, AAC, and LPCM audio files—whether from your PC or from the
internet—can now be played back through your main system with
unprecedented power and fidelity. The TX-NR5007 brings to life a wide array of
internet radio sources through the vTuner application. As well as being compatible
with earlier platforms, the receiver is compatible with Microsoft’s new Windows 7
platform, which includes the DLNA 1.5-specified “Play To” media-streaming
feature. Another benefit of having the TX-NR5007 connected to the internet is
that you can then easily update its firmware.
Audyssey D X™Adds Extra Dimensions to urround ound
Audyssey DSX lets you augment a standard
7.1-channel surround set-up with two “front
wide” channels. Two extra speakers expand the
width of the soundstage and help to produce a
more realistic and immersive listening experience.
Alternatively, Audyssey DSX can be configured to
deliver “front height” channels. These channels
carry non-directional audio that adds a new
vertical dimension to your movies and games.
Dolby®Pro Logic®IIz for a More Enveloping ound Field
As with previous versions of Pro Logic, Pro Logic
IIz creates a surround-sound experience from any
movie or music source— even a stereo one. Pro
Logic IIz also enables you to incorporate two
“front height” speakers in one of several
configurations, depending on the available speaker
channels. The front height channels carry ambient
audio effects that help immerse you even more
deeply into your games and movies.
• THX®Ultra2 Plus™Certified
• DTS-HD aster Audio™, DTS-HD High Resolution Audio™,
Dolby®TrueHD, and Dolby®Digital Plus Decoding
• HD I™Version 1.3a to Support Deep Color™, x.v.Color™,
LipSync, Dolby TrueHD, DTS-HD aster Audio, DVD-Audio,
Super Audio CD, ultichannel PC , and CEC
• DSD Direct for Super Audio CD
• Audio and 1080p Video Processing via HD I (1 Front/7 Rear
Inputs and 2 Outputs [ ain/Sub])
• HD I Video Upscaling to 1080p with HQV Reon-VX
• New Custom-Designed, Large-Size Transistors to Drive
High Currents
• Push-Pull Amplification Design with Three-Stage Inverted
Darlington Circuitry
• assive Toroidal Transformer and Two Separate Transformers
for Audio and Video Processing
• Customized 22,000 µF Capacitors for Effective Power Supply
• Burr-Brown 192 kHz/32-Bit DACs (PC 1795 x 6) for
All Channels
• Ultra-Low-Jitter PLL (Phase Locked Loop) Circuitry to
Improve Audio Quality
• Three TI (Aureus™) 32-Bit DSP Chips (DA830 x 1, DA788 x 2)
for Advanced Processing
• VLSC™(Vector Linear Shaping Circuitry) for All Channels
• ISF (Imaging Science Foundation) Video Calibration
• Audyssey DSX™and Dolby®Pro Logic®IIz for New
Surround Channels
• Audyssey ultEQ™XT to Correct Room Acoustic Problems
and to Calibrate Speakers
• Audyssey Dynamic Volume™to aintain Optimal Listening
Level and Dynamic Range
• Audyssey Dynamic EQ™for Loudness Correction
• Dolby®Volume for Reference-Quality Listening Experience at
Any Volume
• Network Capability for Streaming Audio Files ( P3, W A,
WA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPC )
• Internet Radio Connectivity Through vTuner
• Certified with Windows 7 and DLNA Version 1.5
• Bi-Amping and BTL (Bridged Transless) Capability
• Powered Zone 2 and Zone 3 for Playback of Separate
Sources in Other Rooms
• Zone 2 onitor Output (Composite)
• Universal Port for Single-Cable Connection of Optional
Onkyo Dock for the iPod
• 4 DSP odes for Gaming: Rock, Sports, Action, and RPG
(Role Playing Game)
• 2 Independent Subwoofer Pre Outs
ADVANCED FEATURES
• 280 W/Ch at 6 Ω, 1 kHz, 1 Channel Driven, JEITA
• H.C.P.S. (High Current Power Supply) assive High
Power Transformer
• WRAT (Wide Range Amplifier Technology)
• Linear Optimum Gain Volume Circuitry
• DTS Surround Sensation®Speaker/Headphone Technology
• Neural-THX®Surround Decoder
• usic Optimizer™for Compressed Digital usic Files
• Theater-Dimensional Virtual Surround Function
• RIHD (Remote Interactive over HD I) for System Control
• A-Form Listening ode emory
• Double Bass Function
• Direct ode and Pure Audio ode
• Non-Scaling Configuration
• Tone Control (Bass/Treble) for All Channels
• Front-Side Auxiliary A/V Input (for Camcorders,
Game Consoles, etc.)
• 2 USB Ports (Front/Rear) for P3 Audio Devices
(Audio Only)
• Component Video Upscaling (Up to 1080i)
• Component Video Switching (3 Inputs and 1 Output)
• Color-Coded, 9 ultichannel Pre Outs
• 7 Digital Inputs (4 Optical and 3 Coaxial)
• Independent Crossover Adjustment for F/C/S/SB/FH/FW
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control Function (Up to 250 ms in 5 ms Steps)
• 40 F /A Random Presets
AUDIO & VIDEO FEATURES
• Gold-Plated A/V Inputs and Outputs
• Customized, Gold-Plated Speaker Posts
• High-Rigidity Flat Chassis (1.6 mm Thick)
• 4 S-Video Inputs and 1 Output
• 5 A/V Inputs and 1 Output
• onitor Outputs (Component, Composite, and S-Video)
• 3 Audio Inputs and 1 Output
• Phono Input
• Wide-Spaced, Gold-Plated, achined Solid Brass Audio Inputs
for High-Grade RCA Audio Cable (CD and Phono)
• RS232 and IR (In/Out) Connectivity
• 12 V Trigger Out (Zone 2/Zone 3)
• IntelliVolume
• Headphone Jack
• Onscreen Display (OSD)
• Display Dimmer (Normal/Dim/Dimmer)
• Aluminum Front Panel and Volume Knob
• Firmware Updates via Ethernet and USB
• Compatible with RI (Remote Interactive) Dock for the iPod
• Bi-Directional, Preprogrammed, and Customizable RI Remote
Control with Backlight, Onscreen Setup, ode-Key LEDs, and
acro Presets for Four Activities
OTHER FEATURES
The less-used controls are
neatly tucked away behind the
drop-down panel.
SI LVER B LA CK
TX-NR5007_EX:TX-NR5007_EX 09/12/01 11:01 ページ 1

Processing 1080p Video and High-Def urround ound via HDMI 1.3a*
Incorporating HDMI version 1.3a and advanced processing capabilities, the TX-
NR5007 works as a powerful A/V control center. Seven rear-side HDMI inputs,
along with a convenient front-side one, enable connection of up to eight
components, including Blu-ray Disc players, gaming consoles, and set-top boxes.
The system can then receive and switch high-definition video signals and send a
pristine digital signal to two different output locations— for example, to two
separate high-definition displays. n the audio front,
lossless Dolby®TrueHD and DTS-HD Master Audio™
provide a bit-for-bit multichannel soundtrack identical
to the studio master track.
*HDMI version 1.3a suppor s Deep Color™, x.v.Color™, LipSync, Dolby TrueHD,
DTS-HD Mas er Audio, DVD-Audio, Super Audio CD, Mul ichannel PCM, and CEC.
I F Video Calibration for Accurate Video Reproduction
The TX-NR5007 comes equipped with industry-leading ISF (Imaging Science
Foundation) video calibration to dramatically improve your home theater by
enabling you to adjust the brightness, hue, contrast, saturation, and gamma
levels on all video inputs. Transforming your A/V receiver into a video hub, this
function ensures that every video source is independently calibrated for your
connected high-definition display. What’s more, ISF video
calibration has been shown to improve energy savings in
displays and projectors by up to 50%.
THX Ultra2 Plus Certified with New THX®Loudness Plus™Technology
The ultimate benchmark for home audio performance, THX Ultra2 Plus is
specified for rooms where the screen-to-seat viewing distance is more than
4 meters and the room volume is 85 cubic meters or greater. To achieve
THX Ultra2 Plus certification, the TX-NR5007 must meet the world’s most
demanding standards for home theater audio quality and performance, and must
play at reference volume levels with minimal distor tion. THX Loudness Plus is a
volume control technology included in THX Ultra2 Plus that compensates for
the tonal and spatial shifts that occur when the volume level is lowered. It
automatically adjusts the levels of ambient sound and bass
frequencies, so you can enjoy the true impact of movies, music,
and games no matter what volume setting you use.
Advanced Video Processing and 1080p Upscaling
with HQV Reon-VX
HQV Reon-VX is the most sophisticated video-processing
chip available for home theater. It provides the ultimate
support for 1080p scaling; for filtering of jaggies and
artifacts; and for the reduction of random, “mosquito”, and
block (codec) noise. HQV Reon-VX also enables color
region enhancement and the rendering of more than one
billion colors.
HQV chips process pixels individually,
for enhanced pixel accuracy.
Images scaled by Reon-VX contain 80% new
pixels to augment the original video data.
Standard chips process pixels in blocks,
creating unwanted ar tifacts.
Tailor Multichannel Audio to Your Home with Audyssey and
Dolby Technologies
The TX-NR5007 makes use of Audyssey’s MultEQ™XT, to counter distor tion
caused by walls and furniture in dedicated home theaters. This solution focuses
on the frequency response and time domain across the entire listening area to
deliver a clear, well-balanced, and natural sound. Two other Audyssey
technologies, Dynamic EQ™and Dynamic Volume™, work to optimize frequency
response and dynamic range at all volume levels. In a similar vein, Dolby®Volume
performs independent loudness adjustments to different frequencies and
channels to produce a listening experience that includes all the dynamics of the
original mix. It also enables users to
enjoy a consistent playback volume
for different input sources.
A Fresh Approach to the Internal Construction of A/V Receivers
ur design philosophy for the TX-NR5007 is based on a consideration of
how each individual par t interacts with the others and affects audio and video
performance. The end result is a receiver design where the power amplifier
block and the pre-amplifier coexist, but are perfectly isolated. Fur thermore,
the circuit boards have been affixed to the chassis so that vibrations from the
base are suppressed. As nkyo’s new flagship model for the high-definition
era, the TX-NR5007 forges fur ther
ahead with gold-plated A/V inputs and
outputs, a brass bus
plate for perfect
grounding, and
customized, gold-plated
speaker posts.
Push-Pull Amplification with Three- tage Inverted
Darlington Circuitry
Push-pull amplification uses different transistors to
separately amplify the positive and negative halves
of the waveform. This brings greater efficiency to
the TX-NR5007, which also use three-stage
inverted Darlington circuitr y to remove distortion.
Bi-Amping and BTL (Bridged Transless) Capability
Taking a cue from the world of high-end audio, the TX-NR5007 incorporates bi-
amping and BTL capabilities. This allows for a number of different home theater
set-ups beyond the standard surround-sound configurations. Compatible front
speakers can be bi-amped for separate tweeter and woofer inputs. Meanwhile,
BTL enables you to double the power output to compatible front speakers.
Harnessing Power for Audio Performance
nkyo's H.C.P.S. (High Current Power Supply) concept is based around
power transformers with the capability to respond to the wide dynamics of
home theater. In the case of the TX-NR5007, a massive toroidal transformer
improves power efficiency and radiates very little noise into the surrounding
circuitry, while two separate transformers cater specifically to audio and video
processing. You’ll also find capacitors (operating at up to 22,000 microfarads)
that store the charge necessar y to
support an effective power supply, along
with large new custom-designed
transistors to drive high currents.
VL C™(Vector Linear haping Circuitry)
nkyo’s VLSC employs a unique digital-to-analog conversion circuit to
mitigate the effects of signal noise. Data is converted between discrete
sampling points, which are
then joined with analog
vectors in real-time to
produce a smooth output
wave form. The result—a
noiseless, smooth analog signal
based on the digital source.
WRAT (Wide Range Amplifier Technology) Providing
Amplification Backbone
The cornerstone of any nkyo A/V receiver, WRAT suppor ts high-quality audio
reproduction of the latest high-definition A/V formats. It comprises three key
elements: (1) A low negative-feedback design for cleaner audio across the
frequency range; (2) Closed ground-loop circuits to cancel individual circuit noise
and keep the ground potential free of distortion; and (3) A high instantaneous-
current capability to handle speaker reflex
energy and impedance fluctuations.
Linear Optimum Gain Volume Circuitry
In conventional volume-attenuation methods, the signal comes close to the noise
floor at low volumes and is therefore susceptible to interference. Even if the
amount of noise is minimal, it taints the signal as it is amplified. nkyo’s ptimum
Gain Volume Circuitry adjusts the gain so that less than half the typical amount
of attenuation is necessary. The signal never comes close to the noise floor,
thereby eliminating the possibility of the noise contamination that plagues
conventional volume-attenuation designs.
Neural-THX®urround Decoding Technology
Neural-THX Surround enables content to be encoded into 5.1 or 7.1 channels
and transmitted to the TX-NR5007, where it is decoded onboard. This
technology reduces the bandwidth needed by
broadcasters to deliver sound content and enables
7.1-channel support for gaming and movies.
Playback of Different A/V ources Throughout the Home
Zone 2/3 and Powered Zone 2/3 bring multi-zone audio entertainment to
your home through dedicated line outs, pre outs, and speaker connections.
With the TX-NR5007, you can also enjoy video in a second room, as well as
independent control of volume levels, speaker balance, and bass/treble levels
in the separate zones.
ain Room
Zone 2
Stereo Speaker System
Zone 3
Stereo Speaker System
Four Game Modes for More Thrilling Action
A recent addition to nkyo home theater,
these four gaming modes create an audio
experience with more realism and impact. You
can select from Rock, Spor ts, Action, or RPG
(Role Playing Game) modes to match your
gaming content.
Universal Port for ingle-Cable Connection of Onkyo
Peripheral Devices
A proprietar y Universal Por t located on the rear side of the TX-NR5007 lets
you connect an UP-A1 Dock for the iPod. A key advantage of the Universal
Port is that it accepts video and audio signals through the same cable that
sends a power supply from the receiver to the devices. Earlier versions of
nkyo’s Dock for the iPod can be connected via
our RI (Remote Interactive) system.
Daisy-Chain Connection via Universal Ports
TV
2 3
Burr-Brown 192 kHz/32-Bit DACs for All Channels
The TX-NR5007 uses Burr-Brown 192 kHz/32-bit DACs which employ an
advanced Texas Instruments DAC architecture (PCM1795) to achieve
excellent dynamic performance and improved tolerance to clock jitter.
Texas Instruments D P (Digital ignal Processing) Chips
The TX-NR5007 employs three Texas Instruments DSP chips (one DA830 and
two DA788s) to handle the advanced processing needs of Dolby®TrueHD,
DTS-HD Master Audio™, Audyssey MultEQ™XT, and post-processing.
The DA830 is also specially designed to cope with the heavy demands of
processing a network connection.
Jitter Control Technology for Cleaner Digital ignals
To counteract the impact of jitter on clock timing, the TX-NR5007 employs
Phase Locked Loop (PLL) circuitry, jitter-resistant DACs, and a board design with
signal pathways of uniform length. PLL circuitry works by automatically raising or
lowering the oscillator frequency to match the frequency and phase of the input
signal. By preventing disruption of the digital waveform, PLL helps ensure an
accurate and well-focused analog sound wave.
TX-NR5007_EX:TX-NR5007_EX 09/12/01 11:01 ページ 3
