3MP Mini Vandal
DOME CAMERA: IPMV3FI
INSTALLATION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.
2
2214
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-
POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is in-
tended to alert the user to the presence of dangerous voltage within the products
enclosure that may be of sufficientmagnitudetoconstituteariskof electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)instructions
in the literature accompanying theproduct.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRICSHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTSINSIDE.
REFER SERVICING TOQUALIFIED SERVICE PERSONNEL
3
3314
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
This Class A digital apparatus complies with Canadian ICES-003.
Cet
appareil
nume
`
rique
de
la
classe
A
est
conforme
a
´
la
norme
NMB-003
du
Canada.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commer-
cial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the in-
struction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful in-
terference in which case the user will be required to correct the interference
at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
4
4414
IMPORTANT SAFETY INSTRUCTIONS
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus nearwater.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings, Install in accordance with the manufacturers in-
structions.
8.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produceheat.
9.
Do not defeat the safety purpose of the polarized or grounding-type plug, A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety, If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10.
Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from theapparatus.
11.
Only use attachments/accessories specified by themanufacturer.
12.
Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is used.
Use caution when moving the cart/apparatus combination to avoid in-
jury from tip-over.
13.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is re-
quired when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or ob-
jects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has beendropped.
15.
CAUTION THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING IN-
STRUCTIONS UNLESS YOU QRE QUALIFIED TO DOSO.
16.
Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
17.
ITE is to be connected only to PoE networks without routing to the outsideplant.
5
5514
Contents
1
Introduction 6
1.1 Components
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2
Installation 8
2.1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2
Connection........................................................................................................................10
2.3
Resetting to the factory default settings .......................................................................11
A Appendix 12
A.1 Product Specification.......................................................................................................12
6
6614
1
Introduction
This installation manual applies to the IPMV3FI network camera.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-time,
full frame rate Motion JPEG and H.264 videostreams.
The alarm input and alarm output can be used to connect various third party devices, such
as, door sensors and alarmbells.
1.1
Components
This system comes with the followingcomponents;
Dome Camera 1
Installation Guide/CD 1
Template Sheet 1
Accessory Kit 1
Note 1. Check your package to make sure that you received the complete system, includ-
ing all components listed above.
Note 2. Adapter for DC 12V is not supplied.
7
7714
1.2
Key Features
•
Brilliant video quality
The network camera offers the highly efficient H.264 video compression, which drasti-
cally reduces bandwidth and storage requirements without compromising image qual-
ity. Motion JPEG is also supported for increased flexibility.
•
Wide Dynamic Range
The network camera provides digital WDR (Wide Dynamic Range) that improves video
exposure quality in scenes with high contrast between bright and dark areas in the
video, for example a shady area and a sunny area in the same scene.
•
Dual or Triple Streams
The network camera can deliver dual or triple video streams simultaneously at full
frame rate in all resolutions up to 3MP (2048 x 1536p) using H.264 and MotionJPEG.
This means that several video streams can be configured with different compression
formats, resolutions and frame rates for different needs.
•
Intelligent video capabilities
The network camera includes intelligent capabilities such as enhanced video motion
detection. The network cameras external inputs and outputs can be connected to de-
vices such as sensors and relays, enabling the system to react to alarms and activate
lights or open/closedoors.
•
Improved Security
The network camera logs all user access, and lists currently connected users. Also, its
full frame rate video can be provided overHTTPS.
•
PoE (Power over Ethernet)
This network camera can be powered through PoE (IEEE802.3af), which simplifies
installation since only one cable is needed for carrying power, as well as video controls.
•
ONVIF Certificate
This is a global interface standard that makes it easier for end users, integrators, con-
sultants, and manufacturers to take advantage of the possibilities offered by network
video technology. ONVIF enables interoperability between different vendor products,
increased flexibility, reduced cost, and future-proofsystems.
•
Micro-SD Recordingsupport
The Network Camera also supports a micro-SD memory slot for local recording with
removable storage of type SDHC and SDXC.
•
Audio support
The Network Camera also supports two-wayaudio.
8
8814
2
Installation
For the operation of the Network Camera, it is necessary to connect a network cable for
data transmission, power connection from supplied power adapter. Depending on operation
methods, it is possible to connect an alarm cable additionally. For its fixation on different
locations, please consult with aninstaller.

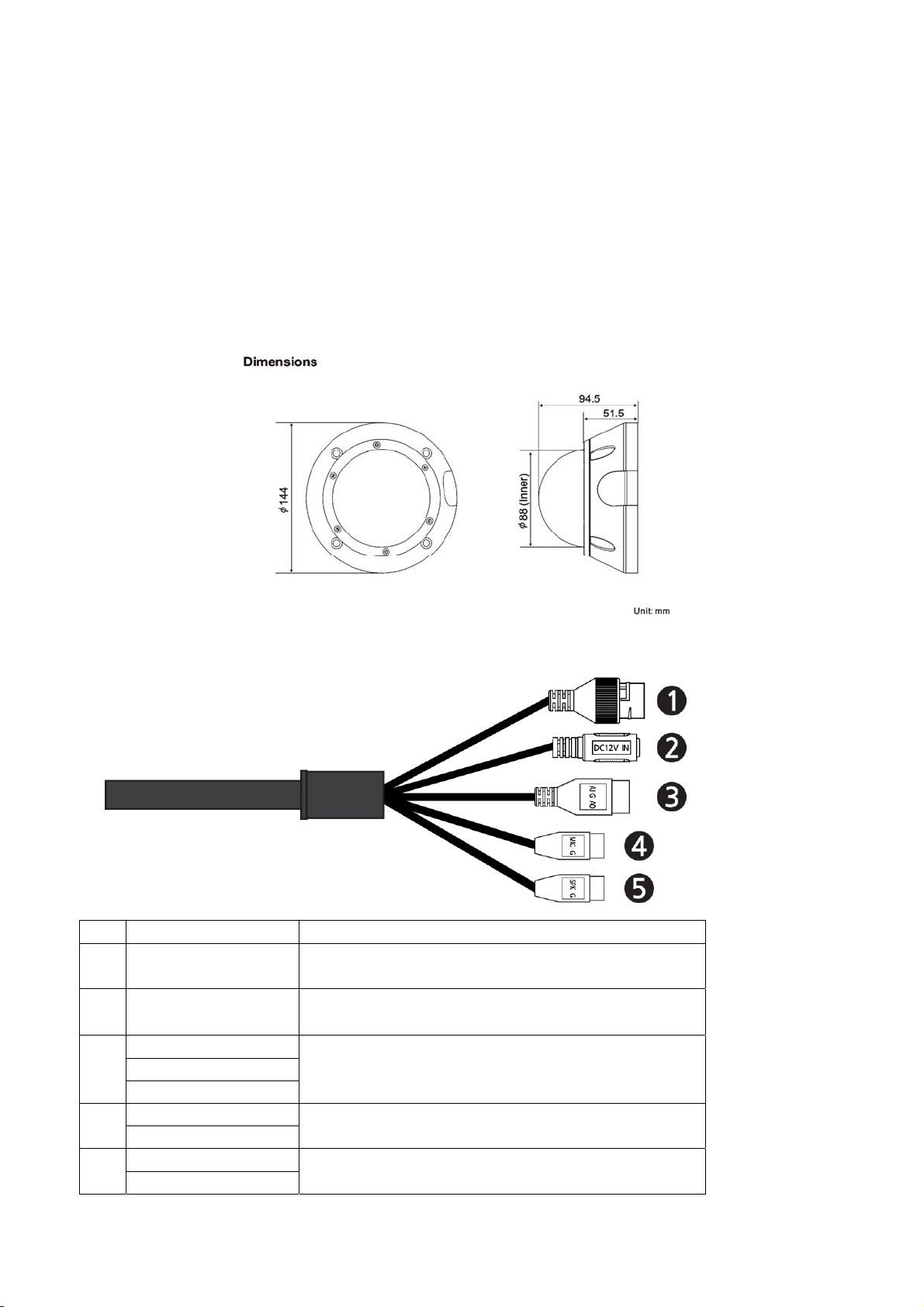

2.1
Overview
•
Dimension
•
Extension Cable
NO Item Description
1
RJ-45 Ethernet, RJ-45 port compatible
with 10/100Mbps PoE Modular Jack
2
DC Jack Main Power, DC Jack, DC12V
AI: Alarm In
G: GND
3
AO: Alarm Out
Alarm input and output, 3pin terminal
MIC: Audio In
4
G: GND Audio line input, 2pinterminal
SPK: Audio Out
5
G: GND Audio line output, 2pinterminal
9
9914
•
Installing Camera
Carefully remove the contents from the box, and verity that nothing was damaged in ship-
ment.
1.
Mark the screw hole positions on the ceiling or wall surface using the Template Sheet.
2.
Disassemble the camera by removing the domecover.
3.
Mount the camera assembly using the Anchors (x2) and Screws (x2) to the surfaceof
the ceiling or wall.
4.
Reassemble the dome cover on the camera assembly. Turn Camera Cover clockwise
to complete installation.
10
101014
2.2
Connection
•
Micro SD memory cardinsertion
Remove the bubble of the camera to insert the SD memorycard.
•
Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally
a cross-over cable is used for directly connection to PC, while a direct cable is used for
connection to a hub. Youcan also use a router featuring PoE (Power over Ethernet) to
supply power to thecamera.
•
Connecting Alarms
AI(Alarm In): Youcan use external devices to signal the network camera to react on
events. Mechanical or electrical switches can be wired to the AI (Alarm In) and G
(Ground) connectors.
G(Ground): Connect the ground side of the alarm input and/or alarm output to the G
(Ground)connector.
AO(Alarm Out): The network camera can activate external devices such as buzzers
or lights. Connect the device to the AO (Alarm Out) and G (Ground)connectors.
•
Connecting the Power
Connect the power of 12 VDC 450mA for the network camera. Connect the positive
(+) pole to the ‘+’ position and the negative (-) pole to the ‘-’ position for the DC power.
–
Be careful not to reverse the polarity when connecting the power cable.
–
A router featuring PoE (Power over Ethernet) can also be used to supply power to
the camera.
–
For the power specifications, refer to the Appendix, Product Specification.
–
If PoE and 12 VDC are both applied, the camera will be supplied with power from
PoE.
•
Connecting Audio
Connect Speaker to Audio line output and external Mic to Audio input line.
SD memory card
11
111114

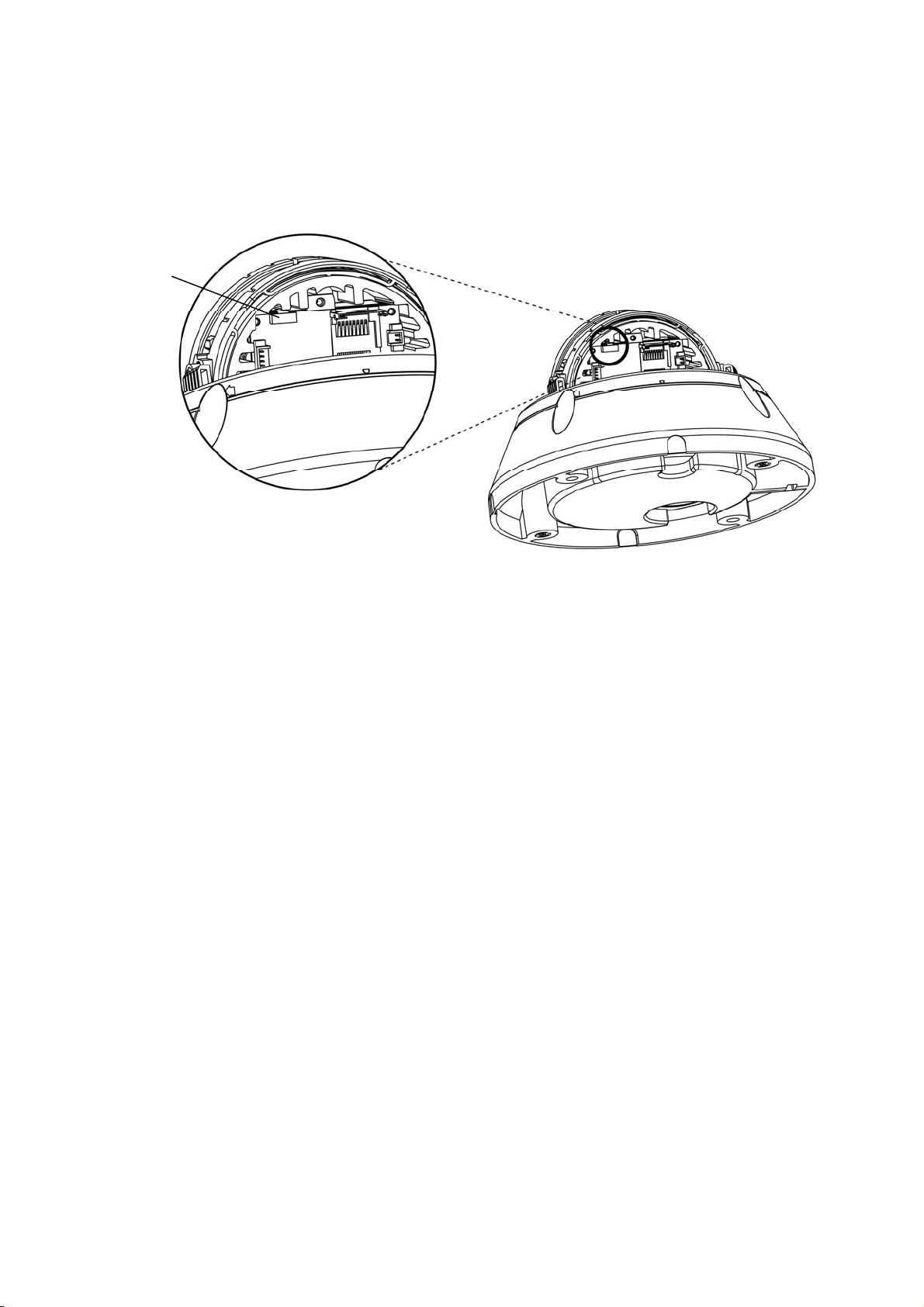

2.3
Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in “System > Maintenance” of User’s Manual) or use
the
Reset button on the network camera, as describedbelow.
•
Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings us-
ing the Reset button.
1.
Switch off the network camera by disconnecting the power adapter.
2.
Press and hold the Reset button while reconnecting thepower.
3.
Keep the Reset button pressed during about 2 seconds ormore.
4.
Release the Resetbutton.
5.
The network camera resets to factory defaults and restarts after completing the factory
reset.
CAUTION: When performing a Factory Reset, you will lose any settings that have been
saved. (Default IP192.168.30.220)
Reset Button
12
121214
A Appendix
A.1 Product Specification
3MP VCA VP DOME NETWORKCAMERA
Model Network Camera
Lens Fixed-focal 3.7mm,F2.5
Angle of View 90o(H)
Type 1/2.8” Sony ExmorCMOS
Image Sensor Pixels 2048(H) x 1536(V)
Min. Illumination Color: 0.2 Lux @ F2.5
B/W: 0 Lux @ F2.5
Scanning Mode ProgressiveScan
Wide Dynamic Range D-WDR
Day and Night Mode TrueD/N (Auto, Day, Night)
Noise Reduction 2DNR, 3DNR
Digital Zoom Yes(ROI)
Exposure Control Auto
Auto White BalanceControl Auto, Incandescent, Fluorescent, Outdoor,Manual
Back LightCompensation Yes
Image Effect Flip, Mirror, Aisle, Defog, HLC, S-LDC
Flicker FreeMode 50Hz, 60Hz
Shutter Speed
A
uto
(
1/10,000 ∼1sec
)
, Manual
Quality 24 IR LEDs
Angle 76o
IR Illuminator Distance up to 25m
Video Compression H.264 (Baseline, Main, High Profile),MJPEG
Bitrate Control CVBR, VBR
Video Resolution 2048x1536, 1920x1080, 1280x1024,1280x720/960,
1024x768, 704x480/576, 640x360/480,320x240
Video Frame Rate Max. 25fps/30fps
Video Streaming 25/30fps (Triple Stream : H.264 x 2, MJPEG x 1)
AudioCompression G.711
Video/
Audio
AudioStreaming 2 Way
Video ContentsAnalysis Line Detector, FieldDetector
Motion Detection Area 16 Programmable Area (Include Area 8, Exclude Area8)
Privacy Mask 8 ProgrammableZone
FTP Uploading MJPEG
Event Notification E-mail, FTP,Notification Server,
XML Notification, Audio Alert,AIHM
Audio Alert User-Defined 3 Audiofiles
Login Authority Administrator, Operator,Guest
FTP Pre : 30sec, Post : 30sec
EventBuffering SD Record Pre : 10sec, Post : 60sec
Manual Trigger 4 Programmable Trigger
Security Multi User Authority, IP Filtering, HTTPS,SSL
Network Time Sync NTP Server, Synchronize Computer, Manual
Software Reset Restart, Reset, FactoryDefault
Hardware FactoryReset Yes
AutoRecovery Backup,Restore
Remote Upgrade Web Browsing(IE, Chrome, Safari, Firefox), Smart Manager
System
SD RecordingMode Event,Continuous
13
131314
Protocols TCP/IP, UDP, IPv4/IPv6, HTTP, HTTPS, QoS, FTP,
UPnP, RTP,RTSP,RTCP, DHCP, ARP, Zeroconf, Bonjour
Client Software Web, Smart Manager, Client S/W, Mobile S/W
Max. User Connection Live : 10 Users, Playback : 3 Users
API Support Open API, ONVIFCompliance
Mobile Support Android, i-OS
Audio 1 Input, 1 Output (TerminalBlock)
Alarm 1 Input, 1 Output (TerminalBlock)
Ethernet RJ-45 (10/100Base-T)
Network
SD Card SDHC, SDXC
Operating Humidity 0 ∼90% RH
(
Non-condensin
g)
Operating Temperature -30oC ∼+45oC
Power Supply PoE(IEEE802.3af compliant, Class0),12VDC
Power Consumption DC 12V 330mA, 4W / PoE 90mA, 4.3W (with IR on)
Dimensions 144mm(φ) x 94.5mm(H)
Net Weight Approx. 630g
ETC
Ingress Protection IP66
> Specifications are subject to change without notice.
3MP Mini Vandal
DOME CAMERA: IPMV3FI
Rev.A
Table of contents
