Eneo TVD-1080V2812IR User manual

EN
User Manual
1/2.8” HD-TVI Dome, Fixed,
Day&Night, 1920x1080, 2.8-
12mm, Infrared, 3D-DNR, 12V
TVD-1080V2812IR

Safety Precaution
03
FULL-HD MEGA-PIXEL CAMERA
CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

FULL-HD MEGA-PIXEL CAMERA
Safety Precaution
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.
04

FULL-HD MEGA-PIXEL CAMERA
Contents
Safety Precaution
p.03~04
Contents
p.05
Features
p.06~07
Composition
p.07
Dimensions
p.08
Part Names
p.09
Installation Instructions
p.10~12
Operating Instructions
p.13~27
Specifications
p.28
05

FULL-HD MEGA-PIXEL CAMERA
Features
Key Features
• Full HD, 2Mega Pixel HD-TVI CAMERA, 1920x1080(30p/25p)
• TVI Video Transmission Distance over Coax.; 500M (RG59, 75Ω)
• True WDR(Wide Dynamic Range)
• Automatically removable IR Cut filter by Dual filter switcher
• Built-in f=2.8~12mm F1.4 Mega pixel DC Auto Iris Vari-focal lens
• Improved Noise figure with the enhanced 3D-NR
• Pointing Zoom which enables the flexible zooming at any area.
• Smart Motion Zoom in combining with Pointing Zoom.
(Automatic zoom in/out when motion is detected)
• Motion Detection, Privacy Mask, Defog, Sens-up(x32), D-WDR,
H/V/HV Flip, D-Zoom(1.1x~8x), LSC(Lens Shade Compensation),
BLC/HLC, Motion Deblur, Pixel Defect Compensation, Title Set
• Top performance at low light sensitivity (Sens-up On)
•OSD MENU & Video Sub-out port for easy installation & maintenance
• Circuit protection against faulty connection in power polarity
• UTC Control through HD-TVI DVR.
• Zoom & Focus Adjustment on 3-Axis Gimbal
• Built-in 2pcs High-power SMD LED
• Double side Anti-Scratch Hard coated clear bubble dome
• Quick installation with Easy Adaptor (Flat / Tilted Adaptor)
• Power: 12VDC
General Description
• With ICR mechanism,
- Enhances its sensitivity about 10x at night time
- Can accepts the infrared light
• With Intelligent Focus Indicator and FOCUS ASSIST menu,
- Offers easy adjustment of Focus
- Eliminates the mistake of the erratic focus adjustment
This camera realizes the natural and crisp image as you see the scene in front
of you by Full HD(1920x1080p) camera module.
Highly detailed pictures can be achieved and color reproducibility deserves
attention.
06

FULL-HD MEGA-PIXEL CAMERA
07
Composition
Mounting Template Operating
Instruction Video Sub-out Cable
Mounting Screw:
3.5 x 25mm (3pcs)
Plastic Anchor:
6 x 30mm (3pcs)
Dome Camera
Easy Adaptor
Open & Adjust
Driver (1pc)
Tilted Adaptor

FULL-HD MEGA-PIXEL CAMERA

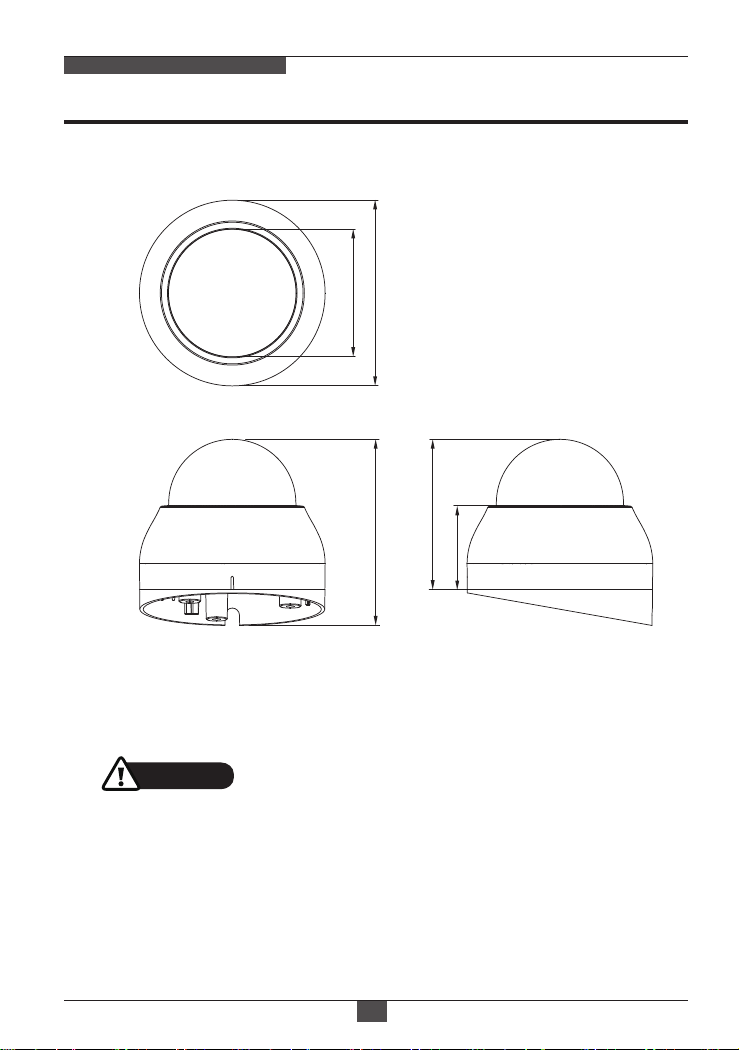

Dimensions
(unit : mm)
08
Ø116
Ø80
94 (with Flat adaptor)
52.5
116.3 (with Tilted adaptor)
• Extreme care should be taken NOT to scratch the bubble dome surface while
the camera installing or adjusting.
• Extreme care should be taken NOT to apply force to IR LEDs.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Do not expose the camera directly to a strong light source such as the sun or
spot light.
CAUTION

Part Names
FULL-HD MEGA-PIXEL CAMERA
09
Never apply force to
IR LEDs
Dome Cover
Lens
Bubble Shield
Bubble
Dome Base
Easy Adaptor
Flat type
OSD Control
Joystick
SMD LEDs
Video Sub-out
connector
Focus & Zoom
adjustment
Light
Sensor
Power Cable
3-Axis Gimbal
Option:
Tilted Easy Adaptor

Installation Instructions
FULL-HD MEGA-PIXEL CAMERA
10
Open & Adjust
Driver
Mounting Screw
(3.5x25mm)
Plastic Anchor
(6x30mm)
1. Drill three holes for mounting on the ceiling or wall.
2. Attach the Easy Adaptors at the pre-drilled installation position and fix it by
using mounting screws.
3. Route the power/video cable to the connecting place.
4. Place the dome base assembly to the Easy Adaptor.
5. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)
6. Assemble the dome cover to the dome base unit.

Installation Instructions
FULL-HD MEGA-PIXEL CAMERA
11
Limit of pan & tilt
1) Pan limit:
Pan is limited to +/- 175°.
Do NOT force to rotate the gimbal
over the limit to prevent from the
internal damage.
2) Tilt limit:
Tilt is limited to 25° min ~ 90° max.
with reference to the ceiling when the
inclination of camera module is 0°,
that is, the image is aligned horizontally.
3) Inclination limit
(Horizontal image alignment):
Inclination limited to +/- 175° max.
25º
10º
90º
[Option] Tilted Easy Adaptor
■ EXTENDED VIEWING ANGLE
15º
Zoom & focus adjustments
• Turn the Focus gear until the sharpest
focus is made.
• Adjust the zoom for the proper viewing
angle.
Use the open & adjust driver supplied.

Installation Instructions
FULL-HD MEGA-PIXEL CAMERA
12
Power Supply Connections
Camera can be operated with the regulated or unregulated 12Vdc but the
regulated power supply of 12VDC is recommended.
Camera is protected from the damage by the reverse connection of polarity.
VIDEO (BNC)
POWER ( )
■Detach the dome camera from the easy adaptor
Push the hook on the dome base and swing the dome base to counter-
clock wise. Then detach the dome camera from the installed easy adaptor.
1
1
2
2
3
Put the driver in the dome cover
gap and get down until the dome
cover open.
■Open the dome cover

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
13

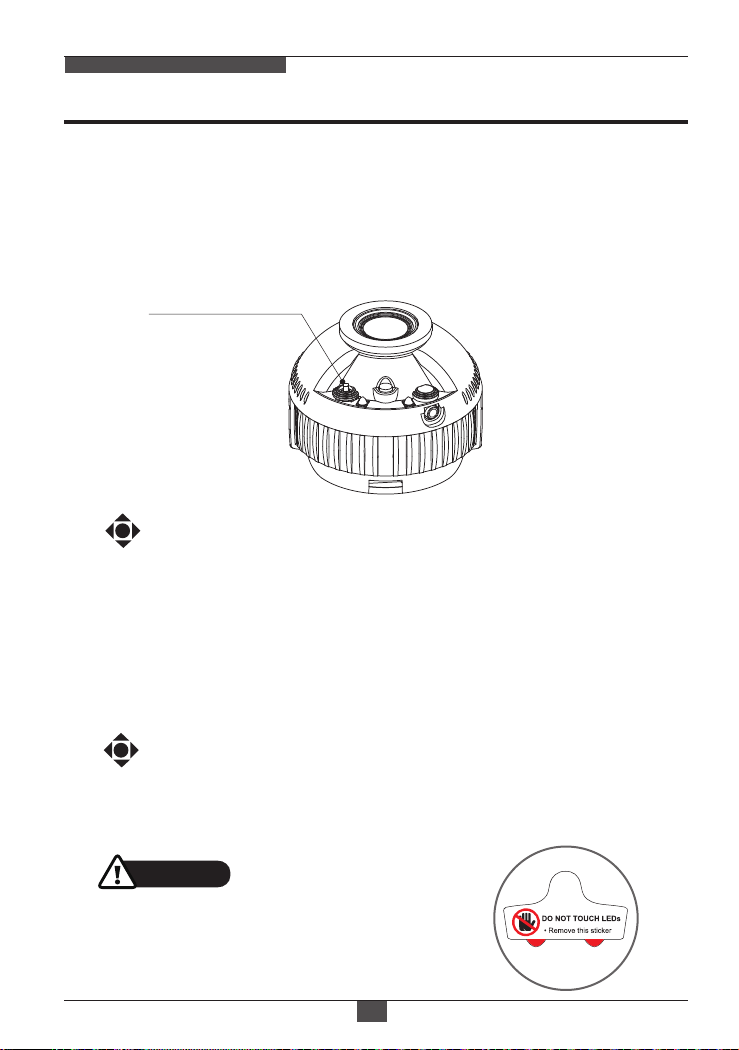

Setup menu can be accessed and controlled by OSD control joy stick on gimbal
of camera unit.
Five commands are available with the joy stick.
The design of OSD could be different according to the Model.
Description of the joystick operation
1) SET Key (●) : Access to the menu or enter the setting.
To enter the main menu, press the Set Key down for about 1.5sec
2) UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move
the cursor up or down.
3) LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu.
Used to adjust the desired menu selection and to move the cursor left
or right.
4) ‘☟’denotes the long press down straightly for about 2 seconds
Using OSD controller
(*) Works only when OSD menu is inactive.
Description of the D-ZOOM* adjustment
1) ▲: Zoom In
2) ▼ : Zoom Out
• Be careful the IR LEDs when you control OSD menu
setting with the joystick.
• Remove the sticker on the gimbal after OSD setting.
CAUTION
OSD Control Joy Stick

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
14
OSD menu Startup
Press ‘●’(OSD menu Joy stick key) down for about 2 seconds to access the
setup menu mode.
MENU V3.xx
1. EXPOSURE
2. LENS
3. FOCUS ASSIST
4. SCENE ENHANCE
5. 3D-NR
6. DAY/NIGHT
7. PICT ADJUST
8. SPECIAL
9. SYSTEM
A. EXIT
NORMAL
MID
EXT
SAVE&EXIT
DC
Direct Control menu
MAIN DEFAULT DESCRIPTION
LENS Sets Lens types.
DC
FOCUS ASSIST Sets Focus Adjustments.
-
EXPOSURE
Sets SHUTTER MODE, BRIGHTNESS, SENS-UP and AGC.
-
SCENE
ENHANCE
NORMAL SCENE ENHANCE provides the several ways to enhance the video
in the various environments with the settings in NORMAL, WDR,
D-WDR, BLC and HLC.
NORMAL – Optimized for the normal indoor and outdoor in the good
lighting condition.
WDR – Improves the visibility for the high bright area and the dark
area by the double captures of image with LONG and SHORT
exposures. With WDR ON, the frame rate becomes half by the double
captures. WDR level can be selected from LOW, MID and HIGH.
Care should be taken to select this mode because video may lose
its quality in some environments by the over compensation.
※CVBS video signal:Connecting 2nd video to CVBS port disables
WDR function temporary. It should be considered when installer
adjusts the video with installation monitor via CVBS video signal.
• RET : Returns to the previous menu.
• EXIT : Exits the menu setting without save.
• SAVE&EXIT : Exits the menu setting with save.

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
15
D-WDR – Improves the visibility by compensating the video gain for
the dark area. Noise can increase in the dark area accordingly.
Sets WHITE BAL, SHARPNESS, COLOR GAIN, GAMMA, SHADING
PICT ADJUST
Sets MIRROR/FLIP, PRIVACY, MOTION, PIXEL DEFECT, TITLE SET,
DISPLAY, DEFOG, POINTING ZOOM, PRESET ZOOM(N/A)
SPECIAL
Sets TV SYSTEM, RESOLUTION, COMM.SETUP, LANGUAGE and
FACTORY DEFAULT
SYSTEM
SAVE & EXIT – Exits the menu after saving the parameters.
EXIT – Exits the menu without saving the menu.
EXIT
Sets DAY / NIGHT to EXT, AUTO, COLOR and B/W.
SMART IR can be set to reduce the saturation by the strong IR
illumination in the night in any menu of EXT, AUTO and B/W(NIGHT)
Setting SMART IR in any menu is identically applied to other menu.
Zero(0) turns off SMART IR and High setting avoids the saturation
strongly but the corners will be darker accordingly.
IR LED Control(AUTO/OFF) is available with IR LED model only.
If IR LED is set to OFF, IR LED will be turned OFF but DAY or NIGHT
is still determined by the built-in light photo sensor.
EXT – DAY or NIGHT is determined by the built-in light photo sensor.
Camera with IR LED must be set to EXT.
AUTO – Used when DAY or NIGHT is determined by light level through
the lens and DAY from/to NIGHT is switched automatically by the
scene brightness.
D<-->N THRESHOLD, D<->N DELY and SMART IR can be set in
the menu. When EXPOSURE>AGC is less than 12, DAY/NIGHT
AUTO is disabled and forcibly switches to ___(DAY) to avoid the
malfunction. EXT, B/W(NIGHT) and COLOR(DAY) is independent
on AGC level. When EXTERNAL IR LED is used with NON IR LED
model, please set to IR LED MODE ON.
B/W(NIGHT) – Forcibly removes IR cut filter and switches to B/W
regardless of light level.
COLOR(DAY) – Forcibly DAY/NIGHT is disabled and outputs color video.
DAY/NIGHT
Enables to set OFF, LOW, MID and HIGH.
EXT
for
IR LED
AUTO
for
No IR
LED
SCENE
ENHANCE
NORMAL
3D-NR MID
BLC – Improves the visibility for the dark object by the bright back
light. Outside area of BLC window can over saturate.
BLC has a target window for compensation and its size and position
can be set by H-POS, V-POS, H-SIZE and V-SIZE.
HLC – Cuts out the highlight area with black mask and excludes it
from compensation. Lower HLC LEVEL cut out video from the lower
level.

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
16
EXPOSURE
SHUTTER
BRIGHTNESS
SENS-UP
AGC
RETURN
AUTO
OFF
RET
• AUTO: Optimizes the video level by controlling the iris and the shutter speed
automatically.
• MANUAL: Iris and Shutter can be set to fix.
• Flickerless : Reduces the flicker in video when US(60Hz)/EU(50Hz) mode is
used in 50Hz/60Hz fluorescent lighting respectively.
1. EXPOSURE
: Can set SHUTTER MODE to AUTO, MANUAL and Flickerless. MANUAL
and Flickerless modes disable SENS-UP functions.
1-1. SHUTTER (default: AUTO)
: Adjusts the brightness of video(0~20).
1-2. BRIGHTNESS (default: 10)
|:::::::|::::::| 10
|:::::::|::::::| 12
• AUTO: SENS-UP is enabled or disabled automatically by the scene brightness.
Higher SENS-UP can get the brighter video but the slower frame rates with motion
blur and more white pixels. If set to AUTO, maximum integration limit for SENS-UP
(Slow Shutter) can be set to x2, x4, X8, x16, X32 in SENS-UP menu.
• OFF: Disables SENS-UP
.
: The brighter video can be obtained by increasing the exposure time in the night
with SENS-UP. SENS-UP is the maximum integrations of frame by DSS (Digital
Slow Shutter) in the low light.
1-3. SENS-UP (default: AUTO)
: AGC(0~20) amplifies the video gain for brighter video but noise and white pixel
accordingly.
AGC level less than 10 disables AUTO in DAY/NIGHT.
1-4. AGC (default: 12)

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
17
DC
MODE
RETURN
DEBLUR
RET
• OUTDOOR: Optimized of outdoor environment.
• INDOOR: Optimized of indoor environment.
• DEBLUR: It enables to reduce the blur in a certain indoor environment.
Noise or color rolling can increase.
2. LENS
MANUAL
MODE
RETURN
NORMAL
RET
: Selects lens mode according to installation place. INDOOR or DEBLUR for
indoor installation according to environment.
2-1. DC (default: DEBLUR for None LED type)
: Horizontal wave or bar may be seen when MANUAL is selected and the camera
is working under florescent or similar lights. Selects NORMAL or DEBLUR.
2-2. MANUAL (default: NORMAL for None LED type)
Lens can be selected either DC or MANUAL lens.
Lens MUST be set to DC for the best image when DC iris lens is installed
3. FOCUS ASSIST
FOCUS ADJ.
DN DWELL
POP ON FOCUS
RETURN
5s
OFF
RET
Usually cameras are installed in the day time and they often become OUT OF
FOCUS at night time and IN FOCUS again at next day time.
This problem can occur at any cameras regardless of types or manufacturers.
FOCUSING STATUS

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
18
MENU V3.xx
1. EXPOSURE
2. LENS
3. FOCUS ASSIST
4. SCENE ENHANCE
5. 3D-NR
6. DAY/NIGHT
7. PICT ADJUST
8. SPECIAL
9. SYSTEM
A. EXIT
WDR
MID
EXT
SAVE&EXIT
DC
FOCUS Adj. menu is the unique and patented feature that prevents from the
wrong focus and helps the EXACT NEEDLE focus by simulating DAY &
NIGHT conditions.
Set zoom first and adjust focus to get NEEDLE FOCUS while switching at DAY
& NIGHT.
• DN DWELL (5s) : ICR switcher switches DAY & NIGHT at the interval of D/N
DWELL to help the EXACT NIDDLE focus at DAY and NIGHT mode.
Further simulations are performed internally during switching.
• POP ON FOCUS (OFF) : ON zooms in the center of picture at 2X for better
focusing.
• FOCUSING STATUS (ON) : Shows how exactly focus is set. When blue bar
doesn’t show up, try the lens focus to NEAR and FAR. The maximum blue bar
indicates the best focusing position.
: Refer to ‘DIRECT CONTROL MENU’ table.
4. SCENE ENHANCE
WDR
WDR LEVEL
RETURN
MID
RET
•NORMAL (default):
Optimized for the normal indoor and outdoor in the normal lighting condition.
• WDR : Can be selected from LOW, MID and HIGH
• D-WDR : Can be selected from LOW, MID and HIGH
• BLC : Can be set the BLC area by H-POS, V-POS, H-SIZE and V-SIZE.
• HLC : Can be set the level upto 20
3D-NR is a very sophisticated and powerful time-based noise reduction
technology by monitoring the noise for the several video frames and defining
and eliminating them consecutively at low light.
5. 3D-NR (default: MID)

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
19
• ATW: White balance is continuously working along with the color temperature
changes in the range of 2,000K~8,500K.
• ATWext: White balance is continuously working along with the color temperature
changes in the range of 1,800K~11,000K.
• ONE PUSH : White balance works only during ● is pressed.
• MANUAL: White balance is fixed to the settings by R_GAIN and B-GAIN.
This mode can be used only when the color temperature does not vary.
: ATW, ATWext, ONE PUSH and MANUAL are available for the white balance
modes.
7-1. WHITE BAL (default: ATW)
WHITE BAL
SHARPNESS
COLOR GAIN
GAMMA
SHADING
RETURN
ATW
0.50
OFF
RET
7. PICT ADJUST
|:::::::|::::::| 10
|:::::::|::::::| 10
Higher setting reduces noise much more but results in losing the sharpness
and the tail effect or the motion blur for the fast moving target at low light.
: Refer to ‘DIRECT CONTROL MENU’ table.
Default setting are EXT for IR-LED types and AUTO for None IR LED types.
6. DAY / NIGHT
EXT
SMART IR
IR LED CONTROL
RETURN
AUTO
RET
|::::::::::::::| 0
D/N AUTO
D<->N THRESHOLD
D<->N DELAY
SMART IR
RETURN
10s
RET
HIGH
|::::::::::::::| 0

Operating Instructions
FULL-HD MEGA-PIXEL CAMERA
20
: Adjusts the sharpness of video(0~20).
7-2. SHARPNESS (default: 10)
: Adjusts the color level of video(0~20).
7-3. COLOR GAIN (default: 10)
: Adjusts the gamma of video.
7-4. GAMMA (default: 0.5)
7-5. SHADING (default: OFF) :
ON enables to compensate the shade caused by wide lens setting.
• OFF : Normal display without mirroring or flipping
• Hor. : Video is reversed left and right
• Ver. : Video is reversed upside down
• HV : Video is reversed left and right and upside down.
When the video is reversed by Ver. or HV, then the joystick directions are
reversed accordingly. This feature is very useful when a camera in installed
in upside down.
: Reverses the video left and right and/or up and down by MIRROR/FLIP.
8-1. MIRROR/FLIP (default: OFF)
8. SPECIAL
• PRIVACY ALL: ON enables all Privacy Zones you set.
• ZONE NUM: Set a number to select a privacy zone from 1~10.
• ZONE DISP : ON enables to display relevant privacy zone
• H-POS, V-POS, H-SIZE and V-SIZE : Adjust the size and position of zone
: 10 Privacy zones which can be enabled individually by ZON DISP are
available to mask the video.
8-2. PRIVACY
• COLOR : Select the color used for masking the zone form eight colors.
•TRANSPARENCY : Defines the transparency for the mask zone.
SPECIAL
MIRROR/FLIP
PRIVACY
MOTION
PIXEL DEFECT
TITLE SET
DISPLAY
DEFOG
POINTING ZOOM
PRESET ZOOM
RETURN
OFF
OFF
OFF
OFF
OFF
OFF
RET
