Zavio P6210 User manual

1

2
Table of Contents
1. Safety Instruction............................................................................................4
1.1 Safety Notice ..............................................................................................4
1.2 Electromagnetic Compatibility (EMC) ..............................................................5
2. Overview..........................................................................................................6
2.1 ZAVIO P6210 Features and Specifications ......................................................6
2.2 ZAVIO P6210 Package Contents ...................................................................7
2.3 Minimum System Requirement .....................................................................8
3. Web Interface Main Menu ...............................................................................9
4. Setting_Information .....................................................................................13
5. Setting_Basic Setup .....................................................................................14
5.1 Account .................................................................................................. 14
5.2 Network .................................................................................................. 15
5.2.1 TCP/IP ............................................................................................. 15
5.2.2 PPPoE ............................................................................................. 16
5.3 Date Time ...............................................................................................18
5.4 Video ...................................................................................................... 20
5.4.1 Video Setting ................................................................................... 20
5.4.2 Profile ............................................................................................ 21
5.4.3 Day/Night ....................................................................................... 22
5.5 Audio ..................................................................................................... 24
6. Setting_Live View .........................................................................................26
6.1 Video ...................................................................................................... 26
6.2 Audio ..................................................................................................... 26
6.3 Camera Setting ........................................................................................ 26
6.3.1 Image Setting ................................................................................. 27
6.4 PTZ Setting .............................................................................................29
6.4.1 Patrol Settings ................................................................................. 29
6.4.2 PTZ Control ..................................................................................... 30
7. Setting_Playback ..........................................................................................31
7.1 Network Storage ...................................................................................... 31
7.2 Local Storage .......................................................................................... 33

3
8. Setting_Event ...............................................................................................34
8.1 Event Server ...........................................................................................34
8.1.1 Event Server ................................................................................... 34
8.1.2 SD Card ..........................................................................................36
8.2 Event List ................................................................................................38
8.2.1 Event List ........................................................................................38
8.2.2 Schedule Recording .......................................................................... 40
8.3 Motion Detection ...................................................................................... 41
8.4 Tampering Detection ................................................................................. 42
8.5 Schedule ................................................................................................. 42
9. Setting_System ............................................................................................44
9.1 Maintenance ............................................................................................ 44
9.2 Date Time ...............................................................................................46
9.3 Security .................................................................................................. 47
9.3.1 Account .......................................................................................... 47
9.3.2 IP Address Filter .............................................................................. 47
9.3.3 HTTPS ............................................................................................ 48
9.4 Network Basic ..........................................................................................49
9.4.1 TCP/IP ............................................................................................ 49
9.4.2 PPPoE ............................................................................................. 49
9.5 Network Advanced ................................................................................... 50
9.5.1 RTSP .............................................................................................. 50
9.5.2 UPnP .............................................................................................. 52
9.5.3 Bonjour .......................................................................................... 53
9.5.4 DDNS .............................................................................................54
9.6 Digital I/O ............................................................................................... 55
9.7 LED ........................................................................................................ 56
9.8 System Log .............................................................................................57
10. Video Surveillance Software ..........................................................................59

4
1. Safety Instruction
Thank you for purchasing this ZAVIO Network Camera. This user manual includes instructions
for using and managing the camera on your network. Updated versions of this document will
be posted to www.zavio.com as they become available. The latest version of this user manual
can also be found on the Installation CD accompanying this product, along with user manuals
in other languages.
1.1 Safety Notices
Before you use this product
This product has been designed with safety in mind. However, the electrical products can
cause fires which may lead to serious body injury if it is not used properly. To avoid such
accidents, be sure to heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country.
Check the laws in your local region before using this product for surveillance purposes.
Don't open the housing
Don't try to open the housing or remove the covers which may expose yourself to dangerous
voltage or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
• Extremely hot or cold places (Operating temperature: -10 °C to + 50 °C [14 °F to
122°F] )
• Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near
heaters)
• Close to water (e.g. near a bathtub, kitchen sink, laundry tub)
• Close to sources of strong magnetism
• Close to sources of powerful electromagnetic radiation, such as radios or TV
transmitters
• Locations subject to strong vibration or shock
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation

5
• If the unit emits smoke or an unusual smell.
• If water or other foreign objects enter the cabinet.
• If you drop the unit or damage the cabinet:
-Disconnect the cable and the connecting cables.
-Contact your authorized dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of
equal quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
• Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can
be removed using a soft cloth dampened with a small quantity of detergent solution,
then wipe dry.
• Do not use volatile solvents such as alcohol, benzene or thinners as they may damage
the surface.
1.2 Electromagnetic Compatibility(EMC)
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. The limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, it not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.

6
2. Overview
2.1 ZAVIO P6210 Features and Specifications
ZAVIO P6210 Feature
• Full HD 1080p
• 1/2.8" Sony Exmor CMOS sensor
• H.264 and Motion JPEG compression
• 30 fps in 1920 x 1080
• 3.6mm, F1.8 megapixel fixed lens
• True day & nightwith automatic removable IR-cut filter and IR LEDs
• Two-way audio and built-in microphone
• 1 x alrm input, 1 x alarm output
• Tampering detection
• RTC with built-in battery
• Excellent PT reliability
• SSL v3 advanced HTTPS encryption
• Supports Firefox, Safari and Mac OS
• Supports Samba network storage
• Multi-lingual user interface
• ONVIF 2.2 and Profile S compliant
• Free 64 channels ZAVIO CamGraba 2.0 NVR software
• Supports True Plug and Play Cloud Solution
ZAVIO P6210 Specifications
Model Name P6210
Description 2MP Pan/ Tilt IR Mini Dome
Image Sensor SONY 1/2.8" CMOS
Max Resolution 1920 x 1080 (Full HD 1080p)

7
Video Compression H.264
MJPEG
Multi-stream Support 4
Max Frame Rate 30 fps @ 1920 x 1080
Lens 3.6 mm, F1.8
Angle of View 81° horizontal
Min illumination
0.05 lux @ F1.8 (color)
0.001 lux (B/W)
0 lux (IR LED on)
Audio Support Two-way
Built-in mic, line in & out
PoE PoE 802.3af (Class 1)
12V DC, 1A
Local Storage MicroSD
Alarm in-/outputs 1/1
Dimensions φ115 x 70 mm
Motion Detection Yes
Audio Detection Yes
Security Multi-level passwords
HTTPS encryption
Supported Protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS,
NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP,3GPP/ISMA RTSP
Video Management Software 64 channels ZAVIO CamGraba NVR software included
2.2 ZAVIO P6210 Package Contents
You should find the following items in the packaging of your ZAVIO product.
• Network dome camera
• Quick installation guide
• Installation CD
-CamGraba2.0 NVR software
-Intelligent IP Installer
-User manual
-Language packs
• Mounting and connector kits
• Alignment sticker
• Activation code
If any items are missing, contact your dealer.

8
2.3 Minimum System Requirement
Your computer hardware should meet or exceed the following specifications:
Item Requirements
CPU Minimum Intel® Cord 2 Duo or higher(Core i3 or above is
recommended)
Graphic Card 256MB RAM graphic cards(or equivalent on-board graphic cards)
RAM Minimum 1GB or RAM(2GB or above is recommended)
Operating System Window 2000, 2003, XP, Vista or Windows 7
Mac OS Leopard10.5
Web Browser Internet Explorer 6 or later
Note:
•If using Windows 98 or Windows ME, please install IP Installer before using WEB UI to
ensure the system runs normally.
•If not able to view the recorded video file, please install Xvid codec while installing
Intelligent IP Installer. (For Windows 98, ME or 2000 server, the codec might not work
properly. Please download Xvid codec 1.0 from the internet.)
•Please keep updating the latest Windows software and service package. (Ex: Net
Framework, Windows Media Player, Enhance ActiveX Security)

9
3. Web Interface Main Menu
The Live View Page
Toolbar Function
Click this button to take you back to the camera home page where you
can live view the vide
Click this button to open the administrator
menu page, which can set up all the
configuration

10

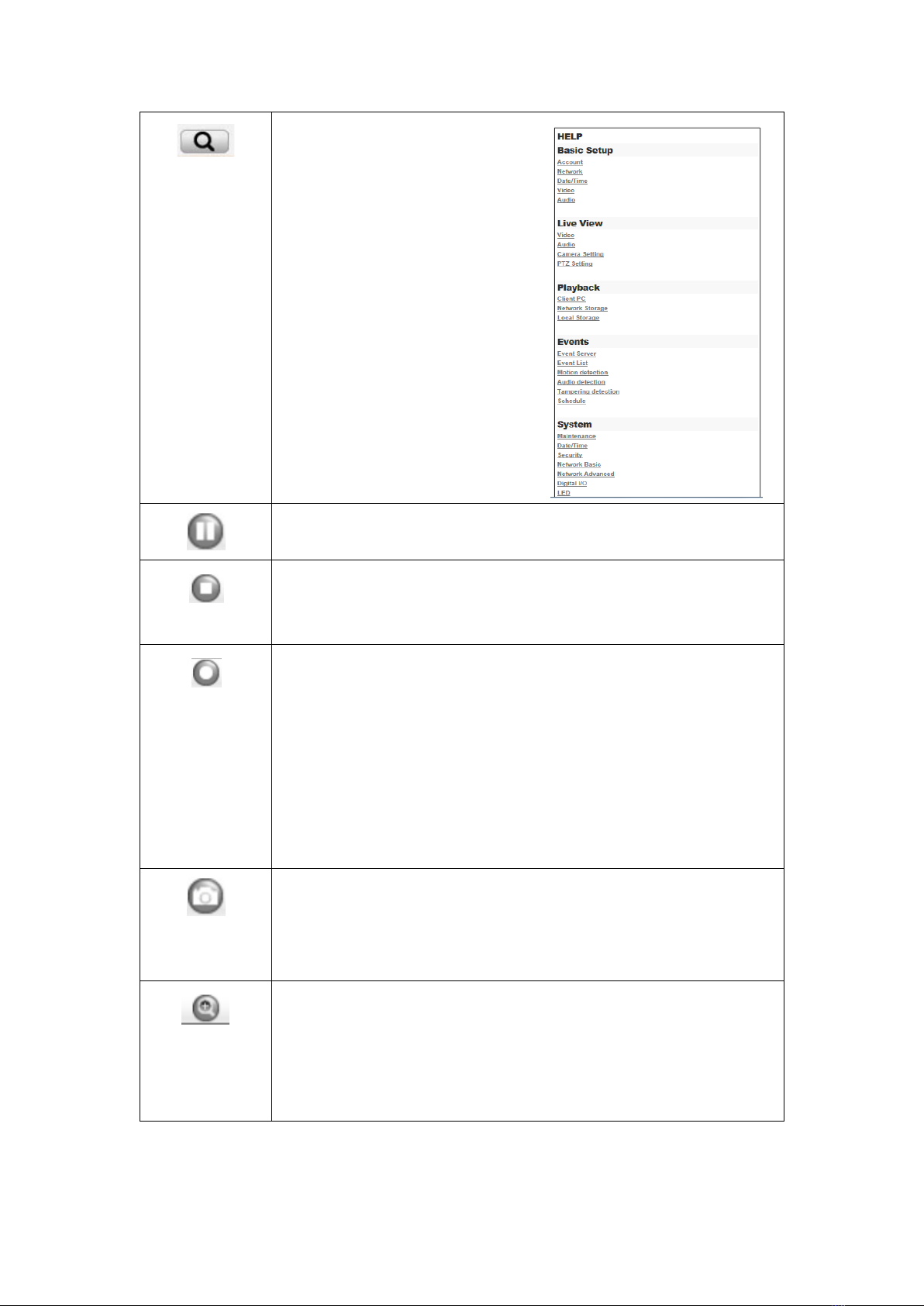

This button opens up the integrated
online help providing useful tips on
the various features.
Click this button to pause or resume from pause the live video stream.
The function is also available in VLC mode when you use non-IE browser
Clicking this button will stop the video stream and the video display
turns black (off).The function is also available in VLC mode when you
use non-IE browser
Click on the Record button, if you wish to record the live video to your
computer’s hard drive. When selected, a prompt will request you to
specify the folder in which you want to store the video.
Click OK to begin the recording. The Record button starts flashing,
indicating that the recording is active. Click it again to stop the
recording.
Note: This function is only available in MS Internet Explorer on Windows
systems.
Use this button to take a snapshot of the video. Clicking the button
opens up a window showing the captured frame. Save the image by
clicking on the Save Image button.
The function is also available in VLC mode when you use non-IE browser
The digital zoom function allows magnification of certain areas of the
video. After you click on the magnification icon, a window appears as an
overlay on top of the image.
See below.
