Onyx International BOOX Poke3 User manual

BOOX Poke3
Mighty E-ink Tablet
User Manual

1. About ONYX
BOOX is presented by Onyx International, which has a group of
professionals who dedicate themselves in designing state-of-the-art
reading terminal. The beauty of the BOOX is embodied in both its
simplicity and its power. As we are going to show you, BOOX is an open
and flexible platform for both consumers and content providers.
BOOX is powered by a 16-level grayscale e-ink screen that looks and
feels like paper. Passive lighting and diffuse surface relax your eyes and
reduce eye strain. By the hand-writing system, you can take notes while
reading and sketch up ideas that happen to emerge. BOOX takes full
advantage of new-generation e-ink screens: extremely low power
consumption without reflection and backlight. Each full charge can sustain
a few weeks' reading. By reducing paper consumption while providing a
realistic paper-like reading experience, digital content helps to protect
the environment without sacrificing convenience or lifestyle.
For content partners, we also provide support for custom formats and
digital rights management solutions. All of our viewers have standard
features such as layout management, font adjustment, full-text-search,

zooming, and page flow.
For a next-generation information device, connectivity is essential. The
user can connect to the Internet by built-in Wi-Fi, 3G module or other
add-on modules to download new content or surf the web. Customized
for the e-ink screen, WebKit, the same software engine as some powerful
desktop browsers such as Safari and Chrome, is the web browser of
BOOX.
BOOX gives you a new reading experience.
(Note: The E-books in the following illustration are not pre-stored)

2. Standard Accessories
(1) BOOX Poke3 x1
(2) Type-C Cable x1
(3) Quick Start Guide x1
(4) Warranty Sheet x1
Optional Accessories (purchased separately)
(1) Adapter
(2) Protective case

3. Safety Guide
Please read the Safety Guide carefully before you start to use the device.
Contact your BOOX retailer if you have any technical problem, or you can
dial our official service line at 4008-400-014 or 4008-860-830.
Screen protection
The device is equipped with E-ink screen, which is very fragile. Please
have no shocking, squeezing, pressing against the screen, or dropping the
device from a higher place. If the screen is already broken, stop using it
and contact the professional or other qualified staff to replace the screen
for you. Please don’t dismantle the device without our permission.
Standard accessories
Only the battery, adapter, and other accessories meeting our standard
safety rules can be used for the device. For details, please refer to
Product Specification. We will not be responsible for any damage caused
by incompatible accessories.

Stay away from liquids
The device is not waterproof. Don ’ t expose the device to a humid
environment or use it in the rain. Please keep it away from any corrosive
liquids.
Don’t dismantle the device
Please don’t dismantle the device in case of any damage.
Inappropriate battery model may cause explosion. Please contact official
after-sale team for battery replacement if needed. Users shall undertakes
the responsibility and deal with the obsolete battery if users replace
batteries themselves.
Using environment
The using environment of the device is 0°C-50°C.

4. Product Views
Front View
Power

Bottom View
Button Function
Power/
sleep Button
⚫Press the power button to turn on the device
⚫Long-press the power button for 2secs, then select
“Power off” in the menu to turn off the device
⚫Press the power button and release quickly to let the
device goes into sleep mode
⚫Press it again to wake up
⚫Long-press for 10 secs to force shutdown
Microphone
⚫Record voice
⚫Recognize speech
Type-C Port
⚫Connect the device with PC to transfer data or charge
device.
⚫Support Type-C earphone
⚫Support OTG USB drive
Mic
Type-C

5. Main Interface
The main interface contains a status bar, content area, and function area.
The function area contains certain modules.
Double-click icons in function area can return to the main page of the
specific module.
Content Area
Function Area
Status Bar

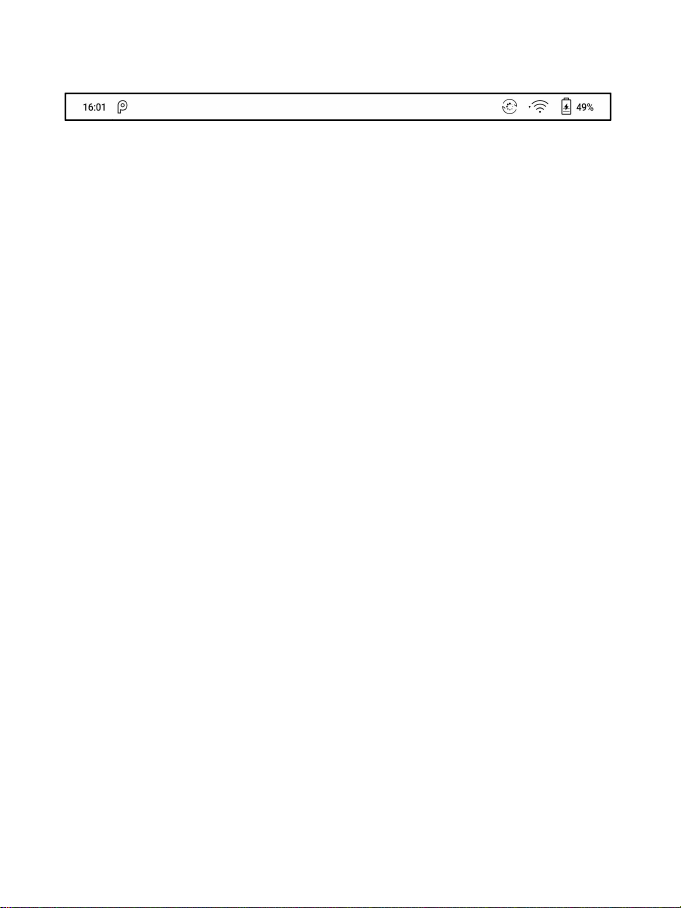

Status Bar
This section displays the current state of the device, including: Time,
Notification, Refresh Mode, Wi-Fi Connection, Battery Usage. It is only
for status indication.

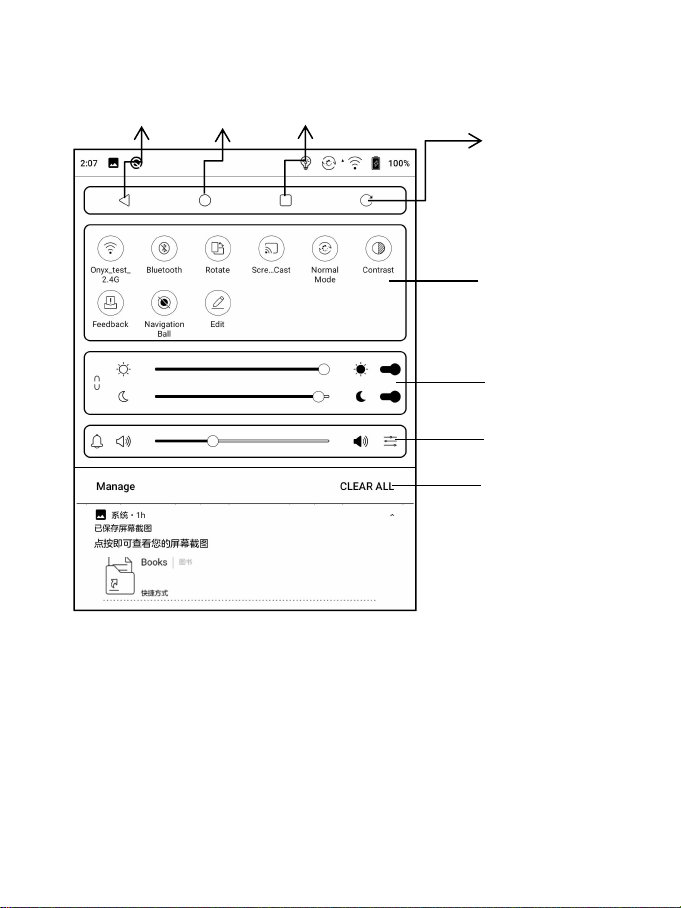

Notification Interface
Click or pull down the Status Bar to expand a menu, which includes:
Android Shortcuts: Back button, Home button, Multi-tasking switching
Button, Full refresh button.
Function Management: Wi-Fi, Bluetooth, Rotation, Refresh Mode, etc.
Further customize those frequent functions by pressing the “Edit”
button.
Volume Adjustment: Easily adjust the media volume by moving the sliding
control. Customize the notification sounds and adjust the volume of the
alarm, notification and others.
Notifications: Turn on / off notifications for connecting USB, push
notification from third-party apps, etc. Jump to the corresponding page

by pressing the specific notification.
Edit
The icon in status drop-down menu can be adjusted, like add,
remove, and re-order.
System shortcut switch
Volume control
Notifications
Frontlight control
Back
Home
Multi-tasking
Full Refresh

Multi-tasking switching
Clicking this icon, pop up the Android multi-task list to check the running
applications in the background, one key to clear up all the applications to
speed up the device.
Wi-Fi Setting
When using at the first time, you should enter into the Wi-Fi setting
interface to get a accessible connection. Then click the icon to turn on/off
the auto connection.
Bluetooth Setting
When using for the first time, you should enter into the Bluetooth setting
interface to match a device you want. The matched earphone, page turner
can be auto-connected by clicking the icon. Certain devices do not
support auto connection after disconnected.
Rotation
Easily change the orientation of the screen by clicking the direction you
want. Support auto-rotation.

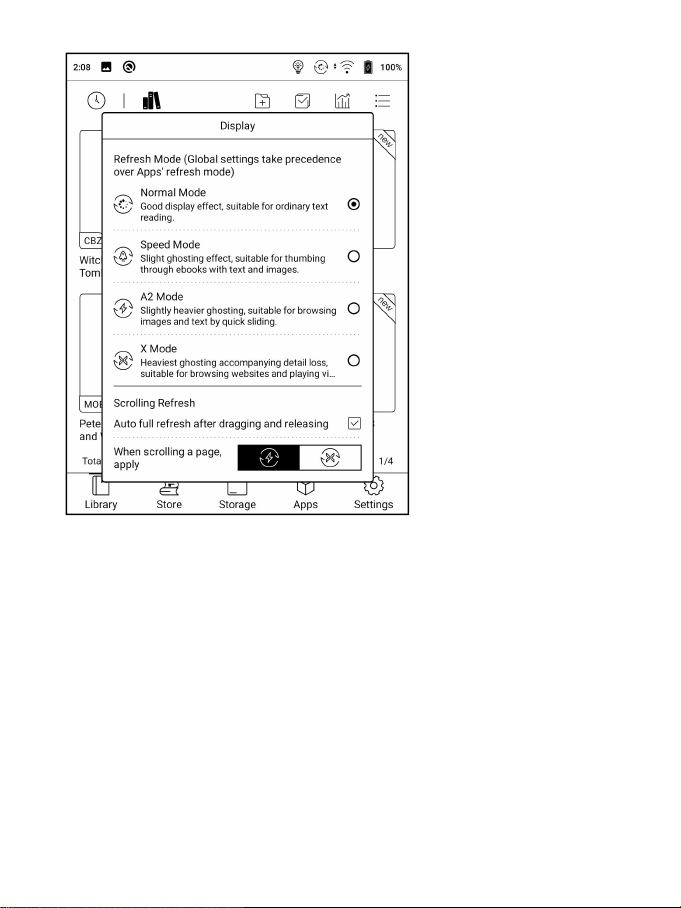

Refresh Mode
Four levels of refresh mode are available.
Normal Mode: good display effect, suitable for general text reading.
Speed Mode: with slight ghosting, suitable for quickly reading image and
text.
A2 Mode: Ghosting may exist, suitable for scrolling pages with image and
text.
X Mode: May cause serious loss of details, suitable for web pages and
video.
Normal mode is the default mode; Speed mode is used while scrolling
pages;
After selecting a new mode, to adjust the contrast could get a better
effect;
General contrast works for all interfaces, and other contrast adjustment in
App optimization may cause superimposed effect. It is recommended to
only use one of them.

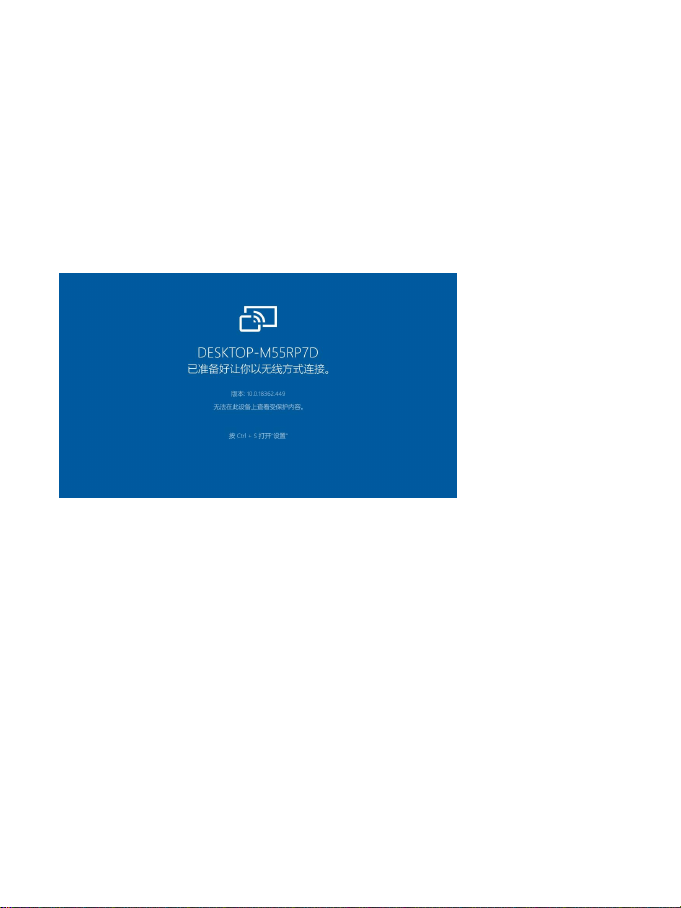

ScreenCast
1. This only supports Windows10. Win7/XP and MacOS are not
supported currently.
2. Please make sure that the computer itself supports the screencast
function, which can be checked in the computer system settings:
System-Projecting to this PC.
Please pay attention to the 4 related settings, which will affect the results
of searching the computer on the device side and the confirmation of the
connection request;
This computer can support the state of screen projection

This computer does not support screen projection
3. Please make sure that the computer and your BOOX are in the same
Wi-Fi environment.
If a desktop computer is connected to Wi-Fi via wireless network card,
please confirm whether it is supported in step 2.
Some computer configurations and wireless network cards do not support
this function;

4. On the device side, select screencast from the system drop-down list.
Then the automatic search will start, and the name of the computer will be
shown when found.

5. In the search window, select the found computer. If there are multiple
supported computers, click Settings to enter the list of supported
computers. Then select the computer that you want to project to from the
list.
6. After you select the computer that you want to project to, the
computer will pop up a notice to confirm whether to accept the projecting
request;
7. After you confirm it, it will automatically connect and the screen will be
mirrored successfully;

If the "Unable to view protected content on this device" appears on the
screen, the connection may be unsuccessful. Please disconnect the
device, and request the screencast connection again.
8. When the devices are connected, please tap the system bar of the
device- Screencast again, and select “disconnect”. The computer
cannot disconnect the connection.
If the computer supports screencast but cannot receive the request,
please restart the computer and try to reconnect again and check whether
the computer configuration rejects the request (see step 2).

Function Area
The function area includes Library, Store, Note, Storage, Apps, and
Settings.
The default Homepage is Library. Double-tap the Navigation Ball to
return to the Homepage
Users can go to Settings / More Settings to set any of the other
function pages as a default Homepage.
Content Area
The contents are sorted by time by default. The contents includes the
following items.
Library
All books in supported format from internal storage are displayed here.
The scanning path can be modified via Library Settings.
Store
Enter into an online eBook store. Users can view more book information
and make a purchase. Purchased books will be added to the list of Library.
