Open Renewables 175-ME48 Setup guide

1.0
Safety & Installation Manual
Open Renewables® PV modules
Applicable only in European Union
Revision 4.50 - 7th March 2013

Safety and Installation Manual
PV systems must be installed
and commissioned by licensed
and qualified professionals.
Use only electrical and
mechanical components
suitable and qualified for PV
systems. Follow the
instructions from the suppliers
of these components.
Open enewables® PV
modules are designed to be
used in grid-tied PV systems.
Safety and Installation Manual
1.0 eneral Information............................................4
2.0 Product specification..........................................4
2.1 Application...........................................................4
2.2 Dimensions and weight.......................................5
2.3 Electrical Specification........................................5
3.0 Safety Instructions..............................................6
3.1 Handling Safety...................................................6
3.2 Installation Safety..............................................6
3.3 Fire Safety............................................................7
4.0 Preparation for operation...................................7
4.1 Storage.................................................................7
4.2 Unpacking............................................................7
5.0 Mechanical Installation .....................................7
5.1 Method “A”..........................................................8
5.2 Method “B”.........................................................8
6.0 Electrical Installation.........................................9
6.1 Safety-related grounding of module frames......9
7.0 Operation...........................................................10
8.0 Maintenance.....................................................10
9.0 Decommissioning and Disposal.......................10
10.0 Customer Support............................................11
10.1 Product Certification.........................................11
10.2 Factory Certification ........................................11
10.3 Contacts............................................................11
10.4 Disclaimer of Liability.......................................11
11.0 EC Declaration of Conformity...........................12

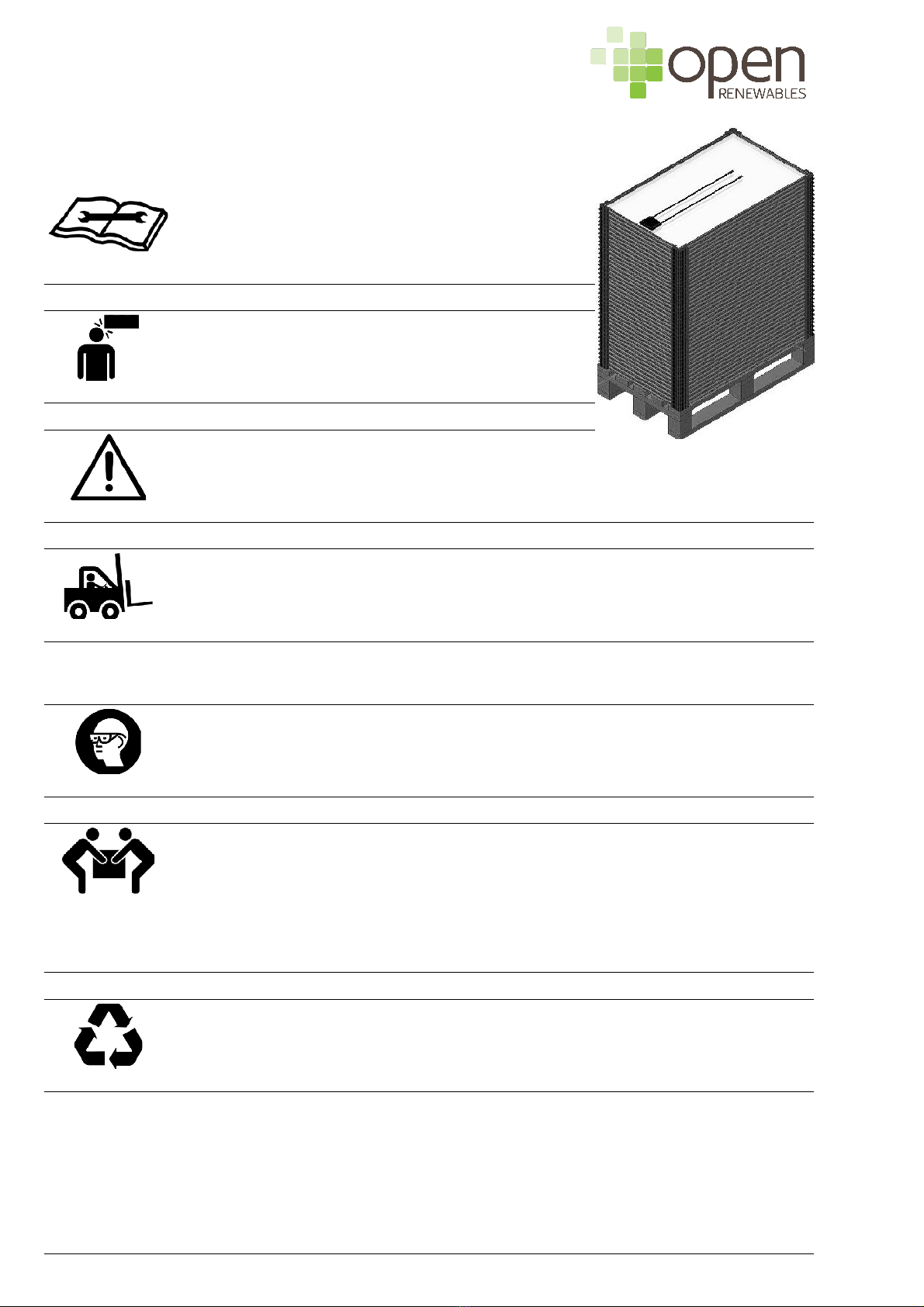

12.0 Unpacking Instructions.....................................13
WARNING !
ELECTRICAL EQUIPMENT
WARNING!
POTENTIAL LETHAL SHOCK FROM ELECTRICALLY LIVE PARTS!
FIRE HAZARD IN CASE OF INCORRECT INSTALLATION!
HAZARD OF FALLING FROM ROOFS!
Keep this ocument for future reference use.
Page 2 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
1.0 eneral Information
We wish to thank you for the preference on Open Renewables® High Quality Photovoltaic Modules.
This manual provides important informations to installers and other solar industry professionals.
End users will find useful information how to operate with Open Renewables® High Quality Photovoltaic Modules on the
“User Manual”.
Please read carefully these instructions and follow them strictly.
The products are not intended to be used in any purpose different then the purpose stated on this handbook. Please
contact your installer for further information.
This manual applies for the following products:
Open 1XX-ME48 175-ME48, 180-ME48, 185-ME48, 190-ME48, 195-ME48, 200-ME48,
205-ME48, 210-ME48
Open 2XX-ME60 220-ME60, 225-ME60, 230-ME60, 235-ME60, 240-ME60, 245-ME60,
250-ME60, 255-ME60, 260-ME60
Open 2XX-PC60 220-PC60, 225-PC60, 230-PC60, 235-PC60, 240-PC60, 245-PC60, 250-PC60
Open 2XX-PQ60 220-PQ60, 225-PQ60, 230-PQ60, 235-PQ60, 240-PQ60, 245-PQ60,
250-PQ60, 255-PQ60, 260-PQ60
Open 2XX-PS60 220-PS60, 225-PS60, 230-PS60, 235-PS60, 240-PS60, 245-PS60,
250-PS60, 255-PS60, 260-PS60
➢ Before handling, installing and operating Open Renewables® PV modules all instructions provided with this
manual shall be understood. Save this document and hand over a copy to the PV system owner.
➢ Follow all applicable national and international regulations and standards.
➢ When unpacking and installing PV modules and BOS components unauthorized people shall be kept in a save
distance to the construction site.
➢ When exposed to light (even under low light conditions), PV modules produce almost full voltage. Current and
power increase with light intensity.
➢ Under operating conditions, a PV module is likely to produce more current and/or voltage than reported at
Standard Test Conditions (1000 W/m2, AM 1.5 and 25 °C cell temperature). Accordingly, the values of short-
circuit current (Isc) and open-circuit voltage (Voc) given on the module label should be multiplied by a factor
of 1.25 when determining component voltage ratings, conductor current rating, fuse sizes, and size of controls
connected to the PV output.
2.0 Product specification
2.1 Application
➢ Do not direct artificially concentrated light on Open Renewables® PV modules.
➢ Open Renewables® PV modules must not be used on vehicles.
➢ Open Renewables® PV modules must not be mounted on locations where aggressive substances could harm
them (particularly salt or salt water).
➢ Open Renewables® PV modules must not become submerged in water.
➢ Open Renewables® PV modules must not be disassembled or modified. Any unauthorized modification of the
product will void the warranty.
Page 3 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
2.2 Dimensions and weight
C
[mm]
L
[mm]
W
[mm]
H
[mm]
Weigth
[Kg]
48 Cell Models 1000 ±3 1343 ±3 988 ±3 40 ±1 18 ±5%
60 Cell Models 1000 ±3 1659.5 ±3 988 ±3 40 ±1 22 ±5%
2.3 Electrical Specification
For the updated electrical specifications, system integration parameters and specific ambient conditions of each solar
module model, please refer to the appliable and valid datasheet. The lastest data sheets can be downloaded from Open
Renewables website, or you may request it by email, fax or letter and we will mail it to you.
Page 4 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

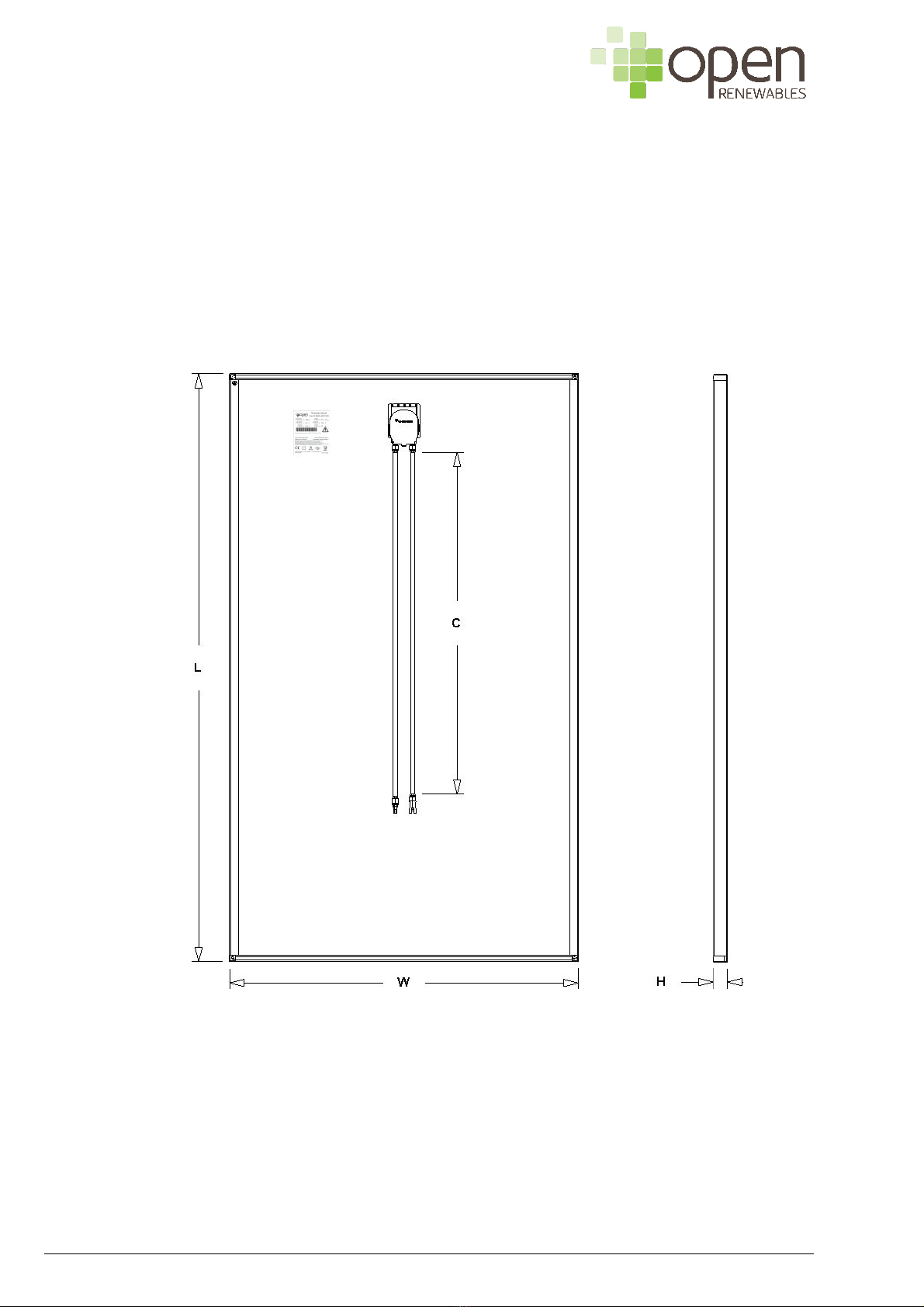

Drawing 1: Open Renewables® PV modules

Safety and Installation Manual
3.0 Safety Instructions
3.1 Handling Safety
➢ Always use protective wear according to your local regulations and to best industry pratices.
➢ Always use the original product packing. Repacking modules using different methods and materials may lead to
module damage or breakage.
➢ The module pallet labels contain information regarding the maximum number of modules which can be stacked,
and the number of stackable pallets. Follow them strictly. Contact your distributor for further information.
➢ PV modules are vulnerable to breakage. Handle them with appropriate care.
➢ Do not damage or scratch the PV module surfaces. Especially do not apply paint or adhesive to the surfaces.
➢ Do not use the junction boxes or cables as a grip.
➢ Do not use a single frame as module grip. Always hold the modules with both hands each grabbing a frame
part.
➢ PV modules with broken glass cannot be repaired and must not be used. Broken glass could cause injury.
Contact with any part of broken PV modules can result in lethal shock. Broken or damaged PV modules must
be handled carefully and disposed of properly.
➢ Do not walk on the module neither use it as a support holder for people, animals or tools. The module may
only be used for the functions it has being designed
➢ Ensure that PV modules are only subjected to ambient temperatures in the range of -30 °C to + 45 °C.
3.2 Installation Safety
➢ When exposed to light (even under low light conditions), PV modules produce almost full voltage. Current and
power increase with light intensity.
➢ Under operating conditions, a PV module is likely to produce more current and/or voltage than reported at
Standard Test Conditions (1000 W/m2, AM 1.5 and 25 °C cell temperature). Accordingly, the values of short-
circuit current (Isc) and open-circuit voltage (Voc) given on the module label should be multiplied by a factor
of 1.25 when determining component voltage ratings, conductor current rating, fuse sizes, and size of controls
connected to the PV output.
➢ Do not install when there are strong or gusty winds, frosted roof surfaces or wet conditions. Do not install or
handle the modules when they are wet.
➢ Before installation visually inspect the module for transportation damages. Never install or expose to sunlight a
module with damaged junction box where live terminals are exposed or accessible.
➢ When installing PV modules above ground follow all applicable safety requirements to avoid possible falling or
other safety hazards.
➢ Open Renewables® PV modules can only be switched off by removing them entirely from light or by fully
covering their front surface with an opaque material. When working with PV modules in light, follow all
applicable regulations regarding working with live electrical equipment. Do not touch electrically live parts
while the PV module is exposed to light.
➢ Fasten the cables to the mounting structure but avoid any mechanical stress on them. Ensure that connectors
are clean and dry before connecting.
➢ Never disconnect electrical connections under load, because direct current can arc across gaps.
➢ Do not wear metallic jewellery while performing installation.
➢ There are no user serviceable parts within the module. Do not attempt to repair any part of the module.
Page 5 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
3.3 Fire Safety
➢ Follow all applicable standards and requirements for fire safety.
➢ The installation of a PV system on a building may affect fire safety. For roof
application, the PV system must be mounted over fire resistant roof covering
rated for the application.
➢ Do not install or use PV modules near hazardous locations with
flammable gases.
 DC Switch  Inverter
 AC Switch  rid
4.0 Preparation for operation
4.1 Storage
➢ For transportation of Open Renewables® modules shall be on the original product packing.
➢ Store the products within the storage conditions limits.
➢ Secure modules against falling and scratching.
4.2 Unpacking
➢ Please read, understand and follow the unpacking instructions, on this manual.
➢ Notice that the packing instructions may change without prior notice, therefore you should consult Open
Renewables® website or request your distributor for the latest version.
5.0 Mechanical Installation
➢ Install the PV modules under a tilt angle of min. 15 degrees in order to allow any dirt being washed away from
rain.
➢ Use support structures specialized for PV applications and designed for local maximum wind and snow loads.
Ensure the PV modules are not subjected beyond the specified wind or snow loads.
➢ Ensure PV modules are not subjected to excessive forces resulting from thermal expansions of the support
structure.
➢ The support structure must not cause any bending or twisting of the PV module.
➢ The distance between the rear module surface and the roof shall be at least 100 mm to allow for proper
cooling. A minimum clearance between PV modules of at least 1.0 cm is required to allow for thermal
expansion of the PV frames.
➢ Keep the rear surface of the PV modules free from any objects which could come into contact with the module,
particularly under mechanical load.
➢ Do not drill any holes on the frames. Modules equipped with 3rd generation frames do not have any pre-drilled
holes. Customers requiring pre-drilled holes should order them in advance.
Page 6 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
Open enewable PV modules supports two different mounting methods:
5.1 Method “A”
➢ Method “A” is only applicable to modules equipped with 1st and 2nd generation frames. Please consult drawing 4
or contact your sales representative to determine which frame equips your module.
➢ Modules shall be mounted using 4 holes located on the rear side of the long frame parts. Use 4 M6 stainless
steel bolts per PV module, with nuts, washers and lock washers see drawing 1).
5.2 Method “B”
➢ The selected mounting structure shall be sufficiently-dimensioned, load-bearing and permanently corrosion-
resistant.
➢ The solar module must be aligned in such way to avoid any total or partial shadowing of the module, even
temporary. Shadowing may lead to damage the solar modules, failure of the PV generator and loss of output.
➢ The modules must be attached to the substructure without tension and deformation at no less than four points,
and the clamp surface per attachment point on the module must be at least 750 mm².

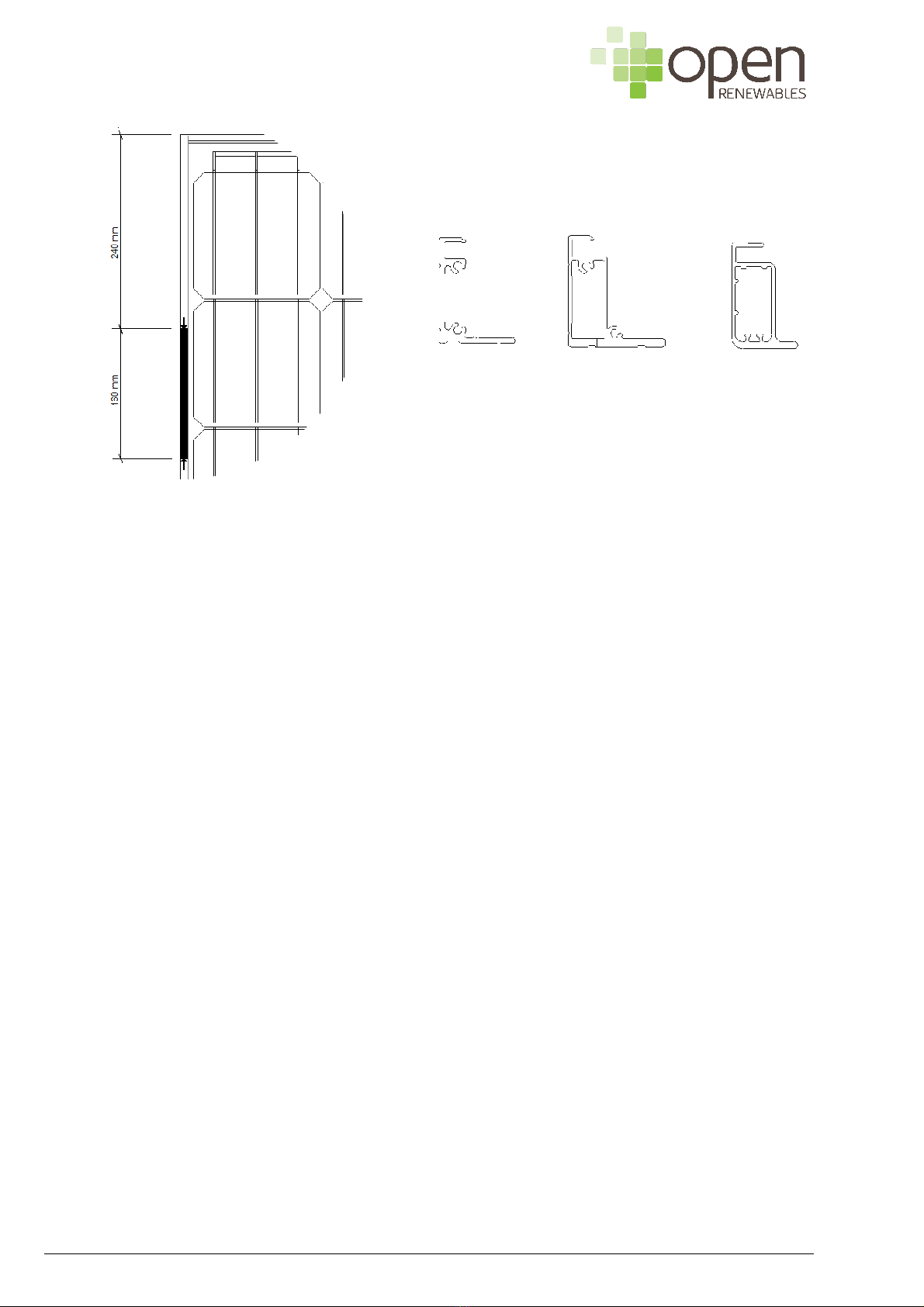

➢ The centreline of the clamps should be centred with the area marked as per drawing 3. Some models have a
pre-printed mark on the frame, for easier mounting.
➢ Follow the mounting instructions of the substructure manufacturer. Use appropriate tools and ensure the torque
is within the manufacturer specified range for the module fixing clamps and other screw connections.
➢ The additional loads which arise by way of the weight and the structural attachment of the PV system are to be
included in the structural analysis of the overall construction.
➢ Attachment with clamps on the narrow sides of the solar module may not be performed.
➢ Attach the solar modules so that they with-stand all foreseeable loads and weather-induced influences.
➢ The substructure and the solar module must have the same heat-expansion coefficient as the aluminum frame.
Contact corrosion between the solar module and the substructure is to be avoided when different materials are
used. Lightning protection is recommended according to local regulations.
➢ The solar module may not stand in tail water or condensation water.
Drawing 1: Mounting method “A” Drawing 2: Mounting method “B”
Page 7 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
1st eneration 2nd eneration 3rd
eneration
Drawing 3: Clamp mounting positioning Drawing 4: Frame enerations
6.0 Electrical Installation
➢ PV modules of different size and/or electrical configurations must not be used in the same system.
➢ Open Renewables® PV modules are factory-equipped with cables and connectors for easy interconnect in series.
➢ Cover all modules in the PV array with an opaque cloth or material before making or breaking electrical
connections.
➢ Open Renewables® recommends that all wiring be double insulated with a minimum temperature rating of
110°C. All wiring should use flexible copper (Cu) conductors. The minimum size should be determined by the
applicable codes. We recommend a size not less than 4mm2. The insulation type should be appropriate for the
type of installation method used and must meet SKII (Safety Class II) and IEC 61730 requirements."
➢ Match the polarities of cables and terminals when making the connections; failure to do so may result in
damage to the PV module.
➢ Ensure that all electrical connections are secure and tight.
➢ A bypass-diode is integrated in one of the 2 PV module junction boxes. This diode is not user-replaceable. The
junction box must not be opened in the field. Doing so will void the warranty.
➢ When connecting module in series be aware the module voltages will be summed. The maximum number of PV
modules being connected in series must be calculated in line with the applicable regulations in such a way that
the specified maximum system voltage of the PV module and all other electrical DC components will not be
exceeded in open-circuit operation.
➢ Not more than 2 PV modules or module strings shall be connected in parallel without using series fuses rated at
20 Ampere minimum.
➢ PV modules with a suspected electrical problem should be returned to Open Renewables® for inspection and
subsequent actions as described in the Open Renewables® LIMITED WARRANTY FOR PV-MODULE(S).
6.1 Safety-related grounding of module frames
➢ Open Renewables® strongly recommends grounding of PV module frames even when applicable regulations,
code requirements and standards do not require any safety-related grounding. On 1st and 2nd generation frames
the long frame rails are provided with holes should be used for grounding purposes only and in accordance
with the local regulations, code requirements and standards, as per drawing 4, bellow. On the 3rd generation
the any of the corner pieces can be used to connect the module to ground using a self tapping screw, ST 4.8
with a length between 6 and 16mm.
Page 8 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
Drawing 4 – Module rounding connection on 1st and 2nd eneration frame equiped modules.
Drawing 5 – Module rounding connection on 3rd eneration frame equiped modules.
7.0 Operation
➢ Before connecting a PV system to the grid the entire system must be checked and tested according to the
applicable regulations for low voltage electrical systems and for grid-connected power generators.
➢ Depending on local utility policies the connection to the grid and start-up of the PV system may only be
performed by an authorized installer.
8.0 Maintenance
➢ Open Renewables® PV modules do not require any routine maintenance. However, Open Renewables®
recommends that PV systems are checked periodically - at least once a year - and any significant changes are
reported immediately. Pay special attention to loose or corroded mechanical and electrical connections.
➢ The performance of the PV modules might be affected by dust, dirt or other deposits on the surface. In this case
Open Renewables® recommends cleaning the surface of the modules with cold water and a sponge. Do not use
harsh cleaning materials such as scouring powder, steel wool, scrapers, blades or other sharp instruments to
clean the glass surface of the module. Use of such materials will void the product warranty.
9.0 Decommissioning and Disposal
Open Renewables® is strongly committed with environment protection. Your Open Renewables® PV modules will last for
decades and were built using non-dangerous materials. When this product reaches end of life we will assist you to recycle
it. Open Renewables® is a full member of PV Cycle, a manufacturers association which provide PV system users a recycling
service. Please contact your Open Renewables® distributor who will provide you with detailed instructions. Please note that
transportation, de-installation and any other cost associated remain customer responsibility.
Page 9 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
10.0 Customer Support
➢ Technical support shall be provided by the installer to final customer.
➢ Open Renewables® provides technical support through the distributor to Installer.
➢ End customers can visit Open Renewables® website, www.openrenewables.com to obtain technical support or
additional information.
10.1 Product Certification
Open Renewables® High Quality modules are certified accordingly to IEC 61215:2005 and IEC 61730:2008 by Tüv Rheinland®
in ermany. You can retrieve the latest certificates at Open Renewables web page www.openrenewables.com .
10.2 Factory Certification
Open Renewables® High Quality modules are build in ISO9001:2008 certified factories. You can retrieve the latest
certificates at Open Renewables web page www.openrenewables.com .
10.3 Contacts
Open Renewables, SA
Rua Anibal Tavares
Apartado 332
7002-506 Évora
Portugal
[email protected]
www.openrenewables.com
10.4 Disclaimer of Liability
Because the use of this Safety, Installation and Operation Manual and the methods and conditions of handling,
installation, operation and maintenance of the PV modules are beyond Open Renewables® control, Open Renewables®
does not assume responsibility and disclaims liability for loss, damage, injury or expense arising out of or in any way
connected with such handling, installation, operation or maintenance of the Open Renewables® PV modules. Open
Renewables® assumes no responsibility for any infringement of patents or other rights of other parties that may result from
use of the PV modules. No license is granted implicitly or otherwise under any patent or patent rights. The information
provided in this Safety, Installation and Operation Manual including suggestions do not constitute a warranty, expressed or
implied. Open Renewables® reserves the right to make changes to the product, specifications or this manual without prior
notice. This document may be provided in several languages. In case of a conflict among versions, the English language
version prevails.
Page 10 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
11.0 EC Declaration of Conformity
EC Declaration o Con ormity
Open Renewables, SA
ZI Almeirim, Rua B Nº 11
7002-506 Évora - Portugal
Products:
Open 1XX-ME48 175-ME48, 180-ME48, 185-ME48, 190-ME48, 195-ME48, 200-ME48,
205-ME48, 210-ME48
Open 2XX-ME60 220-ME60, 225-ME60, 230-ME60, 235-ME60, 240-ME60, 245-ME60,
250-ME60, 255-ME60, 260-ME60
Open 2XX-PC60 220-PC60, 225-PC60, 230-PC60, 235-PC60, 240-PC60, 245-PC60, 250-PC60
Open 2XX-PQ60 220-PQ60, 225-PQ60, 230-PQ60, 235-PQ60, 240-PQ60, 245-PQ60,
250-PQ60, 255-PQ60, 260-PQ60
Open 2XX-PS60 220-PS60, 225-PS60, 230-PS60, 235-PS60, 240-PS60, 245-PS60,
250-PS60, 255-PS60, 260-PS60
We herewith confirm on our sole responsibility that above mentioned products meet the requirements on the following
directives and Standards:
➢ Directive 2006/95/EC, Electrical Equipment for use within certain Voltage Limits
➢ Directive 2004/108/EC, Electromagnetical Compatibility
➢ Directive 93/68/EEC, CE Marking
➢ Standard IEC61215 ed.2, Crystalline silicon terrestrial photovoltaic (PV) modules – Design qualification and type
approval.
➢ Standard IEC61730 Class A, Photovoltaic (PV) module safety Qualification
➢ Standard EN50830, Datasheet and Nameplate information for photovoltaic modules
Open Renewables, SA
Évora, March 4th 2013.
Rui Serra Lobo
Page 11 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union

Safety and Installation Manual
12.0 Unpacking Instructions
ead and Follow these instructions
Lesen und befolgen Sie diese Anweisungen
Lisez et suivez ces instructions
Leia e siga estas instruções
Solar modules should be transported and handled with care.
Solar module sollten sorgfältig transportiert und behandelt werden.
Des modules solaires devraient être transportés et manipulés avec soin.
Os módulos solares devem ser transportados e manuseados com cuidado.
Check Documents and Search for Transport Damages.
Überprüfen Sie Dokumente und suchen Sie nach Transportschäden.
Vérifiez les documents et recherchez les dommages de lié aux transports.
Verifique a Documentação e potenciais danos de transporte.
Always use appropriate forklifts for the weight and height of the pallet.
Benutzen Sie immer für das Gewicht und die Höhe der Palette passende Gabelstapler.
Utilisez toujours les chariots élévateurs appropriés pour le poids et la taille de la palette.
Utilize sempre empilhadores apropriados à altura e peso da palete a manusear.
Wear safety shoes, gloves and glasses while unpacking the solar modules.
Tragen Sie Sicherheitsschuhe, Handschuhe und Schutzbrillen beim Auspacken der Solar module.
Portez les chaussures, les gants et les lunettes protecteurs tout en déballant les modules.
Utilize sapatos, luvas e óculos de protecção quando desempacotar os módulos solares.
Two persons shall move the modules from the pallet, one of each time, and place them under a plain and
safe surface. Pull the plastic holder and remove the part from the module.
Entnahme der Module von den Paletten nur durch zwei Personen. Ablage der Module nur auf einer ebenen
und gesicherten Fläche. Entfernen Sie die Plastikecken von den Modulen.
Deux personnes déplaceront les modules de la palette, un de chaque fois, et les placent sous une surface
plate et sûre. Tirez le support en plastique et enlevez la pièce du module.
Duas pessoas devem desencaixar os módulos da palete, um de cada vez, e coloca-los sob uma superfície
plana e segura. Puxe as patilhas da peça plástica e retire-as do módulo.
euse or recycle the plastic corners. Carton, wood and plastic should also be recycled.
Verwenden Sie die Ecken aus Plastik, den Karton, das Holz und die Plastik wieder.
éutilisez les coins en plastique,le carton, le bois et le plastique.
ecicle ou reutilize os cantos plásticos. O cartão, madeira e plástico devem ser reciclados.
Page 12 of 12
Document ID: OR-MA-2XX Revision 4.50 04-03-2013 © 2013 Open Renewables® – All rights reserved EN Applicable only in European Union
