Jinko Solar JKM-160M-72 User manual

Rev. C
1
Photovoltaic Module User Manual （UL1703）
Table of Contents:
1. General information………………………………..………..…………….2-5
1.1 Overview
1.2 Applicable Products
1.3 Warning
2. Installation……………............................................................................5-11
2.1Installation safety
2.2Installation condition
2.2.1 Operation condition
2.2.2 Site selection
2.2.3 Tilt angle selection
2.3 Mechanical Installation introduction
2.3.1 Fixation with screw
2.3.2 Fixation with clamps
3. Wiring and connection…………………………………………..………..12-14
4. Maintenance and care……………………………..………………………..14-15
5. Electrical specification…………………………..………………………..15-20
6. Disclaimer of liability………………………………...………………………21
7. Contact us……………………………………………………………………...22
photovoltaikforum.com

Rev. C
2
1. General Information
1.1 Overview
Thanks for choosing Jinko Solar PV modules. In order to ensure the PV modules to
be installed correctly, please read the following operation instructions carefully before
installing and using the modules.
Please remember that the products would generate electricity and certain safety
measures need to be taken to avoid danger.
1.2 Applicable Products
This document is applicable to the series of solar module as listed below:
JKMxxxM-72(xxx=160-200, in increment of 5)
JKMxxxM-60(xxx=200-250, in increment of 5)
JKMxxxP-60(xxx=200-250, in increment of 5)
JKMxxxM-72(xxx=250-315, in increment of 5)
JKMxxxP-72(xxx=250-315, in increment of 5)
Make sure the array of modules installed with the Maximum permitted system voltage
and the rating current and voltage of the sub-equipments such as regulators and
inverters. The maximum permitted system voltage (DC) of the modules sold in
America and Canada is 600V.
This module has a Class C Fire Rating and must be installed over a roof which is with
appropriate fire resistance. Before mounting the module, please consult your local
building department to determine approved roofing materials.
The modules are qualified for application class A, and modules qualified for safety
through UL61730 within this application class are considered to meet the
requirements of Safety Class II
1.3
PV modules generate DC electrical energy when exposed to sunlight or other
light sources. Active parts of module such as terminals can result in burns, sparks,
and lethal shock
photovoltaikforum.com

Rev. C
3
Artificially concentrated sunlight shall not be directed on the module or panel.
Solar modules have a protective glass front. Broken solar module glass is an
electrical safety hazard (electric shock and fire). These modules cannot be
repaired and should be replaced immediately.

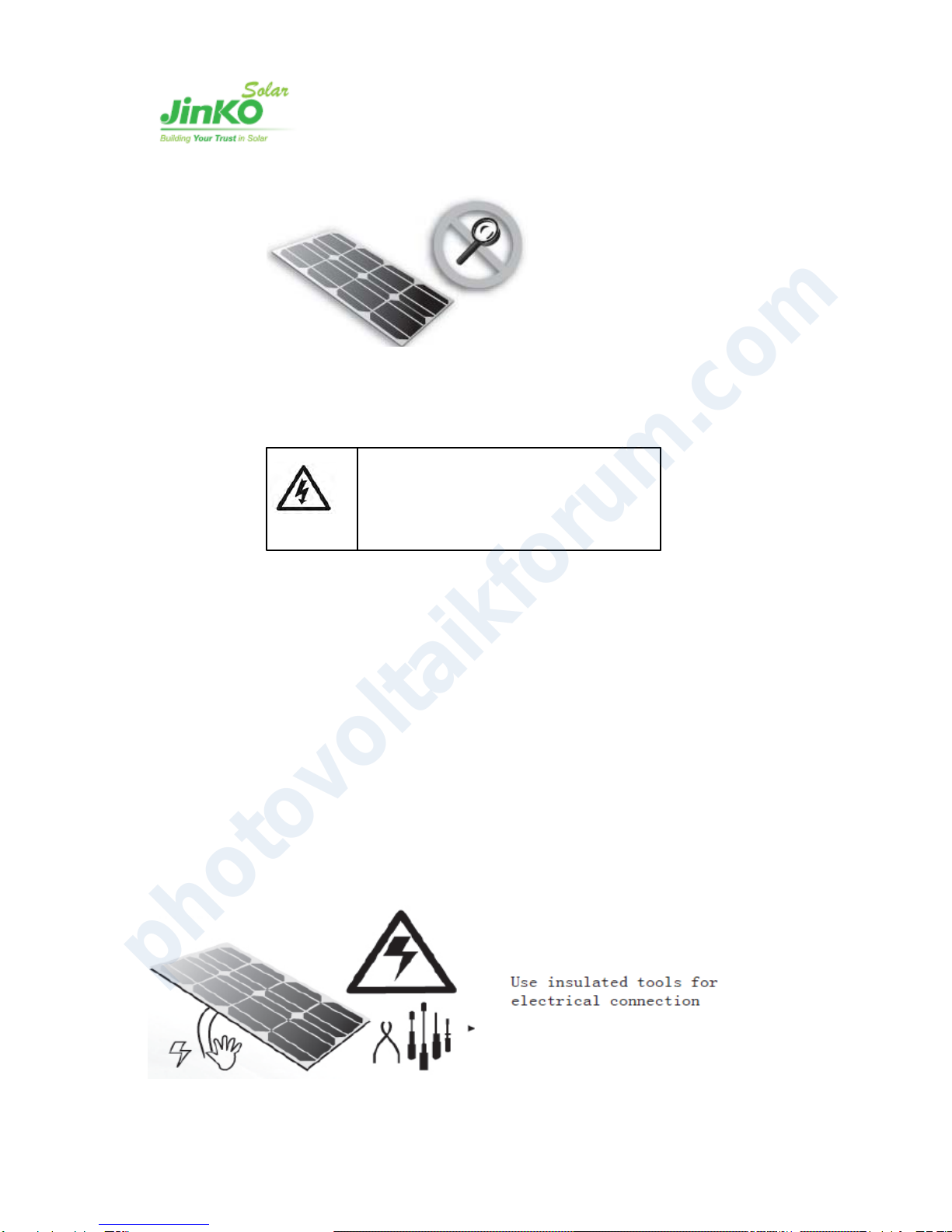

Electric Shock and Burn Hazard
This photovoltaic module produces
Electricity when exposed to the sun
To reduce the risk of electrical shocks or burns, modules may be covered with an
opaque material during installation to avoid shocks or burns.
All installations must be performed in compliance with the National Electrical
Code (NEC) and modules installed in Canada need to follow Canadian electric
code.
The installation work of the PV array can only be done under the protection of
sun-sheltering covers or sunshades and only qualified person can install or
perform maintenance work on this module.
Follow the battery manufacture‘s recommendations if batteries are used with
module
Do not use this module to replace or partly replace roofs and walls of living
buildings.
Do not install modules where flammable gas may be present.
Do not touch live terminals with bare hands. Use insulated tools for electrical
connections.
warning
photovoltaikforum.com

Rev. C
4
Do not remove any part installed by Jinko Solar or disassemble the module.
All instructions should be read and understood before attempting to install, wire,
operate and maintain the module.
Please don’t lift up PV modules using the attached cables or the junction box.
All PV systems must be earthed. If there is no special regulation, please follow
the National Electrical Code or other national code.
Under normal conditions, a photovoltaic module is likely to experience
conditions that produce more current and/or voltage than reported at standard
test conditions. Accordingly, the value of Isc and Voc marked on this module
should be multiplied by 1.25 when determining component voltage ratings,
conductor current ratings, fuse sizes, and size of controls connected to the PV
output.
Once the PV module has been shipped to the installation site, all of the parts
should be unpacked properly with care.
Do not stand or step on the PV module like below pictures show,this is prohibited
and . There can be risks of micro-crack which may cause a sharp declince of
module’s power performance ,what’s more, it may threat your safty.
Only PV modules with the same cell size should be connected in series.
During all transportation situations, please make sure no huge shock for the
vehicle or the modules, as this may damage the module or lead the cell to be
crack.
During all transportation situation, never let the module fall down from the vehicle,
house or hands. This will break the cells of the modules.
Do not clean the glass with chemicals.
Do not disconnect any of the module when it is under load.
2. Installation
2.1 Installation safety
Always wear protective head gear, insulating gloves and safety shoes (with
photovoltaikforum.com

Rev. C
5
rubber soles).
Keep the PV module packed in the carton until installation.
Do not touch the PV module unnecessarily during installation. The glass surface
and the frame may be hot. There is a risk of burns and electric shock.
Do not work in rain, snow or windy conditions.
Due to the risk of electrical shock, do not perform any work if the terminals of the
PV module are wet.
Use insulated tools and do not use wet tools.
When installing PV modules, do not drop any objects (e.g., PV modules or tools).
Make sure flammable gasses are not generated or present near the installation
site.
Insert interconnect connectors fully and correctly. Check all connections.
The interconnect cable should be securely fastened to the module frame, Cable
support should be done in a way to avoid the connector from scratching or
impacting the back sheet of the module.
Do not touch the terminal box and the end of the interconnect cables (connectors)
with bare hands during installation or under sunlight, regardless of whether the
PV module is connected to or disconnect from the system.
Do not expose the PV module to excessive loads on the surface of the PV
module or twist the frame.
Do not hit or put excessive load on the glass or back sheet, this may break the
cells or cause micro crack.
During the operation, don’t use sharp tools to wipe the back sheet and glass, it
would leave scratch on the module.
Do not drill holes on the frame, it may cause corrosion of the frame.
For BIPV or roof mounting structure, when install the modules, please try to follow
the “from top to bottom” and/or “from left to right” principle, and don’t step on the
module, that will damage the module and would be dangerous for personal
safety.
2.2 Installation Condition
2.2.1 Climate condition
Please install the modules in the following conditions:
a) Operating temperature: within –40°C(-4℉) to 85°C (185℉)
b) Relative humidity: within 45% to 95%.
﹡Note: The mechanical load bearing (include wind and snow loads) of the module is
based on the mounting methods. The professional system installer must be
responsible for mechanical load calculation according to the system design.
2.2.2 Site selection
photovoltaikforum.com

Rev. C
6
In most applications, Jinko solar PV modules should be installed in a location where
they will receive maximum sunlight throughout the year. In the Northern Hemisphere,
the module should typically face south, and in the Southern Hemisphere, the modules
should typically face north. Modules facing 30 degrees away from true South (or
North) will lose approximately 10 to 15 percent of their power output. If the module
faces 60 degrees away from true South (or North), the power loss will be 20 to 30
percent.
When choosing a site, avoid trees, buildings or obstructions, which could cast
shadows on the solar photovoltaic modules especially during the winter months when
the arc of the sun is lowest over the horizon. Shading causes loss of output, even
though the factory fitted bypass diodes of the PV module will minimize any such loss.
Do not install the PV module near naked flame or flammable materials.
When solar modules are used to charge batteries, the battery must be installed in a
manner, which will protect the performance of the system and the safety of its users.
Follow the battery manufacturer’s guidelines concerning installation, operation and
maintenance recommendations. In general, the battery (or battery bank) should be
away from the main flow of people and animal traffic. Select a battery site that is
protected from sunlight, rain, snow, debris, and is well ventilated. Most batteries
generate hydrogen gas when charging, which can be explosive. Do not light matches
or create sparks near the battery bank. When a battery is installed outdoors, it should
be placed in an insulated and ventilated battery case specifically designed for the
purpose.
Do not install the PV module in a location where it would be immersed in water or
continually exposed to water from a sprinkler or fountain etc.
2.2.3 Tilt angle selection
The tilt angle of the PV module is measured between the surface of the PV module
and a horizontal ground surface (Figure 1). The PV module generates maximum
output power when it faces the sun directly.

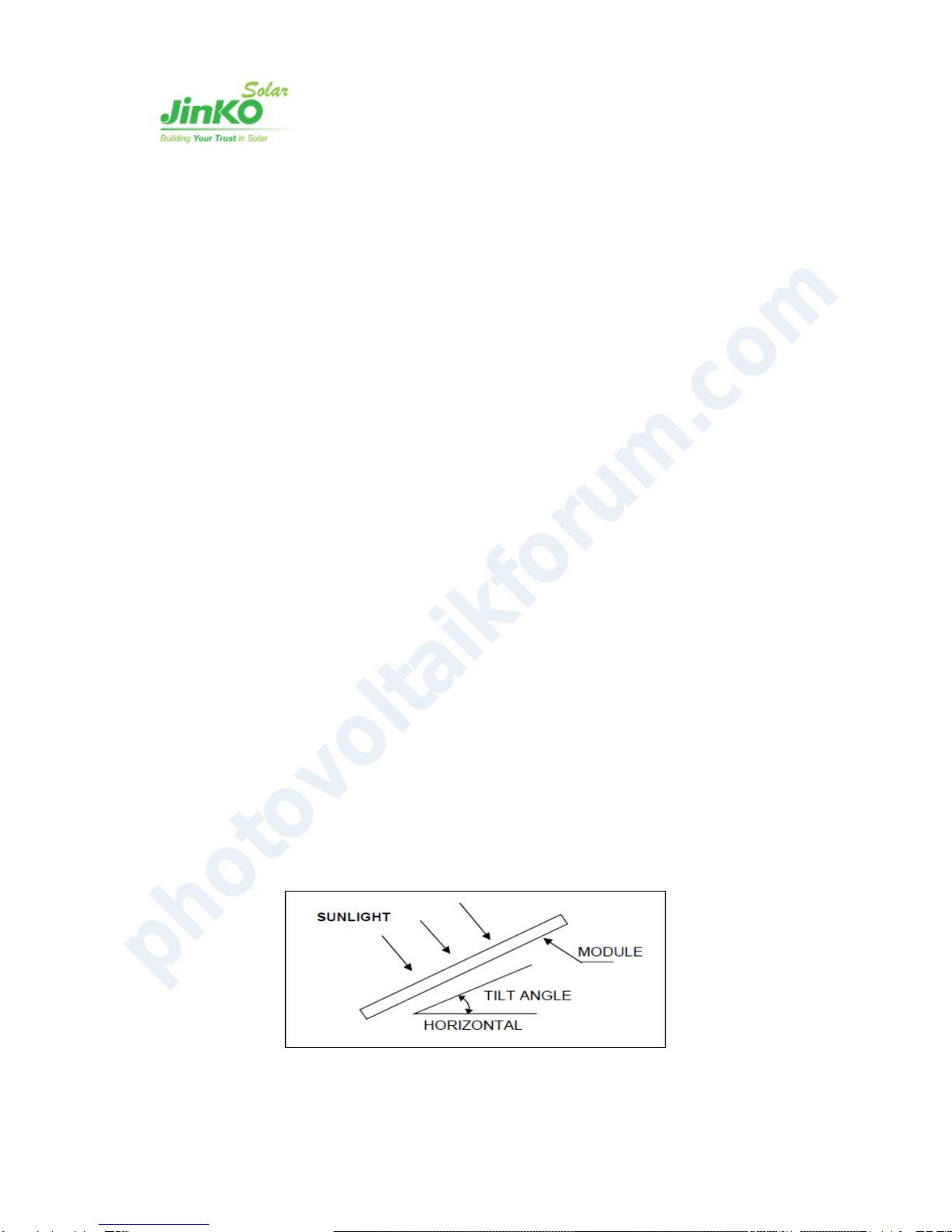

Figure1: PV module title angle
photovoltaikforum.com

Rev. C
7
For standalone systems with batteries where the PV modules are attached to a
permanent structure, the tilt angle of the PV modules should be selected to optimize
the performance based on seasonal load and sunlight. In general, if the PV output is
adequate when irradiance is low (e.g., winter), then the angle chosen should be
adequate during the rest of the year. For grid-connected installations where the PV
modules are attached to a permanent structure, PV modules should be tilted so that
the energy production from the PV modules will be maximized on an annual basis.
2.3 Mechanical Installation introduction
Solar PV modules can be mounted using the following methods:
﹡Note: All installation methods herein are only for reference, and Jinko solar will not
provide related mounting components, the system installer or trained professional
personnel must be responsible for the PV system’s design, installation, and
mechanical load calculation and security of the system.
﹡Note: before installing, you should confirm below important things:
1) Visual check before installation, to make sure there is no bug in the packing and
junction box as well as the surface of module, If have , remove and clean it .
2) Check the series number is right or not.
﹡Note: Jinko modules are designed to meet a maximum positive (or upward) and
negative (or downward,) pressure of 30 lb/ft² . When mounting modules in
snow-prone or high-wind environments, Special care should be taken to mount the
modules in a manner that provides sufficient design strength while meeting local code
requirements
2.3.1 Screw fitting:
The frame of each module has 8 mounting holes (Length* Width: 14mm*9mm) used
to secure the modules to support structure. you can use the four symmetry holes
close to the inner side on module frame. If excessive wind or snow load are
expected, you must use all the eight mounting holes. The module frame must be
attached to a mounting rail using M8 corrosion-proof screws together with spring
washers and flat washers in eight symmetrical locations on the PV module. The
applied torque should be big enough to fix it steadily. Please find detailed mounting
information in the below illustration,
photovoltaikforum.com

Rev. C
8

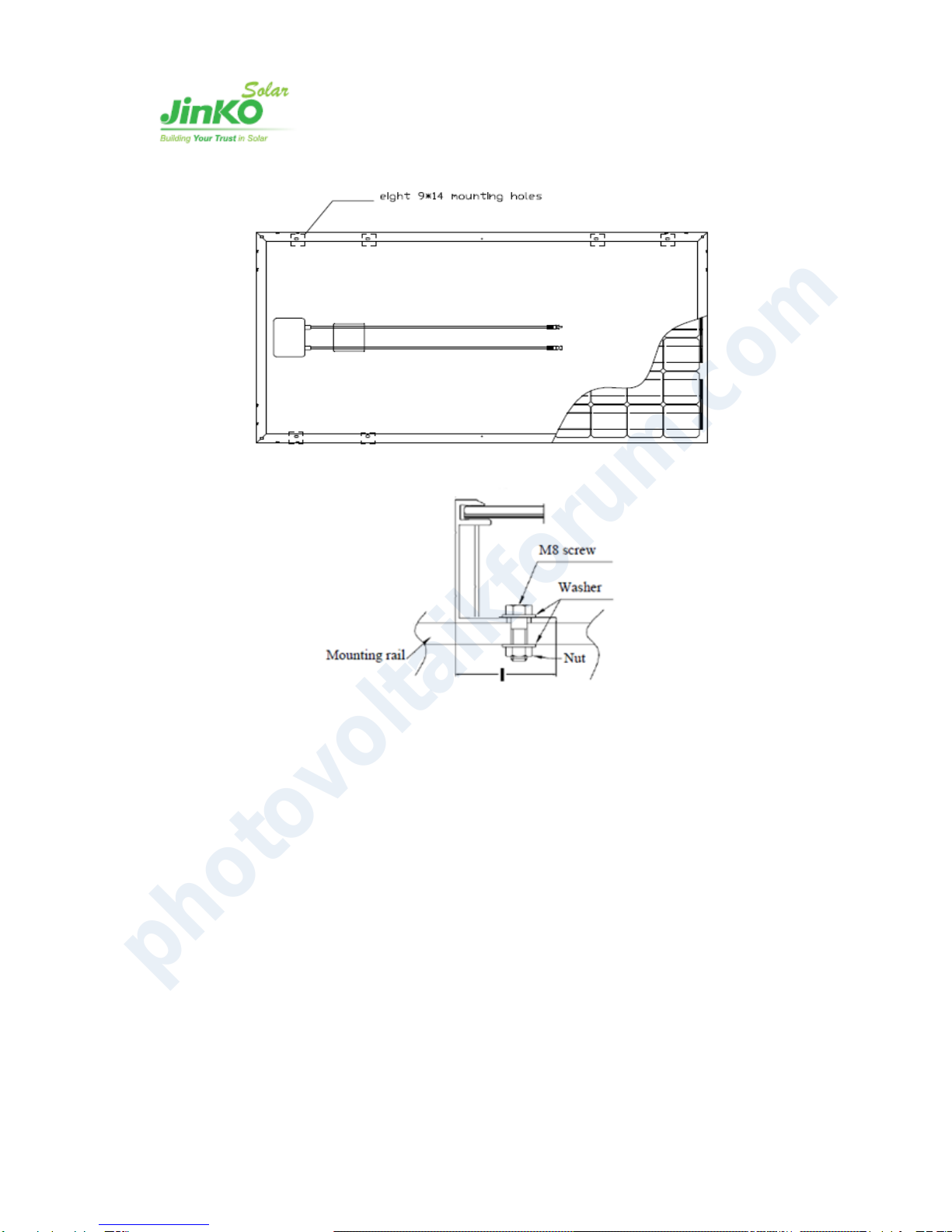

Figure 2 above: PV module installed with Screw fitting method*
2.3.2 Fixation with clamps (at long side or short side)
The module clamps should not come into contact with the front glass and must not
deform the frame. Be sure to avoid shadowing effects from the module clamps. The
module frame is not to be modified under any circumstances. When choosing this
type of clamp-mounting method, please be sure to use at least four clamps on each
module, two clamps should be attached on each long or short sides of the module.
Depending on the local wind and snow loads, if excessive pressure load is
expected, additional clamps or support would be required to ensure the module can
bear the load. The applied torque should be big enough to fix it steadily（about 8
Newton-meter ）, for safety, you’d better follow the clamps manufacture’s
recommendation. Please find detailed mounting information in the below illustration,
the mounting place distance is suggested bigger than J and less than K，as shown
below.
photovoltaikforum.com

Rev. C
9
Figure3 above: PV module installed at long side with Clamp fitting method
photovoltaikforum.com

Rev. C
10
Table 1 above: Mechanical dimensions when modules installed at long side with Clamp fitting
method
Figure 4 above: PV module installed at short side with Clamp fitting method
photovoltaikforum.com

Rev. C
11
Table 2 above: Mechanical dimensions when modules installed at short side with Clamp fitting
method
3. Wiring and connection
a) Before this procedure, please read the operation instructions of the PV system
carefully. Make wiring by Multi-connecting cables between the PV modules in
series or parallel connection, which is determined by user’s configuration
requirement for system power, current and voltage.
b) PV module connected in series should have similar current. Modules must not be
connected together to create a voltage higher than the permitted system
voltage(600VDC), as reference the maximum number of modules in series (N) can
be easily calculated by dividing the Maximum System Voltage of the modules by
the respective Voc value of the module. Any more please always take into
consideration the variation of the voltage under different temperatures, the Voc of
the modules will be rise when the temperature drops.
For example: with JKM190M-72 modules (Max. System voltage is 600V) the
maximum series modules configuration number should NEVER can exceed N= 13
(600V/45.2V = 13.2)
c) PV module connect in parallel should have similar voltage. As reference the
maximum number of modules in parallel (M) can be easily calculated by dividing
the maximum rated current ( indicated in the electrical specification below) by Isc
value of the module, and then plus 1. Any more please always take into
consideration the variation of the current under different temperatures, the Isc of
the modules will be rise when the temperature goes up.
d) Open the connection box of the control system and connect the cabled from the PV
arrays to the connection box in accordance with the installation indication of the PV
control systems. The cross-sectional area and cable connector capacity must
satisfy the maximum short-circuit of PV system (For a single component, we
recommended the cross-sectional area of cables is 4mm2and the rated current of
photovoltaikforum.com

Rev. C
12
connectors is more than 10A), otherwise cables and connectors will become
overheating for large current. Please pay attention: the temperature limit of cables
is 85℃and the temperature limit of connector 105℃

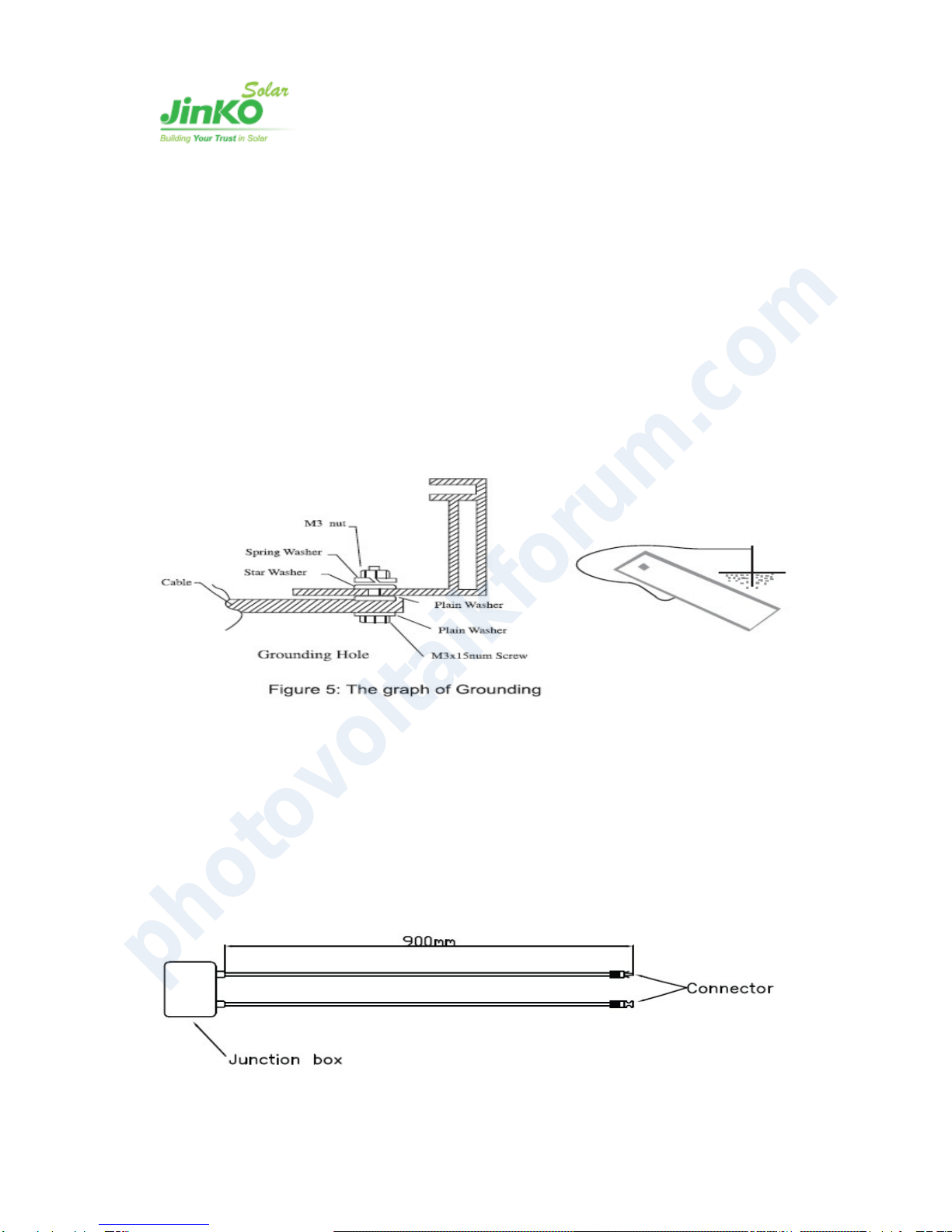

e) All module frames and mounting racks must be properly grounded in accordance
with local and national electrical codes. Attach the equipment grounding conductor
to the module frame using the hole and hardware provided. Not that a stainless
steel star washer is used between the ground wire and module frame (see picture
below).This washer is used to avoid correosion due to dissimilar metals.Tighten the
screw securely.
f) Follow the requirements of applicable local and national electrical codes.
g)These modules contain factory installed bypass diode .if these modules are
incorrectly connected to each other, the bypass diodes, cable or junction box may
be damaged.
h) The cable of the junction box is 900mm, as showed in below picture, please take
the cable length into consideration before designing the wiring layout.
photovoltaikforum.com

Rev. C
13
4. Maintenance and care
a) A built up of dust or dirt on the module(s) front face will result in a decreased
energy output. Clean the panel(s) preferably once per annum if possible (depend on
site conditions) using a soft cloth dry or damp, as necessary.
b) Never use abrasive material under any circumstances.
c) Examine the PV module(s) for signs of deterioration. Check all wiring for possible
rodent damage, weathering and that all connections are tight and corrosion free.
Check electrical leakage to ground.
d) Check fixing screws and mounting brackets are tight, adjust and tighten as
necessary.
5. Electrical specification
The module electrical rating are measured under Standard Test Conditions, which
are 1000W/m2, irradiance with AM 1.5 spectrum and 25 deg (77°F) ambient
temperature. The module might produce more or less voltage or current than rating
value in uncertainty condition. Accordingly, the values of ISC and VOC marked on this
module should be multiplied by a factor of 1.25 when determining component voltage
ratings, conductor current ratings, fuse sizes, and size of controls connected to the
PV output. Tables below are electrical characteristics of PV products at STC and the
tolerance of Isc，Voc，Vmp and Imp is±10%.
photovoltaikforum.com

Rev. C
14
5.1.Electrical specifications of JKM xxxM-72(xxx=160-200)Series Monocrystalline solar modules
Module Type JKM-
160M JKM- 165M JKM- 170M JKM- 175M JKM- 180M JKM- 185M JKM- 190M JKM- 195M JKM- 200M
Maximum Power at STC(Pmax) 160Wp 165Wp 170Wp 175Wp 180Wp 185Wp 190Wp 195Wp 200Wp
Maximum Power Voltage (Vmp) 35.0V 35.3V 35.5V 35.8V 36.0V 36.4V 36.6V 36.8V 36.9V
Maximum Power Current (Imp) 4.57A 4.67A 4.79A 4.90A 5.00A 5.09A 5.19A 5.30A 5.42 A
Open-circuit Voltage (Voc) 43.9V 44.1V 44.3V 44.7V 44.8V 45.0V 45.2V 45.4V 45.6V
Short-circuit Current (Isc) 4.93A 5.02A 5.12A 5.23A 5.29A 5.43A 5.56A 5.67A 5.80A
Maximum system Voltage 600VDC
Dimensions 1580×808x35mm(62.20×31.81x1.38inch); 1580×808x45mm(62.20×31.81x1.77inch),
Maximum rated current series(A) 10A
photovoltaikforum.com

Rev. C
15
5.2.Electrical specifications of JKMxxxM-96(xxx=220-270)Series Monocrystalline solar modules
Module Type JKM-
220M JKM- 225M JKM- 230M JKM- 235M JKM- 240M JKM- 245M JKM- 250M JKM- 255M JKM- 260M JKM- 265M JKM- 270M
Maximum Power at
STC(Pmax) 220Wp 225Wp 230Wp 235Wp 240Wp 245Wp 250Wp 255Wp 260Wp 265Wp 270Wp
Maximum Power
Voltage (Vmp) 48.0V 48.3V48.5V 48.8V 49.0V 49.1V 49.5V 50.0V 50.5V 51.0V 51.5V
Maximum Power
Current (Imp) 4.58A4.66A4.74A4.81A 4.89A4.99A 5.05A 5.10A5.15A5.20A 5.24A
Open-circuit
Voltage (Voc) 58.8V 58.9V 59.1V 59.1V 59.5V 59.7V 59.9V 60.5V 61.1V 61.7V 62.3V
Short-circuit
Current (Isc) 5.01A5.11A5.19A5.19A5.35A 5.50A 5.61A 5.66A5.72A5.77A 5.82A
Maximum system
Voltage 600VDC
Dimensions 1575×1082x45(62.01×42.6 x1.77 inch) ; 1575x1082x50(62.01×42.6 x1.97 inch)
Maximum rated
current series(A) 15A
photovoltaikforum.com

Rev. C
16
5.3. Electrical specifications of JKMxxxP-60(xxx=200-250)Series polycrystalline solar modules
Module Type JKM-2
00P JKM- 205P JKM- 210 P JKM- 215 P JKM- 220 P JKM- 225 P JKM- 230 P JKM- 235 P JKM- 240 P JKM- 245 P JKM- 250 P
Maximum Power at
STC(Pmax) 200Wp 205Wp 210Wp 215Wp 220Wp 225Wp 230Wp 235Wp 240Wp 245Wp 250Wp
Maximum Power Voltage
(Vmp) 28.7V 28.8V 29.0V 29.1V 29.2V 29.4V 29.6V 29.8V 30.0V 30.2V 30.4V
Maximum Power Current
(Imp) 6.97A 7.12A 7.24A 7.39A 7.53A 7.65A 7.78A 7.89A 8.01A 8.12A 8.23A
Open-circuit Voltage (Voc) 36.2V 36.3V 36.4V 36.5V 36.6V 36.7V 36.8V 36.9V 37.2V 37.4V 37.6V
Short-circuit Current (Isc) 7.65A 7.76A 7.88A 7.99A 8.10A 8.25A 8.35A 8.47A 8.56A 8.69A 8.81A
Maximum system Voltage 600VDC
Dimensions 1650×992x45(64.97×39.06 x1.77 inch) ; 1650x992x50(64.97×39.06 x1.97 inch)
Maximum rated current
series(A) 15A
photovoltaikforum.com

Rev. C
17
5.4. Electrical specifications of JKMxxxM-72(xxx=250-315)Series polycrystalline solar modules
Module Type JKM-
250M JKM- 255M JKM- 260M JKM- 265M JKM- 270M JKM- 275M JKM- 280M JKM- 285M JKM- 290M JKM- 295M JKM- 300M JKM- 305M JKM- 310M JKM- 315M
Maximum Power at STC(Pmax) 250Wp 255Wp 260Wp 265Wp 270Wp 275Wp 280Wp 285Wp 290Wp 295Wp 300Wp 305Wp 310Wp 315Wp
Maximum Power Voltage (Vmp) 36.5V 35.6V 35.8V 35.8V 35.9V 36.1V 36.3V 36.8V 37.2V 37.6V 38.0V 38.2V 38.5V 38.7V
Maximum Power Current (Imp) 7.02A 7.16A 7.26A 7.40A 7.52A 7.61A 7.71A 7.74A 7.79A 7.85A 7.90A 7.09A 8.05A 8.13A
Open-circuit Voltage (Voc) 44.3V 44.4V 44.6V 44.8V 45.0V 45.3V 45.4V 45.4V 45.7V 46.0V 46.4V 46.8V 47.1V 47.4V
Short-circuit Current (Isc) 7.75A 7.90A 8.00A 8.13A 8.35A 8.37A 8.39A 8.41A 8.50A 8.59A 8.67A 8.72A 8.78A 8.85A
Maximum system Voltage 600VDC
Dimensions 1956x992x50(77.01×39.08 x1.97 inch)
Maximum rated current series(A) `15A
photovoltaikforum.com

Rev. C
18
5.5. Electrical specifications of JKMxxxP-72(xxx=250-315)Series polycrystalline solar modules
5.6.Electrical specifications of JKMxxxM-60(xxx=200-250)Series Monocrystalline solar modules
Module Type JKM-
250P JKM- 255P JKM- 260P JKM- 265P JKM- 270P JKM- 275P JKM- 280P JKM- 285P JKM- 290P JKM- 295P JKM- 300P JKM- 305P JKM- 310P JKM- 315P
Maximum Power at STC(Pmax) 250Wp 255Wp 260Wp 265Wp 270Wp 275Wp 280Wp 285Wp 290Wp 295Wp 300Wp 305Wp 310Wp 315Wp
Maximum Power Voltage (Vmp) 34.7V 34.9V 35.0V 35.1V 35.2V 35.4V 35.5V 36.0V 36.4V 36.8V 37.2V 37.4V 37.7V 37.9V
Maximum Power Current (Imp) 7.20A 7.31A 7.43A 7.55A 7.67A 7.77A 7.89A 7.92A 7.97A 8.02A 8.07A 8.16A 8.22A 8.31A
Open-circuit Voltage (Voc) 43.5V 43.7V 43.9V 44.1V 44.2V 44.4V 44.5V 44.7V 44.9V 45.2V 45.4V 45.6V 45.8V 46.1V
Short-circuit Current (Isc) 8.11A 8.20A 8.30A 8.42A 8.59A 8.70A 8.81A 8.85A 8.89A 8.95A 8.98A 9.05A 9.08A 9.12A
Maximum system Voltage 600VDC
Dimensions 1956x992x50(77.01×39.08 x1.97 inch)
Maximum rated current series(A) `15A
photovoltaikforum.com

Rev. C
19
Module Type JKM-2
00M JKM- 205M JKM- 210 M JKM- 215 M JKM- 220 M JKM- 225 M JKM- 230 M JKM- 235 M JKM- 240 M JKM- 245 M JKM- 250 M
Maximum Power at
STC(Pmax) 200Wp 205Wp 210Wp 215Wp 220Wp 225Wp 230Wp 235Wp 240Wp 245Wp 250Wp
Maximum Power Voltage
(Vmp) 28.8V 29.0V 29.2V 29.3V 29.5V 29.7V 29.9V 30.0V 30.2V 30.4V 30.6V
Maximum Power Current
(Imp) 6.94A 7.07A 7.19A 7.34A 7.46A 7.57A 7.69A 7.83A 7.95A 8.06A 8.17A
Open-circuit Voltage (Voc) 36.5V 36.6V 36.7V 36.8V 36.9V 37.0V 37.1V 37.2V 37.3V 37.4V 37.6V
Short-circuit Current (Isc) 7.51A 7.62A 7.76A 7.85A 7.97A 8.08A 8.20A 8.31A 8.45A 8.58A 8.70A
Maximum system Voltage 600VDC
Dimensions 1650×992x45(64.97×39.06 x1.77 inch) ; 1650x992x50(64.97×39.06 x1.97 inch)
Maximum rated current
series(A) 15A
photovoltaikforum.com

Rev. C
20
6.Disclaimer of Liability
Because the use of the manual and the conditions or methods of installation, operation, use and maintenance of
photovoltaic (pv) product are beyond Jinko’s control, Jinko does not accept responsibility and expressly disclaims liability
for loss ,damage, or expense arising out of or in any way connected with such installation, operation, use or maintenance.
No responsibility is assumed by Jinko for any infringement of patents or other rights of third parties, which may result from
use of the PV product.. NO license is granted by implication or otherwise under any patent or patent rights.
The information in this manual is based on Jinko’s knowledge and experience and is believed to be reliable, but such
information including product specification(without limitations)and suggestions do not constitute a warranty, expresses or
implied .Jinko reserve the right to change the manual, the PV produce, the specifications, or product information sheets
without prior notice.
photovoltaikforum.com
